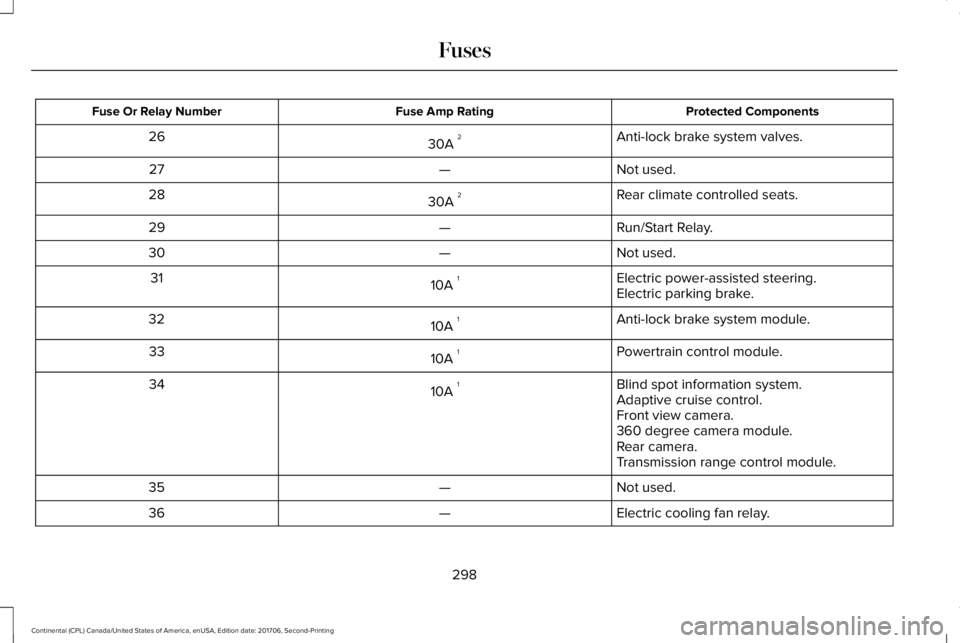

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Anti-lock brake system valves.30A 226
Not used.—27
Rear climate controlled seats.30A 228
Run/Start Relay.—29
Not used.—30
Electric power-assisted steering.10A 131Electric parking brake.
Anti-lock brake system module.10A 132
Powertrain control module.10A 133
Blind spot information system.10A 134Adaptive cruise control.Front view camera.360 degree camera module.Rear camera.Transmission range control module.
Not used.—35
Electric cooling fan relay.—36
298
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

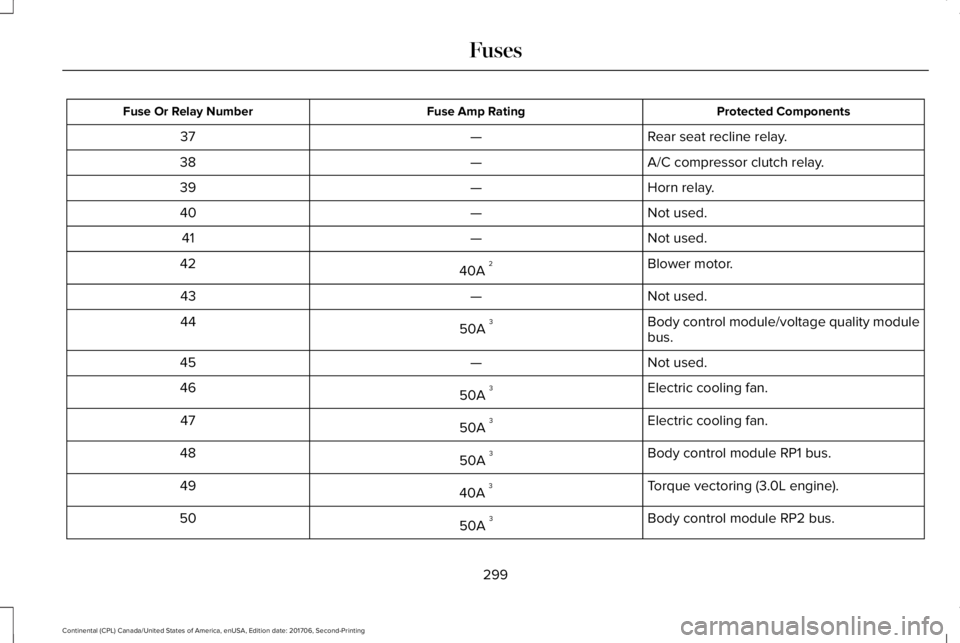

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Rear seat recline relay.—37
A/C compressor clutch relay.—38
Horn relay.—39
Not used.—40
Not used.—41
Blower motor.40A 242
Not used.—43
Body control module/voltage quality modulebus.50A 344
Not used.—45
Electric cooling fan.50A 346
Electric cooling fan.50A 347
Body control module RP1 bus.50A 348
Torque vectoring (3.0L engine).40A 349
Body control module RP2 bus.50A 350
299
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

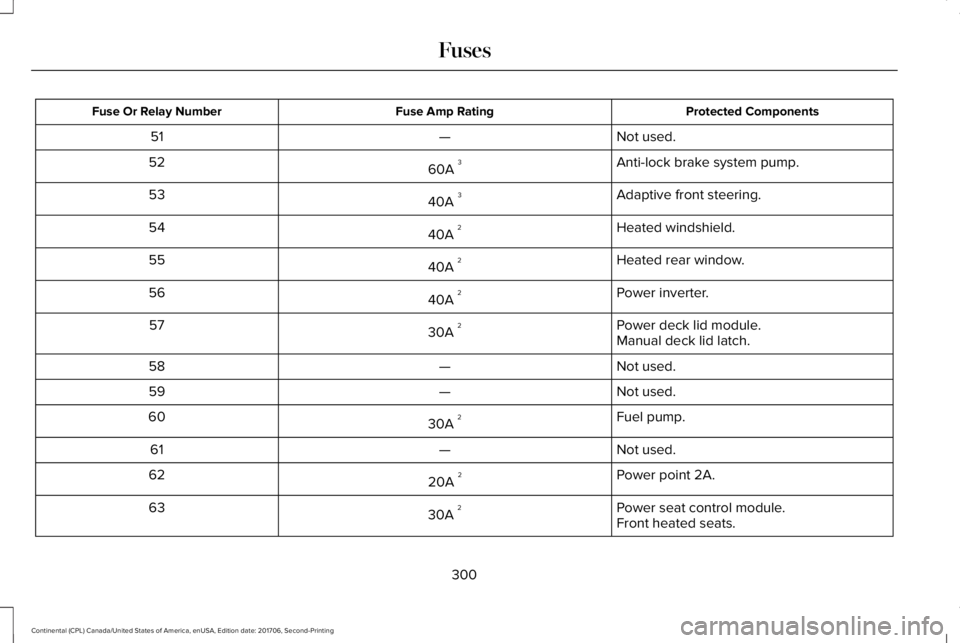

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—51
Anti-lock brake system pump.60A 352
Adaptive front steering.40A 353
Heated windshield.40A 254
Heated rear window.40A 255
Power inverter.40A 256
Power deck lid module.30A 257Manual deck lid latch.
Not used.—58
Not used.—59
Fuel pump.30A 260
Not used.—61
Power point 2A.20A 262
Power seat control module.30A 263Front heated seats.
300
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

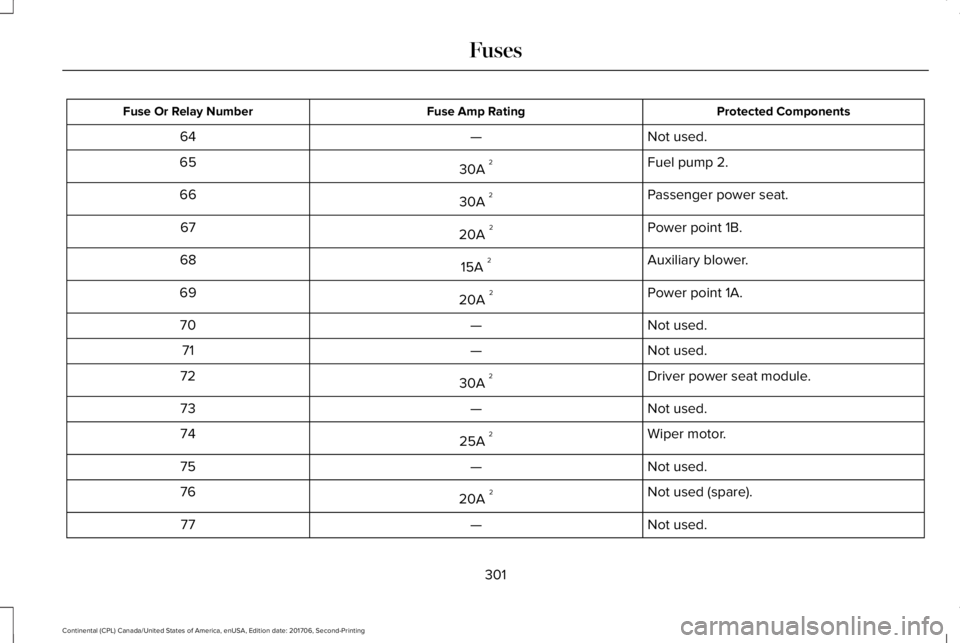

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—64
Fuel pump 2.30A 265
Passenger power seat.30A 266
Power point 1B.20A 267
Auxiliary blower.15A 268
Power point 1A.20A 269
Not used.—70
Not used.—71
Driver power seat module.30A 272
Not used.—73
Wiper motor.25A 274
Not used.—75
Not used (spare).20A 276
Not used.—77
301
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

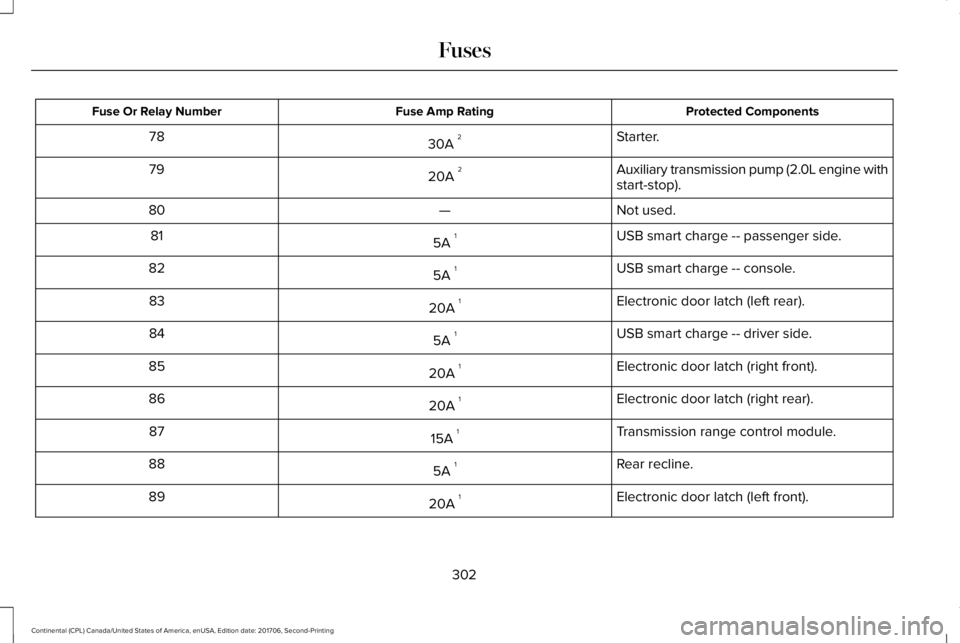

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Starter.30A 278
Auxiliary transmission pump (2.0L engine withstart-stop).20A 279
Not used.—80
USB smart charge -- passenger side.5A 181
USB smart charge -- console.5A 182
Electronic door latch (left rear).20A 183
USB smart charge -- driver side.5A 184
Electronic door latch (right front).20A 185
Electronic door latch (right rear).20A 186
Transmission range control module.15A 187
Rear recline.5A 188
Electronic door latch (left front).20A 189
302
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

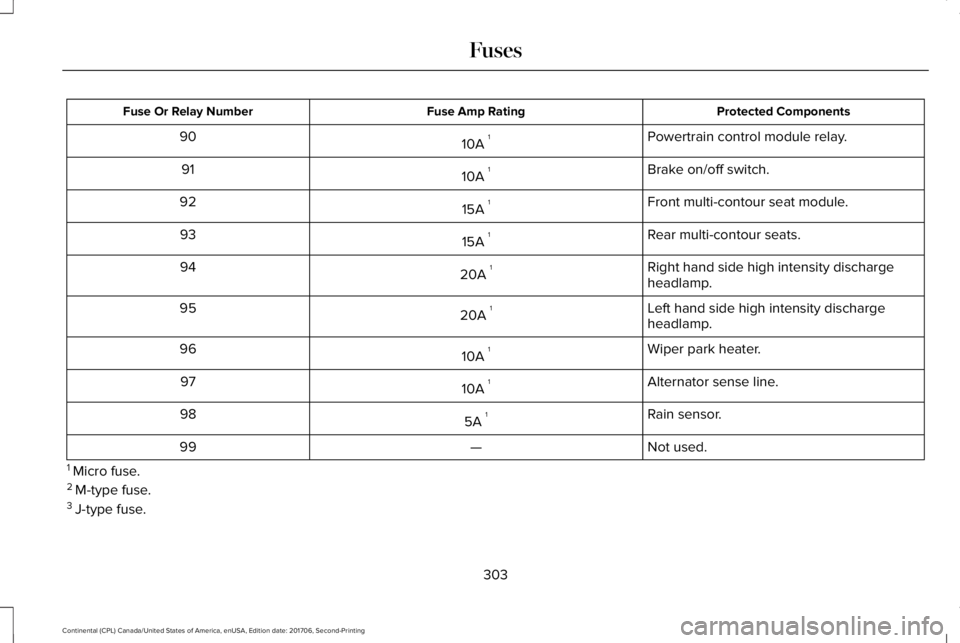

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Powertrain control module relay.10A 190
Brake on/off switch.10A 191
Front multi-contour seat module.15A 192
Rear multi-contour seats.15A 193
Right hand side high intensity dischargeheadlamp.20A 194
Left hand side high intensity dischargeheadlamp.20A 195
Wiper park heater.10A 196
Alternator sense line.10A 197
Rain sensor.5A 198
Not used.—99
1 Micro fuse.2 M-type fuse.3 J-type fuse.
303
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

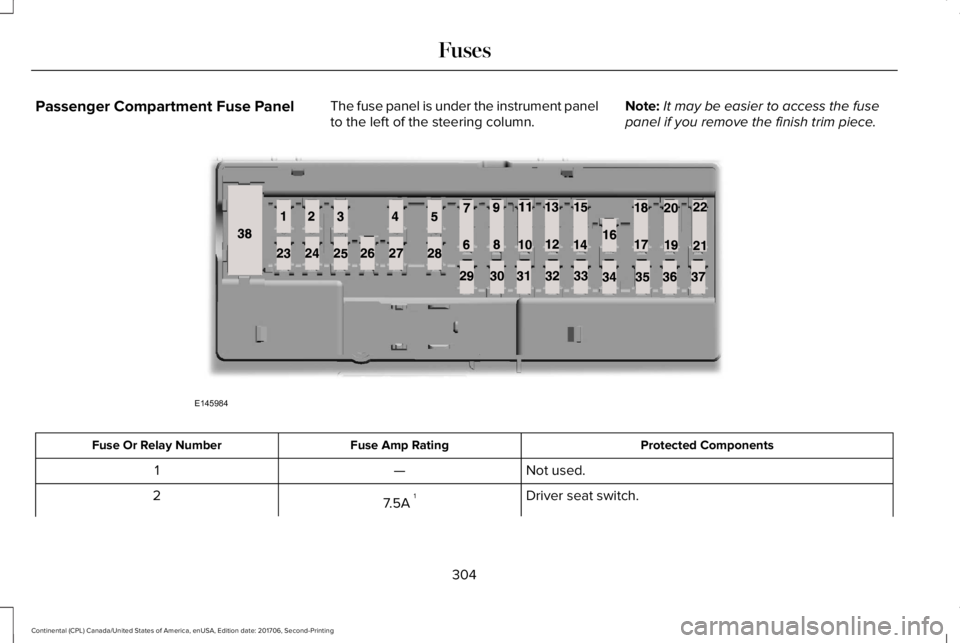

Passenger Compartment Fuse PanelThe fuse panel is under the instrument panelto the left of the steering column.Note:It may be easier to access the fusepanel if you remove the finish trim piece.
Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—1
Driver seat switch.7.5A 12
304
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
FusesE145984

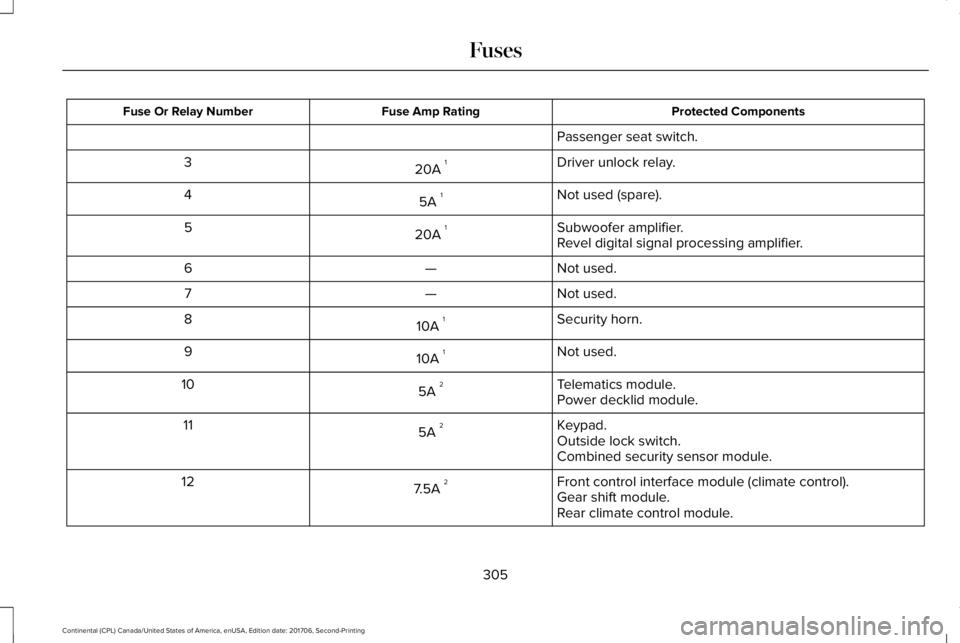

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Passenger seat switch.
Driver unlock relay.20A 13
Not used (spare).5A 14
Subwoofer amplifier.20A 15Revel digital signal processing amplifier.
Not used.—6
Not used.—7
Security horn.10A 18
Not used.10A 19
Telematics module.5A 210Power decklid module.
Keypad.5A 211Outside lock switch.Combined security sensor module.
Front control interface module (climate control).7.5A 212Gear shift module.Rear climate control module.
305
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

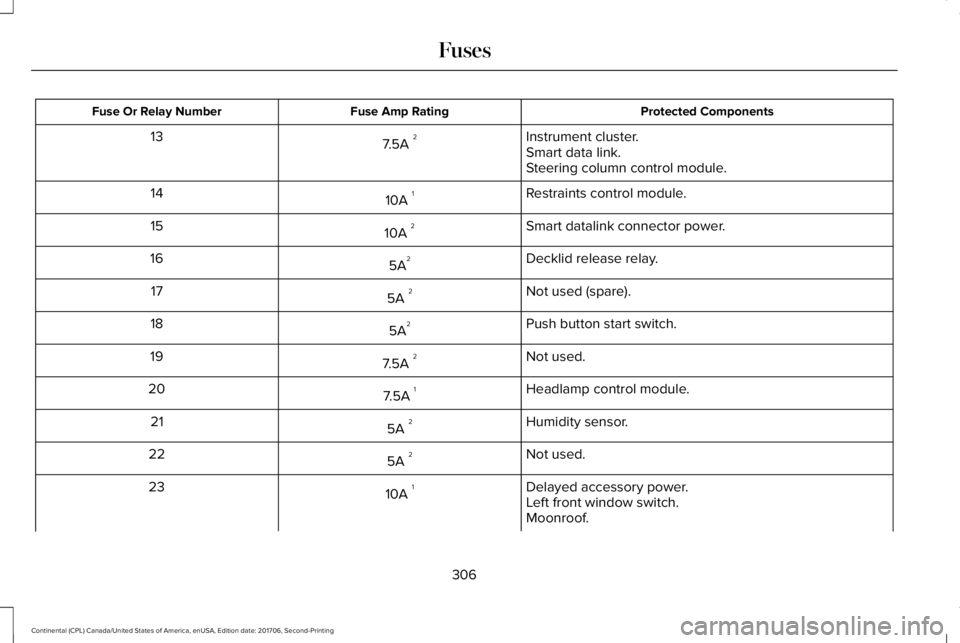

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Instrument cluster.7.5A 213Smart data link.Steering column control module.
Restraints control module.10A 114
Smart datalink connector power.10A 215
Decklid release relay.5A216
Not used (spare).5A 217
Push button start switch.5A218
Not used.7.5A 219
Headlamp control module.7.5A 120
Humidity sensor.5A 221
Not used.5A 222
Delayed accessory power.10A 123Left front window switch.Moonroof.
306
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

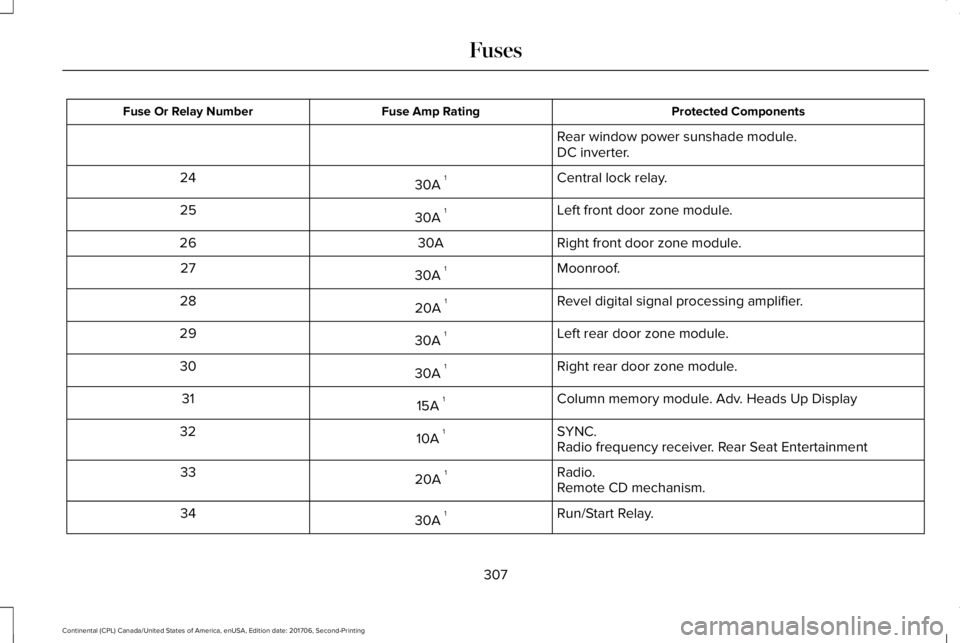

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Rear window power sunshade module.DC inverter.
Central lock relay.30A 124
Left front door zone module.30A 125
Right front door zone module.30A26
Moonroof.30A 127
Revel digital signal processing amplifier.20A 128
Left rear door zone module.30A 129
Right rear door zone module.30A 130
Column memory module. Adv. Heads Up Display15A 131
SYNC.10A 132Radio frequency receiver. Rear Seat Entertainment
Radio.20A 133Remote CD mechanism.
Run/Start Relay.30A 134
307
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses
