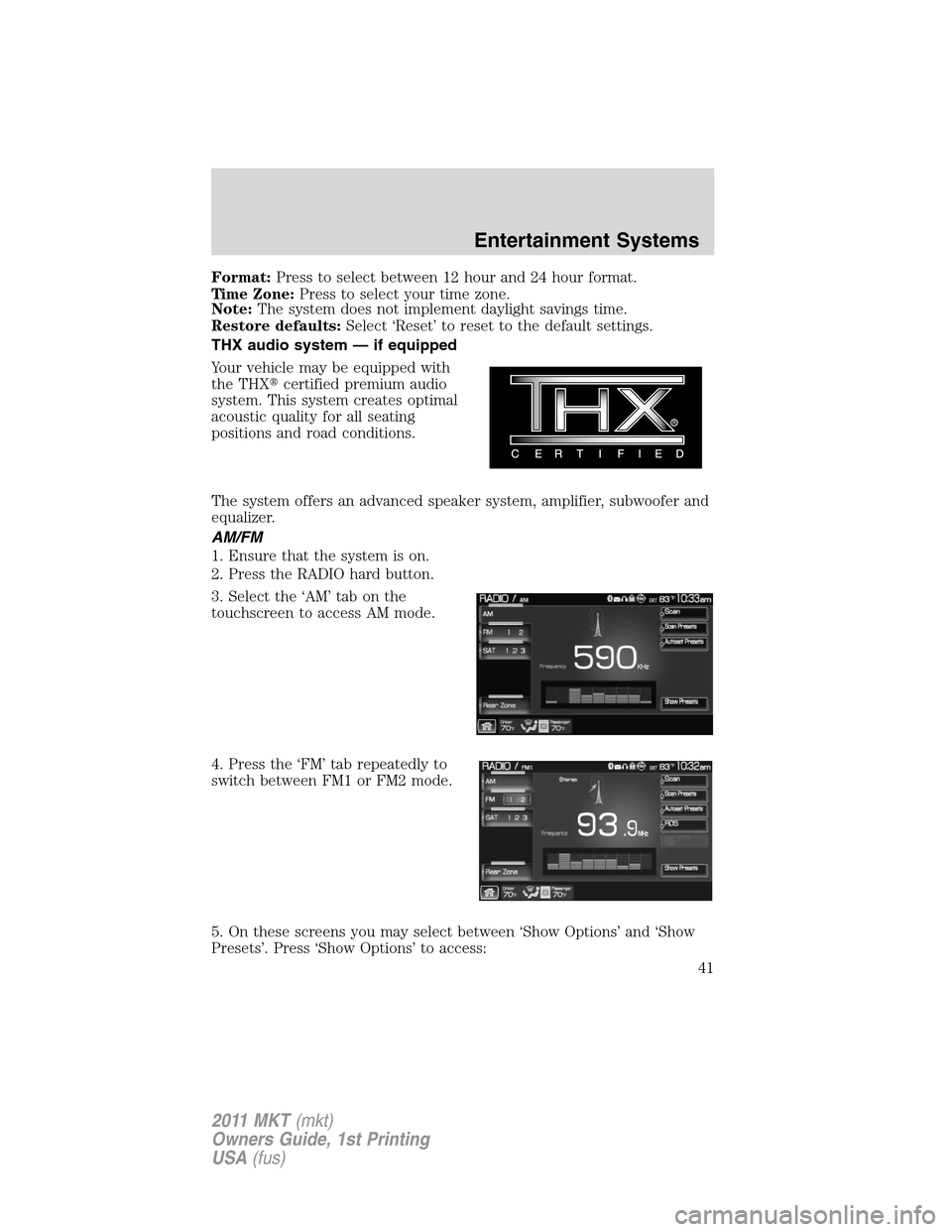

Format:Press to select between 12 hour and 24 hour format.
Time Zone:Press to select your time zone.
Note:The system does not implement daylight savings time.
Restore defaults:Select ‘Reset’ to reset to the default settings.
THX audio system — if equipped
Your vehicle may be equipped with
the THXcertified premium audio
system. This system creates optimal
acoustic quality for all seating
positions and road conditions.
The system offers an advanced speaker system, amplifier, subwoofer and
equalizer.
AM/FM
1. Ensure that the system is on.
2. Press the RADIO hard button.
3. Select the ‘AM’ tab on the
touchscreen to access AM mode.
4. Press the ‘FM’ tab repeatedly to
switch between FM1 or FM2 mode.
5. On these screens you may select between ‘Show Options’ and ‘Show
Presets’. Press ‘Show Options’ to access:
Entertainment Systems
41
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

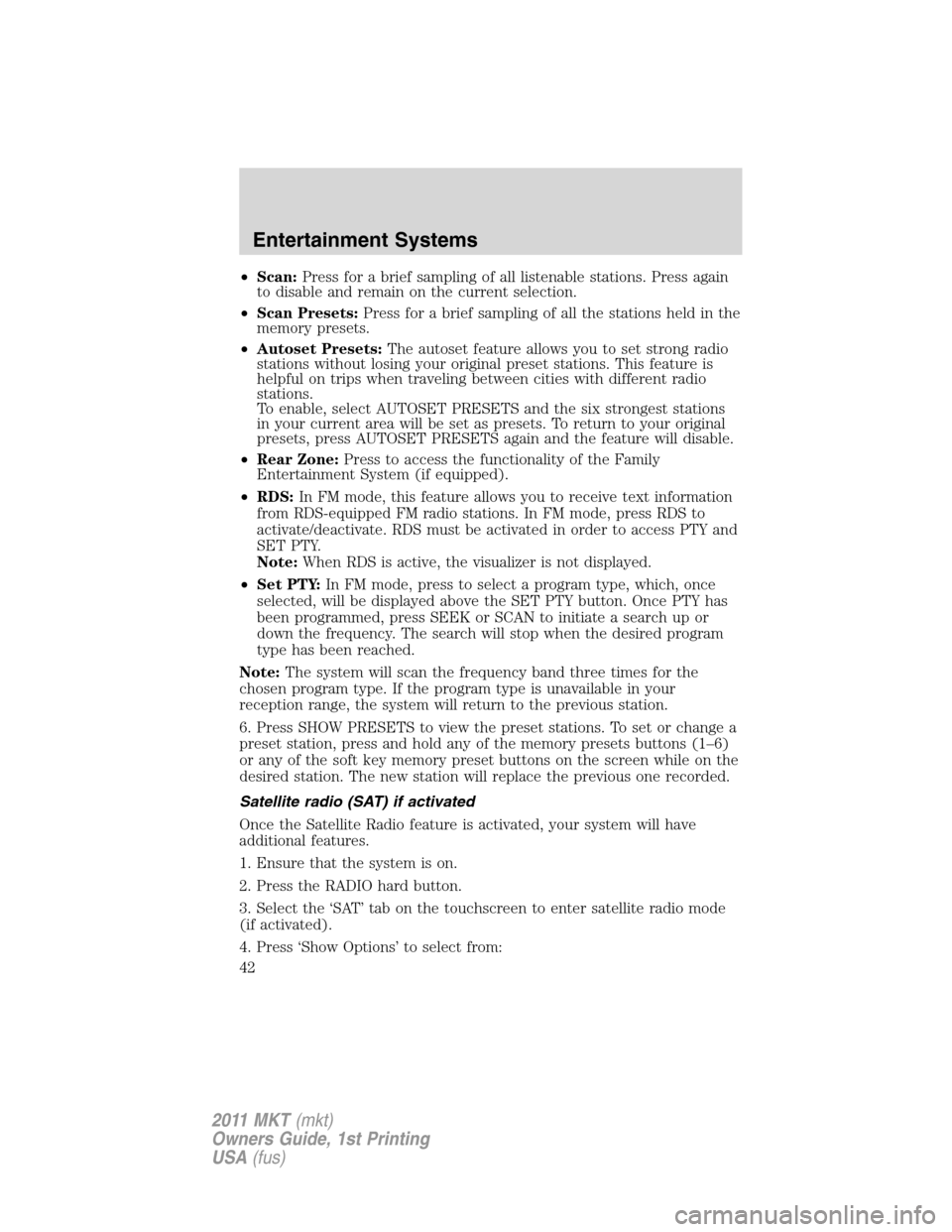

•Scan:Press for a brief sampling of all listenable stations. Press again
to disable and remain on the current selection.
•Scan Presets:Press for a brief sampling of all the stations held in the
memory presets.
•Autoset Presets:The autoset feature allows you to set strong radio
stations without losing your original preset stations. This feature is
helpful on trips when traveling between cities with different radio
stations.
To enable, select AUTOSET PRESETS and the six strongest stations
in your current area will be set as presets. To return to your original
presets, press AUTOSET PRESETS again and the feature will disable.
•Rear Zone:Press to access the functionality of the Family
Entertainment System (if equipped).
•RDS:In FM mode, this feature allows you to receive text information
from RDS-equipped FM radio stations. In FM mode, press RDS to
activate/deactivate. RDS must be activated in order to access PTY and
SET PTY.
Note:When RDS is active, the visualizer is not displayed.
•Set PTY:In FM mode, press to select a program type, which, once
selected, will be displayed above the SET PTY button. Once PTY has
been programmed, press SEEK or SCAN to initiate a search up or
down the frequency. The search will stop when the desired program
type has been reached.
Note:The system will scan the frequency band three times for the
chosen program type. If the program type is unavailable in your
reception range, the system will return to the previous station.
6. Press SHOW PRESETS to view the preset stations. To set or change a
preset station, press and hold any of the memory presets buttons (1–6)
or any of the soft key memory preset buttons on the screen while on the
desired station. The new station will replace the previous one recorded.
Satellite radio (SAT) if activated
Once the Satellite Radio feature is activated, your system will have
additional features.
1. Ensure that the system is on.
2. Press the RADIO hard button.
3. Select the ‘SAT’ tab on the touchscreen to enter satellite radio mode
(if activated).
4. Press ‘Show Options’ to select from:
Entertainment Systems
42
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

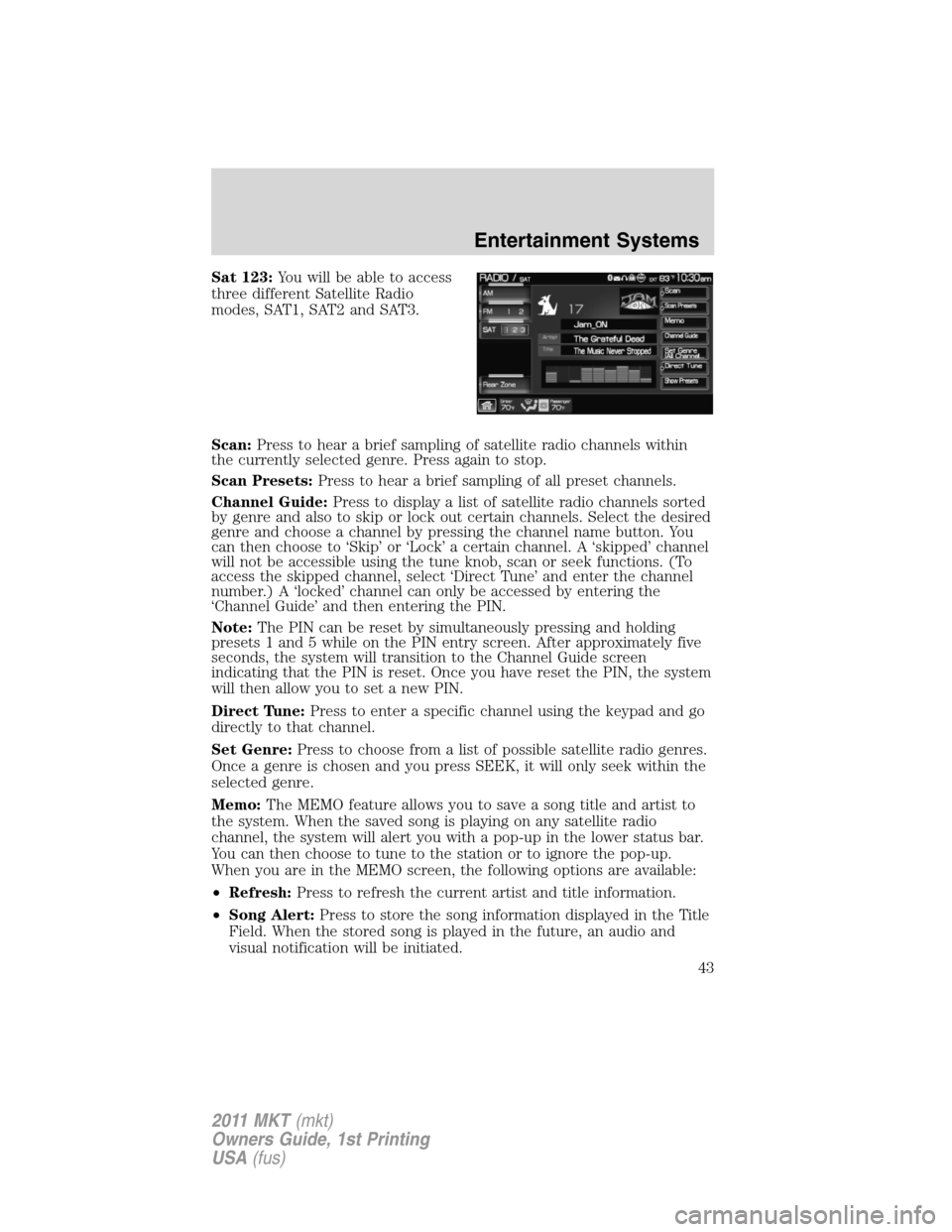

Sat 123:You will be able to access
three different Satellite Radio
modes, SAT1, SAT2 and SAT3.
Scan:Press to hear a brief sampling of satellite radio channels within
the currently selected genre. Press again to stop.
Scan Presets:Press to hear a brief sampling of all preset channels.
Channel Guide:Press to display a list of satellite radio channels sorted
by genre and also to skip or lock out certain channels. Select the desired
genre and choose a channel by pressing the channel name button. You
can then choose to ‘Skip’ or ‘Lock’ a certain channel. A ‘skipped’ channel
will not be accessible using the tune knob, scan or seek functions. (To
access the skipped channel, select ‘Direct Tune’ and enter the channel
number.) A ‘locked’ channel can only be accessed by entering the
‘Channel Guide’ and then entering the PIN.
Note:The PIN can be reset by simultaneously pressing and holding
presets 1 and 5 while on the PIN entry screen. After approximately five
seconds, the system will transition to the Channel Guide screen
indicating that the PIN is reset. Once you have reset the PIN, the system
will then allow you to set a new PIN.
Direct Tune:Press to enter a specific channel using the keypad and go
directly to that channel.
Set Genre:Press to choose from a list of possible satellite radio genres.
Once a genre is chosen and you press SEEK, it will only seek within the
selected genre.
Memo:The MEMO feature allows you to save a song title and artist to
the system. When the saved song is playing on any satellite radio
channel, the system will alert you with a pop-up in the lower status bar.
You can then choose to tune to the station or to ignore the pop-up.
When you are in the MEMO screen, the following options are available:
•Refresh:Press to refresh the current artist and title information.
•Song Alert:Press to store the song information displayed in the Title
Field. When the stored song is played in the future, an audio and
visual notification will be initiated.

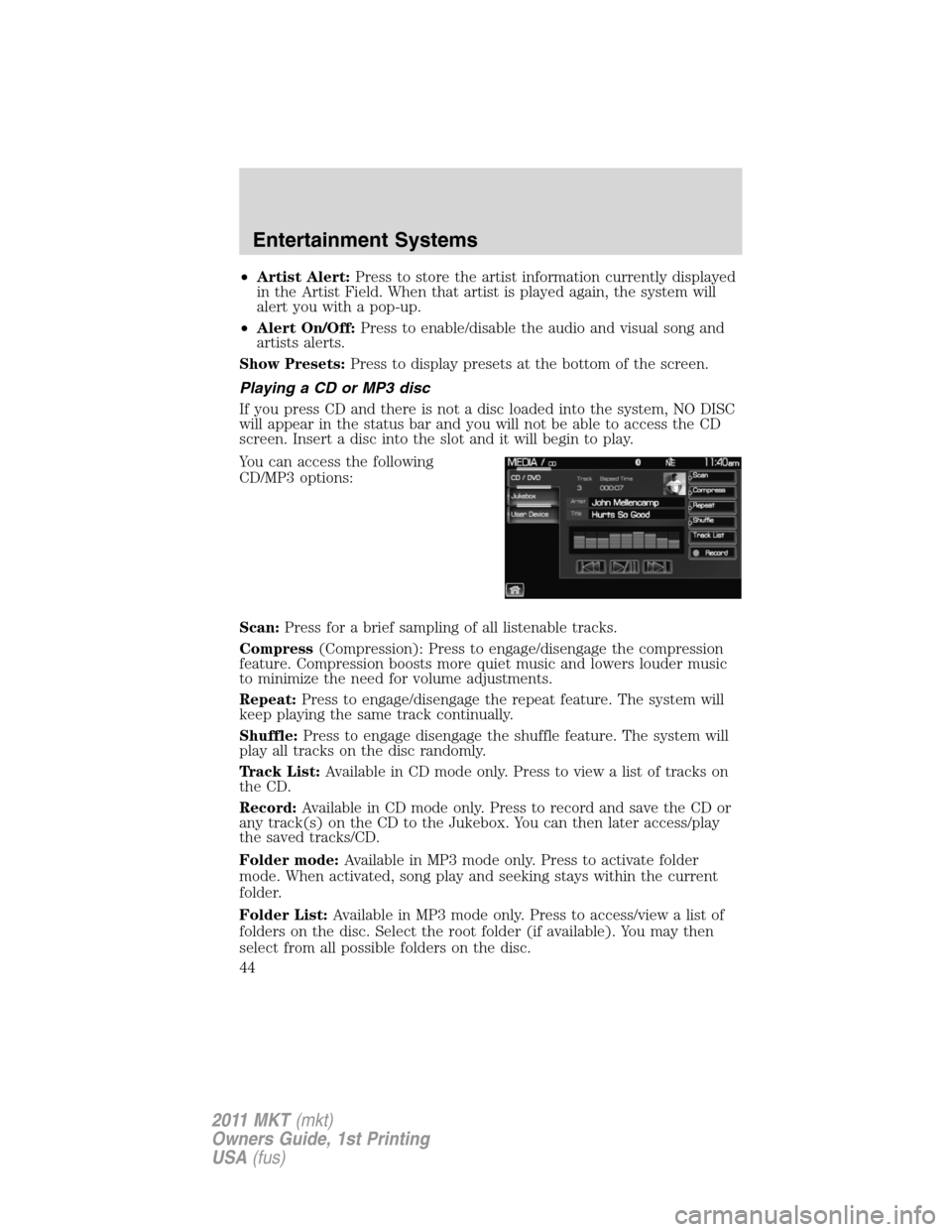

Entertainment Systems
43
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

•Artist Alert:Press to store the artist information currently displayed
in the Artist Field. When that artist is played again, the system will
alert you with a pop-up.
•Alert On/Off:Press to enable/disable the audio and visual song and
artists alerts.
Show Presets:Press to display presets at the bottom of the screen.
Playing a CD or MP3 disc
If you press CD and there is not a disc loaded into the system, NO DISC
will appear in the status bar and you will not be able to access the CD
screen. Insert a disc into the slot and it will begin to play.
You can access the following
CD/MP3 options:
Scan:Press for a brief sampling of all listenable tracks.
Compress(Compression): Press to engage/disengage the compression
feature. Compression boosts more quiet music and lowers louder music
to minimize the need for volume adjustments.
Repeat:Press to engage/disengage the repeat feature. The system will
keep playing the same track continually.
Shuffle:Press to engage disengage the shuffle feature. The system will
play all tracks on the disc randomly.
Track List:Available in CD mode only. Press to view a list of tracks on
the CD.
Record:Available in CD mode only. Press to record and save the CD or
any track(s) on the CD to the Jukebox. You can then later access/play
the saved tracks/CD.
Folder mode:Available in MP3 mode only. Press to activate folder
mode. When activated, song play and seeking stays within the current
folder.
Folder List:Available in MP3 mode only. Press to access/view a list of
folders on the disc. Select the root folder (if available). You may then
select from all possible folders on the disc.
Entertainment Systems
44
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

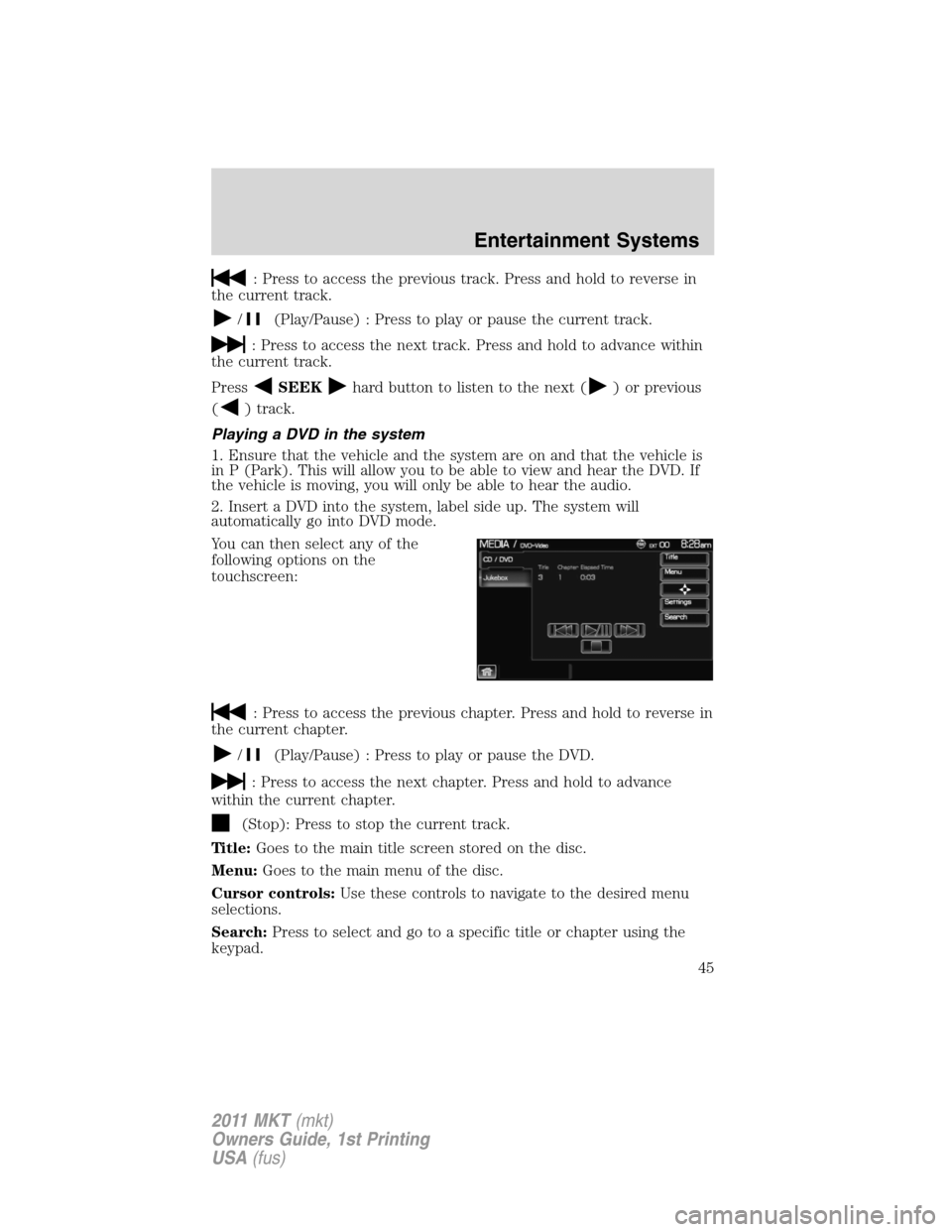

: Press to access the previous track. Press and hold to reverse in
the current track.
/(Play/Pause) : Press to play or pause the current track.
: Press to access the next track. Press and hold to advance within
the current track.
Press
SEEKhard button to listen to the next () or previous
(
) track.
Playing a DVD in the system
1. Ensure that the vehicle and the system are on and that the vehicle is
in P (Park). This will allow you to be able to view and hear the DVD. If
the vehicle is moving, you will only be able to hear the audio.
2. Insert a DVD into the system, label side up. The system will
automatically go into DVD mode.
You can then select any of the
following options on the
touchscreen:
: Press to access the previous chapter. Press and hold to reverse in
the current chapter.
/(Play/Pause) : Press to play or pause the DVD.
: Press to access the next chapter. Press and hold to advance
within the current chapter.
(Stop): Press to stop the current track.
Title:Goes to the main title screen stored on the disc.
Menu:Goes to the main menu of the disc.
Cursor controls:Use these controls to navigate to the desired menu
selections.
Search:Press to select and go to a specific title or chapter using the
keypad.
Entertainment Systems
45
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

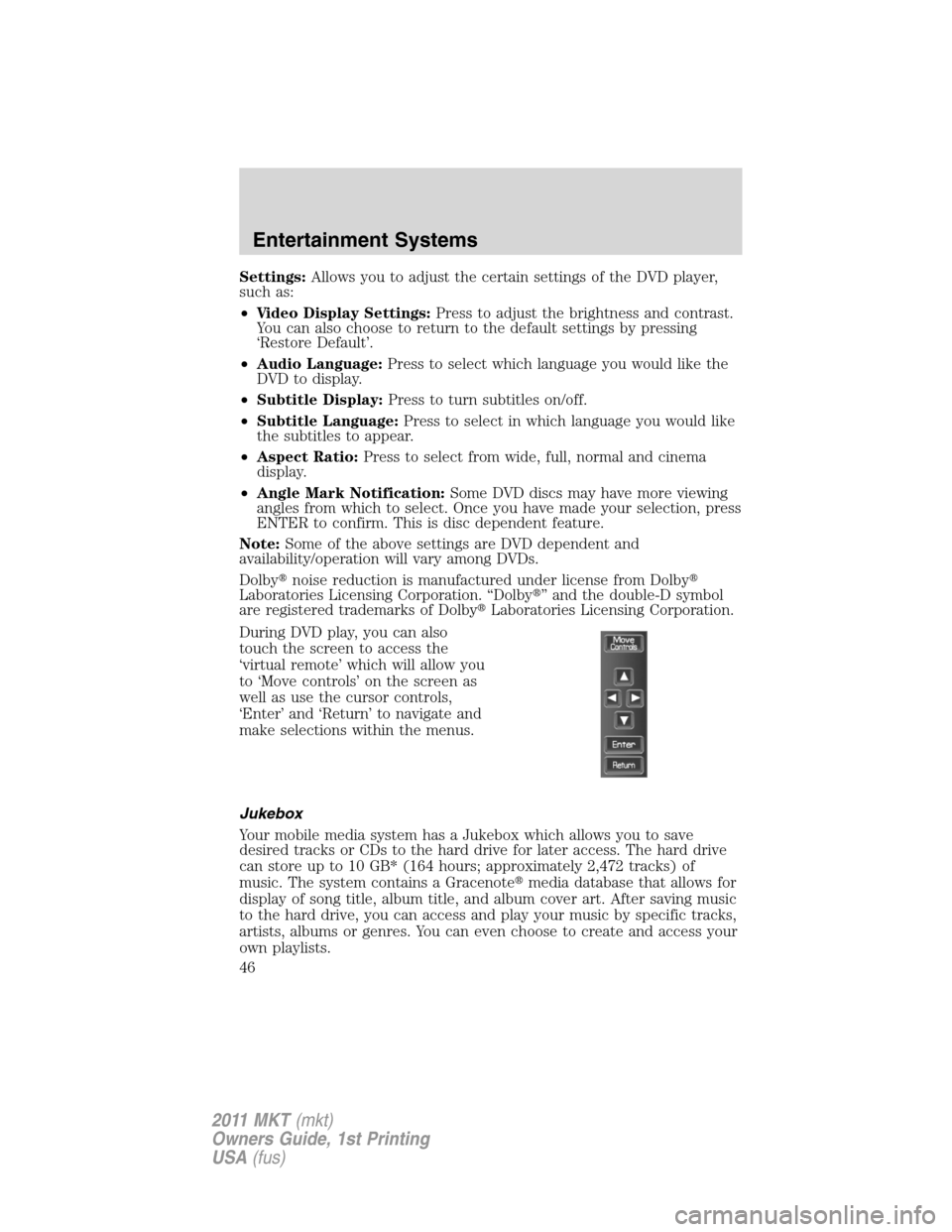

Settings:Allows you to adjust the certain settings of the DVD player,
such as:
•Video Display Settings:Press to adjust the brightness and contrast.
You can also choose to return to the default settings by pressing
‘Restore Default’.
•Audio Language:Press to select which language you would like the
DVD to display.
•Subtitle Display:Press to turn subtitles on/off.
•Subtitle Language:Press to select in which language you would like
the subtitles to appear.
•Aspect Ratio:Press to select from wide, full, normal and cinema
display.
•Angle Mark Notification:Some DVD discs may have more viewing
angles from which to select. Once you have made your selection, press
ENTER to confirm. This is disc dependent feature.
Note:Some of the above settings are DVD dependent and
availability/operation will vary among DVDs.
Dolbynoise reduction is manufactured under license from Dolby
Laboratories Licensing Corporation. “Dolby” and the double-D symbol
are registered trademarks of DolbyLaboratories Licensing Corporation.
During DVD play, you can also
touch the screen to access the
‘virtual remote’ which will allow you
to ‘Move controls’ on the screen as
well as use the cursor controls,
‘Enter’ and ‘Return’ to navigate and
make selections within the menus.
Jukebox
Your mobile media system has a Jukebox which allows you to save
desired tracks or CDs to the hard drive for later access. The hard drive
can store up to 10 GB* (164 hours; approximately 2,472 tracks) of
music. The system contains a Gracenotemedia database that allows for
display of song title, album title, and album cover art. After saving music
to the hard drive, you can access and play your music by specific tracks,
artists, albums or genres. You can even choose to create and access your
own playlists.
Entertainment Systems
46
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

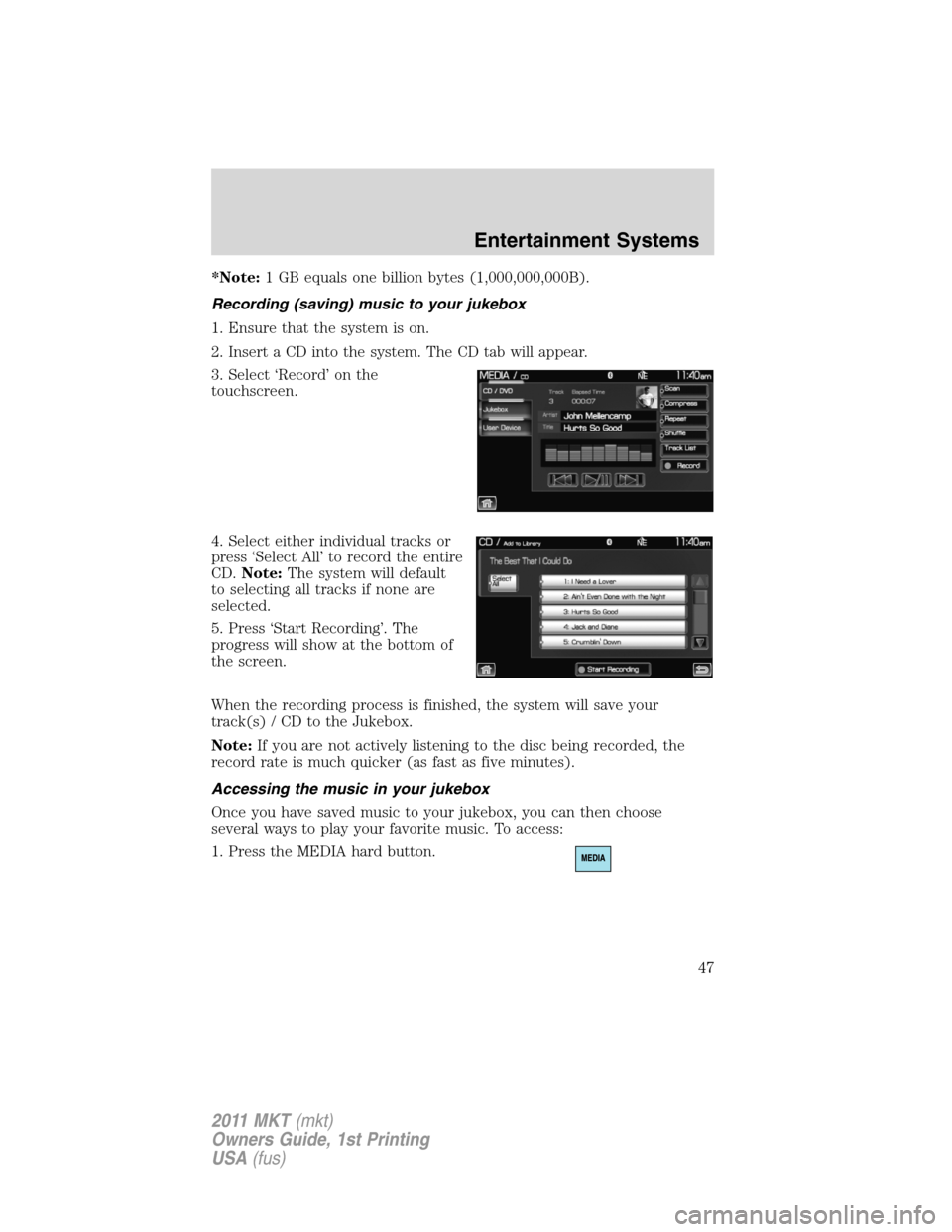

*Note:1 GB equals one billion bytes (1,000,000,000B).
Recording (saving) music to your jukebox
1. Ensure that the system is on.
2. Insert a CD into the system. The CD tab will appear.
3. Select ‘Record’ on the
touchscreen.
4. Select either individual tracks or
press ‘Select All’ to record the entire
CD.Note:The system will default
to selecting all tracks if none are
selected.
5. Press ‘Start Recording’. The
progress will show at the bottom of
the screen.
When the recording process is finished, the system will save your
track(s) / CD to the Jukebox.
Note:If you are not actively listening to the disc being recorded, the
record rate is much quicker (as fast as five minutes).
Accessing the music in your jukebox
Once you have saved music to your jukebox, you can then choose
several ways to play your favorite music. To access:
1. Press the MEDIA hard button.
Entertainment Systems
47
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

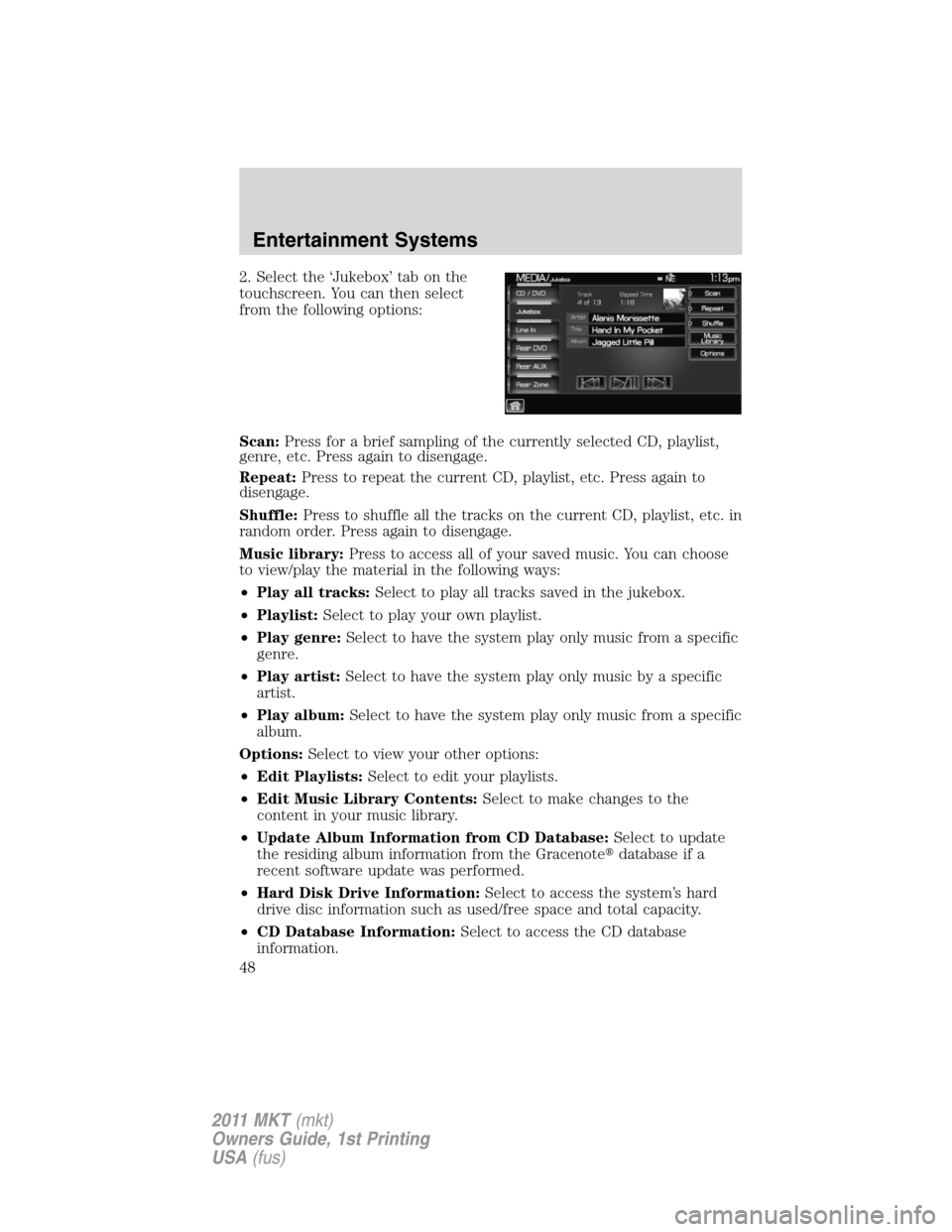

2. Select the ‘Jukebox’ tab on the
touchscreen. You can then select
from the following options:
Scan:Press for a brief sampling of the currently selected CD, playlist,
genre, etc. Press again to disengage.
Repeat:Press to repeat the current CD, playlist, etc. Press again to
disengage.
Shuffle:Press to shuffle all the tracks on the current CD, playlist, etc. in
random order. Press again to disengage.
Music library:Press to access all of your saved music. You can choose
to view/play the material in the following ways:
•Play all tracks:Select to play all tracks saved in the jukebox.
•Playlist:Select to play your own playlist.
•Play genre:Select to have the system play only music from a specific
genre.
•Play artist:Select to have the system play only music by a specific
artist.
•Play album:Select to have the system play only music from a specific
album.
Options:Select to view your other options:
•Edit Playlists:Select to edit your playlists.
•Edit Music Library Contents:Select to make changes to the
content in your music library.
•Update Album Information from CD Database:Select to update
the residing album information from the Gracenotedatabase if a
recent software update was performed.
•Hard Disk Drive Information:Select to access the system’s hard
drive disc information such as used/free space and total capacity.
•CD Database Information:Select to access the CD database
information.
Entertainment Systems
48
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Creating a playlist
1. Press the MEDIA hard button.
2. Select the ‘Jukebox’ tab on the touchscreen.
3. Select ‘Options’.
4. Select ‘Edit Playlists’.
5. Select which playlist you would like to create.
6. Select which category you would like to access from your saved music.
For example, say you chose one saved album from which to select songs.
7. Select the desired songs and then press ‘Add’.
The system will show you your currently selected songs. You can choose
to add more tracks to your playlist, sort the playlist, delete the playlist or
to edit the name of the playlist.
8. When you are done making any adjustment to the playlist, select ‘Edit
Name’ to rename your playlist.
You can then access your playlist by that name.
User device
Your vehicle is equipped with
SYNC. Press the ’User Device’ tab
to access your SYNCmedia
options. For more information,
please refer to theSYNCmedia
featureschapter in yourSYNC
supplement.
Rear DVD system (if equipped)
Your system allows you to access the dual DVD headrest system (if
equipped). To access:
1. Press the MEDIA hard button.
Entertainment Systems
49
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

2. Select the ‘Rear DVD A’ tab on
the touchscreen to access the
Monitor A headrest system:
: Press to access the previous track. Press and hold to reverse in
the current track.
: Press to access the next track. Press and hold to advance within
the current track.
/(Play/Pause): Press to play or pause the current track.
3. Select the ‘Rear DVD B’ tab on
the touchscreen to view the status
of the Monitor B headrest system.
Rear Zone (if equipped)
This screen allows front seat passengers to select/listen to a different
audio/video source than the back seat passengers. The only restriction is
that the front and back seat passengers cannot both listen to a different
frequency band (AM/FM1/FM2). The frequency band selected by the
driver is the band accessible by the rear passenger. To access:
1. Ensure that the system is ON.
2. Press the MEDIA or RADIO hard button on the system.
3. Select the ‘Rear Zone’ tab on the touchscreen.
Entertainment Systems
50
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
