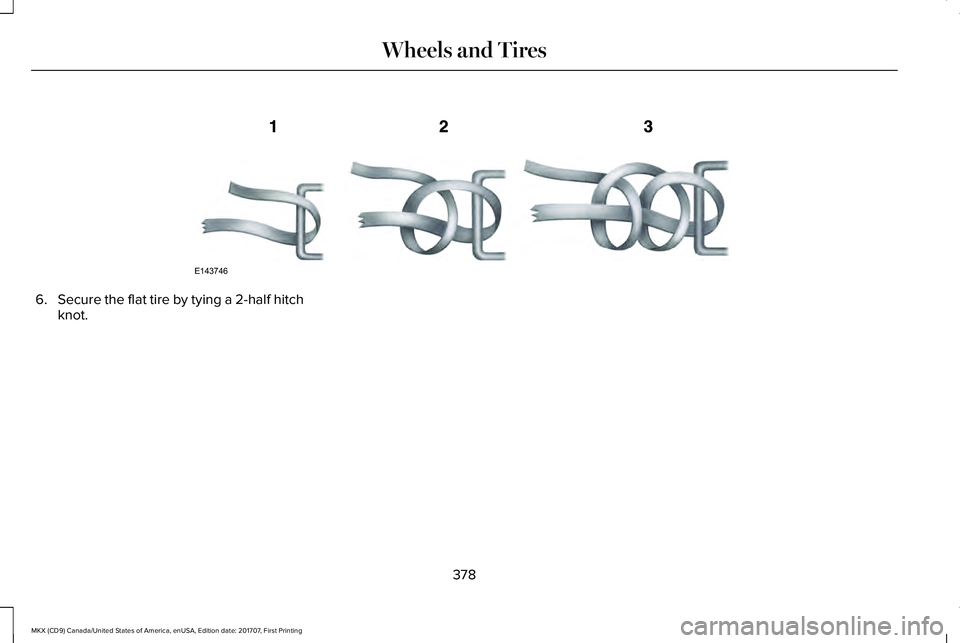

6.Secure the flat tire by tying a 2-half hitchknot.
378
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Wheels and TiresE143746

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or thesurface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to thehub are secured so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact atthe wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in lossof control.
lb.ft (Nm)*Bolt size
162 lb.ft (220 Nm)M14 x 1.5
*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing aflat tire, wheel removal).
379
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Wheels and Tires

Wheel pilot boreA
Inspect the wheel pilot hole and mountingsurface prior to installation. Remove anyvisible corrosion or loose particles.
380
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Wheels and TiresE145950

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
SpecificationMeasurement
164Cubic inches
Minimum 87 octaneRequired fuel
1-4-2-5-3-6Firing order
10.0:1Compression ratio
0.028-0.031 in. (0.7 - 0.8 mm)Spark plug gap
Drivebelt Routing
381
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Capacities and SpecificationsE191903

ENGINE SPECIFICATIONS - 3.7L
SpecificationMeasurement
227Cubic inches
Minimum 87 octaneRequired fuel
1-4-2-5-3-6Firing order
10.5:1Compression ratio
0.049 - 0.053 in. (1.25 - 1.35 mm)Spark plug gap
Drivebelt Routing
3.7L engine
382
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Capacities and SpecificationsE191904

MOTORCRAFT PARTS - 2.7L ECOBOOST™
2.7L EcoBoostComponent
FA-1912Air filter element
FL-2062Oil filter
BXT-94RH7-730Battery (without start/stop)
BAGM-94RH7-800Battery (with start/stop)
SP-542Spark plugs
FP-71Cabin air filter
WW-2350 (driver side)Windshield wiper bladeWW-1750 (passenger side)WW-1106 (rear window)
We recommend Motorcraft® replacement parts available at an authorized dealer or at fordparts.com for scheduled maintenance. These partsmeet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions anddurability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 517).
383
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Capacities and Specifications

MOTORCRAFT PARTS - 3.7L
3.7L V6 TiVCTComponent
FA-1912Air filter element
FL-500-SOil filter
BAGM-94RH7-800Battery
SP-520Spark plugs
FP-71Cabin air filter
WW-2350 (driver side)Windshield wiper bladeWW-1750 (passenger side)WW-1106 (rear window)
We recommend Motorcraft® replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These partsmeet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 517).
384
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is locatedon the left-hand side of the instrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
VEHICLE CERTIFICATION LABEL
The National Highway Traffic SafetyAdministration Regulations require that aSafety Compliance Certification Label beaffixed to a vehicle and prescribe where theSafety Compliance Certification Label maybe located. The Safety ComplianceCertification Label shall be affixed to eitherthe door hinge pillar, the door latch post, orthe edge of the door near the door latch,next to the driver's seating position.
385
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Capacities and SpecificationsE142476 E142477 E167469

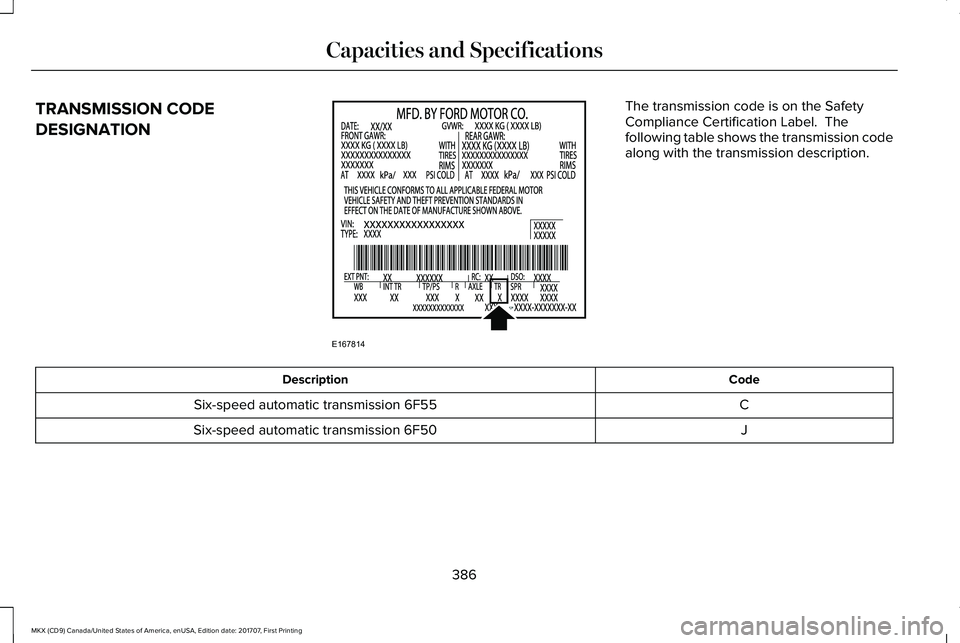

TRANSMISSION CODE
DESIGNATION
The transmission code is on the SafetyCompliance Certification Label. Thefollowing table shows the transmission codealong with the transmission description.
CodeDescription
CSix-speed automatic transmission 6F55
JSix-speed automatic transmission 6F50
386
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Capacities and SpecificationsE167814

CAPACITIES AND SPECIFICATIONS - 2.7L ECOBOOST™
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the airconditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
CapacityItem
6.0 qt (5.7 L)Engine oil (with oil filter)
10.6 qt (10 L)Engine coolant
Between MIN/MAX on brake fluid reservoirBrake fluid
2.4 pt (1.15L)Rear differential fluid (All Wheel Drive)
11.8 fl oz (0.35 L)Power Transfer Unit (PTU) fluid (All Wheel Drive)
11.0 qt (10.4 L)*Automatic transmission fluid
Fill as requiredWindshield washer fluid
18.4 gal (69.5 L)Fuel tank (Front Wheel Drive)
18.5 gal (70 L)Fuel tank (All Wheel Drive)
387
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Capacities and Specifications
