navigation system LINCOLN MKZ 2013 User Guide

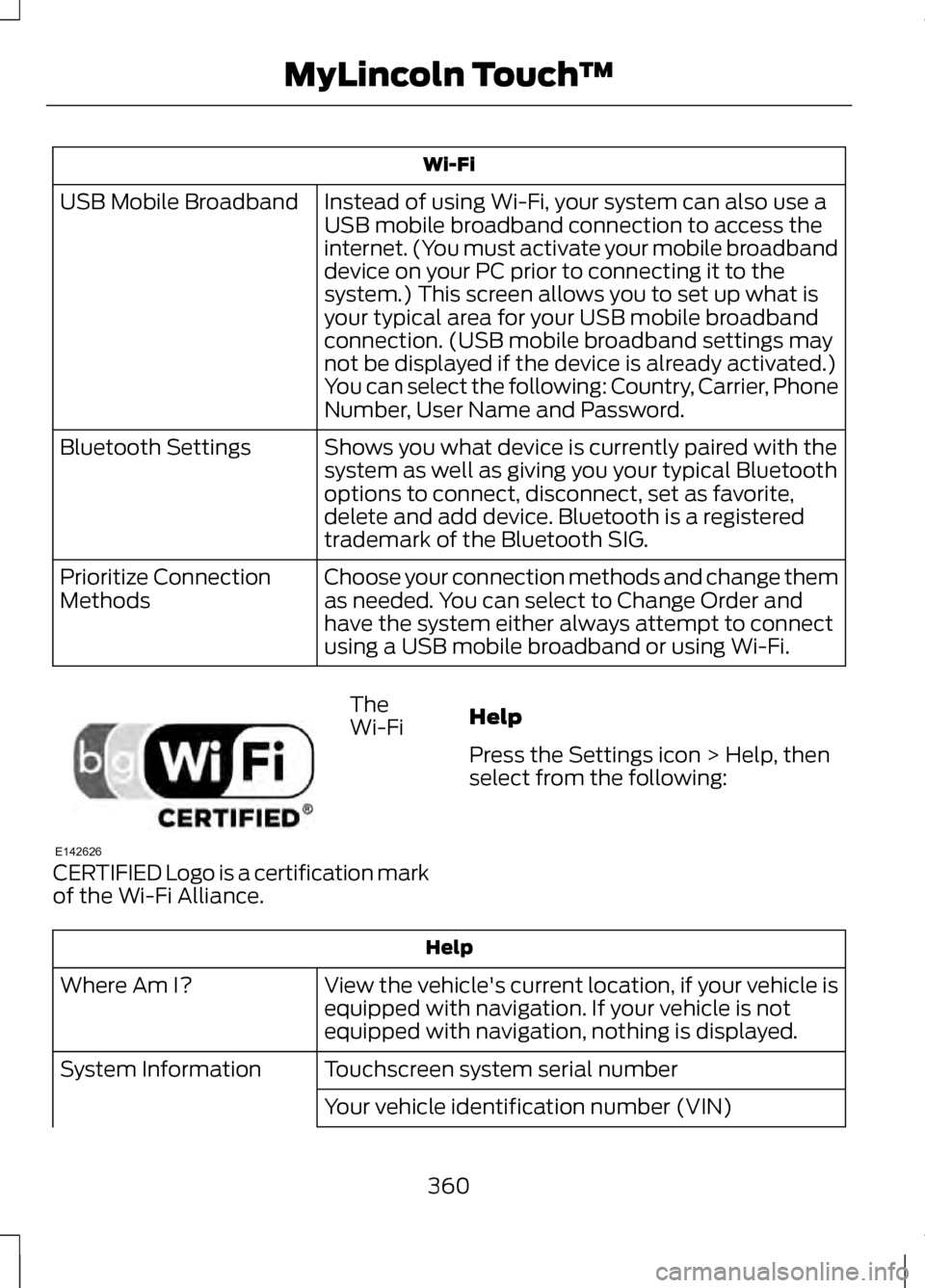

Wi-Fi
Instead of using Wi-Fi, your system can also use a
USB mobile broadband connection to access the
internet. (You must activate your mobile broadband
device on your PC prior to connecting it to the
system.) This screen allows you to set up what is
your typical area for your USB mobile broadband
connection. (USB mobile broadband settings may
not be displayed if the device is already activated.)
You can select the following: Country, Carrier, Phone
Number, User Name and Password.
USB Mobile Broadband
Shows you what device is currently paired with the
system as well as giving you your typical Bluetooth
options to connect, disconnect, set as favorite,
delete and add device. Bluetooth is a registered
trademark of the Bluetooth SIG.
Bluetooth Settings
Choose your connection methods and change them
as needed. You can select to Change Order and
have the system either always attempt to connect
using a USB mobile broadband or using Wi-Fi.
Prioritize Connection
Methods The
Wi-Fi
CERTIFIED Logo is a certification mark
of the Wi-Fi Alliance. Help
Press the Settings icon > Help, then
select from the following:Help
View the vehicle's current location, if your vehicle is
equipped with navigation. If your vehicle is not
equipped with navigation, nothing is displayed.
Where Am I?
Touchscreen system serial number
System Information
Your vehicle identification number (VIN)
360
MyLincoln Touch
™E142626

Help

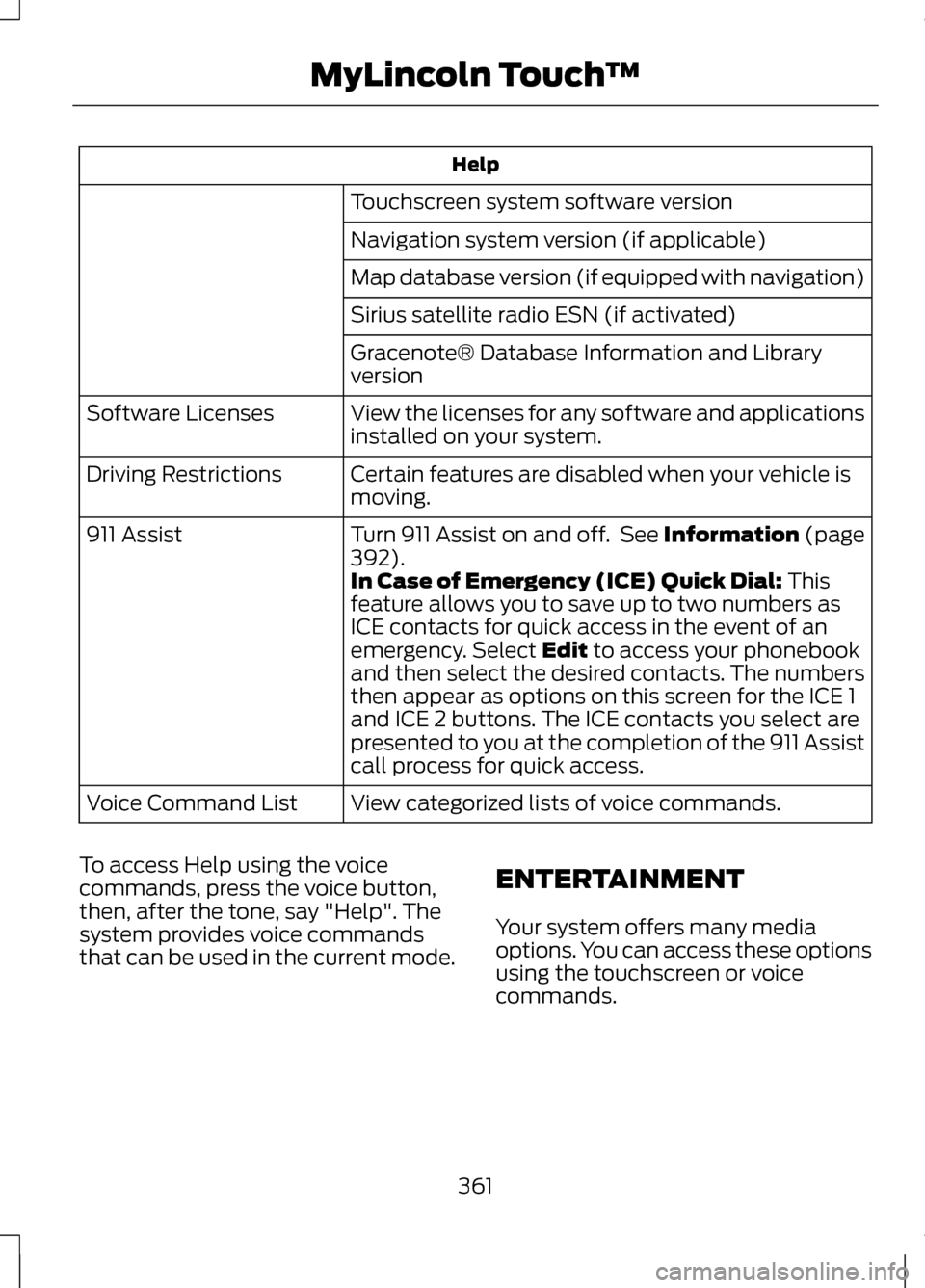

Touchscreen system software version
Navigation system version (if applicable)
Map database version (if equipped with navigation)
Sirius satellite radio ESN (if activated)
Gracenote® Database Information and Library
version
View the licenses for any software and applications
installed on your system.
Software Licenses
Certain features are disabled when your vehicle is
moving.
Driving Restrictions
Turn 911 Assist on and off. See Information (page
392).
911 Assist
In Case of Emergency (ICE) Quick Dial: This
feature allows you to save up to two numbers as
ICE contacts for quick access in the event of an
emergency. Select
Edit to access your phonebook
and then select the desired contacts. The numbers
then appear as options on this screen for the ICE 1
and ICE 2 buttons. The ICE contacts you select are
presented to you at the completion of the 911 Assist
call process for quick access.
View categorized lists of voice commands.
Voice Command List
To access Help using the voice
commands, press the voice button,
then, after the tone, say "Help". The
system provides voice commands
that can be used in the current mode. ENTERTAINMENT
Your system offers many media
options. You can access these options
using the touchscreen or voice
commands.
361
MyLincoln Touch
™

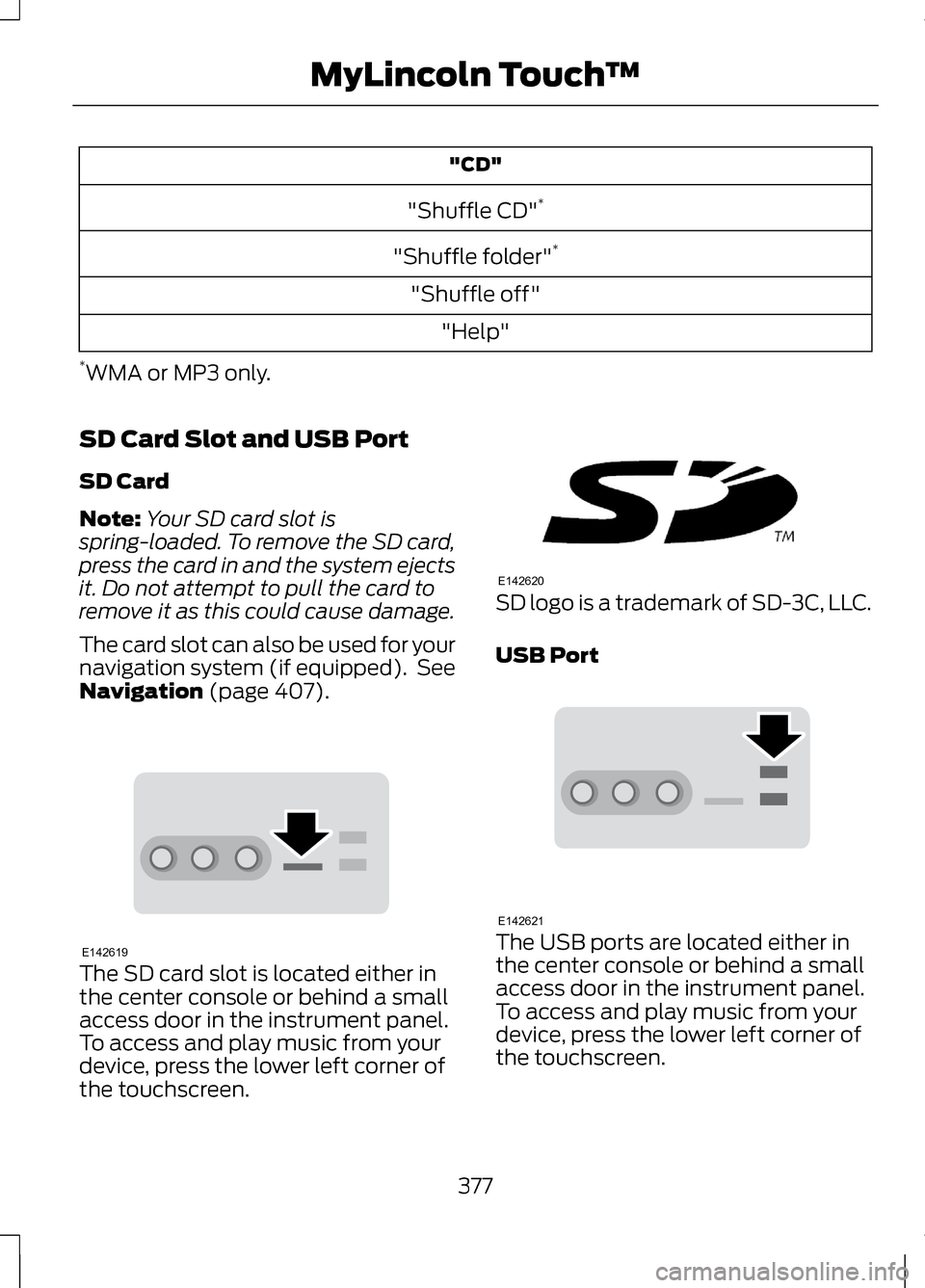

"CD"
"Shuffle CD" *
"Shuffle folder" *
"Shuffle off" "Help"
* WMA or MP3 only.
SD Card Slot and USB Port
SD Card
Note: Your SD card slot is
spring-loaded. To remove the SD card,
press the card in and the system ejects
it. Do not attempt to pull the card to
remove it as this could cause damage.
The card slot can also be used for your
navigation system (if equipped). See
Navigation (page 407). The SD card slot is located either in
the center console or behind a small
access door in the instrument panel.
To access and play music from your
device, press the lower left corner of
the touchscreen. SD logo is a trademark of SD-3C, LLC.
USB Port
The USB ports are located either in
the center console or behind a small
access door in the instrument panel.
To access and play music from your
device, press the lower left corner of
the touchscreen.
377
MyLincoln Touch
™E142619 E142620 E142621

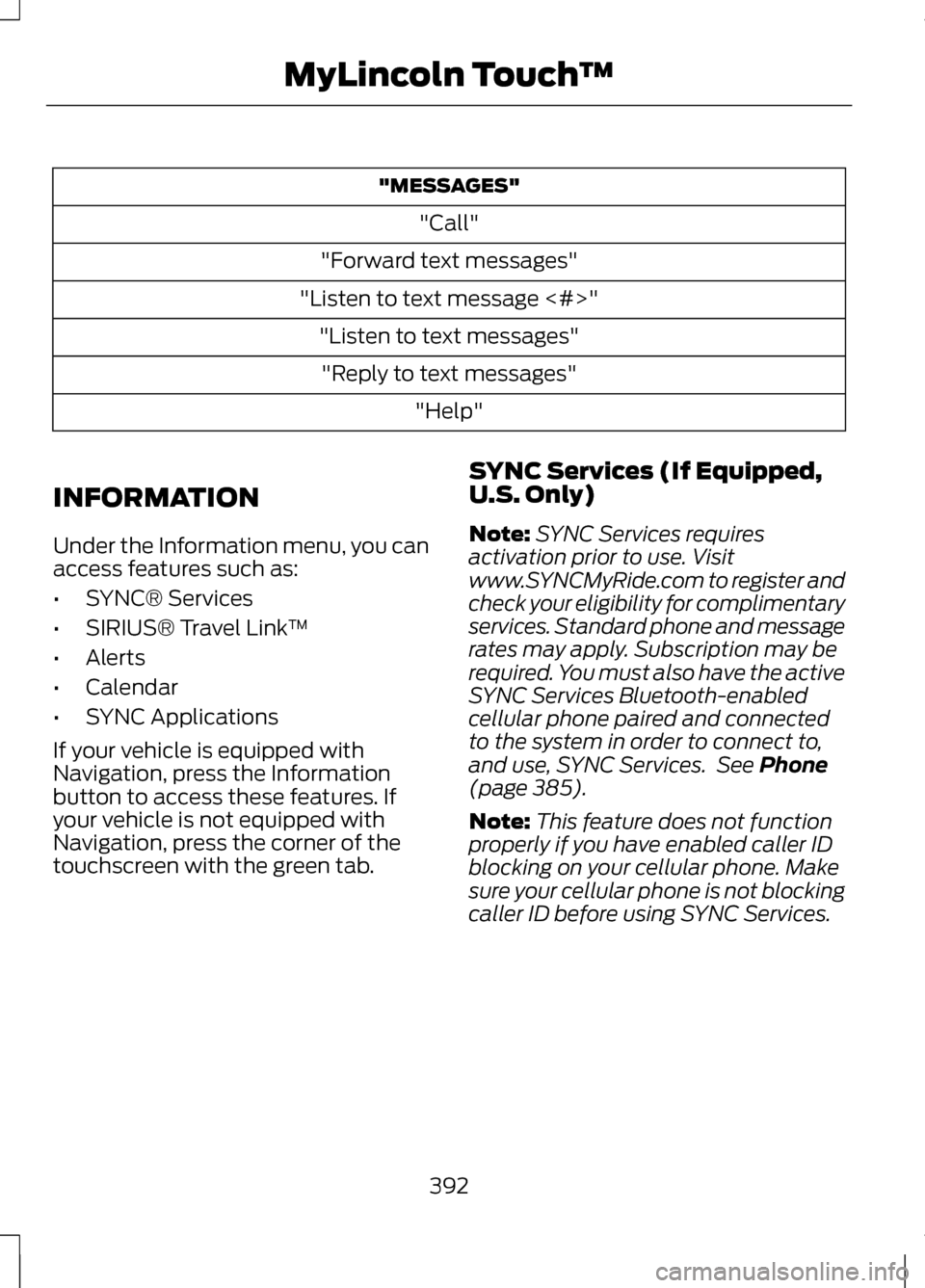

"MESSAGES"
"Call"
"Forward text messages"
"Listen to text message <#>" "Listen to text messages""Reply to text messages" "Help"
INFORMATION
Under the Information menu, you can
access features such as:
• SYNC® Services
• SIRIUS® Travel Link ™
• Alerts
• Calendar
• SYNC Applications
If your vehicle is equipped with
Navigation, press the Information
button to access these features. If
your vehicle is not equipped with
Navigation, press the corner of the
touchscreen with the green tab. SYNC Services (If Equipped,
U.S. Only)
Note:
SYNC Services requires
activation prior to use. Visit
www.SYNCMyRide.com to register and
check your eligibility for complimentary
services. Standard phone and message
rates may apply. Subscription may be
required. You must also have the active
SYNC Services Bluetooth-enabled
cellular phone paired and connected
to the system in order to connect to,
and use, SYNC Services. See Phone
(page 385).
Note: This feature does not function
properly if you have enabled caller ID
blocking on your cellular phone. Make
sure your cellular phone is not blocking
caller ID before using SYNC Services.
392
MyLincoln Touch
™

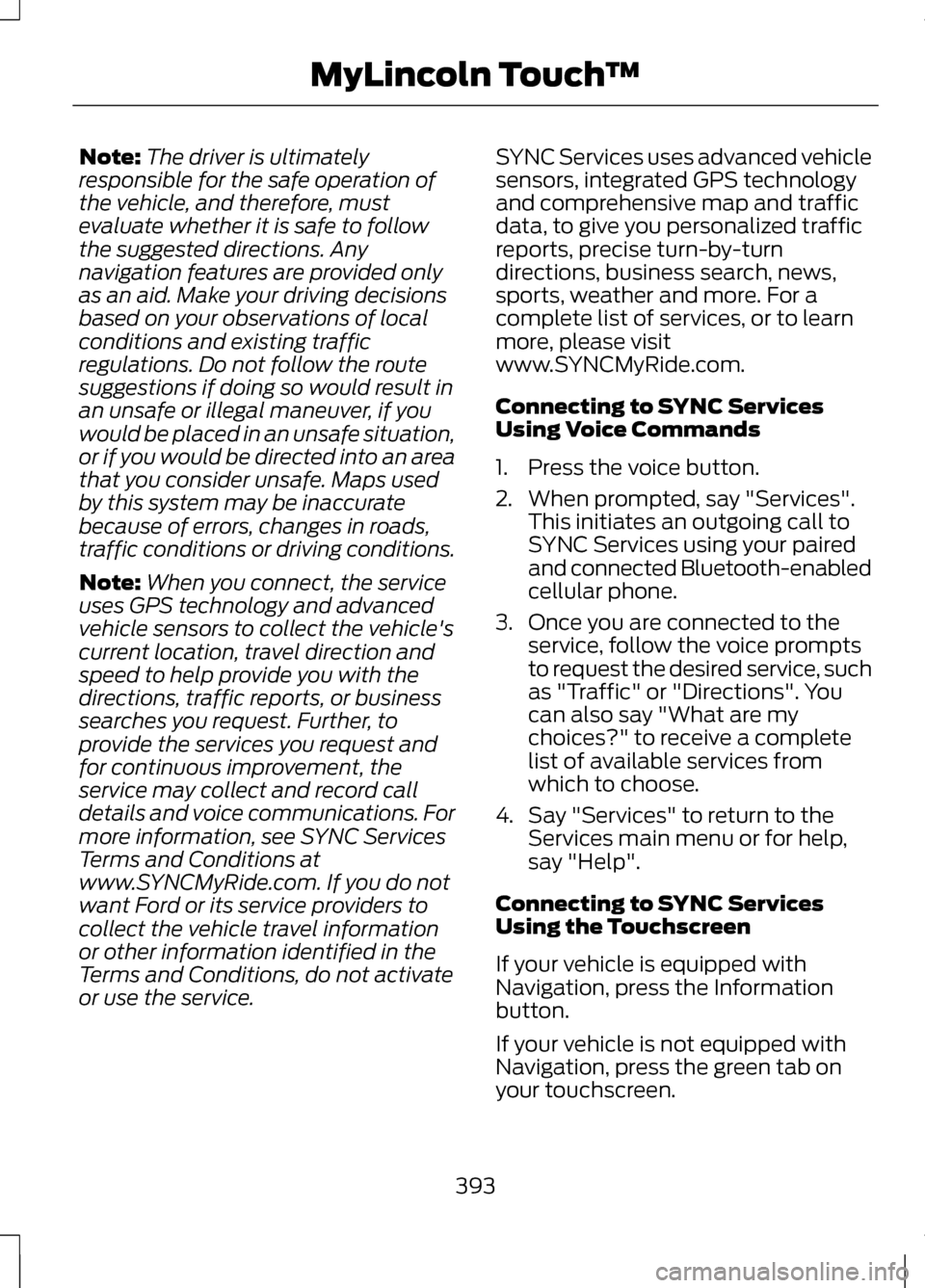

Note:
The driver is ultimately
responsible for the safe operation of
the vehicle, and therefore, must
evaluate whether it is safe to follow
the suggested directions. Any
navigation features are provided only
as an aid. Make your driving decisions
based on your observations of local
conditions and existing traffic
regulations. Do not follow the route
suggestions if doing so would result in
an unsafe or illegal maneuver, if you
would be placed in an unsafe situation,
or if you would be directed into an area
that you consider unsafe. Maps used
by this system may be inaccurate
because of errors, changes in roads,
traffic conditions or driving conditions.
Note: When you connect, the service
uses GPS technology and advanced
vehicle sensors to collect the vehicle's
current location, travel direction and
speed to help provide you with the
directions, traffic reports, or business
searches you request. Further, to
provide the services you request and
for continuous improvement, the
service may collect and record call
details and voice communications. For
more information, see SYNC Services
Terms and Conditions at
www.SYNCMyRide.com. If you do not
want Ford or its service providers to
collect the vehicle travel information
or other information identified in the
Terms and Conditions, do not activate
or use the service. SYNC Services uses advanced vehicle
sensors, integrated GPS technology
and comprehensive map and traffic
data, to give you personalized traffic
reports, precise turn-by-turn
directions, business search, news,
sports, weather and more. For a
complete list of services, or to learn
more, please visit
www.SYNCMyRide.com.
Connecting to SYNC Services
Using Voice Commands
1. Press the voice button.
2. When prompted, say "Services".
This initiates an outgoing call to
SYNC Services using your paired
and connected Bluetooth-enabled
cellular phone.
3. Once you are connected to the service, follow the voice prompts
to request the desired service, such
as "Traffic" or "Directions". You
can also say "What are my
choices?" to receive a complete
list of available services from
which to choose.
4. Say "Services" to return to the Services main menu or for help,
say "Help".
Connecting to SYNC Services
Using the Touchscreen
If your vehicle is equipped with
Navigation, press the Information
button.
If your vehicle is not equipped with
Navigation, press the green tab on
your touchscreen.
393
MyLincoln Touch
™

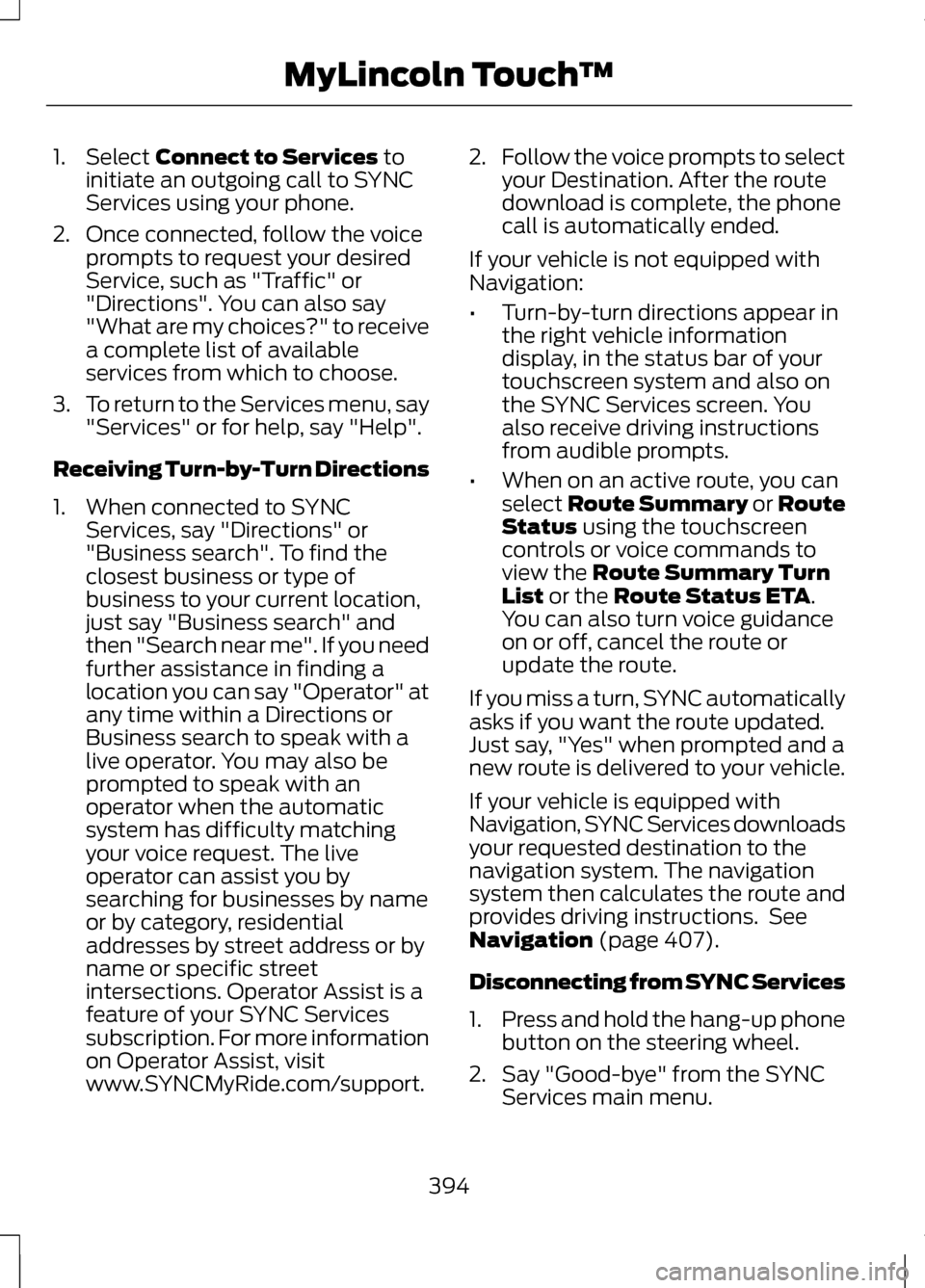

1. Select Connect to Services to
initiate an outgoing call to SYNC
Services using your phone.
2. Once connected, follow the voice prompts to request your desired
Service, such as "Traffic" or
"Directions". You can also say
"What are my choices?" to receive
a complete list of available
services from which to choose.
3. To return to the Services menu, say
"Services" or for help, say "Help".
Receiving Turn-by-Turn Directions
1. When connected to SYNC Services, say "Directions" or
"Business search". To find the
closest business or type of
business to your current location,
just say "Business search" and
then "Search near me". If you need
further assistance in finding a
location you can say "Operator" at
any time within a Directions or
Business search to speak with a
live operator. You may also be
prompted to speak with an
operator when the automatic
system has difficulty matching
your voice request. The live
operator can assist you by
searching for businesses by name
or by category, residential
addresses by street address or by
name or specific street
intersections. Operator Assist is a
feature of your SYNC Services
subscription. For more information
on Operator Assist, visit
www.SYNCMyRide.com/support. 2.
Follow the voice prompts to select
your Destination. After the route
download is complete, the phone
call is automatically ended.
If your vehicle is not equipped with
Navigation:
• Turn-by-turn directions appear in
the right vehicle information
display, in the status bar of your
touchscreen system and also on
the SYNC Services screen. You
also receive driving instructions
from audible prompts.
• When on an active route, you can
select Route Summary or Route
Status
using the touchscreen
controls or voice commands to
view the
Route Summary Turn
List or the Route Status ETA.
You can also turn voice guidance
on or off, cancel the route or
update the route.
If you miss a turn, SYNC automatically
asks if you want the route updated.
Just say, "Yes" when prompted and a
new route is delivered to your vehicle.
If your vehicle is equipped with
Navigation, SYNC Services downloads
your requested destination to the
navigation system. The navigation
system then calculates the route and
provides driving instructions. See
Navigation
(page 407).
Disconnecting from SYNC Services
1. Press and hold the hang-up phone
button on the steering wheel.
2. Say "Good-bye" from the SYNC Services main menu.
394
MyLincoln Touch
™

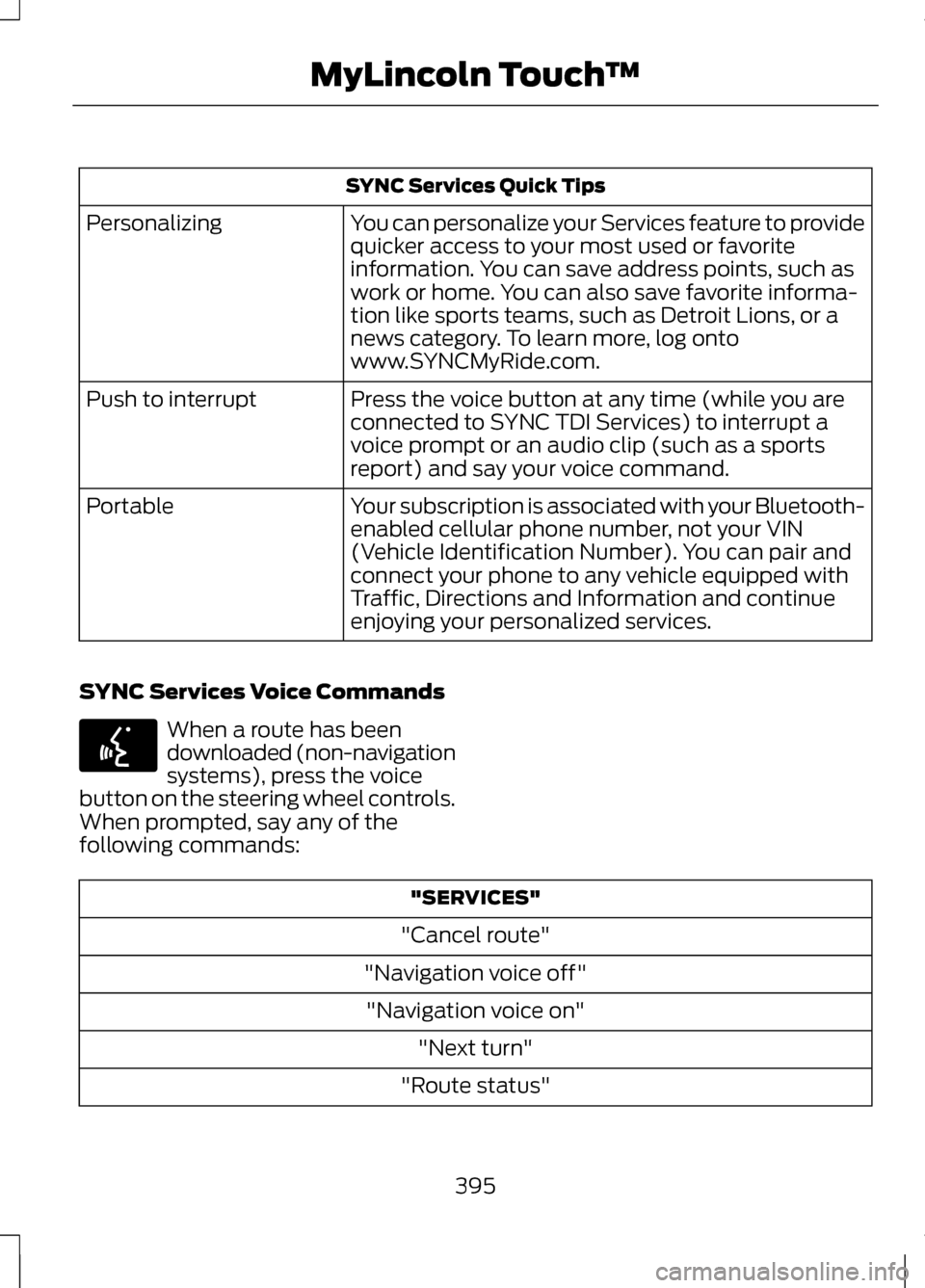

SYNC Services Quick Tips
You can personalize your Services feature to provide
quicker access to your most used or favorite
information. You can save address points, such as
work or home. You can also save favorite informa-
tion like sports teams, such as Detroit Lions, or a
news category. To learn more, log onto
www.SYNCMyRide.com.
Personalizing
Press the voice button at any time (while you are
connected to SYNC TDI Services) to interrupt a
voice prompt or an audio clip (such as a sports
report) and say your voice command.
Push to interrupt
Your subscription is associated with your Bluetooth-
enabled cellular phone number, not your VIN
(Vehicle Identification Number). You can pair and
connect your phone to any vehicle equipped with
Traffic, Directions and Information and continue
enjoying your personalized services.
Portable
SYNC Services Voice Commands When a route has been
downloaded (non-navigation
systems), press the voice
button on the steering wheel controls.
When prompted, say any of the
following commands: "SERVICES"
"Cancel route"
"Navigation voice off" "Navigation voice on" "Next turn"
"Route status"
395
MyLincoln Touch
™E142599

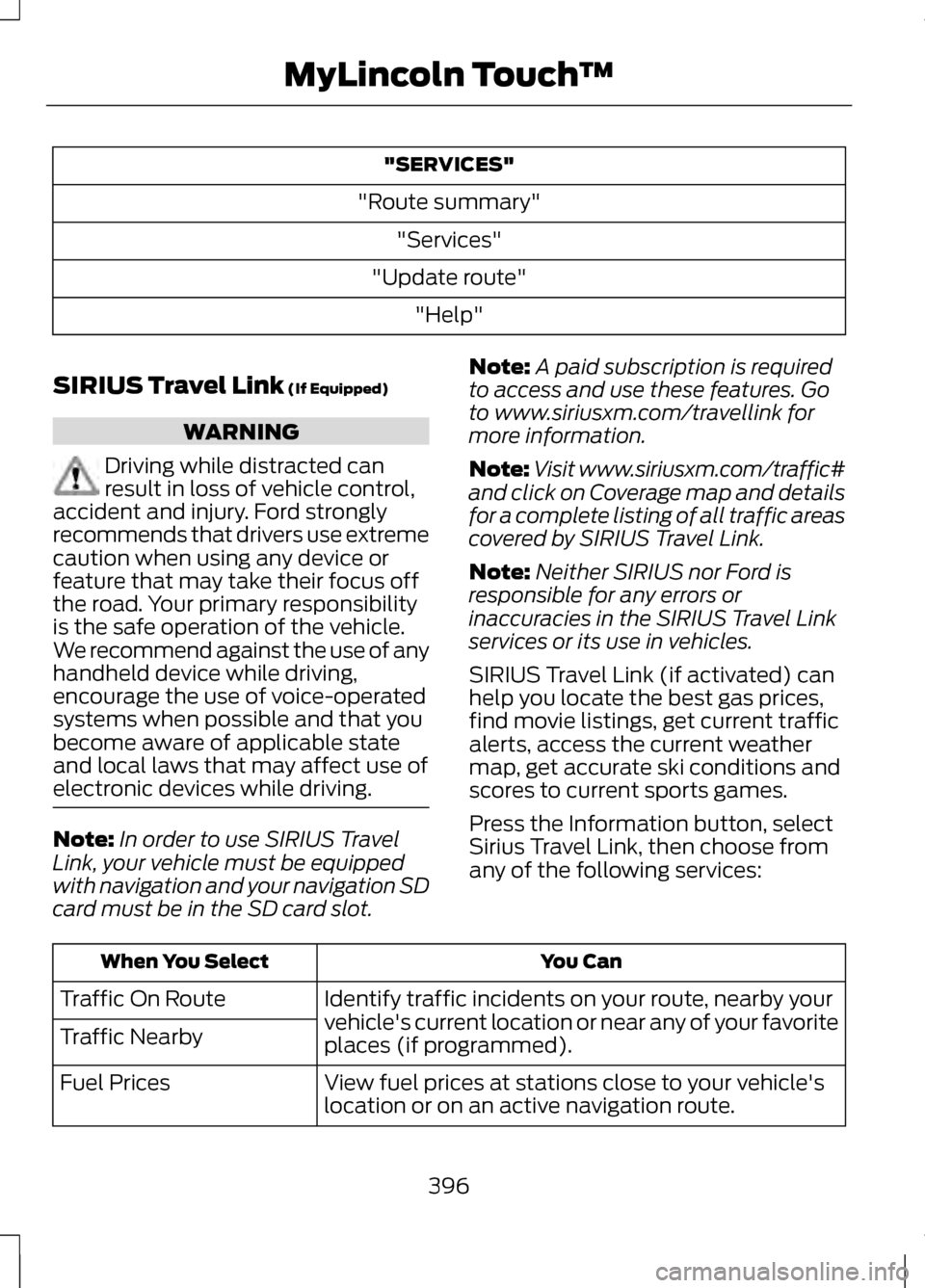

"SERVICES"
"Route summary" "Services"
"Update route" "Help"
SIRIUS Travel Link (If Equipped) WARNING
Driving while distracted can
result in loss of vehicle control,
accident and injury. Ford strongly
recommends that drivers use extreme
caution when using any device or
feature that may take their focus off
the road. Your primary responsibility
is the safe operation of the vehicle.
We recommend against the use of any
handheld device while driving,
encourage the use of voice-operated
systems when possible and that you
become aware of applicable state
and local laws that may affect use of
electronic devices while driving. Note:
In order to use SIRIUS Travel
Link, your vehicle must be equipped
with navigation and your navigation SD
card must be in the SD card slot. Note:
A paid subscription is required
to access and use these features. Go
to www.siriusxm.com/travellink for
more information.
Note: Visit www.siriusxm.com/traffic#
and click on Coverage map and details
for a complete listing of all traffic areas
covered by SIRIUS Travel Link.
Note: Neither SIRIUS nor Ford is
responsible for any errors or
inaccuracies in the SIRIUS Travel Link
services or its use in vehicles.
SIRIUS Travel Link (if activated) can
help you locate the best gas prices,
find movie listings, get current traffic
alerts, access the current weather
map, get accurate ski conditions and
scores to current sports games.
Press the Information button, select
Sirius Travel Link, then choose from
any of the following services: You Can
When You Select
Identify traffic incidents on your route, nearby your
vehicle's current location or near any of your favorite
places (if programmed).
Traffic On Route
Traffic Nearby
View fuel prices at stations close to your vehicle's
location or on an active navigation route.
Fuel Prices
396
MyLincoln Touch
™

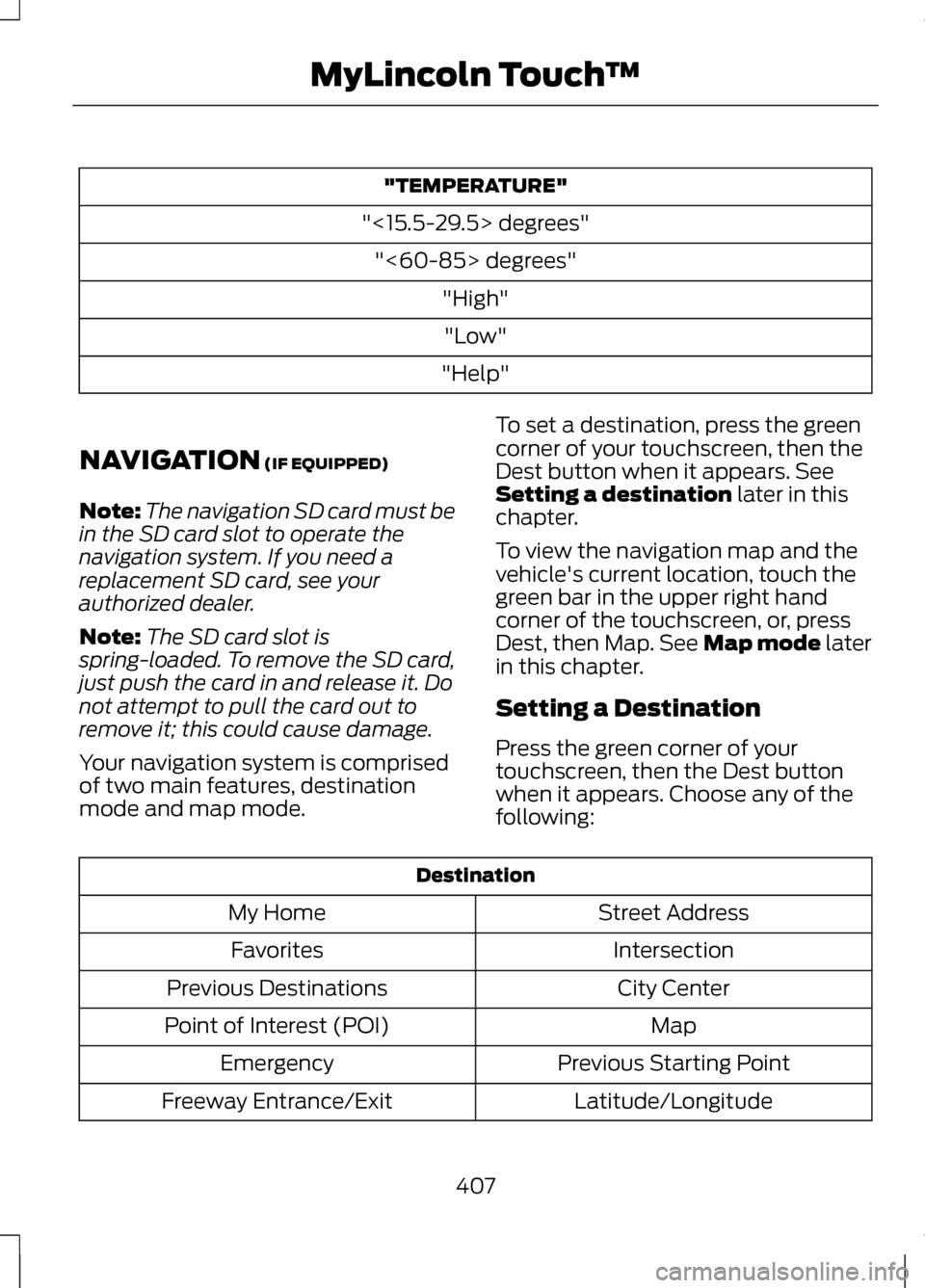

"TEMPERATURE"
"<15.5-29.5> degrees" "<60-85> degrees" "High""Low"
"Help"
NAVIGATION (IF EQUIPPED)
Note: The navigation SD card must be
in the SD card slot to operate the
navigation system. If you need a
replacement SD card, see your
authorized dealer.
Note: The SD card slot is
spring-loaded. To remove the SD card,
just push the card in and release it. Do
not attempt to pull the card out to
remove it; this could cause damage.
Your navigation system is comprised
of two main features, destination
mode and map mode. To set a destination, press the green
corner of your touchscreen, then the
Dest button when it appears. See
Setting a destination
later in this
chapter.
To view the navigation map and the
vehicle's current location, touch the
green bar in the upper right hand
corner of the touchscreen, or, press
Dest, then Map. See Map mode later
in this chapter.
Setting a Destination
Press the green corner of your
touchscreen, then the Dest button
when it appears. Choose any of the
following: Destination
Street Address
My Home
Intersection
Favorites
City Center
Previous Destinations
Map
Point of Interest (POI)
Previous Starting Point
Emergency
Latitude/Longitude
Freeway Entrance/Exit
407
MyLincoln Touch
™

1. Enter the necessary information
into the highlighted text fields (in
any order). For address destination
entry, the Go! button appears once
all the necessary information has
been entered. Pressing the Go!
button makes the address location
appear on the map. If you choose
Previous Destination, the last 20
destinations you have selected
appear.
2. Select Set as Dest to make this your destination. You can also
choose to set this as a waypoint
(have the system route to this
point on the way to your current
destination) or save it as a favorite.
Any Avoid Areas selections are
also considered in route
calculation.
3. Choose from up to three different types of routes, then select Start
Route.
• Fastest: Uses the fastest moving
roads possible.
• Shortest: Uses the shortest
distance possible.
• Eco (EcoRoute): Uses the most
fuel efficient route. You can cancel the route or have the
system demo the route for you. Select
Route Prefs to set route preferences
like avoiding freeways, toll roads,
ferries and car trains as well as to use
or not use HOV lanes. (HOV lanes are
High Occupancy Vehicle Lanes also
known as carpool or diamond lanes.
These lanes are reserved for people
who ride in buses, vanpools or
carpools.)
Note:
If Start Route button is not
pressed and the vehicle is driven on a
recognized road, the system defaults
to the fastest route option and begins
guidance.
During route guidance, the talking
bubble icon that appears in the upper
right navigation corner (green bar) can
be pressed if the user wants the
system to repeat a route guidance
instruction. Instructions decrease with
each press.
Point of Interest (POI)
Categories
Your system offers a variety if POI
(Points of Interest) categories. Main Categories
Automotive
Food/Drink & Dining
Shopping
Travel & Transportation
Entertainment & Arts
Financial
408
MyLincoln Touch
™
