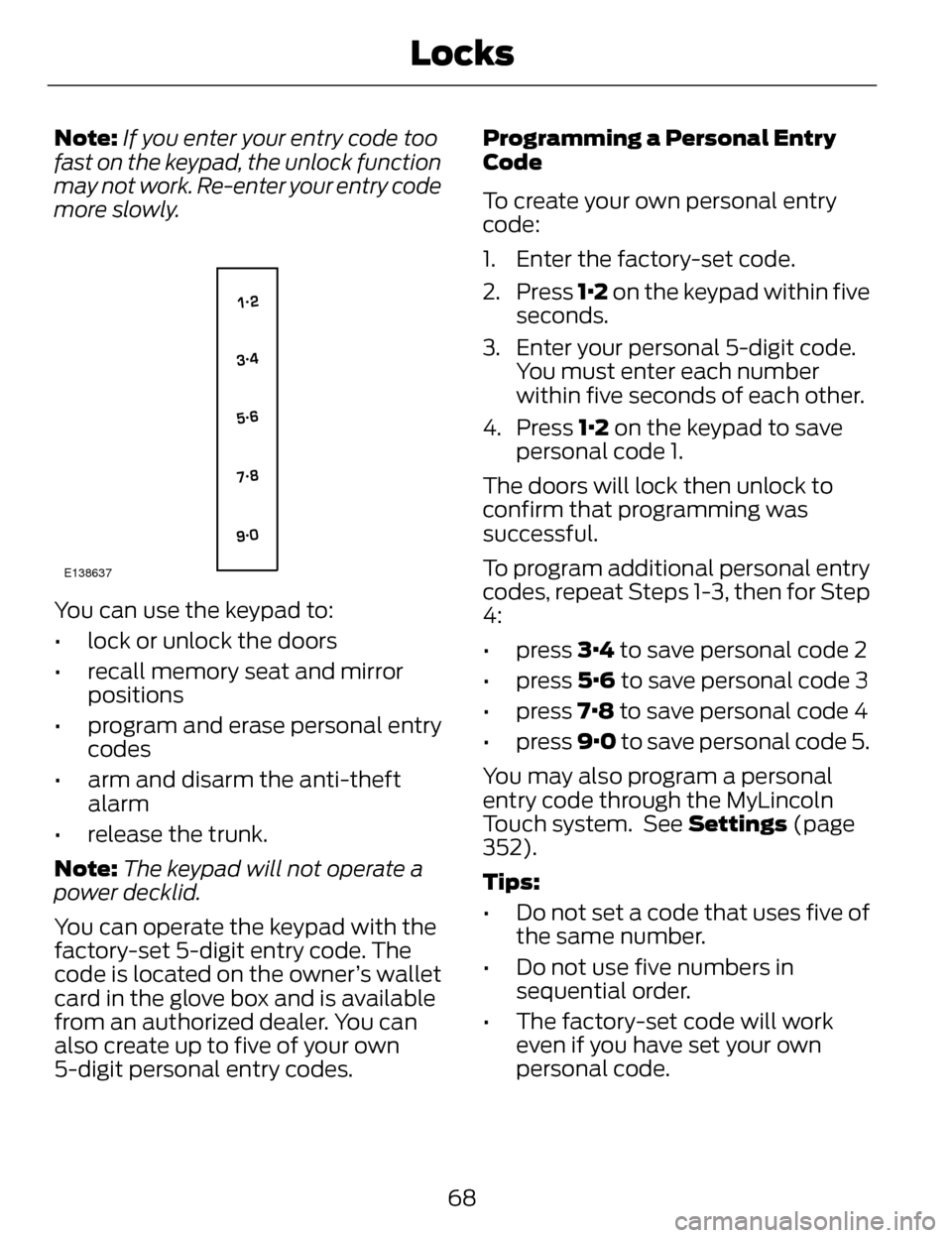

Note:If you enter your entry code too
fast on the keypad, the unlock function
may not work. Re-enter your entry code
more slowly.
E138637
You can use the keypad to:
• lock or unlock the doors
• recall memory seat and mirror positions
• program and erase personal entry codes
• arm and disarm the anti-theft alarm
• release the trunk.
Note: The keypad will not operate a
power decklid.
You can operate the keypad with the
factory-set 5-digit entry code. The
code is located on the owner’s wallet
card in the glove box and is available
from an authorized dealer. You can
also create up to five of your own
5-digit personal entry codes. Programming a Personal Entry
Code
To create your own personal entry
code:
1. Enter the factory-set code.
2. Press
1·2 on the keypad within five
seconds.
3. Enter your personal 5-digit code. You must enter each number
within five seconds of each other.
4. Press 1·2 on the keypad to save
personal code 1.
The doors will lock then unlock to
confirm that programming was
successful.
To program additional personal entry
codes, repeat Steps 1-3, then for Step
4:
• press 3·4 to save personal code 2
• press 5·6 to save personal code 3
• press 7·8 to save personal code 4
• press 9·0 to save personal code 5.
You may also program a personal
entry code through the MyLincoln
Touch system. See Settings (page
352).
Tips:
• Do not set a code that uses five of the same number.
• Do not use five numbers in sequential order.
• The factory-set code will work even if you have set your own
personal code.
68
Locks

Recalling Memory Positions
The programmed entry codes will
recall driver memory positions as
follows:
• Entry code 1 will recall driver 1memory positions.
• Entry code 2 will recall driver 2 memory positions.
• Entry code 3 will recall driver 3 memory positions.
Note: Personal entry codes 4 and 5
will not recall memory positions.
Erasing a Personal Code
1. Enter the factory-set 5-digit code.
2. Press and release 1·2 on the keypad within five seconds.
3. Press and hold 1·2 for two seconds. You must do this within
five seconds of completing Step 2.
All personal codes are now erased
and only the factory-set 5–digit code
will work.
Anti-Scan Feature
The keypad will go into an anti-scan
mode if you enter the wrong code
seven times (35 consecutive button
presses). This mode disables the
keypad for one minute and the keypad
lamp will flash.
The anti-scan feature will turn off
after:
• one minute of keypad inactivity
• pressing the unlock button on the remote control • switching the ignition on
• unlocking your vehicle using
intelligent access.
Unlocking and Locking the Doors
To Unlock the Driver Door
Enter the factory-set 5-digit code or
your personal code. You must press
each number within five seconds of
each other. The interior lamps will
illuminate.
Note: All doors will unlock if you
enable the all-door unlocking mode.
See Locking and Unlocking (page 62).
To Unlock All Doors
Enter the factory-set code or your
personal code, then press 3·4 within
five seconds.
To Lock All Doors
Press and hold 7·8 and 9·0 at the
same time (with the driver door
closed). You do not need to enter the
keypad code first.
To Release the Trunk
Enter the factory-set code or your
personal code, then press 5·6 within
five seconds.
Displaying the Factory Set Code
Note: You will need to have two
programmed intelligent access keys
for this procedure.
To display the factory-set code in the
information display:
69
Locks

E155835
1. Remove the rubber covering (A) inthe cupholder. Place the first
programmed key in the backup
slot (B) at the bottom of the
cupholder.
2. Press the START/STOP button
once and wait a few seconds.
3. Press the START/STOP button
again and remove the key.
4. Insert the second programmed key into the backup slot, then press the
START/STOP button.
The factory-set code will appear in
the information display for a few
seconds.
Note: The code may not display until
after any other warning messages first
display.
INTERIOR LUGGAGE
COMPARTMENT RELEASE
WARNINGS
Keep vehicle doors and luggage
compartment locked and keep
keys and remote transmitters out of
a child’s reach. Unsupervised children
could lock themselves in the trunk and
risk injury. Children should be taught
not to play in vehicles.
Do not leave children, unreliable
adults, or animals unattended in
the vehicle. On hot days, the
temperature in the trunk or vehicle
interior can rise very quickly. Exposure
of people or animals to these high
temperatures for even a short time
can cause death or serious
heat-related injuries, including brain
damage. Small children are
particularly at risk.
Your vehicle is equipped with a
release handle that provides a means
of escape for children and adults if
they become locked inside the
luggage compartment.
Adults should familiarize themselves
with the operation and location of the
release handle.
70
Locks

E144403

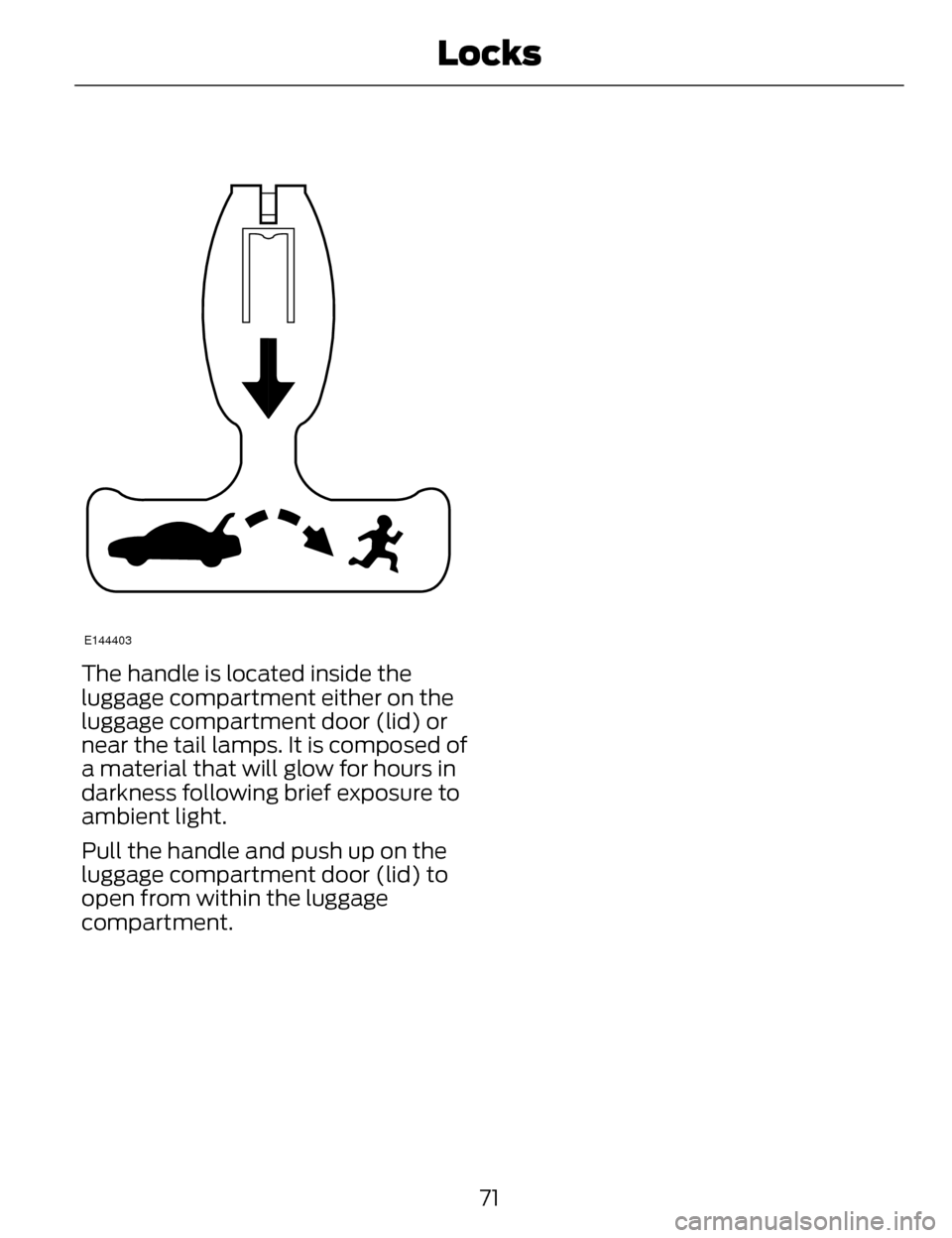

The handle is located inside the
luggage compartment either on the
luggage compartment door (lid) or
near the tail lamps. It is composed of
a material that will glow for hours in
darkness following brief exposure to
ambient light.
Pull the handle and push up on the
luggage compartment door (lid) to
open from within the luggage
compartment.71
Locks

PASSIVE ANTI-THEFT
SYSTEM
Note:The system is not compatible
with non-Ford aftermarket remote start
systems. Use of these systems may
result in vehicle starting problems and
a loss of security protection.
Note: Metallic objects, electronic
devices or a second coded key on the
same key chain may cause vehicle
starting problems if they are too close
to the key when starting your vehicle.
Prevent these objects from touching
the coded key while starting your
vehicle. Switch the ignition off, move
all objects on the key chain away from
the coded key and restart your vehicle
if a problem occurs.
Note: Do not leave a duplicate coded
key in your vehicle. Always take your
keys and lock all doors when leaving
your vehicle.
SecuriLock®
The system helps prevent your vehicle
from starting unless you use a coded
key programmed to your vehicle.
Using the wrong key may prevent your
vehicle from starting. A message may
appear in the information display.
If you are unable to start your vehicle
with a correctly coded key, a
malfunction has happened. A
message may appear in the
information display. Automatic Arming
Your vehicle arms immediately after
switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded
key disarms your vehicle.
Replacement Keys
Note:
Your vehicle comes equipped
with two intelligent access keys.
The intelligent access key functions
as a programmed key that operates
the driver door lock and activates the
intelligent access with push button
start system, as well as a remote
control.
If your programmed transmitters are
lost or stolen and you do not have an
extra coded key, you will need to have
your vehicle towed to an authorized
dealer. You need to erase the key
codes from your vehicle and program
new coded keys.
Store an extra programmed key away
from your vehicle in a safe place to
help prevent any inconveniences. See
your authorized dealer to purchase
additional spare or replacement keys.
Programming a Spare Intelligent
Access Key
Note: You can program a maximum
for four intelligent access keys to your
vehicle.
72
Security

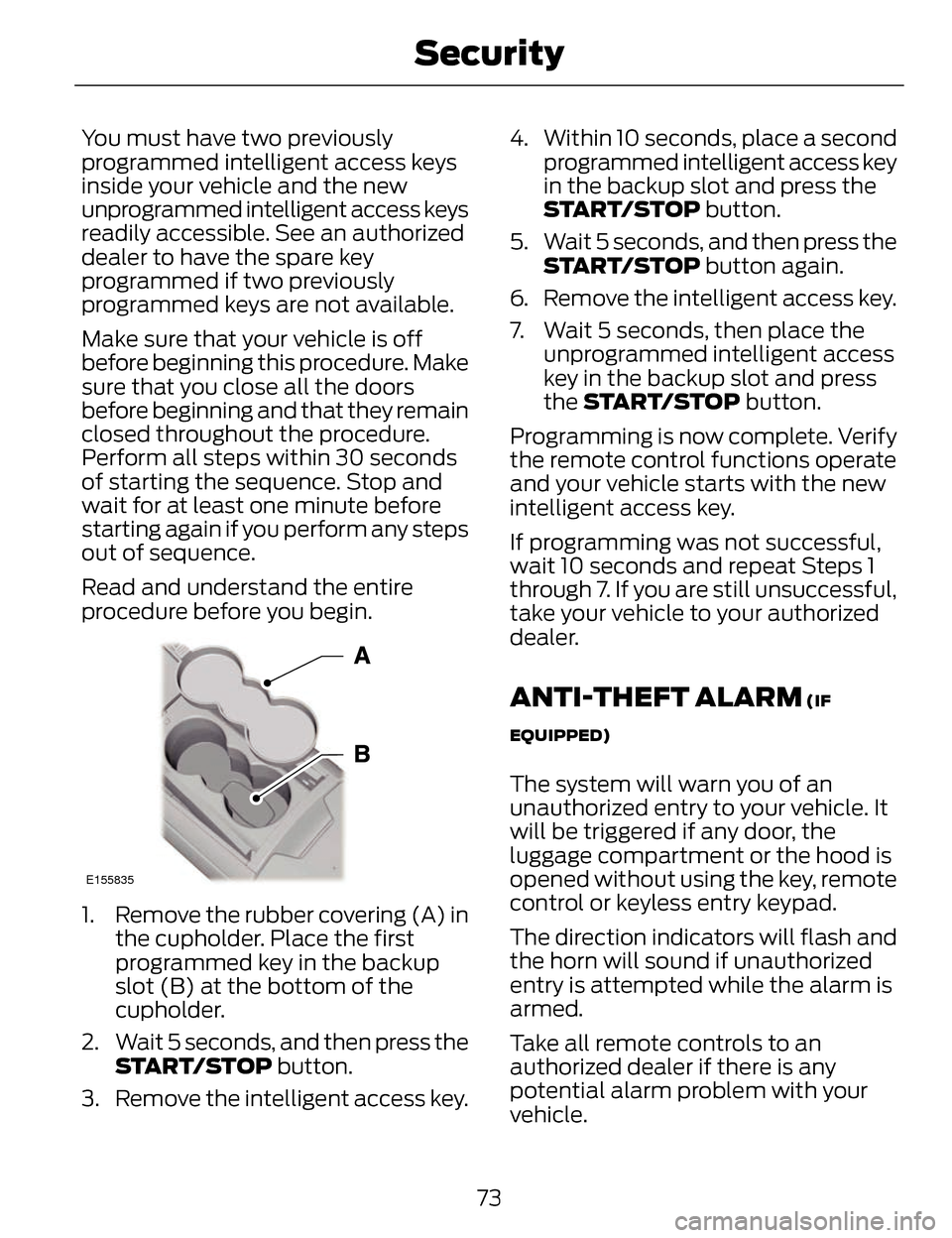

You must have two previously
programmed intelligent access keys
inside your vehicle and the new
unprogrammed intelligent access keys
readily accessible. See an authorized
dealer to have the spare key
programmed if two previously
programmed keys are not available.
Make sure that your vehicle is off
before beginning this procedure. Make
sure that you close all the doors
before beginning and that they remain
closed throughout the procedure.
Perform all steps within 30 seconds
of starting the sequence. Stop and
wait for at least one minute before
starting again if you perform any steps
out of sequence.
Read and understand the entire
procedure before you begin.
E155835
1. Remove the rubber covering (A) inthe cupholder. Place the first
programmed key in the backup
slot (B) at the bottom of the
cupholder.
2. Wait 5 seconds, and then press the START/STOP button.
3. Remove the intelligent access key. 4. Within 10 seconds, place a second
programmed intelligent access key
in the backup slot and press the
START/STOP button.
5. Wait 5 seconds, and then press the START/STOP button again.
6. Remove the intelligent access key.
7. Wait 5 seconds, then place the unprogrammed intelligent access
key in the backup slot and press
the START/STOP button.
Programming is now complete. Verify
the remote control functions operate
and your vehicle starts with the new
intelligent access key.
If programming was not successful,
wait 10 seconds and repeat Steps 1
through 7. If you are still unsuccessful,
take your vehicle to your authorized
dealer.
ANTI-THEFT ALARM (IF
EQUIPPED)
The system will warn you of an
unauthorized entry to your vehicle. It
will be triggered if any door, the
luggage compartment or the hood is
opened without using the key, remote
control or keyless entry keypad.
The direction indicators will flash and
the horn will sound if unauthorized
entry is attempted while the alarm is
armed.
Take all remote controls to an
authorized dealer if there is any
potential alarm problem with your
vehicle.
73
Security

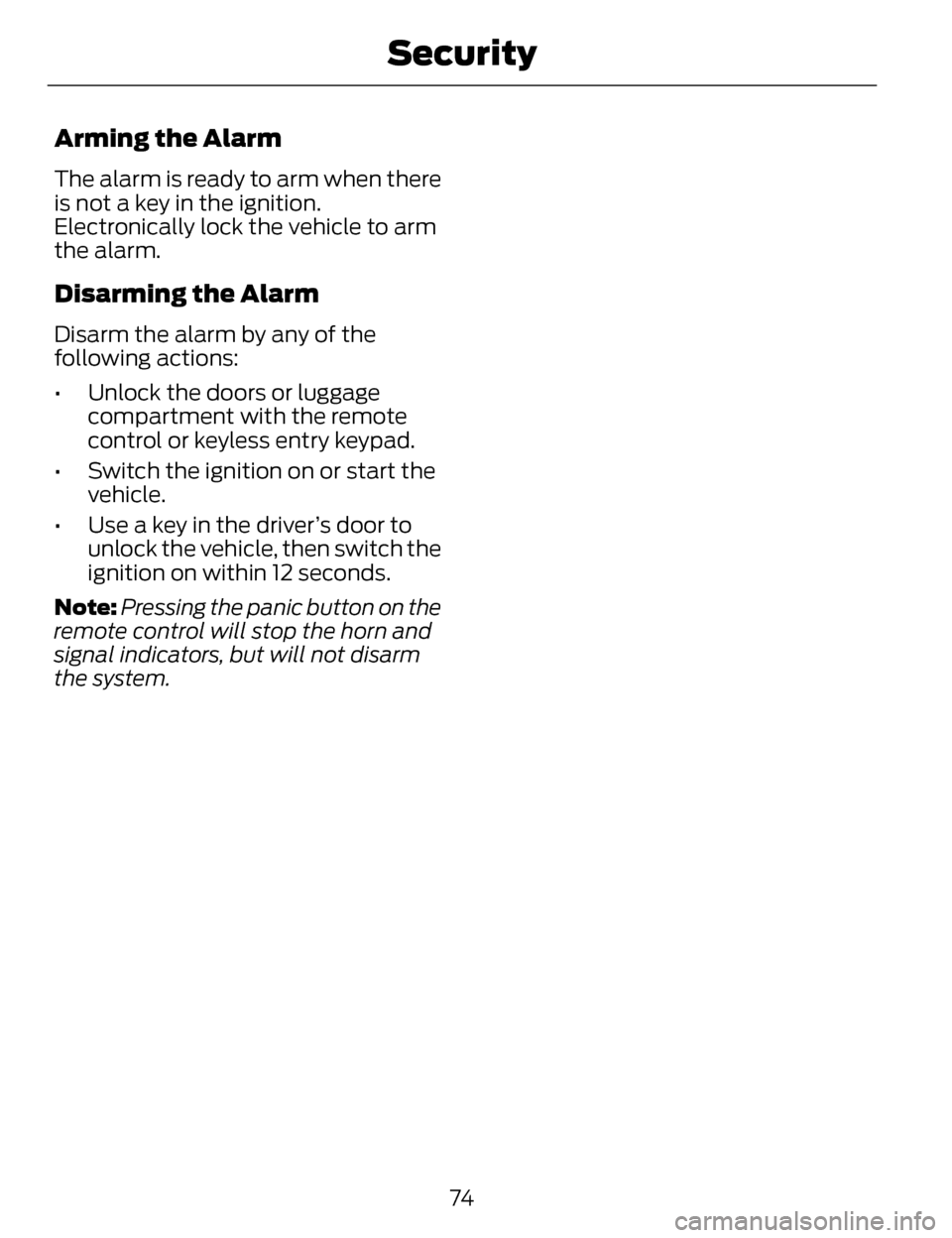

Arming the Alarm
The alarm is ready to arm when there
is not a key in the ignition.
Electronically lock the vehicle to arm
the alarm.
Disarming the Alarm
Disarm the alarm by any of the
following actions:
• Unlock the doors or luggagecompartment with the remote
control or keyless entry keypad.
• Switch the ignition on or start the vehicle.
• Use a key in the driver’s door to unlock the vehicle, then switch the
ignition on within 12 seconds.
Note: Pressing the panic button on the
remote control will stop the horn and
signal indicators, but will not disarm
the system.
74
Security

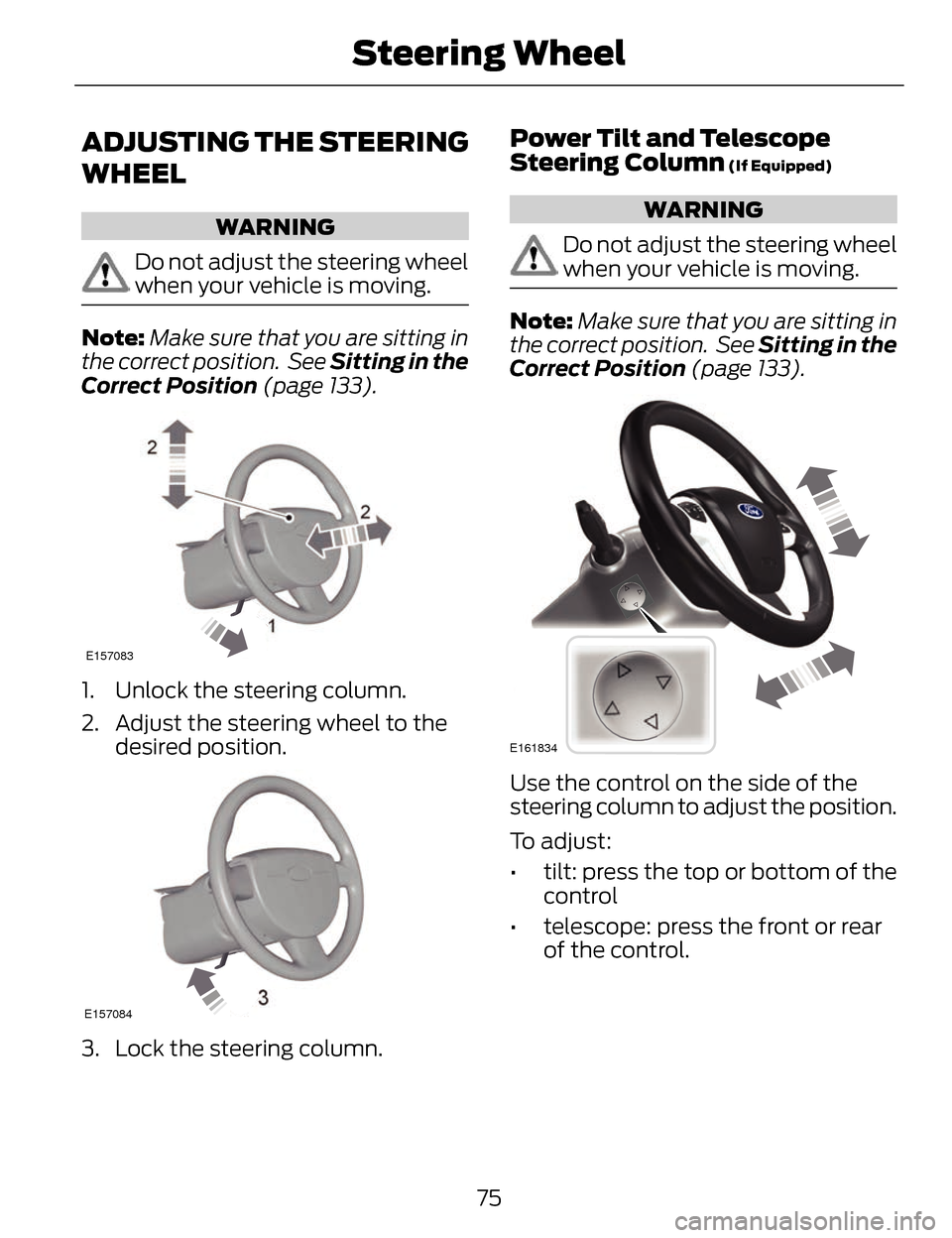

ADJUSTING THE STEERING
WHEEL
WARNING
Do not adjust the steering wheel
when your vehicle is moving.
Note:Make sure that you are sitting in
the correct position. See Sitting in the
Correct Position (page 133).
2
2
1E157083
1. Unlock the steering column.
2. Adjust the steering wheel to the desired position.
E157084
3. Lock the steering column.
Power Tilt and Telescope
Steering Column (If Equipped)
WARNING
Do not adjust the steering wheel
when your vehicle is moving.
Note: Make sure that you are sitting in
the correct position. See Sitting in the
Correct Position (page 133).
E161834
Use the control on the side of the
steering column to adjust the position.
To adjust:
• tilt: press the top or bottom of the control
• telescope: press the front or rear of the control.
75
Steering Wheel

Easy Entry and Exit Feature
When you switch the ignition off, the
steering column will move to the full
up position to allow extra room to exit
your vehicle. The column will return
to the previous setting when you
switch the ignition on. You can enable
or disable this feature in the
information display. See Information
Displays (page 101).
Memory Feature
You can save and recall the steering
column position with the memory
function. See Memory Function
(page 137).
Pressing the adjustment control
during memory recall cancels the
operation. The column responds to
the adjustment control.
The steering column sets a stopping
position just short of the end of the
column position to prevent damage
to the steering column. A new
stopping position sets if the steering
column encounters an object when
tilting or telescoping.
To reset the steering column to its
normal stopping position:
1. Press the steering column control again after encountering the new
stopping position.
2. Continue pressing the control until it reaches the end of the column
position.
A new stopping position is set. The
next time you tilt or telescope the
steering column, it will stop just short
of the end of the column position.AUDIO CONTROL (IF EQUIPPED)
You can operate the following
functions with the control:
E145979
Volume up
A
Volume down
B
Seek up or next
C
Seek down or previous
D
MuteE
Seek, Next or Previous
Press the seek button to:
• tune the radio to the next orprevious stored preset
• play the next or the previous track.
Press and hold the seek button to:
• tune the radio to the next station up or down the frequency band
• seek through a track.
76
Steering Wheel

VOICE CONTROL (IF EQUIPPED)
E145980
Voice recognition
A
End a call
B
Answer a call
C
See MyLincoln Touch™ (page 342).
CRUISE CONTROL
Type 1
E145976
Type 2
E145977
See Cruise Control (page 198).
INFORMATION DISPLAY
CONTROL
E145981
See Information Displays (page 101).
Cluster Display Control
Features
E145982
77
Steering Wheel
