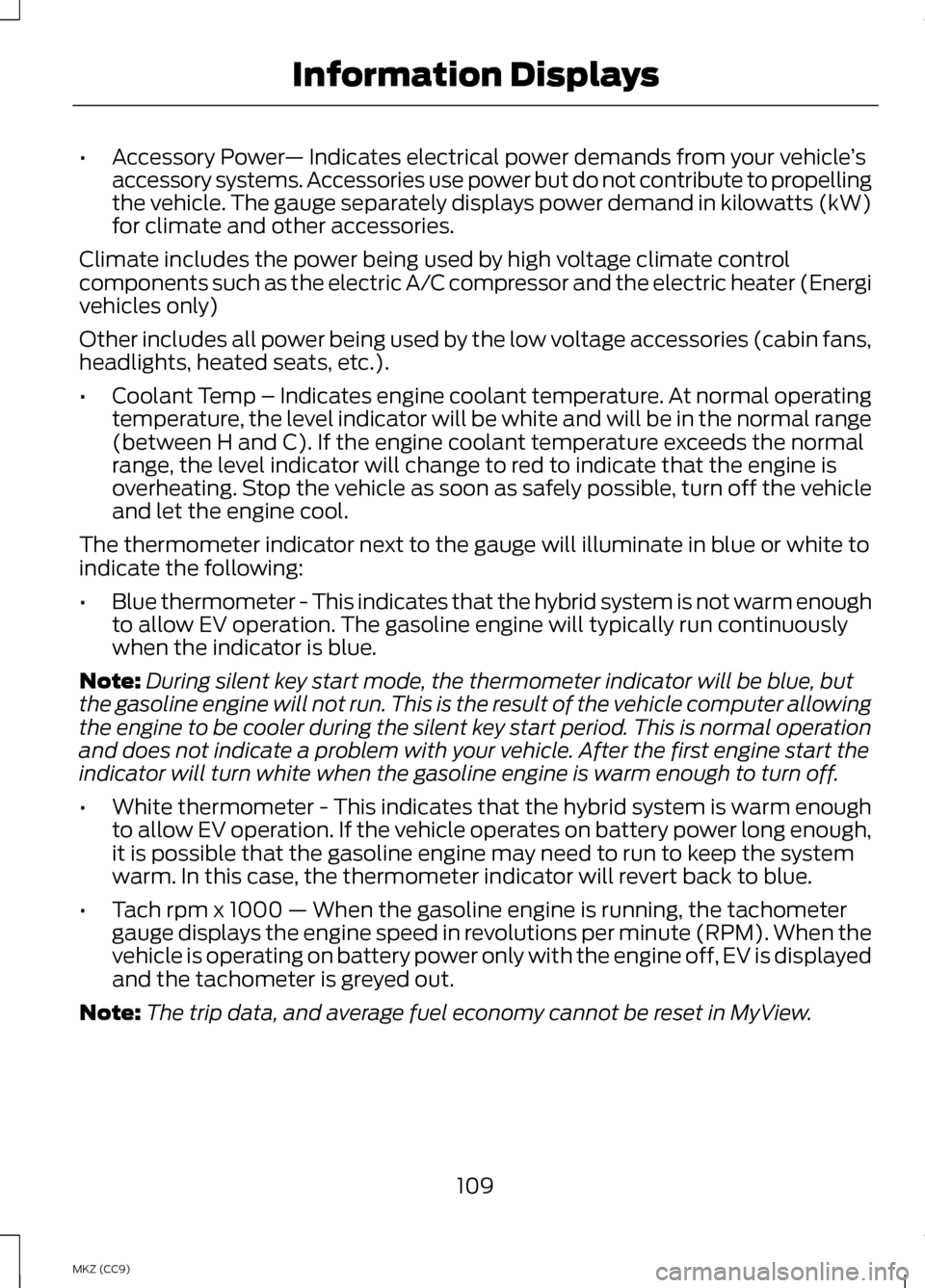

Accessory Power — Indicates electrical power demands from your vehicle ’s
accessory systems. Accessories use power but do not contribute to propelling
the vehicle. The gauge separately displays power demand in kilowatts (kW)
for climate and other accessories.
Climate includes the power being used by high voltage climate control
components such as the electric A/C compressor and the electric heater (Energi
vehicles only)
Other includes all power being used by the low voltage accessories (cabin fans,
headlights, heated seats, etc.).
• Coolant Temp – Indicates engine coolant temperature. At normal operating
temperature, the level indicator will be white and will be in the normal range
(between H and C). If the engine coolant temperature exceeds the normal
range, the level indicator will change to red to indicate that the engine is
overheating. Stop the vehicle as soon as safely possible, turn off the vehicle
and let the engine cool.
The thermometer indicator next to the gauge will illuminate in blue or white to
indicate the following:
• Blue thermometer - This indicates that the hybrid system is not warm enough
to allow EV operation. The gasoline engine will typically run continuously
when the indicator is blue.
Note: During silent key start mode, the thermometer indicator will be blue, but
the gasoline engine will not run. This is the result of the vehicle computer allowing
the engine to be cooler during the silent key start period. This is normal operation
and does not indicate a problem with your vehicle. After the first engine start the
indicator will turn white when the gasoline engine is warm enough to turn off.
• White thermometer - This indicates that the hybrid system is warm enough
to allow EV operation. If the vehicle operates on battery power long enough,
it is possible that the gasoline engine may need to run to keep the system
warm. In this case, the thermometer indicator will revert back to blue.
• Tach rpm x 1000 — When the gasoline engine is running, the tachometer
gauge displays the engine speed in revolutions per minute (RPM). When the
vehicle is operating on battery power only with the engine off, EV is displayed
and the tachometer is greyed out.
Note: The trip data, and average fuel economy cannot be reset in MyView.
109
MKZ (CC9) Information Displays

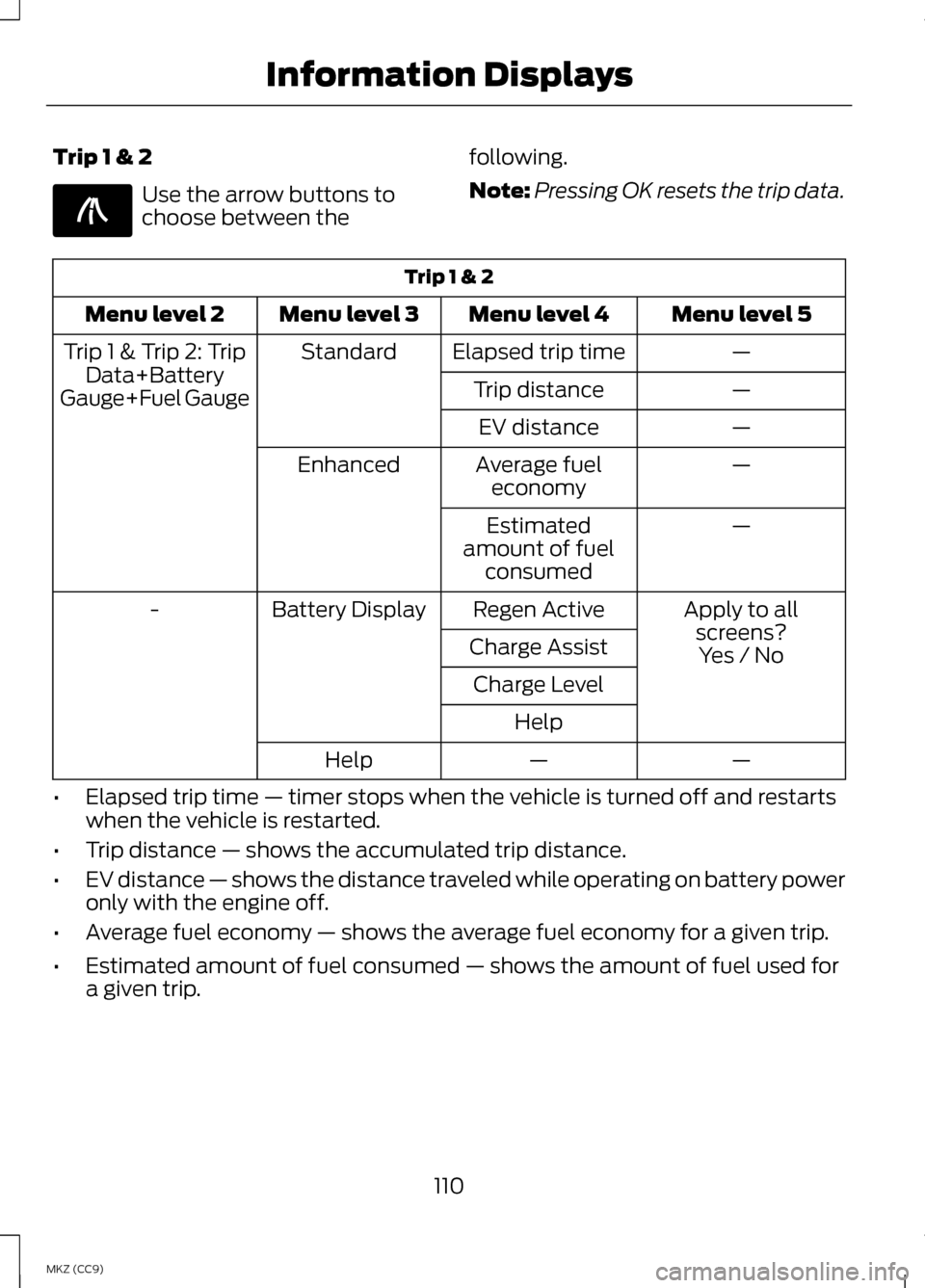

Trip 1 & 2
Use the arrow buttons to
choose between the
following.
Note:
Pressing OK resets the trip data. Trip 1 & 2
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
Elapsed trip time
Standard
Trip 1 & Trip 2: Trip
Data+Battery
Gauge+Fuel Gauge —
Trip distance
—
EV distance
—
Average fuel
economy
Enhanced
—
Estimated
amount of fuel consumed
Apply to allscreens?
Regen Active
Battery Display
-
Charge AssistYes / No
Charge Level
Help —
—
Help
• Elapsed trip time — timer stops when the vehicle is turned off and restarts
when the vehicle is restarted.
• Trip distance — shows the accumulated trip distance.
• EV distance — shows the distance traveled while operating on battery power
only with the engine off.
• Average fuel economy — shows the average fuel economy for a given trip.
• Estimated amount of fuel consumed — shows the amount of fuel used for
a given trip.
110
MKZ (CC9) Information DisplaysE138660

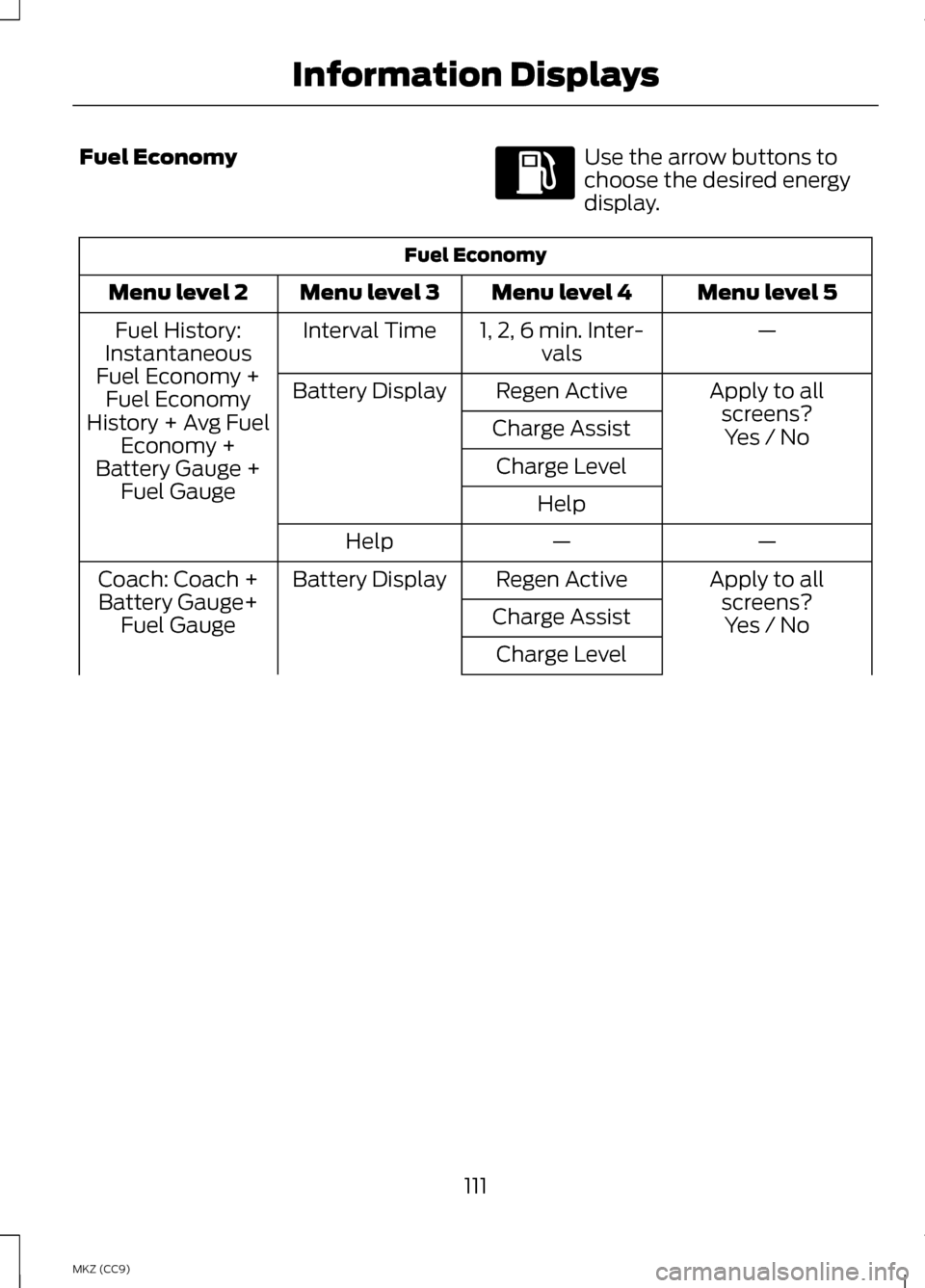

Fuel Economy Use the arrow buttons to
choose the desired energy
display.
Fuel Economy
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
1, 2, 6 min. Inter-
vals
Interval Time
Fuel History:
Instantaneous
Fuel Economy + Fuel Economy
History + Avg Fuel Economy +
Battery Gauge + Fuel Gauge Apply to all
screens?Yes / No
Regen Active
Battery Display
Charge AssistCharge Level Help —
—
Help
Apply to allscreens?
Regen Active
Battery Display
Coach: Coach +
Battery Gauge+ Fuel Gauge Charge Assist
Yes / No
Charge Level
111
MKZ (CC9) Information DisplaysE144640

Fuel Economy
Help —
—
Help

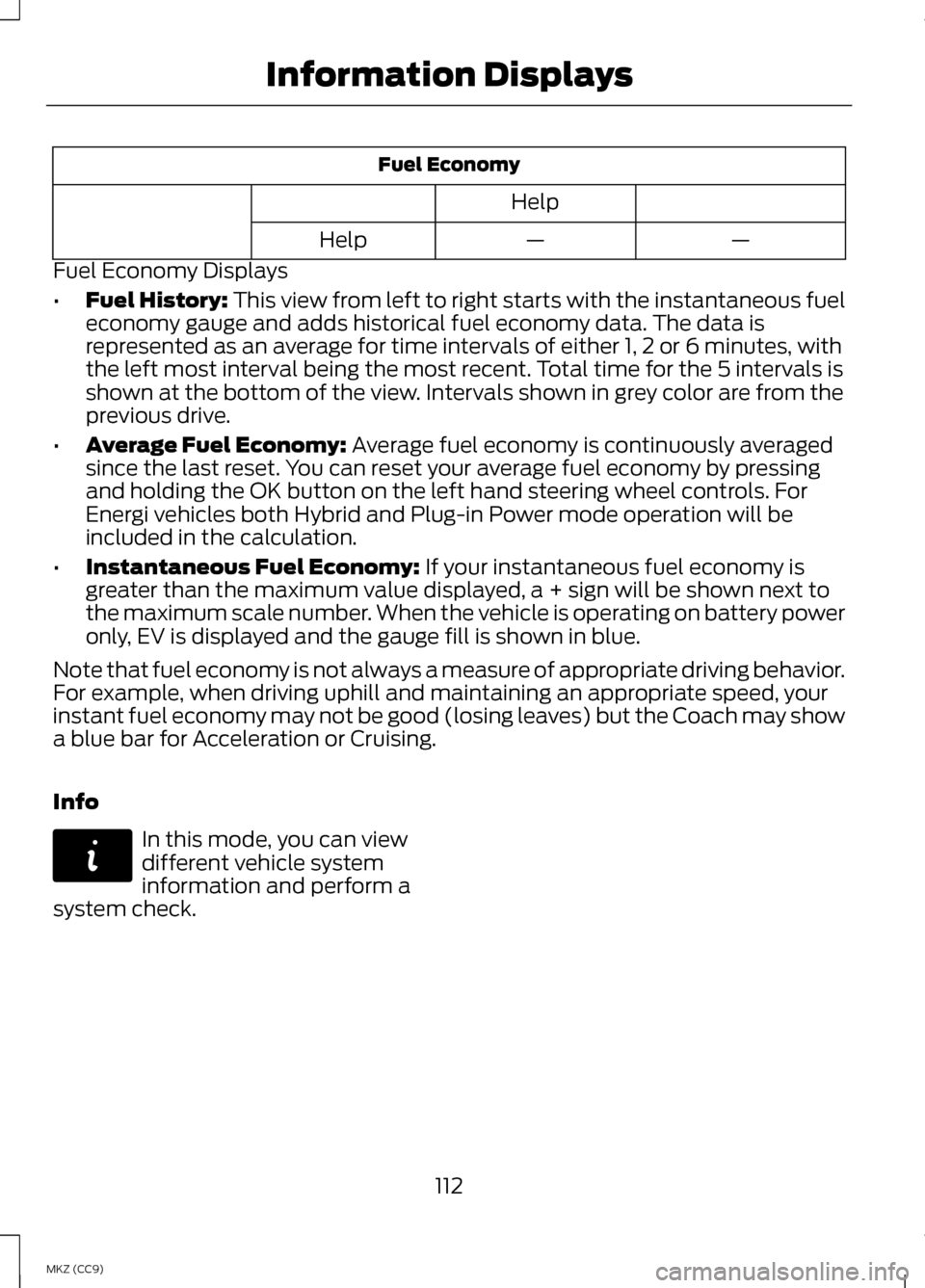

Fuel Economy Displays
• Fuel History: This view from left to right starts with the instantaneous fuel
economy gauge and adds historical fuel economy data. The data is
represented as an average for time intervals of either 1, 2 or 6 minutes, with
the left most interval being the most recent. Total time for the 5 intervals is
shown at the bottom of the view. Intervals shown in grey color are from the
previous drive.
• Average Fuel Economy:
Average fuel economy is continuously averaged
since the last reset. You can reset your average fuel economy by pressing
and holding the OK button on the left hand steering wheel controls. For
Energi vehicles both Hybrid and Plug-in Power mode operation will be
included in the calculation.
• Instantaneous Fuel Economy:
If your instantaneous fuel economy is
greater than the maximum value displayed, a + sign will be shown next to
the maximum scale number. When the vehicle is operating on battery power
only, EV is displayed and the gauge fill is shown in blue.
Note that fuel economy is not always a measure of appropriate driving behavior.
For example, when driving uphill and maintaining an appropriate speed, your
instant fuel economy may not be good (losing leaves) but the Coach may show
a blue bar for Acceleration or Cruising.
Info In this mode, you can view
different vehicle system
information and perform a
system check.
112
MKZ (CC9) Information DisplaysE144642

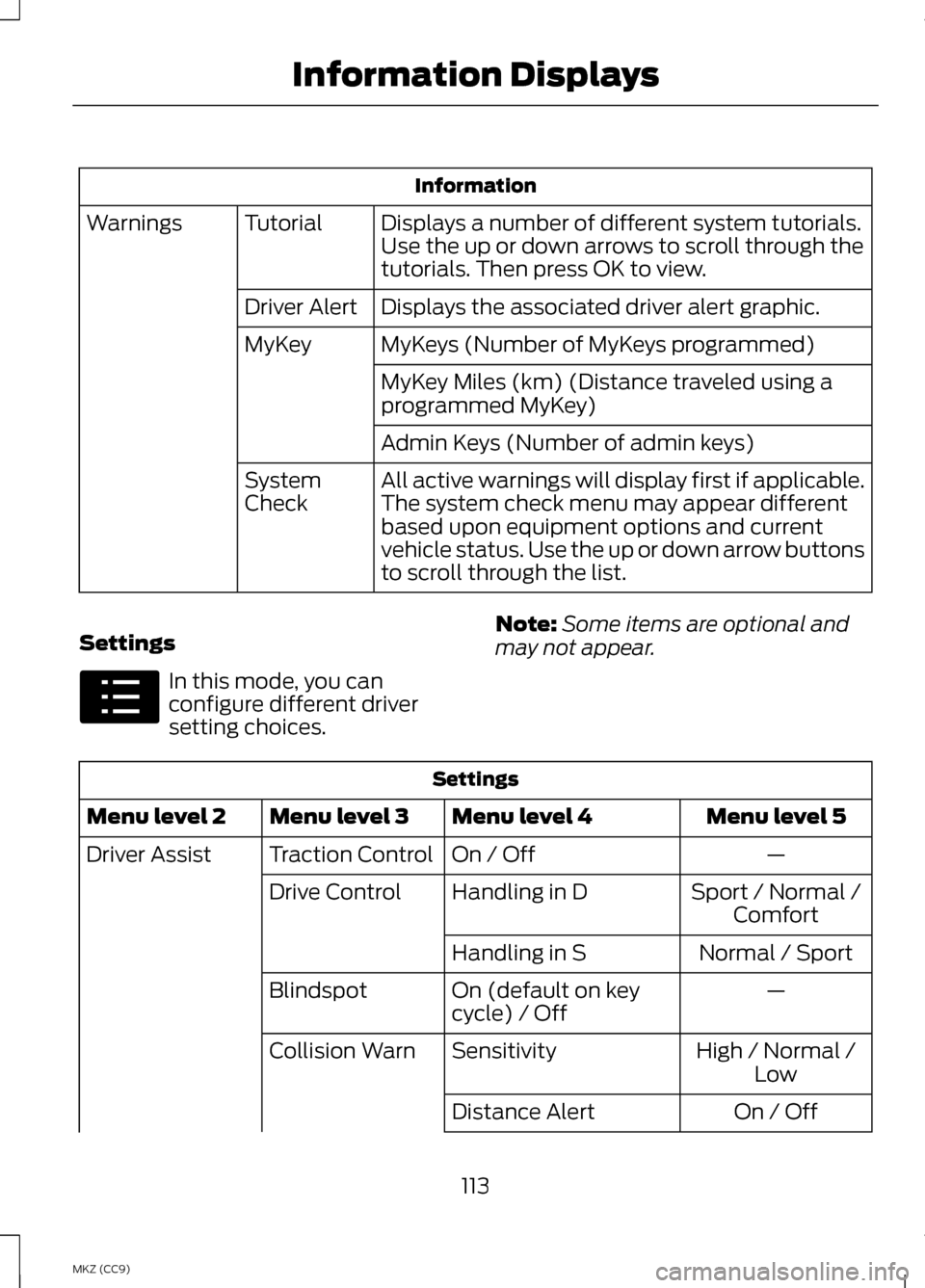

Information
Displays a number of different system tutorials.
Use the up or down arrows to scroll through the
tutorials. Then press OK to view.
Tutorial
Warnings
Displays the associated driver alert graphic.
Driver Alert
MyKeys (Number of MyKeys programmed)
MyKey
MyKey Miles (km) (Distance traveled using a
programmed MyKey)
Admin Keys (Number of admin keys)
All active warnings will display first if applicable.
The system check menu may appear different
based upon equipment options and current
vehicle status. Use the up or down arrow buttons
to scroll through the list.
System
Check
Settings In this mode, you can
configure different driver
setting choices.
Note:
Some items are optional and
may not appear. Settings
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
On / Off
Traction Control
Driver Assist
Sport / Normal /Comfort
Handling in D
Drive Control
Normal / Sport
Handling in S
—
On (default on key
cycle) / Off
Blindspot
High / Normal /Low
Sensitivity
Collision Warn
On / Off
Distance Alert
113
MKZ (CC9) Information DisplaysE100023

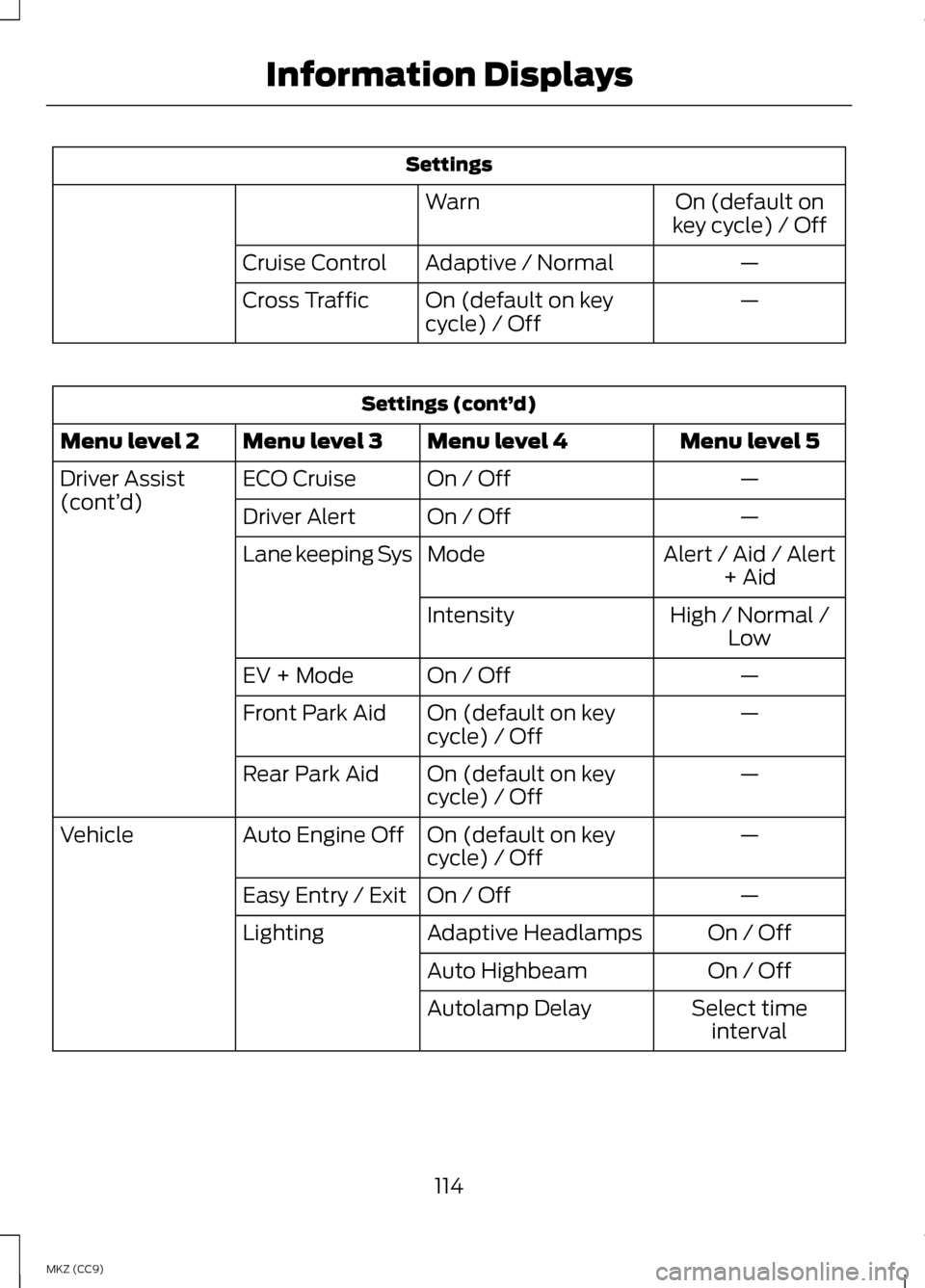

Settings
On (default on
key cycle) / Off
Warn
—
Adaptive / Normal
Cruise Control
—
On (default on key
cycle) / Off
Cross Traffic Settings (cont’
d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
On / Off
ECO Cruise
Driver Assist
(cont’ d)
—
On / Off
Driver Alert
Alert / Aid / Alert+ Aid
Mode
Lane keeping Sys
High / Normal /Low
Intensity
—
On / Off
EV + Mode
—
On (default on key
cycle) / Off
Front Park Aid
—
On (default on key
cycle) / Off
Rear Park Aid
—
On (default on key
cycle) / Off
Auto Engine Off
Vehicle
—
On / Off
Easy Entry / Exit
On / Off
Adaptive Headlamps
Lighting
On / Off
Auto Highbeam
Select timeinterval
Autolamp Delay
114
MKZ (CC9) Information Displays

Settings (cont’
d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
On / Off

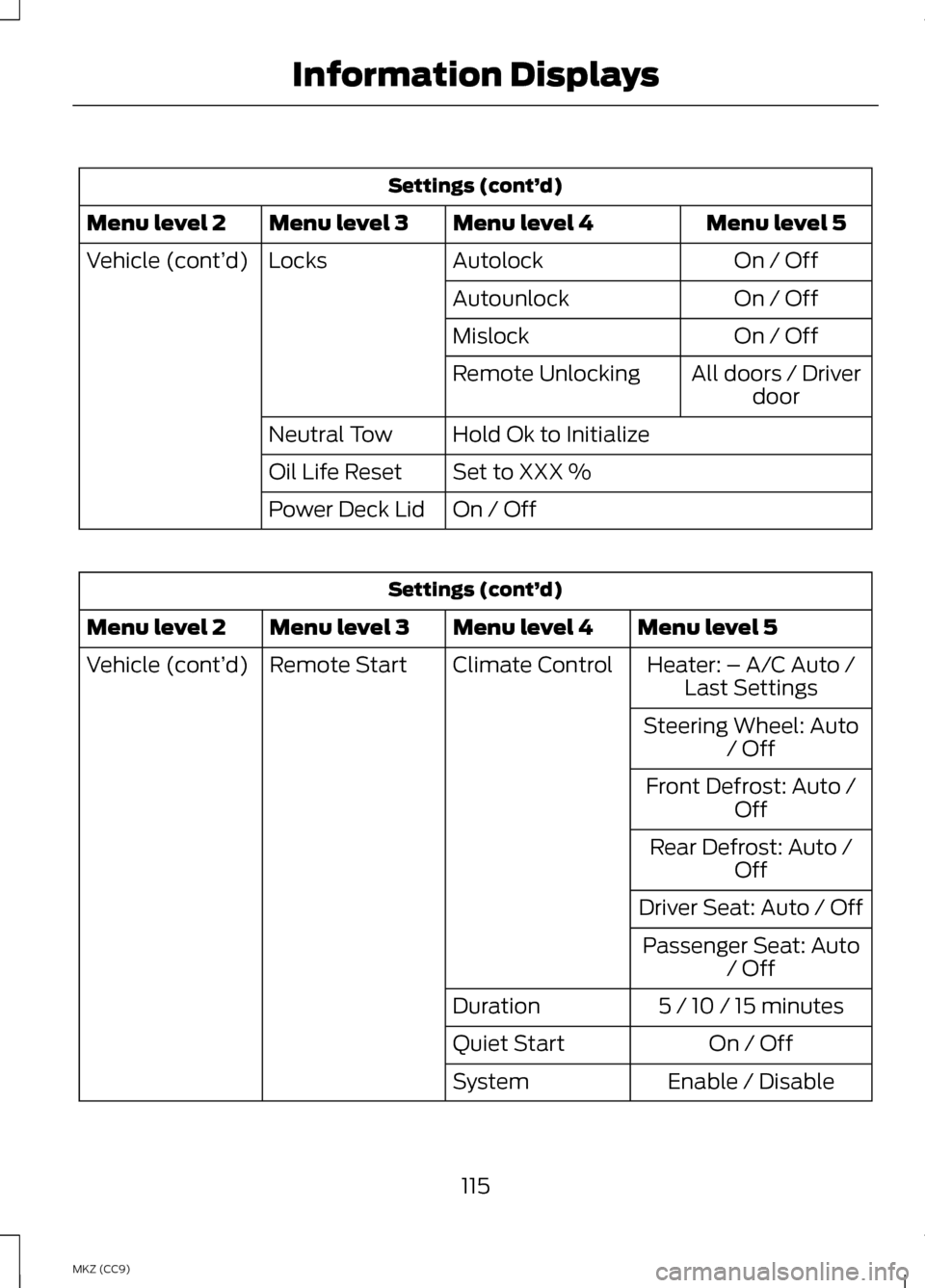

Autolock
Locks
Vehicle (cont’ d)
On / Off
Autounlock
On / Off
Mislock
All doors / Driverdoor
Remote Unlocking
Hold Ok to Initialize
Neutral Tow
Set to XXX %
Oil Life Reset
On / Off
Power Deck Lid Settings (cont’
d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
Heater: – A/C Auto /Last Settings
Climate Control
Remote Start
Vehicle (cont’ d)
Steering Wheel: Auto/ Off
Front Defrost: Auto / Off
Rear Defrost: Auto / Off
Driver Seat: Auto / Off Passenger Seat: Auto / Off
5 / 10 / 15 minutes
Duration
On / Off
Quiet Start
Enable / Disable
System
115
MKZ (CC9) Information Displays

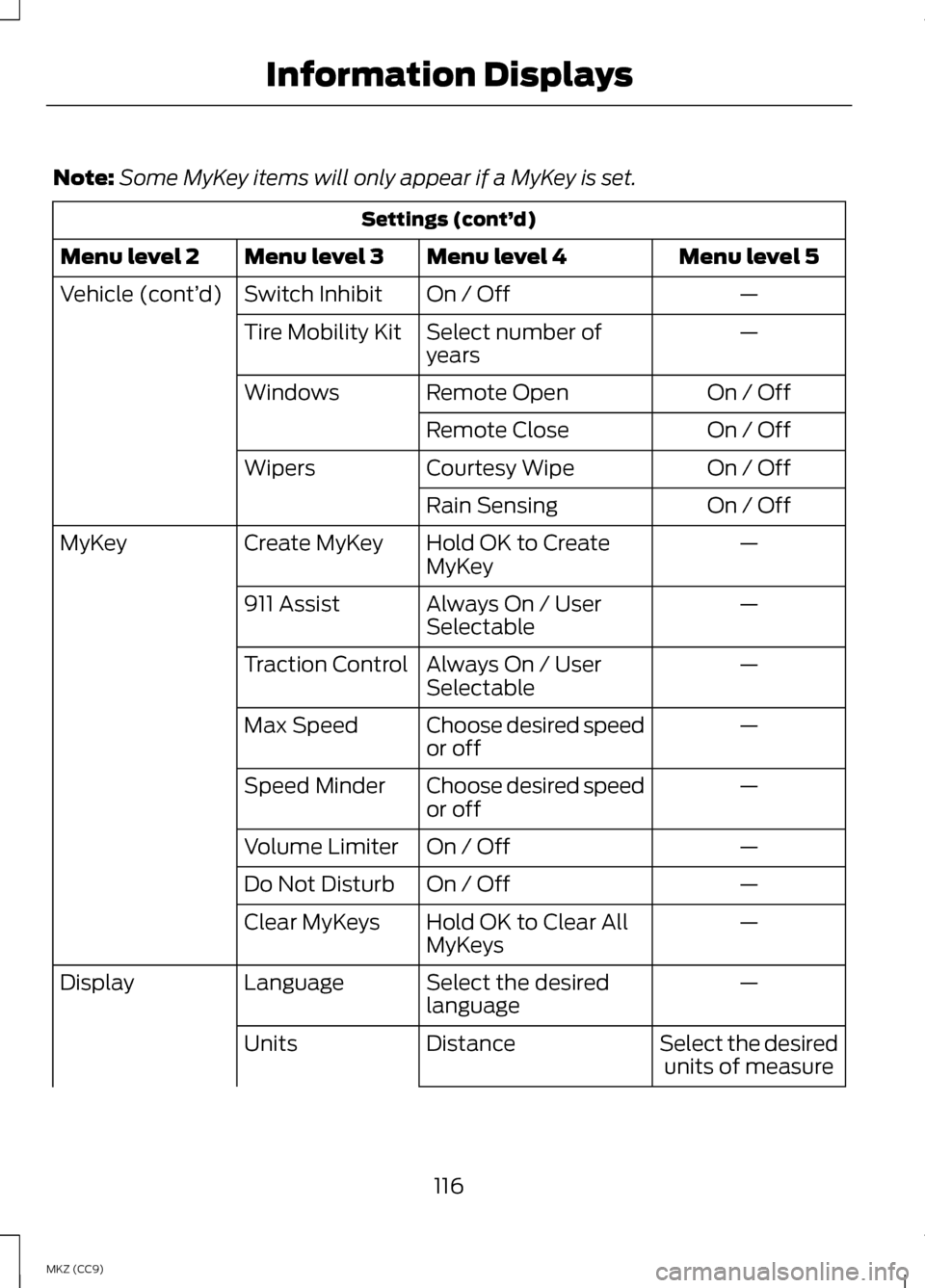

Note:
Some MyKey items will only appear if a MyKey is set. Settings (cont’
d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
On / Off
Switch Inhibit
Vehicle (cont’ d)
—
Select number of
years
Tire Mobility Kit
On / Off
Remote Open
Windows
On / Off
Remote Close
On / Off
Courtesy Wipe
Wipers
On / Off
Rain Sensing
—
Hold OK to Create
MyKey
Create MyKey
MyKey
—
Always On / User
Selectable
911 Assist
—
Always On / User
Selectable
Traction Control
—
Choose desired speed
or off
Max Speed
—
Choose desired speed
or off
Speed Minder
—
On / Off
Volume Limiter
—
On / Off
Do Not Disturb
—
Hold OK to Clear All
MyKeys
Clear MyKeys
—
Select the desired
language
Language
Display
Select the desiredunits of measure
Distance
Units
116
MKZ (CC9) Information Displays

Settings (cont’
d)

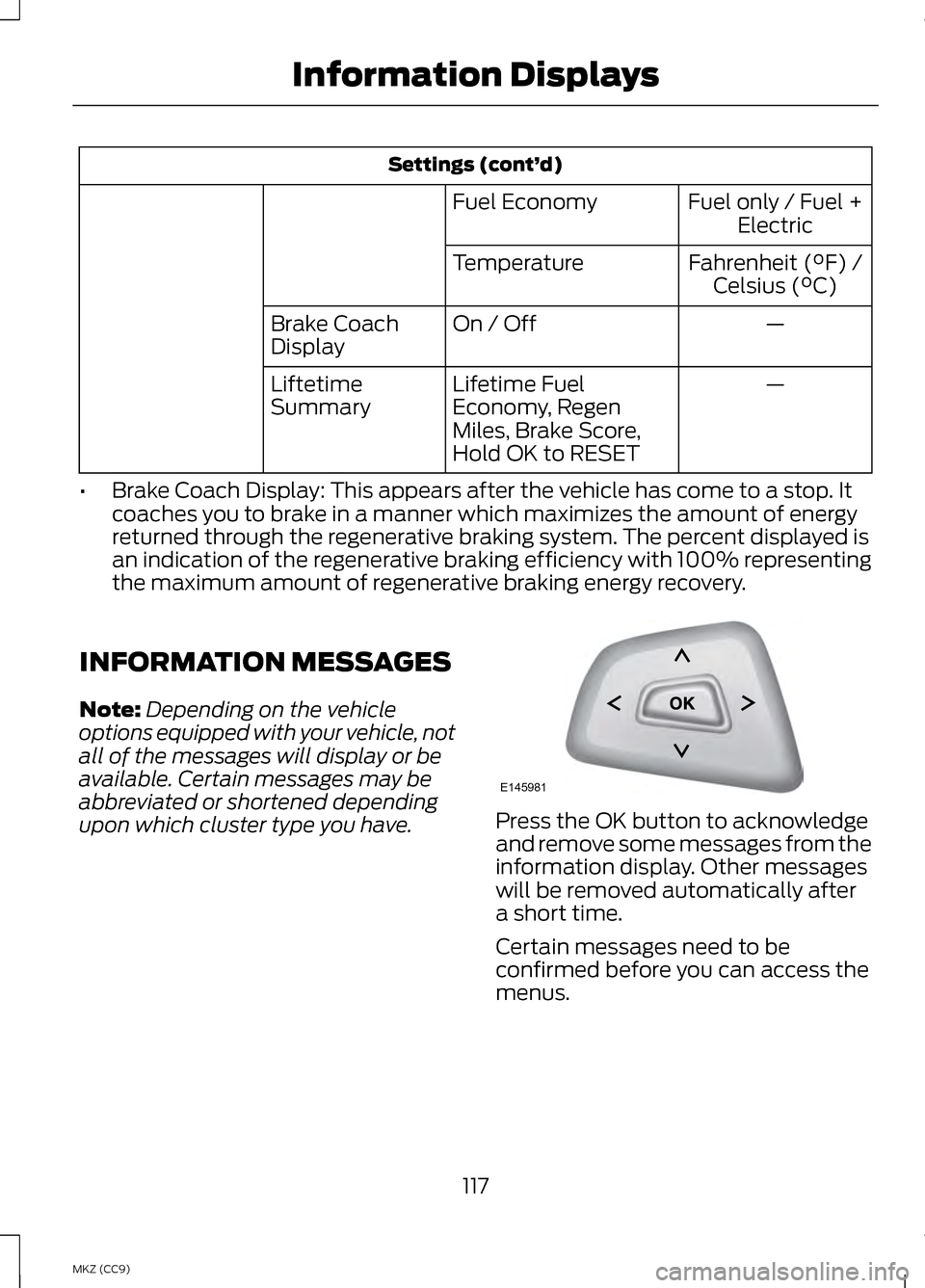

Fuel only / Fuel +Electric
Fuel Economy
Fahrenheit (°F) /Celsius (°C)
Temperature
—
On / Off
Brake Coach
Display
—
Lifetime Fuel
Economy, Regen
Miles, Brake Score,
Hold OK to RESET
Liftetime
Summary
• Brake Coach Display: This appears after the vehicle has come to a stop. It
coaches you to brake in a manner which maximizes the amount of energy
returned through the regenerative braking system. The percent displayed is
an indication of the regenerative braking efficiency with 100% representing
the maximum amount of regenerative braking energy recovery.
INFORMATION MESSAGES
Note: Depending on the vehicle
options equipped with your vehicle, not
all of the messages will display or be
available. Certain messages may be
abbreviated or shortened depending
upon which cluster type you have. Press the OK button to acknowledge
and remove some messages from the
information display. Other messages
will be removed automatically after
a short time.
Certain messages need to be
confirmed before you can access the
menus.
117
MKZ (CC9) Information DisplaysE145981

Active Park
Action
Message
Displayed when the system needs service. Contactyour authorized dealer as soon as possible.
Active Park Fault
Adaptive Cruise Control Action
Message
Displayed when a radar malfunction is preventing theACC from engaging. See Using Adaptive Cruise
Control (page 211).
Adaptive Cruise
Malfunction
Displayed when conditions exist such that the adaptive
cruise cannot function properly. See Using AdaptiveCruise Control
(page 211).
Adaptive Cruise Not
Available
Displayed when the radar is blocked because of poorradar visibility due to bad weather or ice/mud/water
in front of radar. Driver can typically clean the sensor
to resolve. See Using Adaptive Cruise Control
(page
211).
Adaptive Cruise Not
Available Sensor
Blocked See Manual
Displayed when the automatic braking has beendisabled.
Cruise Control Auto-
matic Braking Turned Off
Displayed when a radar malfunction is preventing the ACC from engaging.
Front Sensor Not
Aligned
Displayed when the adaptive cruise has reinstatedcontrols to the driver.
Adaptive Cruise -
Driver Resume Control
Displays when the vehicle speed is too slow to activate the adaptive cruise.
Adaptive Cruise
Speed Too Low to Activate
