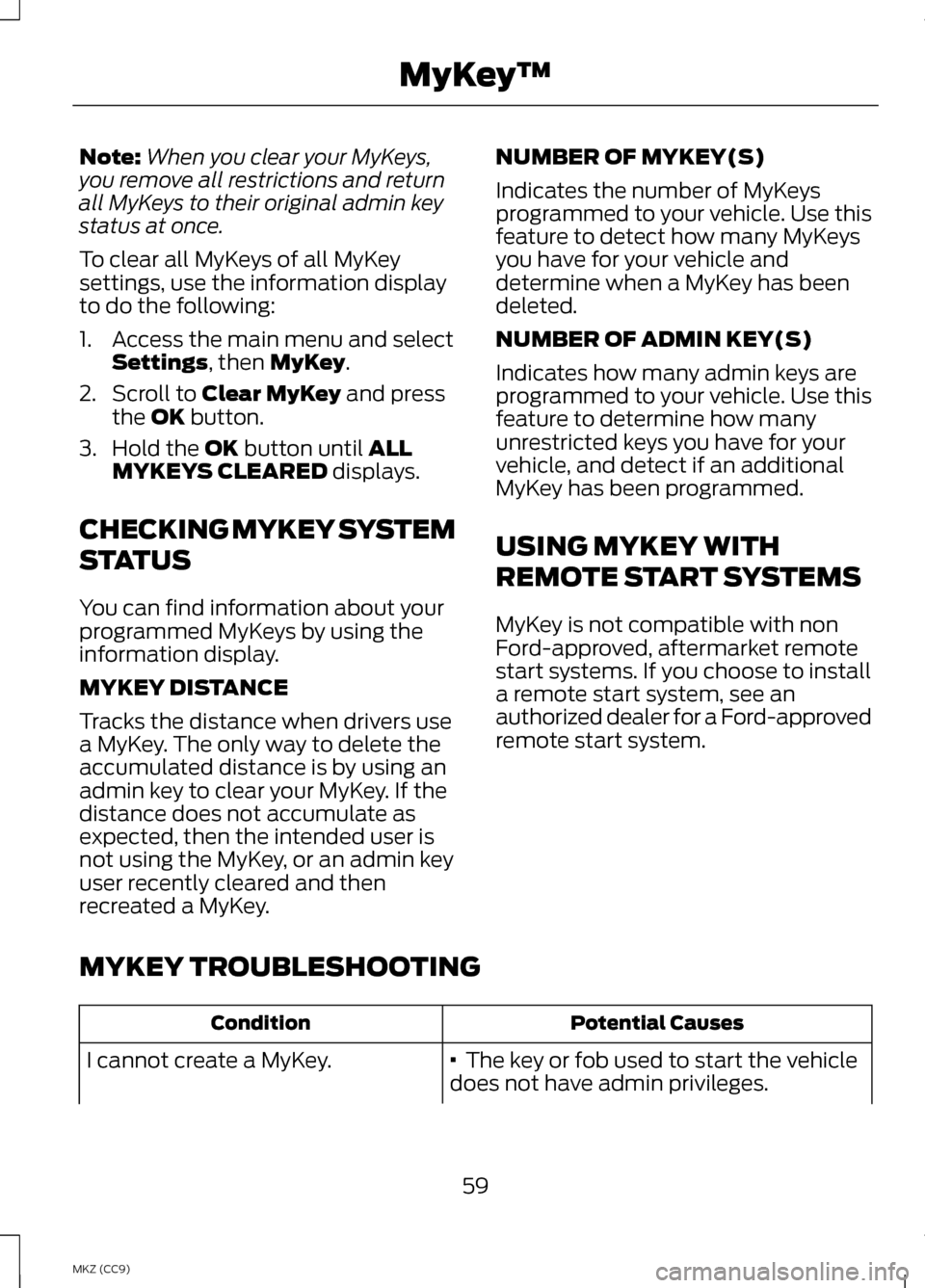

Note:
When you clear your MyKeys,
you remove all restrictions and return
all MyKeys to their original admin key
status at once.
To clear all MyKeys of all MyKey
settings, use the information display
to do the following:
1. Access the main menu and select Settings, then MyKey.
2. Scroll to
Clear MyKey and press
the OK button.
3. Hold the
OK button until ALL
MYKEYS CLEARED displays.
CHECKING MYKEY SYSTEM
STATUS
You can find information about your
programmed MyKeys by using the
information display.
MYKEY DISTANCE
Tracks the distance when drivers use
a MyKey. The only way to delete the
accumulated distance is by using an
admin key to clear your MyKey. If the
distance does not accumulate as
expected, then the intended user is
not using the MyKey, or an admin key
user recently cleared and then
recreated a MyKey. NUMBER OF MYKEY(S)
Indicates the number of MyKeys
programmed to your vehicle. Use this
feature to detect how many MyKeys
you have for your vehicle and
determine when a MyKey has been
deleted.
NUMBER OF ADMIN KEY(S)
Indicates how many admin keys are
programmed to your vehicle. Use this
feature to determine how many
unrestricted keys you have for your
vehicle, and detect if an additional
MyKey has been programmed.
USING MYKEY WITH
REMOTE START SYSTEMS
MyKey is not compatible with non
Ford-approved, aftermarket remote
start systems. If you choose to install
a remote start system, see an
authorized dealer for a Ford-approved
remote start system.
MYKEY TROUBLESHOOTING Potential Causes
Condition
·
The key or fob used to start the vehicle
does not have admin privileges.
I cannot create a MyKey.
59
MKZ (CC9) MyKey
™

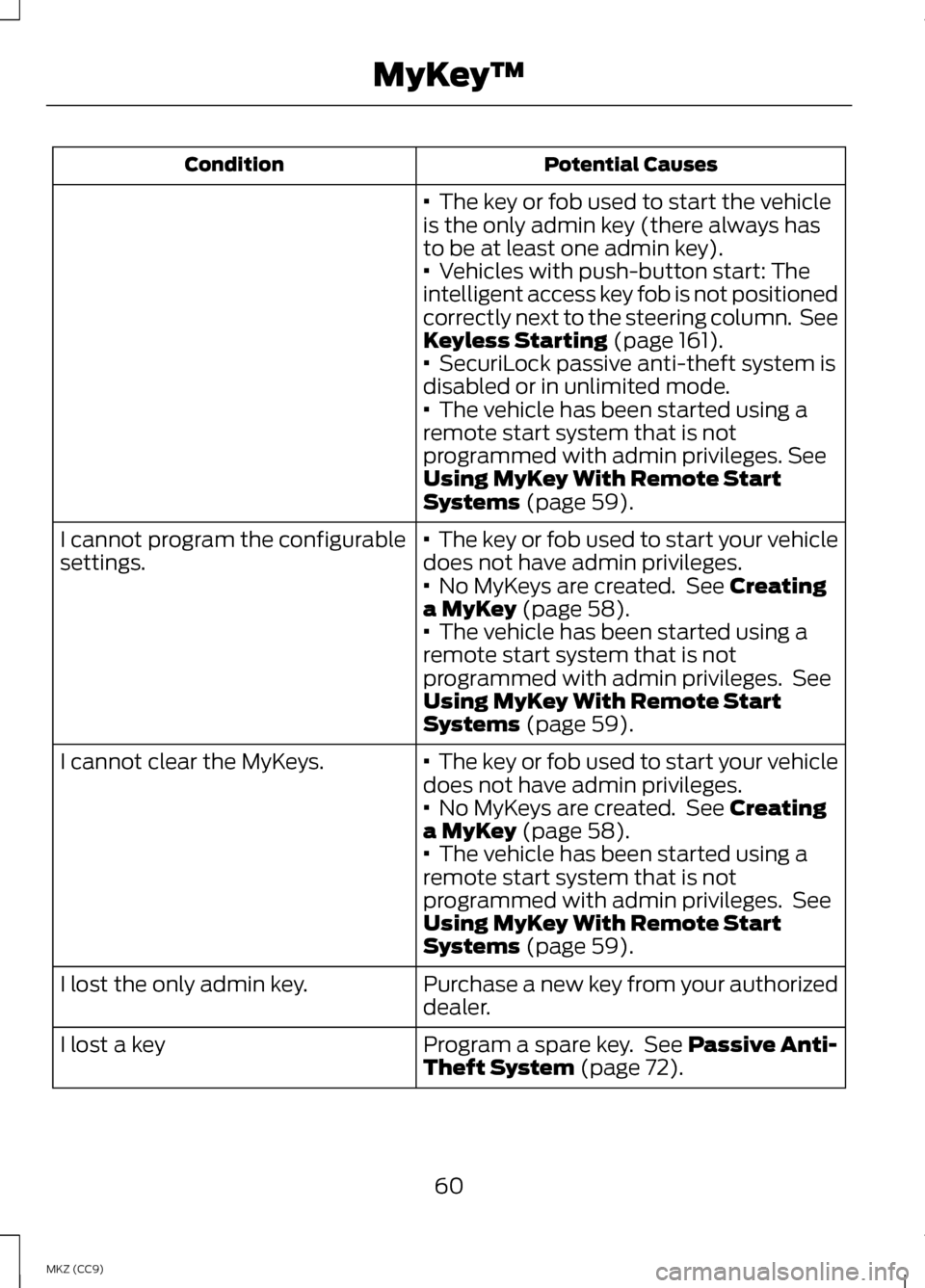

Potential Causes
Condition
· The key or fob used to start the vehicle
is the only admin key (there always has
to be at least one admin key).
·
Vehicles with push-button start: The
intelligent access key fob is not positioned
correctly next to the steering column. See
Keyless Starting
(page 161).
· SecuriLock passive anti-theft system is
disabled or in unlimited mode.
·
The vehicle has been started using a
remote start system that is not
programmed with admin privileges.
See
Using MyKey With Remote Start
Systems
(page 59).
· The key or fob used to start your vehicle
does not have admin privileges.
I cannot program the configurable
settings.
·
No MyKeys are created. See Creating
a MyKey (page 58).
· The vehicle has been started using a
remote start system that is not
programmed with admin privileges. See
Using MyKey With Remote Start
Systems
(page 59).
· The key or fob used to start your vehicle
does not have admin privileges.
I cannot clear the MyKeys.
·
No MyKeys are created. See Creating
a MyKey (page 58).
· The vehicle has been started using a
remote start system that is not
programmed with admin privileges. See
Using MyKey With Remote Start
Systems
(page 59).
Purchase a new key from your authorized
dealer.
I lost the only admin key.
Program a spare key. See
Passive Anti-
Theft System (page 72).
I lost a key
60
MKZ (CC9) MyKey
™

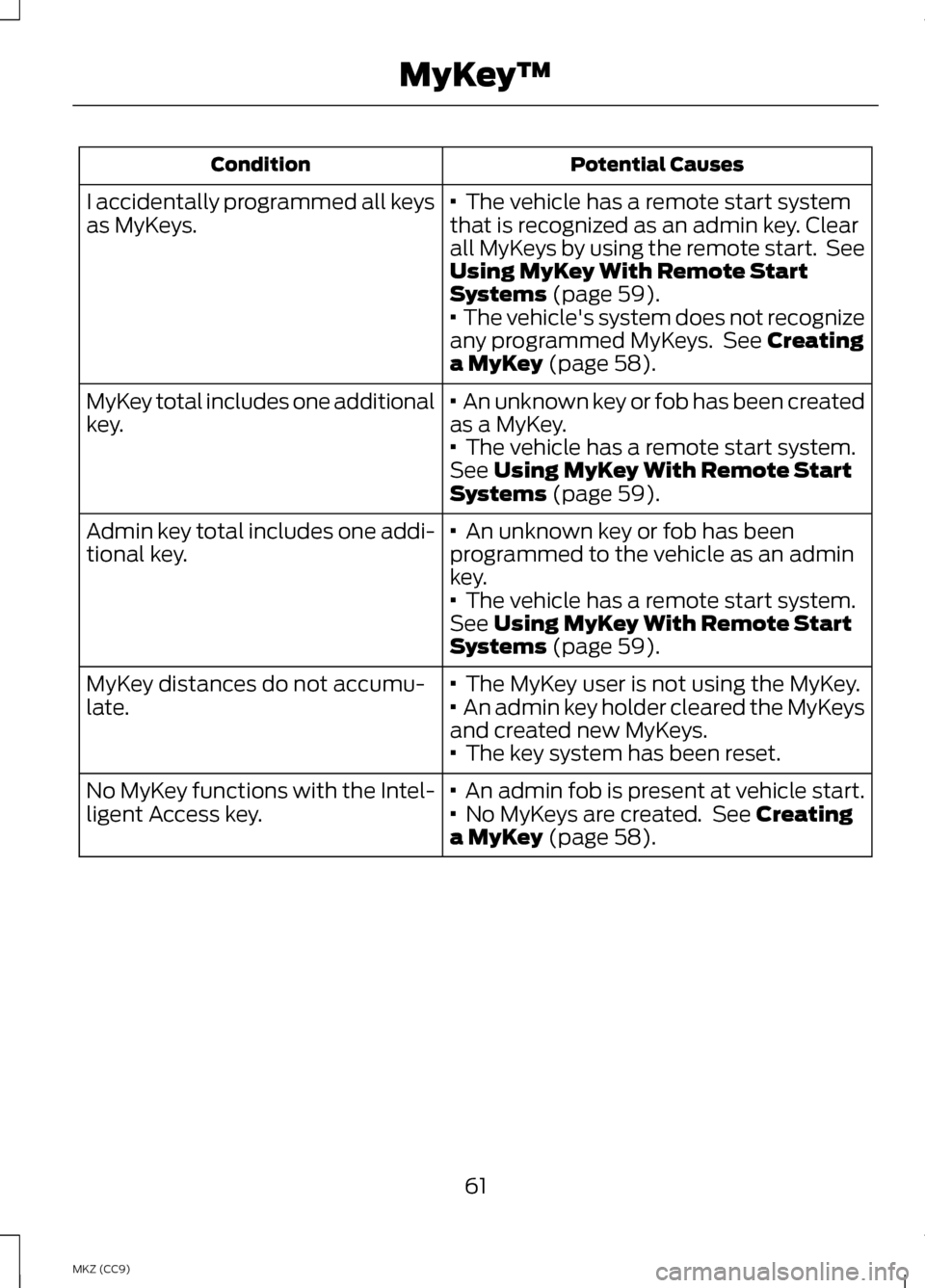

Potential Causes
Condition
· The vehicle has a remote start system
that is recognized as an admin key. Clear
all MyKeys by using the remote start. See
Using MyKey With Remote Start
Systems
(page 59).
I accidentally programmed all keys
as MyKeys.
· The vehicle's system does not recognize
any programmed MyKeys. See Creating
a MyKey (page 58).
·
An unknown key or fob has been created
as a MyKey.
MyKey total includes one additional
key.
·
The vehicle has a remote start system.
See Using MyKey With Remote Start
Systems (page 59).
·
An unknown key or fob has been
programmed to the vehicle as an admin
key.
Admin key total includes one addi-
tional key.
·
The vehicle has a remote start system.
See Using MyKey With Remote Start
Systems (page 59).
·
The MyKey user is not using the MyKey.
MyKey distances do not accumu-
late. · An admin key holder cleared the MyKeys
and created new MyKeys.
·
The key system has been reset.
· An admin fob is present at vehicle start.
No MyKey functions with the Intel-
ligent Access key. ·
No MyKeys are created. See Creating
a MyKey (page 58).
61
MKZ (CC9) MyKey
™

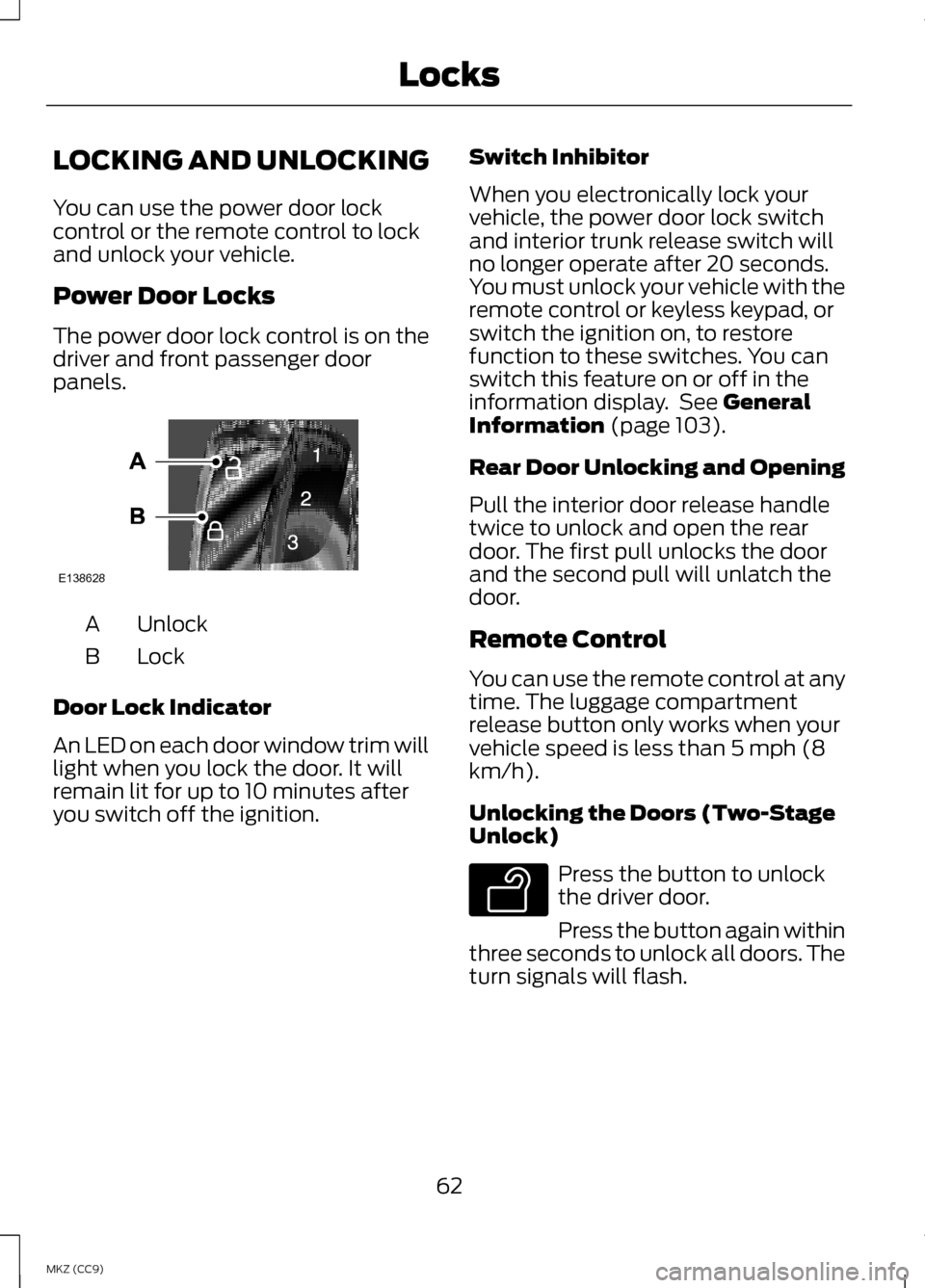

LOCKING AND UNLOCKING
You can use the power door lock
control or the remote control to lock
and unlock your vehicle.
Power Door Locks
The power door lock control is on the
driver and front passenger door
panels.
Unlock
A
LockB
Door Lock Indicator
An LED on each door window trim will
light when you lock the door. It will
remain lit for up to 10 minutes after
you switch off the ignition. Switch Inhibitor
When you electronically lock your
vehicle, the power door lock switch
and interior trunk release switch will
no longer operate after 20 seconds.
You must unlock your vehicle with the
remote control or keyless keypad, or
switch the ignition on, to restore
function to these switches. You can
switch this feature on or off in the
information display. See General
Information (page 103).
Rear Door Unlocking and Opening
Pull the interior door release handle
twice to unlock and open the rear
door. The first pull unlocks the door
and the second pull will unlatch the
door.
Remote Control
You can use the remote control at any
time. The luggage compartment
release button only works when your
vehicle speed is less than 5 mph (8
km/h).
Unlocking the Doors (Two-Stage
Unlock) Press the button to unlock
the driver door.
Press the button again within
three seconds to unlock all doors. The
turn signals will flash.
62
MKZ (CC9) LocksE138628 E138629

Press and hold both the lock and
unlock buttons on the remote control
for three seconds to change between
driver door or all doors unlock mode.
The turn signals will flash twice to
indicate a change to the unlocking
mode. Driver door unlock mode will
only unlock the driver door when the
unlock button is pressed once. All
door unlock mode unlocks all doors
with one press of the unlock button.
The unlocking mode applies to the
remote control, keyless entry keypad
and intelligent access. You can also
change the mode in the information
display. See General Information
(page 103).
Locking the Doors Press the button to lock all
the doors. The turn signals
will illuminate.
Press the button again within three
seconds to confirm that all the doors
are closed. The doors will lock again,
the horn will sound and the turn
signals will illuminate if all the doors
and the luggage compartment are
closed.
Mislock
If any door or the luggage
compartment is open, or if the hood
is open on vehicles with an anti-theft
alarm or remote start, the horn will
sound twice and the lamps will not
flash. You can enable or disable this
feature in the information display. See
General Information
(page 103). Opening the Luggage
Compartment Press twice within three
seconds to open the luggage
compartment.
Make sure to close and latch the
luggage compartment before driving
your vehicle. An unlatched luggage
compartment may cause objects to
fall out or block your view.
Activating Intelligent Access
You must have the intelligent access
key within 3 feet (1 meter) of your
vehicle.
At a Door
Pull an exterior door handle to unlock
and open the door. Make sure not to
touch the lock sensor on top of the
handle. Touch the top of the door handle to
lock your vehicle. There will be a brief
delay before you can unlock your
vehicle again.
Note:
Keep the door handle surface
clean to avoid issues with operation.
63
MKZ (CC9) LocksE138623 E138630 E146044

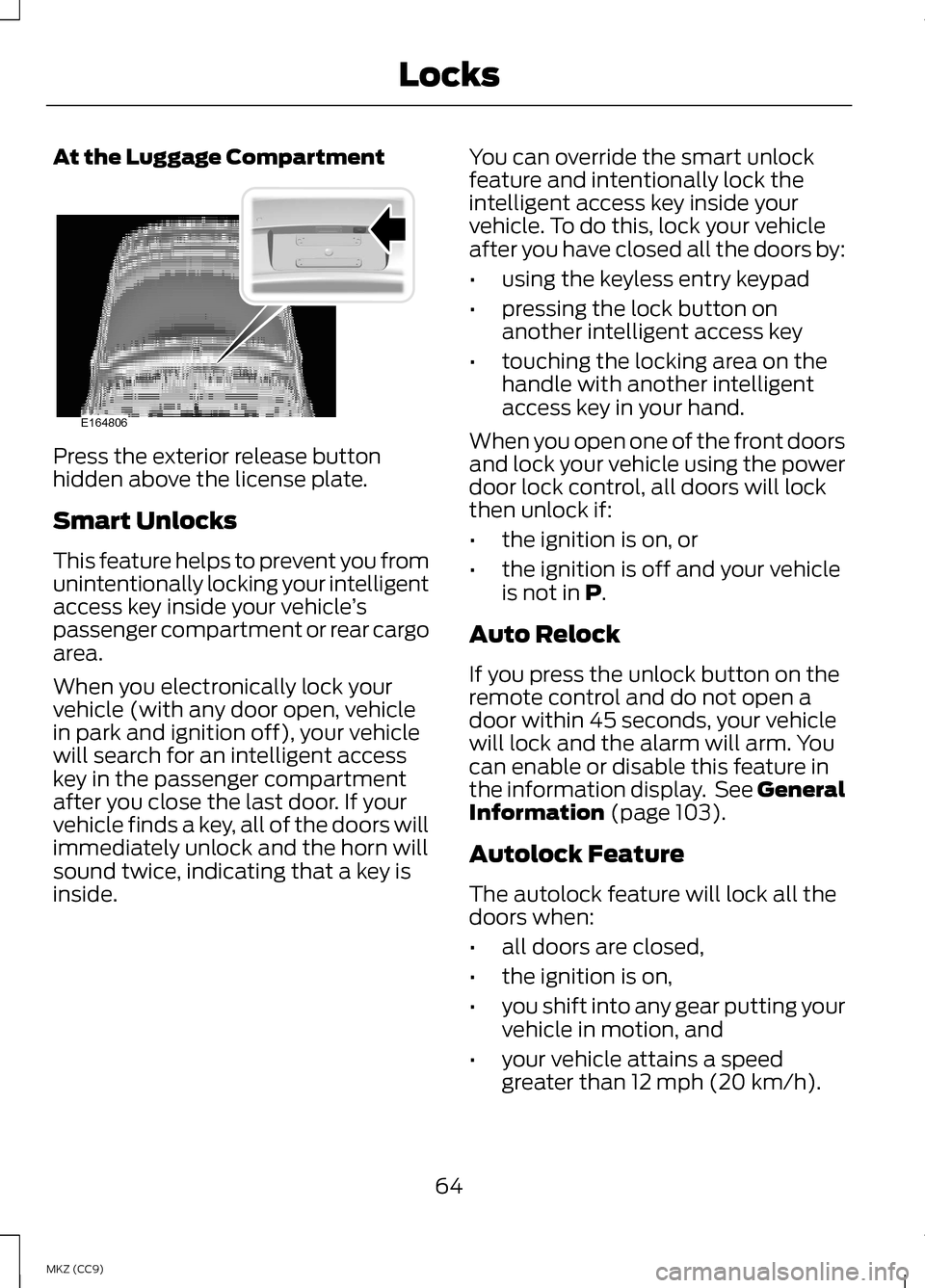

At the Luggage Compartment
Press the exterior release button
hidden above the license plate.
Smart Unlocks
This feature helps to prevent you from
unintentionally locking your intelligent
access key inside your vehicle
’s
passenger compartment or rear cargo
area.
When you electronically lock your
vehicle (with any door open, vehicle
in park and ignition off), your vehicle
will search for an intelligent access
key in the passenger compartment
after you close the last door. If your
vehicle finds a key, all of the doors will
immediately unlock and the horn will
sound twice, indicating that a key is
inside. You can override the smart unlock
feature and intentionally lock the
intelligent access key inside your
vehicle. To do this, lock your vehicle
after you have closed all the doors by:
•
using the keyless entry keypad
• pressing the lock button on
another intelligent access key
• touching the locking area on the
handle with another intelligent
access key in your hand.
When you open one of the front doors
and lock your vehicle using the power
door lock control, all doors will lock
then unlock if:
• the ignition is on, or
• the ignition is off and your vehicle
is not in P.
Auto Relock
If you press the unlock button on the
remote control and do not open a
door within 45 seconds, your vehicle
will lock and the alarm will arm. You
can enable or disable this feature in
the information display. See General
Information
(page 103).
Autolock Feature
The autolock feature will lock all the
doors when:
• all doors are closed,
• the ignition is on,
• you shift into any gear putting your
vehicle in motion, and
• your vehicle attains a speed
greater than 12 mph (20 km/h).
64
MKZ (CC9) LocksE164806

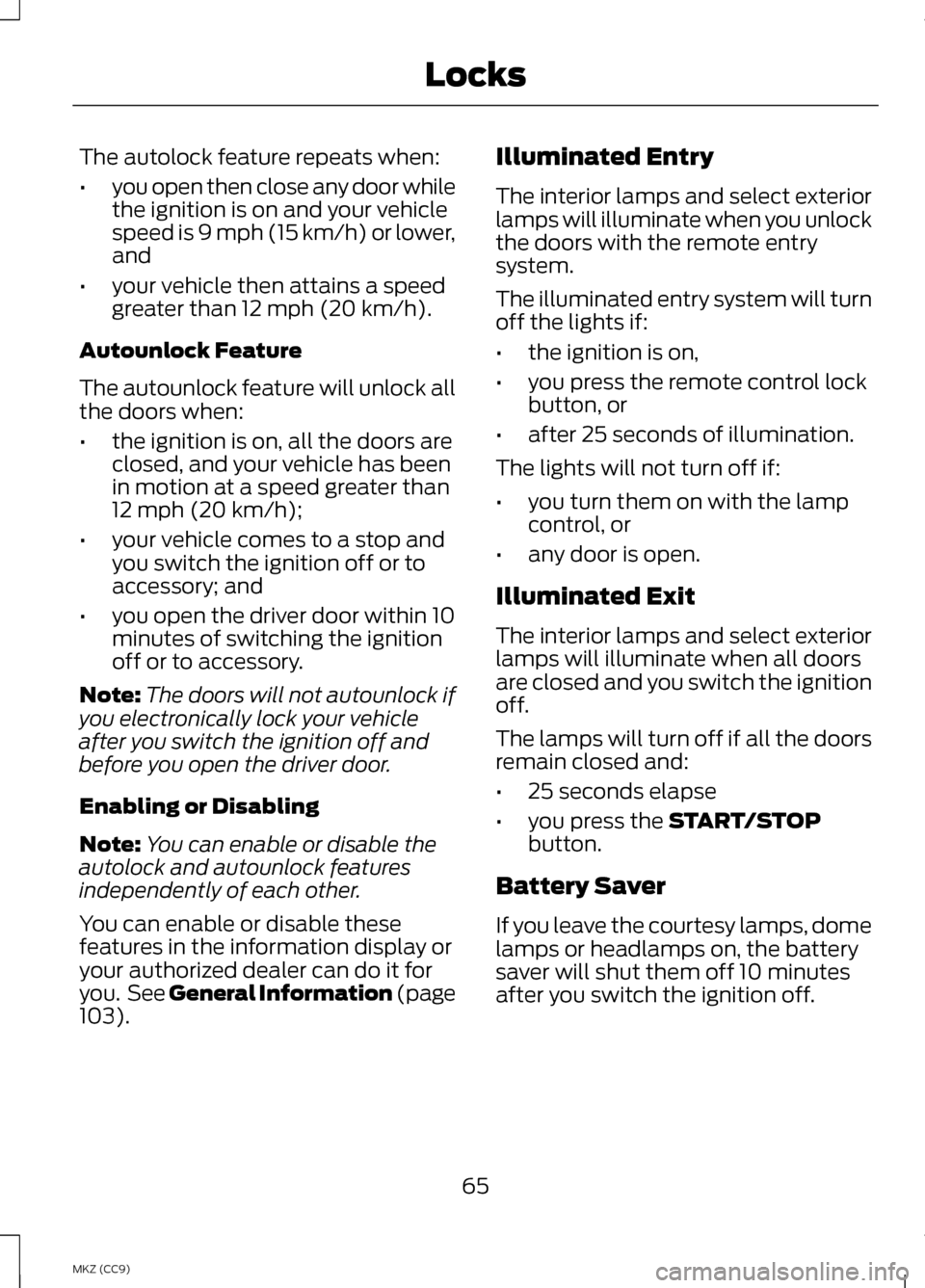

The autolock feature repeats when:
•
you open then close any door while
the ignition is on and your vehicle
speed is 9 mph (15 km/h) or lower,
and
• your vehicle then attains a speed
greater than 12 mph (20 km/h).
Autounlock Feature
The autounlock feature will unlock all
the doors when:
• the ignition is on, all the doors are
closed, and your vehicle has been
in motion at a speed greater than
12 mph (20 km/h);
• your vehicle comes to a stop and
you switch the ignition off or to
accessory; and
• you open the driver door within 10
minutes of switching the ignition
off or to accessory.
Note: The doors will not autounlock if
you electronically lock your vehicle
after you switch the ignition off and
before you open the driver door.
Enabling or Disabling
Note: You can enable or disable the
autolock and autounlock features
independently of each other.
You can enable or disable these
features in the information display or
your authorized dealer can do it for
you. See General Information (page
103). Illuminated Entry
The interior lamps and select exterior
lamps will illuminate when you unlock
the doors with the remote entry
system.
The illuminated entry system will turn
off the lights if:
•
the ignition is on,
• you press the remote control lock
button, or
• after 25 seconds of illumination.
The lights will not turn off if:
• you turn them on with the lamp
control, or
• any door is open.
Illuminated Exit
The interior lamps and select exterior
lamps will illuminate when all doors
are closed and you switch the ignition
off.
The lamps will turn off if all the doors
remain closed and:
• 25 seconds elapse
• you press the
START/STOP
button.
Battery Saver
If you leave the courtesy lamps, dome
lamps or headlamps on, the battery
saver will shut them off 10 minutes
after you switch the ignition off.
65
MKZ (CC9) Locks

Accessory Mode Battery Saver for
Intelligent Access Keys

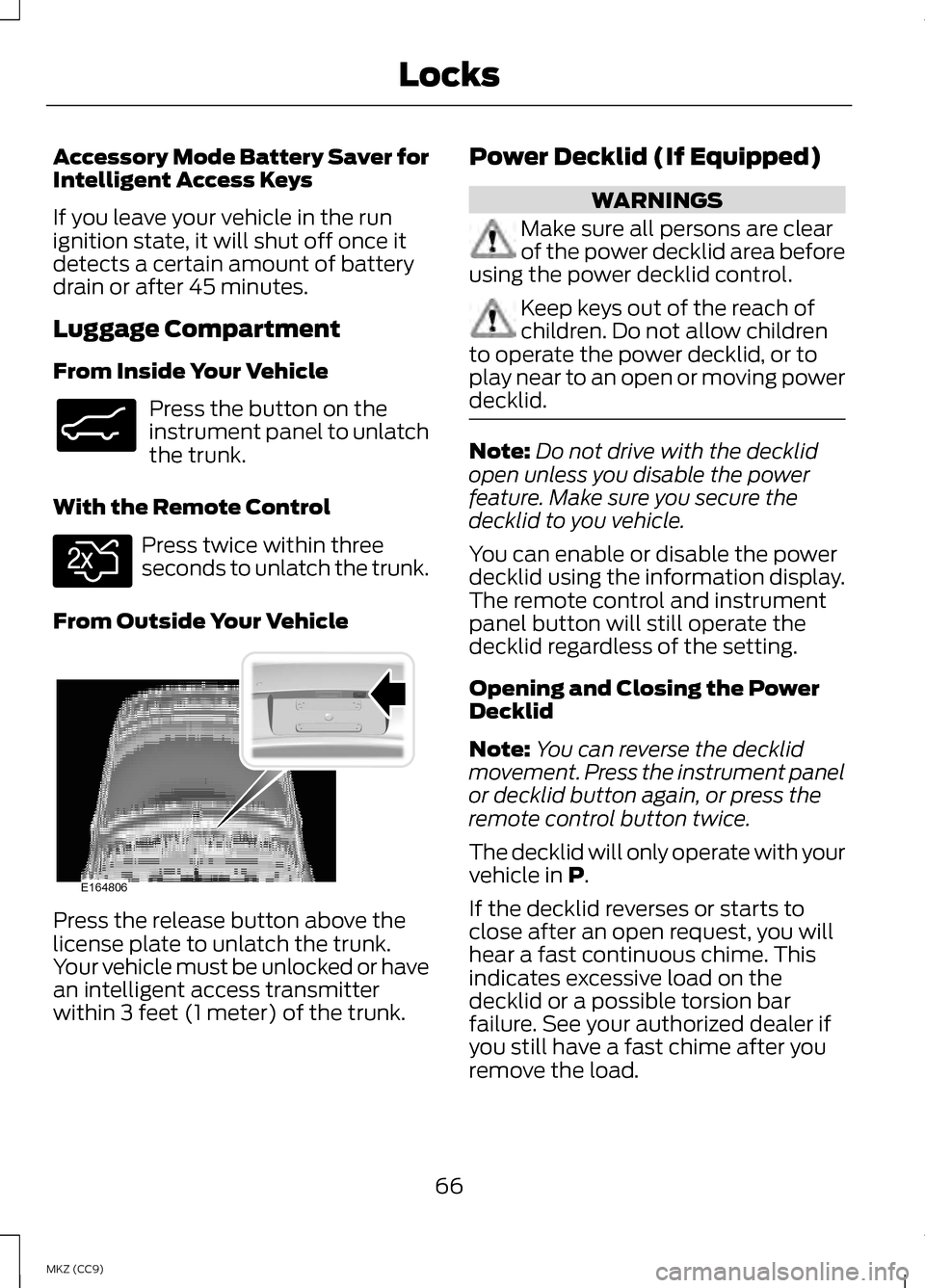

If you leave your vehicle in the run
ignition state, it will shut off once it
detects a certain amount of battery
drain or after 45 minutes.
Luggage Compartment
From Inside Your Vehicle
Press the button on the
instrument panel to unlatch
the trunk.
With the Remote Control Press twice within three
seconds to unlatch the trunk.
From Outside Your Vehicle Press the release button above the
license plate to unlatch the trunk.
Your vehicle must be unlocked or have
an intelligent access transmitter
within 3 feet (1 meter) of the trunk. Power Decklid (If Equipped) WARNINGS
Make sure all persons are clear
of the power decklid area before
using the power decklid control. Keep keys out of the reach of
children. Do not allow children
to operate the power decklid, or to
play near to an open or moving power
decklid. Note:
Do not drive with the decklid
open unless you disable the power
feature. Make sure you secure the
decklid to you vehicle.
You can enable or disable the power
decklid using the information display.
The remote control and instrument
panel button will still operate the
decklid regardless of the setting.
Opening and Closing the Power
Decklid
Note: You can reverse the decklid
movement. Press the instrument panel
or decklid button again, or press the
remote control button twice.
The decklid will only operate with your
vehicle in P.
If the decklid reverses or starts to
close after an open request, you will
hear a fast continuous chime. This
indicates excessive load on the
decklid or a possible torsion bar
failure. See your authorized dealer if
you still have a fast chime after you
remove the load.
66
MKZ (CC9) LocksE138633 E138630 E164806

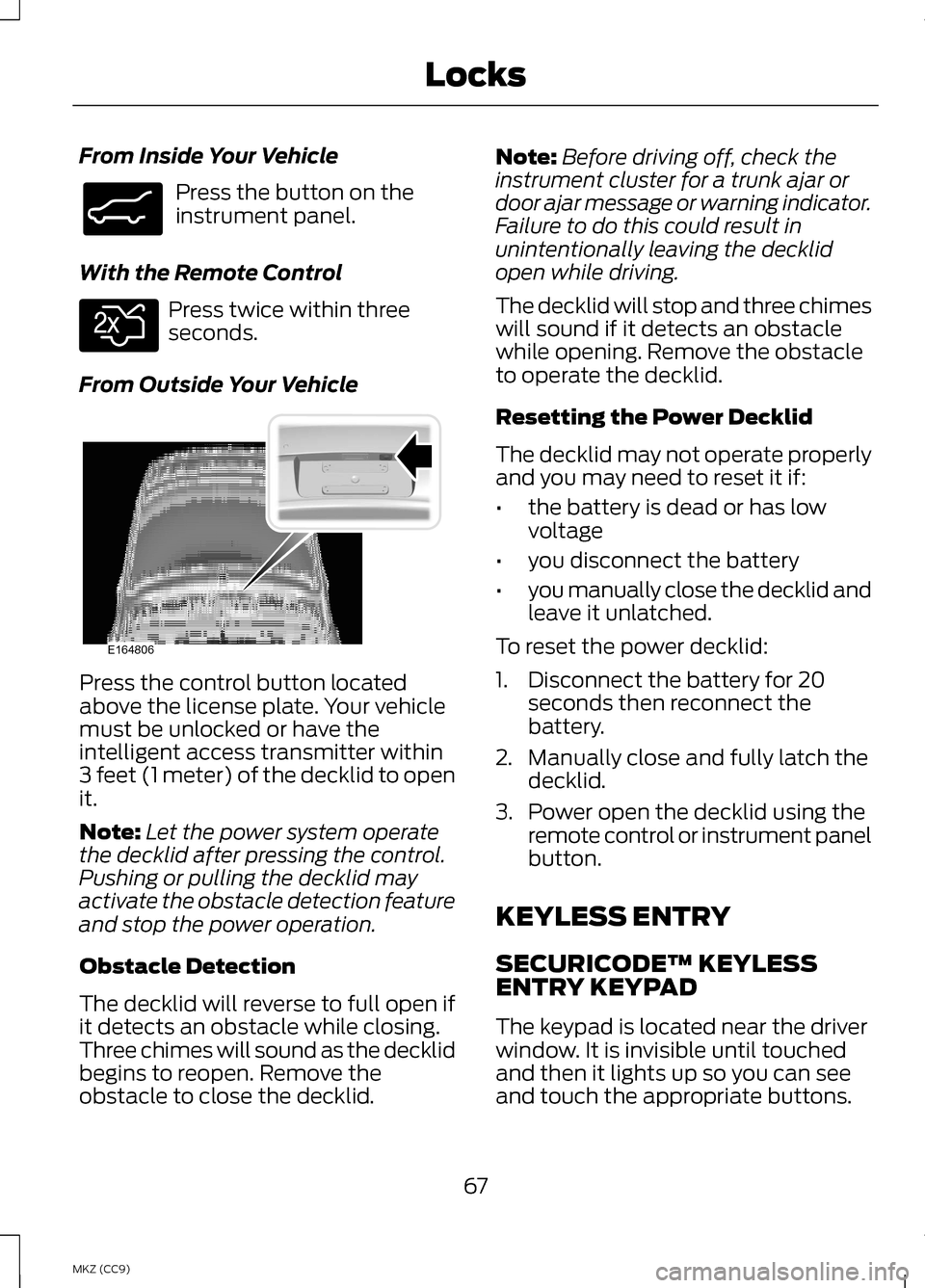

From Inside Your Vehicle
Press the button on the
instrument panel.
With the Remote Control Press twice within three
seconds.
From Outside Your Vehicle Press the control button located
above the license plate. Your vehicle
must be unlocked or have the
intelligent access transmitter within
3 feet (1 meter) of the decklid to open
it.
Note:
Let the power system operate
the decklid after pressing the control.
Pushing or pulling the decklid may
activate the obstacle detection feature
and stop the power operation.
Obstacle Detection
The decklid will reverse to full open if
it detects an obstacle while closing.
Three chimes will sound as the decklid
begins to reopen. Remove the
obstacle to close the decklid. Note:
Before driving off, check the
instrument cluster for a trunk ajar or
door ajar message or warning indicator.
Failure to do this could result in
unintentionally leaving the decklid
open while driving.
The decklid will stop and three chimes
will sound if it detects an obstacle
while opening. Remove the obstacle
to operate the decklid.
Resetting the Power Decklid
The decklid may not operate properly
and you may need to reset it if:
• the battery is dead or has low
voltage
• you disconnect the battery
• you manually close the decklid and
leave it unlatched.
To reset the power decklid:
1. Disconnect the battery for 20 seconds then reconnect the
battery.
2. Manually close and fully latch the decklid.
3. Power open the decklid using the remote control or instrument panel
button.
KEYLESS ENTRY
SECURICODE™ KEYLESS
ENTRY KEYPAD
The keypad is located near the driver
window. It is invisible until touched
and then it lights up so you can see
and touch the appropriate buttons.
67
MKZ (CC9) LocksE138633 E138630 E164806

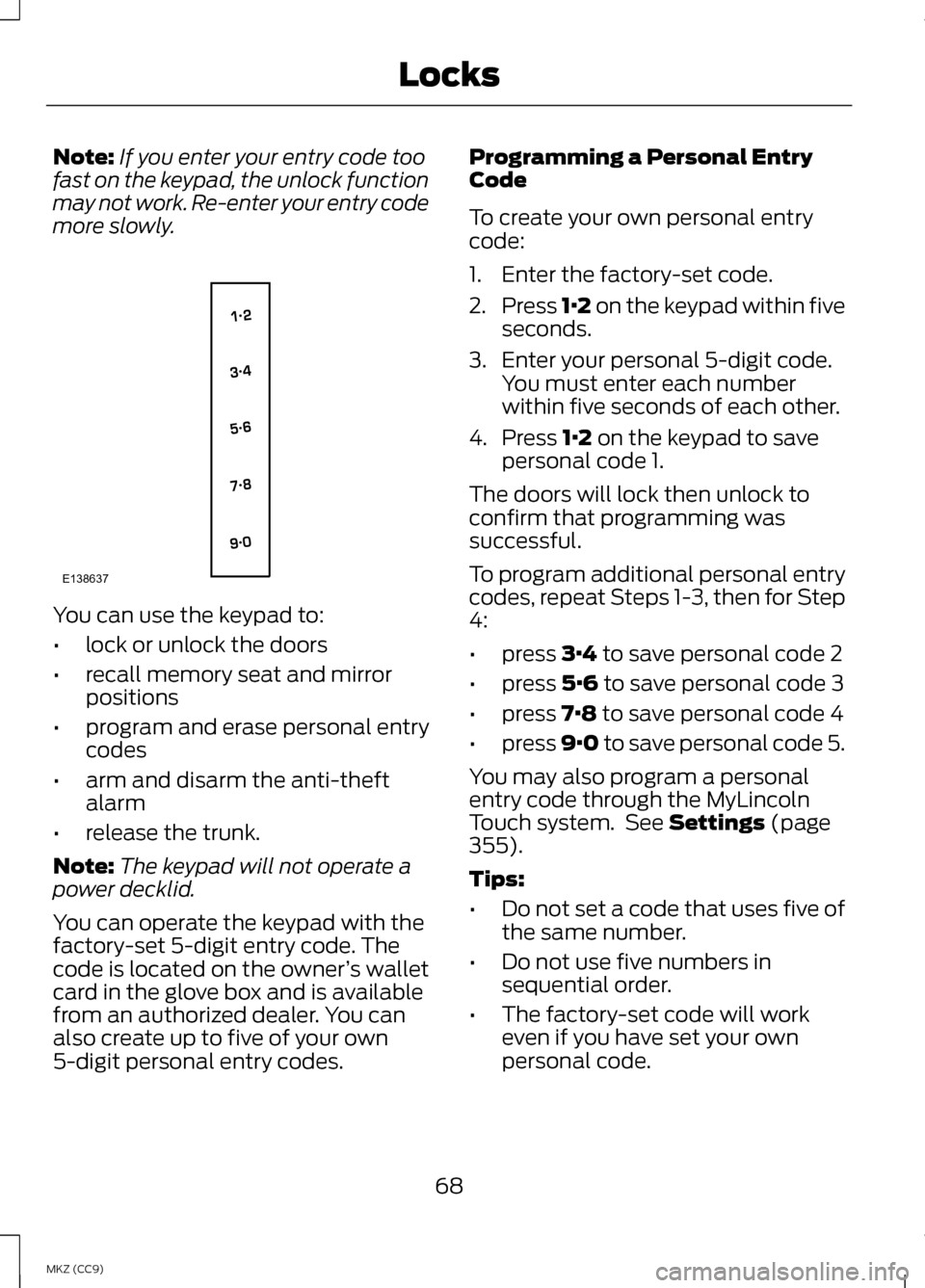

Note:
If you enter your entry code too
fast on the keypad, the unlock function
may not work. Re-enter your entry code
more slowly. You can use the keypad to:
•
lock or unlock the doors
• recall memory seat and mirror
positions
• program and erase personal entry
codes
• arm and disarm the anti-theft
alarm
• release the trunk.
Note: The keypad will not operate a
power decklid.
You can operate the keypad with the
factory-set 5-digit entry code. The
code is located on the owner ’s wallet
card in the glove box and is available
from an authorized dealer. You can
also create up to five of your own
5-digit personal entry codes. Programming a Personal Entry
Code
To create your own personal entry
code:
1. Enter the factory-set code.
2.
Press 1·2 on the keypad within five
seconds.
3. Enter your personal 5-digit code. You must enter each number
within five seconds of each other.
4. Press 1·2 on the keypad to save
personal code 1.
The doors will lock then unlock to
confirm that programming was
successful.
To program additional personal entry
codes, repeat Steps 1-3, then for Step
4:
• press
3·4 to save personal code 2
• press
5·6 to save personal code 3
• press
7·8 to save personal code 4
• press
9·0 to save personal code 5.
You may also program a personal
entry code through the MyLincoln
Touch system. See
Settings (page
355).
Tips:
• Do not set a code that uses five of
the same number.
• Do not use five numbers in
sequential order.
• The factory-set code will work
even if you have set your own
personal code.
68
MKZ (CC9) LocksE138637
