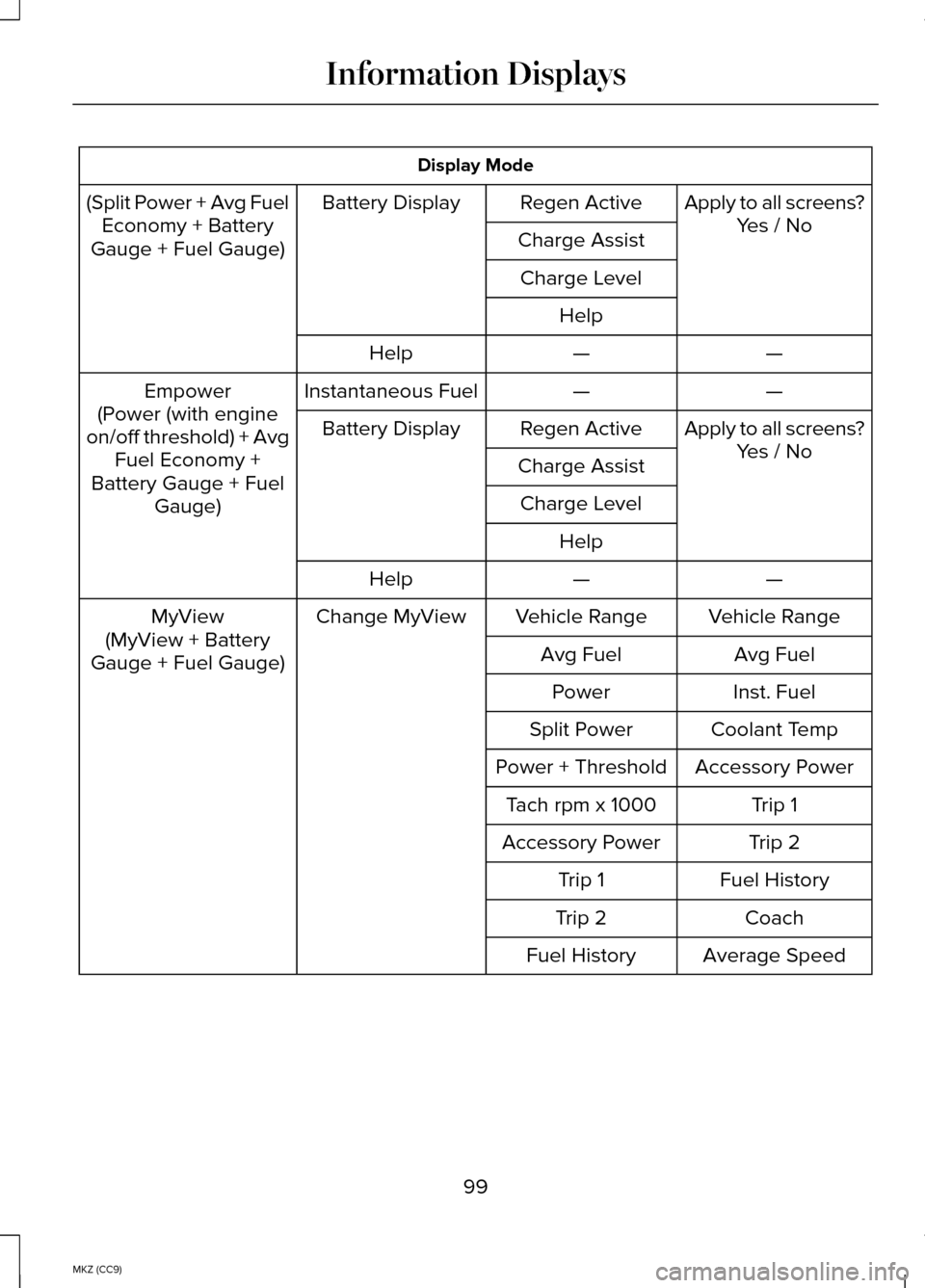

display LINCOLN MKZ HYBRID 2014 Owner's Guide

Display Mode
(Split Power + Avg Fuel Economy + Battery
Gauge + Fuel Gauge) Apply to all screens?
Yes / No
Regen Active
Battery Display
Charge AssistCharge Level Help —
—
Help
—
—
Instantaneous Fuel
Empower
(Power (with engine
on/off threshold) + Avg Fuel Economy +
Battery Gauge + Fuel Gauge) Apply to all screens?
Yes / No
Regen Active
Battery Display
Charge AssistCharge Level Help —
—
Help
Vehicle Range
Vehicle Range
Change MyView
MyView
(MyView + Battery
Gauge + Fuel Gauge) Avg Fuel
Avg Fuel
Inst. Fuel
Power
Coolant Temp
Split Power
Accessory Power
Power + Threshold
Trip 1
Tach rpm x 1000
Trip 2
Accessory Power
Fuel History
Trip 1
Coach
Trip 2
Average Speed
Fuel History
99
MKZ (CC9) Information Displays

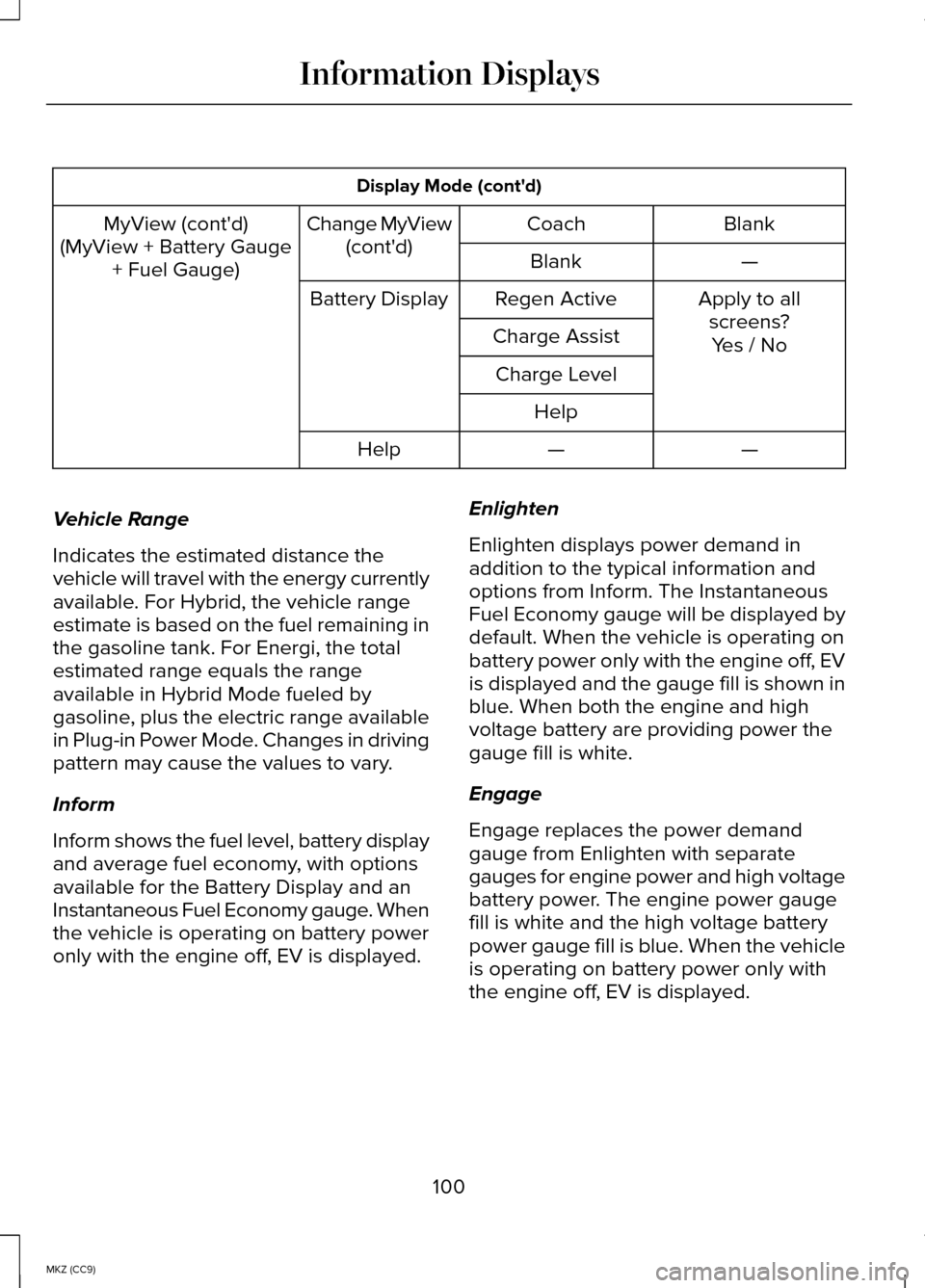

Display Mode (cont'd)
Blank
Coach
Change MyView
(cont'd)
MyView (cont'd)
(MyView + Battery Gauge + Fuel Gauge) —
Blank
Apply to allscreens?
Regen Active
Battery Display
Charge Assist Yes / No
Charge Level
Help —
—
Help
Vehicle Range
Indicates the estimated distance the
vehicle will travel with the energy currently
available. For Hybrid, the vehicle range
estimate is based on the fuel remaining in
the gasoline tank. For Energi, the total
estimated range equals the range
available in Hybrid Mode fueled by
gasoline, plus the electric range available
in Plug-in Power Mode. Changes in driving
pattern may cause the values to vary.
Inform
Inform shows the fuel level, battery display
and average fuel economy, with options
available for the Battery Display and an
Instantaneous Fuel Economy gauge. When
the vehicle is operating on battery power
only with the engine off, EV is displayed. Enlighten
Enlighten displays power demand in
addition to the typical information and
options from Inform. The Instantaneous
Fuel Economy gauge will be displayed by
default. When the vehicle is operating on
battery power only with the engine off, EV
is displayed and the gauge fill is shown in
blue. When both the engine and high
voltage battery are providing power the
gauge fill is white.
Engage
Engage replaces the power demand
gauge from Enlighten with separate
gauges for engine power and high voltage
battery power. The engine power gauge
fill is white and the high voltage battery
power gauge fill is blue. When the vehicle
is operating on battery power only with
the engine off, EV is displayed.
100
MKZ (CC9) Information Displays

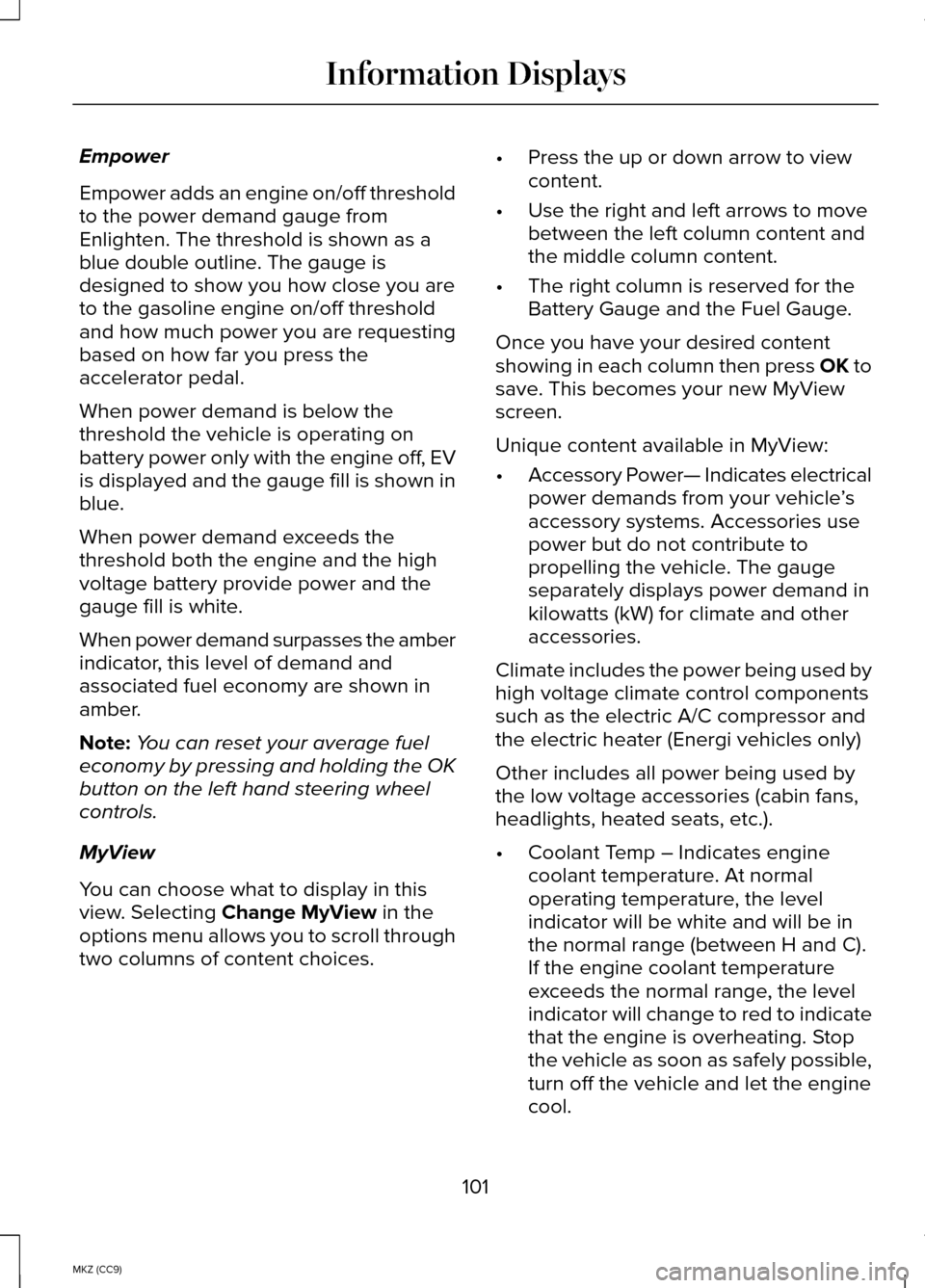

Empower
Empower adds an engine on/off threshold
to the power demand gauge from
Enlighten. The threshold is shown as a
blue double outline. The gauge is
designed to show you how close you are
to the gasoline engine on/off threshold
and how much power you are requesting
based on how far you press the
accelerator pedal.
When power demand is below the
threshold the vehicle is operating on
battery power only with the engine off, EV
is displayed and the gauge fill is shown in
blue.
When power demand exceeds the
threshold both the engine and the high
voltage battery provide power and the
gauge fill is white.
When power demand surpasses the amber
indicator, this level of demand and
associated fuel economy are shown in
amber.
Note:
You can reset your average fuel
economy by pressing and holding the OK
button on the left hand steering wheel
controls.
MyView
You can choose what to display in this
view. Selecting Change MyView in the
options menu allows you to scroll through
two columns of content choices. •
Press the up or down arrow to view
content.
• Use the right and left arrows to move
between the left column content and
the middle column content.
• The right column is reserved for the
Battery Gauge and the Fuel Gauge.
Once you have your desired content
showing in each column then press OK to
save. This becomes your new MyView
screen.
Unique content available in MyView:
• Accessory Power— Indicates electrical
power demands from your vehicle ’s
accessory systems. Accessories use
power but do not contribute to
propelling the vehicle. The gauge
separately displays power demand in
kilowatts (kW) for climate and other
accessories.
Climate includes the power being used by
high voltage climate control components
such as the electric A/C compressor and
the electric heater (Energi vehicles only)
Other includes all power being used by
the low voltage accessories (cabin fans,
headlights, heated seats, etc.).
• Coolant Temp – Indicates engine
coolant temperature. At normal
operating temperature, the level
indicator will be white and will be in
the normal range (between H and C).
If the engine coolant temperature
exceeds the normal range, the level
indicator will change to red to indicate
that the engine is overheating. Stop
the vehicle as soon as safely possible,
turn off the vehicle and let the engine
cool.
101
MKZ (CC9) Information Displays

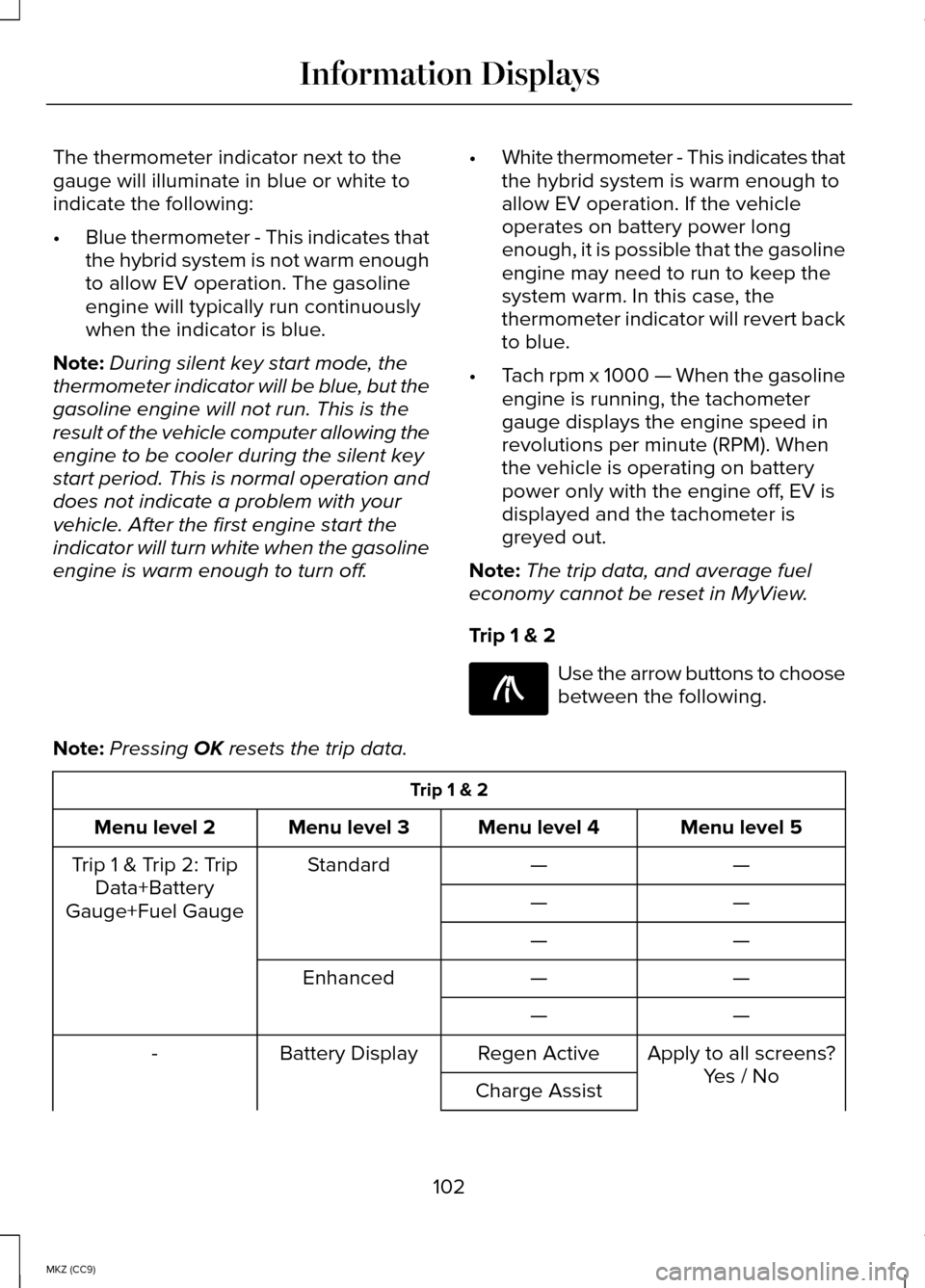

The thermometer indicator next to the
gauge will illuminate in blue or white to
indicate the following:
•
Blue thermometer - This indicates that
the hybrid system is not warm enough
to allow EV operation. The gasoline
engine will typically run continuously
when the indicator is blue.
Note: During silent key start mode, the
thermometer indicator will be blue, but the
gasoline engine will not run. This is the
result of the vehicle computer allowing the
engine to be cooler during the silent key
start period. This is normal operation and
does not indicate a problem with your
vehicle. After the first engine start the
indicator will turn white when the gasoline
engine is warm enough to turn off. •
White thermometer - This indicates that
the hybrid system is warm enough to
allow EV operation. If the vehicle
operates on battery power long
enough, it is possible that the gasoline
engine may need to run to keep the
system warm. In this case, the
thermometer indicator will revert back
to blue.
• Tach rpm x 1000 — When the gasoline
engine is running, the tachometer
gauge displays the engine speed in
revolutions per minute (RPM). When
the vehicle is operating on battery
power only with the engine off, EV is
displayed and the tachometer is
greyed out.
Note: The trip data, and average fuel
economy cannot be reset in MyView.
Trip 1 & 2 Use the arrow buttons to choose
between the following.
Note: Pressing OK resets the trip data. Trip 1 & 2
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
—
Standard
Trip 1 & Trip 2: Trip
Data+Battery
Gauge+Fuel Gauge —
—
—
—
—
—
Enhanced
—
—
Apply to all screens?
Regen Active
Battery Display
-
Yes / No
Charge Assist
102
MKZ (CC9) Information DisplaysE138660

Trip 1 & 2
Charge LevelHelp —
—
Help
Standard - Elapsed trip time, Trip distance and EV distance
• Elapsed trip time — timer stops when the vehicle is turned off and restarts when the
vehicle is restarted.
• Trip distance — shows the accumulated trip distance.
• EV distance — shows the distance traveled while operating on battery power only
with the engine off.
Enhanced
- Standard options plus, Average fuel economy, Estimated amount of fuel
consumed
• Average fuel economy — shows the average fuel economy for a given trip.
• Estimated amount of fuel consumed — shows the amount of fuel used for a given
trip.
Fuel Economy Use the arrow buttons to choose
the desired energy display.
Fuel Economy
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
1, 2, 6 min. Intervals
Interval Time
Fuel History
(Instantaneous Fuel Economy + Fuel
Economy History +
Avg Fuel Economy + Battery Gauge + Fuel Gauge) Apply to all screens?
Yes / No
Regen Active
Battery Display
Charge AssistCharge Level Help —
—
Help
Apply to all screens?
Regen Active
Battery Display
Coach
103
MKZ (CC9) Information DisplaysE144640

Fuel Economy
(Coach + Battery
Gauge+ Fuel Gauge) Charge Assist Yes / No
Charge Level Help —
—
Help

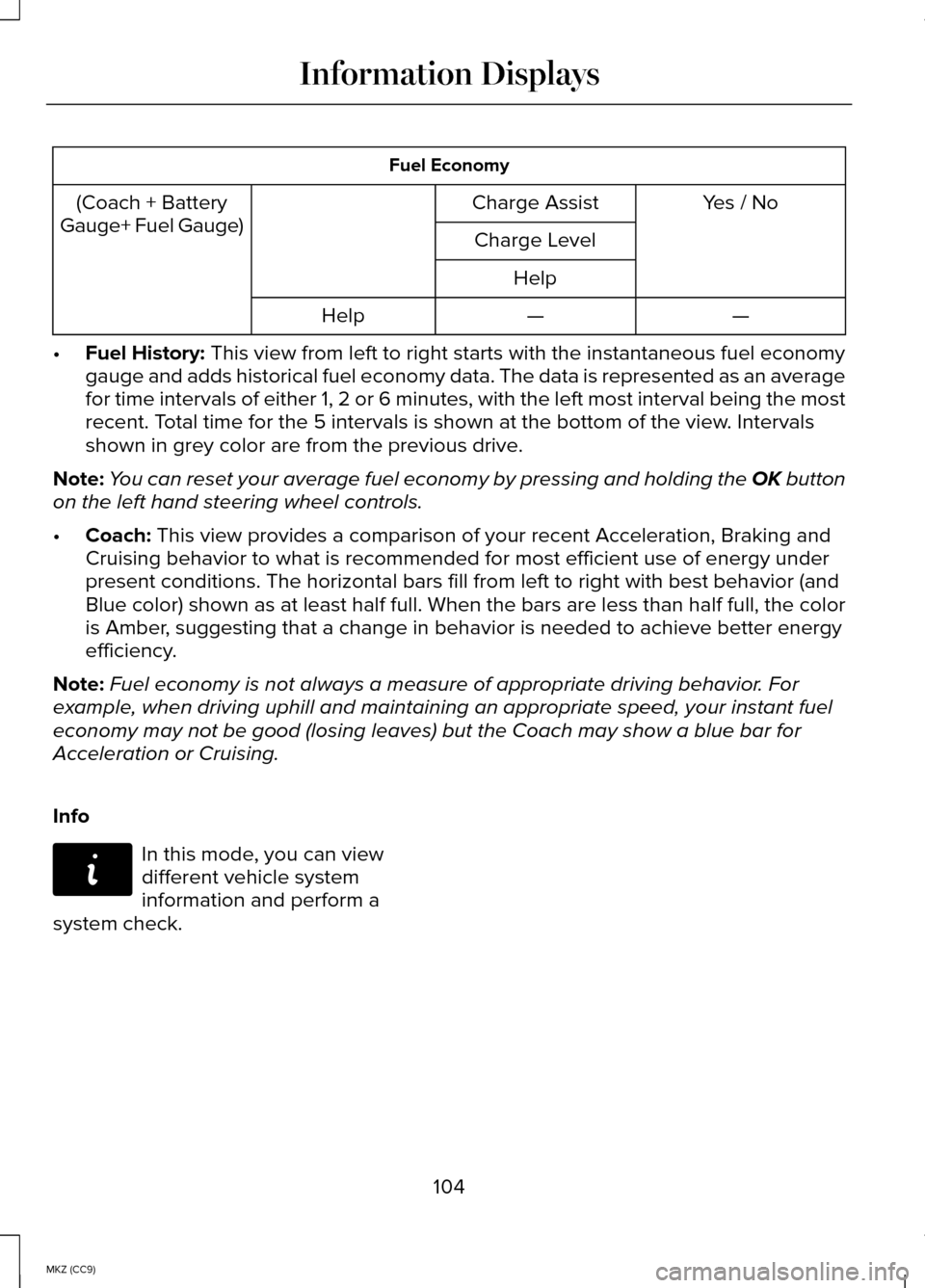

• Fuel History: This view from left to right starts with the instantaneous fuel economy\
gauge and adds historical fuel economy data. The data is represented as \
an average
for time intervals of either 1, 2 or 6 minutes, with the left most inter\
val being the most
recent. Total time for the 5 intervals is shown at the bottom of the view. Intervals
shown in grey color are from the previous drive.
Note: You can reset your average fuel economy by pressing and holding the OK button
on the left hand steering wheel controls.
• Coach:
This view provides a comparison of your recent Acceleration, Braking an\
d
Cruising behavior to what is recommended for most efficient use of energ\
y under
present conditions. The horizontal bars fill from left to right with bes\
t behavior (and
Blue color) shown as at least half full. When the bars are less than ha\
lf full, the color
is Amber, suggesting that a change in behavior is needed to achieve better energ\
y
efficiency.
Note: Fuel economy is not always a measure of appropriate driving behavior. For
example, when driving uphill and maintaining an appropriate speed, your instant\
fuel
economy may not be good (losing leaves) but the Coach may show a blue \
bar for
Acceleration or Cruising.
Info In this mode, you can view
different vehicle system
information and perform a
system check.
104
MKZ (CC9) Information DisplaysE144642

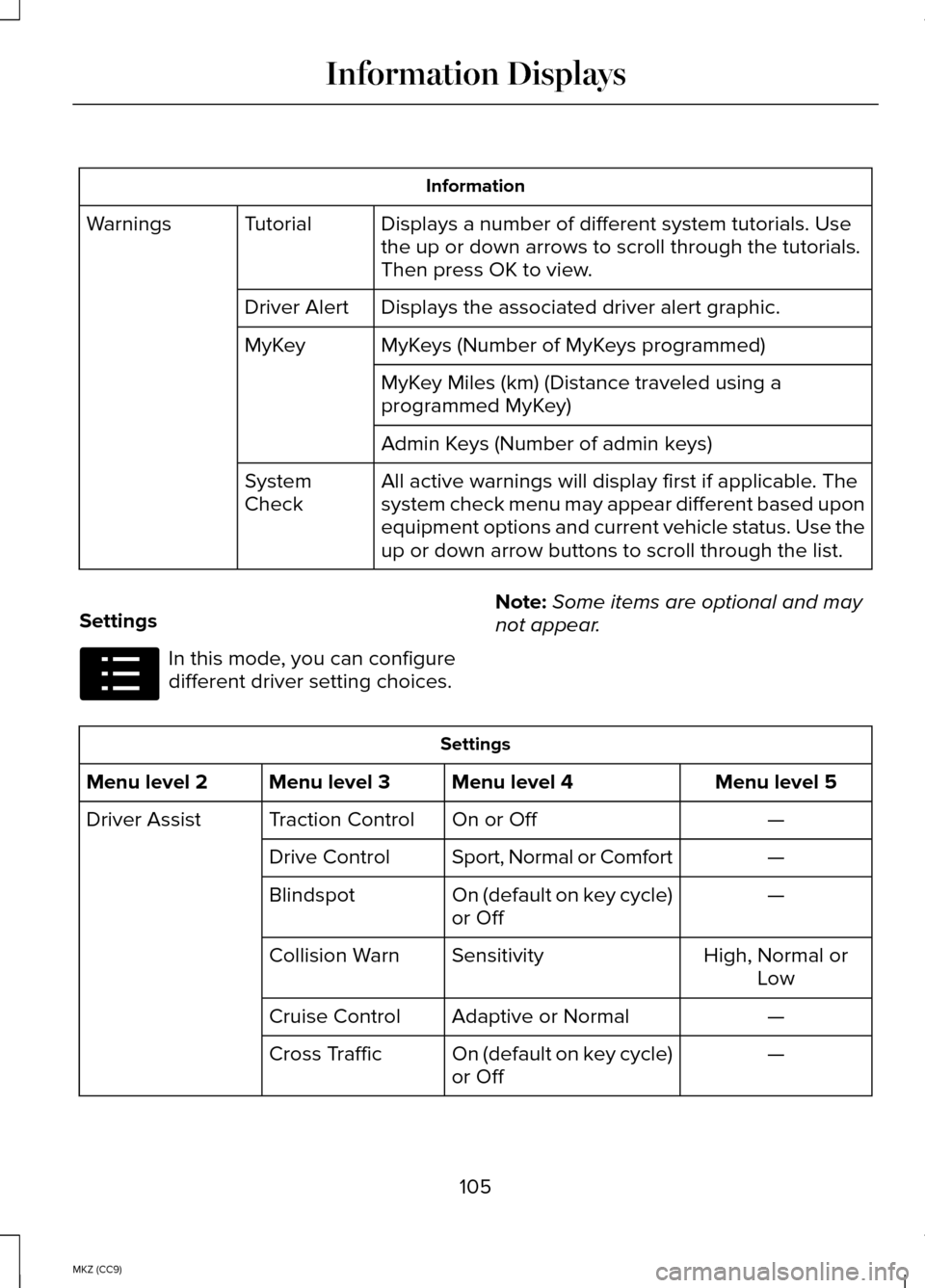

Information
Displays a number of different system tutorials. Use
the up or down arrows to scroll through the tutorials.
Then press OK to view.
Tutorial
Warnings
Displays the associated driver alert graphic.
Driver Alert
MyKeys (Number of MyKeys programmed)
MyKey
MyKey Miles (km) (Distance traveled using a
programmed MyKey)
Admin Keys (Number of admin keys)
All active warnings will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Use the
up or down arrow buttons to scroll through the list.
System
Check
Settings In this mode, you can configure
different driver setting choices.
Note:
Some items are optional and may
not appear. Settings
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
On or Off
Traction Control
Driver Assist
—
Sport, Normal or Comfort
Drive Control
—
On (default on key cycle)
or Off
Blindspot
High, Normal orLow
Sensitivity
Collision Warn
—
Adaptive or Normal
Cruise Control
—
On (default on key cycle)
or Off
Cross Traffic
105
MKZ (CC9) Information DisplaysE100023

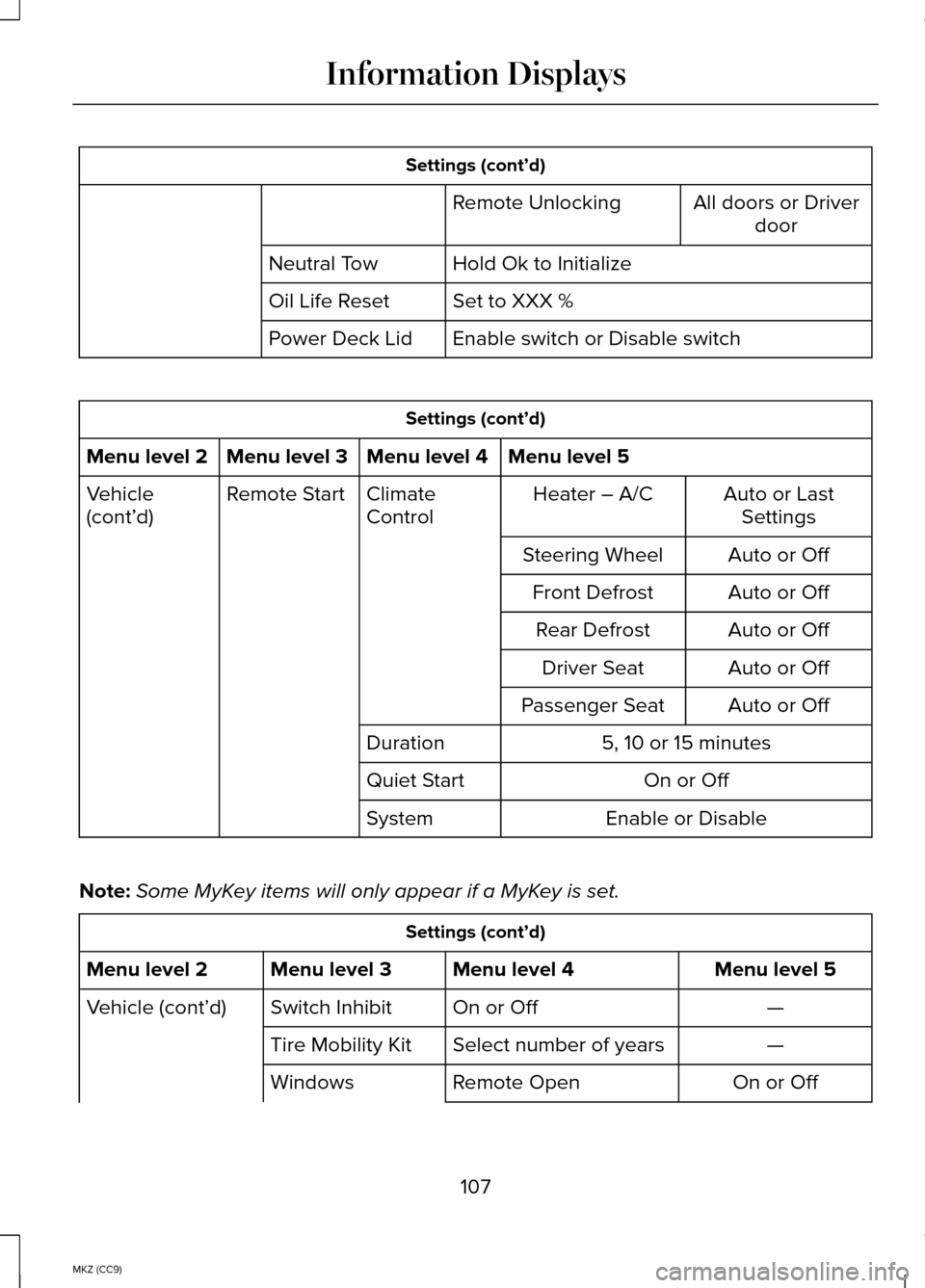

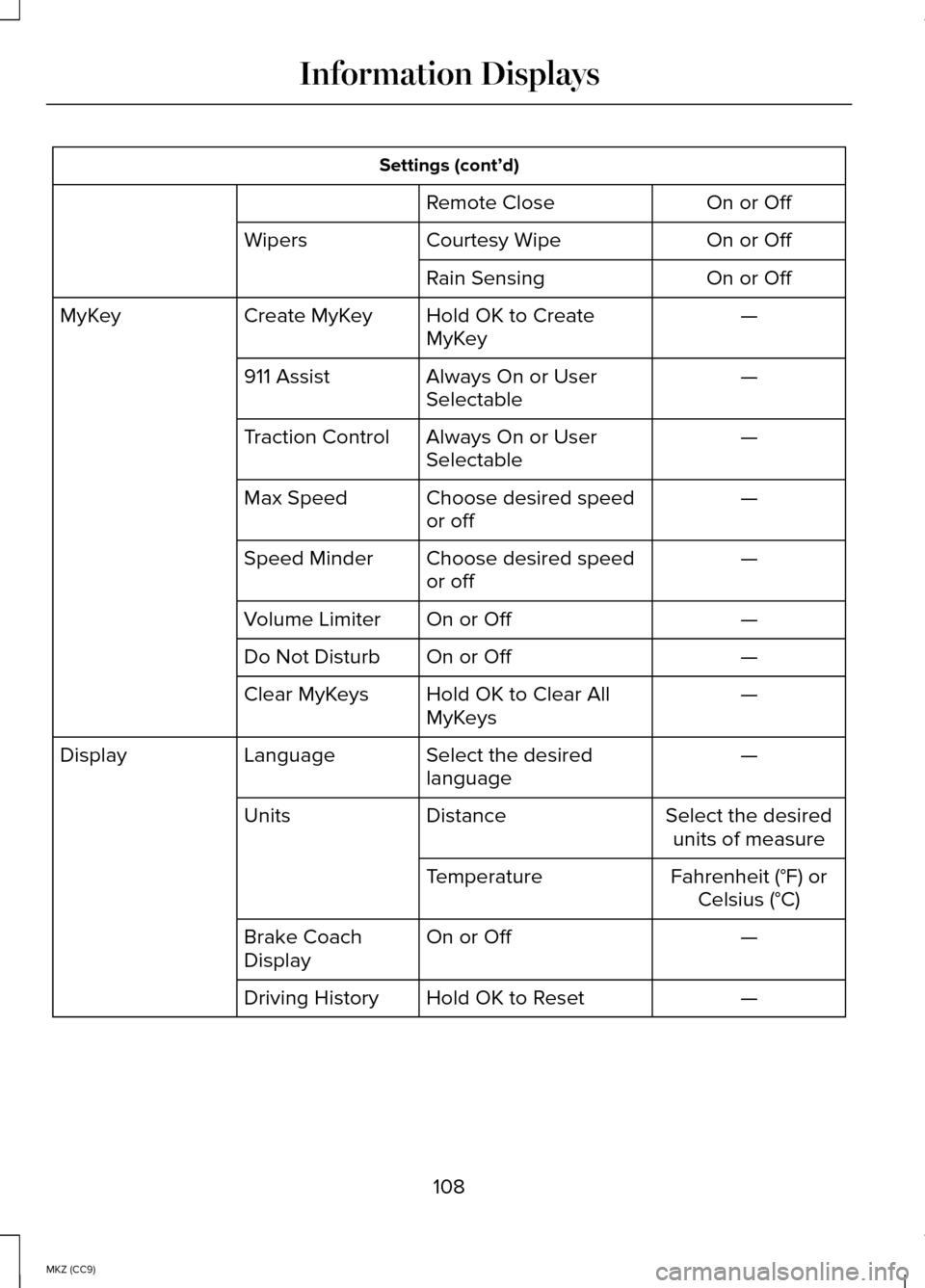

Settings (cont’d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
On or Off
ECO Cruise
Driver Assist
(cont’d)
—
On or Off
Driver Alert
Alert, Aid or Alert +Aid
Mode
Lane keeping Sys
High, Normal orLow
Intensity
—
On or Off
EV + Mode
—
On (default on key cycle)
or Off
Front Park Aid
—
On (default on key cycle)
or Off
Rear Park Aid
—
On (default on key cycle)
or Off
Auto Engine Off
Vehicle
—
On or Off
Easy Entry / Exit
On or Off
Adaptive Headlamps
Lighting
On or Off
Auto Highbeam
Select time interval
Autolamp Delay
On or Off
DRL Settings (cont’d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
On or Off
Autolock
Locks
Vehicle (cont’d)
On or Off
Autounlock
On or Off
Mislock
106
MKZ (CC9) Information Displays

Settings (cont’d)
All doors or Driverdoor
Remote Unlocking
Hold Ok to Initialize
Neutral Tow
Set to XXX %
Oil Life Reset
Enable switch or Disable switch
Power Deck Lid Settings (cont’d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
Auto or LastSettings
Heater – A/C
Climate
Control
Remote Start
Vehicle
(cont’d)
Auto or Off
Steering Wheel
Auto or Off
Front Defrost
Auto or Off
Rear Defrost
Auto or Off
Driver Seat
Auto or Off
Passenger Seat
5, 10 or 15 minutes
Duration
On or Off
Quiet Start
Enable or Disable
System
Note: Some MyKey items will only appear if a MyKey is set. Settings (cont’d)
Menu level 5
Menu level 4
Menu level 3
Menu level 2
—
On or Off
Switch Inhibit
Vehicle (cont’d)
—
Select number of years
Tire Mobility Kit
On or Off
Remote Open
Windows
107
MKZ (CC9) Information Displays

Settings (cont’d)
On or Off
Remote Close
On or Off
Courtesy Wipe
Wipers
On or Off
Rain Sensing
—
Hold OK to Create
MyKey
Create MyKey
MyKey
—
Always On or User
Selectable
911 Assist
—
Always On or User
Selectable
Traction Control
—
Choose desired speed
or off
Max Speed
—
Choose desired speed
or off
Speed Minder
—
On or Off
Volume Limiter
—
On or Off
Do Not Disturb
—
Hold OK to Clear All
MyKeys
Clear MyKeys
—
Select the desired
language
Language
Display
Select the desiredunits of measure
Distance
Units
Fahrenheit (°F) orCelsius (°C)
Temperature
—
On or Off
Brake Coach
Display
—
Hold OK to Reset
Driving History
108
MKZ (CC9) Information Displays
