seat adjustment LINCOLN MKZ HYBRID 2015 Owners Manual

Introduction
About This Manual............................................7
Symbols Glossary
..............................................7
Data Recording
..................................................9
California Proposition 65................................11
Perchlorate........................................................12
Lincoln Automotive Financial Services
.........................................................12
Replacement Parts Recommendation........12
Special Notices
.................................................13
Mobile Communications Equipment...........13
Export Unique Options...................................14
Child Safety
General Information
........................................15
Installing Child Seats.......................................17
Booster Seats
..................................................26
Child Seat Positioning...................................28
Child Safety Locks..........................................30
Safety Belts
Principle of Operation...................................32
Fastening the Safety Belts...........................33 Safety Belt Height Adjustment....................37
Safety Belt Warning Lamp and Indicator
Chime.............................................................37
Safety Belt Minder..........................................38
Child Restraint and Safety Belt Maintenance................................................40
Personal Safety System ™
Personal Safety System ™
..............................42
Supplementary Restraints System
Principle of Operation....................................43
Driver and Passenger Airbags....................44
Front Passenger Sensing System..............45
Side Airbags
.....................................................48
Driver and Passenger Knee Airbags.........49
Side Curtain Airbags
......................................49
Crash Sensors and Airbag Indicator...........51
Airbag Disposal...............................................52
Keys and Remote Controls
General Information on Radio Frequencies.................................................53 Remote Control
...............................................54
Replacing a Lost Key or Remote Control..........................................................58
MyKey™
Principle of Operation...................................59
Creating a MyKey...........................................60
Clearing All MyKeys.......................................60
Checking MyKey System Status.................62
Using MyKey With Remote Start Systems.........................................................63
MyKey Troubleshooting
................................63
Locks
Locking and Unlocking
.................................65
Keyless Entry
....................................................70
Interior Luggage Compartment Release..........................................................73
Security
Passive Anti-Theft System............................75
Anti-Theft Alarm
..............................................76
1
MKZ Hybrid (), enUSA Table of Contents

Pregnant women should always wear their
safety belt. The lap belt portion of a
combination lap and shoulder belt should be
positioned low across the hips below the
belly and worn as tight as comfort will allow.
The shoulder belt should be positioned to
cross the middle of the shoulder and the
center of the chest.
Safety Belt Locking Modes WARNINGS
After any vehicle crash, the safety belt
system at all passenger seating
positions must be checked by an authorized
dealer to verify that the automatic locking
retractor feature for child seats is still
functioning properly. In addition, all safety
belts should be checked for proper function. Belt and retractor assembly must be
replaced if the safety belt assembly
automatic locking retractor feature or any
other safety belt function is not operating
properly when checked by an authorized
dealer. Failure to replace the belt and
retractor assembly could increase the risk of
injury in crashes. All safety restraints in the vehicle are
combination lap and shoulder belts. The
driver safety belt has the vehicle sensitive
locking mode. The front outboard passenger
and rear seat safety belts have both the
vehicle sensitive locking mode and the
automatic locking mode.Vehicle Sensitive Mode
This is the normal retractor mode, which
allows free shoulder belt length adjustment
to your movements and locking in response
to vehicle movement. For example, if the
driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of
about 5 mph (8 km/h) or more, the
combination safety belts will lock to help
reduce forward movement of the driver and
passengers.
In addition, the retractor is designed to lock
if the webbing is pulled out too quickly. If this
occurs, let the belt retract slightly and pull
webbing out again in a slow and controlled
manner.
Automatic Locking Mode
In this mode, the shoulder belt is
automatically pre-locked. The belt will still
retract to remove any slack in the shoulder
belt. The automatic locking mode is not
available on the driver safety belt.
34
MKZ Hybrid (), enUSA Safety BeltsE142590

Proper Driver and Front Passenger
Seating Adjustment
WARNING
National Highway Traffic Safety
Administration (NHTSA) recommends
a minimum distance of at least 10 inches (25
centimeters) between an occupant’ s chest
and the driver airbag module. To properly position yourself away from the
airbag:
•
Move your seat to the rear as far as you
can while still reaching the pedals
comfortably.
• Recline the seat slightly (one or two
degrees) from the upright position.
After all occupants have adjusted their seats
and put on safety belts, it is very important
that they continue to sit properly. A properly
seated occupant sits upright, leaning against
the seat back, and centered on the seat
cushion, with their feet comfortably extended
on the floor. Sitting improperly can increase the chance of injury in a crash event. For
example, if an occupant slouches, lies down,
turns sideways, sits forward, leans forward
or sideways, or puts one or both feet up, the
chance of injury during a crash is greatly
increased.
Children and Airbags
WARNING
Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag. If you
must use a forward-facing child seat in the
front seat, move the seat upon which the
child seat is installed all the way back. Children must always be properly restrained.
Accident statistics suggest that children are
safer when properly restrained in the rear
seating positions than in the front seating
position. Failure to follow these instructions
may increase the risk of injury in a crash.
FRONT PASSENGER SENSING
SYSTEM
WARNINGS
Even with Advanced Restraints
Systems, children 12 and under should
be properly restrained in a rear seating
position. Failure to follow this could seriously
increase the risk of injury or death. Sitting improperly out of position or
with the seat back reclined too far can
take off weight from the seat cushion and
affect the decision of the front passenger
sensing system, resulting in serious injury or
death in a crash. Always sit upright against
your seat back, with your feet on the floor.
45
MKZ Hybrid (), enUSA Supplementary Restraints SystemE142846

REMOTE START
The remote start feature allows you to
pre-condition the interior of your vehicle. The
climate control system works to achieve
comfort according to your previous settings.
Note:
You cannot adjust the system during
remote start operation.
Turn the ignition on to return the system to
its previous settings. You can now make
adjustments normally, but you need to turn
certain vehicle-dependent features back on,
such as:
• Heated seats.
• Cooled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window.
You can adjust the default remote start
settings using the information display
controls. See Information Displays (page
109). Automatic Settings
In hot weather, the system is set to 72°F
(22°C). The cooled seats are set to high (if
available, and selected to AUTO in the
information display).
In moderate weather, the system either heats
or cools (based on previous settings). The
rear defroster, heated mirrors and heated
seats do not automatically switch on.
In cold weather, the system is set to 72°F
(22°C). The heated seats are set to high (if
available, and selected to AUTO in the
information display). The rear defroster and
heated mirrors automatically switch on.
143
MKZ Hybrid (), enUSA Climate Control

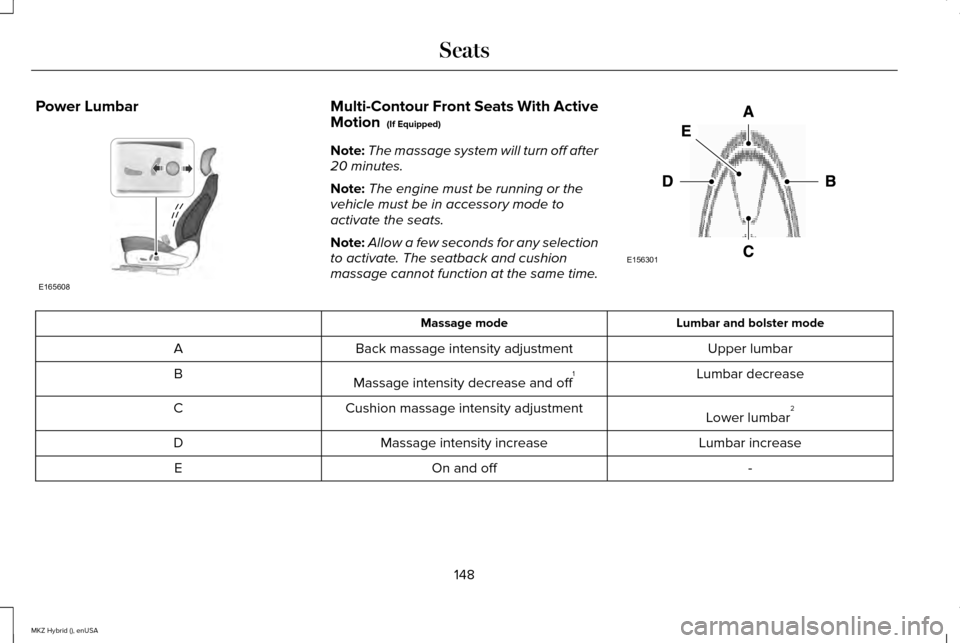

Power Lumbar Multi-Contour Front Seats With Active
Motion (If Equipped)
Note: The massage system will turn off after
20 minutes.
Note: The engine must be running or the
vehicle must be in accessory mode to
activate the seats.
Note: Allow a few seconds for any selection
to activate. The seatback and cushion
massage cannot function at the same time. Lumbar and bolster mode
Massage mode
Upper lumbar
Back massage intensity adjustment
A
Lumbar decrease
Massage intensity decrease and off 1
B
Lower lumbar2
Cushion massage intensity adjustment
C
Lumbar increase
Massage intensity increase
D
-
On and off
E
148
MKZ Hybrid (), enUSA SeatsE165608 E156301

1

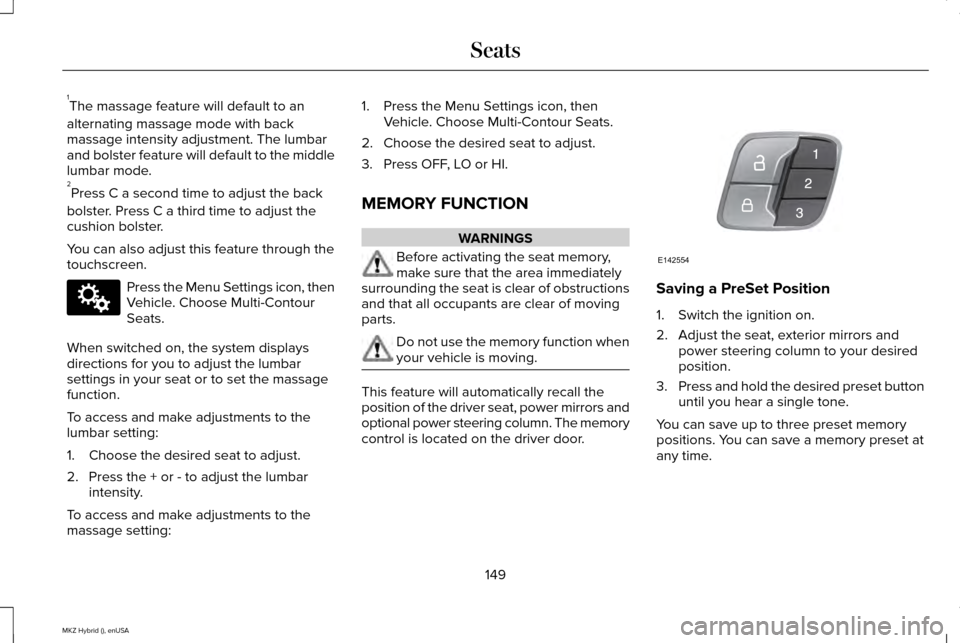

The massage feature will default to an
alternating massage mode with back
massage intensity adjustment. The lumbar
and bolster feature will default to the middle
lumbar mode.
2 Press C a second time to adjust the back
bolster. Press C a third time to adjust the
cushion bolster.
You can also adjust this feature through the
touchscreen. Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour
Seats.
When switched on, the system displays
directions for you to adjust the lumbar
settings in your seat or to set the massage
function.
To access and make adjustments to the
lumbar setting:
1. Choose the desired seat to adjust.
2. Press the + or - to adjust the lumbar intensity.
To access and make adjustments to the
massage setting: 1. Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour Seats.
2. Choose the desired seat to adjust.
3. Press OFF, LO or HI.
MEMORY FUNCTION WARNINGS
Before activating the seat memory,
make sure that the area immediately
surrounding the seat is clear of obstructions
and that all occupants are clear of moving
parts. Do not use the memory function when
your vehicle is moving.
This feature will automatically recall the
position of the driver seat, power mirrors and
optional power steering column. The memory
control is located on the driver door. Saving a PreSet Position
1. Switch the ignition on.
2. Adjust the seat, exterior mirrors and
power steering column to your desired
position.
3. Press and hold the desired preset button
until you hear a single tone.
You can save up to three preset memory
positions. You can save a memory preset at
any time.
149
MKZ Hybrid (), enUSA SeatsE142607 E142554

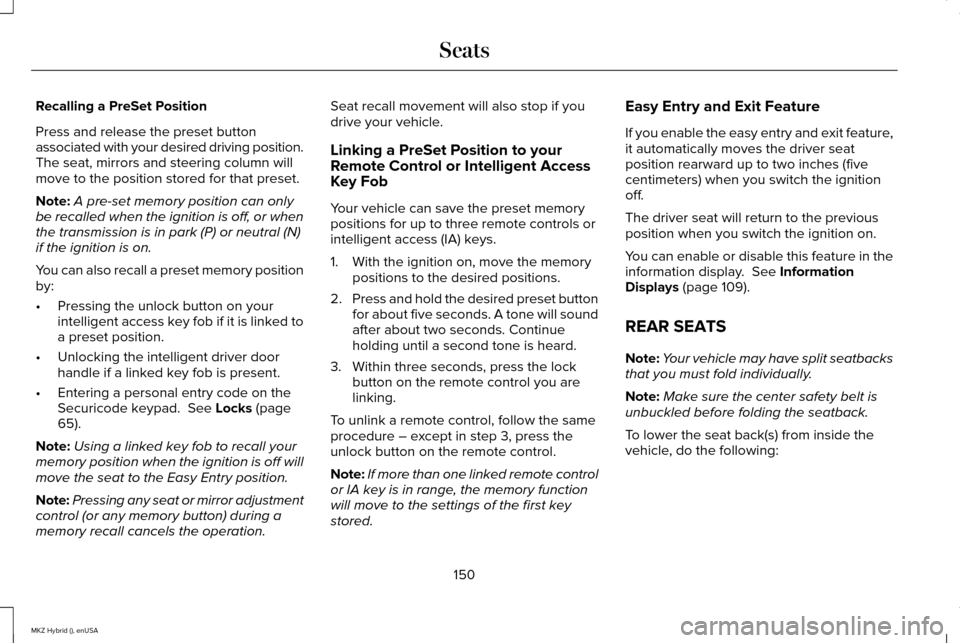

Recalling a PreSet Position
Press and release the preset button
associated with your desired driving position.
The seat, mirrors and steering column will
move to the position stored for that preset.
Note:
A pre-set memory position can only
be recalled when the ignition is off, or when
the transmission is in park (P) or neutral (N)
if the ignition is on.
You can also recall a preset memory position
by:
• Pressing the unlock button on your
intelligent access key fob if it is linked to
a preset position.
• Unlocking the intelligent driver door
handle if a linked key fob is present.
• Entering a personal entry code on the
Securicode keypad. See Locks (page
65).
Note: Using a linked key fob to recall your
memory position when the ignition is off will
move the seat to the Easy Entry position.
Note: Pressing any seat or mirror adjustment
control (or any memory button) during a
memory recall cancels the operation. Seat recall movement will also stop if you
drive your vehicle.
Linking a PreSet Position to your
Remote Control or Intelligent Access
Key Fob
Your vehicle can save the preset memory
positions for up to three remote controls or
intelligent access (IA) keys.
1. With the ignition on, move the memory
positions to the desired positions.
2. Press and hold the desired preset button
for about five seconds. A tone will sound
after about two seconds. Continue
holding until a second tone is heard.
3. Within three seconds, press the lock button on the remote control you are
linking.
To unlink a remote control, follow the same
procedure – except in step 3, press the
unlock button on the remote control.
Note: If more than one linked remote control
or IA key is in range, the memory function
will move to the settings of the first key
stored. Easy Entry and Exit Feature
If you enable the easy entry and exit feature,
it automatically moves the driver seat
position rearward up to two inches (five
centimeters) when you switch the ignition
off.
The driver seat will return to the previous
position when you switch the ignition on.
You can enable or disable this feature in the
information display.
See Information
Displays (page 109).
REAR SEATS
Note: Your vehicle may have split seatbacks
that you must fold individually.
Note: Make sure the center safety belt is
unbuckled before folding the seatback.
To lower the seat back(s) from inside the
vehicle, do the following:
150
MKZ Hybrid (), enUSA Seats

A
A/C
See: Climate Control..........................................139
About This Manual............................................7
Protecting the Environment..................................7
ABS See: Brakes...........................................................192
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................193
Accessories...................................................445 Exterior style........................................................445
Interior style.........................................................445
Lifestyle.................................................................445
Peace of mind.....................................................445
Accessories See: Replacement Parts Recommendation.....12
ACC See: Using Adaptive Cruise Control...............213
Active Park Assist.........................................203 Automatic Steering into Parking Space.......205
Deactivating the Park Assist Feature............206
Troubleshooting the System...........................206
Using Active Park Assist...................................204
Adaptive Headlamps.....................................89 Adjusting the Headlamps...........................297
Horizontal Aim Adjustment..............................
299
Vertical Aim Adjustment...................................297
Adjusting the Steering Wheel......................78 Power Tilt and Telescope Steering
Column................................................................78
AFS See: Adaptive Headlamps..................................89
Airbag Disposal...............................................52
Air Conditioning See: Climate Control..........................................139
Alarm See: Anti-Theft Alarm...........................................76
Anti-Theft Alarm
..............................................76
Arming the Alarm..................................................77
Disarming the Alarm.............................................77
Appendices....................................................447
Audible Warnings and Indicators..............107 Headlamps On Warning Chime.......................
107
Key in Ignition Warning Chime.........................107
Keyless Warning Alert........................................107
Parking Brake On Warning Chime..................108
Audio Control
...................................................79
Seek, Next or Previous........................................79
Audio System
................................................355
General Information...........................................355
Audio Unit - Vehicles With: Premium AM/ FM/CD..........................................................356 Autolamps.........................................................86
Windshield Wiper Activated Headlamps........86
Automatic Climate Control..........................139
Automatic High Beam Control
....................88
Activating the System..........................................89
Manually Overriding the System......................89
Automatic Transmission
...............................187
Brake-Shift Interlock Override.........................190
If Your Vehicle Gets Stuck In Mud or Snow..................................................................190
Push Button Shift Transmission.......................187
Automatic Transmission Fluid Check...........................................................294
Autowipers.......................................................83
Auxiliary Power Points.................................160 110 Volt AC Power Point....................................160
12 Volt DC Power Point......................................160
Locations...............................................................160
B
Blind Spot Information System.................227 Blind Spot Information System (BLIS®) with
Cross Traffic Alert...........................................227
Bonnet Lock See: Opening and Closing the Hood............286
Booster Seats
..................................................26
Types of Booster Seats.......................................26
489
MKZ Hybrid (), enUSA Index

Daytime Running Lamps...............................87
Type 1 - Conventional
(Non-Configurable)...........................................87
Type 2 - Configurable..........................................88
Direction Indicators
........................................90
Drive Control.................................................236
LINCOLN DRIVE CONTROL............................236
Driver Alert
......................................................221
Using Driver Alert................................................221
Driver and Passenger Airbags....................44 Children and Airbags...........................................45
Proper Driver and Front Passenger Seating
Adjustment.........................................................45
Driver and Passenger Knee Airbags.........49
Driving Aids
....................................................221
Driving Hints..................................................249
Driving Through Water...............................249
DRL See: Daytime Running Lamps............................87
E
Economical Driving......................................249 Electric Parking Brake..................................193
Applying the electric parking brake...............
193
Applying the electric parking brake when the vehicle is moving............................................194
Battery With No Charge....................................195
Releasing the electric parking brake.............194
Electric Vehicle Information
........................414
Power......................................................................415
Emission Control System
.............................181
On-Board Diagnostics (OBD-II)........................182
Readiness for Inspection/Maintenance (I/M)
Testing...............................................................182
End User License Agreement...................447 SYNC End User License Agreement
(EULA)................................................................447
Engine Block Heater....................................166 Using the Engine Block Heater.......................167 Engine Coolant Check................................289
Adding Coolant...................................................290
Adding Engine Coolant.....................................291
Adding Inverter System Controller
Coolant.............................................................292
Checking the Engine Coolant.........................289
Checking the Inverter System Controller Coolant.............................................................290
Engine Coolant and Inverter System Controller Coolant.........................................289
Recycled Engine Coolant.................................292
Severe Climates.................................................292
What You Should Know About Fail-Safe Cooling.............................................................293
Engine Immobilizer See: Passive Anti-Theft System........................75
Engine Oil Check.........................................288 Adding Engine Oil..............................................288
Engine Oil Dipstick......................................288
Engine Specifications
..................................346
491
MKZ Hybrid (), enUSA Index

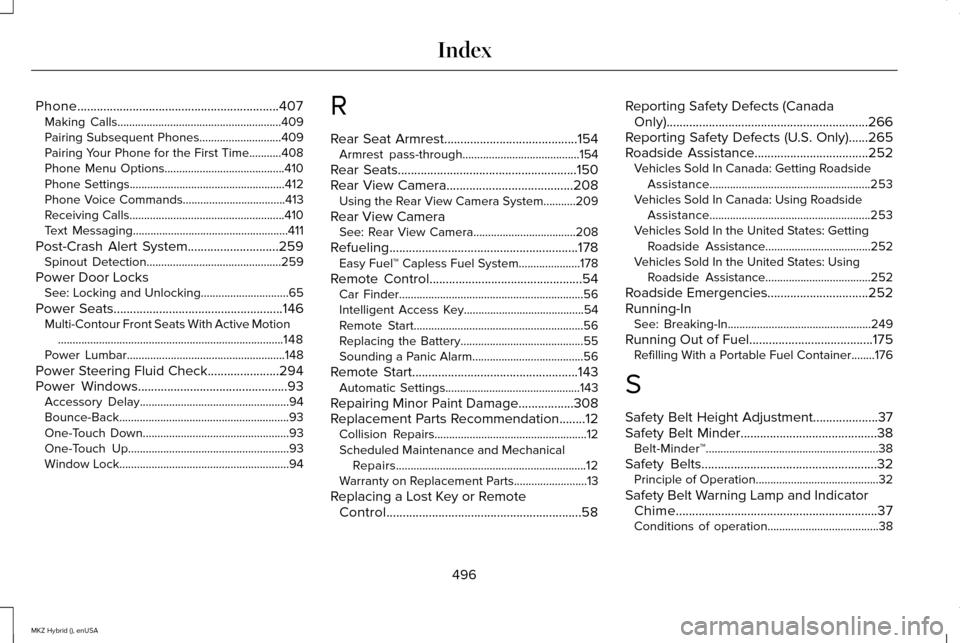

Phone..............................................................407
Making Calls........................................................409
Pairing Subsequent Phones............................409
Pairing Your Phone for the First Time...........408
Phone Menu Options.........................................410
Phone Settings.....................................................412
Phone Voice Commands...................................413
Receiving Calls.....................................................410
Text Messaging.....................................................411
Post-Crash Alert System............................259 Spinout Detection..............................................259
Power Door Locks See: Locking and Unlocking..............................65
Power Seats....................................................146 Multi-Contour Front Seats With Active Motion
........................................................................\
.....148
Power Lumbar......................................................148
Power Steering Fluid Check......................294
Power Windows
..............................................93
Accessory Delay...................................................94
Bounce-Back..........................................................93
One-Touch Down..................................................93
One-Touch Up.......................................................93
Window Lock..........................................................94 R
Rear Seat Armrest.........................................154
Armrest pass-through........................................154
Rear Seats
.......................................................150
Rear View Camera.......................................208 Using the Rear View Camera System...........209
Rear View Camera See: Rear View Camera...................................208
Refueling..........................................................178 Easy Fuel™ Capless Fuel System.....................178
Remote Control
...............................................54
Car Finder...............................................................56
Intelligent Access Key.........................................54
Remote Start..........................................................56
Replacing the Battery..........................................55
Sounding a Panic Alarm......................................56
Remote Start
...................................................143
Automatic Settings..............................................143
Repairing Minor Paint Damage.................308
Replacement Parts Recommendation........12 Collision Repairs....................................................12
Scheduled Maintenance and Mechanical
Repairs.................................................................12
Warranty on Replacement Parts.........................
13
Replacing a Lost Key or Remote Control............................................................58 Reporting Safety Defects (Canada
Only)..............................................................266
Reporting Safety Defects (U.S. Only)......265
Roadside Assistance
...................................252
Vehicles Sold In Canada: Getting Roadside
Assistance.......................................................253
Vehicles Sold In Canada: Using Roadside Assistance.......................................................253
Vehicles Sold In the United States: Getting Roadside Assistance....................................252
Vehicles Sold In the United States: Using Roadside Assistance....................................252
Roadside Emergencies
...............................252
Running-In See: Breaking-In.................................................249
Running Out of Fuel
......................................175
Refilling With a Portable Fuel Container........176
S
Safety Belt Height Adjustment....................37
Safety Belt Minder..........................................38 Belt-Minder™...........................................................38
Safety Belts
......................................................32
Principle of Operation..........................................32
Safety Belt Warning Lamp and Indicator Chime..............................................................37
Conditions of operation......................................38
496
MKZ Hybrid (), enUSA Index
