IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Under Hood Fuse Box - Top
327
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE190797

Protected ComponentFuse RatingFuse Number
Second row power seat.30 A1
Starter relay.—2
Rear window wiper.15 A3Rain sensor.Rear wash relay coil.
Blower motor relay.—4
Not used.—5
Not used.—6
Powertrain control module - vehicle power 1.20 A7
Powertrain control module - vehicle power 2.20 A8Canister vent.Vapor blocking value.Heated oxygen post.
Powertrain control module relay.—9
Power outlet 5-main bin.20 A10
Powertrain control module - vehicle power 4.15 A11
Powertrain control module - vehicle power 3.15 A12
328
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Protected ComponentFuse RatingFuse Number
Not used.—13
Not used.—14
Run-start relay.—15
Power outlet 2 - back of console.20 A16
Power outlet 4 - luggage compartment.20 A17
Not used.—18
Run-start electronic power assist steering.10 A19
Run/start lighting.10 A20
Not used.—21
Air conditioner clutch solenoid.10 A22
Front split view camera.15 A23Rear view camera.Forward looking radar.360° camera module.Blind spot information system.Voltage quality module (start/stop).
Not used (spare).10 A24
Run-start anti-lock brake system.10 A25
329
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Protected ComponentFuse RatingFuse Number
Run-start powertrain control module.10 A26
USB power outlet - back of console.5 A27
Rear window washer pump.10 A28
Not used.—29
Not used.—30
Not used.—31
Electronic fan 1 relay.—32
A/C clutch relay.—33
Not used.—34
Not used.—35
Not used.—36
Not used.—37
Electronic fan 2 relay.—38
Electronic fan 3 relay.—39
Horn relay.—40
Left-hand high beam and stoplamp relay.—41
330
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Protected ComponentFuse RatingFuse Number
Fuel pump relay.—42
Right-hand high beam and stoplamp.15 A43
Not used.—44
Not used.—45
Not used.—46
Not used.—47
Left-hand high beam and stoplamp.15 A48
Not used.—49
Horn.20 A50
Not used.—51
Not used.—52
Massaging seats.10 A53
Brake on-off switch.10 A54
Alternator A-line.10 A55
Not used.—86
331
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Under Hood Fuse Box - Bottom
332
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE190798

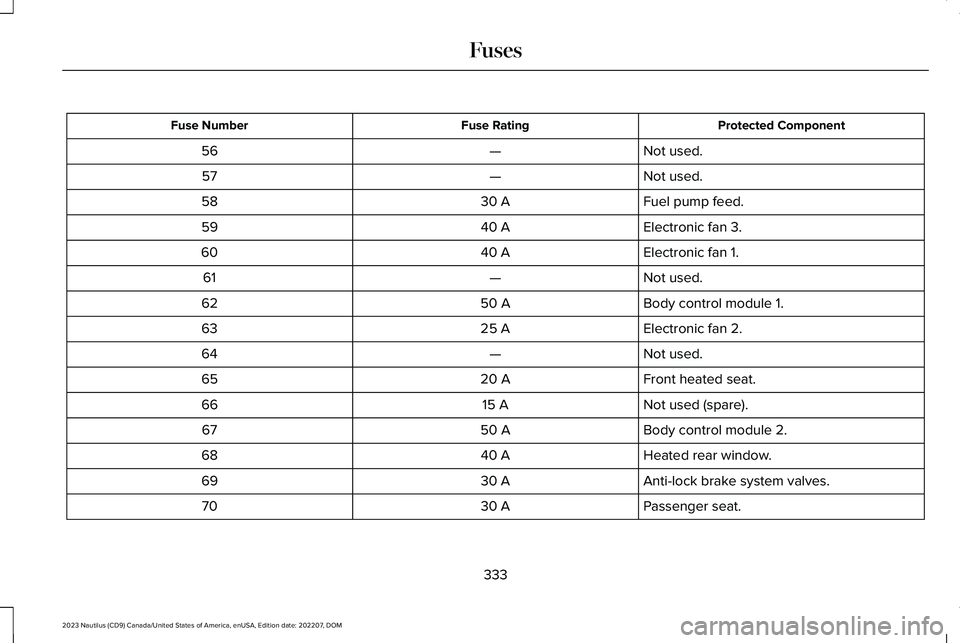

Protected ComponentFuse RatingFuse Number
Not used.—56
Not used.—57
Fuel pump feed.30 A58
Electronic fan 3.40 A59
Electronic fan 1.40 A60
Not used.—61
Body control module 1.50 A62
Electronic fan 2.25 A63
Not used.—64
Front heated seat.20 A65
Not used (spare).15 A66
Body control module 2.50 A67
Heated rear window.40 A68
Anti-lock brake system valves.30 A69
Passenger seat.30 A70
333
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

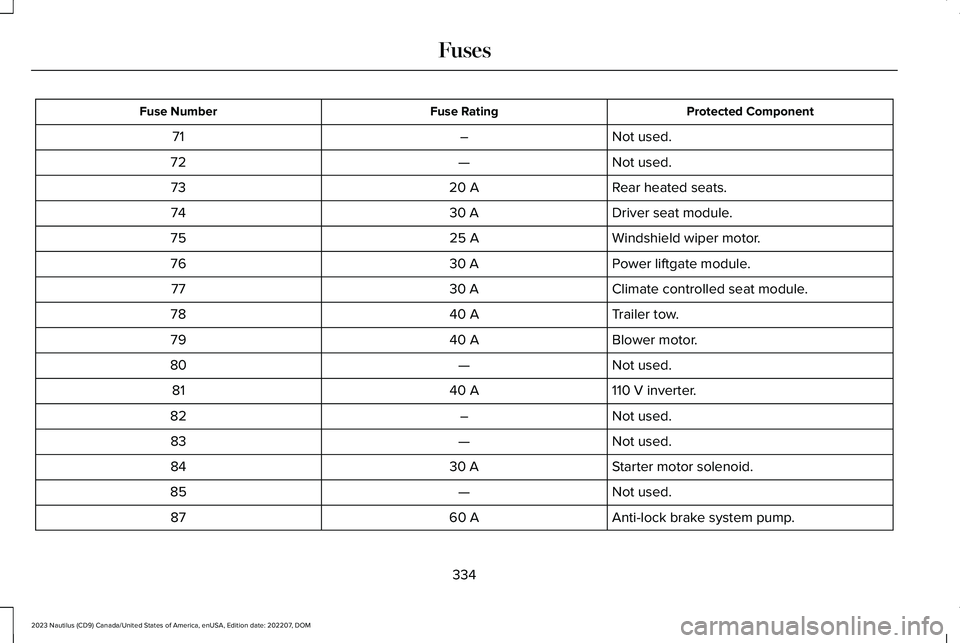

Protected ComponentFuse RatingFuse Number
Not used.–71
Not used.—72
Rear heated seats.20 A73
Driver seat module.30 A74
Windshield wiper motor.25 A75
Power liftgate module.30 A76
Climate controlled seat module.30 A77
Trailer tow.40 A78
Blower motor.40 A79
Not used.—80
110 V inverter.40 A81
Not used.–82
Not used.—83
Starter motor solenoid.30 A84
Not used.—85
Anti-lock brake system pump.60 A87
334
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

BODY CONTROL MODULE FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
To access the fuses in the body controlmodule fuse box, contact an authorizeddealer.
335
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE331712

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentsFuse RatingFuse or Relay Number
Not used.–1
Delayed accessory - power inverter logic, moonroof logic and driverwindow switch power.10 A2
Memory seats.7.5 A3
