Protected ComponentsFuse RatingFuse or Relay Number
Lumbar.Wireless accessory charging.
Subwoofer amplifier.20 A4
Not used.–5
Security horn relay.10 A6
Gearshift module.10 A7
Power liftgate module.5 A8Hands free liftgate module.Embedded modem.
Keypad.5 A9Combined sensing module.
Not used.–10
Not used.–11
Climate control module.7.5 A12Enhanced central gateway module.
Instrument cluster.7.5 A13Steering column control module.
Not used.15 A14
337
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Protected ComponentsFuse RatingFuse or Relay Number
SYNC module.15 A15
Not used.–16
Headlamp control module.7.5 A17
Not used (spare).7.5 A18
Headlamp switch.5 A19Bluetooth low energy module.
Push button ignition switch.5 A20
Not used (spare).5 A21
Not used (spare).5 A22
Driver door window and mirror.30 A23Driver door module.Driver door lock indicator.Driver lock switch illumination.
Moonroof.30 A24
Amplifier.20 A25
Front passenger door window and mirror.30 A26Front passenger door module.Front passenger lock indicator.Front passenger switch illumination.
338
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

Protected ComponentsFuse RatingFuse or Relay Number
Left-hand rear door module.30 A27
Right-hand rear door module.30 A28
Enhanced central gateway power - OBD connector.15 A29
Not used (spare).5 A30
Radio transceiver module.10 A31Multi-function display.Integrated control panel.
Radio.20 A32
Not used.–33
Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38).30 A34
Passenger airbag deactivation indicator.5 A35
Rear heated seat module.15 A36Suspension module.
Heated steering wheel.20 A37Auto-dimming interior mirror.Automatic high beam and lane departure mirror module.Parking assist control module.
Circuit breaker.30 A38
339
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

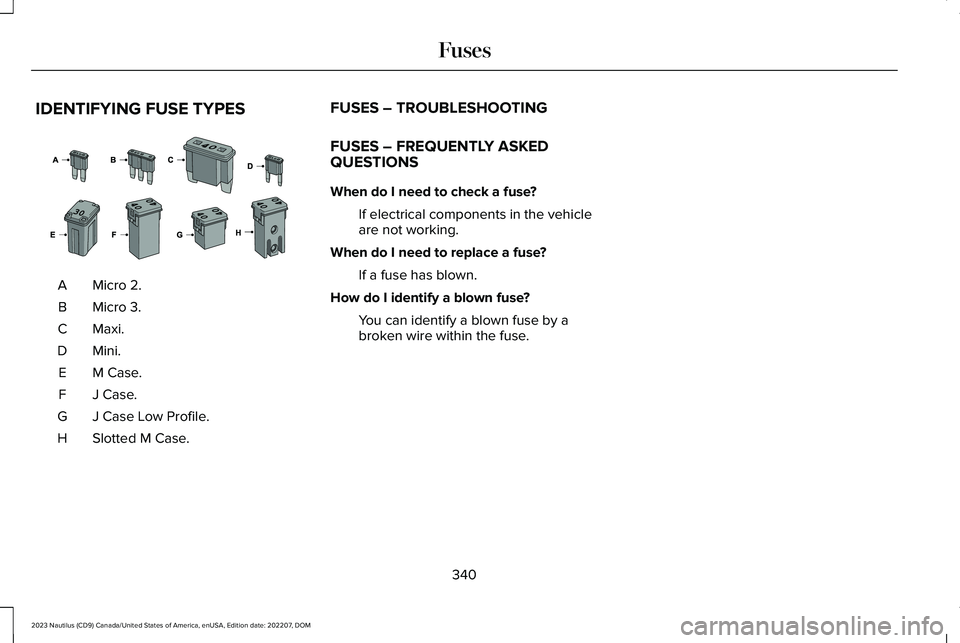

IDENTIFYING FUSE TYPES
Micro 2.A
Micro 3.B
Maxi.C
Mini.D
M Case.E
J Case.F
J Case Low Profile.G
Slotted M Case.H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKEDQUESTIONS
When do I need to check a fuse?
If electrical components in the vehicleare not working.
When do I need to replace a fuse?
If a fuse has blown.
How do I identify a blown fuse?
You can identify a blown fuse by abroken wire within the fuse.
340
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses E267379

MAINTENANCE PRECAUTIONS
Service your vehicle regularly to helpmaintain its roadworthiness and resale value.There is a large network of authorizeddealers that are there to help you with theirprofessional servicing expertise. We believethat their specially trained technicians arebest qualified to service your vehicle properlyand expertly. They are supported by a widerange of highly specialized tools developedspecifically for servicing your vehicle.
If your vehicle requires professional service,an authorized dealer can provide thenecessary parts and service. Check yourwarranty information to find out which partsand services are covered.
Use only recommended fuels, lubricants,fluids and service parts conforming tospecifications. See Capacities andSpecifications (page 408).
•Do not work on a hot engine.
•Make sure that nothing gets caught inmoving parts.
•Do not work on a vehicle with the enginerunning in an enclosed space, unless youare sure you have enough ventilation.
•Keep all open flames and other burningmaterial, such as cigarettes, away fromthe battery and all fuel related parts.
•Set the parking brake, shift thetransmission to park (P) and block thewheels.
OPENING AND CLOSING THE
HOOD
Opening the Hood
1.Inside the vehicle, pull the hood releasehandle located under the left-hand sideof the instrument panel.
2.Slightly lift the hood.
3.Release the hood latch by pushing thesecondary release lever to your left-handside.
341
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenanceE142457 E267365

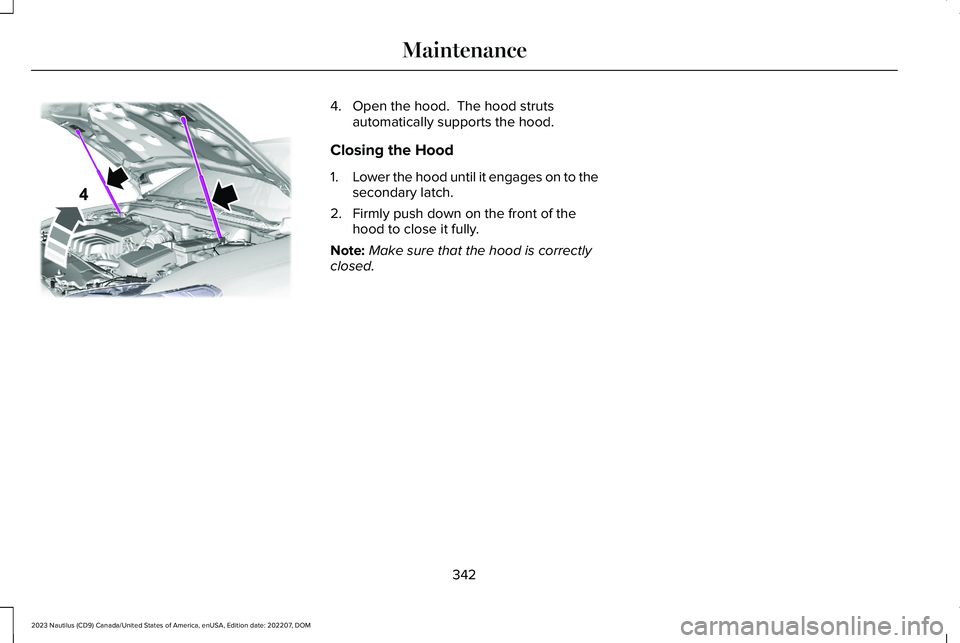

4.Open the hood. The hood strutsautomatically supports the hood.
Closing the Hood
1.Lower the hood until it engages on to thesecondary latch.
2.Firmly push down on the front of thehood to close it fully.
Note:Make sure that the hood is correctlyclosed.
342
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenance E202009

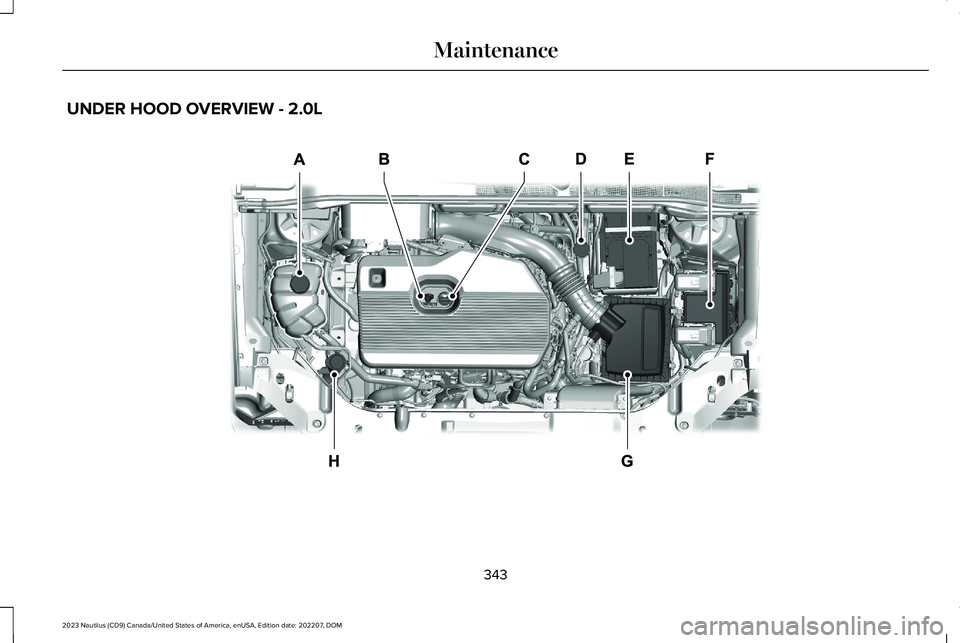

UNDER HOOD OVERVIEW - 2.0L
343
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenanceE341608

Engine coolant reservoir. See Checking the Coolant (page 349).A
Engine oil dipstick. See Engine Oil Dipstick Overview (page 347).B
Engine oil filler cap. See Adding Engine Oil (page 348).C
Brake fluid reservoir. See Checking the Brake Fluid (page 222).D
Battery. See Changing the 12V Battery (page 355).E
Power distribution box. See Accessing the Under Hood Fuse Box (page 325).F
Air filter. See Changing the Engine Air Filter (page 353).G
Windshield washer fluid reservoir. See Adding Washer Fluid (page 119).H
344
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenance

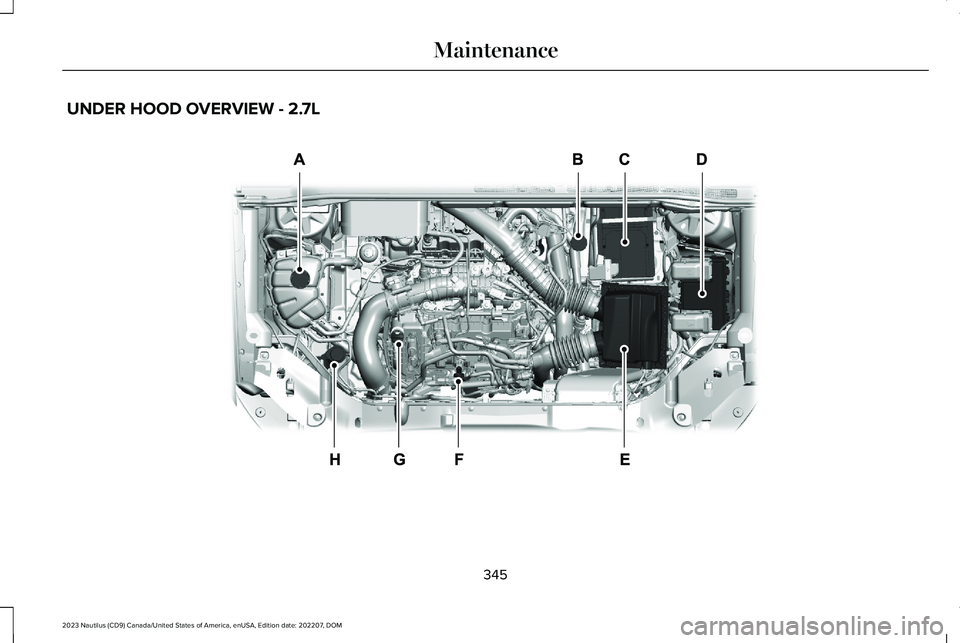

UNDER HOOD OVERVIEW - 2.7L
345
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenanceE341585

Engine coolant reservoir. See Checking the Coolant (page 349).A
Brake fluid reservoir. See Checking the Brake Fluid (page 222).B
Battery. See Changing the 12V Battery (page 355).C
Power distribution box. See Accessing the Under Hood Fuse Box (page 325).D
Air filter assembly. See Changing the Engine Air Filter (page 354).E
Engine oil dipstick. See Engine Oil Dipstick Overview (page 347).F
Engine oil filler cap. See Adding Engine Oil (page 348).G
Windshield washer fluid reservoir. See Adding Washer Fluid (page 119).H
346
