LINCOLN NAVIGATOR 2010 Navigation Manual

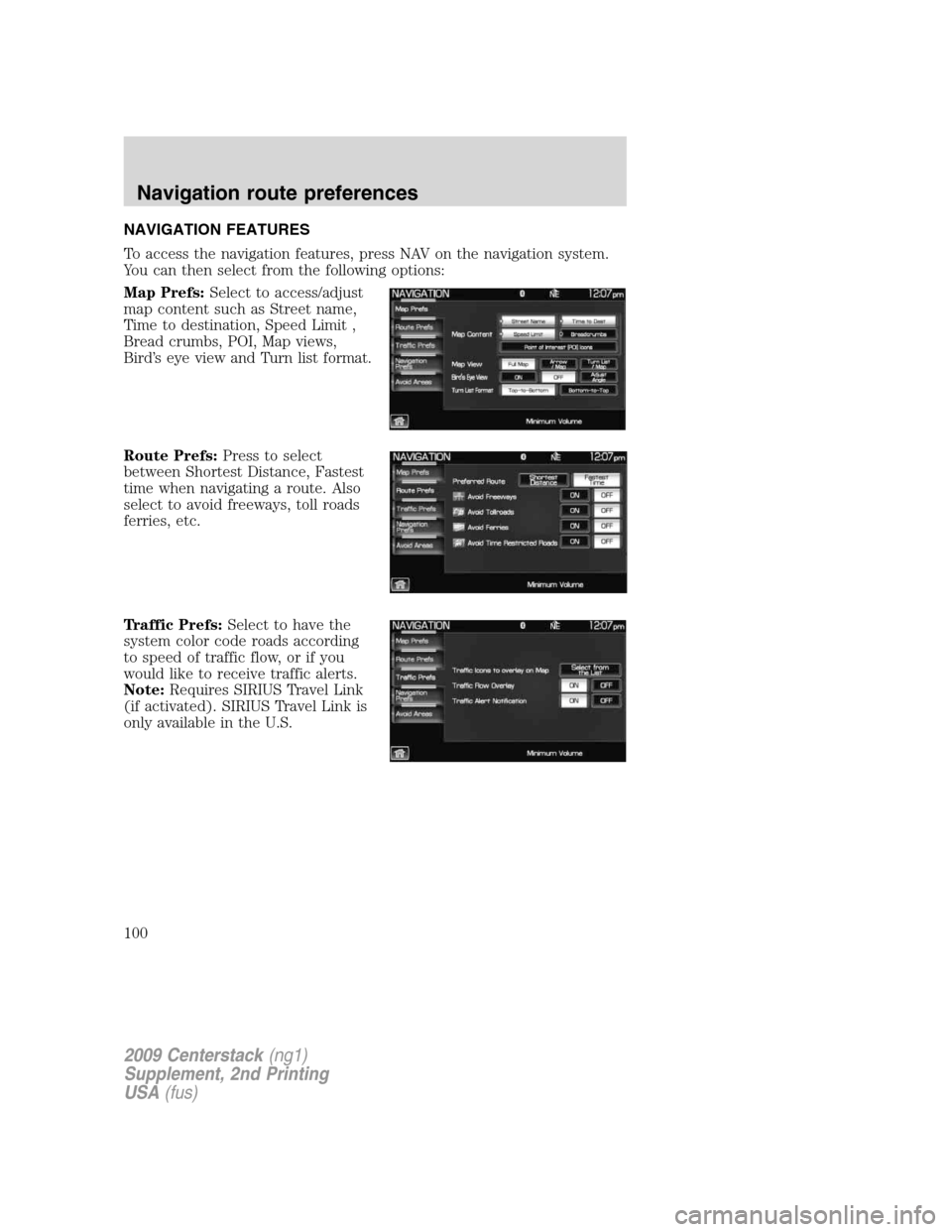

NAVIGATION FEATURES
To access the navigation features, press NAV on the navigation system.
You can then select from the following options:
Map Prefs:Select to access/adjust
map content such as Street name,
Time to destination, Speed Limit ,
Bread crumbs, POI, Map views,
Bird’s eye view and Turn list format.
Route Prefs:Press to select
between Shortest Distance, Fastest
time when navigating a route. Also
select to avoid freeways, toll roads
ferries, etc.
Traffic Prefs:Select to have the
system color code roads according
to speed of traffic flow, or if you
would like to receive traffic alerts.
Note:Requires SIRIUS Travel Link
(if activated). SIRIUS Travel Link is
only available in the U.S.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
100

You can also have the system add
special icons to the map for things
such as road work, accidents, etc.
Navigation Prefs:Select to
access/adjust guidance prompts,
average speed, fuel price display,
calibration and default settings.
Avoid Areas:Press to select
specific areas which you would like
the navigation system to avoid when
routing a destination. The system
will do its best to avoid the items
and areas that have been set. There
will be some situations where it may
be impossible to completely honor
the avoid settings. For example, if a
destination or waypoint is located in
an area that is set to avoid, the system will not be able to avoid it.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
101

MAP PREFERENCES
1. Press the NAV hard button on the
navigation system.
2. Select ’Map Preferences’ tab on
the touchscreen to choose from the
following options:
Map Content
•Street name:This feature will display the current street name in a
window at the top of the screen during guidance.
•Time to Dest:This feature will display the distance to the selected
destination as well as the Estimated Time of Arrival (ETA) on a
pop-up screen activated by an icon on the left side of the map.
•Speed Limit:This feature will display the speed limit of major roads
at the bottom of the map while in route guidance.
•Breadcrumbs:This feature will display the vehicle’s previously
traveled route with white dots. The system can store around 140 miles
(230 km).
•Point of Interest (POI) icons:This feature displays POI icons on
the map.
Map View
•Full map:When selected during guidance, the map will be displayed
in full screen and turn icons will appear in the upper right corner of
the screen.
•Arrow/map:When selected during guidance, the screen will be
divided in two with a map displayed on the left and upcoming turn
information on the right.
•Turn list/map:When selected during guidance, this screen will be
divided in two with the map displayed on the left and a turn list on
the right.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
102

Bird’s eye view
•On:Select to enable the Bird’s
eye view feature when the map
screen is displayed. This view
provides an elevated perspective.
•Off:Select to disable the Bird’s
eye view feature.
•Adjust angle:Select to adjust
the angle of the Bird’s eye view.
You have six different options.
Turn list format
•Top-to-bottom:Select to have the turn instructions begin at the top
and work down.
•Bottom-to-top:Select to have the turn instructions begin at the
bottom and work up.
ROUTE PREFERENCES
Your navigation system can search for up to three different routes. You
can select from the fastest route, the shortest route, or the ‘unrestricted’
route which does not consider any ‘avoid’ areas which may have been
selected. If there are not any ‘avoid’ settings, the system will only
produce two possible routes. You can select the order in which the
routes are displayed. The system will automatically avoid unpaved roads
as much as possible. To access:
1. Press the NAV hard button on the navigation system.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
103

2. Select the ‘Route Preferences’ tab on the touchscreen and select from
the following:
Shortest Distance:Select to have
the navigation system display the
shortest route first.
Fastest Time:Select to have the
navigation system display the fastest
route first.
Avoid Freeways/Toll
Roads/Ferries/Time Restrictions:
The system will search for routes
using or attempting to avoid the use
of freeways, toll roads, ferries and or time restrictions whenever possible,
according to your preferences. Time restricted roads are roads that have
turn, lane or entrance restrictions based on local traffic conditions or
seasonal restrictions. Select the desired preferences from the avoid
menu.
NAVIGATION PREFERENCES
1. Press the NAV hard button on the navigation system.
2. Select the ’Navigation Preferences’ tab on the touchscreen. Select
from the following:
Guidance Prompts
•Voice:Select to have the
navigation system guide you with
tones and voice prompts.
•Tone only:Select to have the
navigation system guide you with
tones only.
•Off:Select to not receive tone or
voice prompts from the system
during an active route.
Auto-fill state/province:When set to ‘On’, the state/province will be
automatically filled in based on the vehicle’s GPS location.Note:If you
live in a border area, you may not want this selection to fill
automatically.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
104

Average speed: ResidentialWhen this feature is enabled, the system
will display the average speed on a residential road, initially set to
25 mph (40 km/h). You can adjust the setting using + or — for your
specific driving preferences. These settings help the system better
estimate your arrival time at a destination based on your driving
preferences.
Average speed: Main RoadsWhen this feature is enabled, the system
will display the average speed on a main road, initially set to 45 mph
(72 km/h). You can adjust the setting for specific roads. You can adjust
the setting using + or — for your specific driving preferences. These
settings help the system better estimate your arrival time at a destination
based on your driving preferences.
Average speed: FreewaysWhen this feature is enabled, the system will
display the average speed on a freeway, initially set to 65 mph
(105 km/h). You can adjust the setting for specific roads. You can adjust
the setting using + or — for your specific driving preferences. These
settings help the system better estimate your arrival time at a destination
based on your driving preferences.
Parking POI Notification:When enabled, this feature will display
available parking accommodations around a destination (when part of a
route).
Low Fuel POI Notification:When enabled, this feature will display
local gas stations when the fuel level is low.
Fuel Price Display:When enabled, this feature will display fuel prices
at local gas stations. You can choose to display Unleaded or Diesel.
Note:Requires SIRIUS Travel Link (if activated).
Calibrate
•Position:You can adjust the direction of the vehicle by pressing the
arrow buttons on the screen.
•Distance:Press to have the system re-calibrate the distance to the
destination as the vehicle is in motion.
Restore Default Settings:Press to return to the factory default
settings.
Avoid Areas:When enabled, you can select an area you would like the
system to avoid when creating a navigation route.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
105

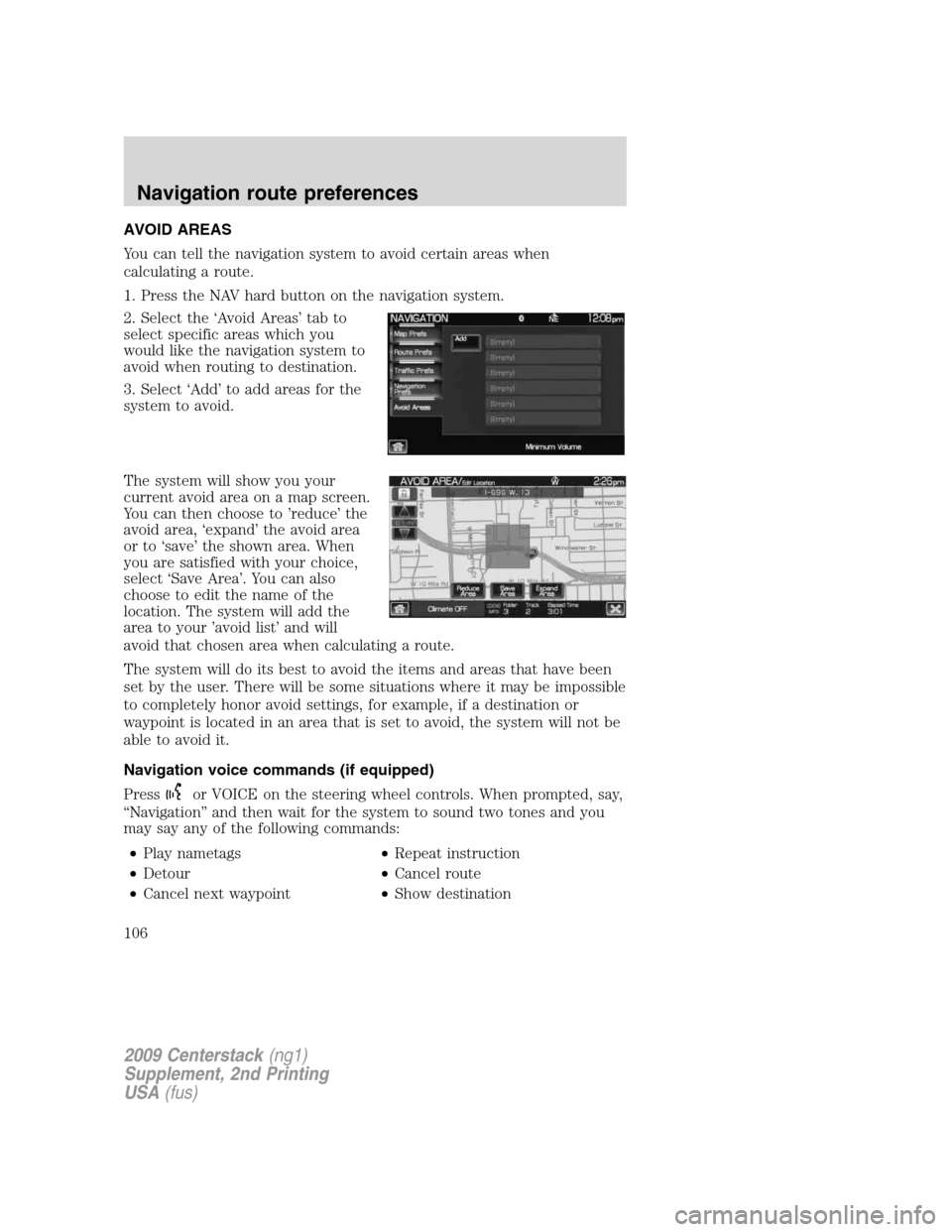

AVOID AREAS
You can tell the navigation system to avoid certain areas when
calculating a route.
1. Press the NAV hard button on the navigation system.
2. Select the ‘Avoid Areas’ tab to
select specific areas which you
would like the navigation system to
avoid when routing to destination.
3. Select ‘Add’ to add areas for the
system to avoid.
The system will show you your
current avoid area on a map screen.
You can then choose to ’reduce’ the
avoid area, ‘expand’ the avoid area
or to ‘save’ the shown area. When
you are satisfied with your choice,
select ‘Save Area’. You can also
choose to edit the name of the
location. The system will add the
area to your ’avoid list’ and will
avoid that chosen area when calculating a route.
The system will do its best to avoid the items and areas that have been
set by the user. There will be some situations where it may be impossible
to completely honor avoid settings, for example, if a destination or
waypoint is located in an area that is set to avoid, the system will not be
able to avoid it.
Navigation voice commands (if equipped)
Press
or VOICE on the steering wheel controls. When prompted, say,
“Navigation” and then wait for the system to sound two tones and you
may say any of the following commands:
•Play nametags•Repeat instruction
•Detour•Cancel route
•Cancel next waypoint•Show destination
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
106

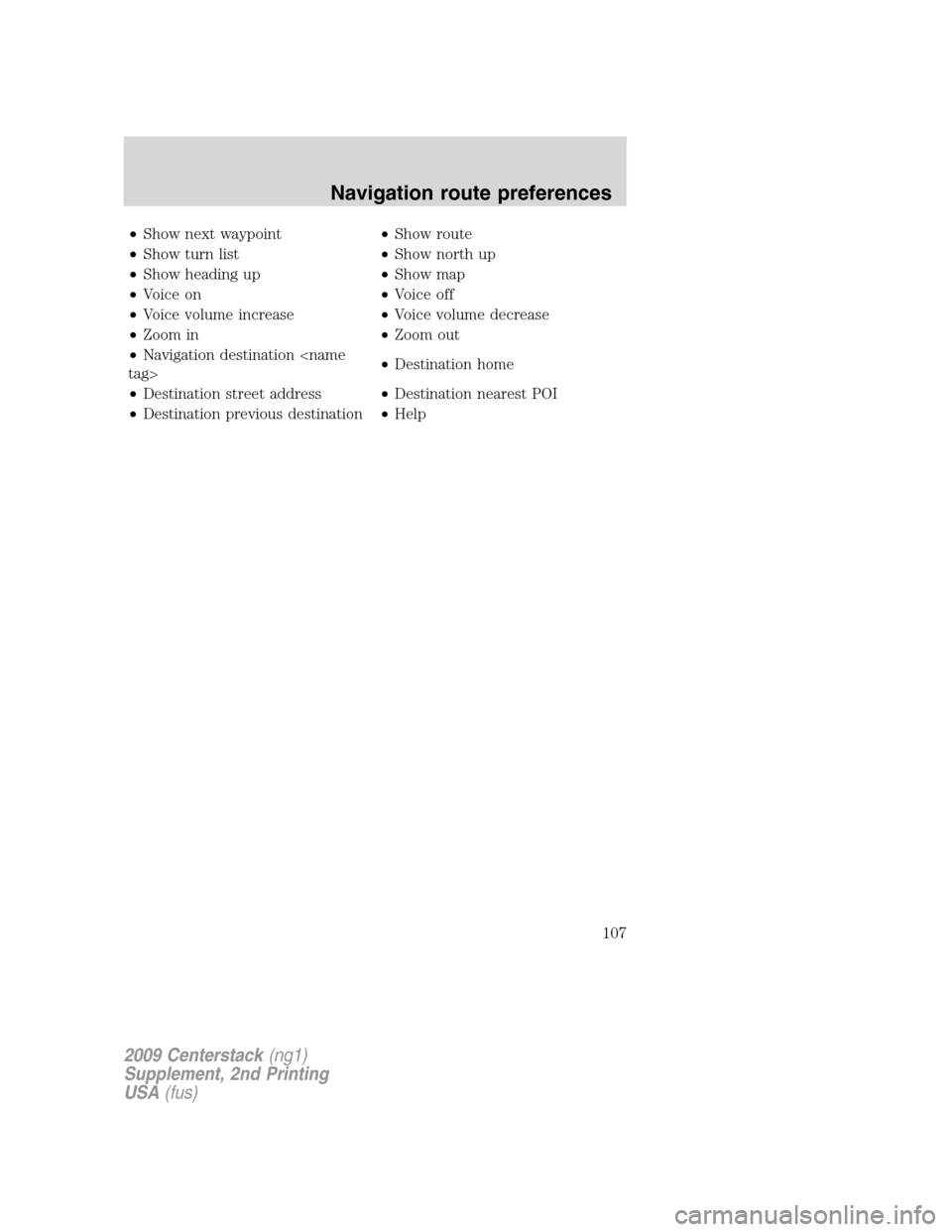

•Show next waypoint•Show route
•Show turn list•Show north up
•Show heading up•Show map
•Voice on•Voice off
•Voice volume increase•Voice volume decrease
•Zoom in•Zoom out
•Navigation destination tag>•Destination home
•Destination street address•Destination nearest POI
•Destination previous destination•Help
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Navigation route preferences
107

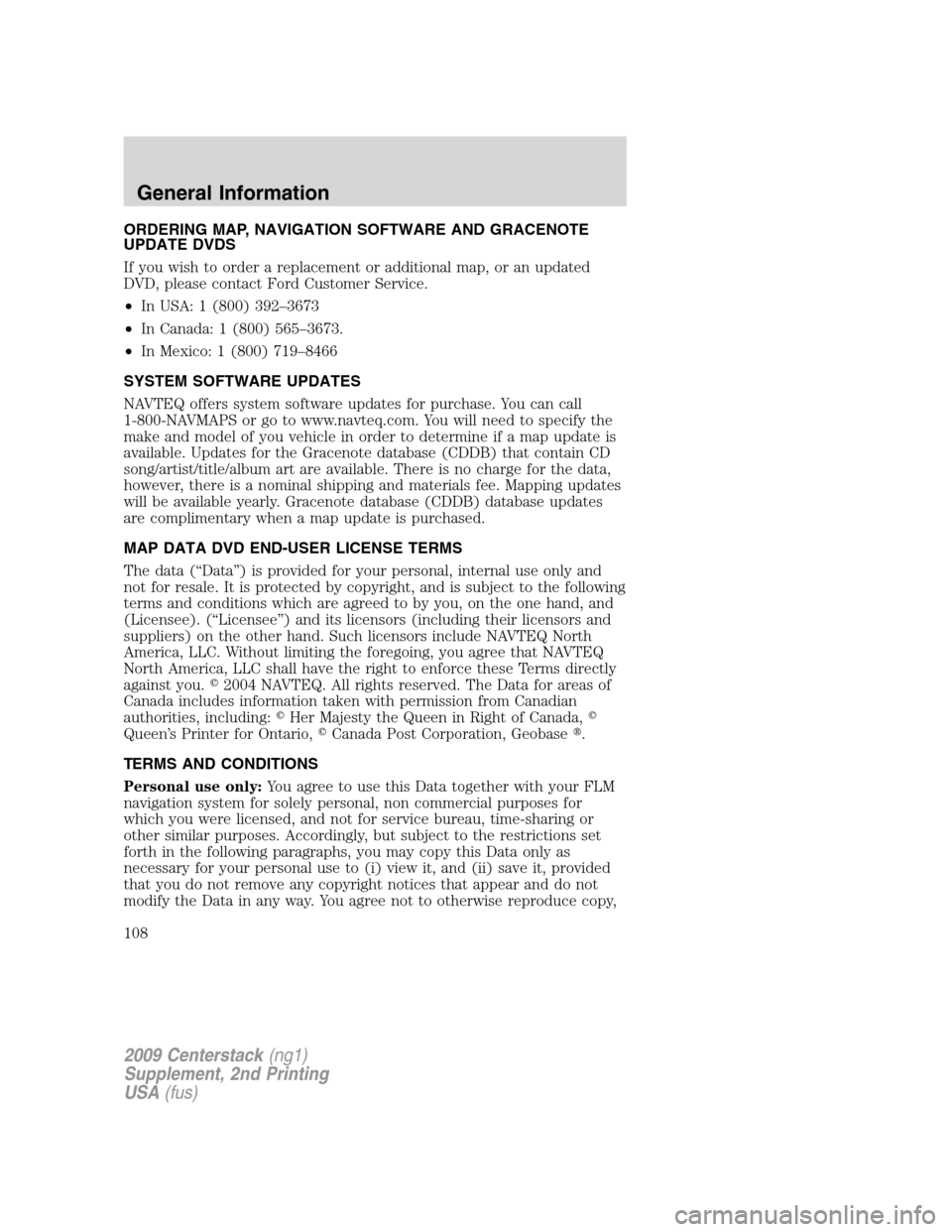

ORDERING MAP, NAVIGATION SOFTWARE AND GRACENOTE
UPDATE DVDS
If you wish to order a replacement or additional map, or an updated
DVD, please contact Ford Customer Service.
•In USA: 1 (800) 392–3673
•In Canada: 1 (800) 565–3673.
•In Mexico: 1 (800) 719–8466
SYSTEM SOFTWARE UPDATES
NAVTEQ offers system software updates for purchase. You can call
1-800-NAVMAPS or go to www.navteq.com. You will need to specify the
make and model of you vehicle in order to determine if a map update is
available. Updates for the Gracenote database (CDDB) that contain CD
song/artist/title/album art are available. There is no charge for the data,
however, there is a nominal shipping and materials fee. Mapping updates
will be available yearly. Gracenote database (CDDB) database updates
are complimentary when a map update is purchased.
MAP DATA DVD END-USER LICENSE TERMS
The data (“Data”) is provided for your personal, internal use only and
not for resale. It is protected by copyright, and is subject to the following
terms and conditions which are agreed to by you, on the one hand, and
(Licensee). (“Licensee”) and its licensors (including their licensors and
suppliers) on the other hand. Such licensors include NAVTEQ North
America, LLC. Without limiting the foregoing, you agree that NAVTEQ
North America, LLC shall have the right to enforce these Terms directly
against you.2004 NAVTEQ. All rights reserved. The Data for areas of
Canada includes information taken with permission from Canadian
authorities, including:Her Majesty the Queen in Right of Canada,
Queen’s Printer for Ontario,Canada Post Corporation, Geobase.
TERMS AND CONDITIONS
Personal use only:You agree to use this Data together with your FLM
navigation system for solely personal, non commercial purposes for
which you were licensed, and not for service bureau, time-sharing or
other similar purposes. Accordingly, but subject to the restrictions set
forth in the following paragraphs, you may copy this Data only as
necessary for your personal use to (i) view it, and (ii) save it, provided
that you do not remove any copyright notices that appear and do not
modify the Data in any way. You agree not to otherwise reproduce copy,
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
General Information
108

modify, decompile, disassemble or reverse engineer any portion of this
Data, and may not transfer or distribute it in any form, for any purpose,
except to the extent permitted by mandatory laws.
Restrictions:Except where you have been specifically licensed to do so
by (Licensee), and without limiting the preceding paragraph, you may
not (a) use this Data with any products, systems, or applications
installed or otherwise connected to or in communication with vehicles,
capable of vehicle navigation, positioning, dispatch, real time route
guidance, fleet management or similar applications; or (b) with or in
communication with any positioning devices or any mobile or
wireless-connected electronic or computer devices, including without
limitation cellular phones, palmtop and handheld computers, pagers, and
personal digital assistants or PDAs.
No warranty:This Data is provided to you “as is,” and you agree to use
it at your own risk. (Licensee) and its licensors (and their licensors and
suppliers) make no guarantees, representations or warranties of any
kind, express or implied, arising by law or otherwise, including but not
limited to, content, quality, accuracy, completeness, effectiveness,
reliability, fitness for a particular purpose, usefulness, use or results to be
obtained from this Data, or that the Data or server will be uninterrupted
or error-free.
Disclaimer of warranty:(Licensee) and its licensors (including their
licensors and suppliers) disclaim any warranties, express or implied, of
quality, performance, merchantability, fitness for a particular purpose or
non infringement. Some States, Territories and Countries do not allow
certain warranty exclusions, so to that extent the above exclusion may
not apply to you.
Disclaimer of liability:(Licensee) and its licensors (including their
licensors and suppliers) shall not be liable to you: in respect of any
claim, demand or action, irrespective of the nature of the cause of the
claim, demand or action alleging any loss, injury or damages, direct or
indirect, which may result from the use or possession of the information;
or for any loss of profit, revenue, contracts or savings, or any other
direct, indirect, incidental, special or consequential damages arising out
of your use of or inability to use this information, any defect in the
information, or the breach of these terms or conditions, whether in an
action in contract or tort or based on a warranty, even if (Licensee) or
its licensors have been advised of the possibility of such damages. Some
States, Territories and Countries do not allow certain liability exclusions
or damages limitations, so to that extent the above may not apply to you.
Export control:You agree not to export from anywhere any part of the
Data provided to you or any direct product thereof except in compliance
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
General Information
109
