LINCOLN NAVIGATOR 2020 Owners Manual

Protected Component
Fuse Rating
Fuse Number
Horn.
25A
1
Fan 1.
50A
2
Front wiper motor.
30A
3
Inverter.
50A
4
Starter relay.
30A
5
Power point #1.
20A
6
Power point #2.
20A
8
Rain sensor.
5A
10
Trailer tow light module.
20A
12
4X4 module.
10A
13
Heated backlight relay coil.
Heated mirror relay coil.
Heated wiper park relay coil.
Transmission isolation relay coil.
Transmission coil module.
15A
14
Right-hand lighting driver module.
15A
15
Left-hand lighting driver module.
Voltage quality module.
358
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Blindspot information system.
Cruise control module.
Tailgate applique.
Air quality sensor.
Image processing module B.
Powertrain control module run/start feed.
10A
16
Anti-lock brake system run/start feed.
10A
17
Electronic power assist steering, run/start feed.
10A
18
Not used.
—
19
Front blower.
40A
20
Passenger seat motors.
40A
21
Not used.
—
22
Alternator A-line.
10A
23
Trailer brake control module.
30A
24
Body control module power 1.
50A
25
Electronic fan 3.
50A
26
Driver seat motors.
40A
27
359
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Rear heated seats.
15A
28
Rear seat climate control module.
4x4 integrated wheel end solenoid.
10A
29
Trailer tow class II-IV battery charge.
25A
30
Power folding seat module.
50A
31
A/C clutch.
10A
32
Not used.
—
33
Not used.
—
34
Vehicle power 4.
20A
35
Vehicle power 3.
10A
36
Vehicle power 2.
25A
37
Vehicle power 1.
25A
38
Not used.
—
39
Not used.
—
41
Not used.
—
43
Front and rear washer pump.
20A
45
360
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Family entertainment system.
7.5A
46
Not used.
—
47
Not used.
—
48
Not used.
—
49
Fuel pump.
30A
50
Power point #3.
20A
51
Body control module voltage quality monitor.
50A
52
Trailer tow park lamps relay.
25A
53
Trailer tow control module.
Electronic limited slip differential relay.
40A
54
Auxiliary blower.
40A
55
Power point #4.
20A
56
Front driver and passenger seats - belt tension reducer.
5A
58
Not used.
—
59
Lincoln start lamp.
5A
60
Right-hand enhanced exterior lighting module.
25A
61
361
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Left-hand enhanced exterior lighting module.
25A
62
4X4 module.
25A
63
Not used.
—
64
Not used.
—
65
Not used.
—
66
Not used.
—
67
Power liftgate module.
30A
69
Anti-lock brake system and park brake module.
40A
70
4X4 module
25A
71
Not used.
—
72
Not used.
—
73
Trailer tow backup lamps.
10A
74
Not used.
—
75
Body control module run power 2.
50A
76
Climate control seat module.
30A
77
Not used.
—
78
362
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Not used.
—
79
Heated wiper park.
10A
80
Not used.
—
81
Not used.
—
82
Transmission control module power.
15A
83
Not used.
—
84
Not used.
—
85
USB smart charger #5.
5A
86
USB smart charger #3.
5A
87
Multi contour seats relay.
10A
88
Power running boards.
40A
89
Not used.
—
91
Heated mirrors.
15A
93
USB smart charger #1.
5A
94
USB smart charger #2.
10A
95
Rear wiper motor relay
30A
96
363
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Intercooler puller fan relay.
40A
97
Transmission oil pump.
15A
98
Heated backlight.
40A
99
Power point #5.
20A
100
Electric fan 2.
25A
101
Not used.
—
102
Not used.
—
103
Not used.
—
104
Not used.
—
105
Note: Spare fuse amperage may vary. Protected Component
Relay Number
Powertrain control module.
R02
Electric fan 2.
R05
364
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Passenger Compartment Fuse Box
The fuse box is under the right-hand side of
the instrument panel. To remove the trim panel for access to the
fuse box, pull the panel toward you and
swing it out away from the side and remove
it. To reinstall it, line up the tabs with the
grooves on the panel, then push it shut.
365
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing FusesE205347

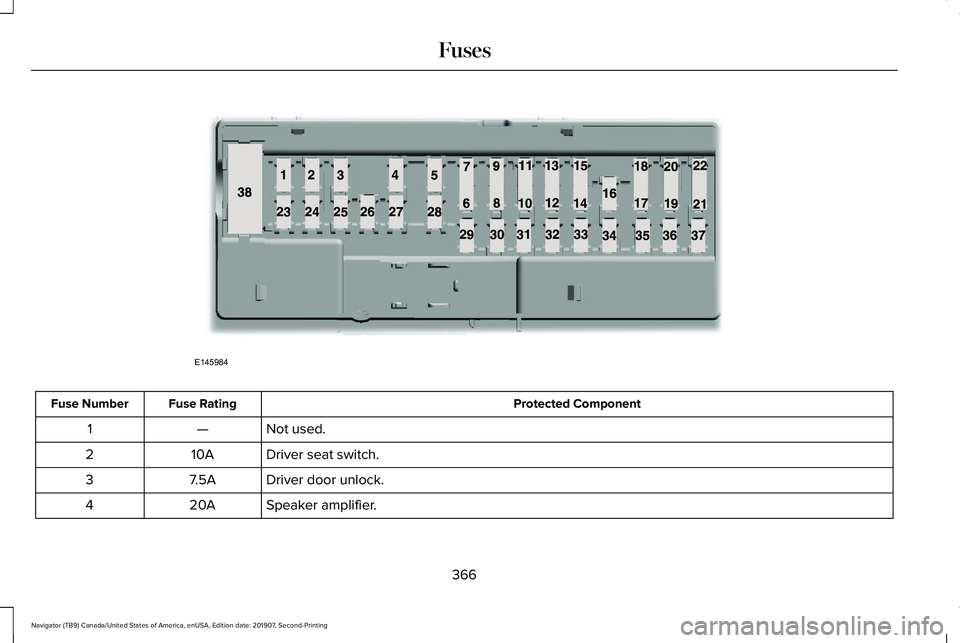

Protected Component
Fuse Rating
Fuse Number
Not used.
—
1
Driver seat switch.
10A
2
Driver door unlock.
7.5A
3
Speaker amplifier.
20A
4
366
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing FusesE145984

Protected Component
Fuse Rating
Fuse Number
Not used.
—
5
Smart datalink connector logic.
10A
6
Rear audio control module.
10A
7
Head up display.
Wireless accessory charger.
5A
8
Hands-free liftgate module.
Keypad.
5A
9
Combined sensor module.
Not used.
—
10
Not used.
—
11
Instrument cluster.
7.5A
12
Smart datalink connector logic.
7.5A
13
Climate control module.
Steering column control module (Logic).
Gear shift module.
Brake switch.
15A
14
SYNC.
15A
15
Not used.
—
16
367
