1 4 HEADLIGHT AND COMBINATION LIGHT
HEADLIGHT AND COMBINATION LIGHT
REMOVAL AND INSTALLATION
1. Disconnect the negative battery cable.
2. Remove in the sequence shown in the figure, referring to removal note for the specially marked parts.
3. Install in the reverse order of removal.
76G14X-005
1. Screw
2. Turn signal light assembly
3. Screw
4. Radiator grille
5. Bolts
6. Bolts
7. Headlight assembly
8. Screws
9. Light garnish
10. Headlight bulb
60 + 55W/55W
11. Parking light bulb 5W
12. Turn signal light bulb
21W
14—28

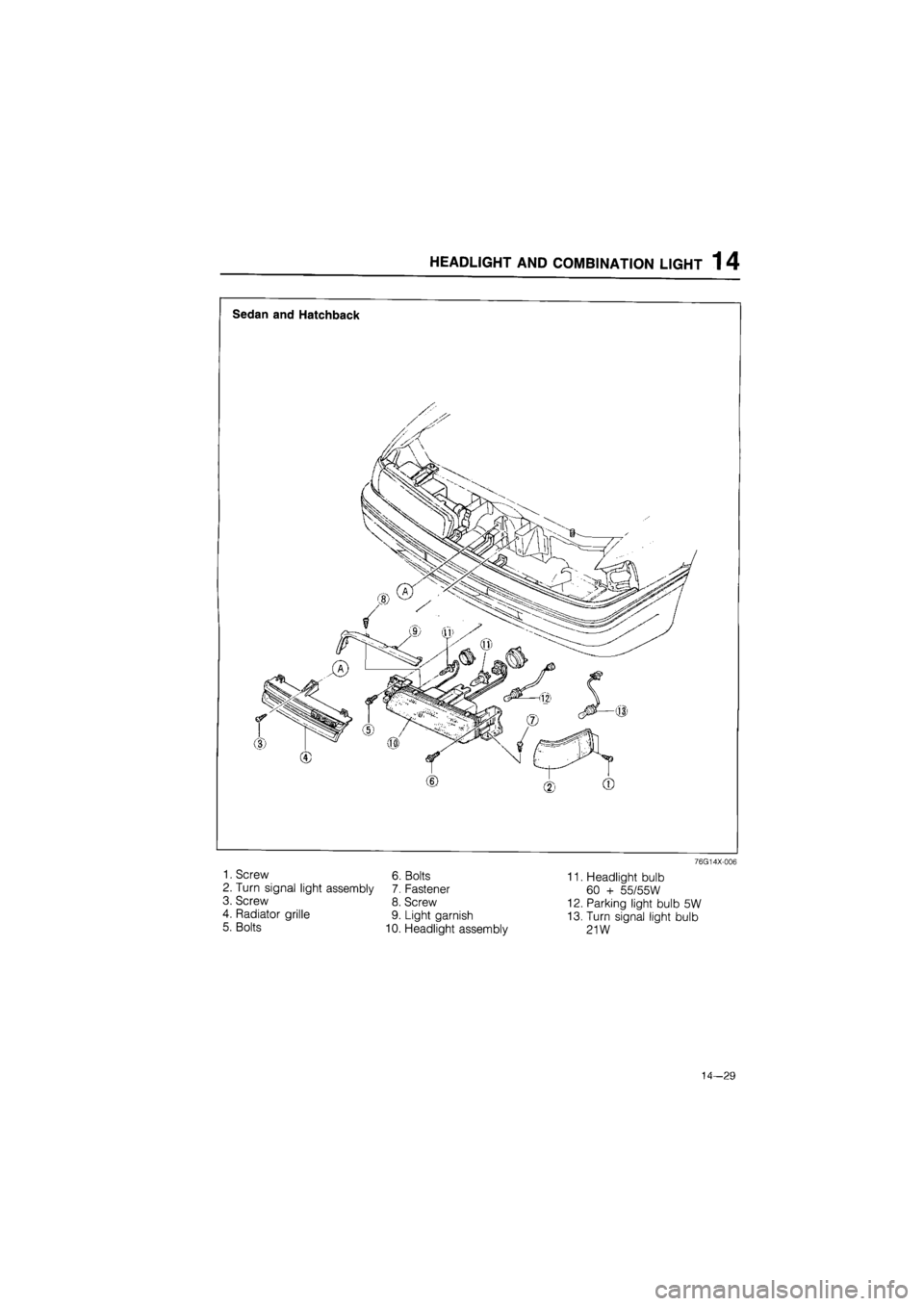

HEADLIGHT AND COMBINATION LIGHT 1 4
76G14X-006
1. Screw 6. Bolts
2. Turn signal light assembly 7. Fastener
3. Screw 8. Screw
4. Radiator grille 9. Light garnish
5. Bolts 10. Headlight assembly
11. Headlight bulb
60 + 55/55W
12. Parking light bulb 5W
13. Turn signal light bulb
21W
14—29

1 4 REAR COMBINATION LIGHTS
REAR COMBINATION LIGHTS
REMOVAL AND INSTALLATION
1. Disconnect the negative battery cable.
2. Remove in the sequence shown in the figure.
3. Install in the reverse order of removal.
76G14X-010
Hatchback
1. End trim
2. Nuts
3. Lens and body
4. Cover
5. Bulb: Turn signal light 21W
Brake and tail light 21W
Side marker light 5W
Sedan and Coupe/MX-6
1. End trim
2. Nuts
3. Lens and body
4. Cover
5. Bulb: Turn signal light 21W
Brake and tail light 21W
Side marker light 5W
14—32

1 5 TURN AND HAZARD LIGHT
TROUBLESHOOTING
Note
Check the TURN 15A fuse in the fuse box before troubleshooting.

Terminal Voltage
H (BG) 12V

OK

Check the voltage between each terminal
of
flasher unit connector and
a
body ground with each con-dition.
Terminal Condition Voltage
A(B) Any time OV
E (BR) Turn switch
is
Riaht 12V
F (GY) Turn switch
is
left 12V
H (Br) Anv time 12V

OK
Turn function does not operate.

Check the flasher unit. Refer
to
page 15—47

OK

Check the turn signal switch. Refer
to
page 15—14

OK
NG
NG

Check the voltage
at H
(BG) terminal
of
the combina-tion switch (Turn).
Replace the unit.
Replace the switch.

NG
Repair harness. (Fuse box
to
combination switch)
Repair harness.

NG

Terminal Wiring harness
A (B) Flasher unit
to
ground
E (BR) Flasher unit
to
combination switch
F (GY) Flasher unit
to
combination switch
H (Bri Fuse box
to
Flasher unit
Check the lights and wiring harness (Each bulb
to a

body ground)

NG
Replace the lights
or
repair the wiring harness.

OK

Repair harness. (Flasher unit
to
each bulb)
76G15X-045
Hazard function does not operate. (Turn func-tion is normal)

Check the hazard switch. Refer
to
page 15—19,
20
OK
NG
Replace the switch.
Check the voltage
at
each terminal
of
the hazard
switch connector.
Terminal Voltage
B (GR) 12V
D (B) OV

15-46
NG
Repair the wiring harness. (Flasher unit
to
hazard
switch, hazard switch
to
ground)

OK

Check the flasher unit. Refer
to
page 15—47
NG
Replace the unit.

76G15X-046

30 TECHNICAL DATA
Body type Specification (W) (BULB TRADE NO)
Item MX-6/Coupe Sedan Hatchback

Brake 1.4
Oil pressure 1.4
Fuel 1.4
Washer level 1.4
Rear 1.4
4WS
— —
1.4 (ECE)
Indicator and warning lights
Door 1.4 Indicator and warning lights Seat belt 1.4 Indicator and warning lights ABS 1.4
Alternator 1.4
High beam 3.4
Turn signal 3.4
O/D OFF 0.8
A/T mode 0.8 (ECE)
A/T position 0.8
Glove compartment light 3.4
Interior lights Interior light 10
Luggage compartment light 5
Motor 4.8
Hazard switch 1.4
Cigar lighter 3.4
Auto cruise main switch 0.5
Illumination lights AAS switch 1.4
Rear defroster switch 1.4
A/T switch 1.4
A/T 3.4
IG switch 1.4

STANDARD BOLT AND NUT TIGHTENING TORQUE
Diameter
mm (in)
Pitch
mm (in)
4T 6T 8T Diameter
mm (in)
Pitch
mm (in) N-m m-kg ft-lb N-m m-kg ft-lb N-m m-kg ft-lb

6 (0.236) 1 (0.039) 4.2-6.2 0.43-0.63 3.1-4.6 6.9-9.8 0.7-1.0 5.0-7.2 7.8-11.8 0.8-1.2 5.8—8.8
8 (0.315) 1.25 (0.049) 9.8—14.7 1.0-1.5 7.2-10.8 16-23 1.6-2.3 12-17 18—26 1.8-2.7 13-20
10 (0.394) 1.25 (0.049) 20-28 2.0—2.9 14-21 31-46 3.2-4.1 23—34 36-54 3.7-5.5 27-40
12 (0.472) 1.5 (0.059) 34—50 3.5-5.1 25-37 55-80 5,6-8.2 41-59 63-93 6.4-9.5 46-69
14 (0.551) 1.5 (0.059)
— — —
75-103 7.7-10.5 56-76 102—137 10-14 75-101
16 (0.630) 1.5 (0.059)
— — —
116-157 12-16 85-116 156-211 16-22 115-156
18 (0.709) 1.5 (0.059)
— — —
167-225 17-23 123-166 221-299 23-31 163—221
20 (0.787) 1.5 (0.059)
— — —
231-314 24-32 171-231 308—417 31-43 227-307
22 (0.866) 1.5 (0.059)
— — —
314—423 32-43 231-312 417—564 43-58 307-416
24 (0.945) 1.5 (0.059)
— — —
475—546 41—56 298—403 536-726 55-74 396-536
