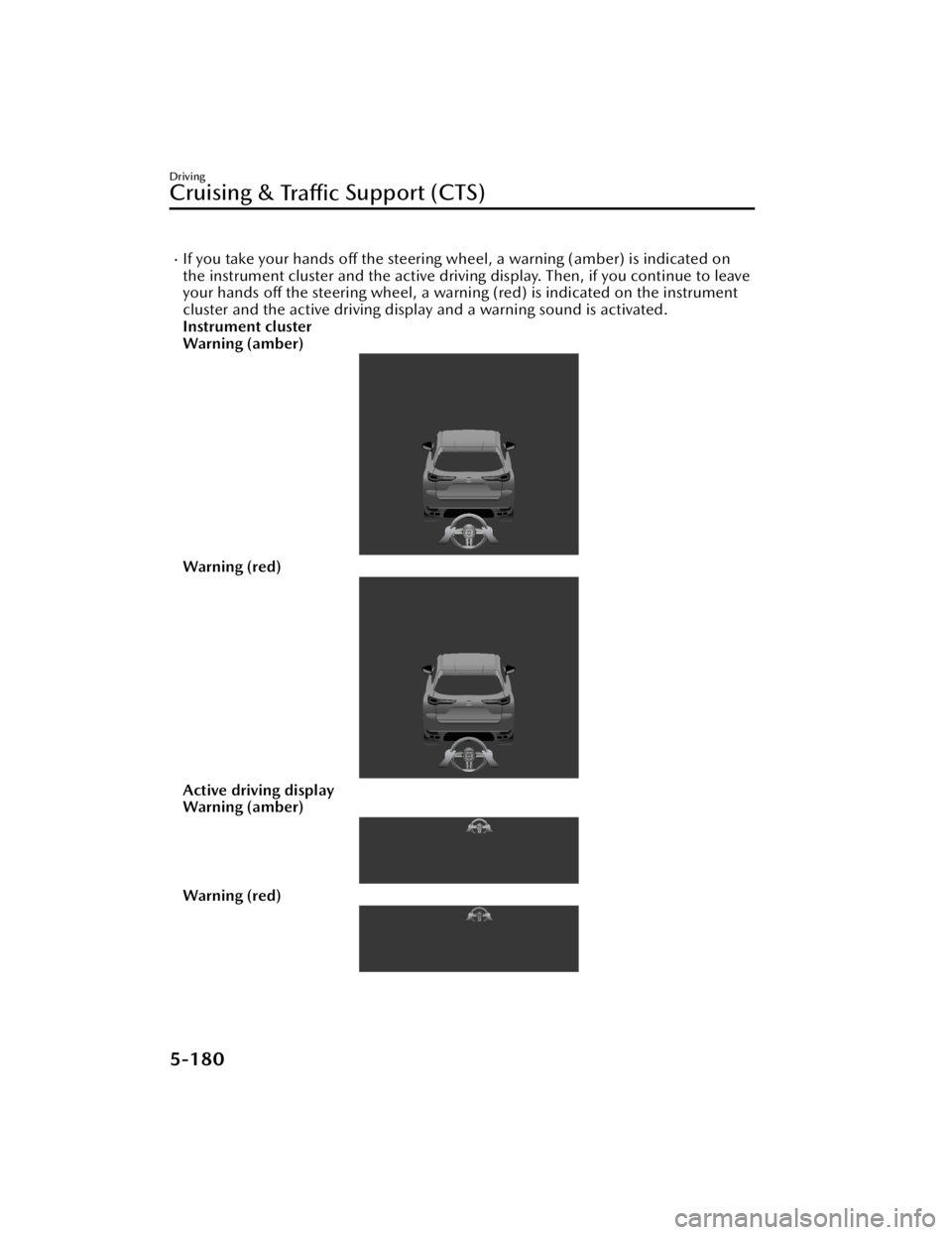

If you take your hands off the steering wheel, a warning (amber) is indicated on
the instrument cluster and the active driving display. Then, if you continue to leave
your hands off the steering wheel, a warning (red) is indicated on the instrument
cluster and the active driving display and a warning sound is activated.
Instrument cluster
Warning (amber)
Warning (red)
Active driving display
Warning (amber)
Warning (red)
Driving
Cruising & Tra ffi c Support (CTS)
5-180
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

If the vehicle ahead stops during headway control, your vehicle in headway control
also stops. While the vehicle is stopped, the CTS indicator light
in the
Instrument cluster turns on.
When the vehicle ahead accelerates from a stop and one of the following operations
is performed, your vehicle starts driving.
Press the RES switch.Depress the accelerator pedal.
If you do not start driving the vehicle af ter the vehicle ahead has resumed driving,
the system urges the driver to resume driving.
NOTE
If the vehicle ahead resumes driving within 3 seconds after the vehicle was
stopped by the system, your vehicle also resumes driving automatically.
If the vehicle is stopped by the system continuously for 10 minutes or longer, the
parking brake is applied automatically. At this time, the CTS is canceled.
Even if the CTS is canceled while the vehicle is stopped, the vehicle is held in its
stopped position.
Refer to AUTOHOLD on page 5-63.
If the CTS is canceled while the vehicle is stopped and there is no vehicle ahead,
you cannot resume driving the vehicl e using the RES switch. Depress the
accelerator pedal and start driving the vehicle.
Changing the set vehicle speed
Changing the set vehicle speed using the RES switch
Press the RES switch up (SET+) or down (SET-) to the desired speed.
Press and release immediately: 1 km/h (1 mph)Press and hold: 10 km/h (5 mph)
Changing the set vehicle speed using the accelerator pedal
Depress the accelerator pedal until the vehicle speed reaches the desired speed,
then press the RES switch up (SET+) or down (SET-).
Reading the set vehicle speed from the speed limit sign using the RES switch
Press the RES switch when the speed limit sign set indication
turns on.
Driving
Cruising & Tra ffi c Support (CTS)
5-181
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

CAUTION
The function which recognizes speed limit signs has limitations. Always check the
set vehicle speed that was read.
 Set the speedometer display unit to the sa me unit as the speed limit sign. Differing
units will capture speeds not intended by the driver.
NOTE
The Speed Limit Assist operates only when the navigation system's SD card is
inserted.
The Speed Limit Assist uses the Tra ffi c Sign Recognition system (TSR).
Refer to Traffic Sign Recognition System (TSR) on page 5-150.
The Speed Limit Assist cannot read sp eeds of less than 30 km/h (19 mph).Set vehicle speeds read from speed limit signs can be adjusted.
Refer to the Settings section in the Mazda Connect Owner's Manual.
The Speed Limit Assist can be turned
off.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Setting the distance-between-vehicles during headway control
1. Press the CANCEL switch up (longer distance) or down (shorter distance).
Driving
Cruising &
Tra ffi c Support (CTS)
5-182
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

CTS is not operating (white)
Distance-between-vehiclesguideline
(at 80 km/h (50 mph) vehicle speed) Instrument cluster display Active driving display indication
Long (about 50 m (164 ft))
Medium (about 40 m (131 ft))
Short (about 30 m (98 ft))
Extremely short (about 25 m (82
ft))
Driving
Cruising & Tra ffi c Support (CTS)
5-183
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

CTS is operating (green)
Distance-between-vehiclesguideline
(at 80 km/h (50 mph) vehicle speed) Instrument cluster display Active driving display indication
Long (about 50 m (164 ft))
Medium (about 40 m (131 ft))
Short (about 30 m (98 ft))
Extremely short (about 25 m (82
ft))
Driving
Cruising & Tra ffi c Support (CTS)
5-184
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

NOTE
The distance-between-vehicles can be set to 4 levels: Long, medium, short, and
extremely short distance.
The distance-between-vehicles differs depending on the vehicle speed, and the
slower the vehicle speed, the shorter the distance.
Close proximity warning
If your vehicle approaches a vehicle ahead while in headway control, a warning
sound and a display cautions you.
1. “Depress Brake Pedal”
NOTE
The close proximity warning may not be activated in the following cases.
The vehicle is driven at the same speed as the vehicle ahead.Directly after the CTS is set.Immediately after the accelerator pedal is released.Another vehicle cuts into the driving lane.Do not use the CTS system under conditions in which the close proximity warnings
are frequently activated.
Steering assist limit warning
If the steering assist function cannot keep the vehicle within the lane lines, a screen
display and a warning sound urge you to operate the steering wheel.
Instrument cluster
Driving
Cruising & Tra ffi c Support (CTS)
5-185
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

Active driving display
The CTS is temporarily canceled
Constant speed/Headway control function
If any of the following conditions is met, the constant speed/headway control
function is temporarily canceled.
The brake pedal is depressed.The CANCEL switch is pressed one time.The DSC has operated.The Smart Brake Support (SBS) has operated.The front radar sensors cannot detect target objects.The parking brake is applied.Any door is opened.The driver’s seat belt is unfastened.The frequency of the braking operation by the CTS is high.
If the constant speed/headway control function is temporarily canceled, it will
resume operation at the previously se t speed by pressing the RES switch.
Steering assist function
If any of the following conditions is met, the steering assist function is temporarily
canceled. The steering assist function is automatically restored when its operation
conditions are met.
The constant speed/headway control function is canceled.White (yellow) lane lines cannot be detected or a vehicle ahead cannot be
recognized.
The turn signal lever is operated.The steering wheel is operated abruptly.Hands are off the steering wheel.The vehicle is making a sharp curve.The vehicle crosses a lane line.The width of the vehicle lane is narrow or wide.
NOTE
The notification method when the steering assist function is canceled can be
changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Driving
Cruising &
Tra ffi c Support (CTS)
5-186
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

Turning off the CTS
Press the CTS switch.
The CTS set indication (green)
/CTS standby indication (white) turns off,
and the CTS turns off.
Driving
Cruising & Tra ffi c Support (CTS)
5-187
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

Lane-keep Assist System(LAS)
*
The LAS is a system to help the driver
stay within the vehicle lane if the
vehicle might be deviating.
If your vehicle may be deviating from
the vehicle lane, the LAS provides
steering assistance to avoid departure
from the lane.
Warnings and Cautions
for Using the Lane-keep Assist System (LAS)
WARNING
Do not rely completely on the LAS.
The LAS is not an automated driving
system. Over reliance on the system
could lead to an accident.
 The functions of the LAS have
limitations. Do not rely completely
on the system and always stay on
course using the steering wheel.
Do not use the LAS under the
following conditions. Otherwise, it
may result in an accident.
 The vehicle is driven on slippery
roads such as icy roads,
snow-covered roads, and unpaved
roads.
 Tires other than the specified size are
used, such as when tire chains or
temporary spare tires are used.
 Tires with insufficient tread are used.
 The tire pressures are not adjusted to
the specified pressure.
 The vehicle is towing a camping
trailer or boat trailer.
 The vehicle is driven on roads other
than expressways or highways with
white (yellow) lines.
CAUTION
Heed the following cautions so that
the LAS can operate normally.
 Do not modify the vehicle's
suspensions.
Driving
Lane-keep Assist System (LAS)
5-188*Some models.
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

Always use wheels of the specified
size for the front and rear wheels.
Consult an Authorized Mazda
Dealer for tire replacement.How to Use the
Lane-keep Assist System (LAS)
When the LAS operates
When all the following conditions are
met, the LAS operates to assist the
steering wheel operation.
The vehicle speed is about 64 km/h
(40 mph) or faster.
The system detects white (yellow)
lane lines.
The CTS steering assist function is
not operating.
The system determines that the
vehicle may depart from the lane.
While the steering wheel operation
assist is operating , the screen display
notifies the driver.
Instrument cluster
Active driving display
NOTE
The LAS operates only on the side
that detects white lines (yellow
lines).
Driving
Lane-keep Assist System (LAS)
5-189
