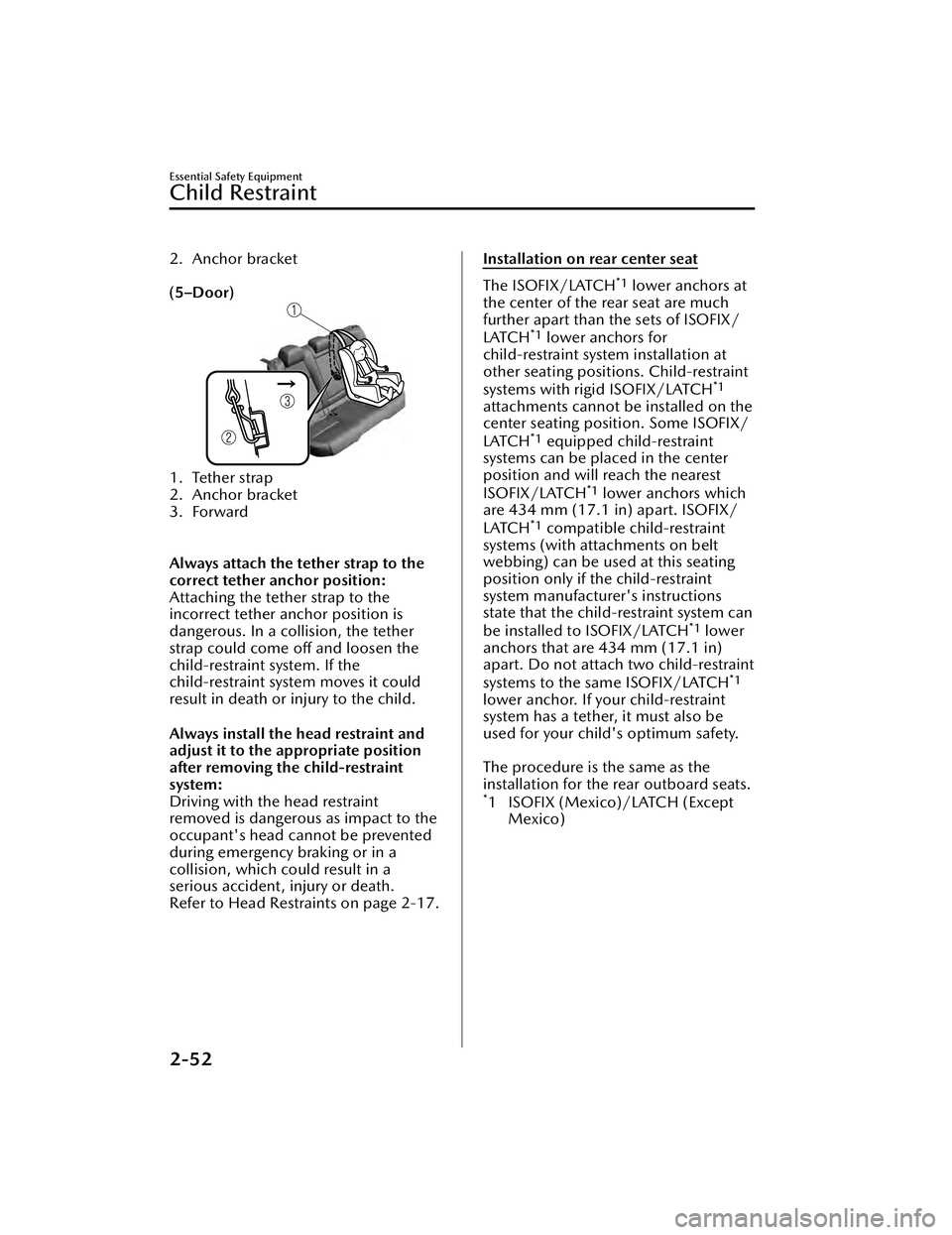

2. Anchor bracket

(5–Door)
1. Tether strap
2. Anchor bracket
3. Forward

Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the
child-restraint system moves it could
result in death or injury to the child.
Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:
Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a
serious accident, injury or death.
Refer to Head Restraints on page 2-17.

Installation on rear center seat
The ISOFIX/LATCH*1 lower anchors at
the center of the rear seat are much
further apart than the sets of ISOFIX/
LATCH
*1 lower anchors for
child-restraint system installation at
other seating positions. Child-restraint
systems with rigid ISOFIX/LATCH
*1
attachments cannot be installed on the
center seating position. Some ISOFIX/
LATCH
*1 equipped child-restraint
systems can be placed in the center
position and will reach the nearest
ISOFIX/LATCH
*1 lower anchors which
are 434 mm (17.1 in) apart. ISOFIX/
LATCH
*1 compatible child-restraint
systems (with attachments on belt
webbing) can be used at this seating
position only if the child-restraint
system manufacturer's instructions
state that the child-restraint system can
be installed to ISOFIX/LATCH
*1 lower
anchors that are 434 mm (17.1 in)
apart. Do not attach two child-restraint
systems to the same ISOFIX/LATCH
*1
lower anchor. If your child-restraint
system has a tether, it must also be
used for your child's optimum safety.

The procedure is the same as the
installation for the rear outboard seats.
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
Essential Safety Equipment
Child Restraint
2-52
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

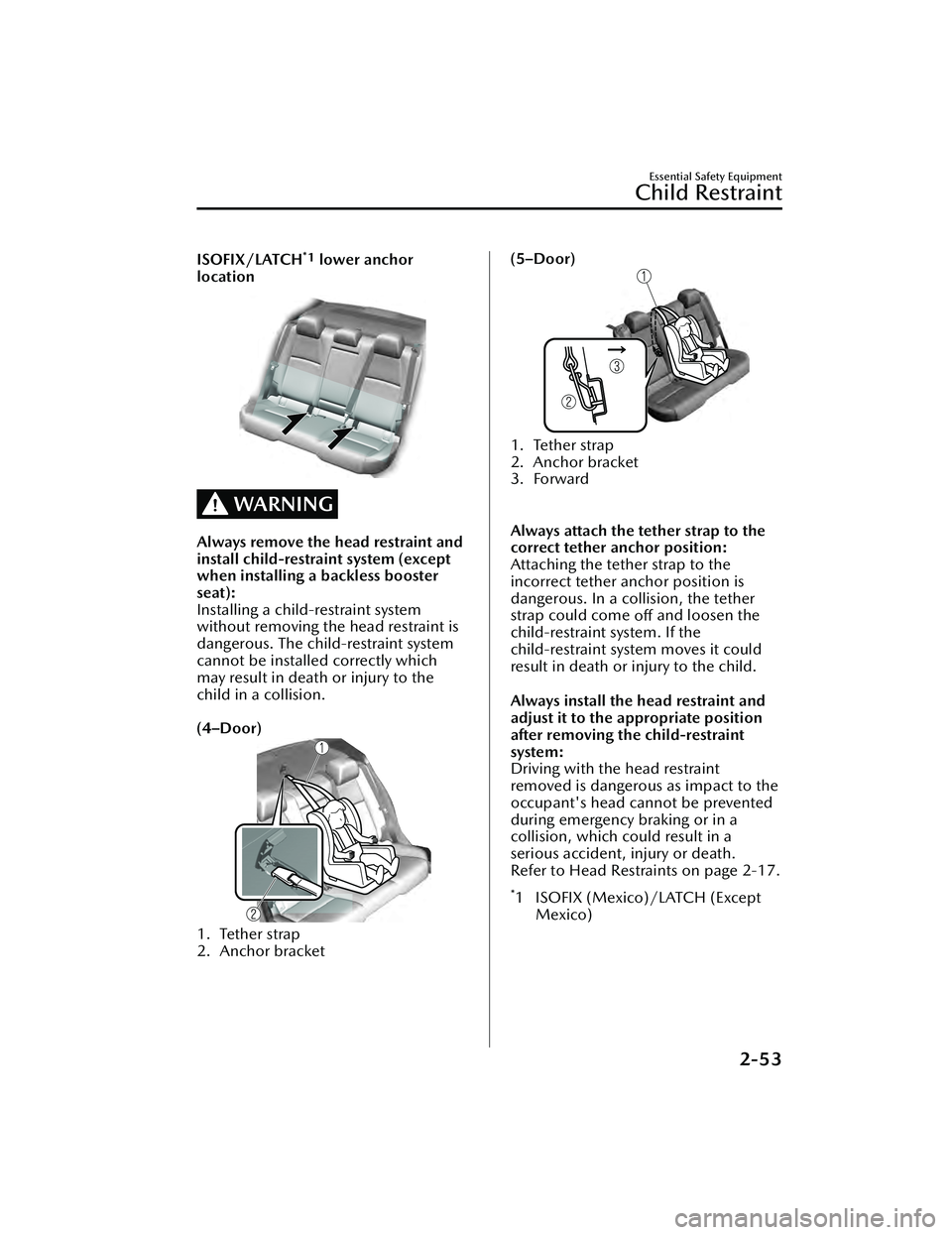

ISOFIX/LATCH*1 lower anchor
location
WARNING
Always remove the head restraint and
install child-restraint system (except
when installing a backless booster
seat):
Installing a child-restraint system
without removing the head restraint is
dangerous. The child-restraint system
cannot be installed correctly which
may result in death or injury to the
child in a collision.

(4–Door)
1. Tether strap
2. Anchor bracket

(5–Door)
1. Tether strap
2. Anchor bracket
3. Forward

Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the
child-restraint system moves it could
result in death or injury to the child.
Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:
Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a
serious accident, injury or death.
Refer to Head Restraints on page 2-17.
*1ISOFIX (Mexico)/LATCH (Except Mexico)
Essential Safety Equipment
Child Restraint
2-53
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

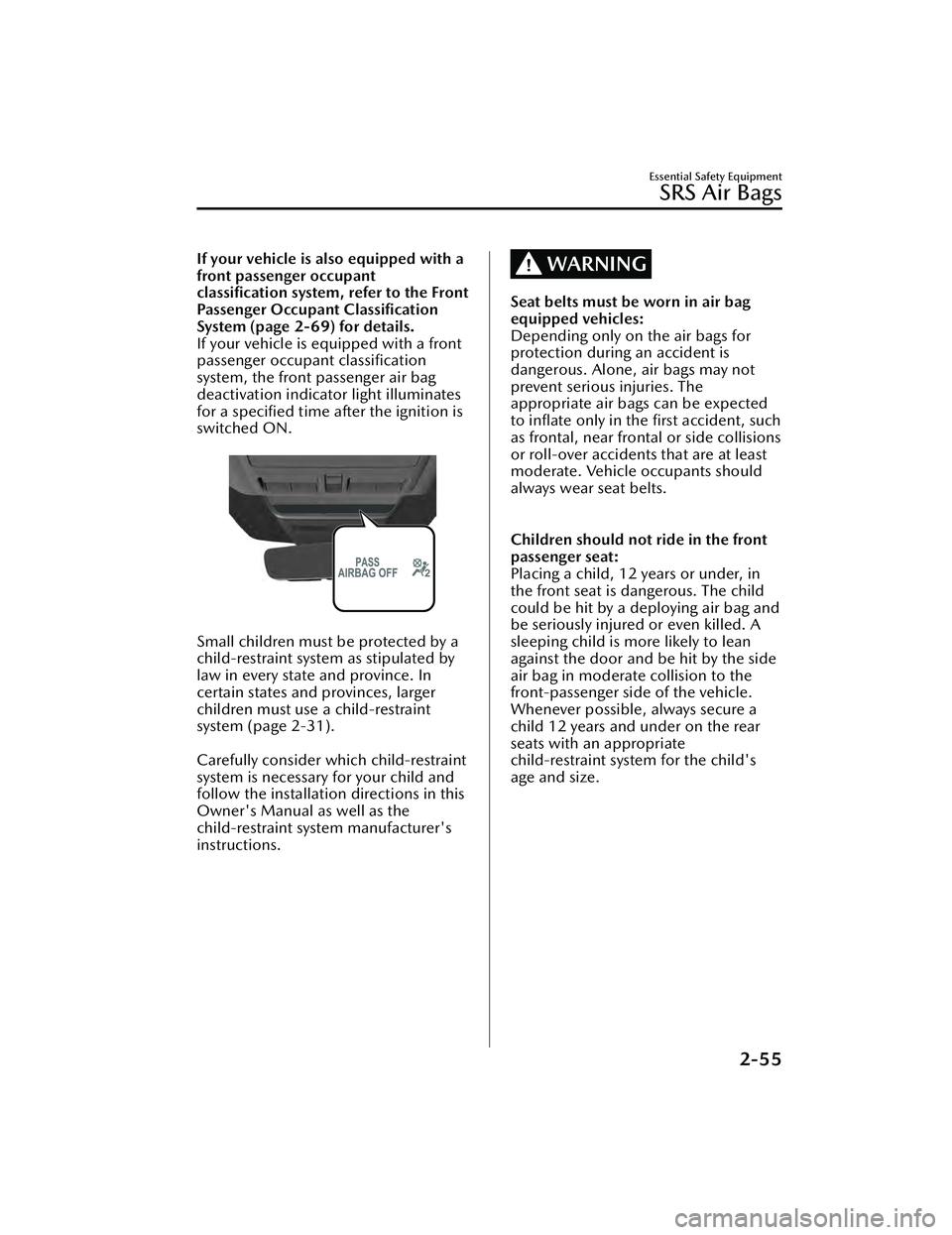

If your vehicle is also equipped with a
front passenger occupant
classification system, refer to the Front
Passenger Occupant Classification
System (page 2-69) for details.
If your vehicle is equipped with a front
passenger occupant classification
system, the front passenger air bag
deactivation indicator light illuminates
for a specified time after the ignition is
switched ON.


Small children must be protected by a
child-restraint system as stipulated by
law in every state and province. In
certain states and provinces, larger
children must use a child-restraint
system (page 2-31).

Carefully consider which child-restraint
system is necessary for your child and
follow the installation directions in this
Owner's Manual as well as the
child-restraint system manufacturer's
instructions.
WARNING
Seat belts must be worn in air bag
equipped vehicles:
Depending only on the air bags for
protection during an accident is
dangerous. Alone, air bags may not
prevent serious injuries. The
appropriate air bags can be expected
to inflate only in the first accident, such
as frontal, near frontal or side collisions
or roll-over accidents that are at least
moderate. Vehicle occupants should
always wear seat belts.

Children should not ride in the front
passenger seat:
Placing a child, 12 years or under, in
the front seat is dangerous. The child
could be hit by a deploying air bag and
be seriously injured or even killed. A
sleeping child is more likely to lean
against the door and be hit by the side
air bag in moderate collision to the
front-passenger side of the vehicle.
Whenever possible, always secure a
child 12 years and under on the rear
seats with an appropriate
child-restraint system for the child's
age and size.
Essential Safety Equipment
SRS Air Bags
2-55
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

Never use a rear-facing child-restraint
system in the front seat with an air
bag that could deploy:
Rear-facing child-restraint systems on
the front seat are particularly
dangerous even though you may feel
assured that a front passenger air bag
will not deploy based on the fact that
the front passenger air bag
deactivation indicator light illuminates.
The child-restraint system can be hit by
a deploying air bag and moved
violently backward resulting in serious
injury or death to the child.
Do not sit too close to the driver and
front passenger air bags:
Sitting too close to the driver and front
passenger air bag modules or placing
hands or feet on them is extremely
dangerous. The driver and front
passenger air bags inflate with great
force and speed. Serious injuries could
occur if someone is too close. The
driver should always hold onto only the
rim of the steering wheel. The front
seat passenger should keep both feet
on the floor. Front seat occupants
should adjust their seats as far back as
possible and always sit upright against
the seatbacks with seat belts worn
properly.
Sit in the center of the seat and wear
seat belts properly:
Sitting too close to the side air bag
modules or placing hands on them, or
sleeping up against the door or
hanging out the windows is extremely
dangerous. The side and curtain air
bags inflate with great force and speed
directly expanding along the door on
the side the car is hit. Serious injury
could occur if someone is sitting too
close to the door or leaning against a
window, or if rear seat occupants grab
the sides of the front seatbacks. Give
the side and curtain air bags room to
work by sitting in the center of the seat
while the vehicle is moving with seat
belts worn properly.
Do not attach objects on or around
the area where air bags deploy:
Attaching objects to the air bags or
placing something in the area where
the air bags deploy is dangerous. In an
accident, an object could interfere with
air bag inflation and injure the
occupants. Furthermore, the bag could
be damaged causing gases to release.
Always keep the deployment area of
the air bag modules free of any
obstructions.
For example, you should not do any of
the following as it may interfere with
air bag deployment.
 Do not put a covering on or lean
anything against areas such as the
dashboard and lower portion of the
instrument panel that blocks the
passenger front air bag and knee air
bags.
 Do not use seat covers on the front
seats and rear seats equipped with
in-seat side air bags.
 Do not hang any backpacks, bags or
pouches that cover the sides of the
seats that block the side air bags.
Essential Safety Equipment
SRS Air Bags
2-56
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Properly dispose of the air bag
system:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury could
result. Have an Authorized Mazda
Dealer safely dispose of the air bag
system or scrap an air bag equipped
vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person
with certain medical conditions in
accordance with a certified
physician, contact an Authorized
Mazda Dealer, refer to “Customer
Assistance (U.S.A.)” (page 8-2).
When an air bag deploys, a loud
inflation noise can be heard and
some smoke will be released.
Neither is likely to cause injury,
however, the texture of the air bags
may cause light skin injuries on body
parts not covered with clothing
through friction.
Should you sell your Mazda, we urge
you to tell the new owner of its air
bag systems and that familiarization
with all instructions about them,
from the Owner's Manual, is
important.
This highly-visible label is displayed
which warns against the use of a
rear-facing child-restraint system on
the front passenger seat.

(Mexico)

(Except Mexico)

Essential Safety Equipment
SRS Air Bags
2-59
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

A front passenger is seated as shown
in the following figure:
A rear passenger pushes up on the
front passenger seat with their feet.
Luggage or other items placed under
the front passenger seat or between
the front passenger seat and driver
seat that push up the front passenger
seat bottom.
 Any accessories which might
decrease the total seated weight on
the front passenger seat are attached
to the front passenger seat.
The front passenger front and side air
bags and knee air bags, and the seat
belt pretensioner system will
deactivate if the front passenger air
bag deactivation indicator light
illuminates.

Do not increase the total seated
weight on the front passenger seat:
When an infant or small child sits on
the front passenger seat, increasing the
total seated weight on the front
passenger seat is dangerous. The front
passenger seat weight sensors will
detect the increased total seated
weight, which could result in the
unexpected deployment of the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system in an accident and
may cause serious injury. Increasing the
total seated weight on the front
passenger seat could result in the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system deployment in an
accident under the following
conditions, for example:
 Luggage or other items are placed on
the seat with the child in the
child-restraint system.
 A rear passenger or luggage push or
pull down on the front passenger
seatback.
Essential Safety Equipment
SRS Air Bags
2-72
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

A rear passenger steps on the front
passenger seat rails with their feet.
 Luggage or other items are placed on
the seatback or hung on the head
restraint.
 Heavy items are placed in the
seatback map pocket.
 The seat is washed.
 Liquids are spilled on the seat.
 The front passenger seat is moved
backward, pushing into luggage or
other items placed behind it.
 The front passenger seatback
contacts the rear seat.
 Luggage or other items are placed
between the front passenger seat
and driver seat.
 Any accessories which might increase
the total seated weight on the front
passenger seat are attached to the
front passenger seat.
CAUTION
To assure proper deployment of the
front air bag and to prevent damage
to the sensors in the front seat
bottoms:
 Do not place sharp objects on the
front seat bottoms or leave heavy
luggage on them.
 Do not spill any liquids on the
front seats or under the front seats.
 To allow the sensors to function
properly, always perform the
following:
 Adjust the front seats as far back as
possible and always sit upright
against the seatbacks with seat
belts worn properly.
If you place your child on the front
passenger seat, secure the
child-restraint system properly and
slide the front passenger seat as far
back as possible (page 2-46).
NOTE
The system requires about 10
seconds to alternate between turning
the front passenger front and side air
bags and knee air bags, and seat belt
pretensioner system on or off.
The front passenger air bag
deactivation indicator light may
illuminate repeatedly if luggage or
other items are put on the front
passenger seat, or if the temperature
of the vehicle's interior changes
suddenly.
The front passenger air bag
deactivation indicator light may
illuminate for 10 seconds if the total
seated weight on the front passenger
seat changes.
The air bag/seat belt pretensioner
system warning light might illuminate
if the front passenger seat receives a
severe impact.
If the front passenger air bag
deactivation indicator light does not
illuminate after installing a
child-restraint system on the front
passenger seat, first, re-install your
child-restraint system according to
the procedure in this owner's
manual. Then, if the front passenger
air bag deactivation indicator light
still does not illuminate, install the
child-restraint system on the rear seat
and consult an Authorized Mazda
Dealer as soon as possible.
Essential Safety Equipment
SRS Air Bags
2-73
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Index
A
Accessory Socket....................... 5-42
Active Driving Display................4-36
Adaptive Front Lighting System
(AFS)...................................... 4-101
Add-On Non-Genuine Parts and
Accessories............................... 8-17
Advanced KeyAdvanced keyless entry
system................................... 3-9
Operational range................ 3-10
Advanced Keyless Entry System..... 3-9
Antilock Brake System (ABS).......4-88
Assist Grips............................... 5-45
AUTOHOLD.............................. 4-82
AUTOHOLD Warning Beep........ 7-46
Automatic Transmission Active Adaptive Shift (AAS)... 4-44
Automatic transmission
controls................................4-41
Direct mode.........................4-51
Driving tips.......................... 4-52
Manual shift mode............... 4-45
Shift-lock system...................4-42
Transmission ranges.............. 4-43
B
Battery...................................... 6-28Maintenance........................ 6-30
Replacement........................ 6-30
Specifications......................... 9-4
Battery Runs Out....................... 7-17
Jump-starting....................... 7-17
Blind Spot Monitoring (BSM)....4-107 Canceling operation of Blind Spot
Monitoring (BSM)...............4-111
Blind Spot Monitoring (BSM) Warning
Beep.........................................7-47
Body Lubrication....................... 6-22
Bottle Holder............................ 5-45
Brakes Brake assist.......................... 4-81
Brake override system........... 4-81
Electric Parking Brake (EPB)....4-77
Foot brake............................4-76
Pad wear indicator................4-80
Parking brake....................... 4-77
Warning light........................4-80
Brake Override System............... 4-81
Brake Override Warning Beep.....7-46
Brake System Warning Beep....... 7-46
Break-In Period......................... 3-46
C
Capacities...................................9-5
Cell Phones.............................. 8-18
Center Console......................... 5-47
Child Restraint Categories of child-restraint
systems................................ 2-36
Child-restraint precautions.... 2-31
Child-restraint system
installation........................... 2-36
Child-restraint system suitability
for various seat positions
table.................................... 2-38
Installing child-restraint
systems................................ 2-41
ISOFIX child-restraint systems
(Mexico).............................. 2-49
LATCH child-restraint systems
(Except Mexico)................... 2-49
Climate Control System Fully automatic type..............5-10
Manual type...........................5-5
Operating tips........................ 5-2
Vent operation....................... 5-3
Collision warning...................... 7-48
Coming Home Light.................. 4-61
10-2
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
