Page 501 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 52 © 2005 Mitchell Repair Information Company, LLC.

Page 502 of 514

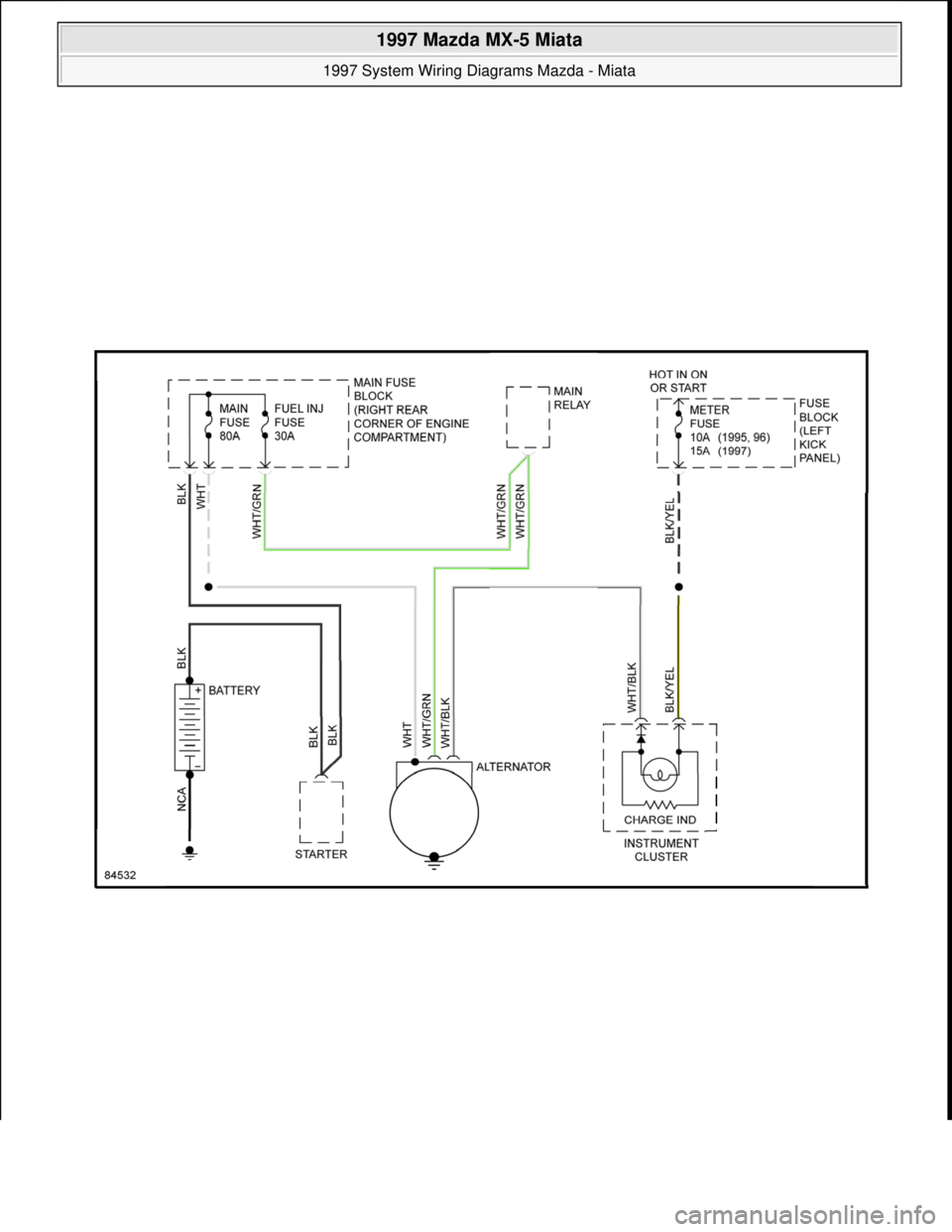

MAZDA MIATA 1997 Factory Repair Manual Fig. 26: Charging Circuit 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 53 © 2005 Mitchell Repair Information Company, LLC.

Page 503 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 54 © 2005 Mitchell Repair Information Company, LLC.

Page 504 of 514

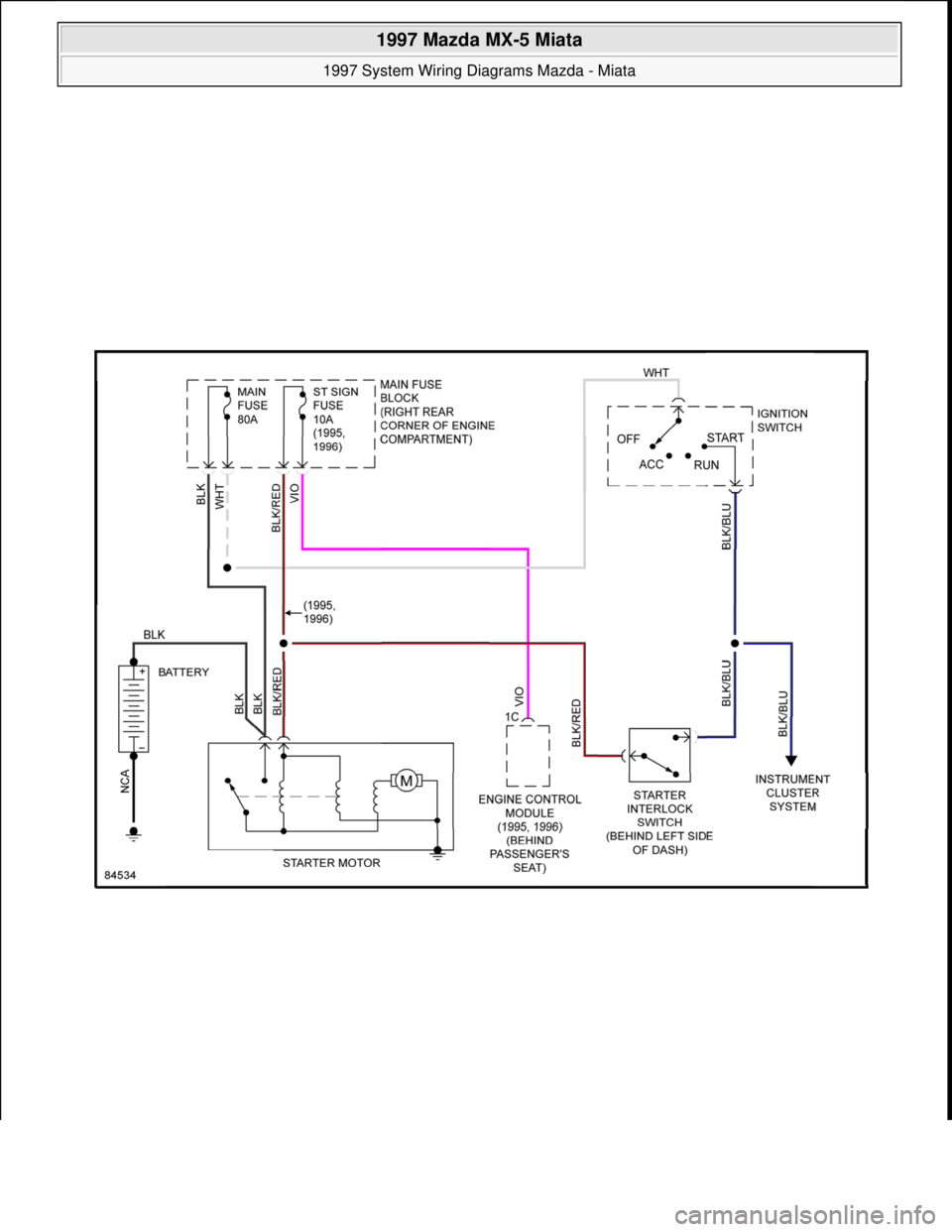

MAZDA MIATA 1997 Factory Repair Manual Fig. 27: Starting Circuit, A/T 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 55 © 2005 Mitchell Repair Information Company, LL

Page 505 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 56 © 2005 Mitchell Repair Information Company, LLC.

Page 506 of 514

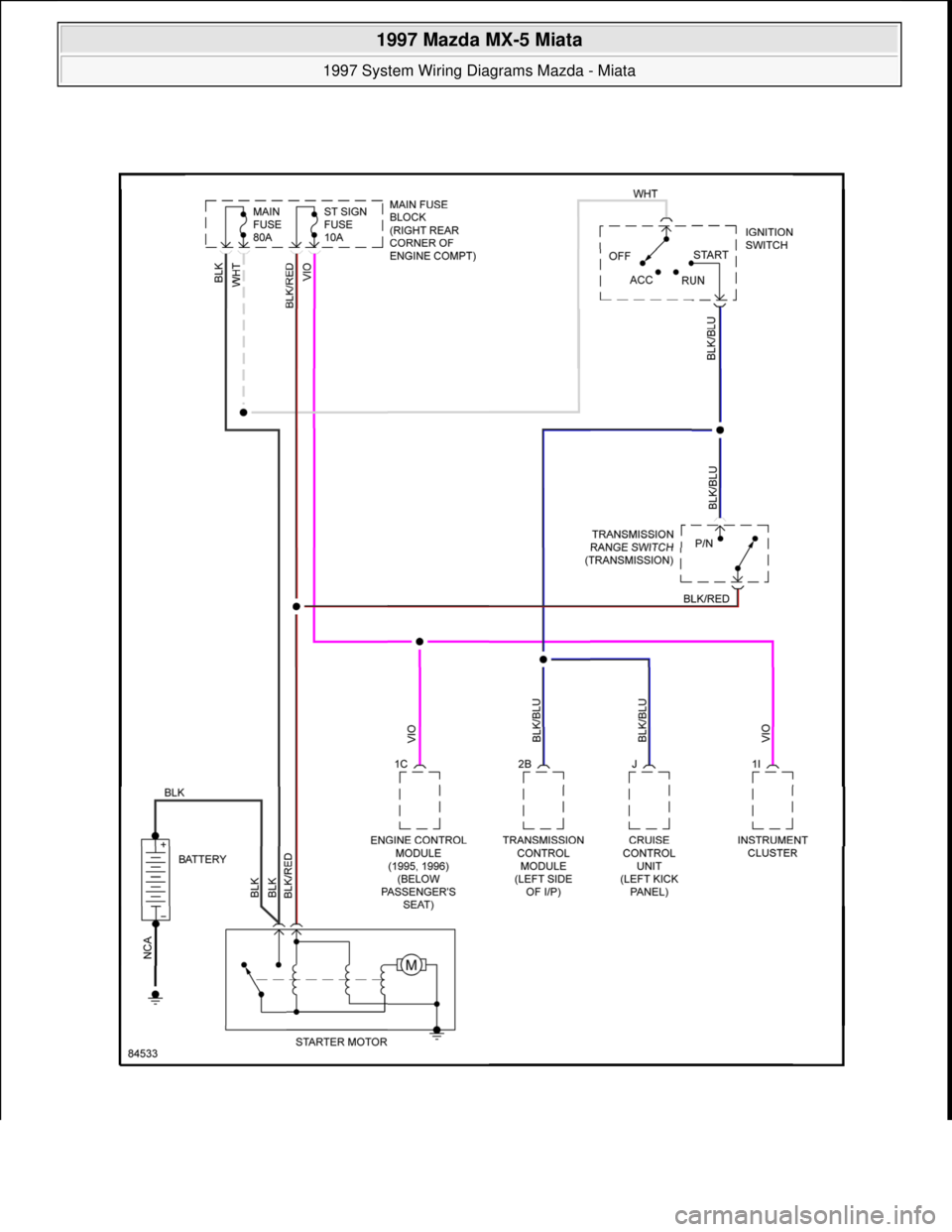

MAZDA MIATA 1997 Factory Repair Manual Fig. 28: Starting Circuit, M/T SUPPLEMENTAL RESTRAINTS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 57 © 2005 Mitchell Repair

Page 507 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 58 © 2005 Mitchell Repair Information Company, LLC.

Page 508 of 514

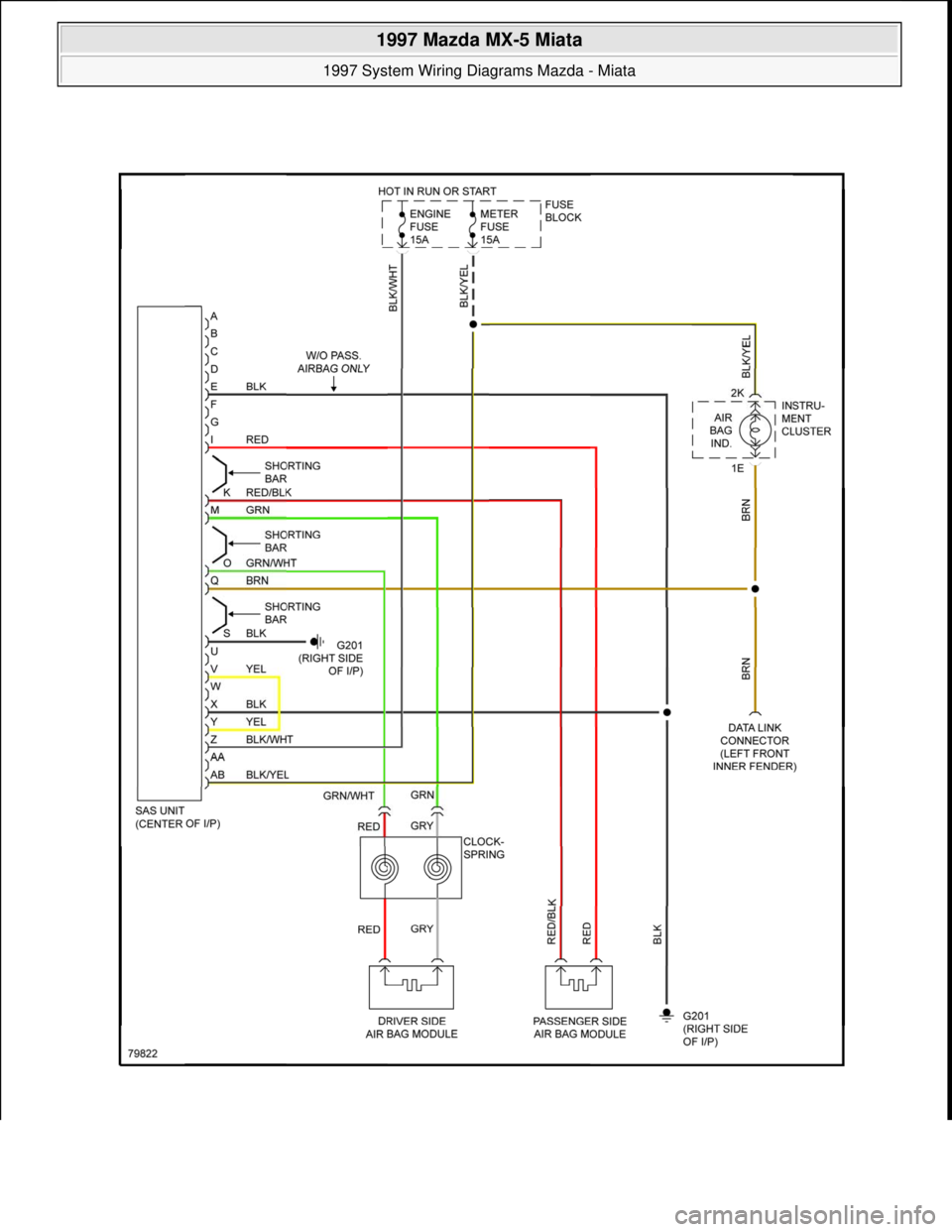

MAZDA MIATA 1997 Factory Repair Manual Fig. 29: Supplemental Restraint Circuit TRANSMISSION 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 59 © 2005 Mitchell Repair

Page 509 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 60 © 2005 Mitchell Repair Information Company, LLC.

Page 510 of 514

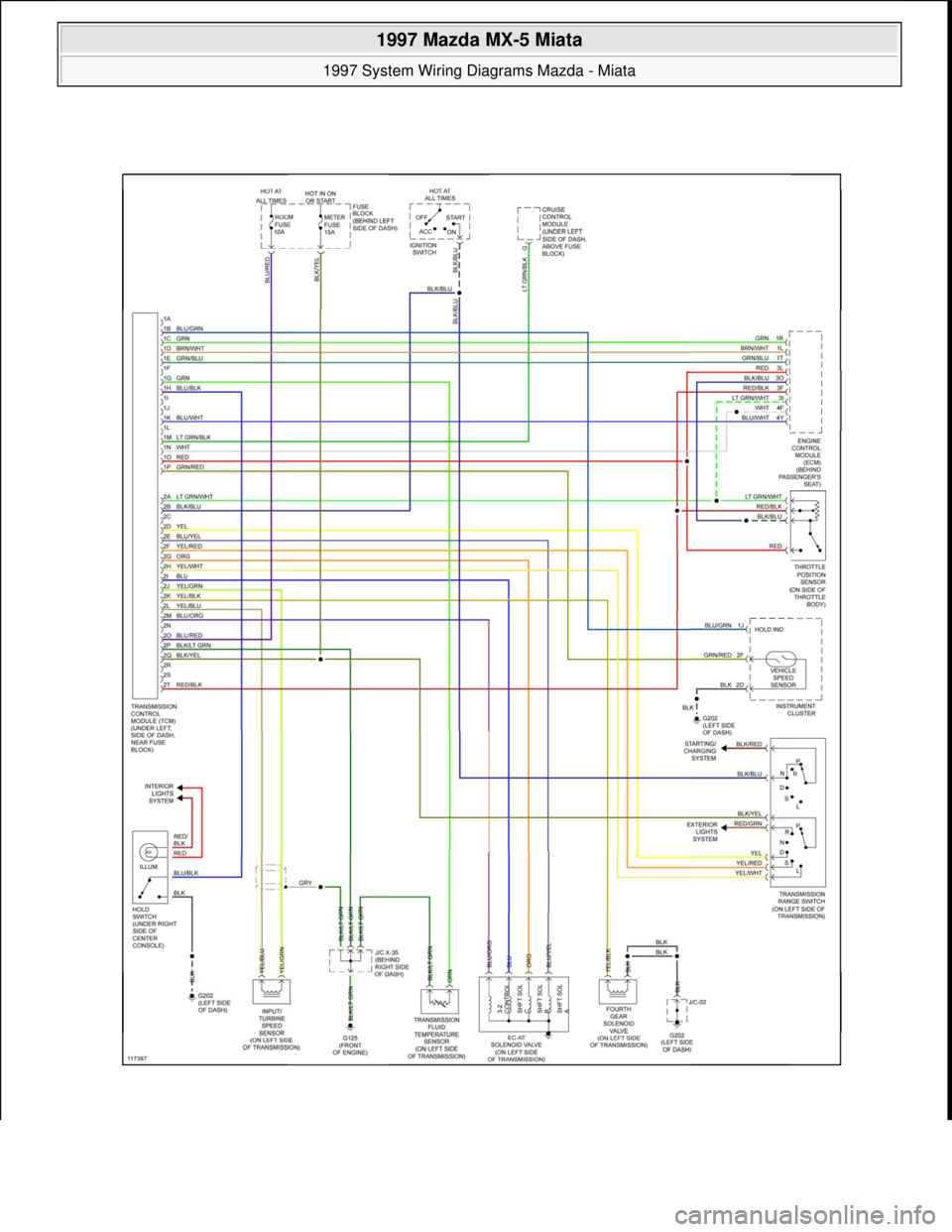

MAZDA MIATA 1997 Factory Repair Manual Fig. 30: A/T Circuit WARNING SYSTEMS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 61 © 2005 Mitchell Repair Information Comp
