Page 481 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 32 © 2005 Mitchell Repair Information Company, LLC.

Page 482 of 514

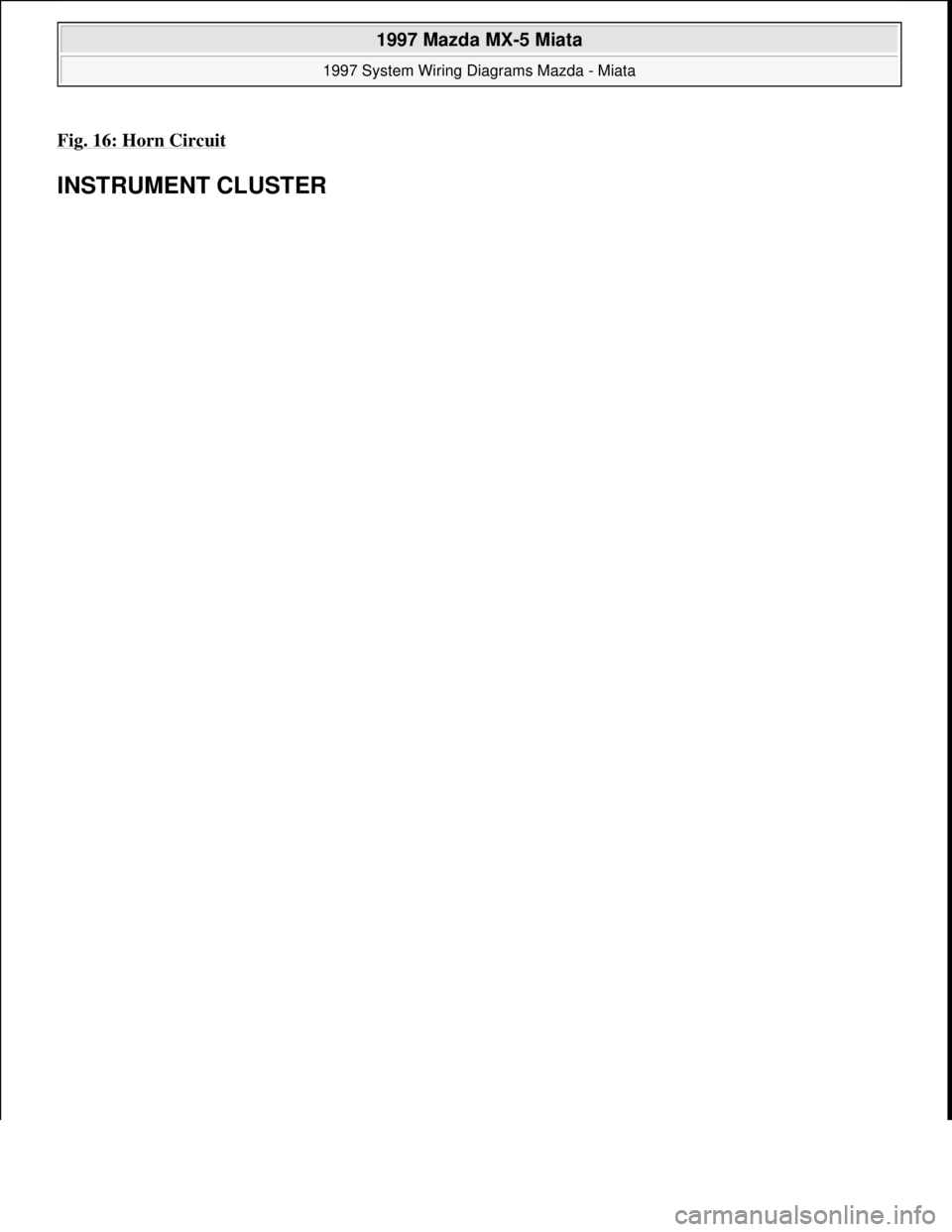

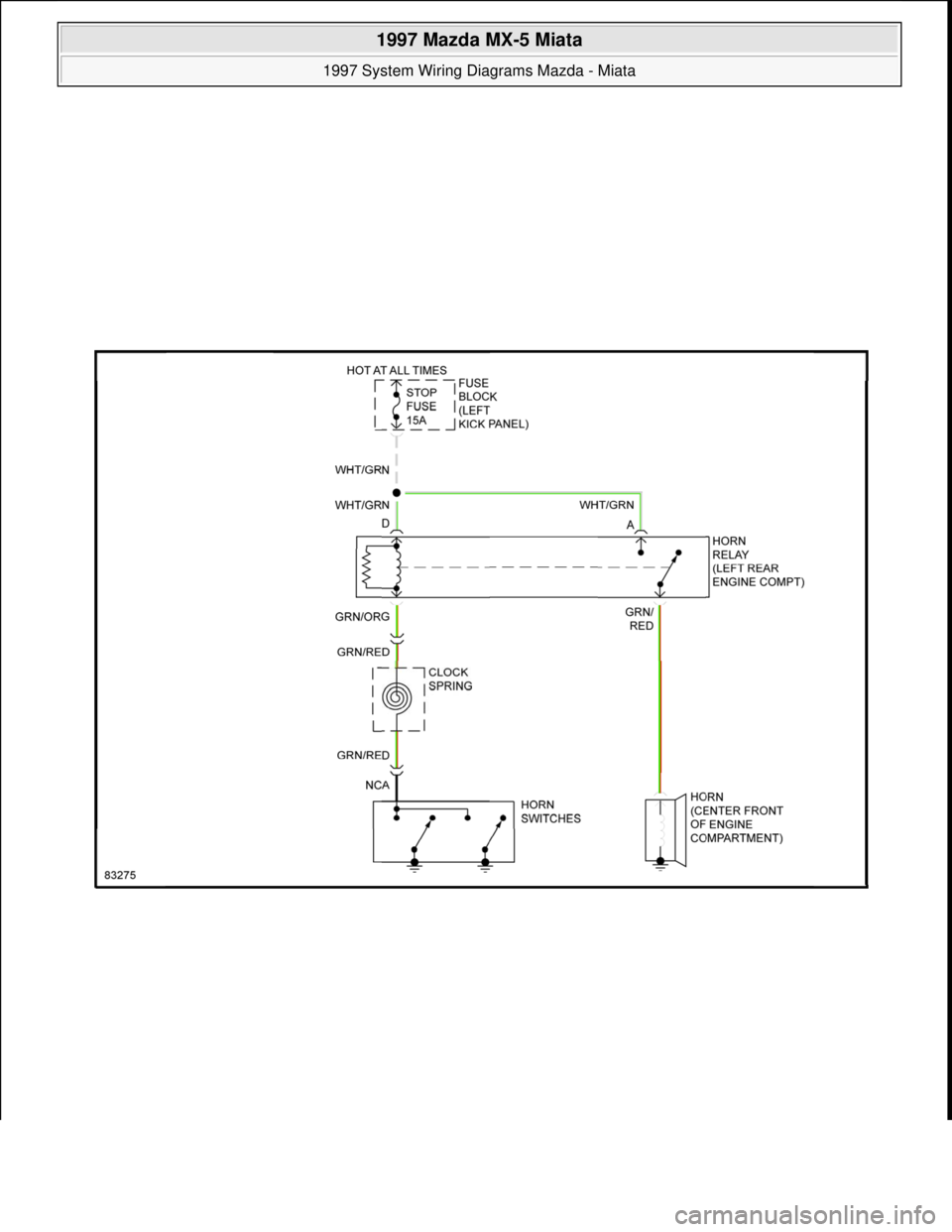

MAZDA MIATA 1997 Factory Repair Manual Fig. 16: Horn Circuit INSTRUMENT CLUSTER 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 33 © 2005 Mitchell Repair Information

Page 483 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 34 © 2005 Mitchell Repair Information Company, LLC.

Page 484 of 514

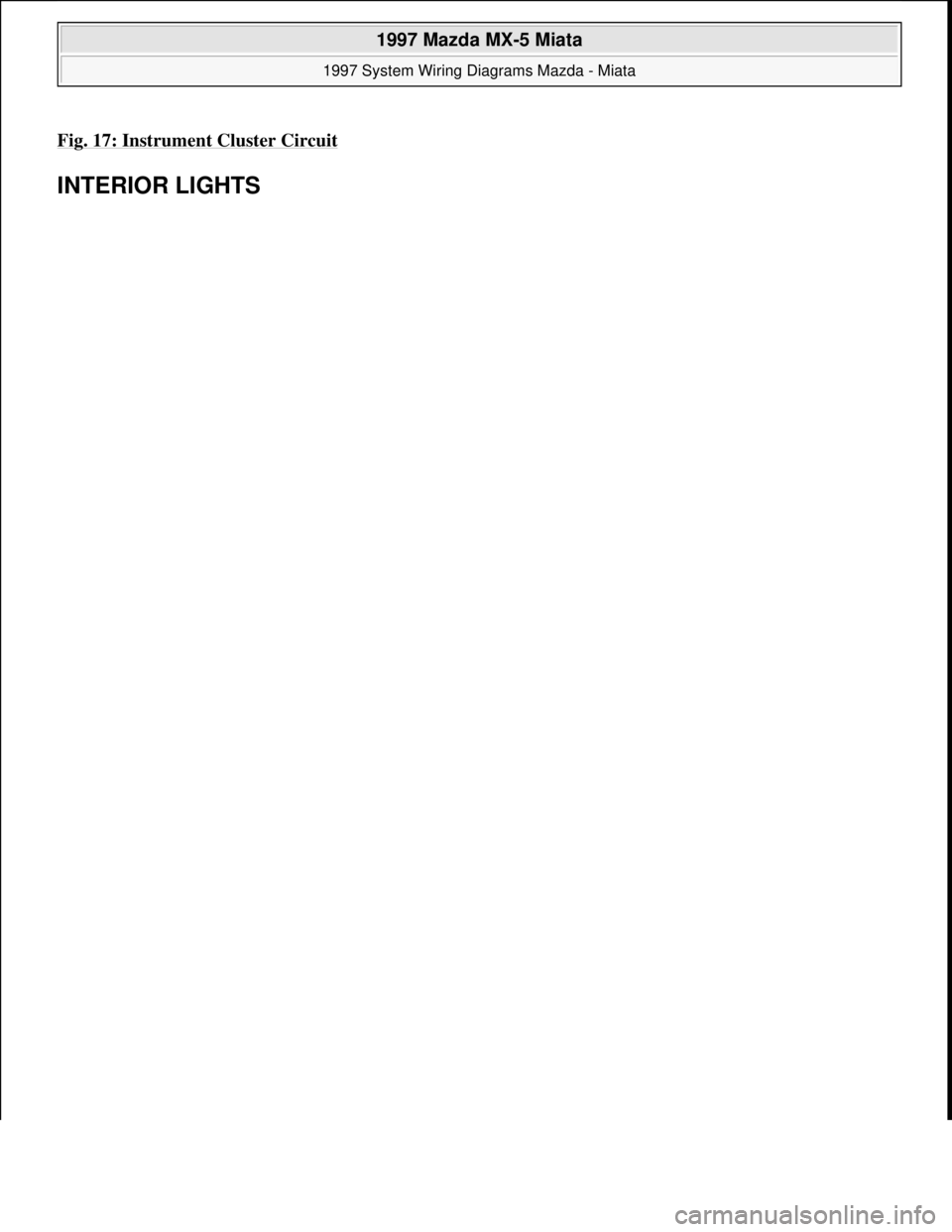

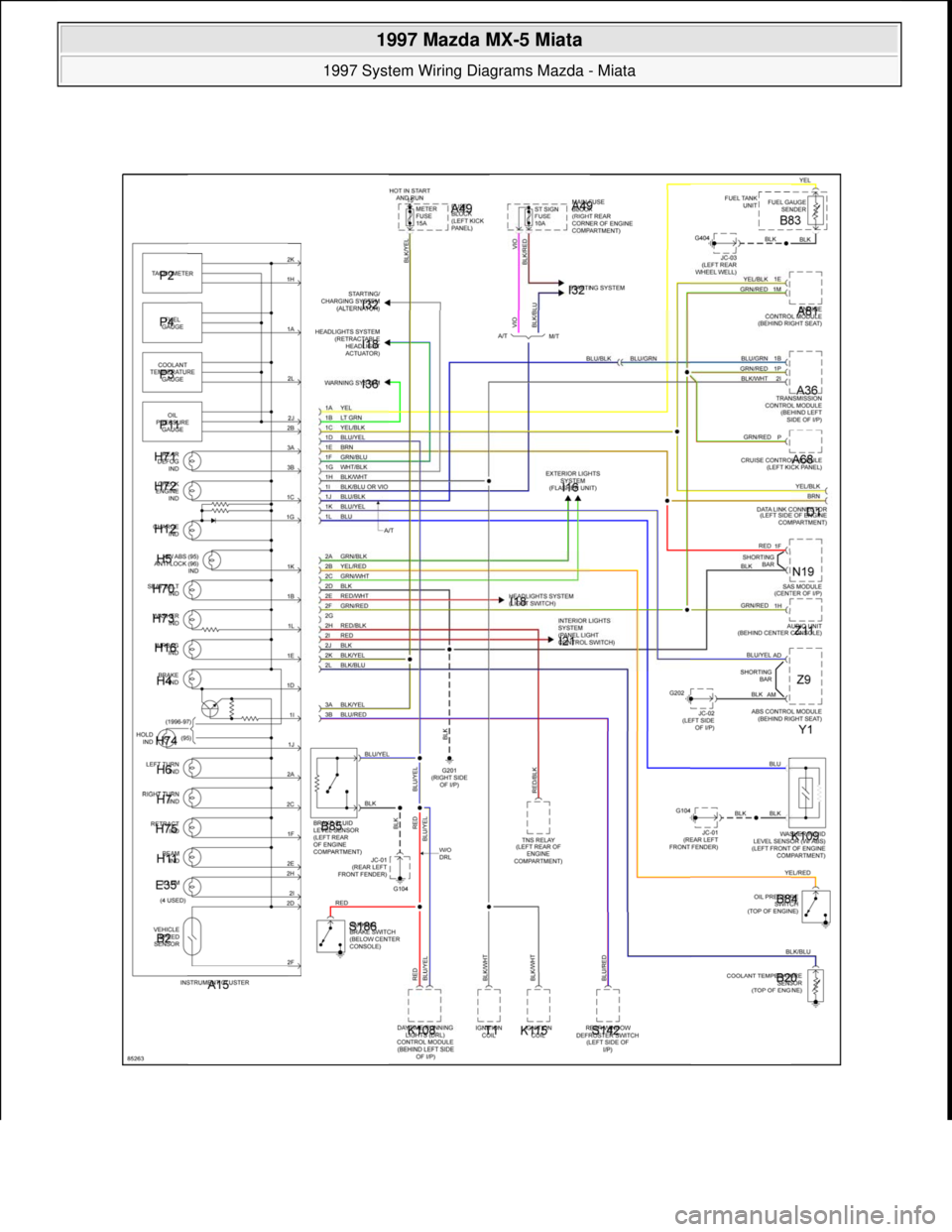

MAZDA MIATA 1997 Factory Repair Manual Fig. 17: Instrument Cluster Circuit INTERIOR LIGHTS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 35 © 2005 Mitchell Repair I

Page 485 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 36 © 2005 Mitchell Repair Information Company, LLC.

Page 486 of 514

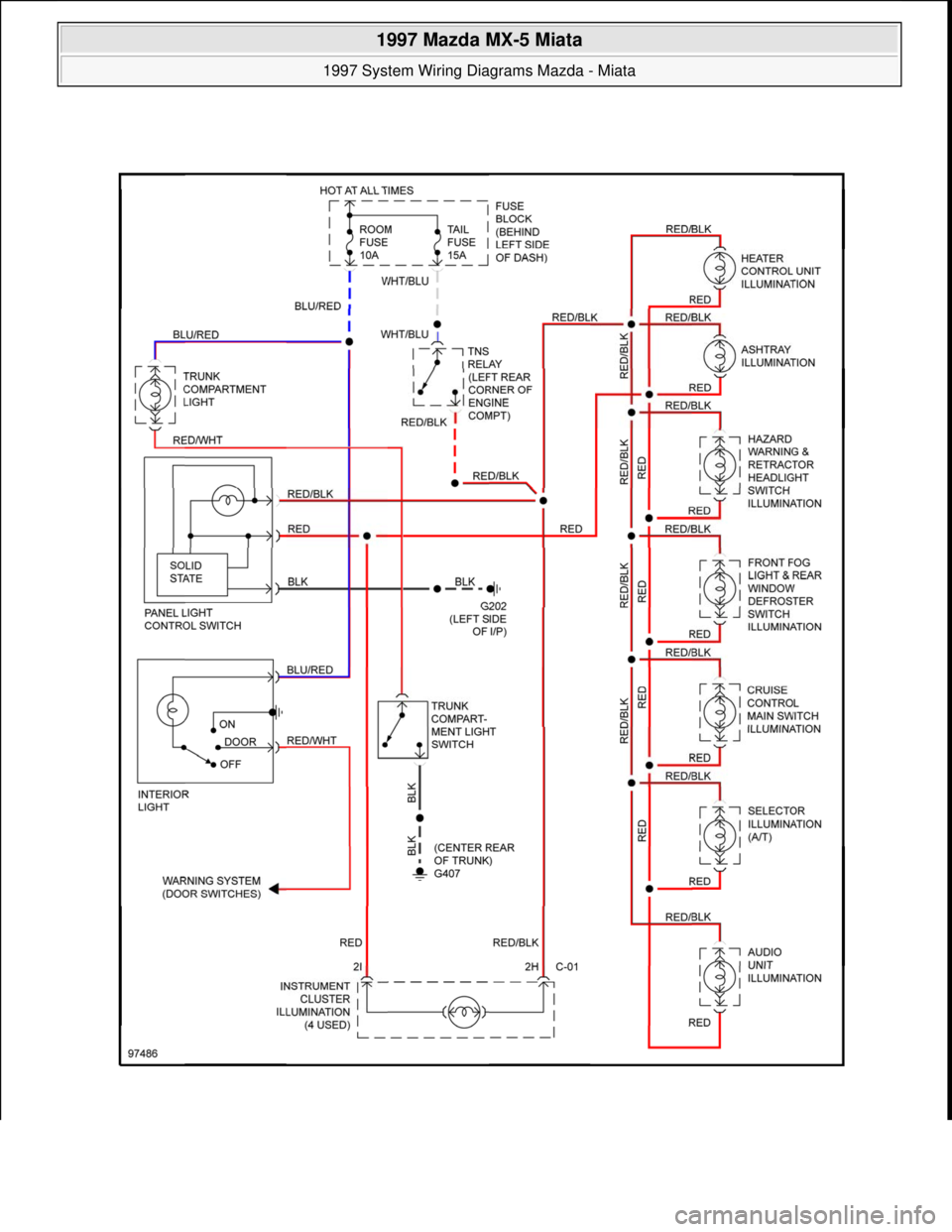

MAZDA MIATA 1997 Factory Repair Manual Fig. 18: Interior Light Circuit POWER ANTENNA 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 37 © 2005 Mitchell Repair Informa

Page 487 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 38 © 2005 Mitchell Repair Information Company, LLC.

Page 488 of 514

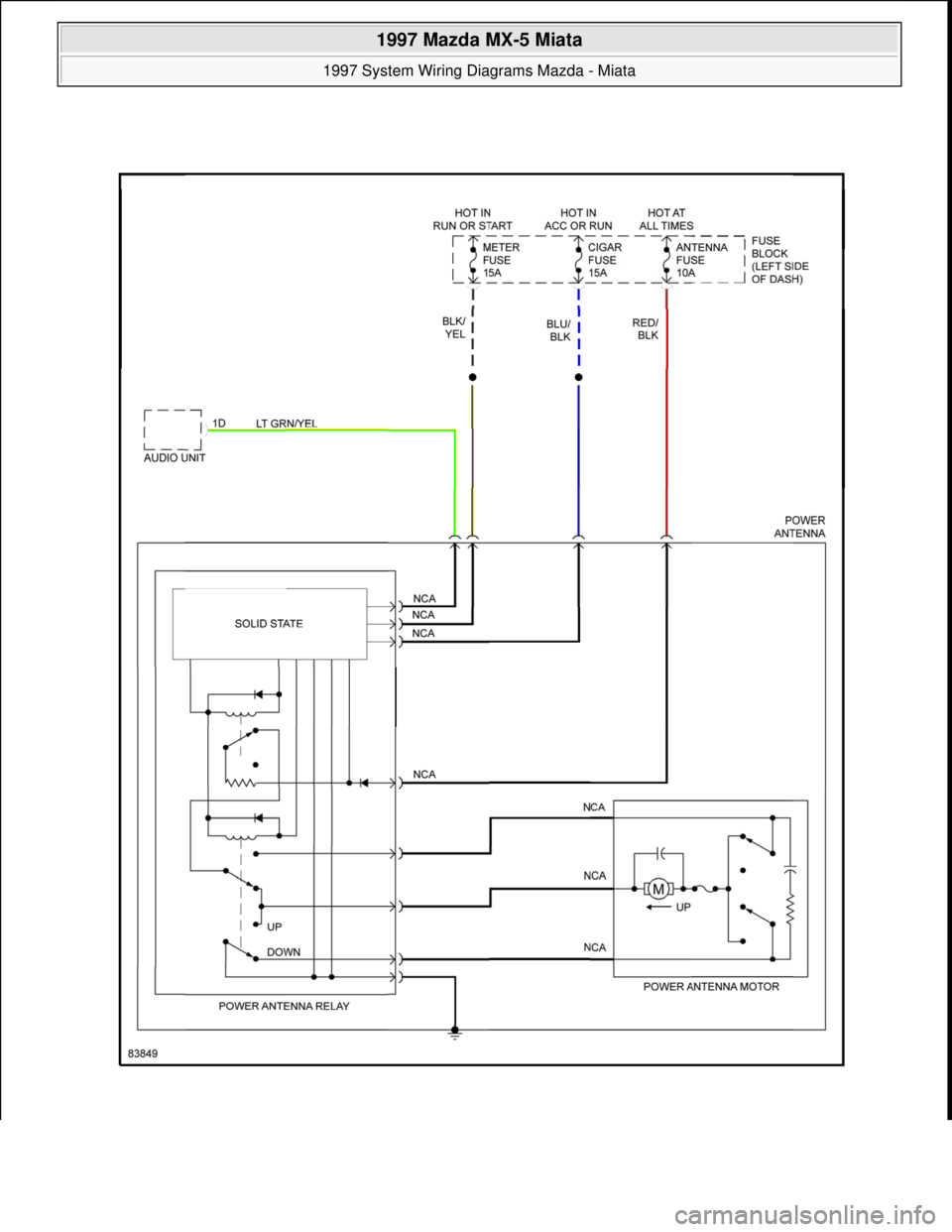

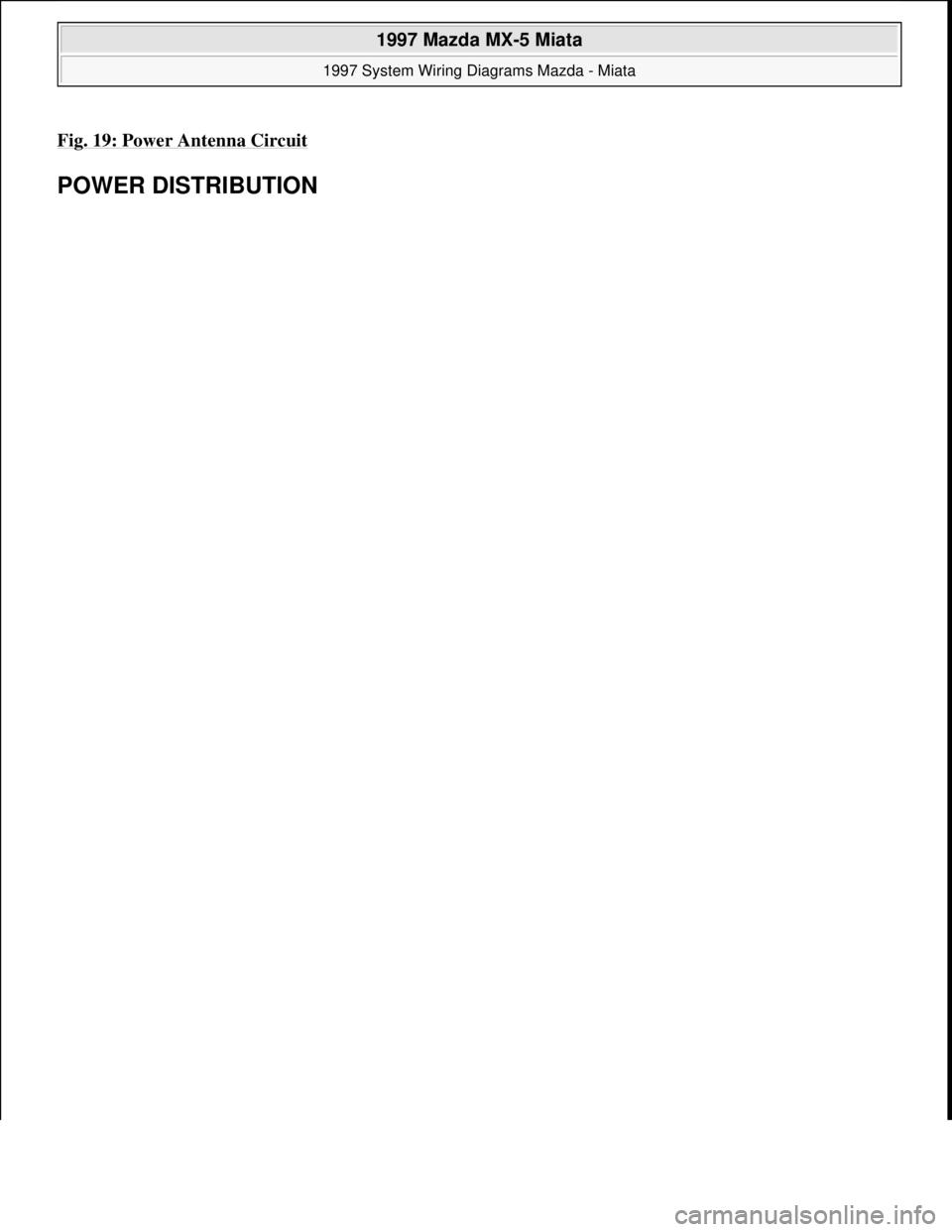

MAZDA MIATA 1997 Factory Repair Manual Fig. 19: Power Antenna Circuit POWER DISTRIBUTION 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 39 © 2005 Mitchell Repair Inf

Page 489 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 40 © 2005 Mitchell Repair Information Company, LLC.

Page 490 of 514

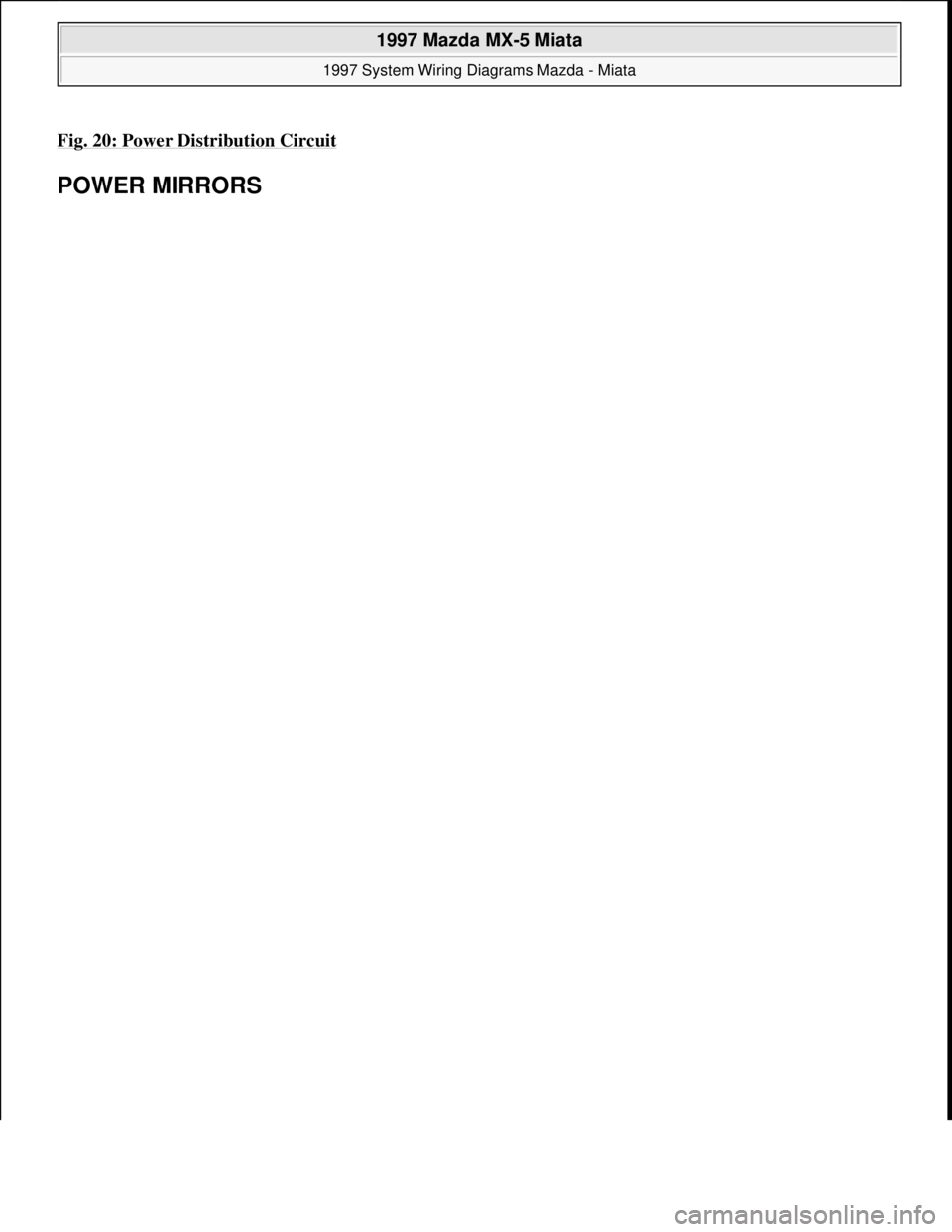

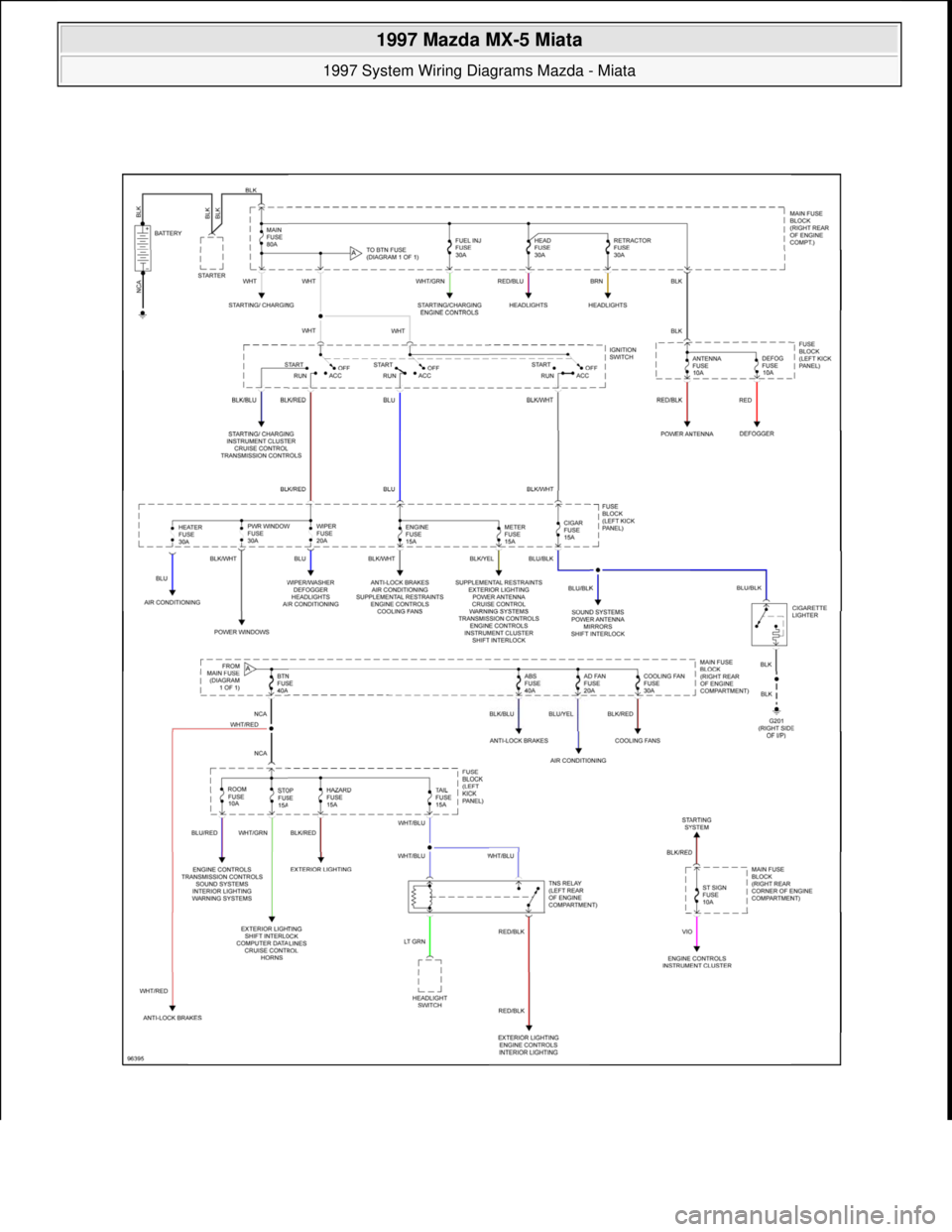

MAZDA MIATA 1997 Factory Repair Manual Fig. 20: Power Distribution Circuit POWER MIRRORS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 41 © 2005 Mitchell Repair Inf
