Page 471 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 22 © 2005 Mitchell Repair Information Company, LLC.

Page 472 of 514

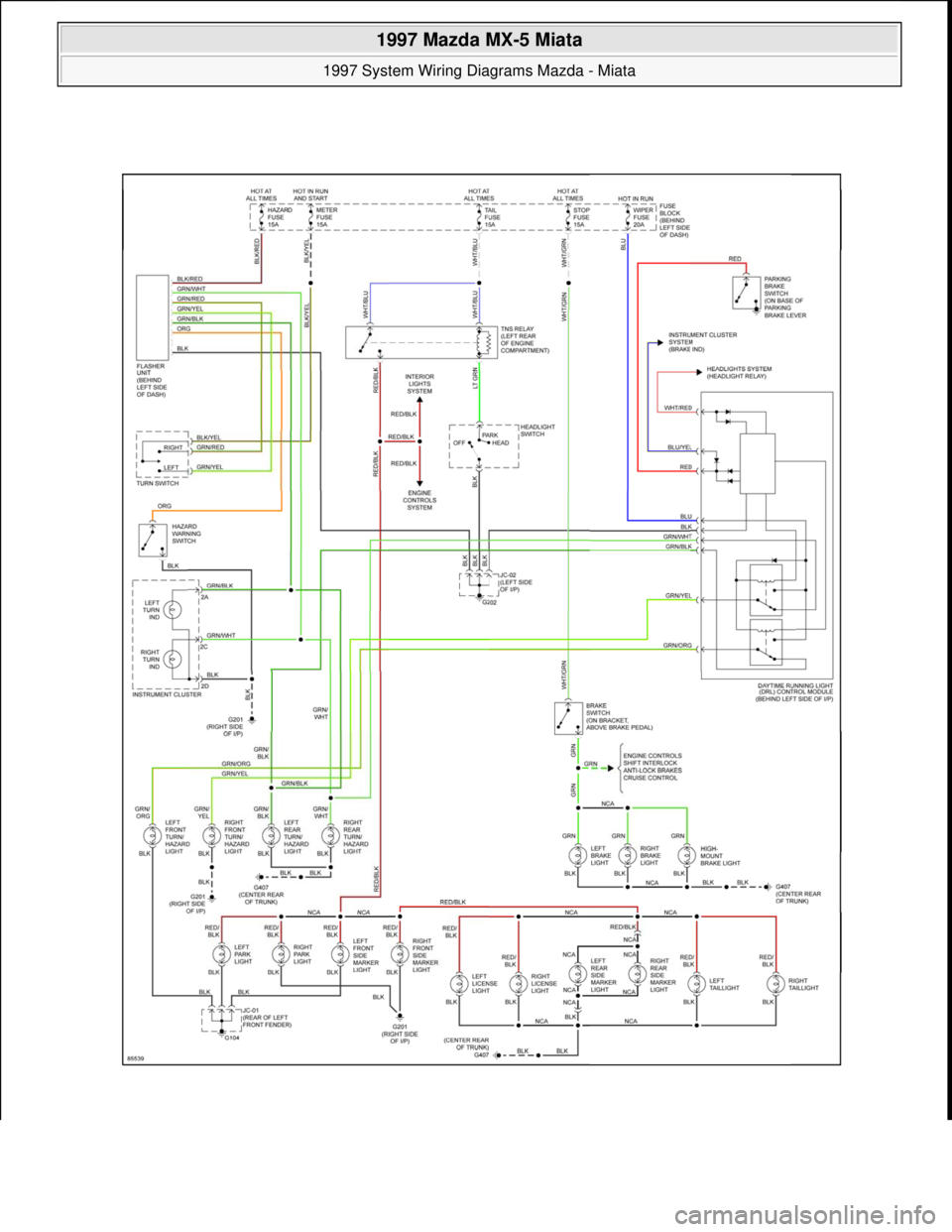

MAZDA MIATA 1997 Factory Repair Manual Fig. 11: Exterior Lamps Circuit, W/ DRL 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 23 © 2005 Mitchell Repair Information Com

Page 473 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 24 © 2005 Mitchell Repair Information Company, LLC.

Page 474 of 514

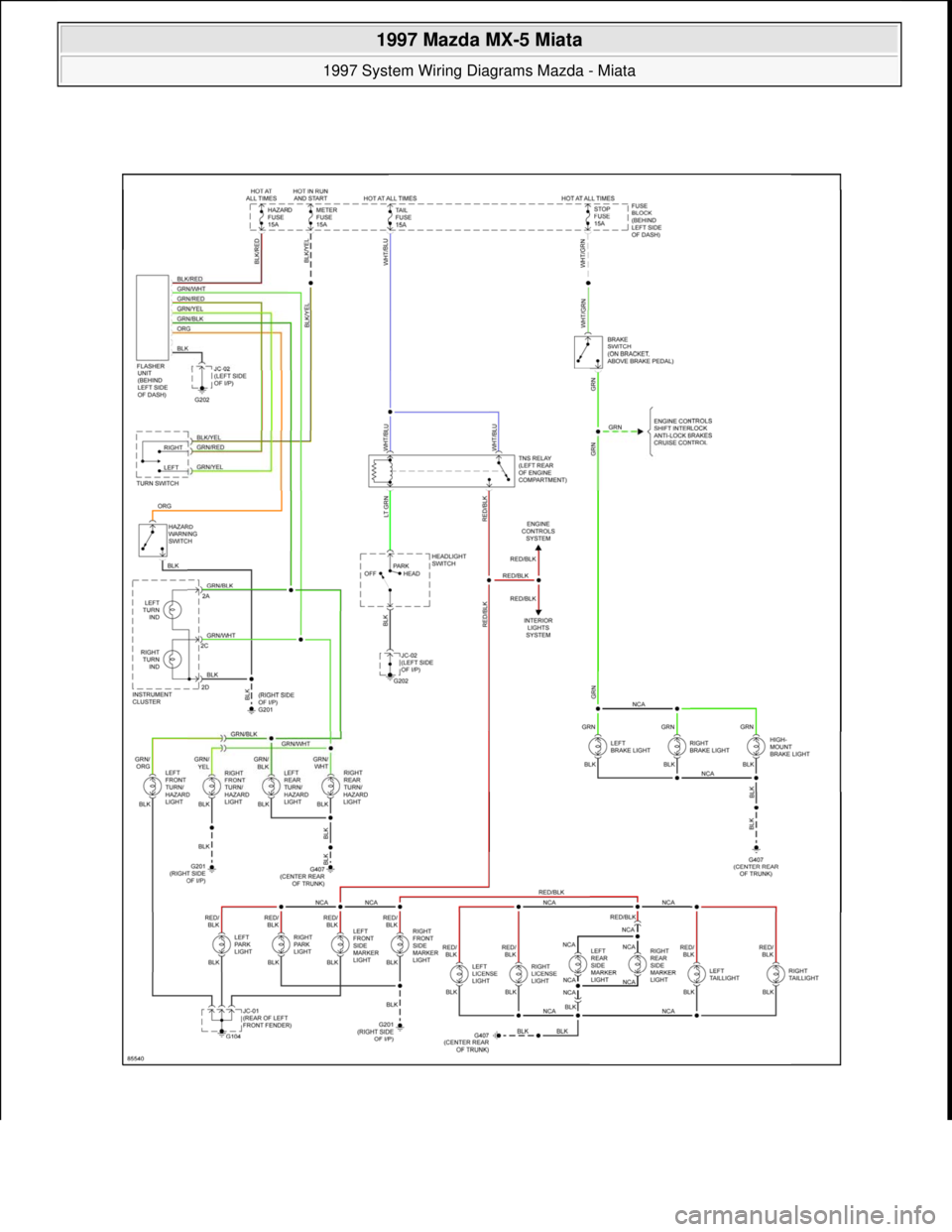

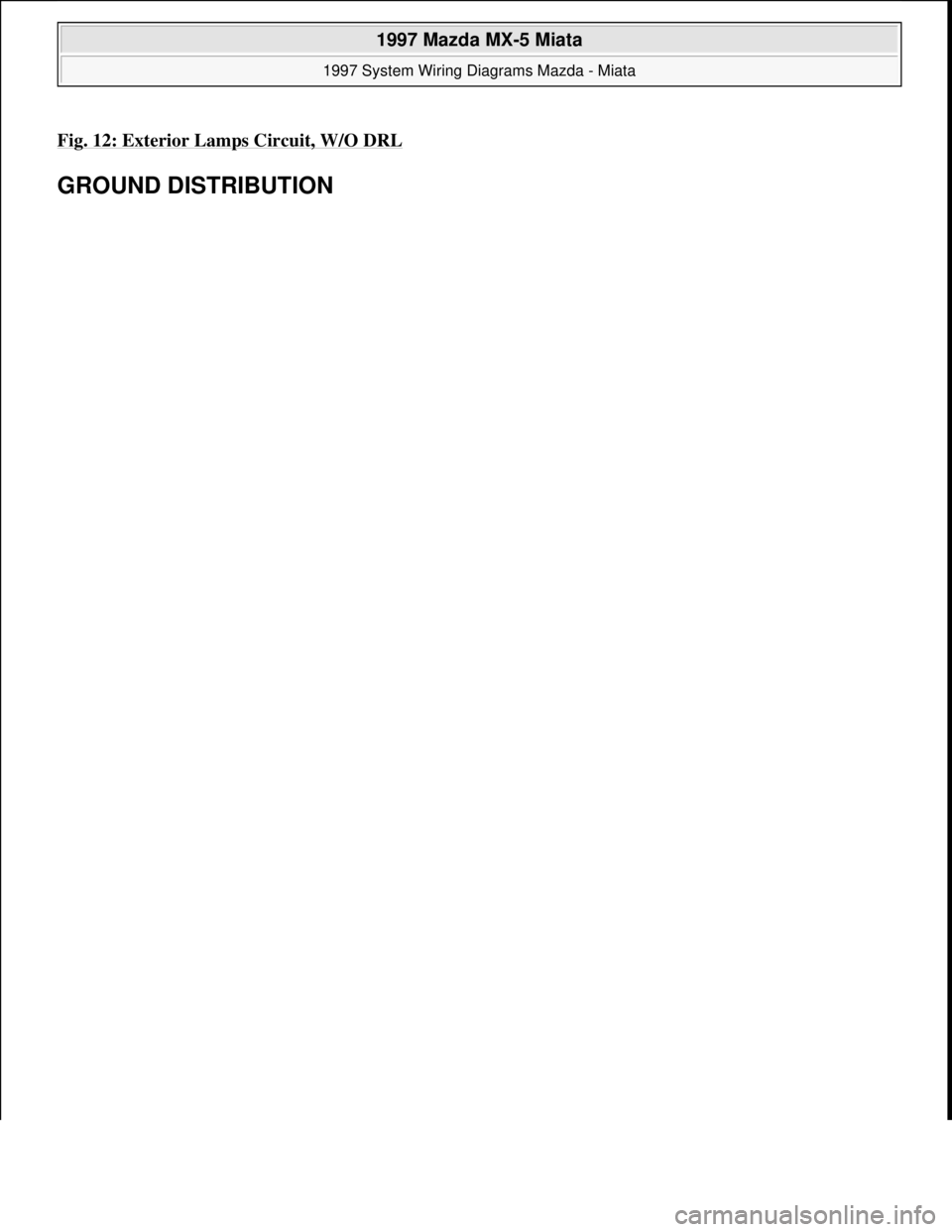

MAZDA MIATA 1997 Factory Repair Manual Fig. 12: Exterior Lamps Circuit, W/O DRL GROUND DISTRIBUTION 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 25 © 2005 Mitchell

Page 475 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 26 © 2005 Mitchell Repair Information Company, LLC.

Page 476 of 514

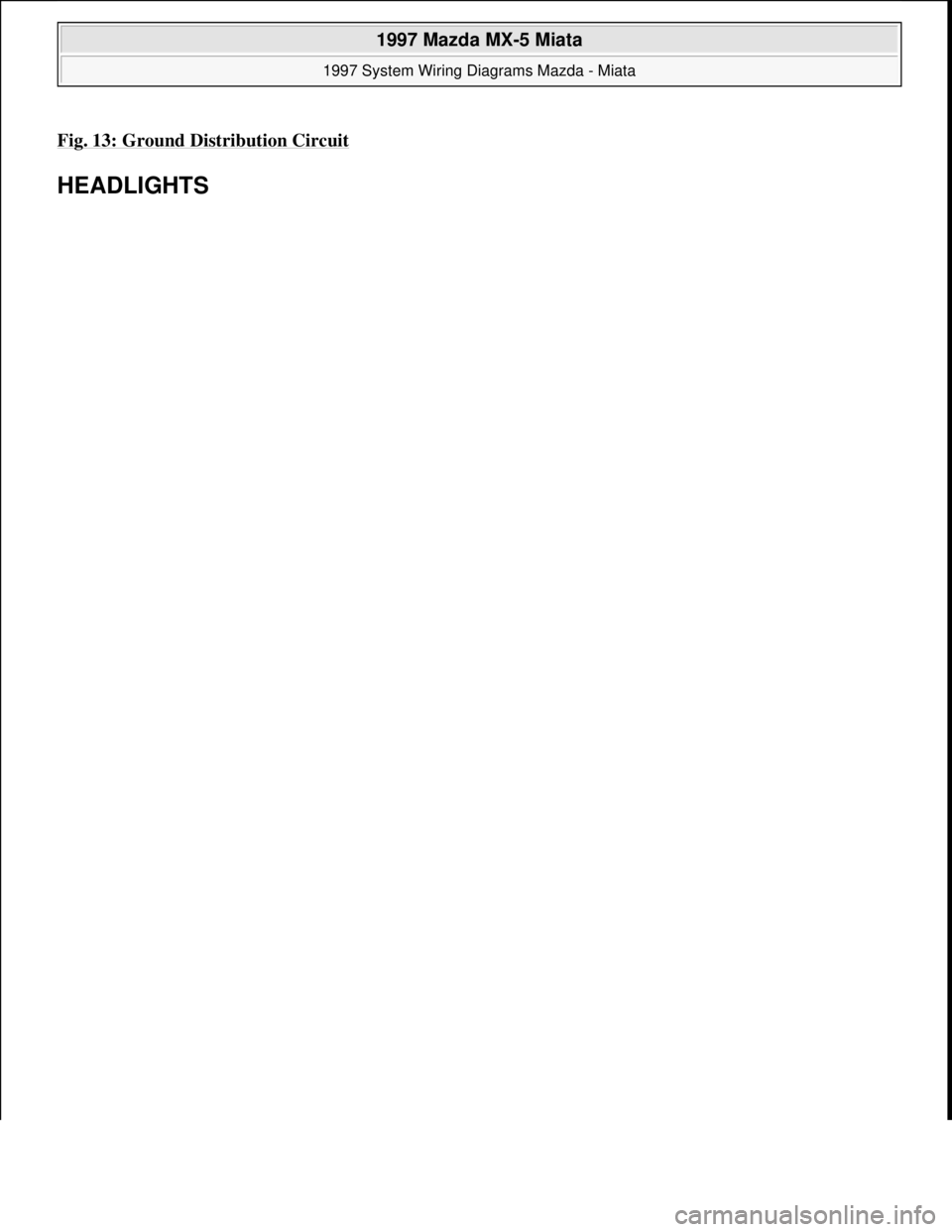

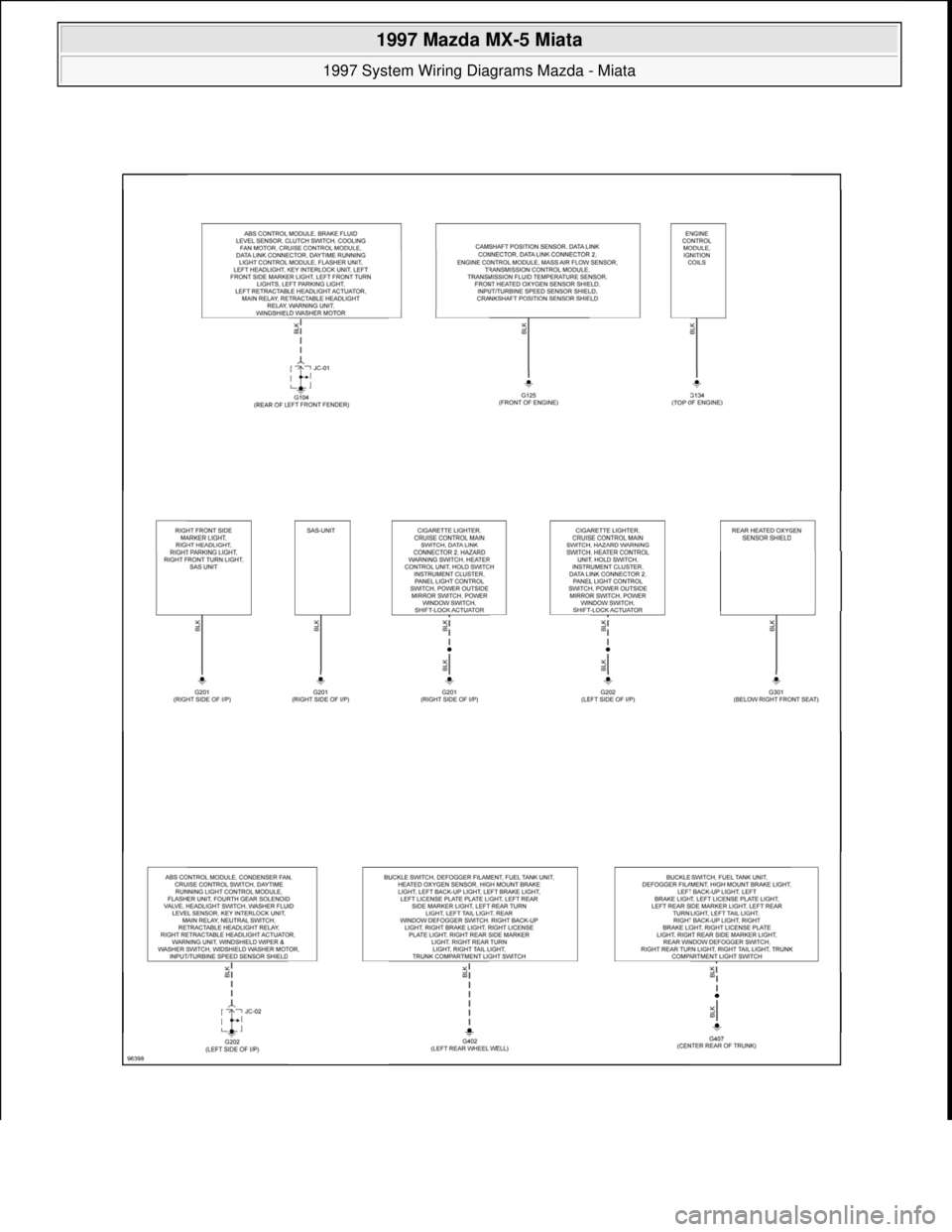

MAZDA MIATA 1997 Factory Repair Manual Fig. 13: Ground Distribution Circuit HEADLIGHTS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 27 © 2005 Mitchell Repair Infor

Page 477 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 28 © 2005 Mitchell Repair Information Company, LLC.

Page 478 of 514

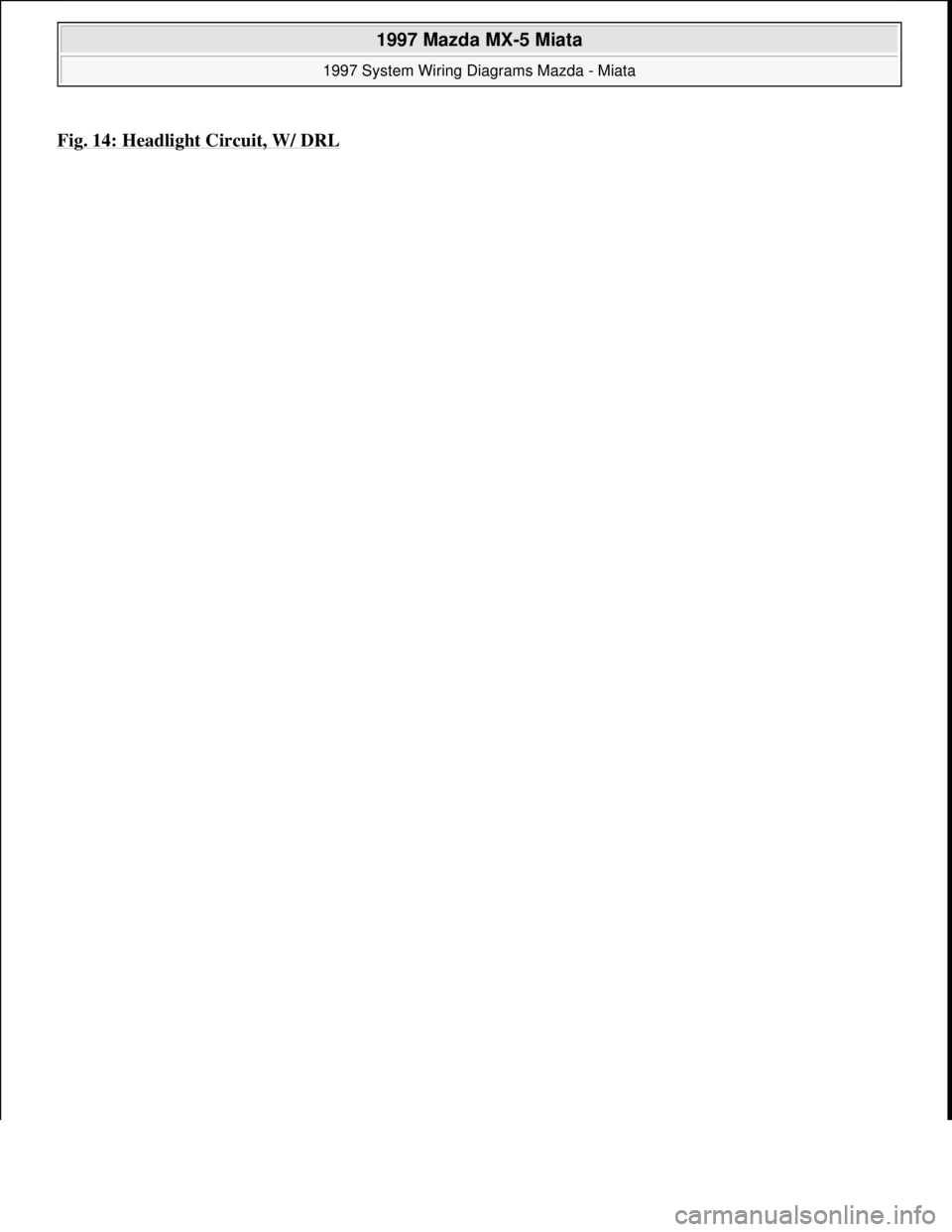

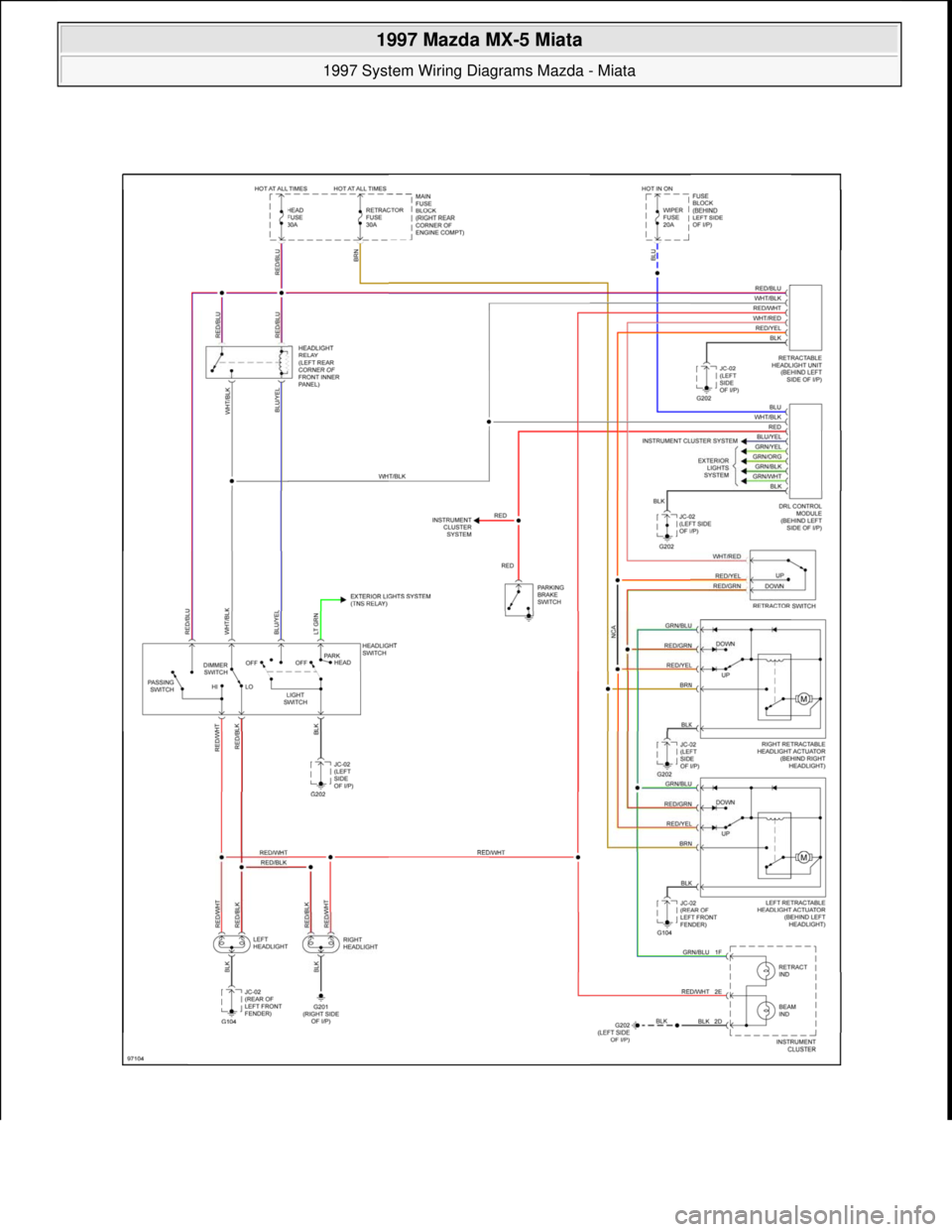

MAZDA MIATA 1997 Factory Repair Manual Fig. 14: Headlight Circuit, W/ DRL 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 29 © 2005 Mitchell Repair Information Company

Page 479 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 30 © 2005 Mitchell Repair Information Company, LLC.

Page 480 of 514

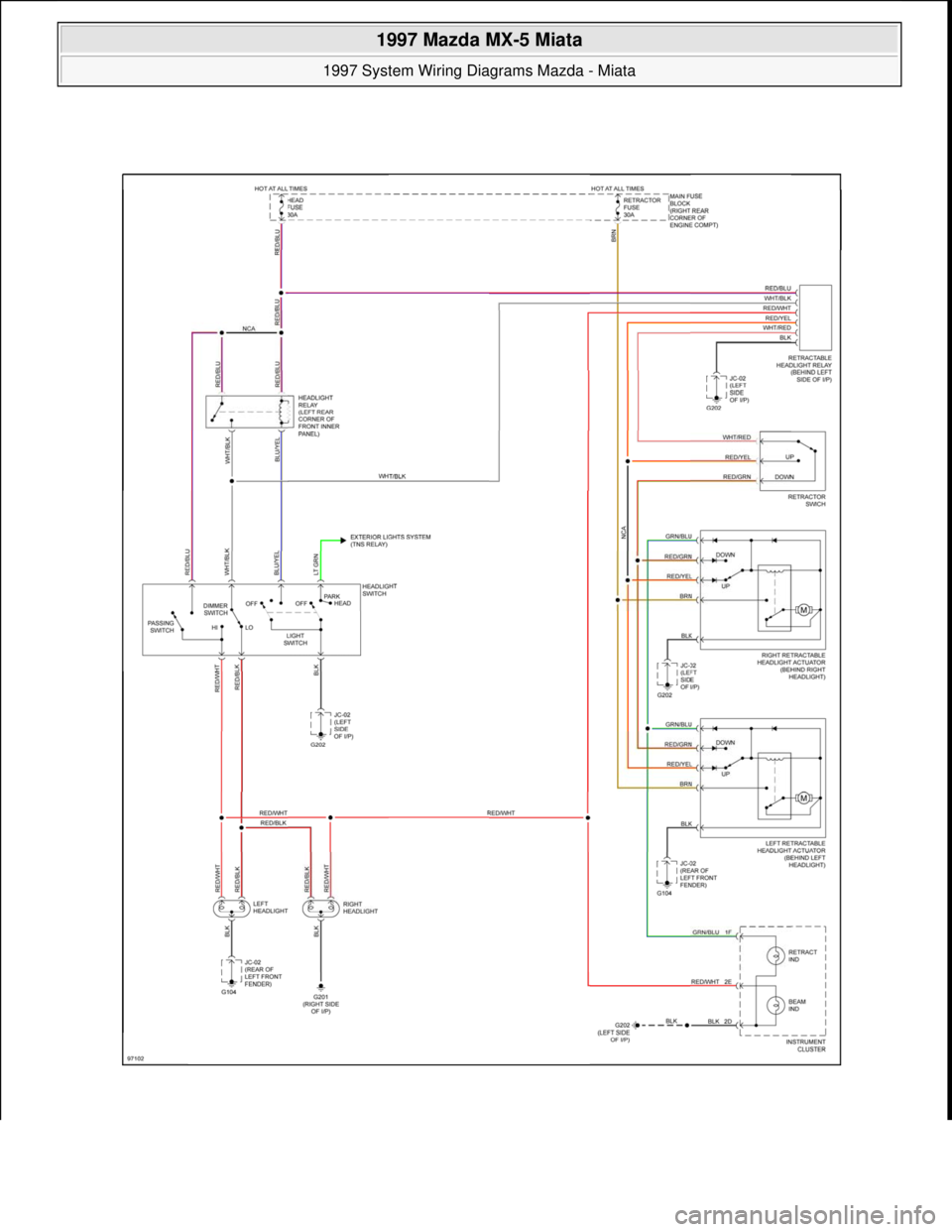

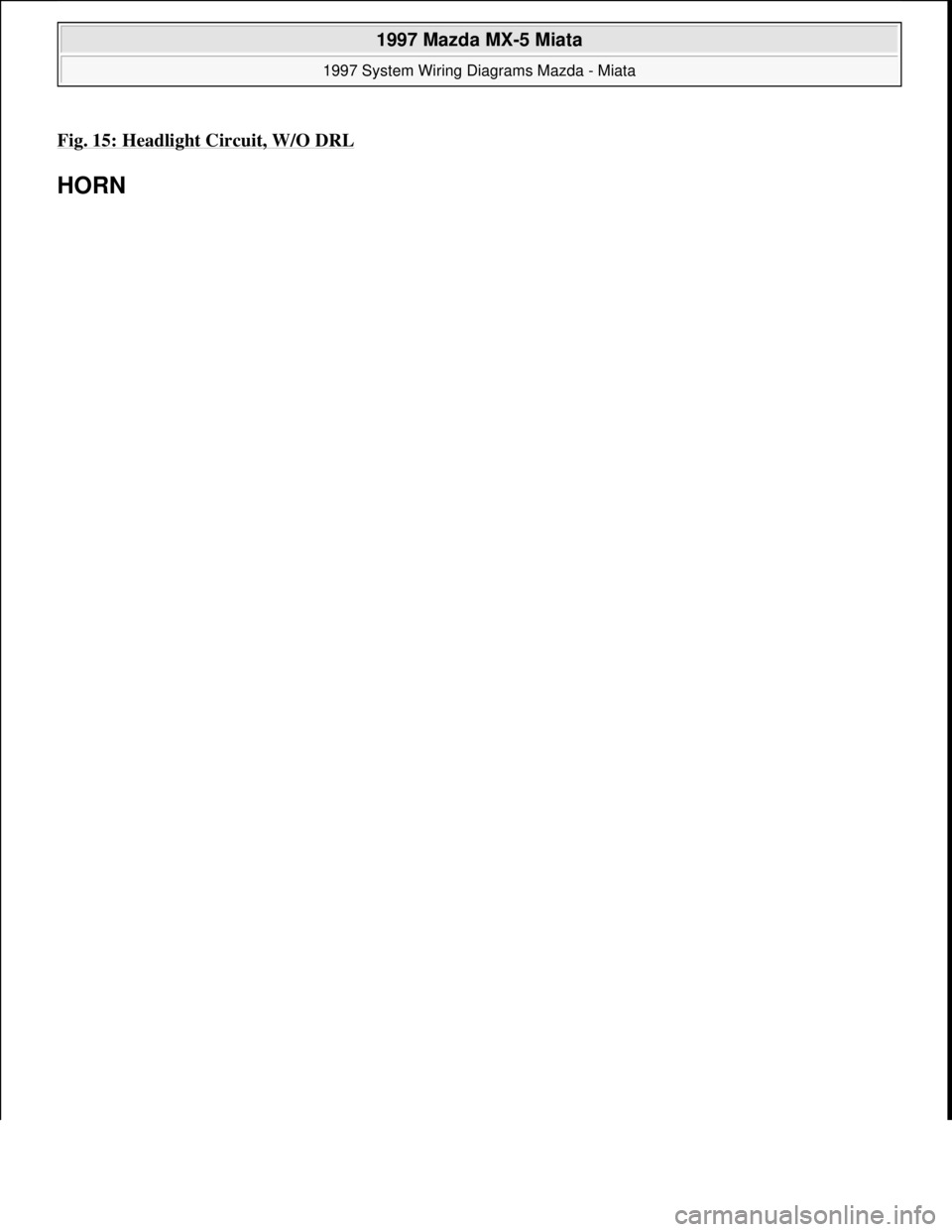

MAZDA MIATA 1997 Factory Repair Manual Fig. 15: Headlight Circuit, W/O DRL HORN 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 31 © 2005 Mitchell Repair Information
