Page 511 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 62 © 2005 Mitchell Repair Information Company, LLC.

Page 512 of 514

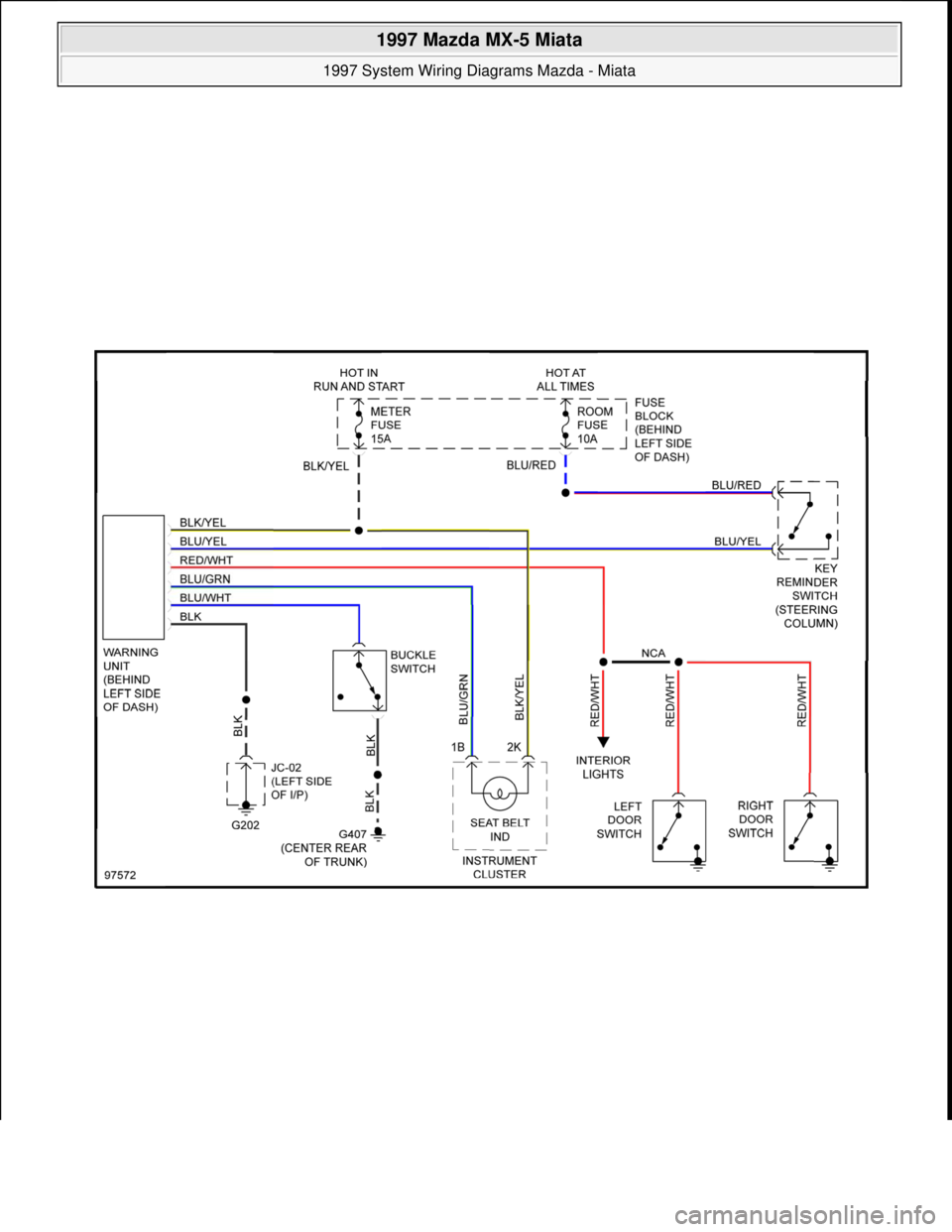

MAZDA MIATA 1997 Factory Repair Manual Fig. 31: Warning System Circuits WIPER/WASHER 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 63 © 2005 Mitchell Repair Informa

Page 513 of 514

MAZDA MIATA 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 64 © 2005 Mitchell Repair Information Company, LLC.

Page 514 of 514

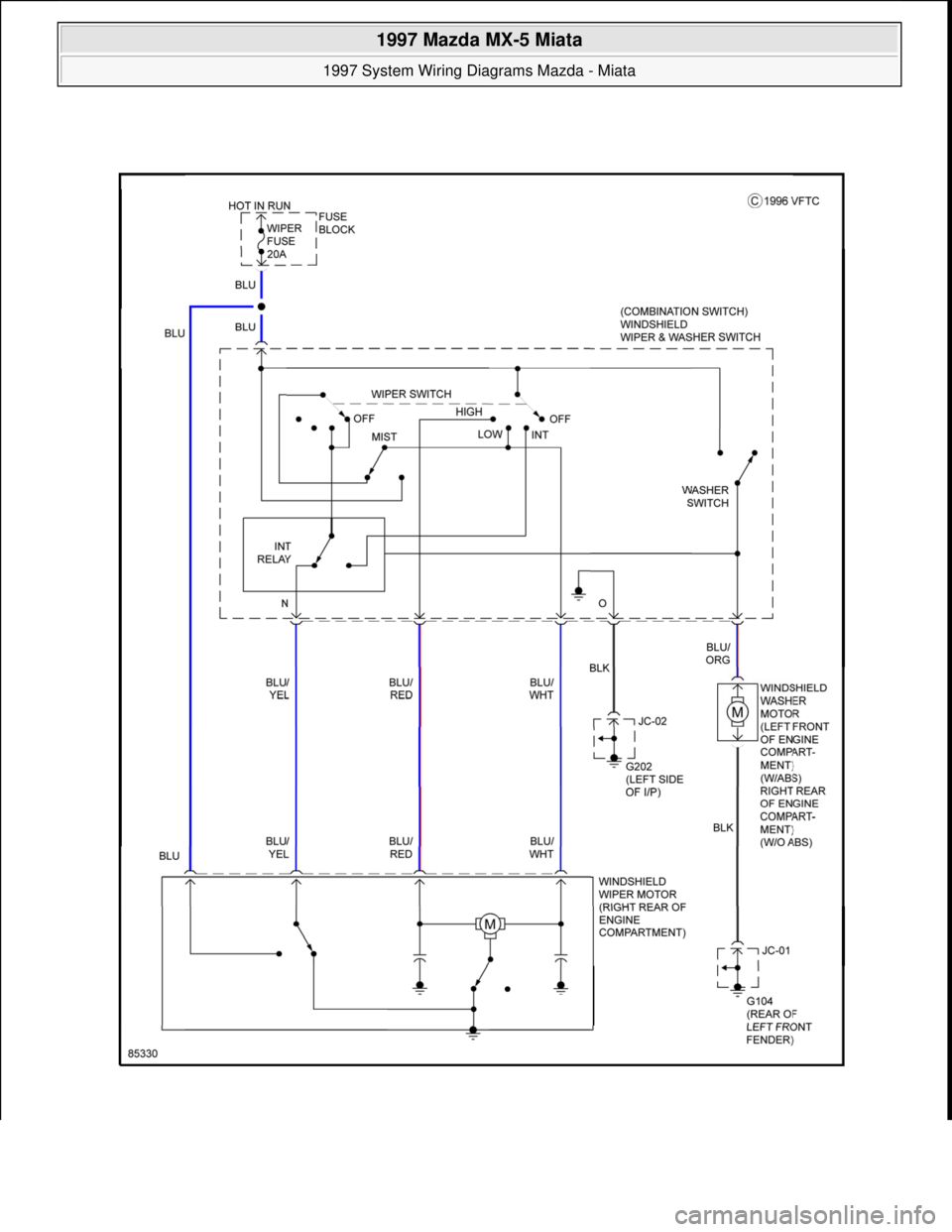

MAZDA MIATA 1997 Factory Repair Manual Fig. 32: Wiper/Washer Circuit 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 65 © 2005 Mitchell Repair Information Company, LLC
