Interior Features
Interior Equipment
*Some models.

Without Map Lights

Rear
*


NOTE
(With map lights)
The rear overhead light also turn on and
off when the front overhead light switch
is operated.
Map Lights *
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.


NOTE
The map lights will not turn off even
if the lens is pressed in the following
cases:

 The overhead light switch is in the
ON position.
  The overhead light switch is in the
door position with the door open.
  The illuminated entry system is on.

5–158
Interior Features
Interior Equipment
Luggage Compartment Lights
(Hatchback)


Switch
Position Luggage Compartment Light


Light off


Light on when the liftgate is open

Boot Light (Saloon)
The boot light is on when the lid is open
and off when it's closed.


NOTE
To prevent the battery from being
discharged, do not leave the boot open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights and the
courtesy lights turn on in the following
conditions:



 The driver's door is unlocked after the
ignition is switched OFF.



 The ignition is switched OFF with all
doors closed.

NOTE
  The illuminated entry system
operates when the overhead light
switch is in the DOOR position.
  The illumination time differs
depending on the operation.
  Battery saver  If an interior light is left on with
the ignition switched OFF, the light
is turned off automatically after
about 30 minutes to prevent battery
depletion.
  The operation of the illuminated
entry system can be changed.
 Refer to Personalisation Features on
page 9-13 .

5–159
Interior Features
Interior Equipment
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.



CAUTION
  To prevent accessory socket damage
or electrical failure, pay attention to
the following:



 Do not use accessories that require
more than 120 W (DC 12 V, 10 A).



 Do not use accessories that are not
genuine Mazda accessories or the
equivalent.



 Close the cover when the
accessory socket is not in use to
prevent foreign objects and liquids
from getting into the accessory
socket.



 Correctly insert the plug into the
accessory socket.



 Do not insert the cigarette lighter
into the accessory socket.


 Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
  Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning
light to illuminate. Disconnect the
connected device and make sure
that the problem is resolved. If the
problem is resolved, disconnect the
device from the socket and switch
the ignition off. If the problem is not
resolved, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with
the engine off or idling.

5–160
Interior Features
Interior Equipment
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.

Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups
or drink cans in a cup holder is
dangerous.
During sudden braking or
manoeuvring, occupants could be
hit and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.


Bottle Holder
Bottle holders are on the inside of the front
doors.

Bottle holder

CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.

5–161
Interior Features
Interior Equipment
*Some models.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
Overhead Console *
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.


Glove Compartment
To open the glove compartment, pull the
latch toward you.


To close the glove compartment,
¿ rmly press in the centre of the glove
compartment lid.

5–162
Interior Features
Interior Equipment
*Some models.
Centre Console Tray
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
A cup or small items can be placed on
the centre console tray using the centre
console divider.
The centre console tray is large enough to
place a small item when the centre console
divider is not in use.


Cargo Sub-Compartment *
Lift the boot mat.
(Hatchback)



(Saloon)

5–163
Interior Features
Interior Equipment
Rear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can À y off and hit an occupant in
the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Ty p e A

Coat hook
Ty p e B

Coat hook

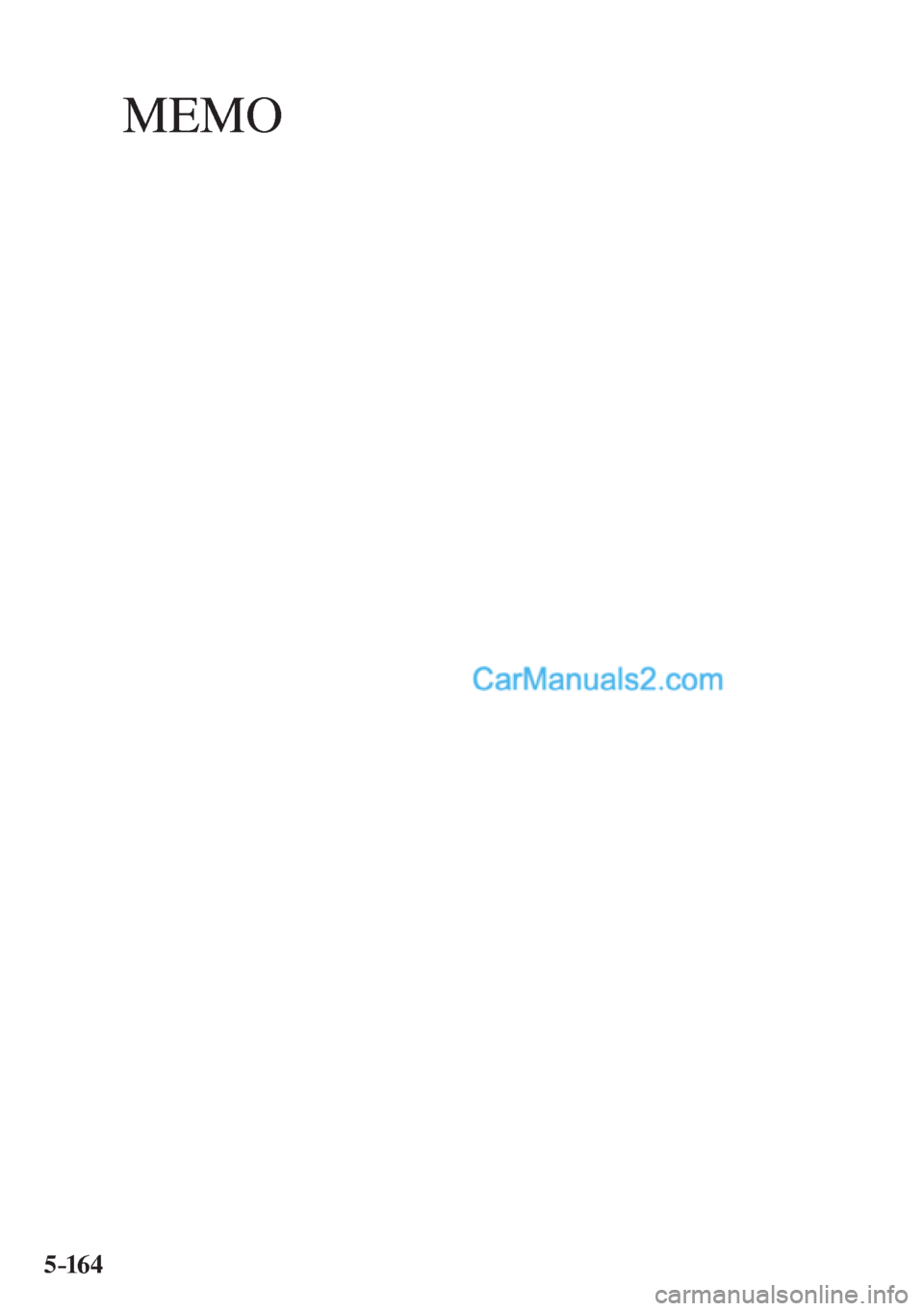

MEMO
5–16 4

6–1 6–1
6Maintenance and Care
How to keep your Mazda in top condition.

Essential Information ........................................................................ 6-2
Introduction ................................................................................... 6-2

Scheduled Maintenance ..................................................................... 6-3
Scheduled Maintenance ................................................................ 6-3
Maintenance Monitor .................................................................. 6-15

Owner Maintenance ......................................................................... 6-17
Owner Maintenance Precautions ................................................ 6-17
Bonnet ......................................................................................... 6-19
Engine Compartment Overview ................................................. 6-21
Engine Oil ................................................................................... 6-23
Engine Coolant ............................................................................ 6-29
Brake/Clutch Fluid ...................................................................... 6-31
Window and Headlight Washer Fluid ......................................... 6-32
Body Lubrication ........................................................................ 6-33
Wiper Blades ............................................................................... 6-33
Battery ......................................................................................... 6-38
Key Battery Replacement ........................................................... 6-41
Tyres ............................................................................................ 6-44
Light Bulbs .................................................................................. 6-48
Fuses ........................................................................................... 6-61

Appearance Care.............................................................................. 6-66
Exterior Care ............................................................................... 6-66
Interior Care ................................................................................ 6-72

6–2
Maintenance and Care
Essential Information

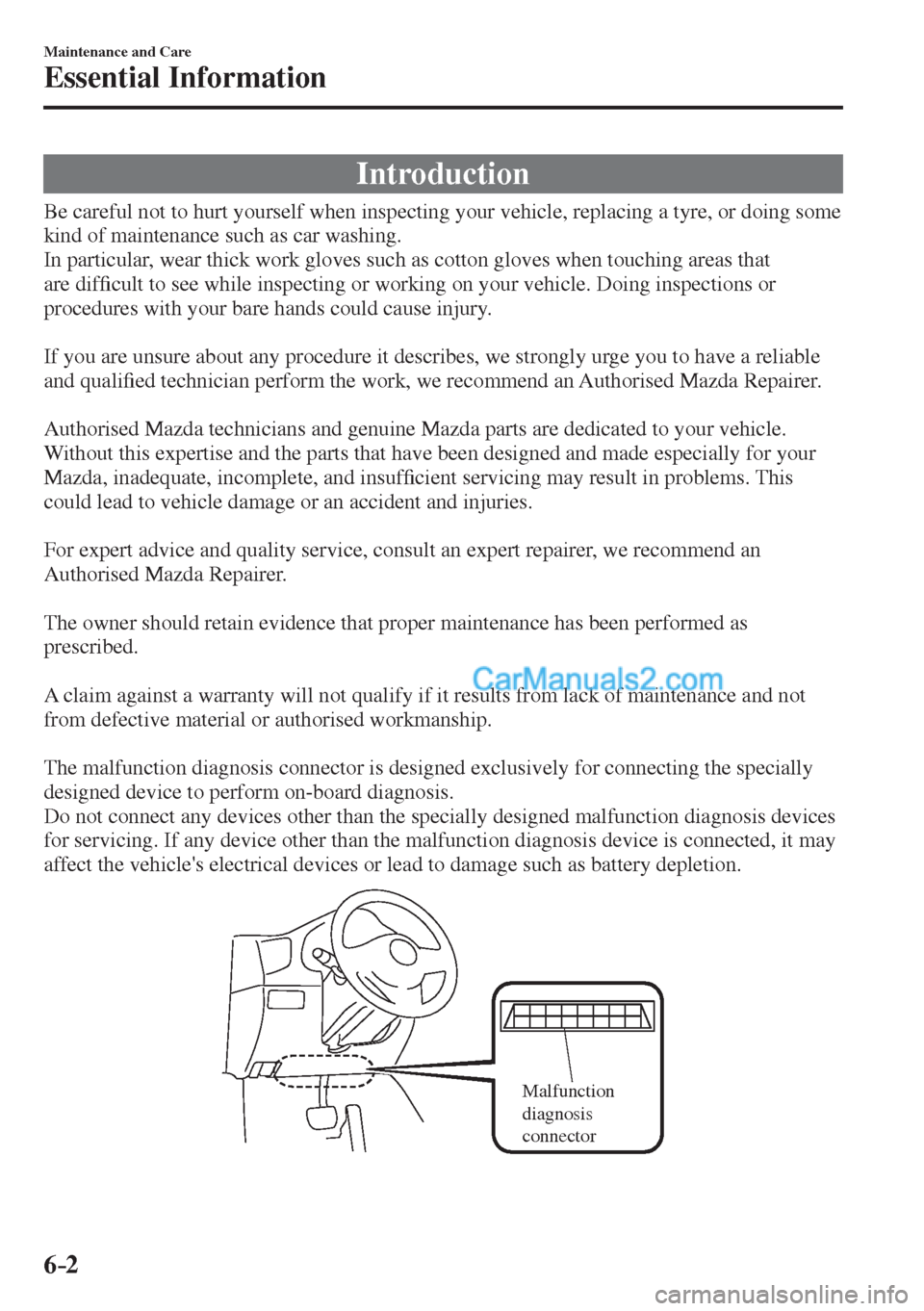

I n t r o d u c t i o n
Be careful not to hurt yourself when inspecting your vehicle, replacing a tyre, or doing some
kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when touching areas that
are dif¿ cult to see while inspecting or working on your vehicle. Doing inspections or
procedures with your bare hands could cause injury.

If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and quali¿ ed technician perform the work, we recommend an Authorised Mazda Repairer.

Authorised Mazda technicians and genuine Mazda parts are dedicated to your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insuf¿ cient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an expert repairer, we recommend an
Authorised Mazda Repairer.

The owner should retain evidence that proper maintenance has been performed as
prescribed.

A claim against a warranty will not qualify if it results from lack of maintenance and not
from defective material or authorised workmanship.

The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction diagnosis devices
for servicing. If any device other than the malfunction diagnosis device is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery depletion.

Malfunction
diagnosis
connector
