MAZDA MODEL 3 4-DOOR 2004 Owners Manual

3-23
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
The sunshade doesn’t tilt. To avoid
damaging the sunshade, don ’t push up
on it.
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 23 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-24
Knowing Your Mazda
Form No. 8S18-EA-03I
Security System
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Immobilizer System
•Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user
’s authority to operate
the equipment.
• To avoid damage to the key, do not:

Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not allow
the following, as the engine may not
start due to the electronic signal from
the ignition key not being transmitted
correctly.
•A key ring rests on the key grip.
• Metal parts of other keys or metal
objects touch the key grip.
• Spare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
• Devices for electronic purchases, or
security passage touch or come near
the key.
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 24 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-25
Knowing Your Mazda
Security System
Form No. 8S18-EA-03I

Operation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn
’t start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
• (U.S.A.)

This device complies with part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2)
this device must accept any
interference received, including
interference that may cause
undesired operation.
• (CANADA)

This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may
cause undesired operation of the
device.
J48C_8S18-EA-03I_Edition3.book Page 25 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-26
Knowing Your Mazda
Security System
Form No. 8S18-EA-03I

Maintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.

Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system
’s operation if the system has been
modified or if any add-on equipment has
been installed to it.
NOTE
• If the security indicator light comes
on and stays on when the ignition
switch is turned to the ON position,
the engine will not start.
• Signals from a TV or radio station,
or from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are
using the proper key and your
engine fails to start, check the
security indicator light. If it is
flashing, remove the ignition key
and wait 2 seconds or more, then
reinsert it and try starting the engine
again. If it doesn
’t start after 3 or
more tries, contact an Authorized
Mazda Dealer.
• If the security indicator light flashes
continuously while you are driving,
don’
t shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the
engine while the light is flashing
you won ’t be able to restart it.
• Since the electronic codes are reset
when repairing the immobilizer
system, the keys are needed. Bring
all the existing keys to the
Authorized Mazda Dealer.
NOTE
•The keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
• Always keep a spare key, in case
one is lost. If a key is lost, contact
an Authorized Mazda Dealer as
soon as possible.
• If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to the
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 26 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-27
Knowing Your Mazda
Security System
Form No. 8S18-EA-03I
The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all the
doors, hood, and trunk lid/liftgate are
locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.

Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 3
minutes when the system is triggered by
any one of the following:
• Forcing open a door, the hood or the
trunk lid/liftgate.
• Opening a door, the hood or the trunk
lid by operating an inside door-lock
knob, the hood release handle or the
trunk lid release lever.
If the system is triggered again, the lights
and horn will activate until a door or the
trunk lid is unlocked with the key or with
the transmitter.

How to Arm the System
1. Remove the key from the ignition
switch.
2. Close the hood. Then close and lock all doors and the trunk lid/liftgate from the
outside using the key. If you have the
keyless entry system, press the LOCK
button on the transmitter. The hazard
warning lights will flash once to
indicate that the system is armed.
The following method will also arm the
theft-deterrent system:
Close the hood and the trunk lid/
liftgate . Press the area on the door-lock
switch marked "LOCK" once. Close all
doors.
Theft-Deterrent System*
NOTE
•The theft-deterrent system operates
with the key or the keyless entry
system transmitter.
• The system will not function unless
it is properly armed. To properly
secure the vehicle, always make
sure all the windows are completely
closed and all doors and the liftgate
are locked before leaving the
vehicle. Remember to take your key
and transmitter.
NOTE
Locking the doors with the inside
door-lock knob will not arm the
system.
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 27 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-28
Knowing Your Mazda
Security System
Form No. 8S18-EA-03I

To Tu r n o f f a n A r m e d S y s t e m
An armed system can be turned off by any
one of the following methods:
• Unlock a door or the trunk lid with the
key.
• Press the UNLOCK button on the
keyless entry system transmitter.
• Insert the key into the ignition switch
and turn it to the ON position.


To Stop an Alarm
A triggered alarm can be turned off by any
one of the following methods:
• Unlock a door or the trunk lid with the
key.
• Press the UNLOCK button on the
keyless entry system transmitter.


Theft-Deterrent Labels
Labels indicating that your vehicle is
equipped with a Theft-Deterrent System
are in the glove box.
Mazda recommends that you affix them to
the lower rear corner of the front door
windows.
NOTE
If you have any problem with the theft-
deterrent system, consult an
Authorized Mazda Dealer.
J48C_8S18-EA-03I_Edition3.book Page 28 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

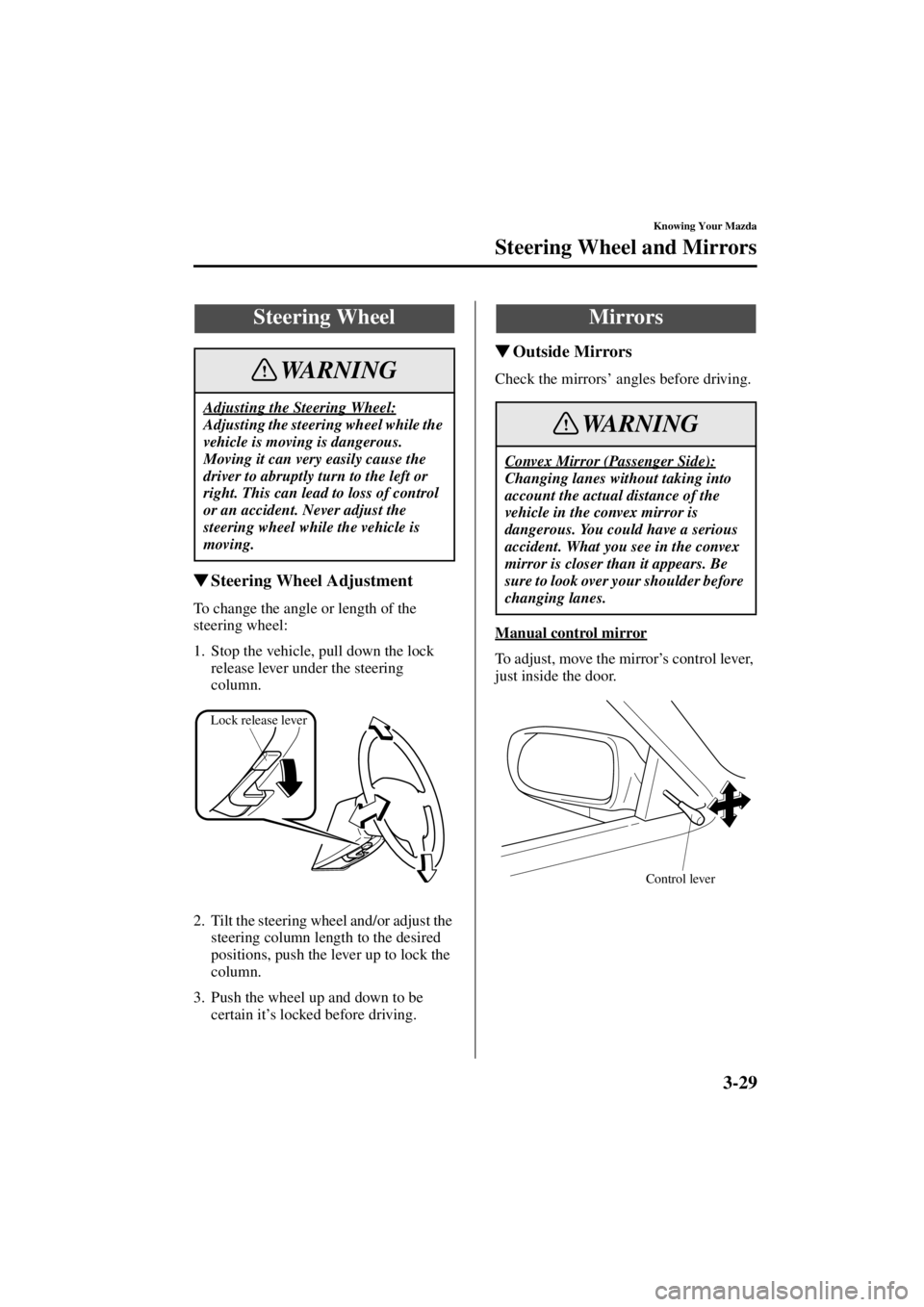

3-29
Knowing Your Mazda
Form No. 8S18-EA-03I
Steering Wheel and Mirrors

Steering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
2. Tilt the steering wheel and/or adjust the steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be certain it ’s locked before driving.

Outside Mirrors
Check the mirrors
’ angles before driving.
Manual control mirror
To adjust, move the mirror ’s control lever,
just inside the door.
Steering Wheel
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
WARNING
Lock release lever
Mirrors
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
WARNING
Control lever
J48C_8S18-EA-03I_Edition3.book Page 29 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-30
Knowing Your Mazda
Steering Wheel and Mirrors
Form No. 8S18-EA-03I
Power control mirror
The ignition switch must be in the ACC or
ON position.
To a d j u s t :
1. Move the selector switch to the left or right to choose the left or right side
mirror.
2. Depress the mirror switch in the appropriate direction.
After adjusting the mirror, lock the
control by moving the selector switch to
the middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle. Mirror defroster*
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-52).
Mirror switch
Outside mirror
Selector switch
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the
outside mirrors to the driving position
before you start driving.
WARNING
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 30 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-31
Knowing Your Mazda
Steering Wheel and Mirrors
Form No. 8S18-EA-03I

Rearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don
’t stack
things higher than the seatbacks.
Day/Night lever
Day Night
WARNING
J48C_8S18-EA-03I_Edition3.book Page 31 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-32
Form No. 8S18-EA-03I
J48C_8S18-EA-03I_Edition3.book Page 32 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI
