MAZDA MODEL 3 4-DOOR 2004 Owners Manual

4-11
Before Driving Your Mazda
Driving Tips
Form No. 8S18-EA-03I

Tire Chains
Check local regulations before using tire
chains.
Install the chains on the front tires.
Don
’t use chains on the rear tires.
Use only SAE Class "S" chains, and make
sure they fit. Installing the chains1. Secure the chains on the front tires as
tightly as possible. Always follow the
chain manufacturer ’s instructions.
2. Retighten the chains after driving
1/2 —1 km (1/4 —1/2 mile).
•Chains may scratch or chip
aluminum wheels. Install tire chains
on steel wheels only.
• Chains may affect handling.
• Don
’t go faster than 50 km/h (30
mph) or the chain manufacturer ’s
recommended limit, whichever is
lower.
• Drive carefully and avoid bumps,
holes, and sharp turns.
• Avoid locked-wheel braking.
• Don
’t use chains on a temporary
spare tire; it may result in damage to
the vehicle and to the tire.
• Don
’t use chains on roads that are
free of snow or ice. The tires and
chains could be damaged.
NOTE
If your vehicle is equipped with the tire
pressure monitoring system, the
system may not function correctly
when using tire chains.
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 11 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-12
Before Driving Your Mazda
Driving Tips
Form No. 8S18-EA-03I
Driving In Flooded Area
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance
returns to normal.
Make sure water does not enter the
vehicle interior or the engine area. The
vehicle interior could become wet or
the engine could be damaged.
WARNING
CAUTION
Overloading
Vehicle Load Weight:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of your vehicle are on the
Motor Vehicle Safety Standard Label
on the driver’s door frame. Exceeding
these ratings can cause an accident or
vehicle damage. You can estimate the
weight of your load by weighing the
items (or people) before putting them
in the vehicle. Be careful not to
overload your vehicle.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 12 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-13
Before Driving Your Mazda
Form No. 8S18-EA-03I
To w i n g
Never tow a trailer with your Mazda.
Trailer Towing
J48C_8S18-EA-03I_Edition3.book Page 13 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-14
Form No. 8S18-EA-03I
J48C_8S18-EA-03I_Edition3.book Page 14 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-1
Form No. 8S18-EA-03I
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-3
Brake System ............................................................................. 5-4
Manual Transaxle Operation ..................................................... 5-9
Automatic Transaxle Controls ................................................. 5-10
Power Steering ......................................................................... 5-17
Cruise Control* ....................................................................... 5-18
Tire Pressure Monitoring System* .......................................... 5-22
Instrument Cluster and Indicators ............................................ 5-26
Meters and Gauges .................................................................. 5-26
Warning/Indicator Lights and Beep Sounds ............................ 5-31
Warning/Indicator Lights ......................................................... 5-31
Beep Sounds ............................................................................ 5-42
Switches and Controls ................................................................. 5-44
Lighting Control ...................................................................... 5-44
Turn and Lane-Change Signals ............................................... 5-47
Fog Lights* .............................................................................. 5-48
Windshield Wipers and Washer ............................................... 5-48
Rear Window Wiper and Washer (5 Door) .............................. 5-51
Rear Window Defroster ........................................................... 5-52
Horn ......................................................................................... 5-53
Hazard Warning Flasher .......................................................... 5-53
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 1 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

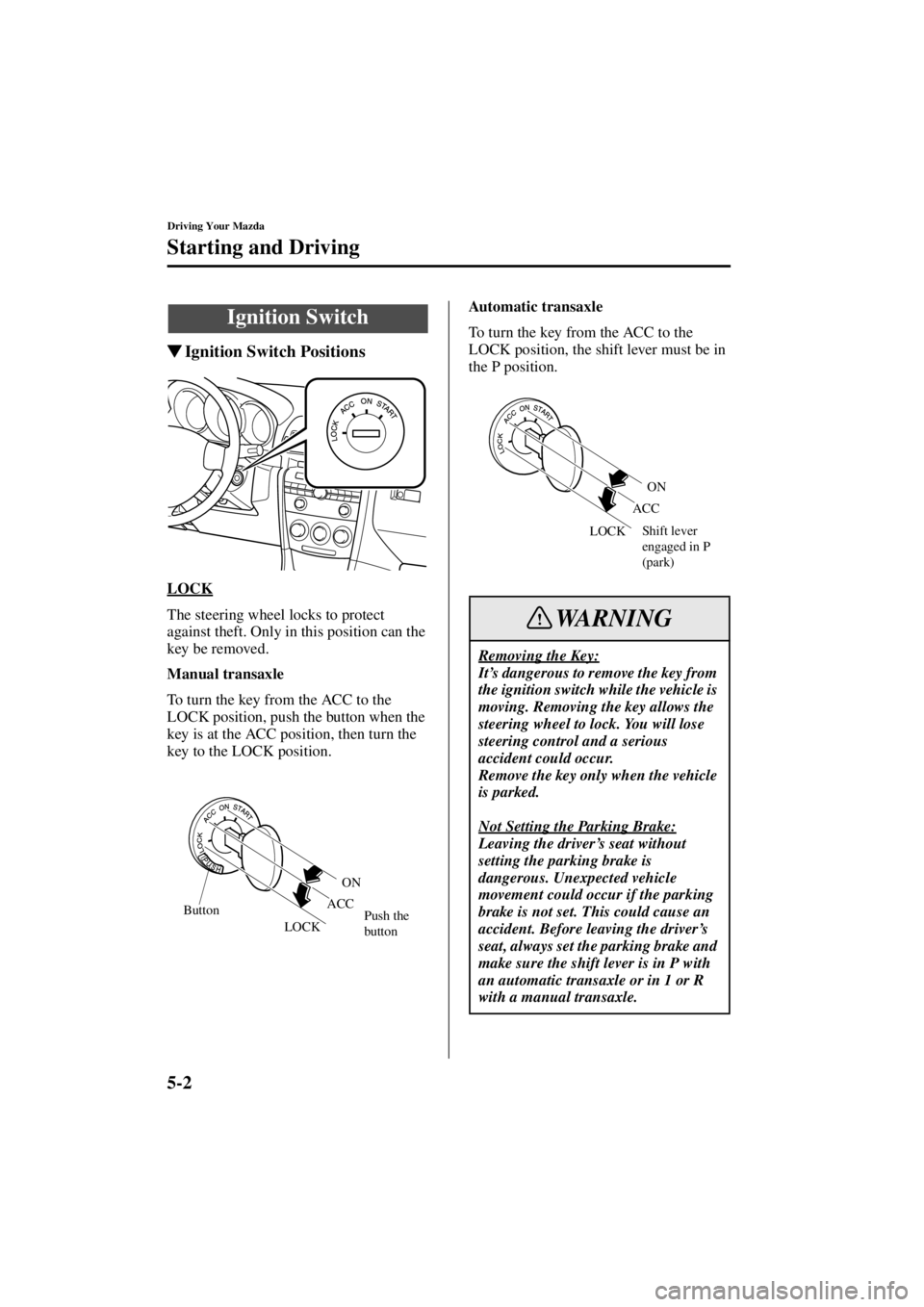

5-2
Driving Your Mazda
Form No. 8S18-EA-03I
Starting and Driving

Ignition Switch Positions
LOCK
The steering wheel locks to protect
against theft. Only in this position can the
key be removed.
Manual transaxle
To turn the key from the ACC to the
LOCK position, push the button when the
key is at the ACC position, then turn the
key to the LOCK position. Automatic transaxle
To turn the key from the ACC to the
LOCK position, the shift lever must be in
the P position.
Ignition Switch
LOCK
ACC
ON
Button
Push the
button
Removing the Key:
It’s dangerous to remove the key from
the ignition switch while the vehicle is
moving. Removing the key allows the
steering wheel to lock. You will lose
steering control and a serious
accident could occur.
Remove the key only when the vehicle
is parked.
Not Setting the Parking Brake:
Leaving the driver ’s seat without
setting the parking brake is
dangerous. Unexpected vehicle
movement could occur if the parking
brake is not set. This could cause an
accident. Before leaving the driver ’s
seat, always set the parking brake and
make sure the shift lever is in P with
an automatic transaxle or in 1 or R
with a manual transaxle.
LOCK Shift lever
engaged in P
(park)
ACC
ON
WARNING
J48C_8S18-EA-03I_Edition3.book Page 2 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-3
Driving Your Mazda
Starting and Driving
Form No. 8S18-EA-03I
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-31).
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-31).

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep sound will be heard
when the driver
’s door is opened. 1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4. (Manual transaxle)

Depress the clutch pedal all the way
and shift into neutral.
Keep the pedal depressed while
cranking the engine.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
If turning the key is difficult, jiggle the
steering wheel from side to side.
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
Starting the Engine
NOTE
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
NOTE
(Manual transaxle)
The starter will not operate if the
clutch pedal is not
pushed down all the
way.
(Automatic transaxle)
The starter will not operate if the shift
lever is not
in P or N.
J48C_8S18-EA-03I_Edition3.book Page 3 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-4
Driving Your Mazda
Starting and Driving
Form No. 8S18-EA-03I
5. Turn the ignition switch to the START position and hold (up to 10 seconds at a
time) until the engine starts.
6. After starting the engine, let it idle for about 10 seconds.

Foot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.
Don
’t try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the
battery.
NOTE
• In extremely cold weather, below
–
18
°C (0
°F), or after the vehicle has
not been driven in several days, let
the engine warm up without
operating the accelerator.
• Whether the engine is cold or warm,
it should be started without use of
the accelerator.
CAUTION
Brake System
Coasting with the Engine Off:
Continuing to coast when the engine
is stalled or turned off is dangerous.
Braking will require more effort, and
the brake
’s power-assist could be
depleted if you pump the brake. This
will cause longer stopping distances
or even an accident. Don ’t continue
coasting when the engine is stalled or
turned off, find a safe place to stop.
Riding the Brakes:
Driving with your foot continuously
on the brake pedal or steadily
applying the brakes for long distances
is dangerous. This causes overheated
brakes, resulting in longer stopping
distances or even total brake failure.
This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.
Shift to a lower gear when going
down steep hills.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 4 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-5
Driving Your Mazda
Starting and Driving
Form No. 8S18-EA-03I

Parking Brake
Setting the parking brake
Depress the brake pedal, then pull the
brake handle fully upward.
Releasing the parking brake
Depress the brake pedal, then pull the
handle up and press the button. Lower the
handle all the way down while holding in
the button.
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance is
normal.
Driving with the parking brake on will
cause excessive wear of the brake
linings or pads.
NOTE
For parking in snow, refer to Winter
Driving (page 4-9) regarding parking
brake use.
WARNING
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 5 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-6
Driving Your Mazda
Starting and Driving
Form No. 8S18-EA-03I

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-18).
2. After adding fluid, check the light again. If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-35).Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, after checking that
the parking brake is fully released,
have the brakes inspected
immediately. Don
’t drive with this
light on, and contact an Authorized
Mazda Dealer to have the brakes
inspected as soon as possible.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 6 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI
