MAZDA MODEL 3 4-DOOR 2004 Owners Manual

4-1
Form No. 8S18-EA-03I

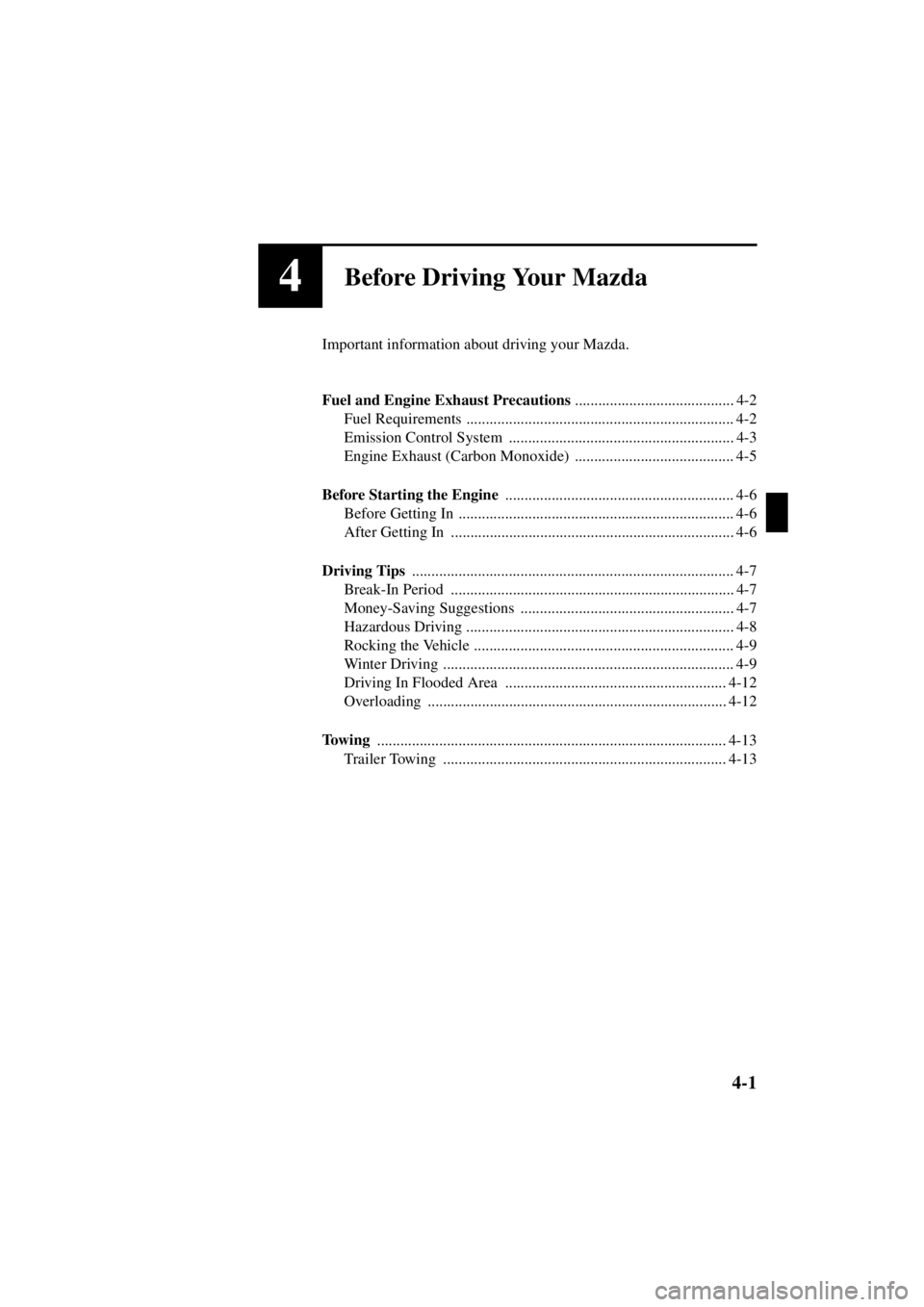

4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ......................................... 4-2
Fuel Requirements ..................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6
Before Getting In ....................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7
Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ....................................................... 4-7
Hazardous Driving ..................................................................... 4-8
Rocking the Vehicle ................................................................... 4-9
Winter Driving ........................................................................... 4-9
Driving In Flooded Area ......................................................... 4-12
Overloading ............................................................................. 4-12
To w i n g .......................................................................................... 4-13
Trailer Towing ......................................................................... 4-13
J48C_8S18-EA-03I_Edition3.book Page 1 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-2
Before Driving Your Mazda
Form No. 8S18-EA-03I
Fuel and Engine Exhaust Precautions
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
*U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control
system to lose effectiveness. It could also cause engine knocking and serious engine
damage.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name "Gasohol".
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
• Gasohol containing more than 10% ethanol.
• Gasoline or gasohol containing methanol.
• Leaded fuel or leaded gasohol.
Fuel Requirements
Fuel
Octane Rating* (Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
•USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter or the oxygen sensor. The lead will
accumulate on the oxygen sensor and the catalyst inside the converter. This will result
in a malfunction of the emission control system, causing poor performance.
• Your vehicle can only use oxygenated fuels containing no more than 10% ethanol by
volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of any
kind if your vehicle engine is performing poorly.
• Never add fuel system additives. Never add cleaning agents other than those specified
by Mazda. Other cleaning agents and additives may damage the system. Consult an
Authorized Mazda Dealer.
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 2 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-3
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8S18-EA-03I
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
Emission Control System
Parking Over Flammable Objects:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system could ignite it because the exhaust system
gets very hot during normal use. A resulting fire could cause serious injury or death.
Never park over or near anything flammable.
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
•USE ONLY UNLEADED FUEL.
• Don
’t drive your Mazda with any sign of engine malfunction.
• Don
’t coast with the ignition switch turned off.
• Don
’t descend steep grades in gear with the ignition switch turned off.
• Don
’t operate the engine at high idle for more than 5 minutes.
• Don
’t tamper with the emission control system. All inspections and adjustments must
be made by a qualified technician.
• Don
’t try to push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control
system before the first sale and registration of a vehicle is subject to penalties. In some
states, such modification made on a used vehicle is also subject to penalties.
WARNING
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 3 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8S18-EA-03I
NOTE
After driving some distance and turning off the engine, the sound of a valve opening and
closing can be heard at the rear of the right side of the vehicle, however this does not
indicate an abnormality. Your vehicle has a self-checking device and it operates after
turning off the engine.
J48C_8S18-EA-03I_Edition3.book Page 4 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-5
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8S18-EA-03I
Engine Exhaust (Carbon Monoxide)
Carbon Monoxide:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Exhaust Gas in Enclosed Area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur. Don’t run the engine when inside an
enclosed area.
Idling with the Windows Closed:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed and
the engine running for a long time even in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even
death could occur. Open the windows or adjust the heating or cooling system to draw
fresh air.
Snow Blocking the Exhaust Gas:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, anyone in the cabin could be
injured or killed. Clear the snow from underneath and around your vehicle,
particularly the tail pipe, before starting the engine.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 5 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-6
Before Driving Your Mazda
Form No. 8S18-EA-03I
Before Starting the Engine
•Be sure the windows, outside mirrors,
and outside lights are clean.
• Inspect inflation pressures and
condition of tires.
• Look under the vehicle for any sign of
a leak.
• If you plan to back up, make sure
nothing will be in your way. •
Are all doors closed and locked?
• Is the seat adjusted properly?
• Are the inside and outside mirrors
adjusted?
• Is everyone’
s seat belt fastened?
• Check all gauges.
• Check all warning lights when the
ignition switch is turned to the ON
position.
• Release the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake/
clutch fluid, washer fluid, and other
fluid levels should be inspected. See
Maintenance, Section 8.
After Getting In
J48C_8S18-EA-03I_Edition3.book Page 6 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-7
Before Driving Your Mazda
Form No. 8S18-EA-03I
Driving Tips
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
•Don
’t race the engine.
• Don
’t maintain one constant speed,
either slow or fast, for a long period of
time.
• Don
’t drive constantly at full-throttle or
high engine rpm for extended periods
of time.
• Avoid unnecessary hard stops.
• Avoid full-throttle starts. How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
•
Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
• Avoid fast starts.
• Keep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
• Use the air conditioner only when
necessary.
• Slow down on rough roads.
• Keep the tires properly inflated.
• Don
’t carry unnecessary weight.
• Don
’t rest your foot on the brake pedal
while driving.
• Keep the wheels in correct alignment.
• Keep windows closed at high speeds.
• Slow down when driving in crosswinds
and headwinds.
Break-In PeriodMoney-Saving Suggestions
Coasting:
Stopping the engine when going down
a hill is dangerous. This causes the
loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident. Never stop the engine when
going down a hill.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 7 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-8
Before Driving Your Mazda
Driving Tips
Form No. 8S18-EA-03I
When driving on ice or in water, snow,
mud, sand, or similar hazard:
•Be cautious and allow extra distance
for braking.
• Avoid sudden braking and quick
steering.
• If your vehicle is not equipped with
ABS, brake with the pedal by using a
light up-down motion. Don
’t hold the
pedal down constantly.
If your vehicle is equipped with ABS,
don ’t pump the brakes. Continue to
press down on the brake pedal.
• If you get stuck, select a lower gear and
accelerate slowly. Don
’t spin the front
wheels.
• For more traction in starting on
slippery surfaces such as ice or packed
snow, use sand, rock salt, chains,
carpeting, or other nonslip material
under the front wheels.
Hazardous Driving
Downshifting on Slippery Surfaces:
Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident. If it is
necessary to downshift on slippery
surfaces, be very careful.
WARNING
NOTE
Use snow chains only on the front
wheels.
J48C_8S18-EA-03I_Edition3.book Page 8 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8S18-EA-03I
If you must rock the vehicle to free it from
snow, sand, or mud, depress the
accelerator slightly and slowly move the
shift lever from 1 (D) to R.•
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
• Have the proper ratio of antifreeze in
the radiator.
• Inspect the battery and its cables. Cold
reduces battery capacity.
• Inspect the ignition system for damage
and loose connections.
• Use washer fluid made with
antifreeze—but don
’t use engine
coolant antifreeze for washer fluid
(page 8-21).
• Don
’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transaxle and to 1 or R with
a manual transaxle. Block the rear
wheels.
Rocking the Vehicle
Spinning the Wheels:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries. Don ’t spin the wheels at
more than 56 km/h (35 mph), and
don ’t allow anyone to stand behind a
wheel when pushing the vehicle.
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
WARNING
CAUTION
Winter Driving
J48C_8S18-EA-03I_Edition3.book Page 9 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

4-10
Before Driving Your Mazda
Driving Tips
Form No. 8S18-EA-03I

Snow Tires
Use snow tires on all four wheels
Don
’t go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm
2, 4.3 psi)
more than recommended on the tire
pressure label (driver’ s door), but never
more than the maximum cold-tire
pressure shown on the tires. Except Brazil
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
Brazil
Your vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, you may find it necessary
to replace the original equipment tires
with snow tires, during the winter months.
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle
’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
NOTE
If your vehicle is equipped with the tire
pressure monitoring system, the system
may not function correctly when using
tires with steel wire reinforcement in
the sidewalls (page 5-24).
WARNING
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 10 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI
