MAZDA MODEL 3 4-DOOR 2011 Owners Manual
Manufacturer: MAZDA, Model Year: 2011, Model line: MODEL 3 4-DOOR, Model: MAZDA MODEL 3 4-DOOR 2011Pages: 514, PDF Size: 6.58 MB
Page 421 of 514

Black plate (421,1)

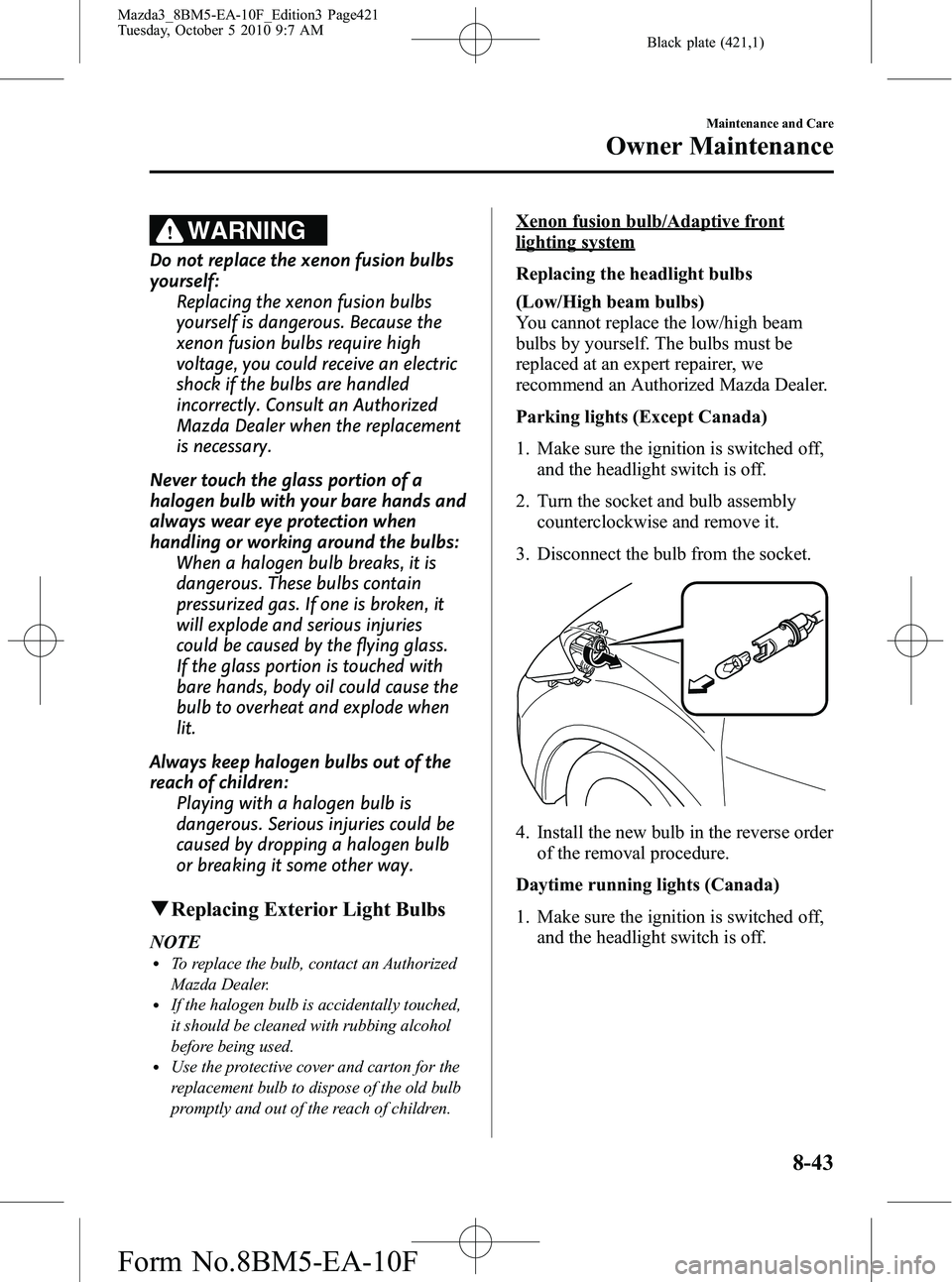

WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Xenon fusion bulb/Adaptive front
lighting system
Replacing the headlight bulbs
(Low/High beam bulbs)
You cannot replace the low/high beam
bulbs by yourself. The bulbs must be
replaced at an expert repairer, we
recommend an Authorized Mazda Dealer.
Parking lights (Except Canada)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of the removal procedure.
Daytime running lights (Canada)
1. Make sure the ignition is switched off, and the headlight switch is off.
Maintenance and Care
Owner Maintenance
8-43
Mazda3_8BM5-EA-10F_Edition3 Page421
Tuesday, October 5 2010 9:7 AM
Form No.8BM5-EA-10F
Page 422 of 514

Black plate (422,1)

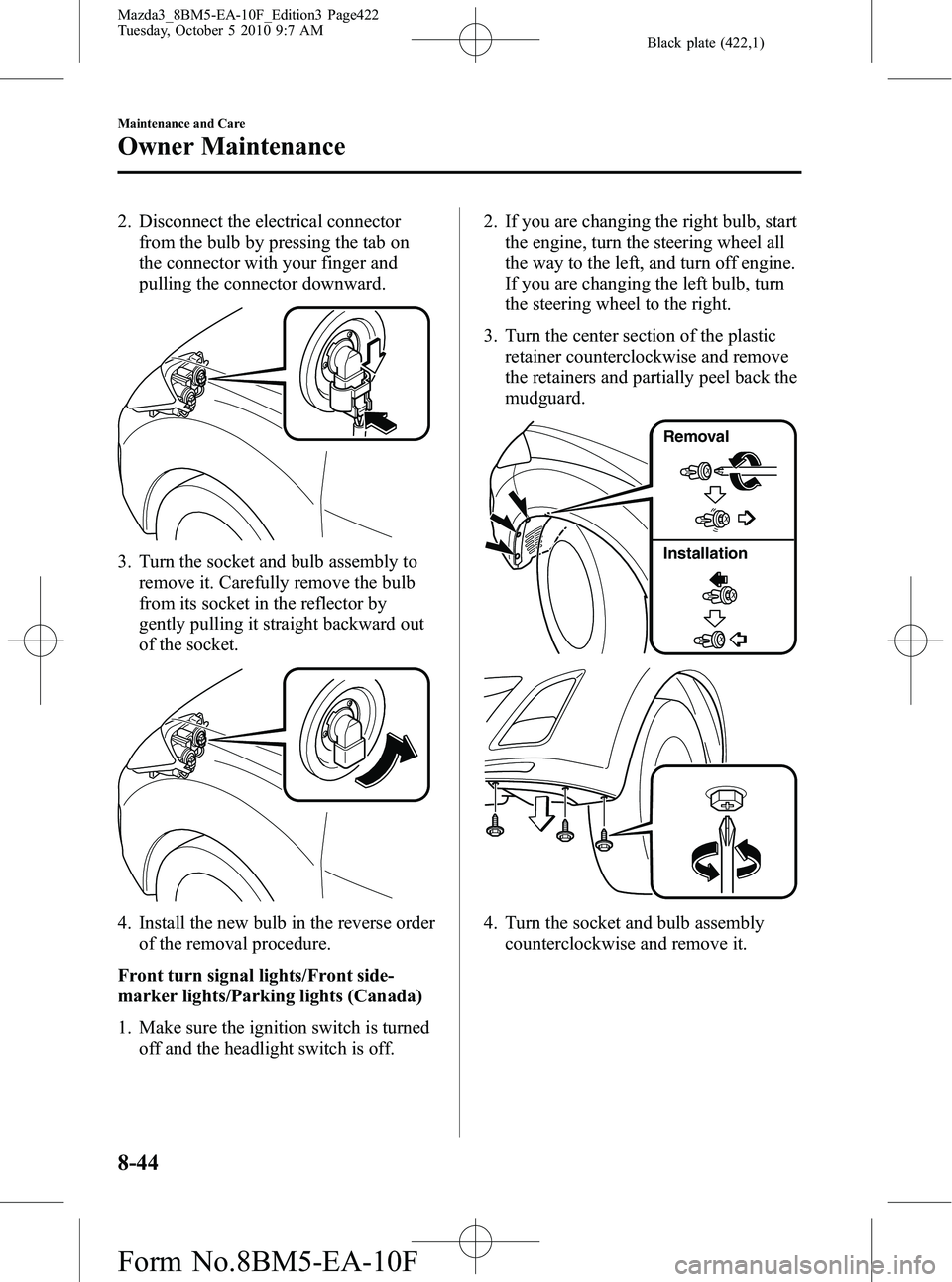

2. Disconnect the electrical connectorfrom the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
3. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Install the new bulb in the reverse order
of the removal procedure.
Front turn signal lights/Front side-
marker lights/Parking lights (Canada)
1. Make sure the ignition switch is turned off and the headlight switch is off. 2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Turn the center section of the plastic retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Installation Removal
4. Turn the socket and bulb assembly
counterclockwise and remove it.
8-44
Maintenance and Care
Owner Maintenance
Mazda3_8BM5-EA-10F_Edition3 Page422
Tuesday, October 5 2010 9:7 AM
Form No.8BM5-EA-10F
Page 423 of 514

Black plate (423,1)

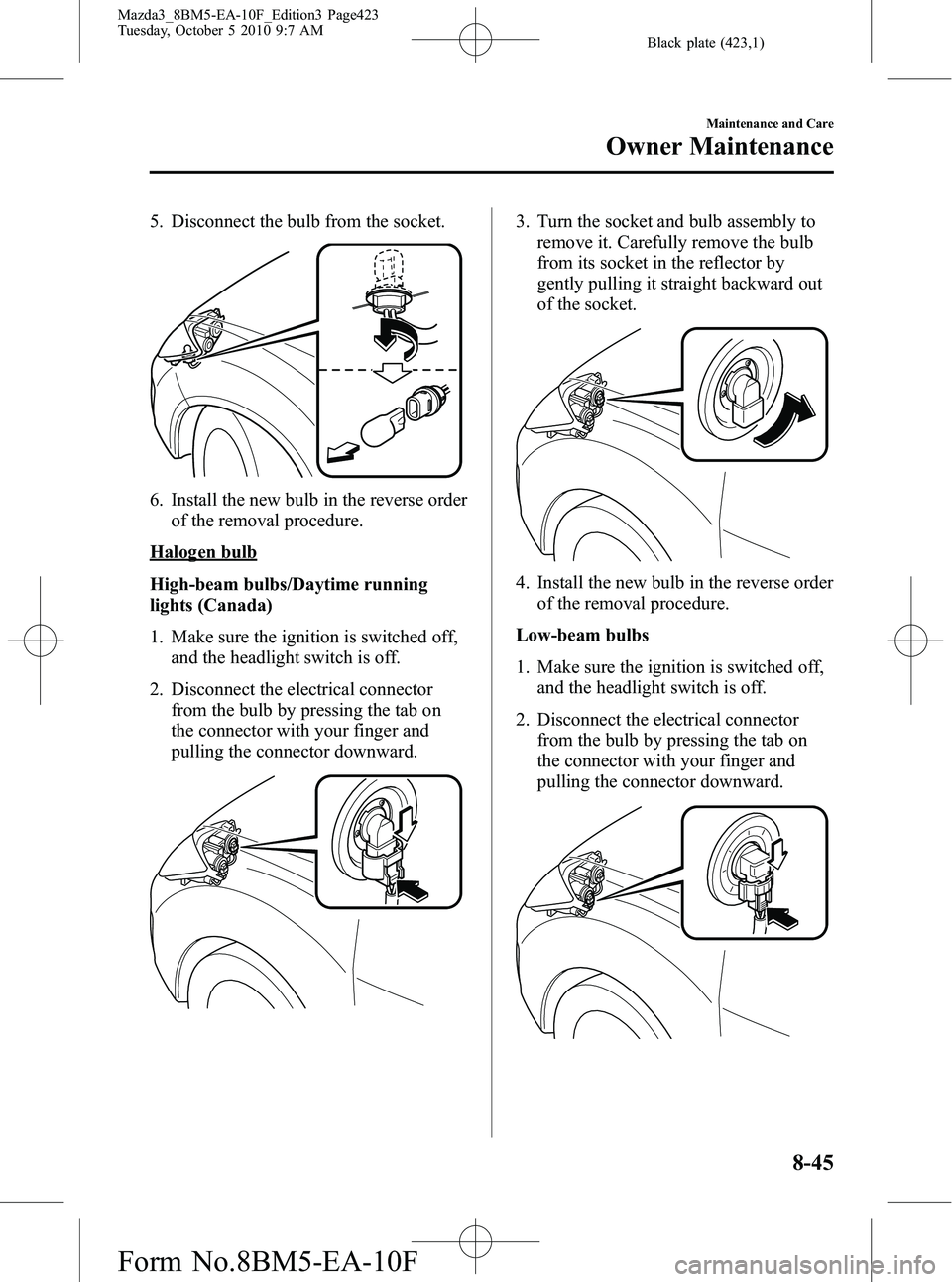

5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse orderof the removal procedure.
Halogen bulb
High-beam bulbs/Daytime running
lights (Canada)
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Disconnect the electrical connector from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
3. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Install the new bulb in the reverse order
of the removal procedure.
Low-beam bulbs
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Disconnect the electrical connector from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
Maintenance and Care
Owner Maintenance
8-45
Mazda3_8BM5-EA-10F_Edition3 Page423
Tuesday, October 5 2010 9:7 AM
Form No.8BM5-EA-10F
Page 424 of 514

Black plate (424,1)

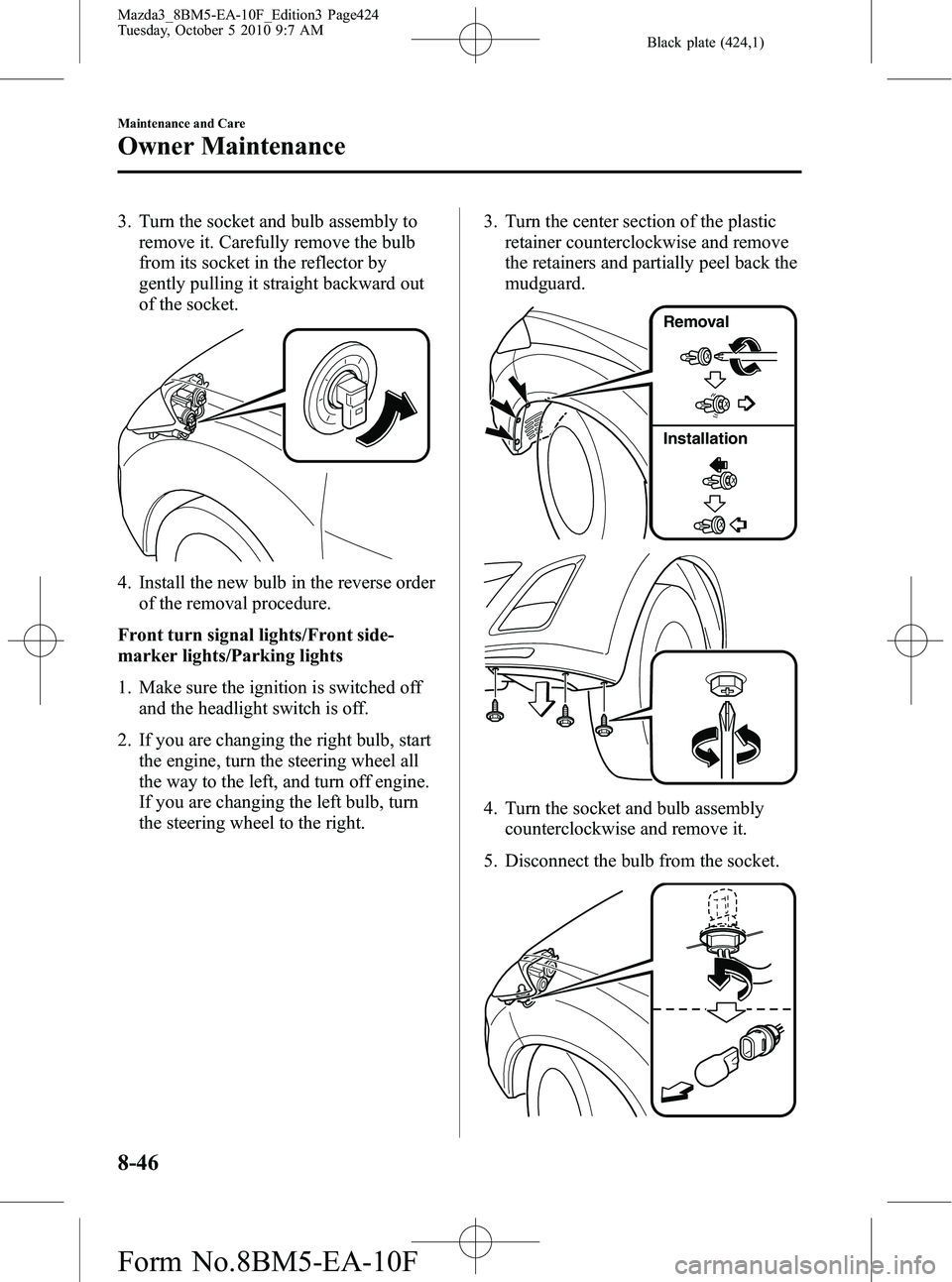

3. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Install the new bulb in the reverse order
of the removal procedure.
Front turn signal lights/Front side-
marker lights/Parking lights
1. Make sure the ignition is switched off and the headlight switch is off.
2. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right. 3. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Installation Removal
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
8-46
Maintenance and Care
Owner Maintenance
Mazda3_8BM5-EA-10F_Edition3 Page424
Tuesday, October 5 2010 9:7 AM
Form No.8BM5-EA-10F
Page 425 of 514

Black plate (425,1)

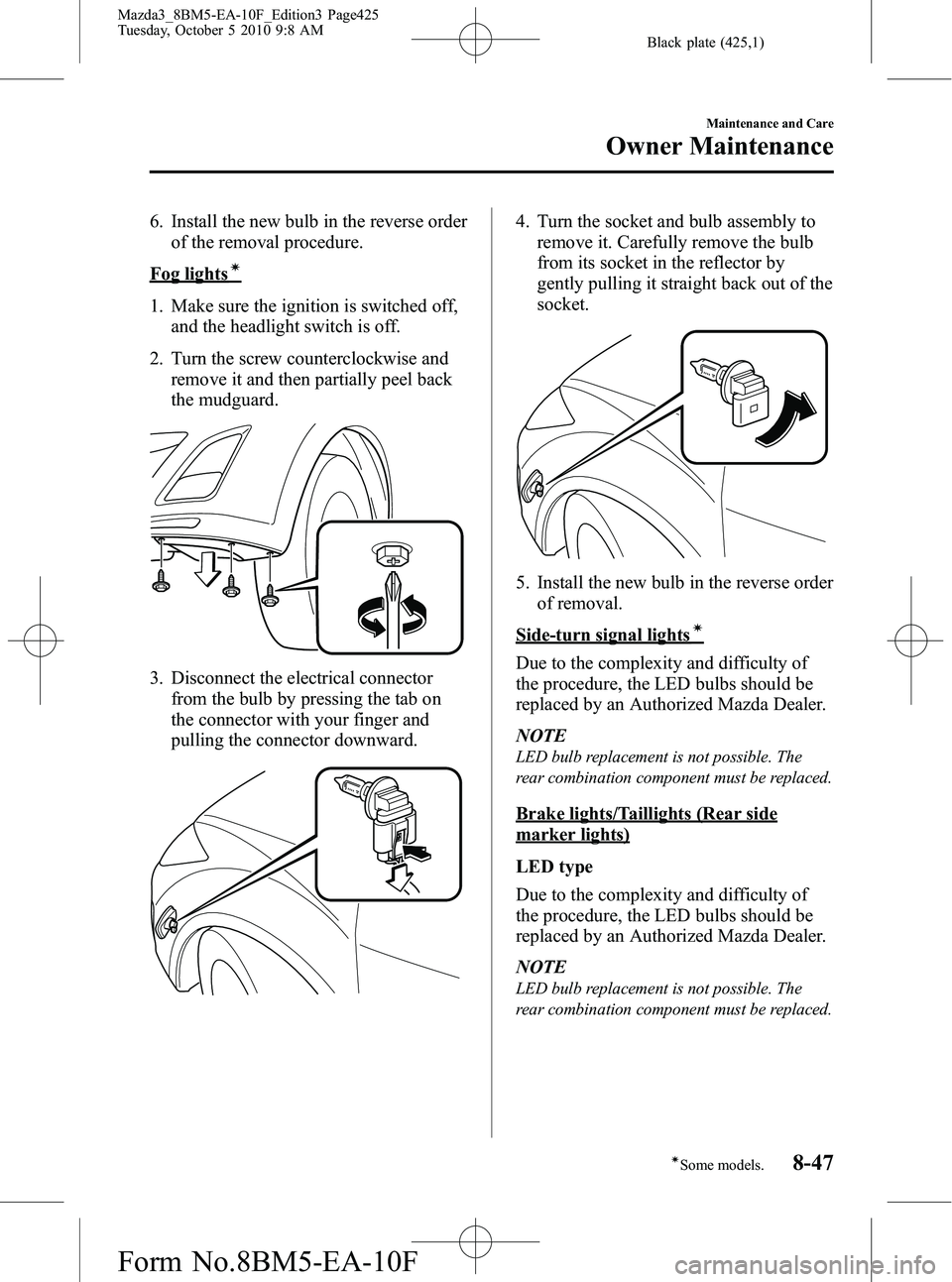

6. Install the new bulb in the reverse orderof the removal procedure.
Fog lightsí
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Turn the screw counterclockwise and remove it and then partially peel back
the mudguard.
3. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
4. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight back out of the
socket.
5. Install the new bulb in the reverse order
of removal.
Side-turn signal lightsí
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
Brake lights/Taillights (Rear side
marker lights)
LED type
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
Maintenance and Care
Owner Maintenance
8-47íSome models.
Mazda3_8BM5-EA-10F_Edition3 Page425
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
Page 426 of 514

Black plate (426,1)

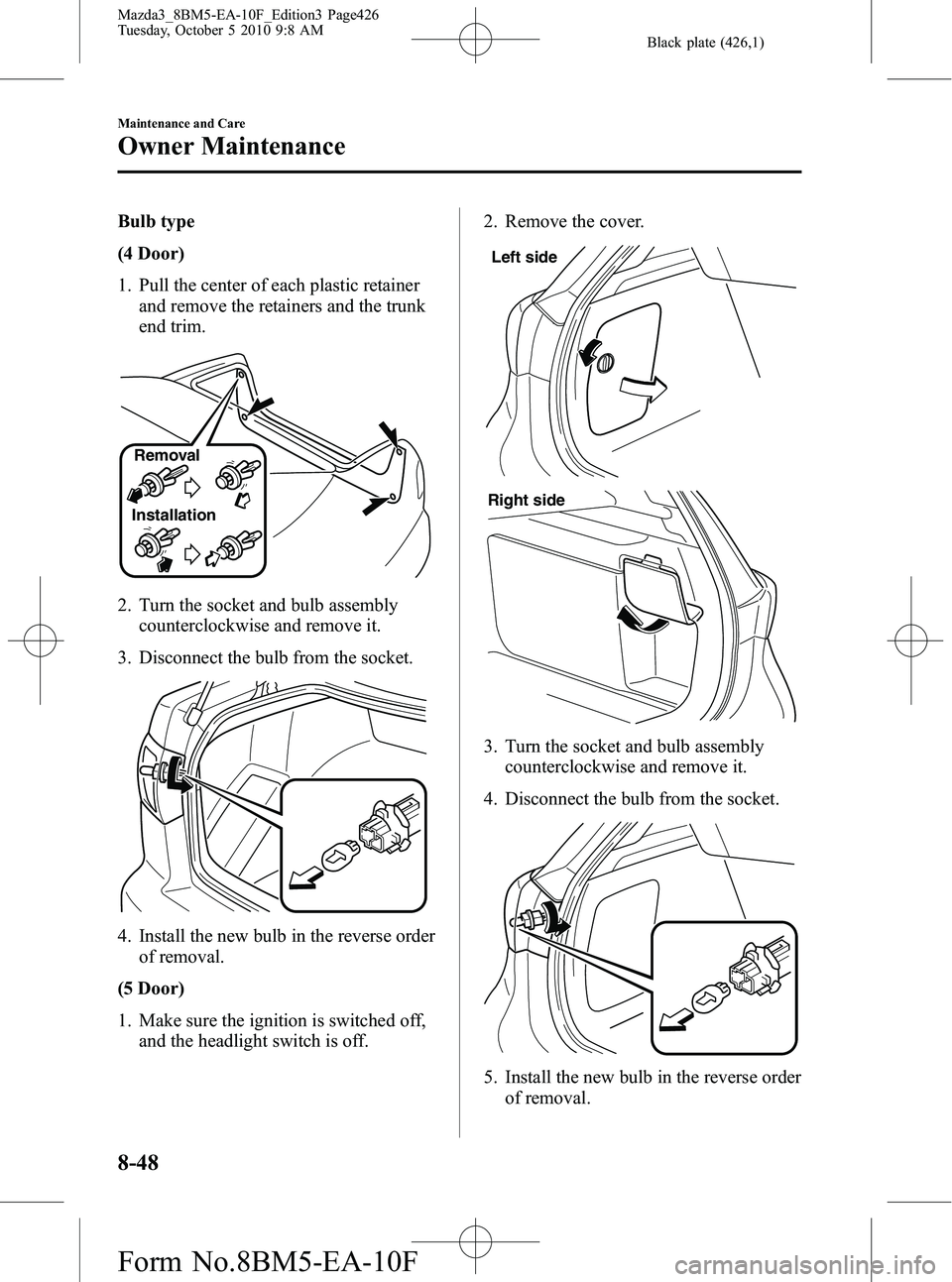

Bulb type
(4 Door)
1. Pull the center of each plastic retainerand remove the retainers and the trunk
end trim.
InstallationRemoval
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
(5 Door)
1. Make sure the ignition is switched off, and the headlight switch is off. 2. Remove the cover.
Left side
Right side
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
8-48
Maintenance and Care
Owner Maintenance
Mazda3_8BM5-EA-10F_Edition3 Page426
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
Page 427 of 514

Black plate (427,1)

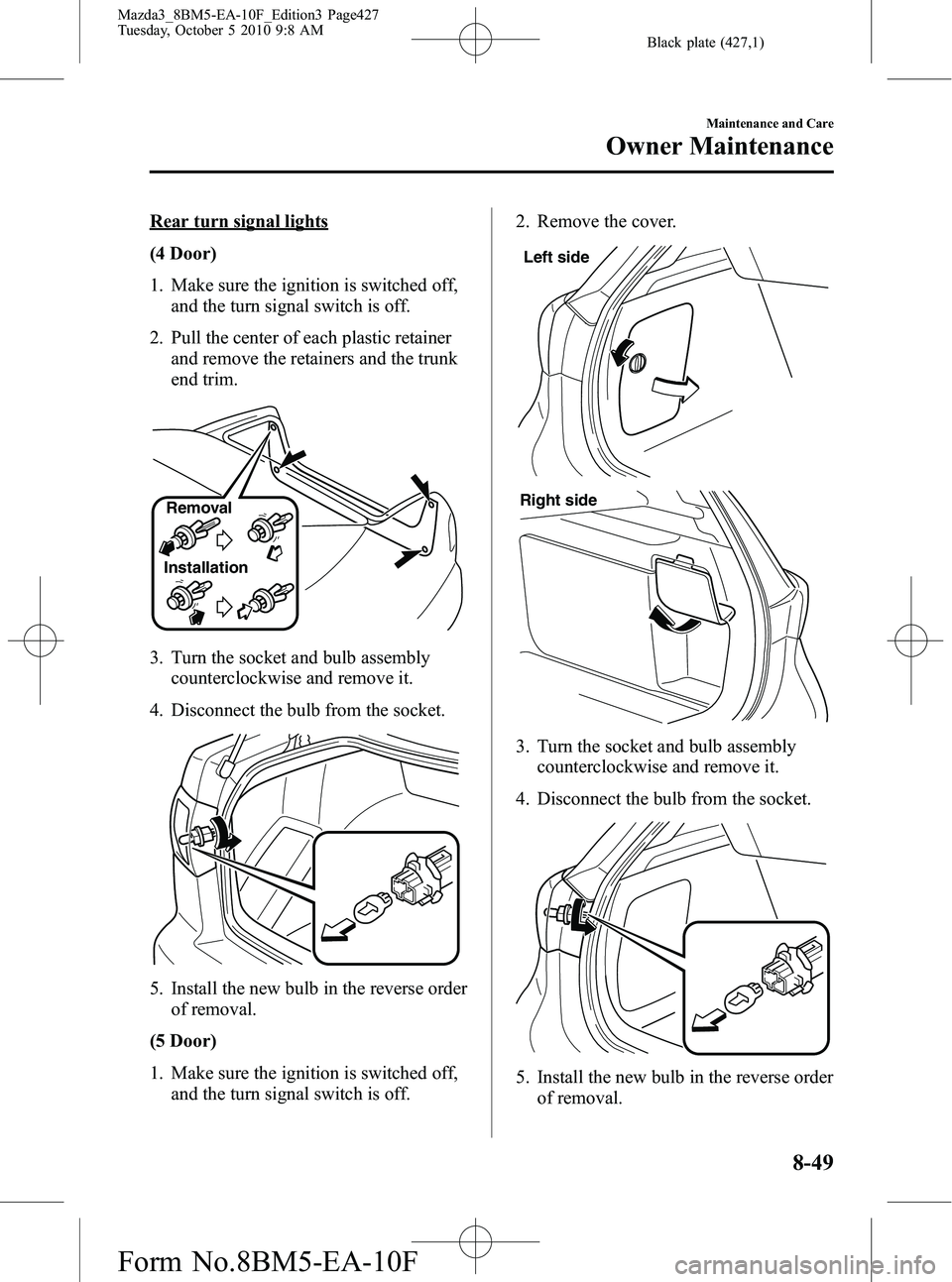

Rear turn signal lights
(4 Door)
1. Make sure the ignition is switched off,and the turn signal switch is off.
2. Pull the center of each plastic retainer and remove the retainers and the trunk
end trim.
InstallationRemoval
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
(5 Door)
1. Make sure the ignition is switched off, and the turn signal switch is off. 2. Remove the cover.
Left side
Right side
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-49
Mazda3_8BM5-EA-10F_Edition3 Page427
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
Page 428 of 514

Black plate (428,1)

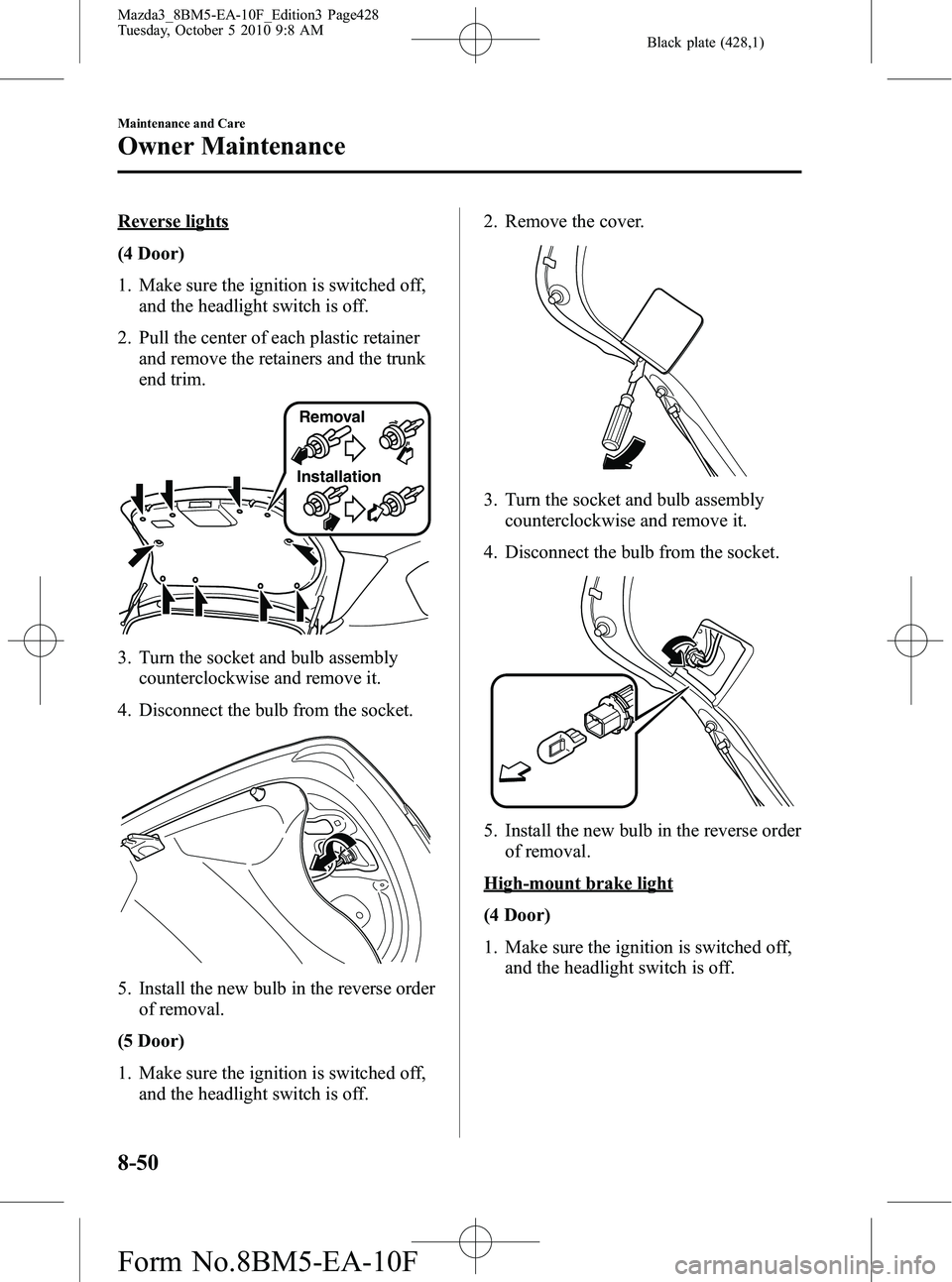

Reverse lights
(4 Door)
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Pull the center of each plastic retainer and remove the retainers and the trunk
end trim.
InstallationRemoval
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
(5 Door)
1. Make sure the ignition is switched off, and the headlight switch is off. 2. Remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
High-mount brake light
(4 Door)
1. Make sure the ignition is switched off,and the headlight switch is off.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8BM5-EA-10F_Edition3 Page428
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
Page 429 of 514

Black plate (429,1)

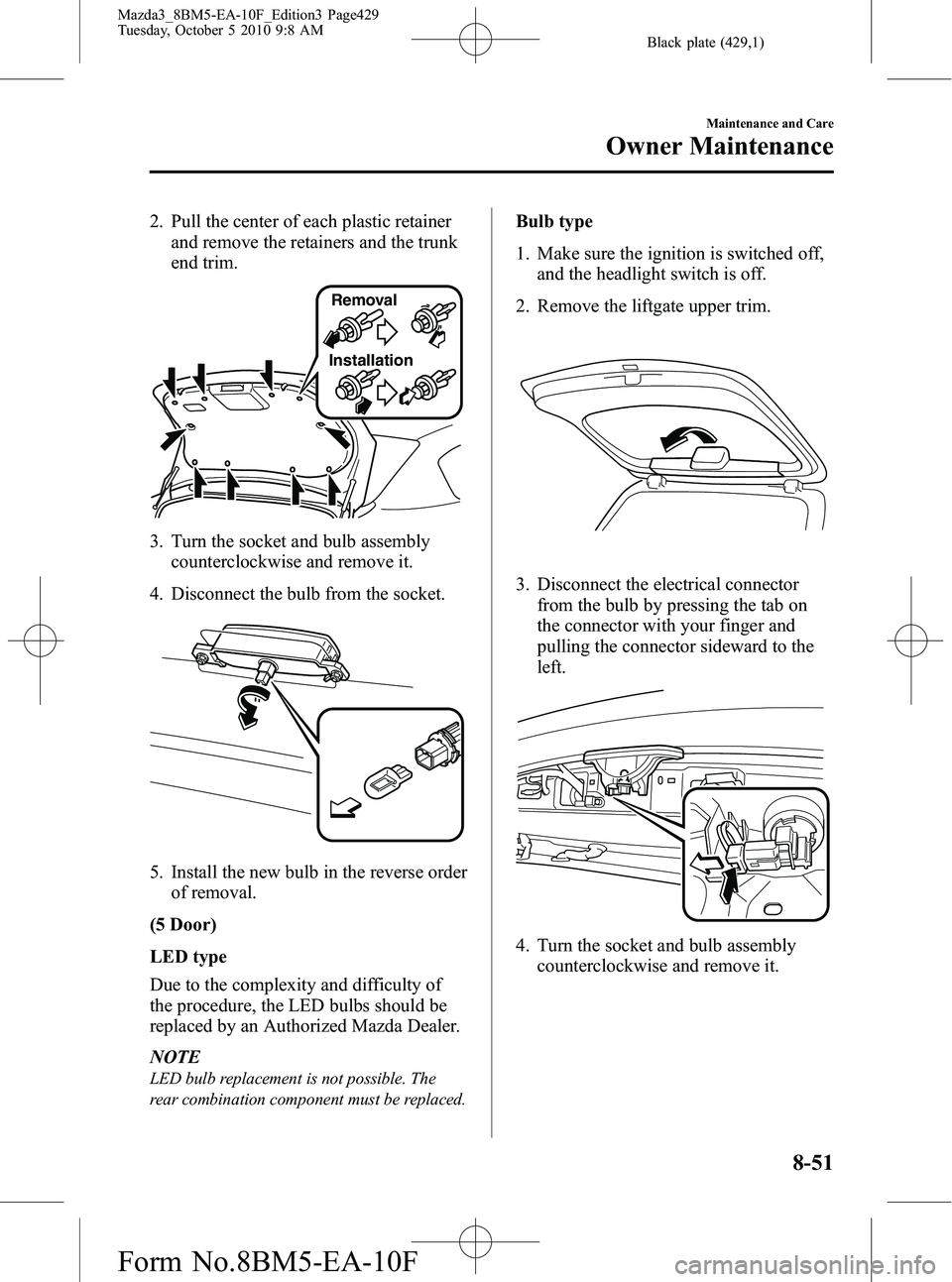

2. Pull the center of each plastic retainerand remove the retainers and the trunk
end trim.
InstallationRemoval
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
(5 Door)
LED type
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
Bulb type
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Remove the liftgate upper trim.
3. Disconnect the electrical connector from the bulb by pressing the tab on
the connector with your finger and
pulling the connector sideward to the
left.
4. Turn the socket and bulb assemblycounterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8BM5-EA-10F_Edition3 Page429
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
Page 430 of 514

Black plate (430,1)

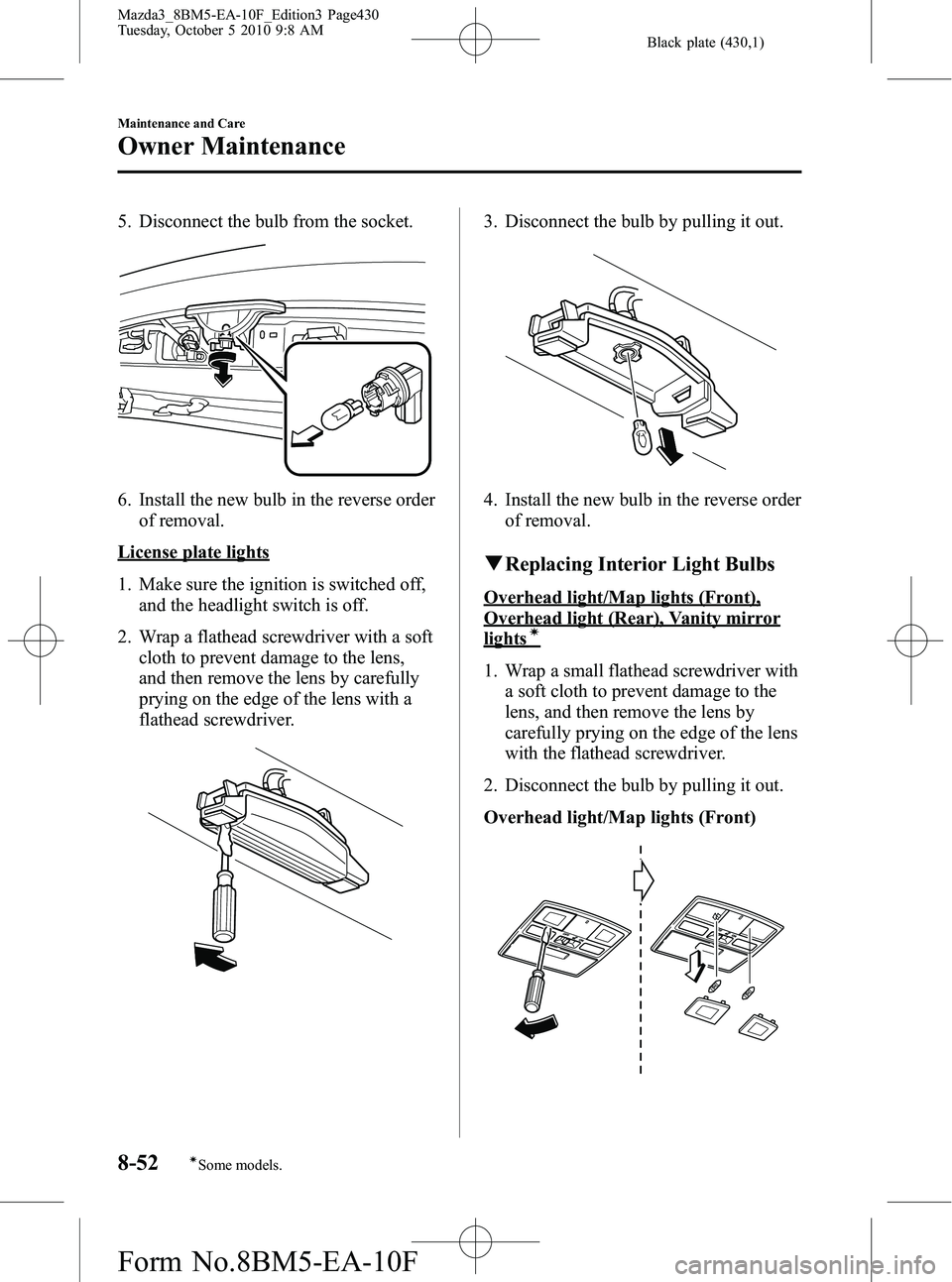

5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse orderof removal.
License plate lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse orderof removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front),
Overhead light (Rear), Vanity mirror
lightsí
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light/Map lights (Front)
8-52
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8BM5-EA-10F_Edition3 Page430
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
