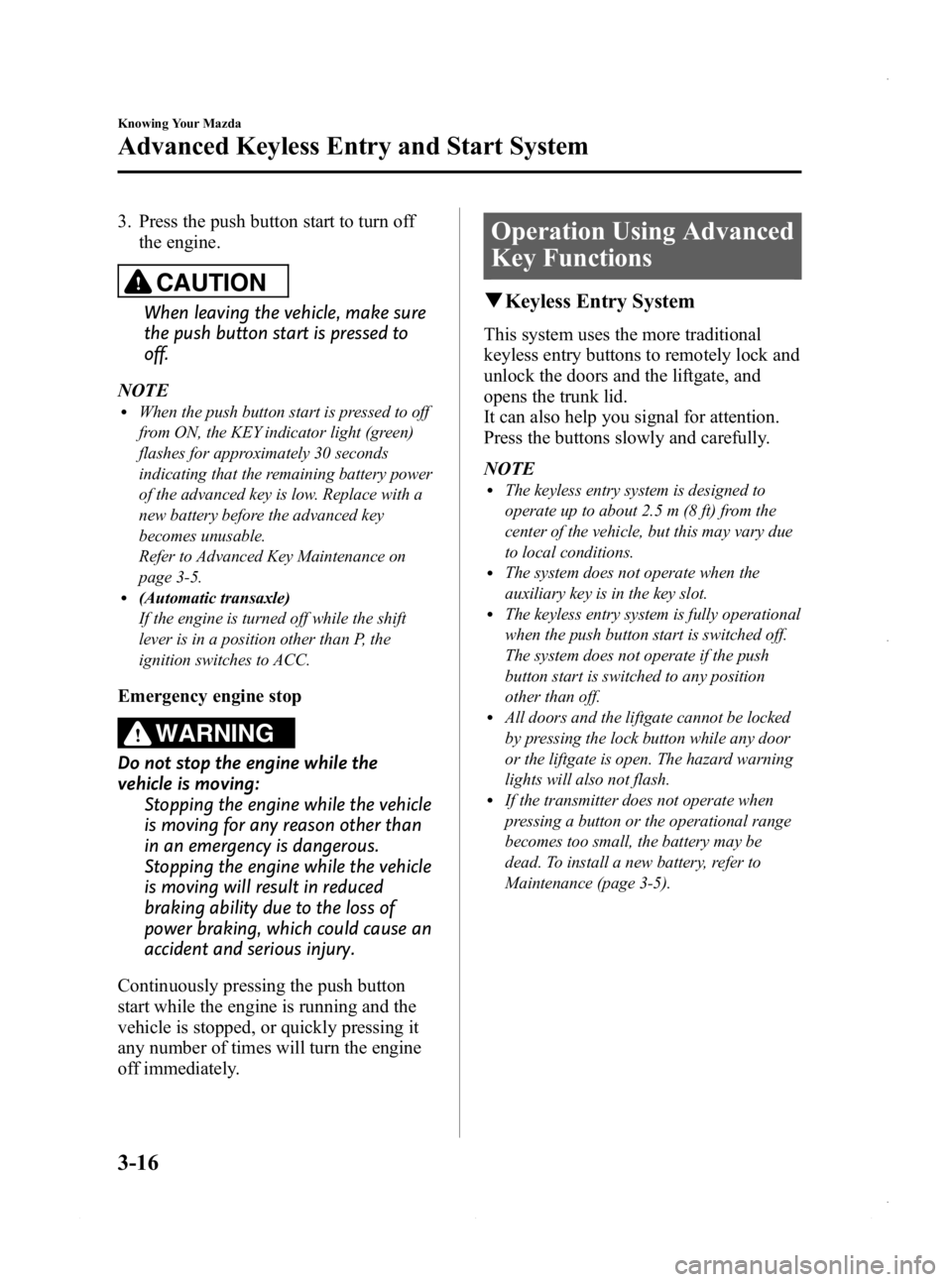

3. Press the push button start to turn offthe engine.
CAUTION
When leaving the vehicle, make sure
the push button start is pressed to
off.
NOTE
lWhen the push button start is pressed to off
from ON, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery power
of the advanced key is low. Replace with a
new battery before the advanced key
becomes unusable.
Refer to Advanced Key Maintenance on
page 3-5.
l(Automatic transaxle)
If the engine is turned off while the shift
lever is in a position other than P, the
ignition switches to ACC.
Emergency engine stop
WARNING
Do not stop the engine while the
vehicle is moving: Stopping the engine while the vehicle
is moving for any reason other than
in an emergency is dangerous.
Stopping the engine while the vehicle
is moving will result in reduced
braking ability due to the loss of
power braking, which could cause an
accident and serious injury.
Continuously pressing the push button
start while the engine is running and the
vehicle is stopped, or quickly pressing it
any number of times will turn the engine
off immediately.
Operation Using Advanced
Key Functions
q Keyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and the liftgate, and
opens the trunk lid.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the key slot.
lThe keyless entry system is fully operational
when the push button start is switched off.
The system does not operate if the push
button start is switched to any position
other than off.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8CV6-EA-12H_Edition3 Page94
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (604,1)

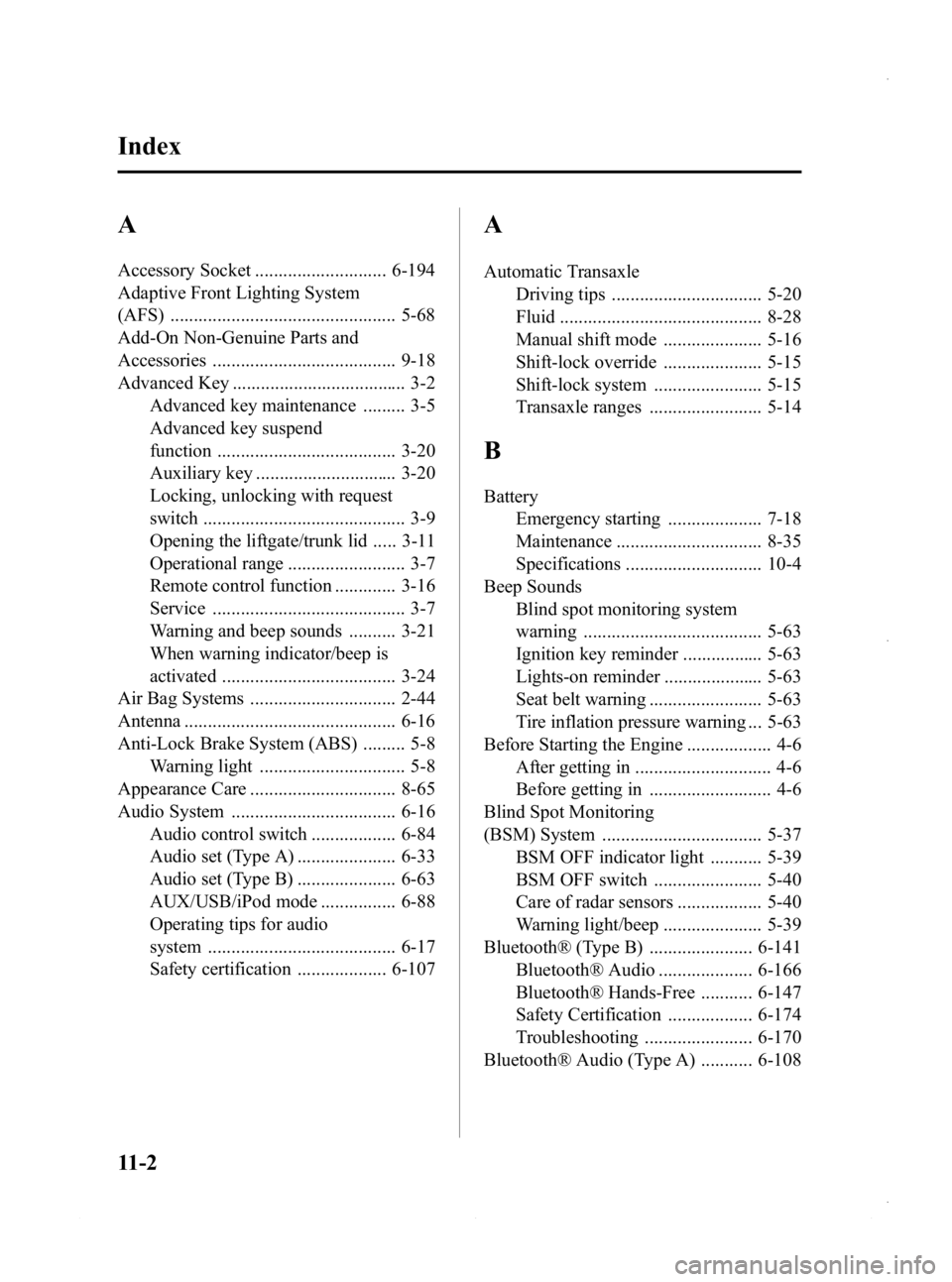

A
Accessory Socket ............................ 6-194
Adaptive Front Lighting System
(AFS) ................................................ 5-68
Add-On Non-Genuine Parts and
Accessories ....................................... 9-18
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-20
Auxiliary key .............................. 3-20
Locking, unlocking with request
switch ........................................... 3-9
Opening the liftgate/trunk lid ..... 3-11
Operational range ......................... 3-7
Remote control function ............. 3-16
Service ......................................... 3-7
Warning and beep sounds .......... 3-21
When warning indicator/beep is
activated ..................................... 3-24
Air Bag Systems ............................... 2-44
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-8 Warning light ............................... 5-8
Appearance Care ............................... 8-65
Audio System ................................... 6-16 Audio control switch .................. 6-84
Audio set (Type A) ..................... 6-33
Audio set (Type B) ..................... 6-63
AUX/USB/iPod mode ................ 6-88
Operating tips for audio
system ........................................ 6-17
Safety certification ................... 6-107
A
Automatic TransaxleDriving tips ................................ 5-20
Fluid ........................................... 8-28
Manual shift mode ..................... 5-16
Shift-lock override ..................... 5-15
Shift-lock system ....................... 5-15
Transaxle ranges ........................ 5-14
B
BatteryEmergency starting .................... 7-18
Maintenance ............................... 8-35
Specifications ............................. 10-4
Beep Sounds Blind spot monitoring system
warning ...................................... 5-63
Ignition key reminder ................. 5-63
Lights-on reminder ..................... 5-63
Seat belt warning ........................ 5-63
Tire inflation pressure warning ... 5-63
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Blind Spot Monitoring
(BSM) System .................................. 5-37
BSM OFF indicator light ........... 5-39
BSM OFF switch ....................... 5-40
Care of radar sensors .................. 5-40
Warning light/beep ..................... 5-39
Bluetooth® (Type B) ...................... 6-141 Bluetooth® Audio .................... 6-166
Bluetooth® Hands-Free ........... 6-147
Safety Certification .................. 6-174
Troubleshooting ....................... 6-170
Bluetooth® Audio (Type A) ........... 6-108
11-2
Index
