MAZDA MODEL 3 4-DOOR 2017 Owners Manual

6–59
Maintenance and Care
Owner Maintenance
*Some models.
Overhead lights (Front)*

Edge
Overhead lights (Rear)*

Edge
Vanity mirror lights*

3. Install the new bulb in the reverse order
of the removal procedure.
Trunk light (4–Door)
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order
of the removal procedure.
Luggage compartment light (5–Door)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.

Mazda3_8FL6-EA-16F_Edition2.indb 592016/08/10 17:39:00

6–60
Maintenance and Care
Owner Maintenance
2. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector.

3. Disconnect the bulb by pulling it out.

4. Install the new bulb in the reverse order
of the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
Mazda3_8FL6-EA-16F_Edition2.indb 602016/08/10 17:39:01

6–61
Maintenance and Care
Owner Maintenance
3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If
it does not fit tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched of f,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating.
Normal Blown
Mazda3_8FL6-EA-16F_Edition2.indb 612016/08/10 17:39:01

6–62
Maintenance and Care
Owner Maintenance
WARNING
Do not replace the main fuse and
multiplex slow blow fuse by yourself.
Have an Authorized Mazda Dealer
perform the replacement:Replacing these fuses by yourself is
dangerous because they are high
current fuses. Incorrect replacement
could cause an electrical shock or a
short circuit resulting in a fire.
4. Reinstall the cover and make sure that
it is securely installed.
Mazda3_8FL6-EA-16F_Edition2.indb 622016/08/10 17:39:02

6–63
Maintenance and Care
Owner Maintenance
*Some models.
Fuse Panel Description
Fuse block (Engine compartment)
Multiplex slow blow fuse
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 FOG 15 AFog lights
*
2 H/L HI 20 AHeadlight high beam*2
3 H/CLEAN 20 A —
4 STOP 10 ABrake lights
5 ROOM 15 AOverhead light
6
7.5 AEngine control system
7 FUEL WARM 15 A —
8 HAZARD 25 AHazard warning flashers, Turn signal lights
9 ABS/DSCS 30 AABS, Dynamic stability control system
10 METER2 7.5 A —
11 AUDIO2 7.5 AAudio system
12 BOSE 25 ABose
® Sound System-equipped model*
13 AUDIO1 15 AAudio system
14 FUEL PUMP 15 AFuel system
15 HID R DRL 15 AHeadlight (RH)
*1, Daytime running lights*
16 AT PUMP 15 A —
17 HORN 15 AHorn
18 TAIL 15 ATaillights, License plate lights, Parking lights, Front side-marker
lights
19 ST HEATER 15 AHeated steering wheel
*
Mazda3_8FL6-EA-16F_Edition2.indb 632016/08/10 17:39:02

6–64
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
20 AT 15 ATransaxle control system
21 R.WIPER 15 ARear window wiper
*
22 A/C 7.5 AAir conditioner
23 ENGINE3 15 AEngine control system
24 ENGINE2 15 AEngine control system
25 ENGINE1 15 AEngine control system
26 GLOW SIG 5 A —
27 EVVT 20 AEngine control system
28 WIPER 20 AFront window wiper and washer
29 DCDC REG 30 A —
30 EPB L
FUEL.P2 30 A
Electric parking brake (LH)
*
31 ADD FAN DE 40 A —
32 P.WINDOW1 30 APower windows
33 H/L LOW R 15 AHeadlight low beam (RH)
*2
34H/L LOW L HID L 15 AHeadlight (LH)*1, Headlight low beam (LH)*2
35 METER1 10 AInstrument cluster
36 IG2 30 AFor protection of various circuits
37 EPB R
LPG 30 A
Electric parking brake (RH)
*
38 FUEL.P3
FAN DE 40 A
—
39 DCDC DE 40 A —
40 SRS1 7.5 AAir bag
41 ENGINE. IG1 15 AEngine control system
42 C/U IG1 15 AFor protection of various circuits
43 METER3 10 A —
*1 With LED headlights*2 With halogen headlights
Mazda3_8FL6-EA-16F_Edition2.indb 642016/08/10 17:39:03

6–65
Maintenance and Care
Owner Maintenance
*Some models.
Fuse block (Left side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 P.WINDOW3
P.SEAT D 30 A
Power seat
*
2 D.LOCK 25 APower door locks
3 P.WINDOW2 25 APower windows
4 SEAT WARM 20 ASeat warmer
*
5 R.OUTLET3 15 AAccessory sockets
6 SRS2/ESCL 15 AAir bag
7 SUNROOF 10 AMoonroof
*
8 M.DEF 7.5 AMirror defogger*
9 R.OUTLET1 15 A —
10 MIRROR 7.5 APower control mirror
11 F.OUTLET 15 AAccessory sockets
12 ABS IG
AT IND 7.5 A
AT shift indicator
*
13 SRS1 7.5 A —
14 METER1 10 A —
15 C/U IG1 15 A —
Mazda3_8FL6-EA-16F_Edition2.indb 652016/08/10 17:39:03

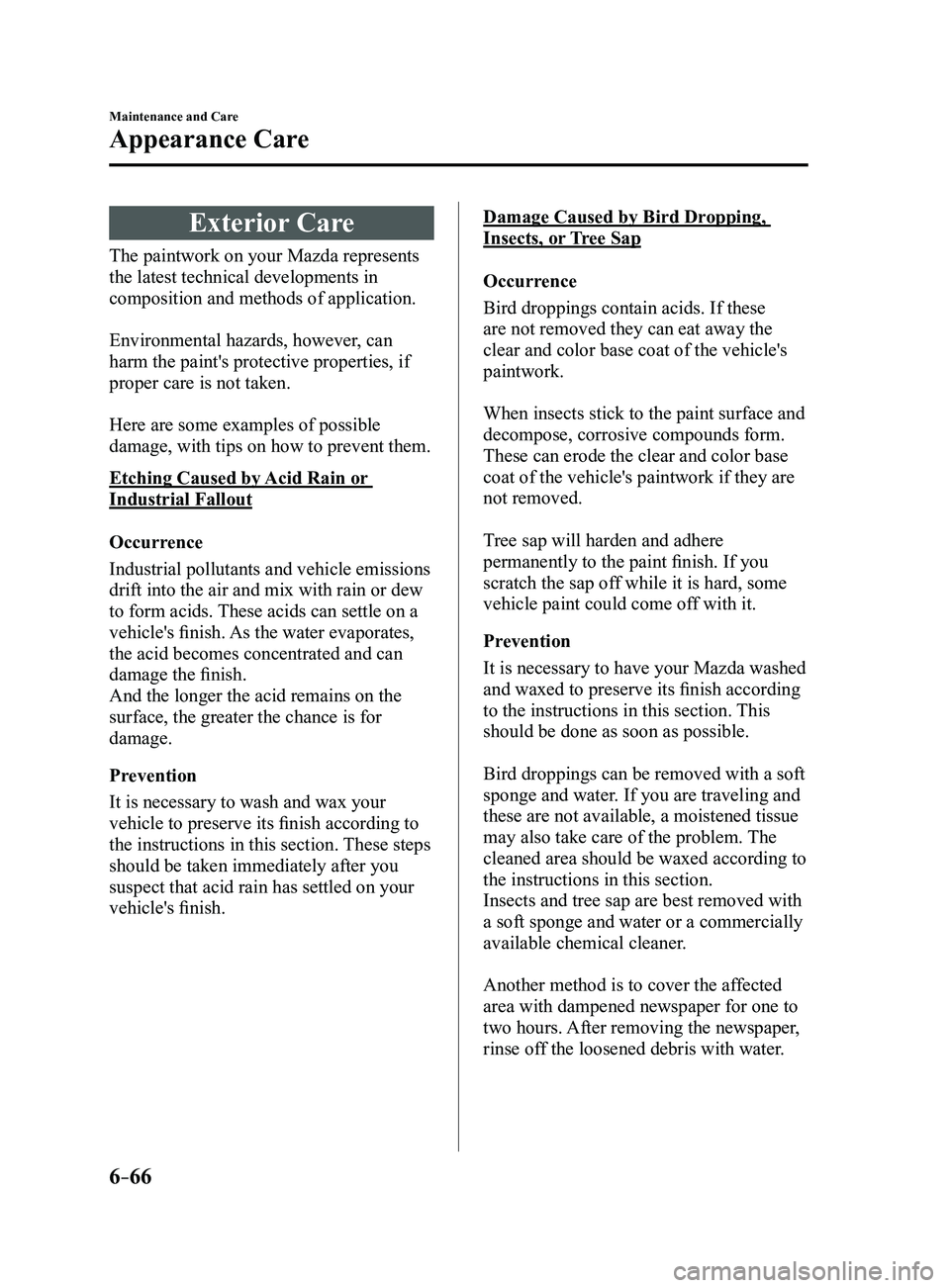

6–66
Maintenance and Care
Appearance Care
Exterior Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's finish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
are not removed they can eat away the
clear and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda washed
and waxed to preserve its finish according
to the instructions in this section. This
should be done as soon as possible.
Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Mazda3_8FL6-EA-16F_Edition2.indb 662016/08/10 17:39:03

6–67
Maintenance and Care
Appearance Care
Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances
of having your paint chipped by flying
gravel.NOTE
 The paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
 In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
 Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.
Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
Mazda3_8FL6-EA-16F_Edition2.indb 672016/08/10 17:39:03

6–68
Maintenance and Care
Appearance Care
Maintaining the Finish
Washing
CAUTION
 When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain
sensor is touched or wiped with a
cloth.
 If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
 Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
 When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof or the
antenna. Otherwise, you could dent the
vehicle or damage the antenna.To help protect the finish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface when:
 The vehicle is washed without first
rinsing off dirt and other foreign matter. The vehicle is washed with a rough, dry
,
or dirty cloth. The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff. Cleansers or wax containing abrasives
are used.
NOTE
 Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
 Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
 Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
 Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
 Rub gently when washing or drying the
vehicle. Take your vehicle only to a car wash
that keeps its brushes well maintained. Do not use abrasive cleansers or wax
that contain abrasives.
Mazda3_8FL6-EA-16F_Edition2.indb 682016/08/10 17:39:04
