MAZDA MODEL 3 4-DOOR 2017 Owners Manual

7–3
If Trouble Arises
Flat Tire

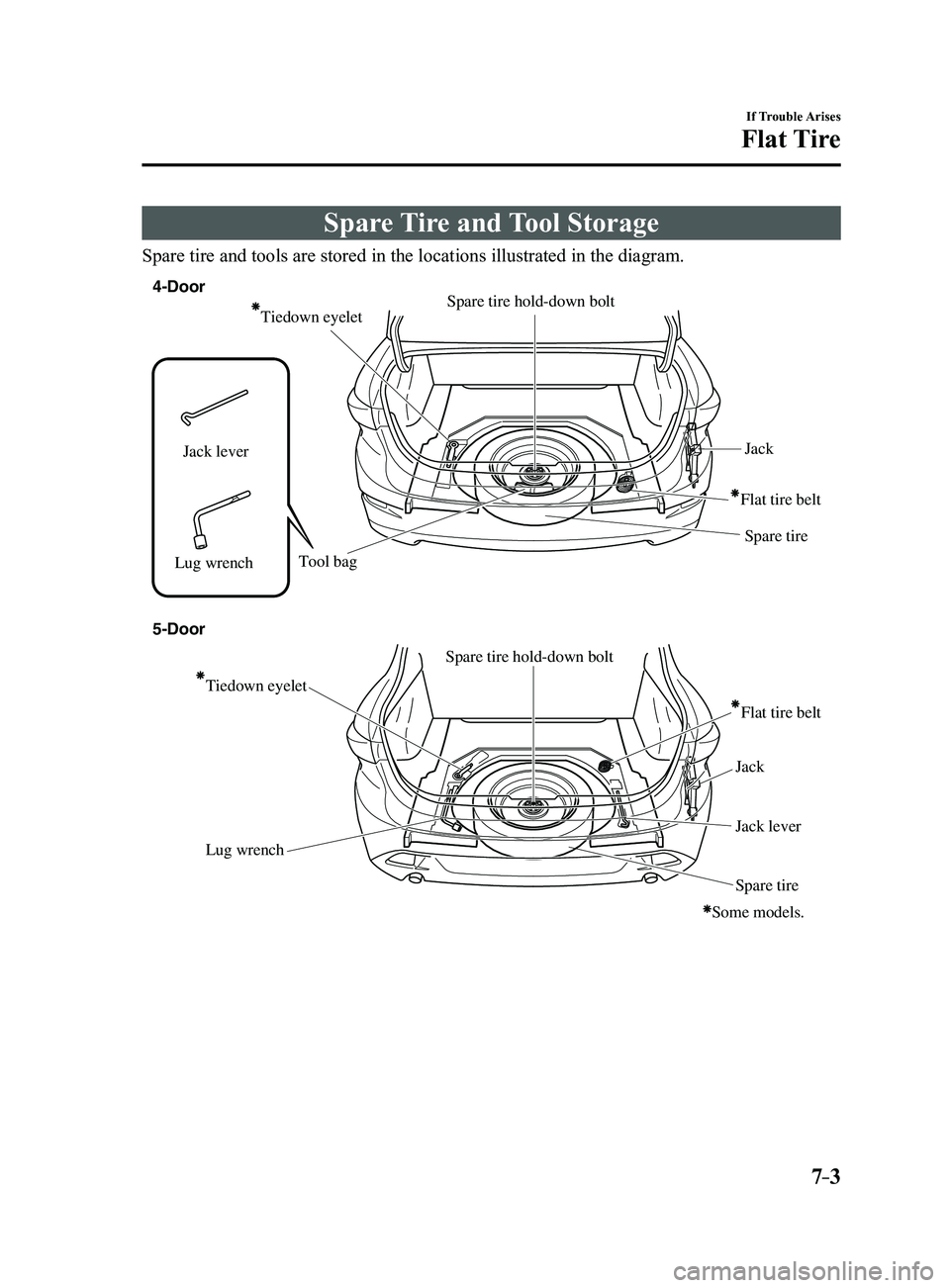

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diag\
ram.
Tiedown eyeletFlat tire beltSpare tire Jack
Spare tire hold-down bolt
Lug wrench Tool bag
Jack lever
Flat tire belt
Jack lever
Lug wrench
Spare tire Jack
Spare tire hold-down bolt
5-Door
4-Door
Some models.
Tiedown eyelet
Mazda3_8FL6-EA-16F_Edition2.indb 32016/08/10 17:39:08

7–4
If Trouble Arises
Flat Tire
Jack
To remove the jack
1. (4–Door)
Push the tabs and remove the cover.

Tabs
(5–Door)
Turn the knob and remove the cover.

2. Turn the wing bolt and jack screw
counterclockwise.

To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing to the down
and turn the wing bolt clockwise to
temporarily tighten it.
2. Turn the jack screw in the direction
shown in the figure.

3. Turn the wing bolt completely to secure
the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure the
jack screw is sufficiently tightened.
Mazda3_8FL6-EA-16F_Edition2.indb 42016/08/10 17:39:09

7–5
If Trouble Arises
Flat Tire
4. Insert the cover tabs and install the
cover.
(4-Door)
Tabs
Tabs
(5-Door)
NOTE
Verify that the cover is securely installed.
Maintenance
 Always keep the jack clean. Make sure the moving parts are kept
free from dirt or rust. Make sure the screw thread is
adequately lubricated.
Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tire to the front wheel and install the
temporary spare tire to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary
spare tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph). Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the
ground clearance is reduced.
 Do not use a tire chain on this tire
because it will not fit properly. Do not use your temporary spare
tire on any other vehicle, it has been
designed only for your Mazda.
 Use only one t emporary spare tire on
your vehicle at the same time.
Mazda3_8FL6-EA-16F_Edition2.indb 52016/08/10 17:39:09

7–6
If Trouble Arises
Flat Tire
To remove the spare tire
1. Lift the trunk/luggage compartment
mat.

Trunk/Luggage compartment mat
2. Turn the spare tire hold-down bolt
counterclockwise.

Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing, verify that the
spare tire is stored securely.
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
 Steering becomes difficult. The vehicle begins to vibrate
excessively. The vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
Mazda3_8FL6-EA-16F_Edition2.indb 62016/08/10 17:39:10

7–7
If Trouble Arises
Flat Tire
1. Park on a hard, level surface off the
right-of-way and firmly set the parking
brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
NOTE
When blocking a tire, use rocks or wood
blocks of sufficient size if possible to hold
the tire in place.
Removing a Flat Tire
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the beveled end of the jack lever.

NOTE
Force the end of the jack lever firmly
between wheel and cover, or removal will
be difficult.
CAUTION
Align the notch on the wheel cover
with the valve stem when installing it.
Tire valve
Notch
Damage could occur during
installation if the wheel cover is not
properly aligned.
Mazda3_8FL6-EA-16F_Edition2.indb 72016/08/10 17:39:11

7–8
If Trouble Arises
Flat Tire
2. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

3. Place the jack on the ground.
4. Turn the jack screw in the direction
shown in the figure and adjust the jack
head so that it is close to the jack-up
position.

Jack head
5. Place the jack under the jack-up
position closest to the tire being
changed with the jack head squarely
under the jack-up point.

Jacking position
6. Continue raising the jack head
gradually by rotating the screw with
your hand until the jack head is inserted
into the jack-up position.

Tire blocksJacking position
Mazda3_8FL6-EA-16F_Edition2.indb 82016/08/10 17:39:12

7–9
If Trouble Arises
Flat Tire
WARNING
Use only the front and rear jacking
positions recommended in this manual:Attempting to jack the vehicle
in positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack: Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it could
deform the vehicle body or the vehicle
could fall off the jack resulting in an
accident.
Use only the jack provided with your
Mazda: Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack: Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
7. Insert the jack lever and attach the lug
wrench to tire jack.

8. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.

Mazda3_8FL6-EA-16F_Edition2.indb 92016/08/10 17:39:12

7–10
If Trouble Arises
Flat Tire
*Some models.
WARNING
Do not jack up the vehicle higher than is
necessary:Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up: Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up: Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
9. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.
Locking Lug Nuts*
If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must
use a special key to unlock them. This
key will attach to the lug wrench.
Register them with the lock manufacturer
by filling out the card provided in the
glove compartment and mailing it in the
accompanying envelope. If you lose this
key, consult an Authorized Mazda Dealer
or use the lock manufacturer's order form,
which is with the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. If the spare tire
is installed, one of the original lug nuts
(which should still be in the vehicle) must
be installed in place of the wheel lock.
Special ke y
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To install the antitheft lug nut
1. Place the special key on top of the nut,
and be sure to hold the key square to
it. If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the
special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)
Mazda3_8FL6-EA-16F_Edition2.indb 102016/08/10 17:39:13

7–11
If Trouble Arises
Flat Tire
Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the spare tire.
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.

WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the
lug nuts beyond the recommended
tightening torque:Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary.
Mazda3_8FL6-EA-16F_Edition2.indb 112016/08/10 17:39:13

7–12
If Trouble Arises
Flat Tire
4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration: Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.
5. (Without flat tire belt)
Store the damaged tire in the trunk/
luggage compartment.
(With flat tire belt)
Open the trunk/luggage compartment
mat.

Trunk/Luggage compartment mat
Mazda3_8FL6-EA-16F_Edition2.indb 122016/08/10 17:39:14
