trunk MAZDA MODEL 3 4-DOOR 2017 Service Manual

7–6
If Trouble Arises
Flat Tire
To remove the spare tire
1. Lift the trunk/luggage compartment
mat.

Trunk/Luggage compartment mat
2. Turn the spare tire hold-down bolt
counterclockwise.

Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing, verify that the
spare tire is stored securely.
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
 Steering becomes difficult. The vehicle begins to vibrate
excessively. The vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
Mazda3_8FL6-EA-16F_Edition2.indb 62016/08/10 17:39:10

7–12
If Trouble Arises
Flat Tire
4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration: Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.
5. (Without flat tire belt)
Store the damaged tire in the trunk/
luggage compartment.
(With flat tire belt)
Open the trunk/luggage compartment
mat.

Trunk/Luggage compartment mat
Mazda3_8FL6-EA-16F_Edition2.indb 122016/08/10 17:39:14

7–13
If Trouble Arises
Flat Tire
6. Remove the belt for securing the flat
tire.
7. Put the flat tire into the trunk/luggage
compartment on the left and toward the
back.

8. (Split-folding type seat)
Fold the rear seatback forward on the
right side of the rear seat.
9. (Split-folding type seat)
Unlock the rear seatback on the left
side and assure a clearance to pass the
belt.
(One-piece folding type seat)
Unlock the rear seatback and assure a
clearance to pass the belt.
10. Pass the belt through the rear seatback
as shown in the figure.
After passing the belt through, return
the rear seatback to the original
position.
(Split-folding type seat)

Belt
(One-piece folding type seat)

Belt
Mazda3_8FL6-EA-16F_Edition2.indb 132016/08/10 17:39:15

7–40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds. If
the driver or the front passenger's seat belt
is not fastened and the vehicle is driven
at a speed faster than about 20 km/h (12
mph), a beep sound will be heard again for
a specified period of time.
NOTE
 To allow the front passenger occupant
classification sensor to function
properly, do not place and sit on an
additional seat cushion on the front
passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
 When a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and
all the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside
the vehicle will be heard 6 times, and the
KEY warning light (red) in the instrument
cluster flashes continuously to notify
the driver that the ignition has not been
switched OFF.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times and the KEY warning
light (red) in the instrument cluster turns
on continuously to notify the driver that
the ignition has not been switched OFF.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried,
a beep will be heard outside for about 2
seconds to notify the driver that the door
or liftgate/trunk lid cannot be locked.
Mazda3_8FL6-EA-16F_Edition2.indb 402016/08/10 17:39:33

7–41
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Key Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment/trunk with all the doors
locked and the liftgate/trunk lid closed,
a beep will be heard outside for about 10
seconds to notify the driver that the key
is in the luggage compartment/trunk. In
this case, take out the key by pressing
the electric liftgate/trunk lid opener and
opening the liftgate/trunk lid. The key
taken out of the luggage compartment/
trunk may not operate because its
functions have been temporarily stopped.
To restore the key's functions, perform the
applicable procedure (page
3-9).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage compartment/
trunk are locked using another key while
the key is left in the cabin, the beep
which sounds outside of the vehicle will
be heard for about 10 seconds to notify
the driver that the key is in the cabin. In
this case, take out the key by opening the
door. A key taken out of the vehicle using
this method may not operate because its
functions have been temporarily stopped.
To restore the key's functions, perform the
applicable procedure (page
3-9).
i-ELOOP Warning Beep*
The beep will activate if you attempt to
drive the vehicle under the following
conditions.
 The i-ELOOP indicator light is flashing
green. “i-ELOOP Charging” is indicated in the
center display (Type B audio).
The beep will stop when the vehicle is
stopped. Make sure the indicator light is
no longer illuminated and the message
is no longer displayed before driving the
vehicle.
Tire Inflation Pressure Warning
Beep*
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tire inflation pressures
(page
4-151).
Lane Departur e Warning Sound
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
 The volume of the Lane-keep Assist
System (LAS) & Lane Departure
Warning System (LDWS) warning sound
can be changed.
Refer to Personalization Featur es on
page 9-12. The type of the Lane-keep Assist System
(LAS) & Lane Departure Warning
System (LDWS) warning sound can be
changed.
Refer to Personalization Featur es on
page 9-12.
Mazda3_8FL6-EA-16F_Edition2.indb 412016/08/10 17:39:34

7–44
If Trouble Arises
When Liftgate/Trunk Lid Cannot be Opened
When Liftgate/Trunk Lid
Cannot be Opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate/trunk lid cannot be opened,
perform the following procedure as an
emergency measure to open it:
(5–door)
1. Remove the cap on the interior
surface of the liftgate with a flathead
screwdriver.

Cap
2. Turn the lever to the right to unlock the
liftgate.

Lever
Cap
(4–door)
1. Open the cover .
2. (With theft-prevention cover)
Open the cap.

Cover
Cap
3. (With theft-prevention cover)
Turn the screw counterclockwise and
remove it, and then remove the theft-
prevention cover.

Screw
Mazda3_8FL6-EA-16F_Edition2.indb 442016/08/10 17:39:35

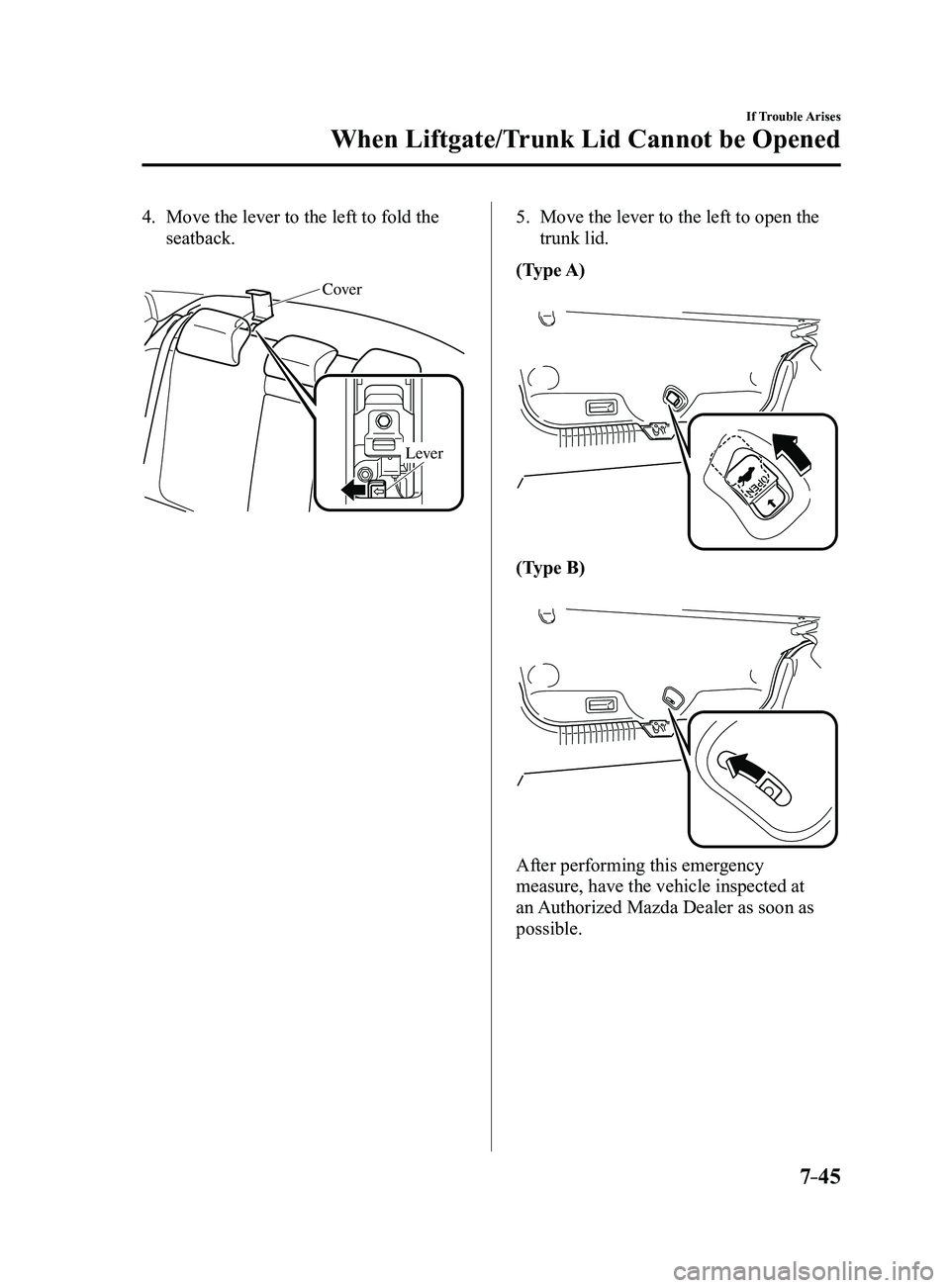

7–45
If Trouble Arises
When Liftgate/Trunk Lid Cannot be Opened
4. Move the lever to the left to fold the
seatback.

Cover
Lever
5. Move the lever to the left to open the
trunk lid.
(Type A)
(Type B)
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
Mazda3_8FL6-EA-16F_Edition2.indb 452016/08/10 17:39:36

9–9
Specifications
Specifications
*Some models.
Light Bulbs
Exterior light
Light bulbCategory
Wattage UNECE*1 (SAE)
Headlights Halogen High beam
65HB3 (9005)
Low beam 55H11 (H11)
LED High/Low beam LED
*2— (—)
Daytime
running lights With halogen bulb headlights
65HB3 (9005)
With LED headlights LED
*2— (—)
Parking lights
(Front side-
marker lights) With halogen bulb headlights
5WY5W (—)
Front side-
marker lights With LED headlights
LED
*2— (—)
Parking lights With LED headlights LED
*2— (—)
Front turn signal lights 21WY21W
(7443NA)
Fog lights
*LED*2— (—)
Side turn signal lights*LED*2— (—)
High-mount brake light LED*2— (—)
Rear turn signal lights 21WY21W
(7443NA)
Brake lights/
Taillights/Rear
side-marker
lights LED type
LED
*2— (—)
Bulb type 21/5W21/5W (7443)
Taillights (Liftgate side/Trunk lid side)
*LED*2— (—)
Reverse lights 4–Door
18W16W (921)
5–Door 21W21W (7440)
License plate lights 5W5W (—)
*1 UNECE stands for United Nations Economic Commission for Europe.*2 LED is the abbreviation for Light Emitting Diode.
Mazda3_8FL6-EA-16F_Edition2.indb 92016/08/10 17:39:54

9–10
Specifications
Specifications
*Some models.
Interior light
Light bulbCategory
Wattage UNECE*1
Trunk light (4–Door) 3—
Luggage compartment light (5–Door) 5—
Overhead lights (Front)/Map lights
*8 —
Overhead light (Front)*10 —
Overhead light (Rear)*10 —
Vanity mirror lights*2 —
*1 UNECE stands for United Nations Economic Commission for Europe.
Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page
6-41.
After adjusting the tire pressure, initialization of the tire pressure m\
onitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page
4-154.
Mazda3_8FL6-EA-16F_Edition2.indb 102016/08/10 17:39:54

10–5
I
i-ACTIVSENSE ..................................4-81
Active safety technology
...............4-81
Adaptive Front Lighting System
(AFS)
.............................................4-84
Blind Spot Monitoring (BSM)
......4-88
Camera and sensors
.......................4-82
Distance Recognition Support System
(DRSS)
........................................4-101
Forward Sensing Camera (FSC) ...4-136
High Beam Control System
(HBC)
............................................4-85
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)
.......................................4-117
Mazda Radar Cruise Control
(MRCC) ....................................... 4-107
Pre-crash safety technology
..........4-82
Radar sensor (front) .....................4-141
Radar sensors (rear) .....................4-144
Rear Cross Traffic Alert
(RCTA)
........................................4-103
Smart Brake Support (SBS)
........4-133
Smart City Brake Support
(SCBS)
........................................4-128
Traffic Sign Recognition System
(TSR)
.............................................4-94
i-ELOOP
.............................................4-72
Control status display
....................4-74
Display
..........................................4-72
i-ELOOP indicator light
................4-74
i-ELOOP warning beep
.......................7-41
If a Warning Light Turns On or
Flashes................................................. 7-25
If the Active Driving Display does not
operate
.................................................7-46
Ignition Switch
..............................................4-4
Ignition not switched off (STOP) warning
beep
.....................................................7-40
Immobilizer System
............................3-42 Indicator Lights
...................................4-26
Low engine coolant temperature
...4-28
Wrench
..........................................4-28
Inside Trunk Release Lever
................3-26
Inspecting Brake/Clutch Fluid Level ...6-30
Inspecting Coolant Level
....................6-28
Inspecting Engine Oil Level
...............6-28
Inspecting Washer Fluid Level ............6-30
Interior Care
........................................6-72
Active driving display
maintenance ................................... 6-74
Cleaning the floor mats
.................6-75
Cleaning the window interiors
......6-75
Instrument panel top (Soft pad)
maintenance ................................... 6-74
Leather upholstery maintenance
...6-73
Panel maintenance
.........................6-75
Plastic part maintenance
................6-74
Seat belt maintenance
....................6-73
Upholstery and synthetic leather
maintenance ................................... 6-73
Vinyl upholstery maintenance
.......6-73
Interior Lights
...................................5-111
Luggage Compartment Light
......5-111
Map Lights
..................................5-111
Overhead Lights
..........................5-111
J
Jack .......................................................7-4
Jump-Starting
......................................7-16
Index
Mazda3_8FL6-EA-16F_Edition2.indb 52016/08/10 17:39:58
