Before Driving
Fuel and Emission
Fuel-Filler Cap
To remove the fuel-¿ ller cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.

To close the fuel-¿ ller cap, turn it
clockwise until a click is heard.


Open
Close

CAUTION
If the check fuel cap warning light
illuminates, the fuel-fi ller cap may not
be properly installed. If the warning
light illuminates, park your vehicle
safely off the right-of-way, remove the
fuel-fi ller cap and reinstall it correctly.
After the cap has been correctly
installed, the fuel cap warning light
may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of
starting the engine (after four or more
hours with the engine off ) and driving
the vehicle on city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–5
Interior Features
Climate Control System
*Some models.
Manual Climate Control

Rear window defogger switch Temperature control dial
Fan control dialMode selector dial
A/C switch
Air intake selector
(recirculated air
position)Air intake selector
(outside air position)
With A/C switch

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
N O T E
When the mode is set to or with the
fan control dial in a position other than 0
and the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
position and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch
to turn it off.

Fan control dial
The fan has seven speeds.
Mode selector dial
Turn the mode selector dial to select
airÀ ow mode (page 5-4 ).
N O T E




y The mode selector dial can be set at the
intermediate positions (
) between
each mode. Set the dial to an
intermediate position if you want to split
the airÀ ow between the two modes.




y For example, when the mode selector
dial is at the
position between the
and
positions, airÀ ow from the À oor
vent is less than that of the
position.
A/C switch *
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.

Press the switch once again to turn the air
conditioner off.
N O T E
The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–7
Interior Features
Climate Control System
N O T E



y When maximum cooling is desired,
set the temperature control dial to the
extreme cold position and set the air
intake selector to the recirculated air
position, then turn the fan control dial
fully clockwise.



y If warmer air is desired at À oor level,
set the mode selector dial at the

position and adjust the temperature
control dial to maintain maximum
comfort.



y The air to the À oor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).

Ventilation
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the outside
air position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.

Windshield Defrosting and
Defogging
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed.
4. If dehumidi¿ ed heating is desired, turn
on the air conditioner.

WARNING
Do not defog the windshield using the

position with the temperature
control set to the cold position:
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident. Set
the temperature control to the hot or
warm position when using the

position.

N O T E



y For maximum defrosting, turn on the air
conditioner, set the temperature control
dial to the extreme hot position, and
turn the fan control dial fully clockwise.



y If warm air is desired at the À oor, set the
mode selector dial to the
position.


y In the or position, the air
conditioner is automatically turned on
and the outside air position is
automatically selected to defrost the
windshield. In the
or position, the
outside air position cannot be changed
to the recirculated air position.

Dehumidifying (With air
conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.

1. Set the mode selector dial to the desired
position.
2. Set the air intake selector to the outside
air position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–9
Interior Features
Climate Control System
Automatic Climate Control
Rear window defogger switch Temperature control dial
Fan control dialMode selector dial
A/C switchAir intake selector switch
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
The fan has seven speeds.
AUTO position
The amount of airÀ ow will be
automatically controlled in accordance
with the set temperature.
Except AUTO position
The airÀ ow amount can be adjusted to the
desired level by turning the dial.
0 position
To turn off the system, set the dial to 0
position.
Mode selector dial
Turn the mode selector dial to select
airÀ ow mode (page 5-4 ). AUTO position
The airÀ ow mode automatically adjusts to
the selected temperature.
Except AUTO position
The desired airÀ ow position can be
selected by turning the dial.
N O T E



y With the airÀ ow mode set to the
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and air
at a comparably lower temperature will
À ow through the central, left and right
vents.



y When the fan control dial is ON, and the
mode selector dial is in the
or
position, the air conditioner is
automatically turned on and the outside
air position is automatically selected to
defrost the windshield. In the
or
position, the outside air position cannot
be changed to the recirculated air
position.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–13
Interior Features
Climate Control System
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.



y When the DUAL switch is off:
 Turn the driver temperature control dial
to control the temperature throughout
the entire cabin.



y When the DUAL switch is on:
 Turn the driver or front passenger
temperature control dial to
independently control the temperature
on each side of the cabin.

N O T E



y The climate control system changes to
the individual operation mode ( DUAL
switch indicator light illuminated) by
turning the front passenger temperature
control dial even when the DUAL switch
is off, which allows individual control
of the set temperature for the driver and
front passenger.



y The temperature units for the
temperature setting display can be
changed in conjunction with the
temperature units for the outside
temperature display. Refer to Outside
Temperature Display on page 4-16 .

Fan control switch
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airÀ ow mode can be selected
(page 5-4 ).
N O T E



y With the airÀ ow mode set to the
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and air
at a comparably lower temperature will
À ow through the central, left and right
vents.



y To set the air vent to , press the
windshield defroster switch.



y In the or position, the air
conditioner is automatically turned on
and the outside air position is
automatically selected to defrost the
windshield. In the
or position, the
outside air position cannot be changed
to the recirculated air position.

A/C switch
Pressing the A/C switch while the AUTO
switch is turned on will turn off the air
conditioning (cooling/dehumidifying
functions).
The air conditioning can be turned on and
off by pressing the A/C switch while the
fan control switch is on.
N O T E



y The air conditioning operates when the
A/C switch is pressed even if the fan is
off.



y The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–16
Interior Features
Audio System
*Some models.
A n t e n n a
Antenna (4-Door)
AM/FM Radio Antenna
The AM/FM radio antenna receives both
AM and FM signals.
The antenna is embedded into the window
glass.
CAUTION
When washing the inside of the
window which has an antenna, use
a soft cloth dampened in lukewarm
water, gently wiping the antenna lines.
Use of glass cleaning products could
damage the antenna.

Satellite Radio Antenna *
The satellite radio antenna receives
SiriusXM signals.

Antenna

Antenna (5-Door)
AM/FM Radio Antenna *
The AM/FM radio antenna receives both
AM and FM signals.
(Type A)
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.


RemoveInstall

CAUTION



¾ To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.



¾ Be careful around the antenna when
removing snow from the roof. Otherwise
the antenna could be damaged.

N O T E
When leaving your vehicle unattended, we
recommend that you remove the antenna
and store it inside the vehicle.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–25
Interior Features
Audio System

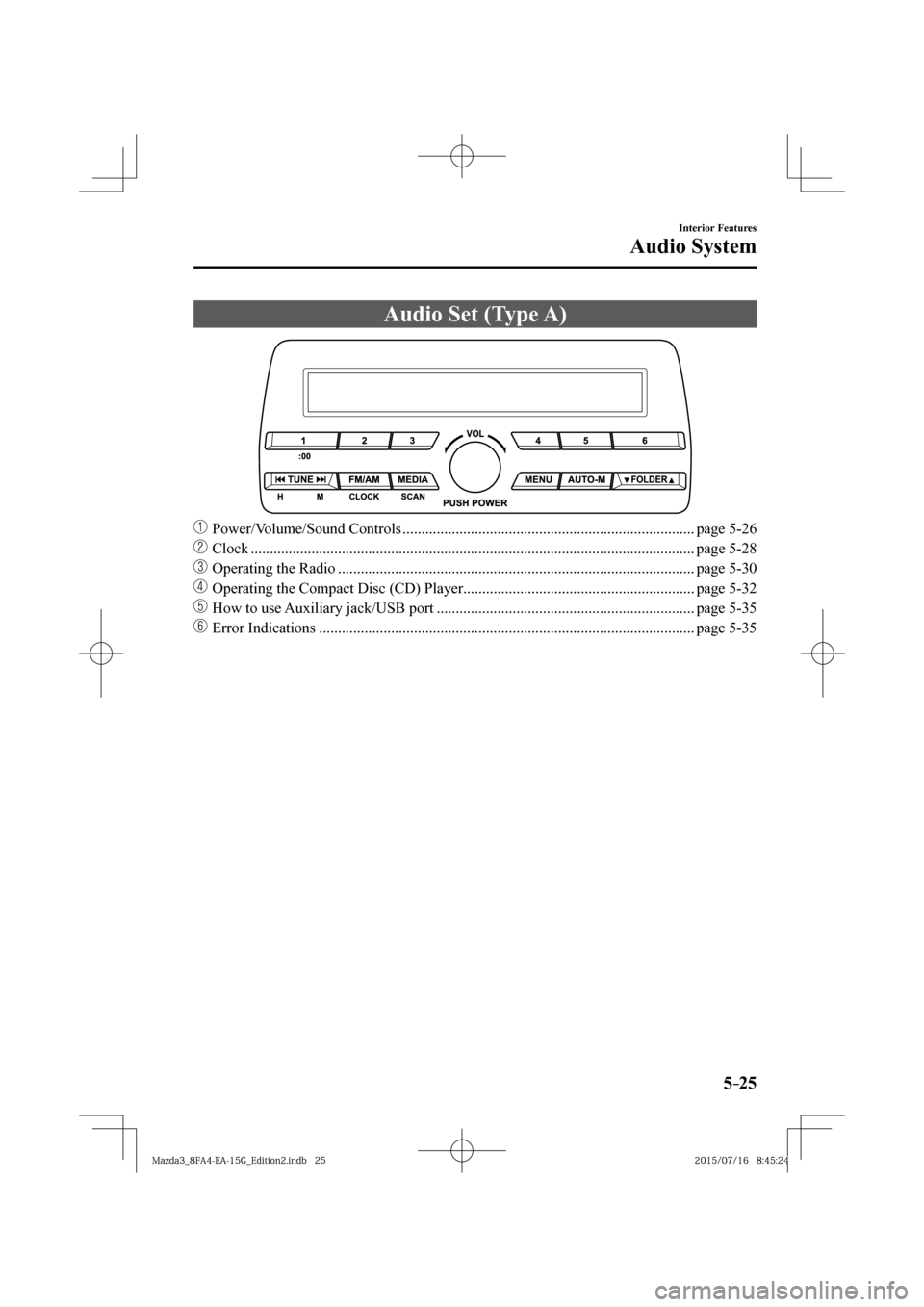

Audio Set (Type A)





Power/Volume/Sound Controls ............................................................................. page 5-26



Clock ..................................................................................................................... page 5-28



Operating the Radio .............................................................................................. page 5-30



Operating the Compact Disc (CD) Player............................................................. page 5-32



How to use Auxiliary jack/USB port .................................................................... page 5-35



Error Indications ................................................................................................... page 5-35
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–26
Interior Features
Audio System
Power/Volume/Sound Controls
Power/Volume/Audio control dialMenu button Audio display
Power ON/OFF
Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.
Volume adjustment
To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
counterclockwise to decrease it.
Audio sound adjustment
1. Press the menu button (
) to select
the function. The selected function will
be indicated. 2. Turn the audio control dial to adjust the
selected functions as follows:

Indication Setting value Tu r n
Counterclockwise Tu r n
Clockwise
A L C
(Automatic volume
adjustment) Level decrease Level
increase
BASS
(Low pitch sound) Decrease bass Increase
bass
TREB
(Treble sound) Decrease treble Increase
treble
FADE
(Front/back volume
balance) Shift the sound
to the front Shift the
sound to
the rear
B A L
(Left/right volume
balance) Shift the sound
to the left Shift the
sound to
the right
BEEP
(Audio operation
sound) Off On
BT SETUP
* Select mode
12Hr
24Hr
(12 Hr/24 Hr time
adjustment) 12Hr
(Flashing) 24Hr
(Flashing)


*
 Depending on the model, this function
may not be available.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–27
Interior Features
Audio System
*Some models.
N O T E
If not operated for several seconds, the
display returns to the previous display. To
reset bass, treble, fade, and balance, press
the menu button (
) for 2 seconds.
The unit will beep and “ CLEAR ” will be
displayed.

ALC (Automatic volume adjustment)
The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.
BEEP (Audio operation sound)
The setting for the operation sound when
pressing and holding a button can be
changed. The initial setting is ON. Set to
OFF to mute the operation sound.
BT SETUP mode
*
Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth
®
transmission function can be listened to
via wireless transmission over the vehicle's
speakers. Using the BT SETUP mode,
these devices can be programmed to the
Bluetooth
® unit or changed (page 5-80 ).
1 2 H r
24Hr (12 Hr/24 Hr time
adjustment)
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-28 ).
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–28
Interior Features
Audio System
Clock

Audio display Audio control dial
Hour/Minute set switch:00 button
Menu button Clock button

Setting the time
The clock can be set at any time when the
ignition is switched to ACC or ON.

1. To adjust the time, press the clock
button (
) for about 2 seconds until
a beep is heard.
2. The clock's current time will À ash.
Time adjustment



y
 To adjust the time, press the hour/
minute set button (
, ) while the
clock's current time is À ashing.



y
 The hours advance while the hour set
button (
) is pressed. The minutes
advance while the minute set button
(
) is pressed.
3. Press the clock button ( ) again to
start the clock.

Time resetting
1. Press the clock button (
) for about
2 seconds until a beep is heard.
2. Press the :00 button ( 1 ).
3. When the button is pressed, the time
will be reset as follows:
(Example)
12:01—12:29
:12:00
12:30—12:59
:1:00

N O T E




y When the :00 button ( 1 ) is pressed, the
seconds will start at “ 00 ”.



y Switching between 12 and 24-hour
clock time:
  Press the menu button ( ) several
times until 12 and 24-hour clock time
are displayed. Turn the audio control
dial in either direction, select the
desired clock setting while the preferred
clock time is À ashing.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC
