Page 28 of 600
2–14
Essential Safety Equipment
Seat Belt Systems
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an
accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has been
expended:
Always have an Authorized Mazda Dealer immediately inspect the seat belt pretensioners
and air bags after any collision. Like the air bags, the seat belt pretensioners and load
limiters will only function once and must be replaced after any collision that caused them
to deploy. A seat belt with an expended pretensioner or load limiter is still better than
wearing no seat belt at all; however, if the seat belt pretensioners and load limiters are
not replaced, the risk of injury in a collision will increase.
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always make
sure the shoulder portion of the seat belt is positioned across your shoulder and near your
neck, but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury. Wear
the lap portion of the belt snugly and as low as possible.
CAUTION
Belt retraction may become diffi cult if the belts and rings are soiled, so try to keep them
clean. For more details about cleaning the seat belts, refer to "Cleaning the Lap/Shoulder
Belt Webbing" (page 6-76 ).
Ring
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 122 of 600
3–46
Before Driving
Driving Tips
Rocking the Vehicle
WARNING
Do not spin the wheels at more than
56 km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:
When the vehicle is stuck, spinning the
wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from 1 (D) to R.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, À ares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:
y Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page
6-30 .
y Inspect the battery and its cables. Cold
reduces battery capacity.
y Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-27 ).
y Inspect the ignition system for damage
and loose connections.
y Use washer À uid made with antifreeze—
but do not use engine coolant antifreeze
for washer À uid (page 6-32 ).
N O T E
y Do not use the parking brake in freezing
weather as it may freeze. Instead, shift
to P with an automatic transaxle and to
1 or R with a manual transaxle. Block
the rear wheels.
y Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
y Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 149 of 600
4–21
When Driving
Instrument Cluster and Display
*Some models.
Warning Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.
Signal Warning Lights Page
Master Warning Light *1 7-24
Brake System Warning Light *1*2 7-24
ABS Warning Light *1 7-24
Charging System Warning Light *1 7-24
Engine Oil Warning Light *1 7-24
Check Engine Light *1 7-24
(Red) High Engine Coolant Temperature Warning Light *1 7-24
* Automatic Transaxle Warning Light *1 7-24
Power Steering Malfunction Indicator Light *1 7-24
Air Bag/Front Seat Belt Pretensioner System Warning Light *1 7-24
Low Fuel Warning Light 7-24
Check Fuel Cap Warning Light *1 7-24
Seat Belt Warning Light 7-24
Door-Ajar Warning Light 7-24
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 236 of 600
4–10 8
When Driving
i-ACTIVSENSE
CAUTION
¾ When driving off -road in areas where there is grass or forage, it is recommended that the
Smart City Brake Support (SCBS) system be turned off .
¾ Always use tires for all wheels that are of the specifi ed size, and the same manufacturer,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle as the Smart City Brake Support (SCBS) system may not
operate normally.
¾ The laser sensor (front) includes a function for detecting a soiled windshield and informing
the driver, however, depending on the conditions, it may not detect plastic shopping bags,
ice or snow on the windshield. In such cases, the system cannot accurately determine a
vehicle ahead and may not be able to operate normally. Always drive carefully and pay
attention to the road ahead.
N O T E
y The Smart City Brake Support (SCBS) system will not operate if the driver is deliberately
performing driving operations (accelerator pedal and steering wheel).
y The Smart City Brake Support (SCBS) system will operate under the following conditions.
y The engine is running.
y The Smart City Brake Support (SCBS) warning light (amber) does not illuminate.
y The vehicle speed is between about 4 to 30 km/h (2 to 18 mph).
y The Smart City Brake Support (SCBS) system is not turned off.
y The DSC operation is not turned off using the DSC OFF switch.
y The DSC is not malfunctioning.
y The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-infrared
laser beam and receiving the beam re À ected off the re À ector of the vehicle ahead, and
then using it for the measurement. Consequently, the Smart City Brake Support (SCBS)
may not operate under the following conditions:
y Re À ection of the laser is poor due to the shape of the vehicle ahead.
y The vehicle ahead is signi ¿ cantly dirty.
y Under bad weather condition, such as rain, fog and snow.
y The window washer is being used or the windshield wipers are not used when it's
raining.
y The windshield is dirty.
y The steering wheel is turned completely left or right, or the vehicle is accelerated
rapidly and comes close to the vehicle ahead.
y Trucks with low loading platforms and vehicles with an extremely low or high pro ¿ le.
y Vehicles with certain shapes such as a vehicle carrier.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 242 of 600
4–114
When Driving
i-ACTIVSENSE

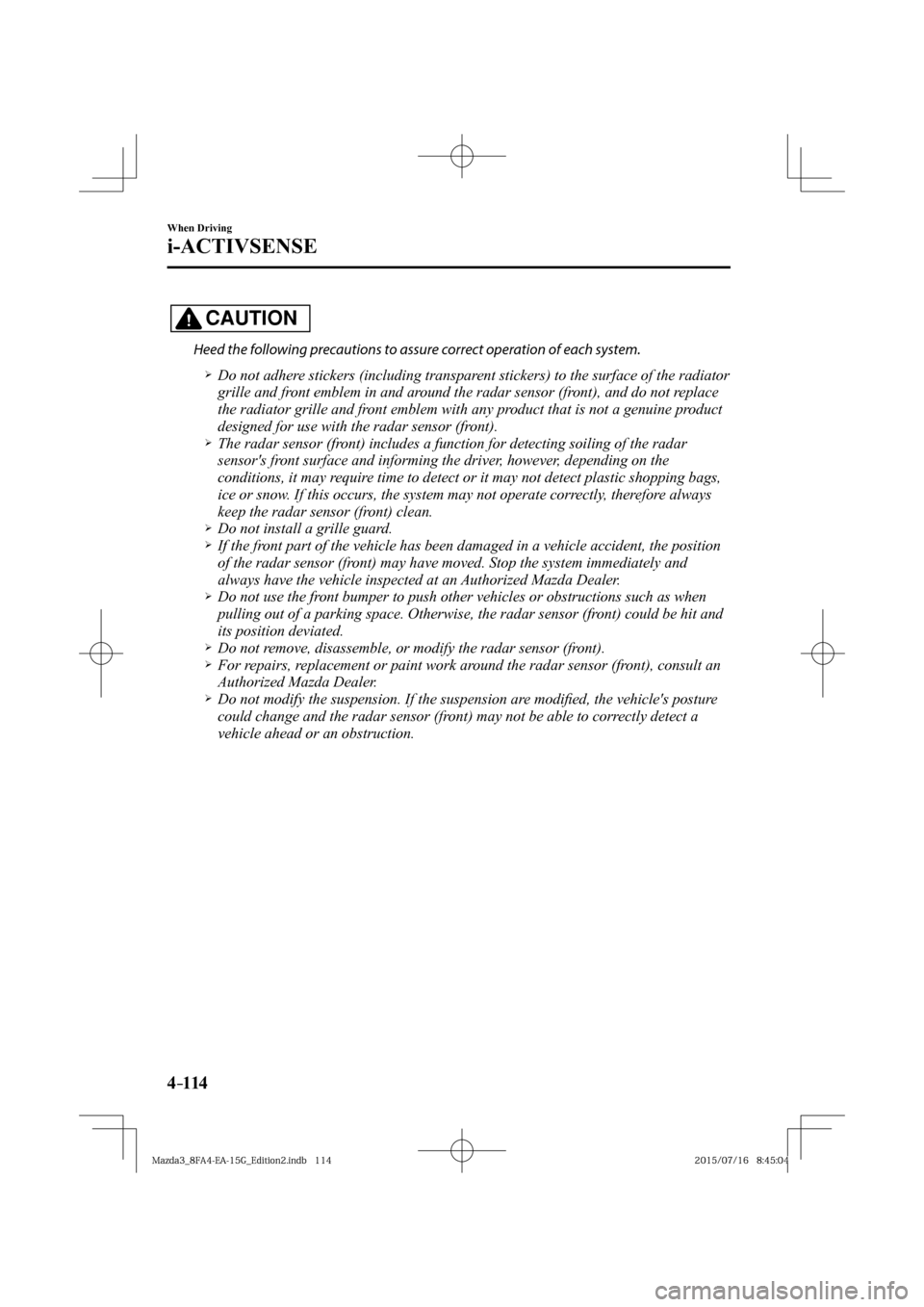

CAUTION
Heed the following precautions to assure correct operation of each system.
¾ Do not adhere stickers (including transparent stickers) to the surface of the radiator
grille and front emblem in and around the radar sensor (front), and do not replace
the radiator grille and front emblem with any product that is not a genuine product
designed for use with the radar sensor (front).
¾ The radar sensor (front) includes a function for detecting soiling of the radar
sensor's front surface and informing the driver, however, depending on the
conditions, it may require time to detect or it may not detect plastic shopping bags,
ice or snow. If this occurs, the system may not operate correctly, therefore always
keep the radar sensor (front) clean.
¾ Do not install a grille guard.
¾ If the front part of the vehicle has been damaged in a vehicle accident, the position
of the radar sensor (front) may have moved. Stop the system immediately and
always have the vehicle inspected at an Authorized Mazda Dealer.
¾ Do not use the front bumper to push other vehicles or obstructions such as when
pulling out of a parking space. Otherwise, the radar sensor (front) could be hit and
its position deviated.
¾ Do not remove, disassemble, or modify the radar sensor (front).
¾ For repairs, replacement or paint work around the radar sensor (front), consult an
Authorized Mazda Dealer.
¾ Do not modify the suspension. If the suspension are modi ¿ ed, the vehicle's posture
could change and the radar sensor (front) may not be able to correctly detect a
vehicle ahead or an obstruction.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 243 of 600
4–115
When Driving
i-ACTIVSENSE
N O T E
y In the following cases, the radar sensor (front) may not be able to detect vehicles ahead
or obstructions.
y The rear surface of a vehicle ahead does not re À ect radio waves effectively, such as
an unloaded trailer or an automobile with a loading platform covered by a soft top,
vehicles with a hard plastic tailgate, and round-shaped vehicles.
y Vehicles ahead with low vehicle height and thus less area for re À ecting radio waves.
y Visibility is reduced due to a vehicle ahead casting off water, snow, or sand from its
tires and onto your windshield.
y The trunk/luggage compartment is loaded with heavy objects or the rear passenger
seats are occupied.
y Ice, snow, or soiling is on the front surface of the front emblem.
y During inclement weather such as rain, snow, or sand storms.
y When driving near facilities or objects emitting strong radio waves.
y In the following cases, the radar sensor (front) may detect vehicles in the opposite lane or
surrounding obstructions, or it may not be able to detect vehicles ahead or obstructions.
y The beginning and end of a curve.
y Roads with continuous curves.
y Narrow lane roads due to road construction or lane closures.
y The vehicle ahead enters the radar sensor's blind spot.
y The vehicle ahead is running abnormally due to accident or vehicle damage.
y Roads with repeated up and down slopes
y Driving on poor roads or unpaved roads.
y The distance between your vehicle and the vehicle ahead is extremely short.
y A vehicle suddenly comes close such as by cutting into the lane.
y To prevent incorrect operation of the system, use tires of the same speci ¿ ed size,
manufacturer, brand, and tread pattern on all four wheels. In addition, do not use tires
with signi ¿ cantly different wear patterns or tire pressures on the same vehicle. (Including
the temporary spare tire)
y If the battery power is weak, the system may not operate correctly.
y When driving on roads with little traf ¿ c and few vehicles ahead or obstructions for the
radar sensor (front) to detect, Forward Obstruction Warning/Smart City Brake Support
(FOW/SCBS) warning light (amber) temporarily illuminates, however, this does not
indicate a problem.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 283 of 600
5–21
Interior Features
Audio System
y CDs bearing the logo shown in the
illustration can be played. No other discs
can be played.
y Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system may
not operate properly.
y Be sure never to touch the signal surface
when handling the CDs. Pick up a CD
by grasping the outer edge or the edge of
the hole and the outer edge.
y Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.
y Dust, ¿ nger smudges, and dirt can
decrease the amount of light re À ected
from the signal surface, thus affecting
sound quality. If the CD should become
soiled, gently wipe it with a soft cloth
from the center of the CD to the edge.
y Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
y The CD player ejects the CD if the CD
is inserted upside down. Also dirty and/
or defective CDs may be ejected.
y Do not insert cleaning discs in the CD
player.
y Do not insert any disc with a peel-off
seal af ¿ xed to it.
y This unit may not be able to play certain
CD-R/CD-RWs made using a computer
or music CD recorder due to disc
characteristics, scratches, smudges, dirt,
etc., or due to dust or condensation on
the lens inside the unit.
y Storing CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
y CD-R/CD-RW exceeding 700 MB
cannot be played.
y This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting
used. (For details, consult the store
where the application was purchased.)
y It is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical data
(CD-DA) is playing.
y The period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
y Completely read the instruction manual
and cautions for CD-R/CD-RWs.
y Do not use discs with cellophane tape
adhering, partially peeled off labels,
or adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label af ¿ xed. The disc may not
eject resulting in a malfunction.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 319 of 600
5–57
Interior Features
Audio System
*Some models.
Applications
N O T E
Depending on the grade and speci ¿ cation,
the screen display may differ.
Select the icon on the home screen to
display the Applications screen. The
following information can be veri ¿ ed.
Top screen Item Function
HD
Radio™
Traf ¿ c
Map — —
Fuel
Economy
Monitor Fuel Consumption
Control Status
(Vehicles with
i-ELOOP)
Settings Refer to Fuel
Economy Monitor
on page 4-69 .
Maintenance
Scheduled
Maintenance
Tire Rotation
Oil Change Refer to
Maintenance
Monitor (Type B
audio) on page
6-21 .
Warning
Guidance Warnings
currently active
can be veri ¿ ed. Refer to If a
Warning Light
Turns On or
Flashes on page
7-24 .
Audio Control Switch
Operation
*
Without Bluetooth ® Hands-Free
With Bluetooth
® Hands-Free
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 405 of 600
6–1
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ........................................................................ 6-2
Introduction ................................................................................... 6-2
Scheduled Maintenance ..................................................................... 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) ........ 6-4
Scheduled Maintenance (Mexico) .............................................. 6-13
Maintenance Monitor .................................................................. 6-20
Owner Maintenance ......................................................................... 6-22
Owner Maintenance Precautions ................................................ 6-22
Hood ............................................................................................ 6-24
Engine Compartment Overview ................................................. 6-26
Engine Oil ................................................................................... 6-27
Engine Coolant ............................................................................ 6-30
Brake/Clutch Fluid ...................................................................... 6-32
Washer Fluid ............................................................................... 6-32
Body Lubrication ........................................................................ 6-33
Wiper Blades ............................................................................... 6-34
Battery ......................................................................................... 6-38
Battery Replacement ................................................................... 6-40
Tires............................................................................................. 6-43
Light Bulbs .................................................................................. 6-47
Fuses ........................................................................................... 6-63
Appearance Care.............................................................................. 6-68
Exterior Care ............................................................................... 6-68
Interior Care ................................................................................ 6-74
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 408 of 600
6–4
Maintenance and Care
Scheduled Maintenance

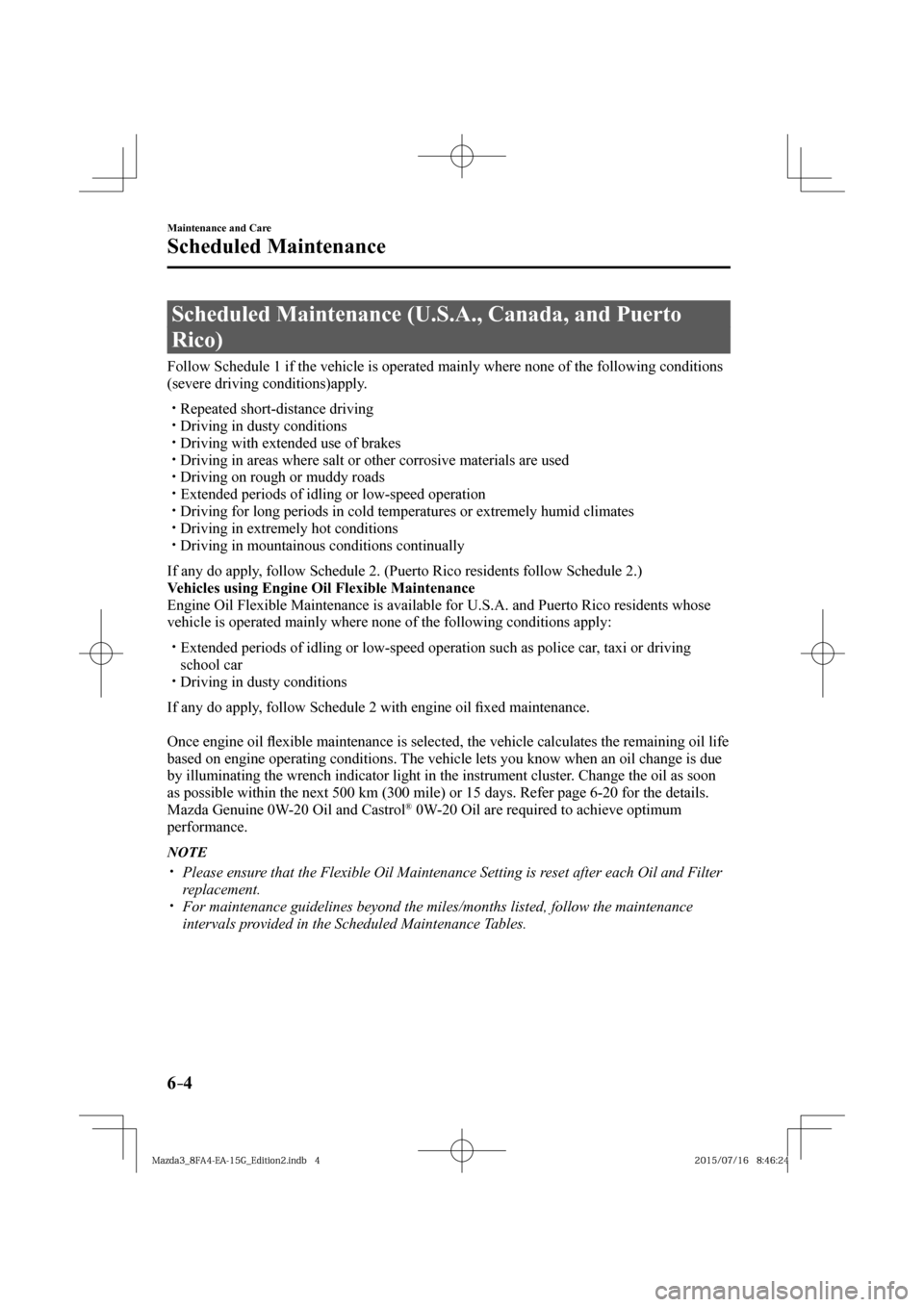

Scheduled Maintenance (U.S.A., Canada, and Puerto
Rico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions)apply.
y Repeated short-distance driving
y Driving in dusty conditions
y Driving with extended use of brakes
y Driving in areas where salt or other corrosive materials are used
y Driving on rough or muddy roads
y Extended periods of idling or low-speed operation
y Driving for long periods in cold temperatures or extremely humid climates
y Driving in extremely hot conditions
y Driving in mountainous conditions continually
If any do apply, follow Schedule 2. (Puerto Rico residents follow Schedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is available for U.S.A. and Puerto Rico residents whose
vehicle is operated mainly where none of the following conditions apply:
y Extended periods of idling or low-speed operation such as police car, taxi or driving
school car
y Driving in dusty conditions
If any do apply, follow Schedule 2 with engine oil ¿ xed maintenance.
Once engine oil À exible maintenance is selected, the vehicle calculates the remaining oil life
based on engine operating conditions. The vehicle lets you know when an oil change is due
by illuminating the wrench indicator light in the instrument cluster. Change the oil as soon
as possible within the next 500 km (300 mile) or 15 days. Refer page 6-20 for the details.
Mazda Genuine 0W-20 Oil and Castrol
® 0W-20 Oil are required to achieve optimum
performance.
N O T E
y Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement.
y For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
