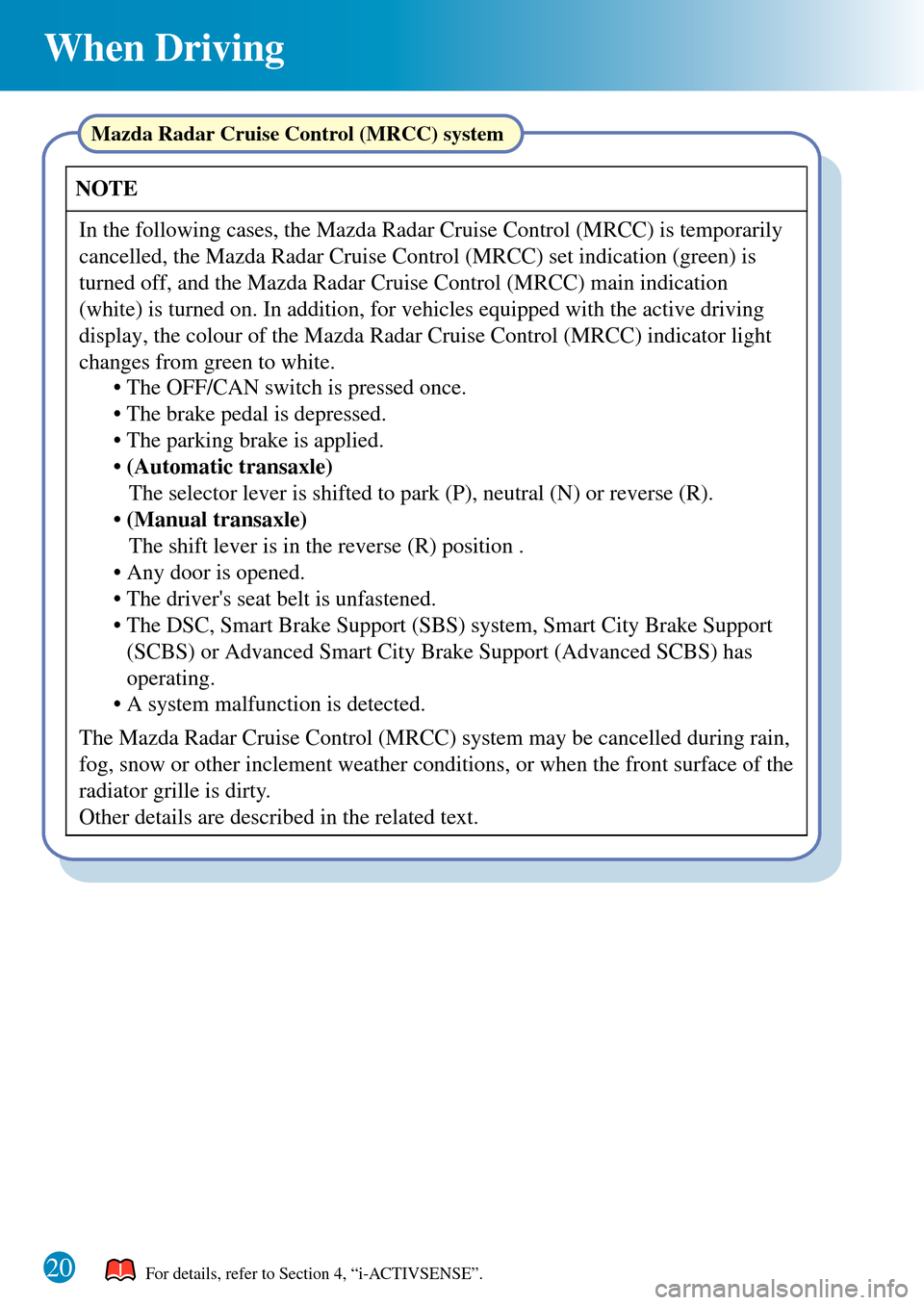

Mazda Radar Cruise Control (MRCC) system
The Mazda Radar Cruise Control (MRCC) system may be cancelled during rain,
fog, snow or other inclement weather conditions, or when the front surface of the
radiator grille is dirty.
NOTE
In the following cases, the Mazda Radar Cruise Control (MRCC) is temporarily
cancelled, the Mazda Radar Cruise Control (MRCC) set indication (green) is
turned off, and the Mazda Radar Cruise Control (MRCC) main indication
(white) is turned on. In addition, for vehicles equipped with the active driving
display, the colour of the Mazda Radar Cruise Control (MRCC) indicator light
changes from green to white.
• The OFF/CAN switch is pressed once.
• The brake pedal is depressed.
• The parking brake is applied.
The selector lever is shifted to park (P), neutral (N) or reverse (R).
• The DSC, Smart Brake Support (SBS) system, Smart City Brake Support
(SCBS) or Advanced Smart City Brake Support (Advanced SCBS) has
operating.
• A system malfunction is detected.
Other details are described in the related text.
• (Automatic transaxle)
• (Manual transaxle)
The shift lever is in the reverse (R) position .
• Any door is opened.
• The driver's seat belt is unfastened.
For details, refer to Section 4, “i-ACTIVSENSE”.
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

21
When Driving
CANCEL switchRES switch
OFF switch switch switchMODE switch
SET+ switch
SET- switch
Vehicle ahead display
MRCC Distance
between vehicle
display
MRCC Set vehicle speed
Setting the Mazda Radar Cruise Control (MRCC)
When the MODE switch is pressed, the Mazda Radar Cruise Control (MRCC)
main indication (white) turns on and the vehicle speed and the distance between
vehicles while in headway control can be set.
For details, refer to Section 4, “i-ACTIVSENSE”.
The setting status and operation conditions of the Mazda Radar Cruise Control
(MRCC) system are indicated in the active driving display.
Mazda Radar Cruise Control (MRCC) Display Indication
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

22
When Driving
Setting the Mazda Radar Cruise Control (MRCC)
How to Set the Speed
1. Adjust the vehicle speed to the desired setting using the accelerator pedal.
2. Headway control begins when the SET + or SET - switch is pressed. The set
speed and the inter-vehicle distance display filled with white lines are displayed.
For details, refer to Section 4, “i-ACTIVSENSE”.
Travel statusDuring travel at constant
speedDuring travel under headway
control
Active driving
display
How to Set the Distance Between Vehicles During Headway Control
The distance between vehicles is set to a shorter distance each time the switch is
pressed. The distance between vehicles is set to a longer distance by pressing the
switch. The distance-between-vehicles can be set to 4 levels; Long, medium, short,
and extremely short distance.
Distance-between-
vehicles guideline
(at 80 km/h (50 mph)
vehicle speed)Long
(about 50 m
(164 ft))Medium
(about 40 m
(131 ft))Short
(about 30 m
(98 ft))Extremely
short
(about 25 m
(82 ft))
Active driving
display
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

When Driving
23For details, refer to Section 4, “i-ACTIVSENSE”.
Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead
because the vehicle applies the brakes suddenly while
you are travelling in headway control, the warning
sound activates and the brake warning is indicated in
the display.
Always verify the safety of the surrounding area and
depress the brake pedal while keeping a safer distance
from the vehicle ahead. Additionally, always keep a
safer distance from the vehicles behind you.
Setting the Mazda Radar Cruise Control (MRCC)

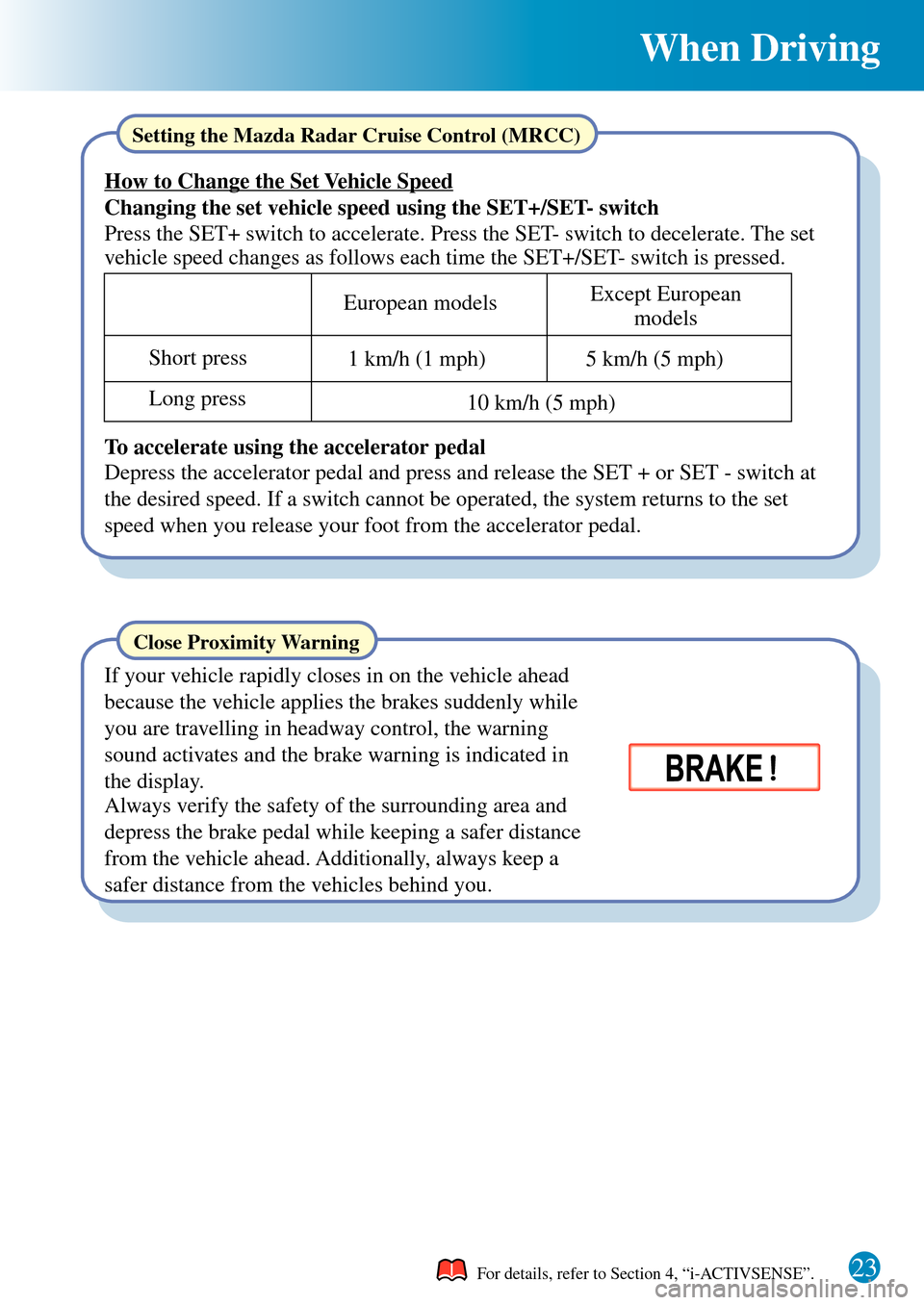

How to Change the Set Vehicle Speed
Changing the set vehicle speed using the SET+/SET- switch
Press the SET+ switch to accelerate. Press the SET- switch to decelerate. The set
vehicle speed changes as follows each time the SET+/SET- switch is pressed.
To accelerate using the accelerator pedal
Depress the accelerator pedal and press and release the SET + or SET - switch at
the desired speed. If a switch cannot be operated, the system returns to the set
speed when you release your foot from the accelerator pedal.
Short press
Long pressEuropean models1 km/h (1 mph)
Except European
models
5 km/h (5 mph)
10 km/h (5 mph)
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

24
When Driving
"Late" setting "Early" setting
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
The Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
alerts the driver that the vehicle may be deviating from its lane and it provides
steering assistance to help the driver stay within the vehicle lanes.
For details, refer to Section 4, “i-ACTIVSENSE”.
The steering wheel operation of the Lane-keep Assist System (LAS) & Lane
Departure Warning System (LDWS) has “Late” and “Early” steering assist timing
settings.
Do not rely completely on the Lane-keep Assist System (LAS) & Lane
Departure Warning System (LDWS):
Other details are described in the related text.
WARNING
• The Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) is not an automatic driving system. In addition, the system is not
designed to compensate for a driver's lack of caution, and over-reliance
on the system could lead to an accident.
• The detection ability of the Lane-keep Assist System (LAS) & Lane
Departure Warning System (LDWS) is limited. Always stay on course
using the steering wheel and drive with care.
NOTE
The Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) may not be able to detect white (yellow) lane lines correctly and it
may not operate normally.
Other details are described in the related text.
“Late” and “Early” timing can be changed (timing at which steering operation
assist is pro
vided) by changing the setting. Details are described in Setting
Change (Personalisation Features) in the related text.
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

When Driving
25For details, refer to Section 4, “i-ACTIVSENSE”.
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
If the LDWS OFF indicator light in the instrument
cluster turns off when the ignition is switched ON,
the system goes on standby. System Operation
If the LDWS OFF indicator light in the
instrument cluster turns on when the ignition is
switched ON, press the LDWS OFF switch so
that the system goes on standby.
• The vehicle is driven in the centre of the driving lane with the white
or yello
w lines on the left and right sides, or on either side.
• The vehicle speed is about 70 km/h (44 mph) or faster.
Other conditions are described in the related text.Drive the vehicle in the centre of the vehicle lane while
the system is on standby. The system becomes
operational when all of the following conditions are met.
• The vehicle is driven on a straight road or road with gentle curves.
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

26
When Driving
When the Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) goes from stand-by to operational status, the vehicle lane lines are
indicated in the multi-information display or active driving display.
Vehicle lane line display
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
For details, refer to Section 4, “i-ACTIVSENSE”.
Indication on display
System condition
Multi-information display Active driving display
Stand-by
Operation status
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

When Driving
Advanced Smart City Brake Support (Advanced SCBS)/ Smart City Brake
Support [Forward] (SCBS F)/ Smart City Brake Support [Reverse] (SCBS R)
For details, refer to Section 4, “i-ACTIVSENSE”
Advanced Smart City Brake Support (Advanced SCBS) (Except The
Philippines, Taiwan)
The Smart City Brake Support [Reverse] (SCBS R) is a system which is designed to reduce
damage in the event of a collision by operating the brake control (SCBS brake) when the
system’s ultrasonic sensors detect an obstruction at the rear of the vehicle while driving at a
speed of about 2 to 8 km/h (2 to 4 mph) and the system determines that a collision is
unavoidable. In addition, when the driver depresses the brake pedal while the system is in
the operation range at a vehicle speed of about 2 to 8 km/h (2 to 4 mph), the brakes are
applied firmly and quickly to provide assistance. (Brake Assist (SCBS brake assist))
Smart City Brake Support [Reverse] (SCBS R)
The Advanced Smart City Brake Support (Advanced SCBS) alerts the driver of a possible
collision using the display and a warning sound when the Forward Sensing Camera (FSC) detects
a vehicle ahead or pedestrian and determines that a collision with the object is unavoidable while
the vehicle is driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph) if the object is a
vehicle ahead and about 10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian.
Smart City Brake Support [Forward] (SCBS F) (The Philippines, Taiwan)
The Smart City Brake Support [Forward] (SCBS F) system alerts the driver of a possible
collision using an indication in the display and a warning sound when the Forward
Sensing Camera (FSC) detects a vehicle ahead and determines that a collision with a
vehicle ahead is unavoidable while the vehicle is being driven at a vehicle speed of about
4 to 80 km/h (2 to 50 mph). In addition, the system reduces damage in the event of a
collision by operating the brake control (SCBS brake) when the system determines that a
collision is unavoidable while the vehicle is being driven at a vehicle speed of about 4 to
30 km/h (2 to 18 mph). It may also be possible to avoid a collision if the relative speed
between your vehicle and the vehicle in front of you is less than about 20 km/h (12 mph).
• The system is only designed to reduce damage in the event of a collision. Over reliance
on the system leading to the accelerator pedal or brake pedal being mistakenly
operated could result in an accident.
• (Advanced Smart City Brake Support (Advanced SCBS)) Do not rely completely on the system:
WARNING
The Advanced Smart City Brake Support (Advanced SCBS) system operates
in response to a vehicle ahead or a pedestrian. The system does not operate
in response to obstructions such as a wall, 2-wheeled vehicles, or animals.
• (Smart City Brake Support [Forward] (SCBS F))
The Advanced Smart City Brake Support (Advanced SCBS) is a system
which operates in response to a vehicle ahead. The system may not be able
to detect or react to 2-wheeled vehicles or pedestrians.
27
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

When Driving
28For details, refer to Section 4, “i-ACTIVSENSE”.
NOTE
Advanced Smart City Brake Support (Advanced SCBS)Advanced Smart City Brake Support (Advanced SCBS)/
Smart City Brake
Support [Forward] (SCBS F)/ Smart City Brake Support [Reverse] (SCBS R)
• The Advanced Smart City Brake Support (Advanced SCBS) system is not
turned off. • The engine is running.
The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).
Smart City Brake Support [Forward] (SCBS F)
The Smart City Brake Support [Forward] (SCBS F) system will operate under
the following conditions.
•
The engine is running.
•The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system
warning light (amber) does not illuminate.
• “SCBS Not Available” is not displayed in the multi-information display. (with
multi-information display)
• (Rear-end collision warning)
Smart City Brake Support [Reverse] (SCBS R)
• The change lever (manual transaxle vehicle) or the selector lever (automatic
transaxle vehicle) is in the R (reverse) position.
•“Reverse Smart City Brake Support Malfunction” is not displayed in the multi-
information display.
•The vehicle speed is between about 2 to 8 km/h (2 to 4 mph).
•The Smart City Brake Support [Reverse] (SCBS R) is not turned off.
• The DSC is not malfunctioning. TheAdvanced Smart City Brake Support (Advanced SCBS) system will
operate under the following conditions.
• The Smart City Brake Support (SCBS) warning light (amber) does not
illuminate.
• (Object is vehicle ahead)
• (Object is a pedestrian)
The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).
• (Brake control (SCBS brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).
• The Smart City Brake Support [Forward] (SCBS F) system is not turned off.
The Smart City Brake Support [Reverse] (SCBS R) system will operate under
the following conditions.
• The engine is running.
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD

When Driving
For details, refer to Section 4, “i-ACTIVSENSE”.
Smart Brake Support (SBS)
The Smart Brake Support (SBS) system alerts the driver of a possible collision
using a display and warning sound if the radar sensor (front) and the Forward
Sensing Camera (FSC) determine that there is the possibility of a collision with a
vehicle ahead while the vehicle is being driven at about 15 km/h or faster (10
mph or faster). Furthermore, if the radar sensor (front) and the Forward Sensing
Camera (FSC) determines that a collision is unavoidable, the automatic brake
control is performed to reduce damage in the event of a collision.
Do not rely completely on the Smart Brake Support (SBS) system and always
drive carefully:
The Smart Brake Support (SBS) is designed to reduce damage in the event of a
collision, not avoid an accident. The ability to detect an obstruction is limited
depending on the obstruction, weather conditions, or traffic conditions. Therefore, if
the accelerator pedal or brake pedal is mistakenly operated it could result in an
accident. Always verify the safety of the surrounding area and depress the brake pedal
or accelerator pedal while keeping a safer distance from vehicles ahead or on-coming
vehicles.
WARNING
In addition, when the driver depresses the brake pedal, the brakes are applied
firmly and quickly to assist. (Brake Assist (SBS brake assist)).
29
/C\FCA(,'''A'FKVKQPA3WKEM)WKFGKPFD
