2-24
Essential Safety Equipment
Child Restraint
Form No. 8R29-EA-02I
Accident statistics reveal that a child is
safer in the rear seat. The front
passenger’s seat is clearly the worst
choice for any child under 12, and with
rear-facing child-restraint systems it is
clearly unsafe due to air bags.
Some child-restraint systems now come
with tethers and therefore must be
installed on the seats that take tethers to
be effective. In your Mazda, tethered
child-restraint systems can only be
accommodated in the three positions on
the rear seat.
Some child-restraint systems also employ
specially designed LATCH attachments;
refer to "LATCH Child-Restraint
Systems" (page 2-29).
Rear Seat Child-Restraint
System Installation
Follow these instructions when using a
child-restraint system, unless you are
attaching a LATCH-equipped child-
restraint system to the rear LATCH lower
anchors. Refer to "LATCH Child-
Restraint Systems" (page 2-29).
1. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.
2. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
Installing Child-Restraint
Systems
Tethered Child-Restraint Systems Work Only on Tether-Equipped Rear Seats:Installation of a tether equipped
child-restraint system in the front
passenger’s seat defeats the safety
design of the system and will result in
an increased chance of serious injury
if the child-restraint system goes
forward without benefit of being
tethered.
Place tether equipped child-restraint
systems where there are tether
anchors.
WARNING
NOTE
Follow the child-restraint system
manufacturer’s instructions carefully.
If you are not sure whether you have a
LATCH system or tether, check in the
child-restraint system manufacturer’s
instructions and follow them
accordingly. Depending on the type of
child-restraint system, it may not
employ seat belts which are in
automatic locking mode.
shuseizumi_J56J_8R29_EA_02I.book Page 24 Saturday, September 7, 2002 12:58 PM
Page 42 of 289
2-25
Essential Safety Equipment
Child Restraint
Form No. 8R29-EA-02I
3. Push the child-restraint system firmly
into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in the
automatic locking mode. If the belt
does not lock the seat down tight,
repeat this step.4. If your child-restraint system requires
the use of a tether strap, hook and
tighten the tether strap by following the
manufacturer’s instructions.
NOTE
Inspect this function before each use of
the child-restraint system. You should
not be able to pull the shoulder belt out
of the retractor while the system is in
the automatic locking mode. When
you remove the child-restraint system,
be sure the belt fully retracts to return
the system to emergency locking mode
before occupants use the seat belts.
Child-Restraint Tether Usage:Using the tether to secure anything
but a child-restraint system is
dangerous. This could weaken or
damage the tether or tether anchor
and result in injury. Use the tether
and tether anchor only for a child-
restraint system.
For rear right seatFor rear left seat
Anchor bracket
location
For rear center seat
CoverOpen
Tether
strapTether strap
position
Anchor
bracket
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 25 Saturday, September 7, 2002 12:58 PM
Page 43 of 289
2-26
Essential Safety Equipment
Child Restraint
Form No. 8R29-EA-02I
If You Must Use the Front Seat
for Children
If you cannot put all children in the rear
seat, at least put the smallest in the rear
and be sure the largest child up front uses
the shoulder belt over the shoulder.
Do not put rear-facing child-restraint
systems on the front passenger’s seat.
This seat is also not set up for tethered
child-restraint systems, put them in one of
the three rear seat positions set up with
tether anchors.
Likewise the LATCH child-restraint
system cannot be secured in the front
passenger’s seat and should be used in the
rear seat.
Don’t allow anyone to sleep against the
right front door if you have an optional
side air bag, it could cause serious injuries
to an out of position occupant. As
children more often sleep in cars, it is
better to put them in the rear seat. If
installing the child-restraint system on the
front seat is unavoidable, follow these
instructions when using a front-facing
child-restraint system in the front
passenger’s seat.
NOTE
To check if your Mazda front seats
have side air bags:
Every Mazda side air bag will have a
"SRS-Air Bag" label on the outboard
shoulder of the front seats.
Front Passenger’s Seat Position:As your vehicle has front air bags and
doubly so if your vehicle has side air
bags, a front-facing child-restraint
system should be put on the front seat
only when it is unavoidable.
Always move the seat as far back as
possible, because the force of a
deploying air bag could cause serious
injury or death to the child.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems
on the front seat are particularly
dangerous.
The child-restraint system can be hit
by a deploying air bag and moved
violently backward resulting in
serious injury or death to the child.
NEVER use a rear-facing child-
restraint system in the front seat with
an air bag that could deploy.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 26 Saturday, September 7, 2002 12:58 PM
Page 44 of 289
2-27
Essential Safety Equipment
Child Restraint
Form No. 8R29-EA-02I
Front Passenger’s Seat Child-
Restraint System Installation
1. Slide the seat as far back as possible.
2. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.
3. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
4. Push the child-restraint system firmly
into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.Children and Seating Position with Side and Curtain Air Bags:Allowing anyone to lean over or
against the front or rear doors is
dangerous. If the vehicle is equipped
with side and curtain air bags, the
impact of inflation could cause
serious injury or death to the person.
Children are more likely to sleep in
the vehicle; when they do, they are
more at risk in the front passenger’s
seat that have a side air bag because
they may slump over into the path of
the air bags.Furthermore, leaning
over or against the doors could block
the side and curtain air bags and
eliminate the advantages of
supplemental protection.With the
front air bag and the additional side
air bag that comes out of the front
seat, the rear seat is always a better
location for children who are prone to
sleeping. Do not allow a child to lean
over or against the doors, even if the
child is seated in a child-restraint
system.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 27 Saturday, September 7, 2002 12:58 PM
Page 45 of 289
2-28
Essential Safety Equipment
Child Restraint
Form No. 8R29-EA-02I
NOTE
•
Inspect this function before each
use of the child-restraint system.
You should not be able to pull the
shoulder belt out of the retractor
while the system is in the automatic
locking mode. When you remove
the child-restraint system, be sure
the belt fully retracts to return the
system to emergency locking mode
before occupants use the seat belts.
•
Follow the child-restraint system
manufacturer’s instruction carefully.
Depending on the type of child-
restraint system, it may not employ
seat belts which are in automatic
locking mode.
shuseizumi_J56J_8R29_EA_02I.book Page 28 Saturday, September 7, 2002 12:58 PM
Page 46 of 289
2-29
Essential Safety Equipment
Child Restraint
Form No. 8R29-EA-02I
Your Mazda is equipped with LATCH lower anchors for attachment of specially designed
LATCH child-restraint systems in the rear outboard seats. Both anchors must be used,
otherwise the seat will bounce around and put the child in danger. Some LATCH child-
restraint systems must also be used in conjunction with a tether to be effective. If they have
a tether you must use it to better assure your child’s safety.

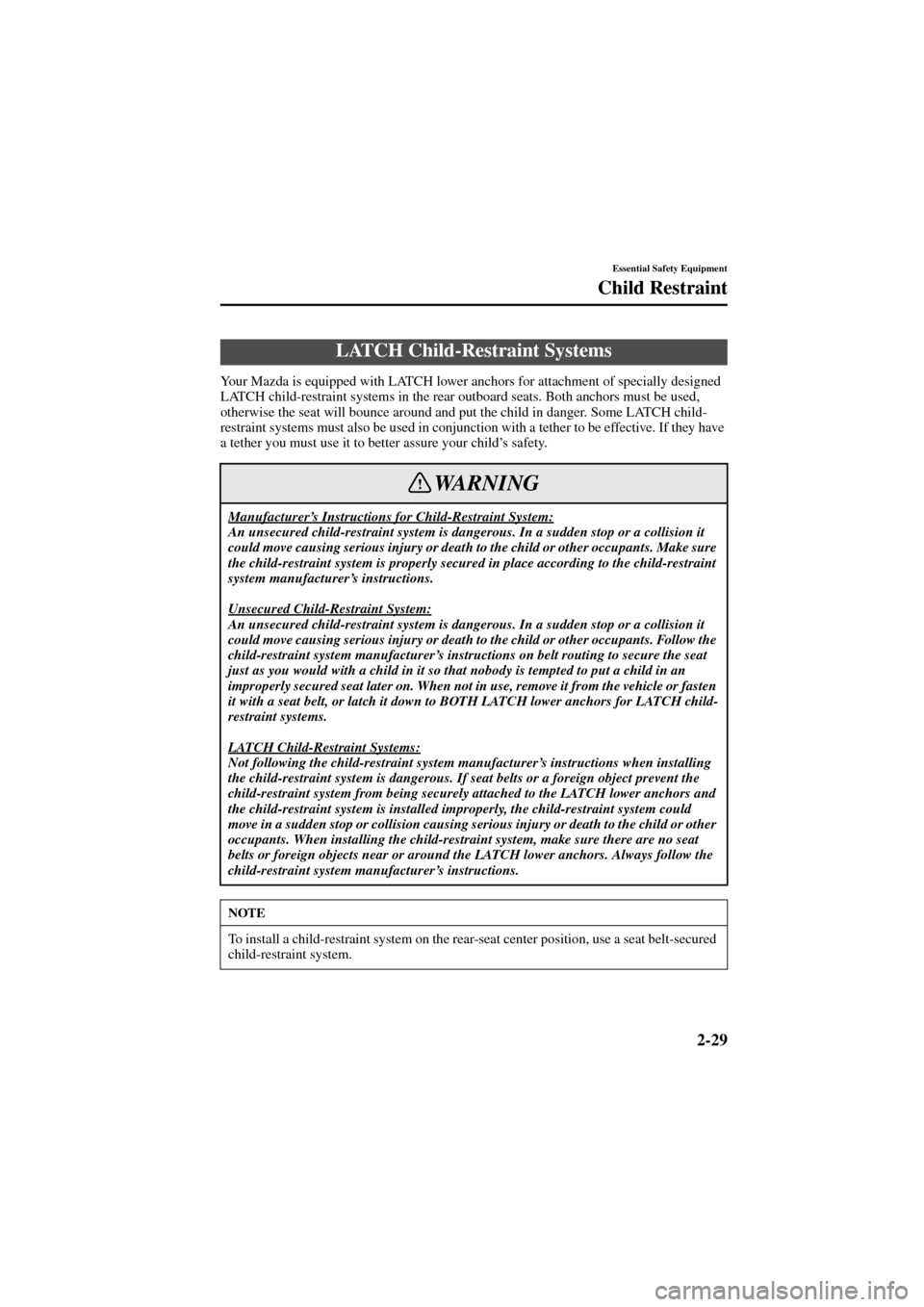

LATCH Child-Restraint Systems
Manufacturer’s Instructions for Child-Restraint System:An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
the child-restraint system is properly secured in place according to the child-restraint
system manufacturer’s instructions.
Unsecured Child-Restraint System:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Follow the
child-restraint system manufacturer’s instructions on belt routing to secure the seat
just as you would with a child in it so that nobody is tempted to put a child in an
improperly secured seat later on. When not in use, remove it from the vehicle or fasten
it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH child-
restraint systems.
LATCH Child-Restraint Systems:
Not following the child-restraint system manufacturer’s instructions when installing
the child-restraint system is dangerous. If seat belts or a foreign object prevent the
child-restraint system from being securely attached to the LATCH lower anchors and
the child-restraint system is installed improperly, the child-restraint system could
move in a sudden stop or collision causing serious injury or death to the child or other
occupants. When installing the child-restraint system, make sure there are no seat
belts or foreign objects near or around the LATCH lower anchors. Always follow the
child-restraint system manufacturer’s instructions.
NOTE
To install a child-restraint system on the rear-seat center position, use a seat belt-secured
child-restraint system.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 29 Saturday, September 7, 2002 12:58 PM
Page 47 of 289
2-30
Essential Safety Equipment
Child Restraint
Form No. 8R29-EA-02I

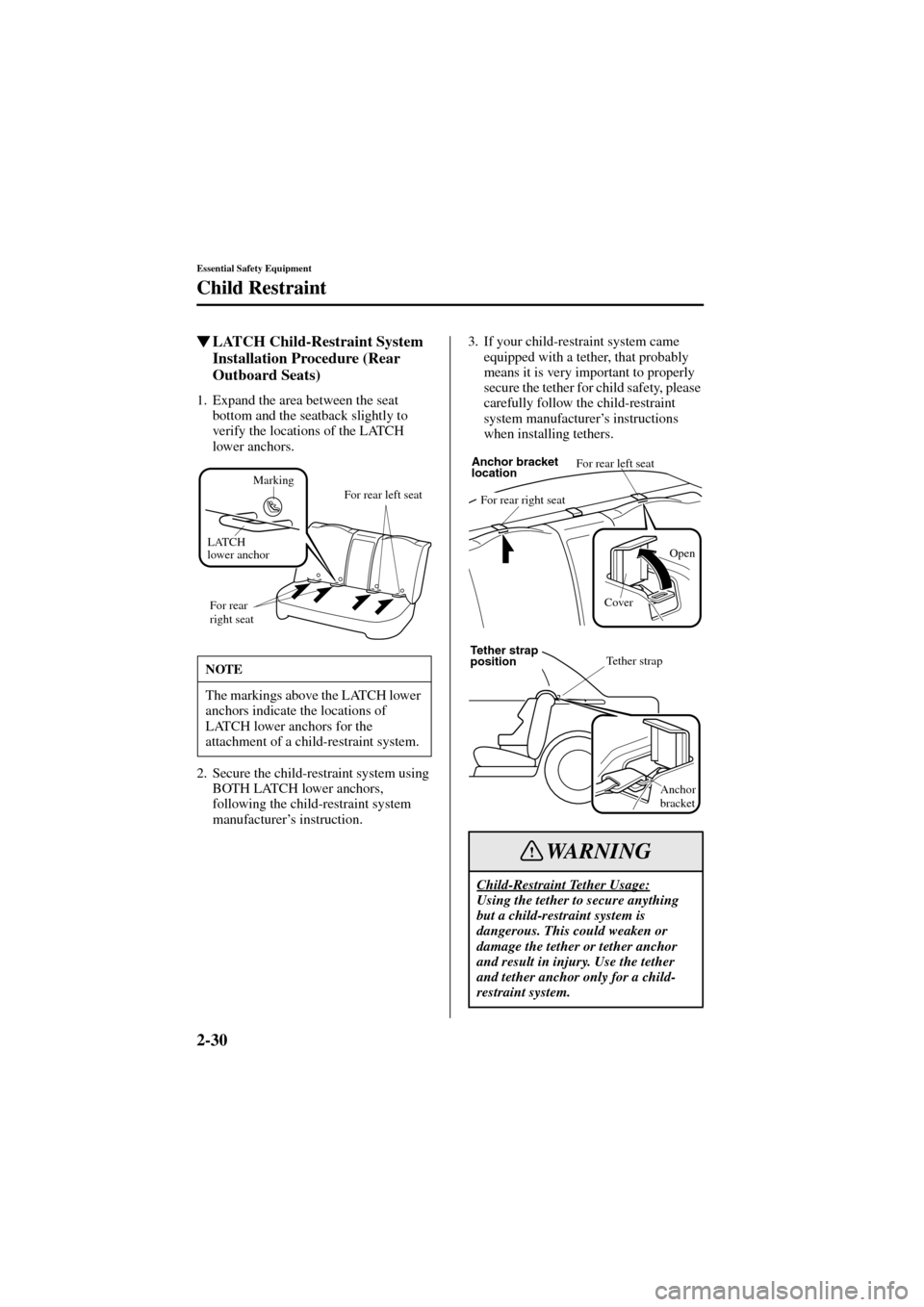

LATCH Child-Restraint System
Installation Procedure (Rear
Outboard Seats)
1. Expand the area between the seat
bottom and the seatback slightly to
verify the locations of the LATCH
lower anchors.
2. Secure the child-restraint system using
BOTH LATCH lower anchors,
following the child-restraint system
manufacturer’s instruction.3. If your child-restraint system came
equipped with a tether, that probably
means it is very important to properly
secure the tether for child safety, please
carefully follow the child-restraint
system manufacturer’s instructions
when installing tethers.
NOTE
The markings above the LATCH lower
anchors indicate the locations of
LATCH lower anchors for the
attachment of a child-restraint system.
LATCH
lower anchorMarking
For rear left seat
For rear
right seat
Child-Restraint Tether Usage:Using the tether to secure anything
but a child-restraint system is
dangerous. This could weaken or
damage the tether or tether anchor
and result in injury. Use the tether
and tether anchor only for a child-
restraint system.
For rear right seatFor rear left seat
Anchor bracket
location
CoverOpen
Anchor
bracket
Tether strap
positionTether strap
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 30 Saturday, September 7, 2002 12:58 PM
Page 48 of 289
2-31
Essential Safety Equipment
Form No. 8R29-EA-02I
SRS Air Bags
Read this owner’s manual carefully to verify what air bags (driver-side air bag, passenger-
side air bag, side and curtain air bags) are equipped in your vehicle.
The front and side supplemental restraint systems (SRS) include up to 6 air bags (verify
"SRS AIR BAG" location indicator marks).
They are located in:
•
The steering wheel hub
•
The passenger side dashboard
•
The outboard sides of the front seatbacks (If equipped with side air bags.)
•
The front and rear window pillars, and the roof edge along both sides (If equipped with
curtain air bags.)
These systems operate independently depending on the type of accident encountered; if
you have side and curtain air bags, the side and curtain air bags are not likely to deploy on
both sides in the same accident because a vehicle is not often hit from both sides. The side
and curtain air bags work together but they and the frontal air bag system will not normally
deploy during the same type of accident unless a combination of frontal and side impacts
occur.
The air bag supplemental restraint systems are designed to provide supplemental protection
only in the front seats in certain situations and the rear outside passenger positions only in
same-side collisions, so seat belts become important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
•
Keep the passenger away from an inflating air bag.
•
Reduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
•
Reduce the possibility of injuries in frontal or side collisions that are not severe enough
to activate the air bags.
•
Reduce the possibility of being thrown from your vehicle.
•
Reduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts.
•
Hold the driver in a position which allows better control of the vehicle.
Supplemental Restraint Systems (SRS) Precautions
shuseizumi_J56J_8R29_EA_02I.book Page 31 Saturday, September 7, 2002 12:58 PM
Page 49 of 289
2-32
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I
Small children should be protected by a child-restraint system. In certain regions, larger
children must use a child-restraint system (page 2-21).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner’s Manual as well as the child-restraint system
manufacturer’s instructions.
Air Bags without Seat Belts:Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in collisions with frontal, near frontal or side forces that are at
least moderate. Vehicle occupants should always wear seat belts.
Child in the Front Seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be
hit by a deploying air bag and be seriously injured or even killed. A sleeping child is
more likely to lean against the door and be hit by the side air bag in a moderate, right-
side collision. Whenever possible, always secure a child 12 years and under on the
rear seat with an appropriate child-restraint system for the child’s age and size.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems on the front seat are particularly dangerous.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child. NEVER use a rear-facing
child-restraint system in the front seat with an air bag that could deploy.
Seating Position with Front Air Bags:
Sitting too close to the air bag storage compartments or placing hands or feet on them
is extremely dangerous. Front Air bags inflate with great force and speed. Serious
injuries could occur if someone is too close. The driver should always hold onto only
the rim of the steering wheel. The front seat passenger should keep both feet on the
floor. Front seat occupants should adjust their seats as far back as possible and
always sit upright against the seatbacks with seat belts worn properly.
WARNING
Deploying air bag
shuseizumi_J56J_8R29_EA_02I.book Page 32 Saturday, September 7, 2002 12:58 PM
Page 50 of 289
2-33
Essential Safety Equipment
SRS Air Bags
Form No. 8R29-EA-02I
Seating Position with Side and Curtain Air Bags:Sitting too close to the side and curtain air bag storage compartments or placing
hands on them is extremely dangerous. The side and curtain air bags inflate with
great force and speed directly out of the outboard side of the front seat, and the front
and rear window pillars along the roof edge, expanding along the front and rear
doors on the side the car is hit.
Serious injury could occur if someone is sitting too close to the door or leaning
against a window, or if rear seat occupants grab the sides of the front seatbacks.
Furthermore, sleeping up against the door or hanging out the windows in the vehicle
could block the side and curtain air bags and eliminate the advantages of
supplemental protection. Give the side and curtain air bags room to work by sitting in
the center of the seat while the vehicle is moving with seat belts worn properly.
Front Air Bag Storage Areas:
Attaching an object to a front air bag storage area or placing something in front of it
is dangerous. In an accident, the object could interfere with front air bag inflation
and injure the occupants.
Always keep the front air bag storage areas free of objects.
Side Air Bag Storage Areas:
Attaching things to the front seat in such a way as to cover the outboard side of the
seat in any way is dangerous. In an accident the object could interfere with the side
air bag, which inflates from the outboard side of the front seats, impeding the added
protection of the side air bag system or redirecting the air bag in a way that is
dangerous. Furthermore, the bag could be cut open spewing exhaust.
Do not hang net bags, map pouches or back pads with side straps on the front seats.
Never use seat covers on the front seats. Always keep the side air bag storage areas in
your front seats free to deploy in the event of a side collision.
Curtain Air Bag Storage Areas:
Attaching objects to the areas where the curtain air bag activates such as on the
windshield glass, side door glass, front and rear window pillars and along the roof
edge and assist grips is dangerous. In an accident the object could interfere with the
curtain air bag, which inflates from the front and rear window pillars and along the
roof edge, impeding the added protection of the curtain air bag system or redirecting
the air bag in a way that is dangerous. Furthermore, the bag could be cut open
spewing exhaust.
Do not place hangers or any other objects on the assist grips. When hanging clothes,
hang them on the coat hook directly. Always keep the curtain air bag storage areas
free to deploy in the event of a side collision.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 33 Saturday, September 7, 2002 12:58 PM
