CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing ”(page 8-58).
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
Essential Safety Equipment
Seat Belt Systems
2-17
Mazda6_8X47-EA-07G_Edition1 Page31
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (32,1)

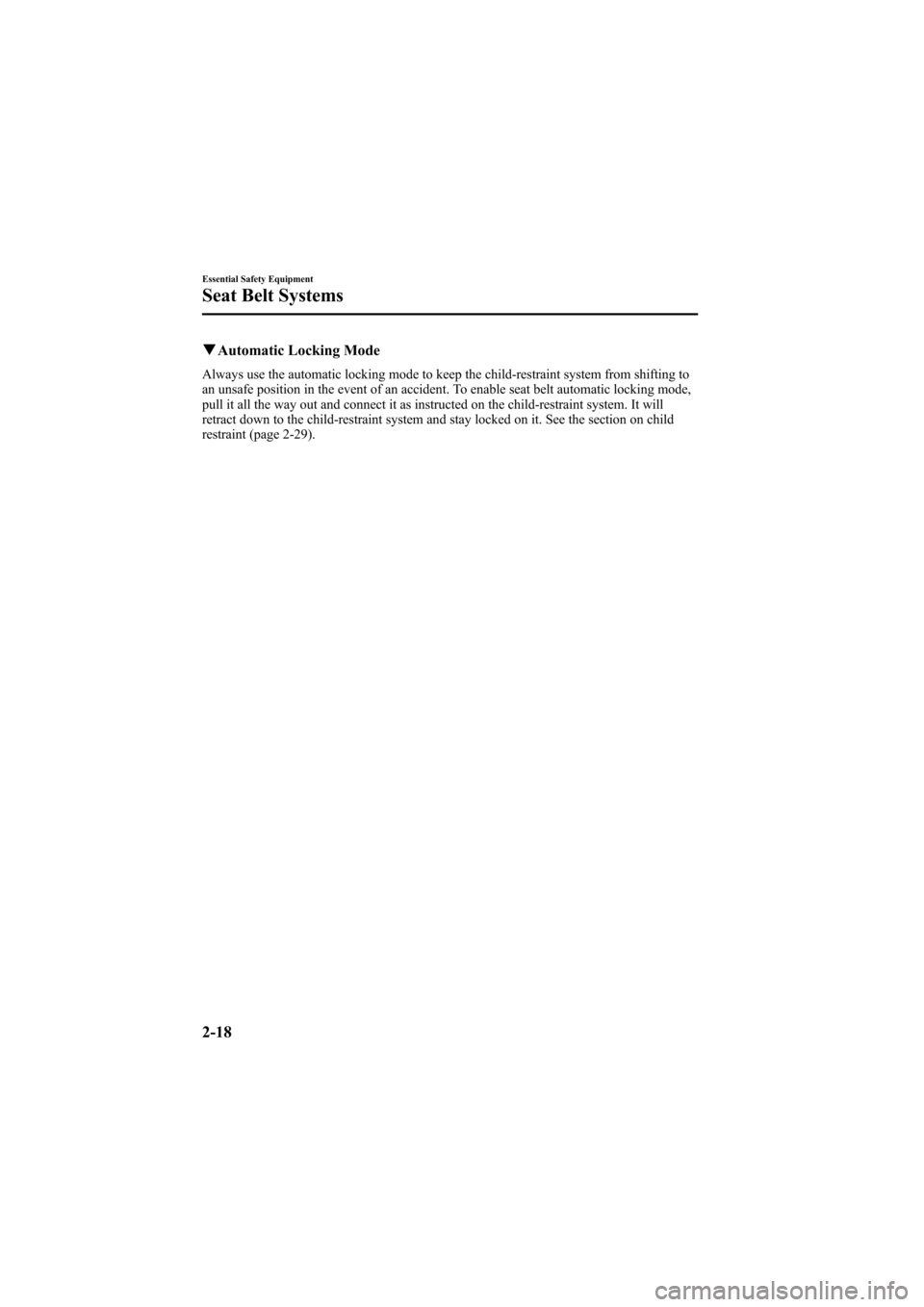

qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-29).
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda6_8X47-EA-07G_Edition1 Page32
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (33,1)
Seat Belt (Except Center-
Rear Position)
NOTEWhen using the center-rear seat belt, refer to
“Center-Rear Position Seat Belt” (page 2-23).
qFastening the Seat Belts
1. Grasp the tongue.
2. Slowly pull out the lap/shoulder belt.
TongueBelt
3. Insert the tongue into the buckle until
you hear a click.
Buckle Tongue
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible, not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Keep low on
hip bone
Too high
Take up slack
WARNING
Positioning the Lap Portion of the Seat
Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
Essential Safety Equipment
Seat Belt Systems
2-19
Mazda6_8X47-EA-07G_Edition1 Page33
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (34,1)
qUnfastening the Seat Belts
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTEIf a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qShoulder Belt Adjusterí
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the button and slide it down.
Make sure the adjuster is locked.
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
2-20
Essential Safety Equipment
íSome models.
Seat Belt Systems
Mazda6_8X47-EA-07G_Edition1 Page34
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (35,1)
Front Seat Belt Pretensioner
and Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.
Pretensioners:
In moderate or severe frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The front seat belt
retractors remove slack quickly as the air
bags are expanding.
In addition, the pretensioner system for
the front passenger, like the front
passenger air bag, is designed to only
deploy in accordance with the total seated
weight on the front passenger seat. Any
time the air bags and seat belt
pretensioners have fired they must be
replaced. For details, refer to the front
passenger seat weight sensors (page 2-52).
Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and can
activate in any accident mode with
sufficient occupant movement.
Even if the pretensioners have not fired,
the load limiting function must be
checked by an Authorized Mazda Dealer.
WARNING
Wear seat belts only as recommended
in this owner's manual:Incorrect positioning of the driver and
front passenger seat belts is
dangerous. Without proper
positioning, the pretensioner and
load limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to “Fastening the seat
belts ”(page 2-19).
Essential Safety Equipment
Seat Belt Systems
2-21
Mazda6_8X47-EA-07G_Edition1 Page35
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (36,1)
Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended:One or both front air bags may
deploy, and the corresponding
pretensioner(s) may also deploy at
the same time. While it is safer to use
a crash-used seat belt that was used
in an accident than no seat belt at
all, using a seat belt with an
expended pretensioner or load limiter
loaded reduces the safety available to
you. Like the air bags, the seat belt
pretensioners will only function once.
After they are expended, they will not
function again and must be replaced
immediately. If the seat belt
pretensioners are not replaced, the
risk of injury in a collision will
increase. Always have an Authorized
Mazda Dealer inspect the seat belt
pretensioners and air bags after any
collision. Expended seat belt
pretensioners and air bags must be
replaced after any collision which
caused them to deploy. Additionally,
the load limiter will only limit loads
on the chest once in a collision and
this is another reason to have the
front seat belts inspected.
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system: Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured. Properly dispose of the pretensioner
system:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate in a
moderate or greater frontal or near-frontal
collision. The pretensioner system for the
front passenger is designed to only deploy
in accordance with the total seated weight
on the front passenger seat. It will not
activate in most rollovers, side or rear
impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the front pretensioner system gets on the
skin or in the eyes, wash it off as soon as
possible.
2-22
Essential Safety Equipment
Seat Belt Systems
Mazda6_8X47-EA-07G_Edition1 Page36
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (37,1)
qAir Bag/Front Seat Belt Pretensioner
Systems Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
Center-Rear Position Seat
Belt
Before using the center-rear lap/shoulder
belt make sure tongue (A) and anchor
buckle (B) are fastened.
(A)
(B)
q Fastening the Seat Belt
1. Grasp the tongue (C).
2. Slowly pull out the lap/shoulder belt.
3. Insert the tongue (C) into the buckle
(D) until you hear a click.
(C)
(D) (B)
(A)
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda6_8X47-EA-07G_Edition1 Page37
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (38,1)
WARNING
Fastening the Center-Rear Seat Belt
with Only One Buckle:Fastening the center-rear seat belt
with only one buckle is dangerous. If
only one pair of seat belt tongue and
buckle, either tongue (A) and anchor
buckle (B) or tongue (C) and anchor
buckle (D), is fastened, the seat belt
cannot provide full protection. In a
sudden stop or collision, the user
could slide under the belt and suffer
serious injuries. Always make sure
that both pairs of seat belt tongues
and buckles are fastened properly.
Positioning the Shoulder Portion of the
Seat Belt: Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible, not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
WARNING
Positioning the Lap Portion of the Seat
Belt: The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
qUnfastening the Seat Belt
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTEIf a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qUnfastening the Lap Portion of
the Seat Belt
Insert a small object such as a key in the
anchor buckle (B) slot.
(B)
(A)
2-24
Essential Safety Equipment
Seat Belt Systems
Mazda6_8X47-EA-07G_Edition1 Page38
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (39,1)
CAUTION
Always unfasten the lap portion of
the belt before folding the left-rear
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, buckle and
seatback.
NOTE
To encourage rear seat passengers to wear
their seat belts, we suggest leaving the center-
rear lap position of the belt fastened at all
times except when folding the rear seat
forward.
q Fastening the Lap Portion of the
Seat Belt
Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.
NOTE
After returning the left-rear seatback to its
upright position, fasten the lap portion of the
belt.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make
sure the belt is locked securely into
the recess. If the seat belt is not
properly stowed, it might get caught
in the seats and be damaged.
Sedan/5-Door
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the recess. Sedan (Behind head restraint on left
side)
(A)
(C)
5-Door (Left side of luggage
compartment)
(A)(C)
To pull out the seat belt, slide tongues
with your finger, and slowly pull out the
seat belt from the recess.
Essential Safety Equipment
Seat Belt Systems
2-25
Mazda6_8X47-EA-07G_Edition1 Page39
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (40,1)
Sport Wagon
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the ceiling recess.
(A)(C)
Ceiling recess
To pull out the seat belt, slide tongue (A)
with your finger while moving it
downward, and slowly pull out the seat
belt from the ceiling recess.
Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
2-26
Essential Safety Equipment
Seat Belt Systems
Mazda6_8X47-EA-07G_Edition1 Page40
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G
