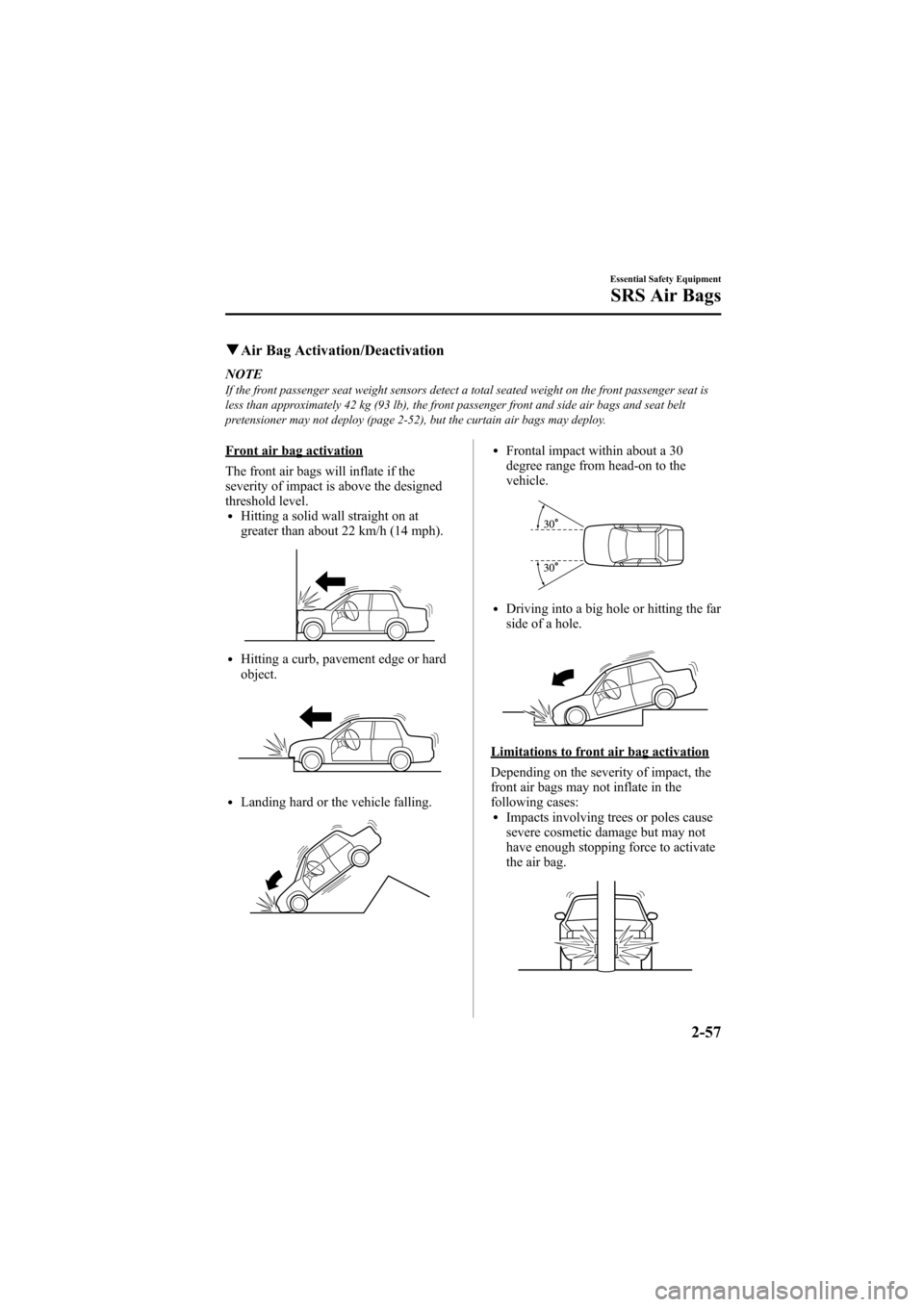

qAir Bag Activation/Deactivation
NOTEIf the front passenger seat weight sensors detect a total seated weight on the front passenger seat is
less than approximately 42 kg (93 lb), the front passenger front and side air bags and seat belt
pretensioner may not deploy (page 2-52), but the curtain air bags may deploy.
Front air bag activation
The front air bags will inflate if the
severity of impact is above the designed
threshold level.
lHitting a solid wall straight on at
greater than about 22 km/h (14 mph).
lHitting a curb, pavement edge or hard
object.
lLanding hard or the vehicle falling.
lFrontal impact within about a 30
degree range from head-on to the
vehicle.
lDriving into a big hole or hitting the far
side of a hole.
Limitations to front air bag activation
Depending on the severity of impact, the
front air bags may not inflate in the
following cases:
lImpacts involving trees or poles cause
severe cosmetic damage but may not
have enough stopping force to activate
the air bag.
Essential Safety Equipment
SRS Air Bags
2-57
Mazda6_8X47-EA-07G_Edition1 Page71
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (72,1)
lFrontal offset impact to the vehicle
may not provide the stopping force
necessary for air bag deployment.
lRear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not normally inflate in
the following cases:
lCollision from the rear.
lImpact to the side, but it may deploy
the side and curtain air bags.
lVehicle roll-over, may deploy the side
and curtain air bags but not the front air
bags.
Side and curtain air bag activation
The severity of impact above the designed
threshold level to one side of the vehicle
(driver or passenger side areas) will cause
the side and curtain air bags on that side
to inflate, but it will not normally deploy
the front air bags.
Limitations to side and curtain air bagactivation
Depending on the severity of impact, the
side and curtain air bags may not inflate in
the following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
and curtain air bags.
2-58
Essential Safety Equipment
SRS Air Bags
Mazda6_8X47-EA-07G_Edition1 Page72
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (73,1)
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain airbag
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unitlFront air bag sensorlAir bag moduleslSide crash sensorslAir bag/Front seat belt pretensioner
system warning light
lFront seat belt pretensionerslFront passenger air bag deactivation
indicator light
lRelated wiringlDriver seat slide position sensorlFront passenger seat weight sensorslDriver and front passenger seat belt
buckle switches
Essential Safety Equipment
SRS Air Bags
2-59
Mazda6_8X47-EA-07G_Edition1 Page73
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (74,1)
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to “Front passenger
seat weight sensors ”(page 2-52).
2-60
Essential Safety Equipment
SRS Air Bags
Mazda6_8X47-EA-07G_Edition1 Page74
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (75,1)
WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components:Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that
they will work in any subsequent
accident. Driving with an expended
or damaged air bag or pretensioner
unit will not afford you the necessary
protection in the event of any
subsequent accident which could
result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as
the front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along
the roof edge, containing air bag
parts or sensors is dangerous. These
parts contain essential air bag
components. The air bag could
accidentally activate and cause
serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle. NOTEIf it becomes necessary to have the components
or wiring system for the supplementary
restraint system modified to accommodate a
person with certain medical conditions in
accordance with a certified physician, contact
an Authorized Mazda Dealer, refer to
“
Customer Assistance (U.S.A.) ”(page 9-2).
Essential Safety Equipment
SRS Air Bags
2-61
Mazda6_8X47-EA-07G_Edition1 Page75
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (76,1)
2-62
Mazda6_8X47-EA-07G_Edition1 Page76
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (77,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2Keys .......................................................................................... 3-2
Keyless Entry System ............................................................... 3-3
Door Locks ............................................................................... 3-7
Hatch (5-Door) ........................................................................ 3-10
Liftgate (Sport Wagon) ........................................................... 3-13
Trunk Lid (Sedan) ................................................................... 3-19
Inside Trunk Release Lever (Sedan) ....................................... 3-21
Power Windows ...................................................................... 3-22
Fuel-Filler Lid and Cap ........................................................... 3-29
Hood ....................................................................................... 3-30
Moonroof
í............................................................................. 3-31
Security System ........................................................................... 3-33 Immobilizer System ................................................................ 3-33
Theft-Deterrent System
í........................................................ 3-35
Steering Wheel and Mirrors ...................................................... 3-38 Steering Wheel ........................................................................ 3-38
Mirrors .................................................................................... 3-38
3-1íSome models.
Mazda6_8X47-EA-07G_Edition1 Page77
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (78,1)
Keys
WARNING
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. These new kinds of keys are
fascinating to children. They could
play with power windows or other
controls, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-33) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-35)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
Key code number plate
Retractable
type key
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
Write down the code number and keep it in a
separate safe and convenient place, but not in
the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
Key extend/retract method (Retractabletype key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
3-2
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page78
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (79,1)

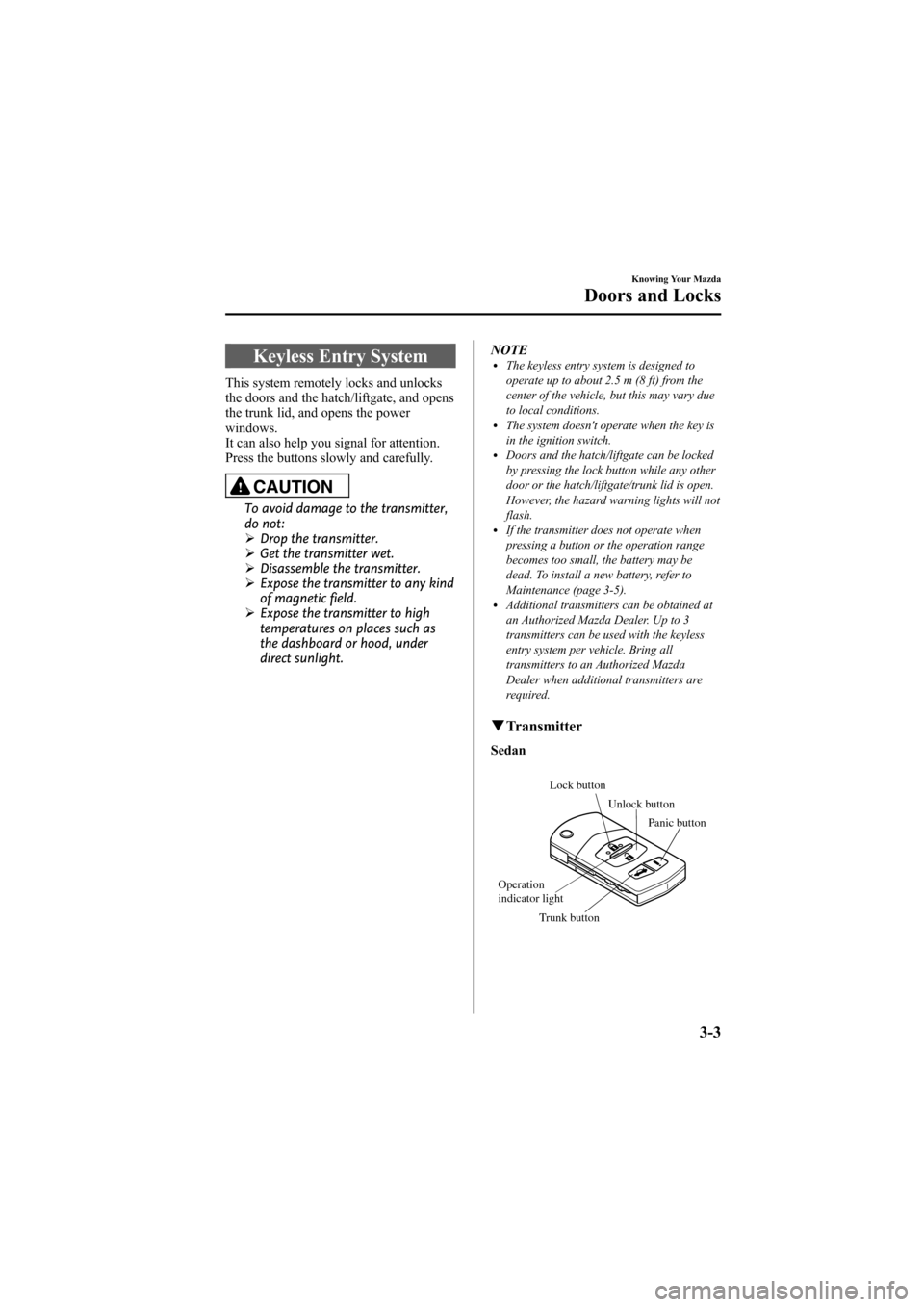

Keyless Entry System
This system remotely locks and unlocks
the doors and the hatch/liftgate, and opens
the trunk lid, and opens the power
windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight. NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system doesn't operate when the key is
in the ignition switch.
lDoors and the hatch/liftgate can be locked
by pressing the lock button while any other
door or the hatch/liftgate/trunk lid is open.
However, the hazard warning lights will not
flash.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
q
Transmitter
Sedan
Lock button
Unlock button
Trunk button Panic button
Operation
indicator light
Knowing Your Mazda
Doors and Locks
3-3
Mazda6_8X47-EA-07G_Edition1 Page79
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (80,1)
5-Door/Sport Wagon
Lock buttonUnlock button
Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTEThe unlock button can be used to open the
power windows, but the lock button cannot be
used to close the power windows. Refer to
Opening/Closing the Power Windows from
Outside (page 3-27).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the hatch/liftgate,
press the lock button and the hazard
warning lights will flash once.
To confirm that all doors and the hatch/
liftgate have been locked, press the lock
button again within 5 seconds. If they are
closed and locked, the horn will sound.
NOTE
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the hatch/
liftgate are locked.
l(With theft-deterrent system)lThe hazard warning lights will not flash.lThe hazard warning lights only flash
when the theft deterrent system is armed
or turned off, refer to the theft-deterrent
system (page 3-35).
NOTElAll doors and the hatch/liftgate cannot be
locked when the key is in the ignition
switch.
lConfirm that all doors and the hatch/
liftgate are locked visually or audibly by
use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the hatch/liftgate,
press the unlock button again within 5
seconds.
3-4
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page80
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G
