MAZDA MODEL 6 2009 Owners Manual (in English)

Black plate (221,1)
Vent Operation
qAdjusting the Vents
Directing airflow
Side Vents
To adjust the direction of airflow, open the
vents and rotate them left and right.
Push
Center Vents
To adjust the direction of airflow, move
the adjustment knob.
Dial
Open
Close
Knob
NOTEWhen using the air conditioner under humid
ambient temperature conditions, the system
may blow condensed air (fog) from the vents.
This is not a sign of trouble but a result of
humid air being suddenly cooled.
Interior Comfort
Climate Control System
6-3
Mazda6_8Z64-EA-08H_Edition1 Page221
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (222,1)
qSelecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda6_8Z64-EA-08H_Edition1 Page222
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (223,1)
Types of the Climate Control System
Manual type and fully automatic type climate control systems are explained separately.
Check your vehicle's climate control type and read the appropriate pages.
Manual Type ............................................................................................................ page 6-6
Fully Automatic Type ............................................................................................. page 6-11
Interior Comfort
Climate Control System
6-5
Mazda6_8Z64-EA-08H_Edition1 Page223
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (224,1)
Manual Type
Temperature control dialFan control dial
Mode selector dial
A/C switch
Air intake selector
qControl Switches
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold. MAX-A/C position
For quick cabin cooling, rotate the
temperature control dial counterclockwise
to the MAX-A/C position. The A/C
system automatically turns on and the air
intake mode switches to the recirculation
position automatically.
Fan control dial
Slow
Fast
6-6
Interior Comfort
Climate Control System
Mazda6_8Z64-EA-08H_Edition1 Page224
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (225,1)

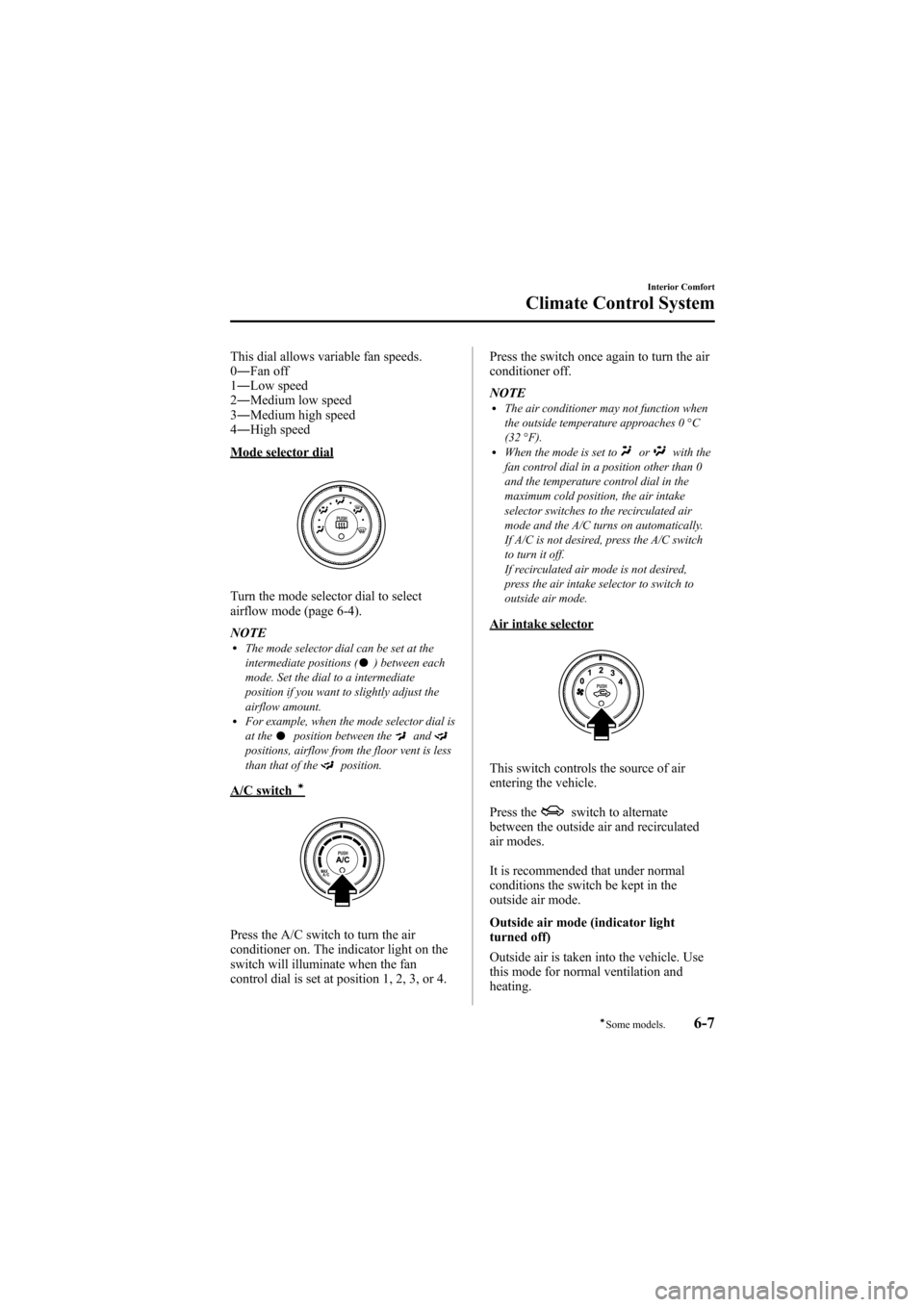

This dial allows variable fan speeds.
0― Fan off
1 ― Low speed
2 ― Medium low speed
3 ― Medium high speed
4 ― High speed
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
NOTE
lThe mode selector dial can be set at the
intermediate positions () between each
mode. Set the dial to a intermediate
position if you want to slightly adjust the
airflow amount.
lFor example, when the mode selector dial is
at theposition between theandpositions, airflow from the floor vent is less
than that of theposition.
A/C switchí
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan
control dial is set at position 1, 2, 3, or 4. Press the switch once again to turn the air
conditioner off.
NOTE
lThe air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).
lWhen the mode is set toorwith the
fan control dial in a position other than 0
and the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
mode and the A/C turns on automatically.
If A/C is not desired, press the A/C switch
to turn it off.
If recirculated air mode is not desired,
press the air intake selector to switch to
outside air mode.
Air intake selector
This switch controls the source of air
entering the vehicle.
Press the
switch to alternate
between the outside air and recirculated
air modes.
It is recommended that under normal
conditions the switch be kept in the
outside air mode.
Outside air mode (indicator light
turned off)
Outside air is taken into the vehicle. Use
this mode for normal ventilation and
heating.
Interior Comfort
Climate Control System
6-7íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page225
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (226,1)
Recirculated air mode (indicator light
illuminated)
Outside air is shut off. Air within the
vehicle is recirculated.
This mode can be used when driving on a
dusty road or in similar conditions. It also
helps to provide quicker cooling of the
interior.
WARNING
Do not use the recirculated air mode in
cold or rainy weather:Using the recirculated air mode in
cold or rainy weather is dangerous as
it will cause the windows to fog up.
Your vision will be hampered, which
could lead to a serious accident.
qHeating
1. Set the mode selector dial to theposition.
2. Set the temperature control dial to the hot position.
3. Set the fan control dial to the desired speed. NOTE
lIf the windshield fogs up easily, set the
mode selector dial to theposition.lIf cooler air is desired at face level, set the
mode selector dial at theposition and
adjust the temperature control dial to
maintain maximum comfort.
lThe air to the floor is warmer than air to
the face (except when the temperature
control dial is set at the extreme hot or cold
position).
lIn theorposition, the air
conditioner is automatically turned on
(however, the indicator light does not
illuminate) and the outside air mode is
automatically selected to defrost the
windshield.
In the
orposition, the outside air
mode cannot be changed to the recirculated
air mode.
q Cooling (With Air Conditioner)í
1. Set the mode selector dial to theposition.
2. Set the temperature control dial to the cold position.
3. Set the fan control dial to the desired speed.
4. Turn on the air conditioner by pressing the A/C switch.
5. Adjust the fan control dial and temperature control dial to maintain
maximum comfort.
6-8
Interior Comfort
íSome models.
Climate Control System
Mazda6_8Z64-EA-08H_Edition1 Page226
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (227,1)
CAUTION
When using the air conditioner while
driving up long hills or in heavy
traffic, closely monitor the
temperature gauge (page 5-40).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner
off (page 7-11).
NOTE
lWhen maximum cooling is desired, set the
temperature control dial to the extreme cold
position and set the air intake selector to
the recirculated air mode, then set the fan
control dial to position 4.
lIf warmer air is desired at floor level, set
the mode selector dial at theposition
and adjust the temperature control dial to
maintain maximum comfort.
lThe air to the floor is warmer than air to
the face (except when the temperature
control dial is set at the extreme hot or cold
position).
q Ventilation
1. Set the mode selector dial to theposition.
2. Set the air intake selector to the outside air mode.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
qWindshield Defrosting and Defogging
1. Set the mode selector dial to theposition.
2. Set the temperature control dial to the desired position.
3. Set the fan control dial to the desired speed.
WARNING
Do not defog the windshield using theposition with the temperature
control set to the cold position: Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident. Set the temperature control
to the hot or warm position when
using the
position.
Interior Comfort
Climate Control System
6-9
Mazda6_8Z64-EA-08H_Edition1 Page227
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (228,1)
NOTElFor quick cabin cooling, rotate the
temperature control dial counterclockwise
to the MAX-A/C position. The A/C system
automatically turns on and the air intake
mode switches to the recirculation position
automatically.
lFor maximum defrosting, set the
temperature control dial to the extreme hot
position and the fan control dial to position
4.
lIf warm air is desired at the floor, set the
mode selector dial to theposition.lIn the,orposition, the air
conditioner is automatically turned on
(however, the indicator light does not
illuminate) and the outside air mode is
automatically selected to defrost the
windshield.
In the
orposition, the outside air
mode cannot be changed to the recirculated
air mode.
q Dehumidifying (With Air
Conditioner)í
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the outside air mode.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
5. Turn on the air conditioner by pressing the A/C switch. NOTE
One of the functions of the air conditioner is
dehumidifying the air and, to use this function,
the temperature does not have to be set to cold.
Therefore, set the temperature control dial to
the desired position (hot or cold) and turn on
the air conditioner when you want to
dehumidify the cabin air.
6-10
Interior Comfort
íSome models.
Climate Control System
Mazda6_8Z64-EA-08H_Edition1 Page228
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (229,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Information display
A/CAU TOAir intake display
Temperature setting display (driver) Fan speed display
Mode selector display Temperature setting display (passenger)
A/C switch
AUTO switch
Driver temperature control dial Windshield defroster switch
Fan control dial Passenger temperature control dial Mode selector switch
Air intake selector
OFF switchDUAL switch
Interior Comfort
Climate Control System
6-11
Mazda6_8Z64-EA-08H_Edition1 Page229
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (230,1)
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial and windshield defroster
switch. Other functions will continue to
operate automatically.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
lWhen the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
lWhen the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The system changes to the individual operation
mode (DUAL switch indicator light
illuminated) by turning the front passenger
temperature control dial even when the DUAL
switch is off, which allows individual control
of the set temperature for the driver and front
passenger.
Fan control dial
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
6-12
Interior Comfort
Climate Control System
Mazda6_8Z64-EA-08H_Edition1 Page230
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H
