MAZDA MODEL 6 2009 Owners Manual (in English)

Black plate (311,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qSide Extension Sunvisors
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract
the visor extender to its original
position. Otherwise, the visor
extender could hit the rearview
mirror, headliner, or overhead
console.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.
Interior Comfort
Interior Equipment
6-93
Mazda6_8Z64-EA-08H_Edition1 Page311
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (312,1)
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position), the courtesy lights
and the ground illumination light turn on
for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition key is
removed (without advanced key) or the
ignition is switched off (with advanced
key).
lAbout 15 seconds after all doors are
closed.
(With Advanced key)
About 5 seconds after all doors when
the advanced key is outside of the
vehicle.
lAbout 15 seconds after the ignition is
switched off (LOCK) and the ignition
key removed (without advanced key)
with all doors closed.
The light also turns off when:
lThe ignition is switched on and all
doors are closed.
lThe driver's door is locked.
NOTE
lBattery saver
If any door is left opened, the light turns off
after about 30 minutes to save the battery.
The light turns on again when the ignition
is switched on, or when any door is opened
after all doors have been closed.
lThe operation of the illuminated entry
system can be changed.
Refer to Personalization Features on page
10-8.
q Overhead Lights
Front
Rear
Switch
Position Overhead Lights
Light off
lLight is on when any door is openlLight is on or off when the
illuminated entry system is on
Light on
6-94
Interior Comfort
Interior Equipment
Mazda6_8Z64-EA-08H_Edition1 Page312
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (313,1)
qMap Lights
The map lights are switched on or off by
pressing the switches.
qCourtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
Courtesy light
Interior Comfort
Interior Equipment
6-95
Mazda6_8Z64-EA-08H_Edition1 Page313
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (314,1)

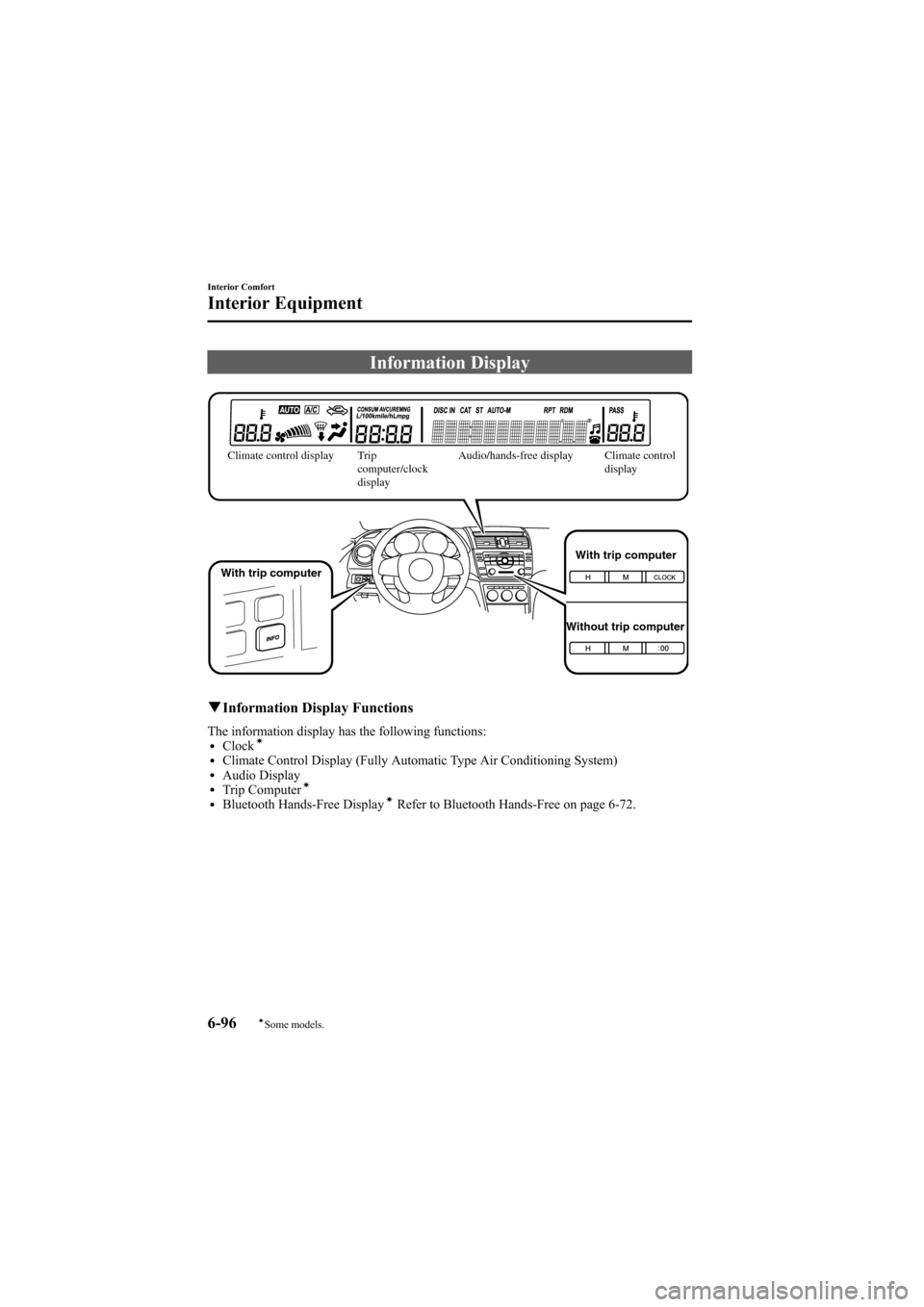

Information Display
Audio/hands-free displayClimate control displayClimate control
displayTrip
computer/clock
display
With trip computer
Without trip computer
With trip computer
q
Information Display Functions
The information display has the following functions:lClockí
lClimate Control Display (Fully Automatic Type Air Conditioning System)lAudio DisplaylTrip Computerí
lBluetooth Hands-Free DisplayíRefer to Bluetooth Hands-Free on page 6-72.
6-96
Interior Comfort
íSome models.
Interior Equipment
Mazda6_8Z64-EA-08H_Edition1 Page314
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (315,1)
qClock
NOTEWhen the trip computer is being displayed,
press the CLOCK button to change the display
to the time.
The time is displayed when the ignition is
switched to ACC or ON.
Without navigation system
Time setting
1. Turn the ignition switch to the ACC or
ON position.
2. Adjust the time using the time setting buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting (Without trip computer
type only)
1. Turn the ignition switch to the ACC or ON position.
2. Press and hold the :00 button for 1.5 seconds or more. The displayed time
flashes. 3. When the button is released, the time
will be reset as follows:
(Example)
12:01 ―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the :00 button is released, the seconds
will start at “00 ”.
NOTE(With trip computer type only)
The clock display can be switched on or off by
pressing the CLOCK button.
With navigation system
Refer to the separate manual
“NAVIGATION SYSTEM ”.
NOTE
Minutes and seconds are adjusted by the GPS,
however, it is necessary to adjust hours under
the following conditions:
lDriving across different time zoneslDaylight saving time start and end
q Climate Control Display (Fully
Automatic Type)
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-16).
Interior Comfort
Interior Equipment
6-97
Mazda6_8Z64-EA-08H_Edition1 Page315
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (316,1)
qTrip Computerí
The trip computer can display the
following:
lThe current fuel economy.lThe average fuel economy.lThe approximate distance you can
travel on the available fuel.
lThe average vehicle speed.
Switch the ignition ON.
Press the INFO switch to change the
display mode.
NOTE
When the time is being displayed, press the
INFO switch to change the display to the trip
computer.
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled.
Current fuel economy will be calculated
and displayed every 2 seconds.
When this mode is selected, CONSUM
CUR will be displayed. U.S.A.
CANADA
When you've slowed to about 5 km/h (3
mph),
—L/100 km ( —mpg) will be
displayed.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the fuel
consumption and the distance traveled
since connecting the battery or resetting
the data.
Average fuel economy will be calculated
and displayed every minute.
When this mode is selected, CONSUM
AV will be displayed.
6-98
Interior Comfort
íSome models.
Interior Equipment
Mazda6_8Z64-EA-08H_Edition1 Page316
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (317,1)
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second.
After pressing the INFO switch,—L/100
km ( —mpg) will be displayed for about 1
minute before the fuel economy is
recalculated and displayed.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second. When this mode is selected, REMNG will
be displayed.
U.S.A.
CANADA
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.
lThe display won't change unless you add
more than approximately 20 L (5.3 gal) of
fuel.
Interior Comfort
Interior Equipment
6-99
Mazda6_8Z64-EA-08H_Edition1 Page317
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (318,1)
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AV will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second. After pressing the INFO switch,
—km/h ( —mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving: Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
the cup holders closed when they are
not in use, or when using them for
storage.
qFront
To use the cup holder, open the center
console by pressing the lower center part
of its cover.
6-100
Interior Comfort
Interior Equipment
Mazda6_8Z64-EA-08H_Edition1 Page318
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (319,1)
To fit small items in the cup holder,
remove the flexible divider.
Flexible divider
qRearí
The rear cup holder is on the rear center
armrest.
Bottle Holder
Bottle holders are on the inside of the
front doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Interior Comfort
Interior Equipment
6-101íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page319
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (320,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Console
This console box is designed to store a
garage door opener or other accessories.
Push and release to open.
qStorage Pocket
To open, push the release catch down and
pull the lid downward.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Unlock
Lock
6-102
Interior Comfort
Interior Equipment
Mazda6_8Z64-EA-08H_Edition1 Page320
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H
