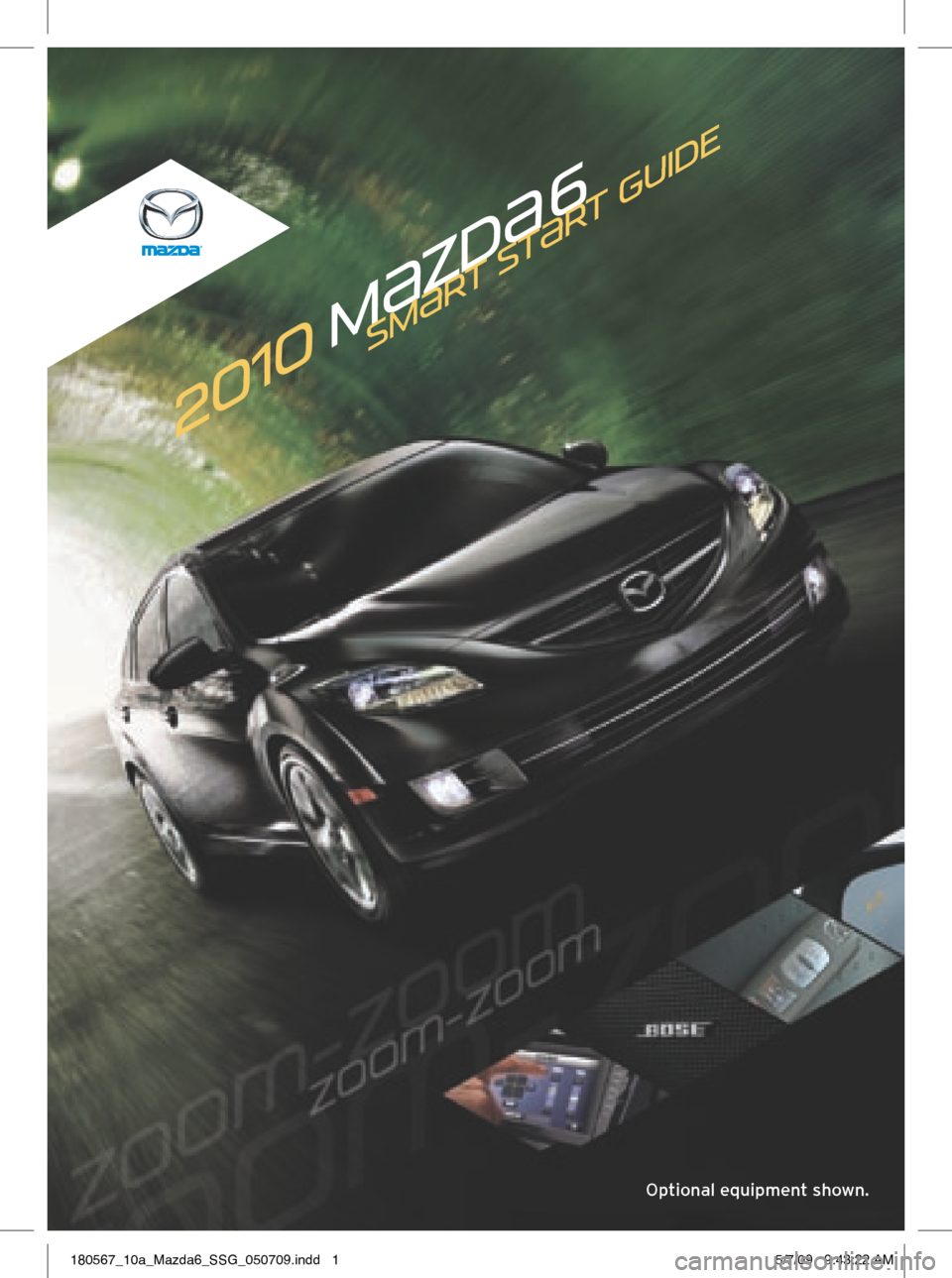

MAZDA MODEL 6 2010 Smart Start Guide (in English)

2010 m{ZD{ 6
SM{RT ST{RT GUIDE
Optional equipment shown.
180567_10a_Mazda6_SSG_050709.indd 15/7/09 9:43:22 AM

Key
12
Lock
Tr u n k
Panic
Alarm Unlock
Auxiliar y KeyAdvanced

Key
Driver’s Door Request Switch
Trunk Request Switch
Sensor (back of handle)
NOTE:

• Engine Stop
Continuously pushing the START/STOP button while
the engine is running will turn the engine OFF. Use
only in case of an emergency.

• Vehicle Entr y/Engine Start If the advanced key cannot be used due to a malfunction
or dead advanced key battery, use the auxiliary key
to lock /unlock the doors and to start the engine.
Engine Ready to
Start Indicator Light
ACC

Indicator
Light Ignition ON
Indicator Light
Key
Release
AUX Key(for opening
the doors
and starting
the engine)
KEYLESS ENTRY SYSTEM
This system remotely locks and unlocks the doors and the trunk, and opens
the power windows and moon roof.
Release Button Push to extend key.
•
Push & fold to retract key.
• Lock
Push once to lock
•
all doors.
Push twice (within five
•
seconds) for horn sound
verification that both
doors are locked.
Unlock Push once to unlock
•
driver’s doors.
Push twice (within three
•
seconds) to unlock all doors.
Push twice and hold to open
•
front windows and moon roof.
Panic Alarm
Push for one second or
•
more to activate alarm.
Push Lock, Unlock,
•
Trunk or Panic Alarm
to turn alarm off.
Tr u n k
Push and hold to open trunk.
•
S TARTIN g ThE EN gINE
While Carrying the Advanced Key…
•
Start the engine by pushing the START/STOP button, while
pushing the clutch pedal (manual transmission) or the brake pedal
(automatic transmission).
• Shut the engine OFF by pushing the START/STOP button again.
•
Activate Accessories (ACC) by pushing the START/STOP button
once without pushing the clutch or brake pedal.
• The key indicator light
will show g REEN when the advanced key
is detected and the brake pedal is pushed. The engine is ready to start.
The indicator flashes RED (for 3 seconds) when the key is not detected
or if the advanced keyless transmitter battery is dead. If illuminated
RED , the push button start may not start the engine, unless the
auxiliary key is used.
With the Auxiliary Key…
1 To start engine, locate the key slot cover on the
steering column and remove the cover.
2 Insert the auxiliary key into the key slot, then push the START/STOP
button with the clutch pedal (M/ T) or the brake pedal (A / T) pushed
down to start the engine.
ADVANCED KEYLESS ENTRY SYSTEM
•
This system allows you to lock /unlock the
doors, open the trunk lid and start the
engine without taking the key out.
While Carr ying the Advanced Key…
• Unlock the driver’s door by gently
grasping and pulling the door handle after
the beep sound is heard. The sensor on the
back side of the door handle will sense the
motion of your hand and unlock the door.
NOTE: If the door handle is pulled too quickly
(before door is unlocked), the door may not
open. Pull the door handle again to open.
• Unlock all doors by pushing the inner door
lock switch after opening the driver’s door.
• Open the trunk by pushing the trunk
request switch.
• Lock all doors by pushing the driver’s door
or passenger door request switch once.
• Open the front windows and moon roof
by pushing the unlock button on the
advanced keyless entry transmitter and then
pushing again and holding; release to stop.
• Close front windows and moon roof
by pushing and holding the driver’s door
request switch; release to stop.
180567_10a_Mazda6_SSG_050709.indd 2-35/7/09 9:43:57 AM

34
Fuel Door Rele ase (located on floor next to driver’s seat)
To open, pull the remote fuel
door release.
NOTE :
Fuel requirement 87 Octane.
Fuel Door
To avoid scratching the paint
during refueling, secure the fuel
filler cap tether over the hook
as shown.
Seats
ELECTRONICALLY OPERATED DRIVER SEAT CONTROLS
Slide/Tilt Switch
Seat can be moved back and forth, raised,
lowered, or tilted with this control.
Lumbar Adjustment
Rotate clockwise to
increase support and
counterclockwise to
decrease support.
Recline Switch
Push forward or backward
to adjust seatback angle.
Memory Seat Switch
To Program the Driver’s Seat Position
1 Park vehicle.
2 Adjust seat to desired position using the slide/tilt and recline switches.
3 While pushing the memory seat SET button, push one of the three
programming buttons until a beep is heard. Programming is now
complete. Program the remaining two buttons as desired.
NOTE: You can also program one seat position for each advanced key/retractable
type key used with the vehicle. See Owner’s Manual for programming instructions.
To Move the Seat to a Programmed Position
• With driver’s door OPEN and ignition OFF , push and release one
of the programmed buttons (1, 2, or 3) when entering the vehicle.
OR
• With driver’s door CLOSED and ignition ON , push and hold one of
the programmed buttons (1, 2, or 3).
NOTE:
Memory seat functions DO NOT operate when driver’s door is OPEN and
ignition is ON, when driver’s door is CLOSED and ignition is OFF, or when the vehicle
is in motion.
180567_10a_Mazda6_SSG_050709.indd 4-55/7/09 9:44:34 AM

Driver’s View (shown with optional
56
Navigation System)
LIgh TINg/T URN SI gNAL(P. 9)
WIPER /
WAS hER
(P. 10)
BLUETOOT h®
hANDS-FREE/ AUDIO
(P. 25)
CRUISE
CONTROL /
B LUETOOT h
®hOOD
RELEASE
TCS/DSC OFF Traction Control System Dynamic Stabilit y Control
INFO
BUTTON
h EADLI ghT
LEVELIN g
TRUNK
RELEASE
BSM OFF

Blind Spot
Monitoring
(P. 13)
TILT /TELESCOPIC
STEERIN g WhEEL
LEVER
KEY SLOT
COVER
hA zARD WARNINg
I NFORMATION
D I S P L AY
(P. 14, 16)
AUDIO /NAVI gATION
D I S P L AY
(PP. 21-24)
PUSh BUTTON
S TA R T
(P. 2)
SEAT WARMER SWITC hES
C L I M AT E
CONTROL
(PP. 15 -16)
Video available at MyMazda.com
A UDIO SYSTEM
WIT hOUT NAVI gATION
(PP. 17-18)
PASSEN gER
A IR BA g
OFF INDICATOR
AUDIO SYSTEM
WIT hOUT NAVI gATION
(PP. 19-20)
180567_10a_Mazda6_SSG_050709.indd 6-75/7/09 9:44:58 AM

Instrument Cluster
78
NOTE: The tire pressure should be set when tires are cold. Large changes in ambient
temperatures or altitude will cause tire pressure change and may cause TPMS warning
light to illuminate.
Low Fuel Level
TCS OFF
(Traction Control System)
KEY Warning Light
( RED ) Advanced key not detected
or transmitter battery is dead.
KEY Indicator Light (gREEN )
On: Advanced key detected; engine
is ready to star t
Flashing: Advanced key battery is low.
Check Fuel Cap
Electronic Steering Lock
Indicates steering wheel is locked.
Light-On (Exterior Lights)
Tire Pressure
Monitoring System
Tire pressure may be low in one or
more tires.
BSM OFF
(Blind Spot Monitoring)
DSC OFF
(Dynamic Stability Control)
Charging System
Malfunction
Powertrain Malfunction/
Reduced Power
ABS
(Antilock Brake System)
Malfunction
Check Engine Light
Brake Warning Light
Parking brake on/low brake
fluid/malfunction
Turn Signal/
h azard Warning
FUEL gAU gE TAChO M E T E R
BSM
OFF
TCS
OFF DSC
OFF
INSTR UMENT
CLUSTER DIMMERAMBIENT
TEMPERATURE
g LOSSARY OF W ARNINg AND INDICATOR LI ghTS
NOTE: See Owner’s Manual for more details and explanations.
Automatic Transmission
Malfunction
headlight high-Beam
Traction Control System
(TCS)/Dynamic Stability
Control (DSC)
On: TCS/DSC malfunction
Flashing: TCS/DSC operating
A /T Shift Position Indicator
Air Bag/Front Seat Belt
Pretensioner System
On or Flashing: Air Bag malfunction
Low Engine Oil Pressure
Security Indicator Light
Door-Ajar
Seat Belt
Seat Belt unbuckled/malfunction
Cruise Main Indicator
Light
(A MBER )/Cruise Set
Indicator Light
( gREEN )
Low Washer Fluid Level
SPEEDOMETERENgINE COOLANT
T EMPERATURE g AUgEODOMETER /
TRIP METER
SELECTORODOMETER /
TRIP METER
g EAR INDICATOR
180567_10a_Mazda6_SSG_050709.indd 8-95/7/09 9:45:20 AM

Feature Highlights
910
LIgh TIN g CONTROL/TURN SI gNAL LEVER WINDShIELD WIPER/WAS hER CONTROL LEVER
Pull
to Flash
h igh Beams Push for

h igh Beams
: Turns tail, parking, dashboard,
and headlights on.
AUTO: The light sensor
automatically determines
when to turn the
headlights on or off.
: Turns fog lights
on only when headlights
are on.
:
Turns tail, parking,
and dashboard lights on.
AUTO: The rain sensor senses the amount of rainfall and turns the wipers
on or off. Rotate ring away from you (clockwise) for less sensitivity and
towards you (counterclockwise) for more sensitivity.
N O T E :
Vehicles not equipped with AUTO wipers will have INT wipers. Set the lever
to INT and choose an interval timing by rotating the ring between fast and slow.
AUTO(auto wipers)
OFF
MIST(single swipe)
LO (low
speed wipers)
HI (high
speed wipers)
Pull lever
to dispense
washer fluid
- More sensitive
+ Less sensitive
180567_10a_Mazda6_SSG_050709.indd 10-115/7/09 9:45:48 AM

Feature Highlights
AUTO -DIMMIN g MIRRORS AND hOME LINK®
•
Auto-dimming automatically
darkens your rearview
mirror and both outside
door mirrors to reduce
headlight glare from the
vehicles behind you.
• Auto-dimming is activated
every time the vehicle
is started.
NOTE:

•
Both door mirrors will appear to have a halo, or ring, around the outer edge of
the mirror surface. This is actually the electrical circuitry that allows the mirrors
to dim. This is normal operation of the mirrors.

• In addition to the auto-dimming mirror’s front light sensor, there is also a
rear light sensor (not shown). Do not place or hang any objects over the front
or rear mirror light sensors; other wise, the auto-dimming mirrors will not
operate properly.
homeLink®
•
This feature provides a convenient way to replace up to three
transmitters such as garage door openers, home lighting remotes
and other radio frequency devices.
• Refer to your Owner’s Manual for complete programming details.
Auto-Dimming Mirrors
Auto-Dimming
Indicator LightAuto-Dimming
On
homeLinkLight

SensorAuto-Dimming
Off
On Off
6-SPEED MANUAL TRANSMISSION
Push the clutch pedal down completely
•
to start the engine and to shift gears.
To place the transmission in Reverse,
•
place shifter in the neutral position,
push the shifter down, move to the left
and push forward.
Your aluminum wheels have a protective
coating on them. Only use a mild soap or
neutral detergent with a sponge or soft cloth
to clean them. Using a wire brush, polishing
compound, solvent, or any type of abrasive
cleaner may damage the protective coating.
ALUMINUM WhEEL CARE
Lower
gear
h igher
g ear
11 12
SPORT AT MANUAL Sh IFT MODE
The Sport AT Manual Shif t Mode gives you
the feel of driving a manual transmission
by allowing you to manually shif t to control
engine rpm and torque when more control
is desired.
To Use Manual Shift Mode:
• Shift lever from D to M.
NOTE:
Changing to manual mode
can be done while driving the vehicle.
To Shift Up To A Higher Gear:
• Tap shift lever back (+) once.
To Shift Down To A Lower Gear:
• Tap shift lever forward (-) once.
Neutral
Position
180567_10a_Mazda6_SSG_050709.indd 12-135/7/09 9:46:36 AM

Feature Highlights
13
NOTE: Do not rely completely on the BSM system and be sure to look over
your shoulder before changing lanes:
• The BSM system can assist the driver in confirming the safety of the surroundings,
but is not a complete substitute.
• The driver is responsible for ensuring safe lane changes and other maneuvers.
• Always pay attention to the direction in which the vehicle is traveling and the
vehicle’s surroundings.
• The BSM system does not operate when the vehicle speed is lower than about
20 mph (32 km/h).
Turning BSM System Off
To manually turn the BSM system off, push the BSM OFF switch on the dash.
The BSM OFF indicator will illuminate in the instrument cluster when the BSM
system is off. The BSM system will automatically turn on the next time the
vehicle is started.
14
Your Vehicle
Detection Areas
PORTABLE AUDIO PL AYER INTE gRAT ION
USIN g ThE AUX JACK
Your vehicle is equipped with an AUX or auxiliary jack
that will allow you to play your portable audio player
through the vehicle’s audio system. Learn the system
when parked and do not let it distract you while driving.
Refer to the Owner’s Manual for additional information.
NOTE: You will need a cable with an 1/8 inch mini stereo
plug to connect your portable audio player into the aux jack.
1 Locate the AUX jack inside the center console.
2 Plug 1/8 inch mini stereo plug into the portable
audio player and into the AUX jack. Turn portable audio player on.
3 Turn the vehicle audio system on.
4 • Without Navigation System: Push AUX (or CD/AUX) button on
audio system OR push MODE button on steering wheel controls until
“AUX” is displayed.
• With Navigation System: Push SOURCE button on audio system,
then push AUX1 on screen OR push M ODE button on steering wheel
controls until “AUX1” is displayed.
5 Use the portable audio player controls to play music.
NOTE: Set the volume level on your por table audio player to the highest level before distortion starts. Then adjust the volume in the vehicle using the audio system
power/volume control or the steering wheel volume up and down controls.
Temperature
Display
(Driver)
Audio
INFORMATION DISPLAY
Temperature
Display
(Passenger)Trip Computer/
Clock
Climate
Control
B LIND S POT MONITORIN g (BSM) SYSTEM
The Blind Spot Monitoring (BSM) system is designed to assist the driver
by monitoring the blind spots to the rear of the vehicle on both sides.
• If your vehicle speed is 20 mph (32 km/h) or more, the BSM will warn
you of vehicles in the detection area by illuminating the BSM warning
lights located on the left and right door mirrors.
• If you operate a turn signal in the direction of an illuminated BSM
warning light, the system will also warn you with a beep and warning
light flash.
• BSM sensors are located under the left and right rear bumper areas.
The BSM system may not operate properly if the rear bumper gets too
dirty, so keep the rear bumper area clean.
Please refer to your Owner’s Manual for complete details.
180567_10a_Mazda6_SSG_050709.indd 14-155/7/09 9:47:16 AM

Manual Climate Control
15
NOTE: (Applies to Manual and Automatic Climate Control Systems)
With defroster and floor vents or windshield defroster mode, the system turns on
the A /C compressor and selects the FRESH AIR mode. This helps defrost the
windows more efficiently by dehumidifying the air. The A /C compressor will always
be on in defroster mode, but the defroster (and floor) will deliver warm air when the
temperature dial is set to a warmer temperature and the engine warms up.
Automatic Climate Control
16
Temperature
Control Dial
Push to manually turn
air conditioning on
or off.
Rotate the dial for
temperature control.
NOTE:
When set
to MA X A /C with
dashboard vents or
dashboard and floor
vents, the A /C will turn
on, and recirculated
air will be selected for
maximum cooling.
Fan Control Dial
Rotate the dial to set
desired fan speed (1-4).
Push to
recirculate cabin
air to reduce
outside odors
and improve
cooling (indicator
lit) or receive
fresh air
(indicator off). Mode Selector Dial
Rotate the dial to
select airflow mode.

Dashboard
vents
Dashboard and
floor vents
Floor vents
Defroster and
floor vents
Windshield
Defroster
Push to defrost
rear windowDriver Temperature
Control Dial
1 Push AUTO ON to
turn Automatic Air
Conditioning
system ON.
2 Rotate dial to desired
air temperature
(shown in Information
Display above).
NOTE:
Rotating the
Fan Control Dial or
pushing MODE while in
AUTO ON mode will
cancel the Automatic
Air Conditioning.
Automatic climate
control will allow you
to maintain individual
preset cabin
temperatures for the
driver and passenger
when DUAL mode
is selected.
Push to defrost
windshield. Push to defrost
rear window. Fan Control Dial
Push OFF to turn
climate control

system off.
Rotate the dial to
select the desired
fan speed.
Push to
recirculate
cabin air to
reduce outside
odors and
improve cooling.
Push for fresh
air circulation. Passenger
Temperature

Control Dial
Push to turn DUAL mode
O N / O F F.
• With DUAL mode ON
(indicator on), rotate the
dial to set passenger
side temperature
separate from the
driver’s side (shown
in the Information
display above).
• With DUAL mode
OFF (indicator off),
driver controls the
temperature setting
on both sides.
Push to select
airflow mode.
Push to
manually turn
air conditioning
on or off.
Driver side temperature setting Passenger side temperature setting
180567_10a_Mazda6_SSG_050709.indd 16-175/7/09 9:47:50 AM

Audio Controls Without Navigation
1718
POWER ON
Push the Power/ Volume dial to turn
the radio on.
MEDIA S ELECTION
Radio: Push FM or AM button to
select the FM1, FM2, or AM band.
The selected band will be indicated
in the Information Display.
Satellite Radio: Push the SAT
button for SIRIUS
® Satellite radio.
See the Owner’s Manual for
more details.
CD: Push CD to select the CD player. T
UNIN g
The radio has the following
tuning controls:
• M anual: Turn the center dial to
manually change the frequency.
• S eek: Push the TRACK /SEEK
tuning buttons to
automatically seek a higher or
lower frequency with a station.
• Scan: Push the SCAN button
to automatically sample strong
stations for seconds each. Push
again to cancel.
• Preset Channel: Push the
Preset Channel buttons (1-6)
to select a station stored in
memory. To store a station,
push and hold a button (1-6)
until a beep is heard.
1. Turn the ignition switch to
the ACC or ON position.
2 . Push and hold the h
(hours) button to the
correct hour.
3 . Push and hold the M
(minutes) button to the
correct minute.
NOTE:
Push the :00 button to
zero out the minutes.
SETTIN g YOUR CLOCK
(not equipped with
Trip Computer)
• Auto Memor y Tuning: Push
the AUTO-M button to store
an additional 6 stations on
each FM and AM band without
disturbing the previously stored
stations. This is useful when
driving in an area where the
local stations are not known.
Refer to the Owner’s Manual for
complete details.
L OADIN g A CD
Single CD Player
•
Insert the CD into the slot,
label-side up. The auto
loading mechanism will load
the CD and begin to play it.
In-Dash CD Changer

•
Push the LOAD button and
when “IN” is displayed, insert
the CD. F
OLDER SEARC h
(during MP3/WMA CD playback )
• To c hange to the previous
folder, push the folder down
button (
), or push the folder
up button () to advance to
the next folder.
1. Push the “ CLOCK” button.
2. Push and hold the H (hours)
button to the correct hour.
3. Push and hold the M (minutes)
button to the correct minute.
SETTIN g YOUR CLOCK
(if equipped with Trip Computer)
180567_10a_Mazda6_SSG_050709.indd 18-195/7/09 9:48:26 AM
