MAZDA MODEL 6 2014 Owners Manual (in English)

Black plate (91,1)
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
LockUnlock
Trunk Lid
WARNING
Never allow a person to ride in the
trunk:
Allowing a person to ride in the trunk
is dangerous. The person in the trunk
could be seriously injured or killed
during sudden braking or a collision.
Do not drive with the trunk lid open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open trunk lid in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open trunk lid could
cause occupants to fall out in an
accident.
Before Driving
Doors and Locks
3-19
Mazda6_8DQ8-EA-13L_Edition3 Page91
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (92,1)
CAUTION
ØBefore opening the trunk lid,
remove any snow and ice
accumulation on it. Otherwise, the
trunk lid could close under the
weight of the snow and ice
resulting in injury.
ØBe careful when opening/closing
the trunk lid during strong winds.
If a strong gust blows against the
trunk lid, it could close suddenly
resulting in injury.
ØFully open the trunk lid and make
sure that it stays open. If the trunk
lid is only opened partially, it
could slam shut by vibration or
wind gusts resulting in injury.
ØWhen loading or unloading
luggage in the trunk, turn off the
engine. Otherwise, you could get
burned by the heat of the exhaust
gas.
qOpening and Closing the Trunk Lid
Opening the trunk lid with Electric
trunk lid opener (With the advanced
keyless function)
A locked trunk lid can also be opened
while the key is being carried.
Press the electric trunk lid opener on the
trunk lid, and then raise the trunk lid when
the latch releases.
Electric trunk lid
opener
NOTElWhen opening the trunk lid with the doors
and the trunk lid locked, it may require a
few seconds for the trunk lid latch to
release after the electric trunk lid opener is
pressed.
lThe trunk lid can be closed when the doors
are locked with the key left in the vehicle.
However, to prevent leaving the key in the
vehicle, the trunk lid can be opened by
pressing the electric trunk lid opener. If the
trunk lid cannot be opened despite doing
this procedure, press the electric trunk lid
opener to fully open the trunk lid after
pushing the trunk lid completely closed.
3-20
Before Driving
Doors and Locks
Mazda6_8DQ8-EA-13L_Edition3 Page92
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (93,1)
Opening the trunk lid with the remote
release button
Push the remote release button.
NOTE
If the vehicle battery is dead or there is a
malfunction in the electrical system and the
trunk lid cannot be unlocked, the trunk lid can
be opened by performing the emergency
procedure.
Refer to When Trunk Lid Cannot be Opened on
page 7-42.
Closing the trunk lid
To close, lower the trunk lid slowly using
the trunk lid grip recess, and then push the
trunk lid closed using both hands.
Do not slam it. Pull up on the trunk lid to
make sure it is secure.
Trunk lid grip recess
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.
Before Driving
Doors and Locks
3-21
Mazda6_8DQ8-EA-13L_Edition3 Page93
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (94,1)
Inside Trunk Release Leverí
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles do not have such levers.
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
3-22
Before Driving
íSome models.
Doors and Locks
Mazda6_8DQ8-EA-13L_Edition3 Page94
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (95,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Before Driving
Doors and Locks
3-23
Mazda6_8DQ8-EA-13L_Edition3 Page95
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (96,1)
Fuel and Engine Exhaust Precautions
qFuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R
M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
ØUSE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
ØYour vehicle can only use oxygenated fuels containing no more than 10 % ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
ØNever add fuel system additives. Otherwise, the emission control system could be
damaged. Consult an Authorized Mazda Dealer for details.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name“Gasohol”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10 % ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
3-24
Before Driving
Fuel and Emission
Mazda6_8DQ8-EA-13L_Edition3 Page96
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (97,1)
qEmission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
ØDo not drive your Mazda with any sign of engine malfunction.
ØDo not coast with the ignition switched off.
ØDo not descend steep grades in gear with the ignition switched off.
ØDo not operate the engine at high idle for more than 2 minutes.
ØDo not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
ØDo not push-start or pull-start your vehicle.
NOTE
lUnder U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
lWhile the engine is off, the sound of a valve opening and closing can be heard at the rear of the
right side of the vehicle, however this does not indicate an abnormality. Your vehicle has a self-
checking device and it operates while the engine is off.
Before Driving
Fuel and Emission
3-25
Mazda6_8DQ8-EA-13L_Edition3 Page97
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (98,1)
qEngine Exhaust (Carbon monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
3-26
Before Driving
Fuel and Emission
Mazda6_8DQ8-EA-13L_Edition3 Page98
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (99,1)

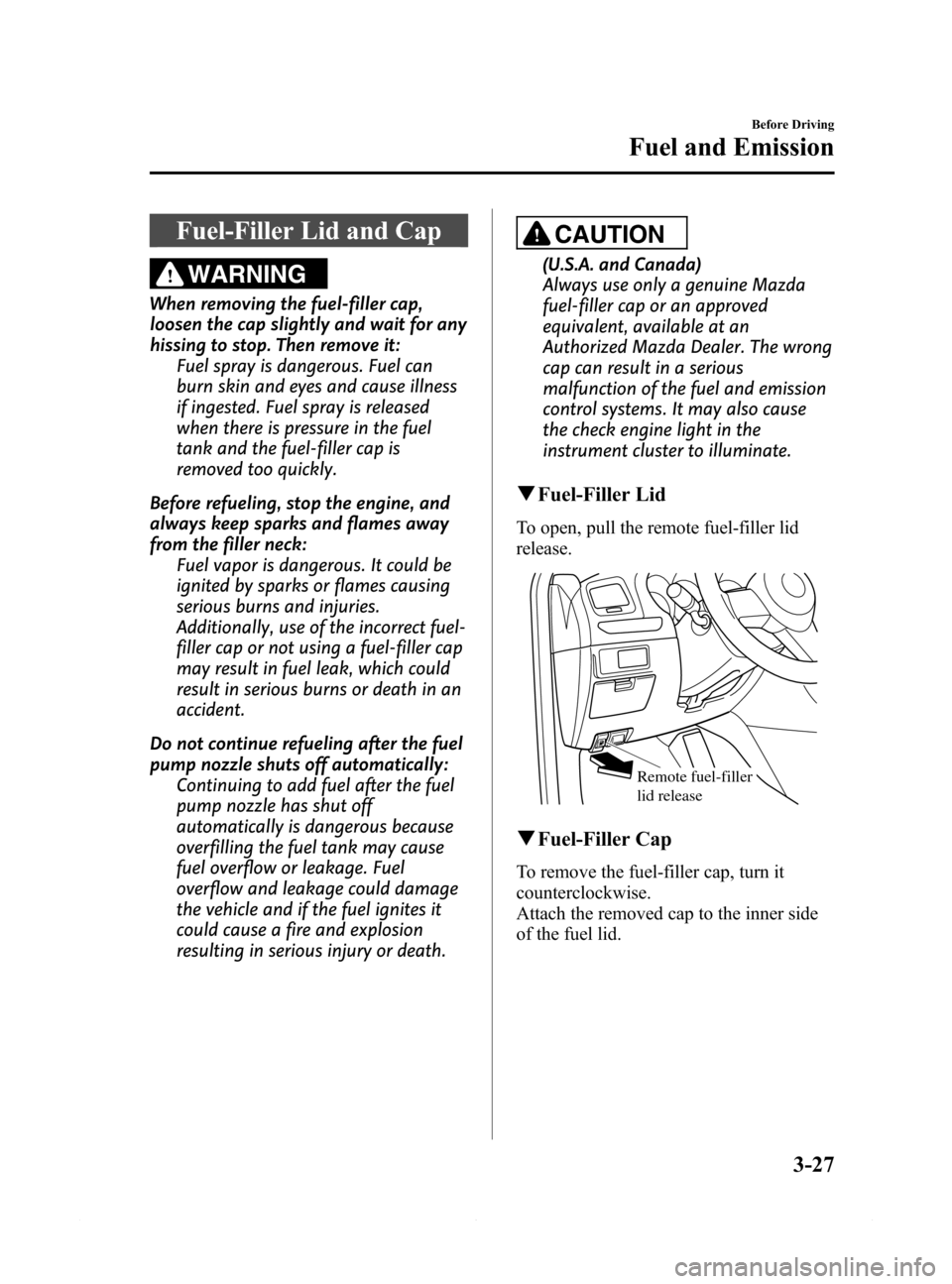

Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the fuel
pump nozzle has shut off
automatically is dangerous because
overfilling the fuel tank may cause
fuel overflow or leakage. Fuel
overflow and leakage could damage
the vehicle and if the fuel ignites it
could cause a fire and explosion
resulting in serious injury or death.
CAUTION
(U.S.A. and Canada)
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
Before Driving
Fuel and Emission
3-27
Mazda6_8DQ8-EA-13L_Edition3 Page99
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (100,1)
To close the fuel-filler cap, turn it
clockwise until a click is heard.
Open
Close
CAUTION
(U.S.A. and Canada)
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
3-28
Before Driving
Fuel and Emission
Mazda6_8DQ8-EA-13L_Edition3 Page100
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L
