MAZDA MODEL 6 2014 Owners Manual (in English)

Black plate (101,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, and then pull down
the lock release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, and then push the lever up to
lock the column.
3. Attempt to push the steering wheel up
and down to make sure it's locked
before driving.
Before Driving
Steering Wheel
3-29
Mazda6_8DQ8-EA-13L_Edition3 Page101
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (102,1)
Mirrors
Before driving, adjust the inside and
outside mirrors.
qOutside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left (
)
or right (
) to choose the left or right
side mirror.2. Press the mirror switch in the
appropriate direction.
Mirror switch
Center position
After adjusting the mirror, lock the control
by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
Fold the outside mirror rearward until it is
flush with the vehicle.
3-30
Before Driving
Mirrors
Mazda6_8DQ8-EA-13L_Edition3 Page102
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (103,1)
Driver's side auto-dimming door
mirrorí
The movement of the auto-dimming door
mirror is interlocked with the auto-
dimming rearview mirror in the interior to
automatically reduce glare from rear on-
coming vehicles.
Refer to Rearview Mirror on page 3-31.
NOTE
The front passenger-side door mirror does not
have the auto-dimming feature.
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night DayDay/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition is switched ON.
Before Driving
Mirrors
3-31íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page103
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (104,1)
Press the OFF button () to cancel the
automatic dimming function. The
indicator light will turn off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
lFor information regarding the 3 buttons
(
,,) on the auto-dimming
mirror.
Refer to HomeLink Wireless Control System
on page 4-74.
lThe auto-dimmer function is canceled when
the ignition is switched ON and the shift
lever is in reverse (R).
3-32
Before Driving
Mirrors
Mazda6_8DQ8-EA-13L_Edition3 Page104
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (105,1)

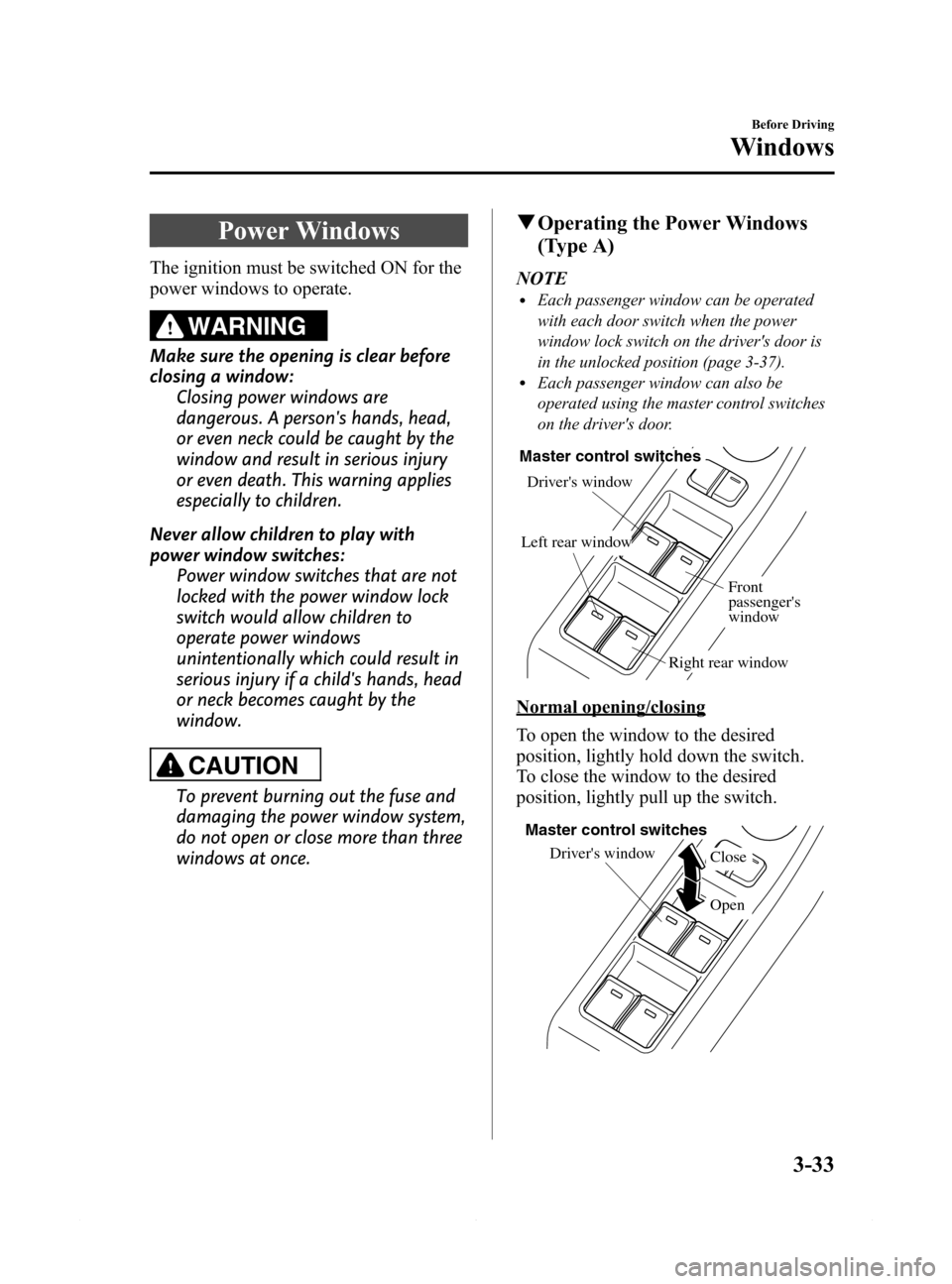

Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death. This warning applies
especially to children.
Never allow children to play with
power window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Power Windows
(Type A)
NOTElEach passenger window can be operated
with each door switch when the power
window lock switch on the driver's door is
in the unlocked position (page 3-37).
lEach passenger window can also be
operated using the master control switches
on the driver's door.
Left rear window
Right rear windowFront
passenger's
window
Driver's window Master control switches
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Open Close Master control switches
Before Driving
Windows
3-33
Mazda6_8DQ8-EA-13L_Edition3 Page105
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (106,1)
Close
Open
Auto-opening/closing
To fully open the window automatically,
press the switch completely down.
To fully close the window automatically,
pull the switch completely up.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically.
Resetting of the automatic function can be
performed using the master control
switches or each passenger door switch.
The power window auto function reset
procedure can be done on all door
switches. The power window auto
function will only resume on the power
window that has been reset.
1 Switch the ignition ON.
2 Make sure that the power window lock
switch located on the driver's door is
not depressed.3 Press the switch and fully open the
window.
4 Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
5 Repeat Steps 3-4 for the front passenger
power window while seated in the front
passenger seat.
6 Repeat Steps 3-4 for both the left and
right rear power windows while seated
in the rear seat.
7 Make sure that the power windows
operate correctly using the door
switches.
After the system has been re-initialized,
each passenger window can be fully
opened or closed automatically using the
master control switches.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
3-34
Before Driving
Windows
Mazda6_8DQ8-EA-13L_Edition3 Page106
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (107,1)
NOTElDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system has been reset.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to off with all doors
closed. If any door is opened, the power
window will stop operating.
NOTE
For engine-off operation of the power window,
the switch must be held up firmly throughout
window closure because the auto-closing
function will be inoperable.
qOperating the Driver's Side
Power Window (Type B)
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Open Close Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
Before Driving
Windows
3-35
Mazda6_8DQ8-EA-13L_Edition3 Page107
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (108,1)
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically.
The power window auto function will
only resume on the power window that
has been reset.
1 Switch the ignition ON.
2 Make sure that the power window lock
switch located on the driver's door is
not depressed.
3 Press the switch and fully open the
window.
4 Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while holding up the power
window switch:
Blocking the power window just
before it reaches the fully closed
position or while holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.NOTE
lDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch and
the window will close.
lThe jam-safe window function does not
operate until the system has been reset.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to off with all doors
closed. If any door is opened, the power
window will stop operating.
NOTE
For engine-off operation of the power window,
the switch must be held up firmly throughout
window closure because the auto-closing
function will be inoperable.
3-36
Before Driving
Windows
Mazda6_8DQ8-EA-13L_Edition3 Page108
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (109,1)
qOperating the Passenger Power
Windows (Type B)
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger windows may be opened or
closed using the master control switches
on the driver's door.
Left rear window
Right rear windowFront
passenger's
window
Driver's window Master control switches
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
qPower Window Lock Switch
This feature prevents all power windows
from operating, except the driver's power
window. Keep this switch in the locked
position while children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
All power windows on each door can be
operated.
Locked position
Unlocked position
Before Driving
Windows
3-37
Mazda6_8DQ8-EA-13L_Edition3 Page109
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (110,1)

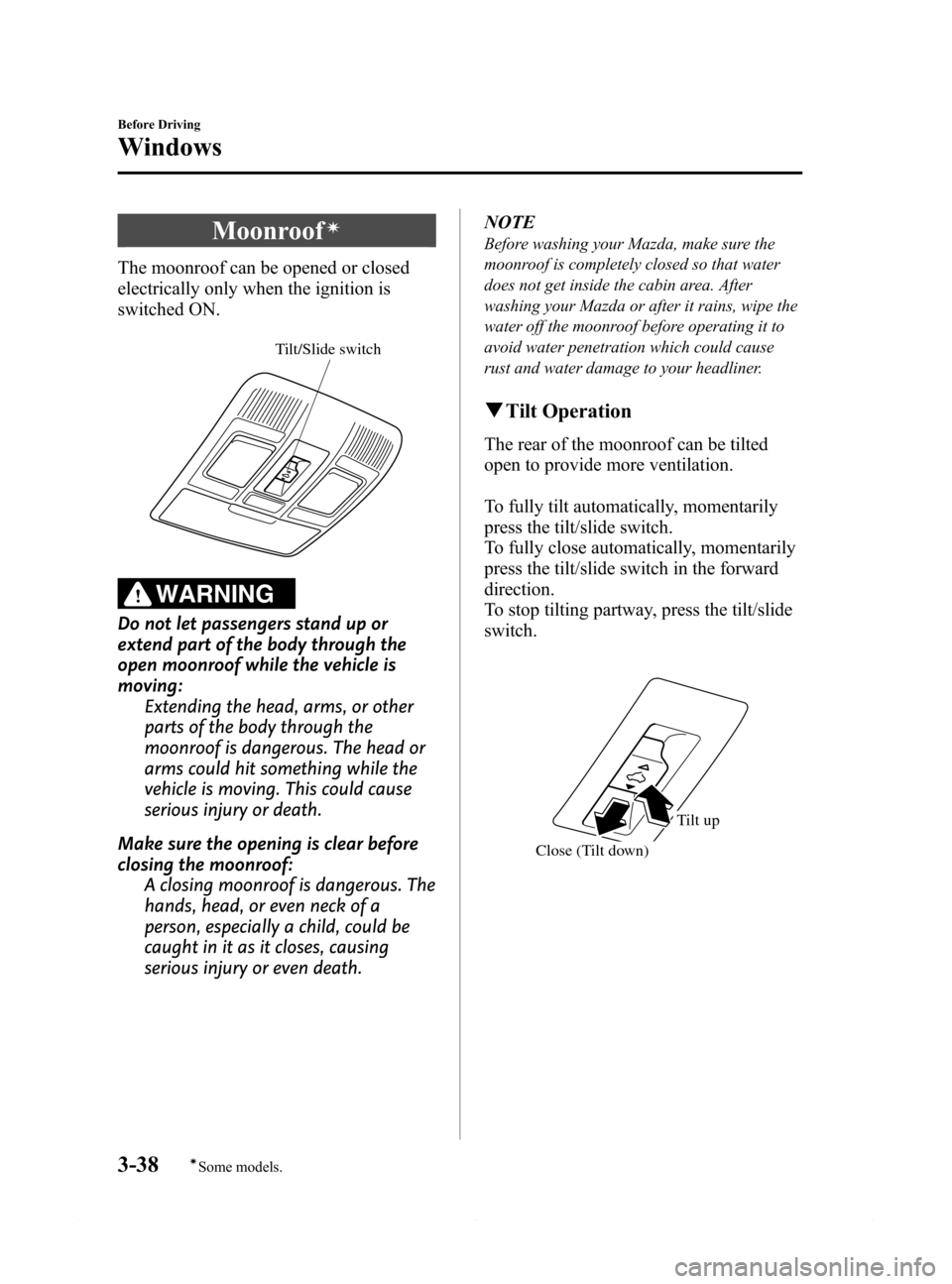

Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt/Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person, especially a child, could be
caught in it as it closes, causing
serious injury or even death.NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop tilting partway, press the tilt/slide
switch.
Close (Tilt down)
Tilt up
3-38
Before Driving
íSome models.
Windows
Mazda6_8DQ8-EA-13L_Edition3 Page110
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L
