WARNING
Attach the speed restriction sticker in a
place where it can be viewed easily by
the driver:
ØApplying the speed restriction
sticker to the steering wheel is
dangerous as it could interfere
with the air bag deployment and
result in serious injury.
ØDo not apply the sticker to any
position other than the position
indicated in the illustration of the
speedometer.
10. Switch the ignition ON (engine
running).
11. Turn the compressor on and wait until
the sealant is injected into the tire.
After the sealant is injected into the
tire, continue waiting until the tire is
inflated to the correct air pressure.
NOTE
lCheck the tire inflation pressure label
(driver's door frame) for the correct tire
inflation pressure.
lIf the tire air pressure is not correct after a
few seconds, the tire may be seriously
damaged. Consult an Authorized Mazda
Dealer.
12. When the tire has been inflated to the
proper inflation pressure, turn the
compressor switch off and remove the
hose from the tire valve.
13. Install the tire valve cap.
14. Store the hose, removed from the
valve, in the trunk and resume driving
the vehicle.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
ØIf the vehicle is driven over 80
km/h (50 mph), the vehicle might
begin to vibrate.
NOTE
lIf the tire is not properly inflated, the tire
pressure monitoring system warning light
will illuminate (page 4-23).
lDo not press the tire pressure monitoring
system set switch after installing the spare
tire or after using the emergency flat tire
repair kit. The switch is only to be pressed
after installing the repaired flat tire or
installing a replacement tire (page 4-23).
15. After driving the vehicle 5 km, set up
the compressor again using Step 8 of
the procedure. Turn the compressor
on and then off after a few seconds,
and check the tire air pressure. If the
tire air pressure is low, turn the
compressor on again and wait until
the tire inflates to the correct air
pressure.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
ØIf the tire inflation pressure
continues to remain low, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
If Trouble Arises
Flat Tire
7-11
Mazda6_8DQ8-EA-13L_Edition3 Page471
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (484,1)
Overheating
If the High engine coolant temperature
warning light illuminates, the vehicle
loses power, or you hear a loud knocking
or pinging noise, the engine is probably
too hot.
WARNING
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the High engine coolant temperature
warning light illuminates:
1. Drive safely to the side of the road and
park off the right-of-way.2. Put a vehicle with an automatic
transaxle in park (P), a manual
transaxle in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
7-24
If Trouble Arises
Overheating
Mazda6_8DQ8-EA-13L_Edition3 Page484
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (490,1)
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qIf the ABS warning light illuminates
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qIf the brake system warning light
and the ABS warning light
illuminate simultaneously
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
7-30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mazda6_8DQ8-EA-13L_Edition3 Page490
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (491,1)
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the charging system warning
indication/warning light is indicated
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qIf the engine oil warning indication/
warning light is indicated
Type A/Type B
This warning light/warning indication
indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates or the warning
indication is displayed while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-22).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light/warning indication.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-31
Mazda6_8DQ8-EA-13L_Edition3 Page491
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (492,1)
If the light/indication remains illuminated
even though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qIf the check engine light
illuminates or flashes
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on, or it
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qIf the high engine coolant
temperature warning light (red)
illuminates or flashes
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-24).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
7-32
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mazda6_8DQ8-EA-13L_Edition3 Page492
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (495,1)
qIf the tire pressure monitoring
system warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qIf the KEY indication/warning
light (red) is indicated
Type A
“Keyless System Inspection Required”
is displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
“Set Power to OFF”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
“Key not found”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lThe ignition is switched onlAll doors are closed without switching
the ignition off
Type B
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-35
Mazda6_8DQ8-EA-13L_Edition3 Page495
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (559,1)

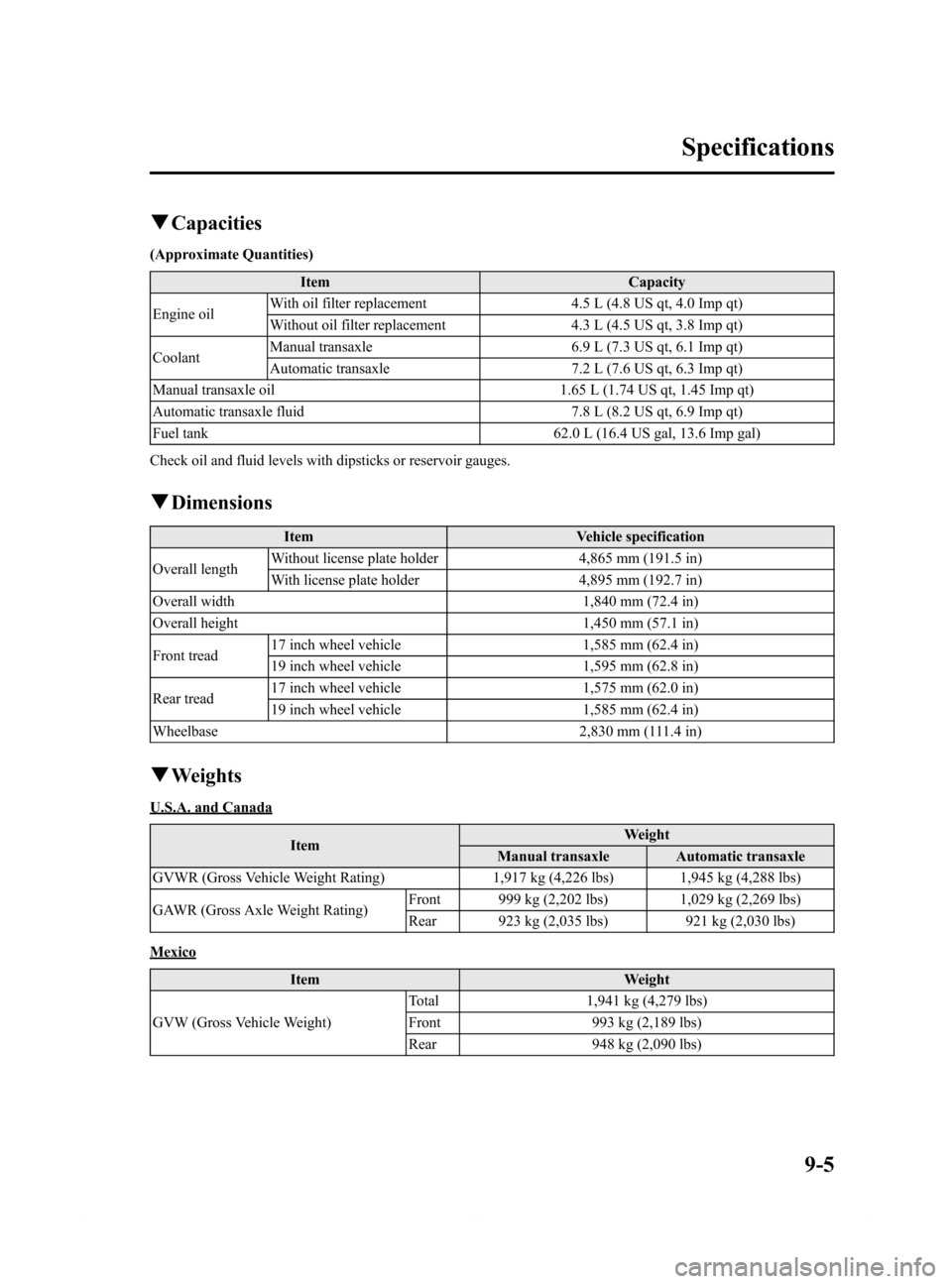

qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
CoolantManual transaxle 6.9 L (7.3 US qt, 6.1 Imp qt)
Automatic transaxle 7.2 L (7.6 US qt, 6.3 Imp qt)
Manual transaxle oil 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank 62.0 L (16.4 US gal, 13.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall lengthWithout license plate holder 4,865 mm (191.5 in)
With license plate holder 4,895 mm (192.7 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,450 mm (57.1 in)
Front tread17 inch wheel vehicle 1,585 mm (62.4 in)
19 inch wheel vehicle 1,595 mm (62.8 in)
Rear tread17 inch wheel vehicle 1,575 mm (62.0 in)
19 inch wheel vehicle 1,585 mm (62.4 in)
Wheelbase 2,830 mm (111.4 in)
qWeights
U.S.A. and Canada
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,917 kg (4,226 lbs) 1,945 kg (4,288 lbs)
GAWR (Gross Axle Weight Rating)Front 999 kg (2,202 lbs) 1,029 kg (2,269 lbs)
Rear 923 kg (2,035 lbs) 921 kg (2,030 lbs)
Mexico
Item Weight
GVW (Gross Vehicle Weight)Total 1,941 kg (4,279 lbs)
Front 993 kg (2,189 lbs)
Rear 948 kg (2,090 lbs)
Specifications
9-5
Mazda6_8DQ8-EA-13L_Edition3 Page559
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (560,1)
qAir Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine compartment. Check the
label before recharging the refrigerant. Refer to Climate Control System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage UNECE
*1(SAE)
HeadlightsHalogenHigh beam 65 HB3 (9005)
Low beam 55 H11 (H11)
Xenon fusion High/Low beam 35 D4S (D4S)
Daytime running lightsWith halogen bulb headlights 65 HB3 (9005)
With xenon fusion bulb headlights LED
*2―(―)
Front turn signal lights/Parking
lights (Front side-marker lights)With halogen bulb headlights 27/8―(#7444NA)
Front turn signal lights/
Front side-marker lightsWith xenon fusion bulb headlights 27/8―(#7444NA)
Parking lights With xenon fusion bulb headlights LED
*2―(―)
Fog lightsí55 H11 (H11)
Side turn signal lights LED*2―(―)
High-mount brake light LED*2―(―)
Rear turn signal lights 21 WY21W (7443NA)
Rear side-marker lights 5 W5W (―)
Brake lights/Taillights LED
*2―(―)
Taillights (Trunk lid side) 5 W5W (―)
Reverse lights 21 W21W (7440)
License plate lights 5 W5W (―)
*1 UNECE stands for United Nations Economic Commission for Europe.
*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage UNECE
*1
Trunk light 3―
Overhead lights (Front)/Map lights 8―
Rear map lights 8―
Courtesy lights 5 W5W
Vanity mirror lights
í2―
*1 UNECE stands for United Nations Economic Commission for Europe.
9-6íSome models.
Specifications
Mazda6_8DQ8-EA-13L_Edition3 Page560
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (574,1)
T
Tiedown
Hook .......................................... 7-27
Tire Information ................................ 8-25
Tire Pressure Monitoring System .... 4-117
Tires .................................................. 6-34
Flat Tire ........................................ 7-3
Replacing a Tire ......................... 6-36
Replacing a Wheel ..................... 6-37
Snow tires .................................. 3-48
Specifications ............................... 9-7
Temporary Spare Tire ................. 6-37
Tire chains .................................. 3-48
Tire Inflation Pressure ................ 6-35
Tire Rotation .............................. 6-35
Uniform tire quality grading system
(UTQGS) ................................... 8-23
Towing
Recreational towing ................... 3-51
Trailer Towing ............................ 3-51
Towing Description ........................... 7-26
Traction Control System (TCS) ........ 4-93
Transmitter .......................................... 3-4
Trip Computer ................................... 4-18
Trip Meter ......................................... 4-11
Trouble
Battery runs out .......................... 7-20
Emergency Starting .................... 7-23
Emergency Towing .................... 7-26
Flat Tire ........................................ 7-3
Overheating ................................ 7-24
Parking in an Emergency ............. 7-2
Warning/indicator lights and warning
sounds ........................................ 7-29
When trunk lid cannot be
opened ........................................ 7-42
T
Trunk Lid .......................................... 3-19
Inside trunk release lever ............ 3-22
When trunk lid cannot be
opened ........................................ 7-42
Turn and Lane-Change Signals ......... 4-67
V
Vanity Mirrors ................................. 5-112
Vehicle Information Labels ................. 9-2
W
Warning Lights
ABS ............................................ 4-30
Air bag/front seat belt pretensioner
system ........................................ 4-35
Automatic transaxle ................... 4-34
Brake system .............................. 4-30
Charging system ......................... 4-31
Check engine .............................. 4-32
Check fuel cap ........................... 4-36
Door-ajar .................................... 4-37
Engine oil ................................... 4-31
HBC ........................................... 4-42
High engine coolant
temperature ................................ 4-33
KEY ............................................ 4-40
LDWS ........................................ 4-33
Low fuel ..................................... 4-36
Low washer fluid level ............... 4-38
Mazda Radar Cruise Control
(MRCC) ..................................... 4-45
Seat belt ...................................... 4-36
Tire pressure monitoring
system ........................................ 4-38
Warning/Buzzer ................................ 7-29
Warranty ............................................ 8-16
10-8
Index
Mazda6_8DQ8-EA-13L_Edition3 Page574
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
