WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the spare tire.
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)108―147
(12―14, 80―108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
5. Open the trunk mat.
If Trouble Arises
Flat Tire
7-11
Mazda6_8EA2-EA-14K_Edition2 Page501
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (502,1)
6. Remove the belt for securing the flat
tire.
7. Put the flat tire into the trunk on the left
and toward the back.
8. Fold the seat back forward on the right
side of the rear seat.
9. Thread the belt through the rear seat as
shown in the figure.
10. Thread the buckle through the wheel
as shown in the figure and secure it so
that the buckle does not contact the
wheel.
11. Thread the belt through the buckle,
then pull the belt end to secure the flat
tire.
12. Return the seat back on the right side
of the rear seat to its original position.
13. Remove the tire blocks and store the
tools and jack.
14. Check the inflation pressure. Refer to
Tires on page 9-7.
15. Have the flat tire repaired or replaced
as soon as possible.
7-12
If Trouble Arises
Flat Tire
Mazda6_8EA2-EA-14K_Edition2 Page502
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (503,1)
NOTE
Do not press the tire pressure monitoring
system set switch after installing the spare tire.
The switch is only to be pressed after installing
the repaired flat tire or installing a
replacement tire (page 4-22).
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from rattling, store
them properly.
If Trouble Arises
Flat Tire
7-13
Mazda6_8EA2-EA-14K_Edition2 Page503
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (504,1)
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Do not allow the positive () terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a
battery, do not allow metal tools to contact the positive (
) or negative ()
terminal of the battery.
Keep all flames, including cigarettes, and sparks away from open battery
cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.
7-14
If Trouble Arises
Battery Runs Out
Mazda6_8EA2-EA-14K_Edition2 Page504
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (505,1)
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
Connect cables in numerical order and disconnect in reverse order.
Jumper cables
Booster battery
Discharged battery
1. Remove the battery cover.
2. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.3. If the booster battery is in another
vehicle, do not allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
If Trouble Arises
Battery Runs Out
7-15
Mazda6_8EA2-EA-14K_Edition2 Page505
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (506,1)
5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
6.(With i-ELOOP system)
“i-ELOOP charging”is displayed in
the multi-display of the instrument
cluster after the engine is started. The
message is no longer displayed when
the engine is running and the charging
is completed. The vehicle may be
driven after the message is no longer
displayed.
NOTE
If the vehicle is driven while the message is
displayed, a beep sound is heard.
If you turn the steering wheel while the
message is displayed, it will feel heavier than
normal, but this does not indicate an
abnormality. The steering operation will return
to normal after the message is no longer
displayed. Do not remove the jumper cables
while the message is displayed.
7. When finished, carefully disconnect the
cables in the reverse order described in
the illustration.
8. If the battery cover has been removed,
install it in the reverse order of
removal.NOTE
Verify that the covers are securely installed.
7-16
If Trouble Arises
Battery Runs Out
Mazda6_8EA2-EA-14K_Edition2 Page506
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (507,1)
Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within five
seconds on the first try, wait ten
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.
4. Depress the clutch pedal (Manual
transaxle) or the brake pedal
(Automatic transaxle), then press the
push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.
5. If the engine fails to start, crank it
without depressing the accelerator.
If the engine still does not start using the
above procedure, have your vehicle
inspected by an Authorized Mazda
Dealer.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transaxle. It can damage
the emission control system.
NOTE
You cannot start a vehicle with an automatic
transaxle by pushing it.
If Trouble Arises
Emergency Starting
7-17
Mazda6_8EA2-EA-14K_Edition2 Page507
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (508,1)

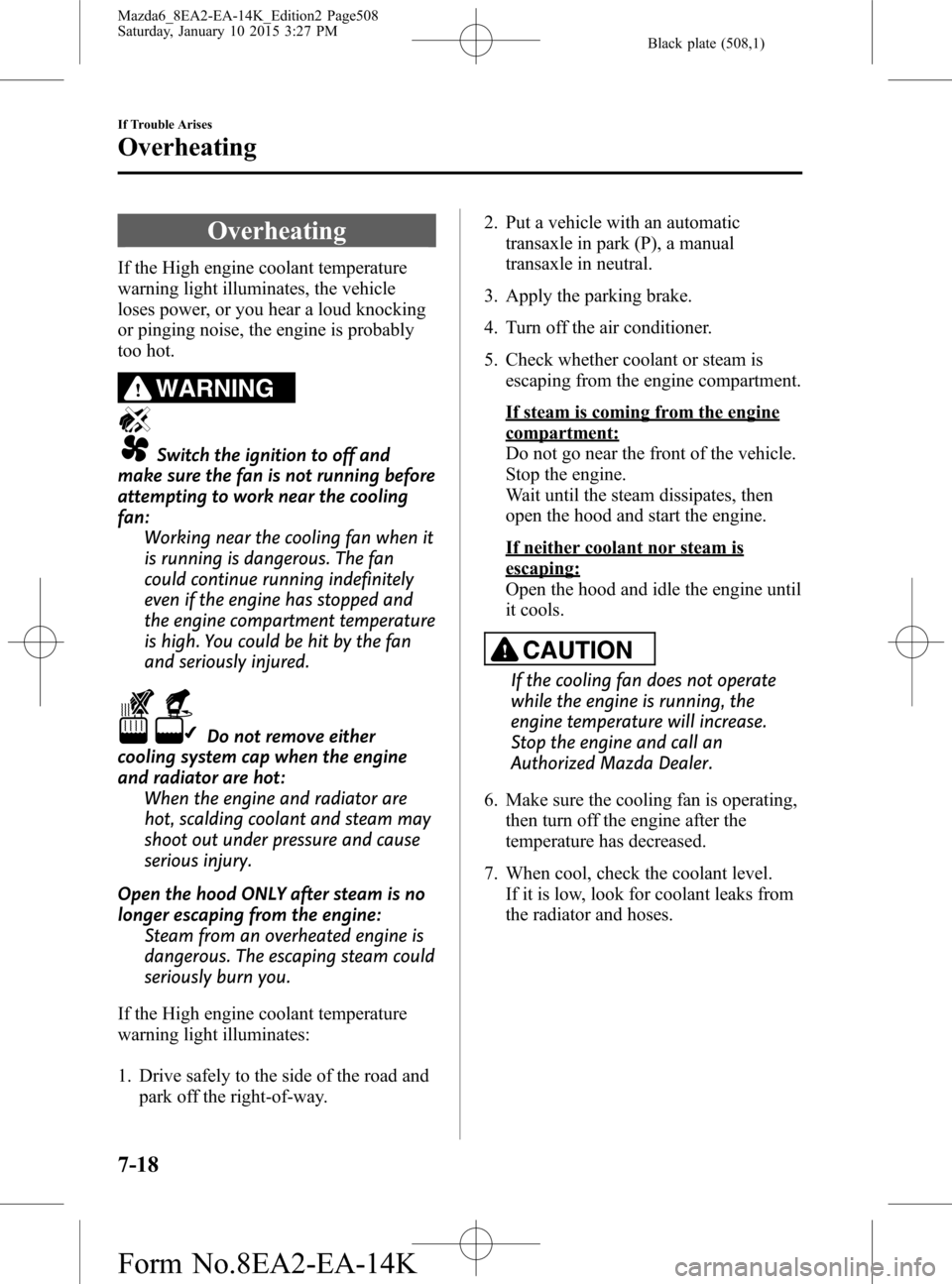

Overheating
If the High engine coolant temperature
warning light illuminates, the vehicle
loses power, or you hear a loud knocking
or pinging noise, the engine is probably
too hot.
WARNING
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the High engine coolant temperature
warning light illuminates:
1. Drive safely to the side of the road and
park off the right-of-way.2. Put a vehicle with an automatic
transaxle in park (P), a manual
transaxle in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
7-18
If Trouble Arises
Overheating
Mazda6_8EA2-EA-14K_Edition2 Page508
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (509,1)
If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
Cooling system cap
Coolant reservoir
Cooling fan
If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
6-29).
CAUTION
If the engine continues to overheat or
frequently overheats, have the
cooling system inspected. The engine
could be seriously damaged unless
repairs are made. Consult an
Authorized Mazda Dealer.
If Trouble Arises
Overheating
7-19
Mazda6_8EA2-EA-14K_Edition2 Page509
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (510,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
ØDo not tow the vehicle pointed
backward with driving wheels on
the ground. This may cause
internal damage to the transaxle.
ØDo not tow with sling-type
equipment. This could damage
your vehicle. Use wheel-lift or
flatbed equipment.
7-20
If Trouble Arises
Emergency Towing
Mazda6_8EA2-EA-14K_Edition2 Page510
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K
