Tiedown Hooksí
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2. Wrap a flathead screwdriver or similar
tool with a soft cloth to prevent
damage to a painted bumper, and open
the cap located on the front or rear
bumper.
Front
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the
painted bumper surface.
NOTE
Remove the cap completely and store it so as
not to lose it.
3. Securely install the tiedown eyelet
using the lug wrench or equivalent.
Consult an Authorized Mazda Dealer.
Front
Lug wrench
Tiedown eyelet
(Long type)
If Trouble Arises
Emergency Towing
7-21íSome models. Mazda6_8EA2-EA-14K_Edition2 Page511
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (512,1)
Rear
Tiedown eyelet
(Short type)
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
7-22
If Trouble Arises
Emergency Towing
Mazda6_8EA2-EA-14K_Edition2 Page512
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (513,1)

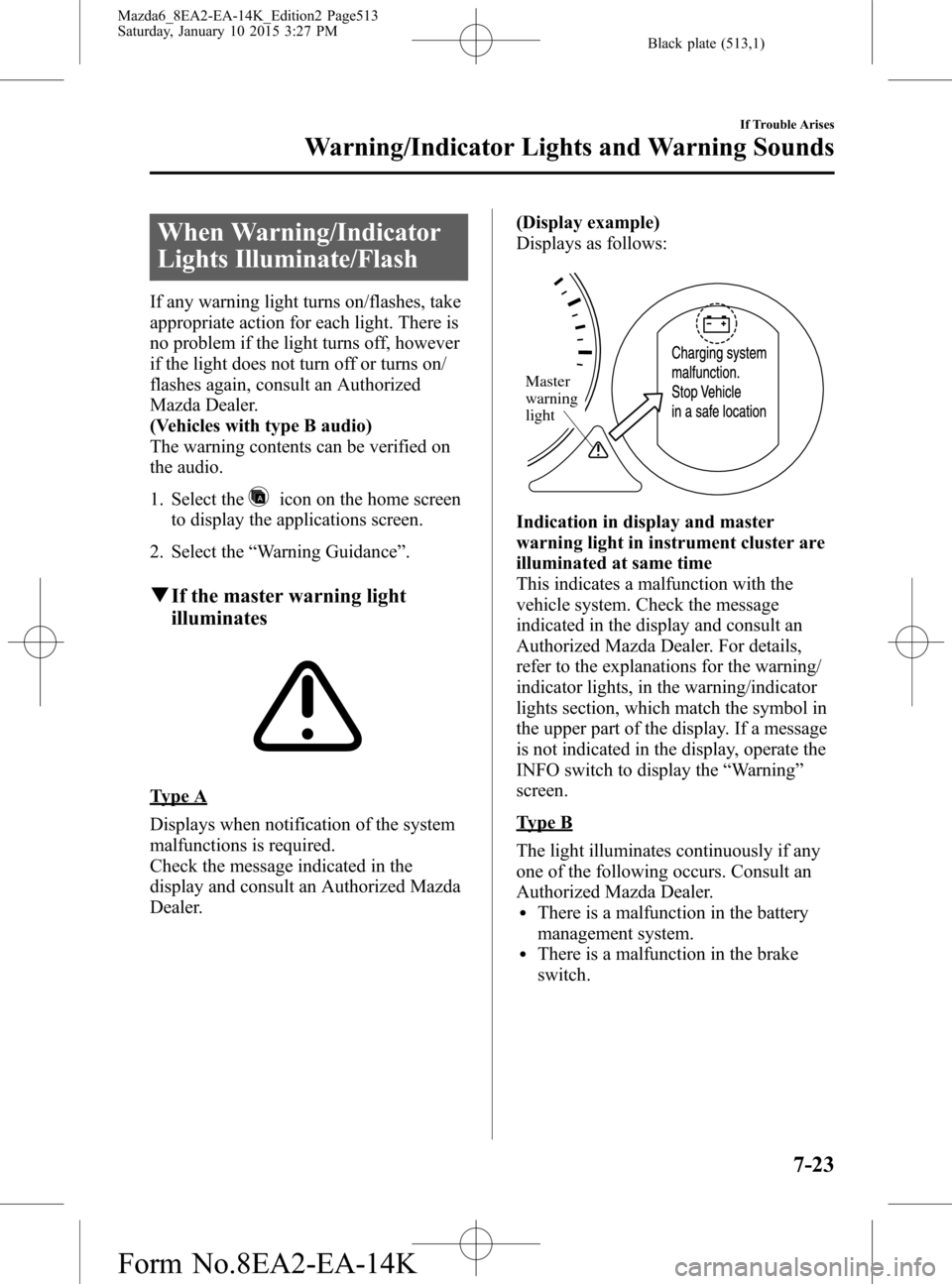

When Warning/Indicator
Lights Illuminate/Flash
If any warning light turns on/flashes, take
appropriate action for each light. There is
no problem if the light turns off, however
if the light does not turn off or turns on/
flashes again, consult an Authorized
Mazda Dealer.
(Vehicles with type B audio)
The warning contents can be verified on
the audio.
1. Select the
icon on the home screen
to display the applications screen.
2. Select the“Warning Guidance”.
qIf the master warning light
illuminates
Type A
Displays when notification of the system
malfunctions is required.
Check the message indicated in the
display and consult an Authorized Mazda
Dealer.(Display example)
Displays as follows:
Master
warning
light
Indication in display and master
warning light in instrument cluster are
illuminated at same time
This indicates a malfunction with the
vehicle system. Check the message
indicated in the display and consult an
Authorized Mazda Dealer. For details,
refer to the explanations for the warning/
indicator lights, in the warning/indicator
lights section, which match the symbol in
the upper part of the display. If a message
is not indicated in the display, operate the
INFO switch to display the“Warning”
screen.
Type B
The light illuminates continuously if any
one of the following occurs. Consult an
Authorized Mazda Dealer.
lThere is a malfunction in the battery
management system.
lThere is a malfunction in the brake
switch.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-23
Mazda6_8EA2-EA-14K_Edition2 Page513
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (514,1)
qIf the brake system warning light
illuminates
When the light turns on
If the brake system warning light remains
turned on even though the electric parking
brake is released, the brake fluid may be
low or there could be a problem with the
brake system. Park the vehicle in a safe
place immediately and contact an
Authorized Mazda Dealer.
When the light is flashing
The light flashes if the electric parking
brake has a malfunction.
If the light remains flashing even if the
electric parking brake switch is operated,
consult an Authorized Mazda Dealer as
soon as possible.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qIf the ABS warning light illuminates
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
7-24
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mazda6_8EA2-EA-14K_Edition2 Page514
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (515,1)
qIf the brake system warning light
and the ABS warning light
illuminate simultaneously
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the electric parking brake
warning light illuminates
The warning light illuminates when the
system has a malfunction. Have your
vehicle inspected at an Authorized Mazda
Dealer.
qIf the charging system warning
indication/warning light is indicated
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-25
Mazda6_8EA2-EA-14K_Edition2 Page515
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (516,1)
qIf the engine oil warning indication/
warning light is indicated
This warning light indicates low engine
oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-28).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light.
If the light remains illuminated even
though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qIf the check engine light
illuminates or flashes
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on, or it
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
7-26
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mazda6_8EA2-EA-14K_Edition2 Page516
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (517,1)
qIf the high engine coolant
temperature warning light (red)
illuminates or flashes
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-18).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
qIf the lane departure warning
system (LDWS) OFF Indication/
Indicator Light is indicated
í
Type A
If the indication remains displayed even
though the LDWS switch has been
operated, it indicates a problem in the
system. Have your vehicle inspected at an
Authorized Mazda Dealer.
Type B
A problem in the system may be indicated
under the following conditions. Have your
vehicle inspected at an Authorized Mazda
Dealer.
lThe light does not turn on when the
ignition is switched ON.
lIt remains illuminated even though the
LDWS switch has been switched off.
CAUTION
ØAlways use tires for all wheels that
are of the specified size, and the
same manufacture, brand, and
tread pattern. In addition, do not
use tires with significantly
different wear patterns on the
same vehicle. If such improper
tires are used, the LDWS may not
operate normally.
ØWhen an emergency spare tire is
used, the system may not operate
normally.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-27íSome models. Mazda6_8EA2-EA-14K_Edition2 Page517
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (518,1)
qIf the automatic transaxle
warning indication/warning light
is indicated
í
The light/indication illuminates when the
transaxle has a problem.
CAUTION
If the automatic transaxle warning
light/warning indication illuminates,
the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult
an Authorized Mazda Dealer as soon
as possible.
qIf the power steering malfunction
warning indication/indicator light
is indicated
The power steering malfunction indicator
light illuminates if there is a malfunction
with the power steering while the engine
is running.
If the indicator light illuminates, park the
vehicle in a safe place immediately and
stop the engine.
If the indicator light does not turn off even
if the engine is restarted afterwards,
consult an Authorized Mazda Dealer.
NOTE
lIf the indicator light illuminates, the power
steering will not operate normally. If this
happens, the steering wheel can still be
operated, however, the operation may feel
heavy compared to normal, and the
steering wheel could vibrate when turning.
lRepeatedly jerking the steering wheel left
and right while the vehicle is stopped or
moving extremely slowly will cause the
power steering system to go into protective
mode which will make the steering feel
heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and
wait several minutes for the system to
return to normal.
7-28
If Trouble Arises
íSome models.
Warning/Indicator Lights and Warning Sounds
Mazda6_8EA2-EA-14K_Edition2 Page518
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (519,1)
qIf the air bag/front seat belt
pretensioner system warning light
illuminates or flashes
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qIf the tire pressure monitoring
system warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qIf the KEY warning indication/
warning light (red) is indicated
Type A
“Keyless System malfunction”is
displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-29
Mazda6_8EA2-EA-14K_Edition2 Page519
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (520,1)
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
“Ignition is on”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
“Key not detected”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lThe ignition is switched onlAll doors are closed without switching
the ignition off
Type B
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
CAUTION
If the key warning indicator light
illuminates or the push button start
indicator light (amber) flashes, the
engine may not start. If the engine
cannot be started, try starting it
using the emergency operation for
starting the engine, and have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
qIf the high beam control system
(HBC) warning light (amber)
illuminates
í
This light turns on if there is a
malfunction in the high beam control
system (HBC). Have your vehicle
inspected by an Authorized Mazda
Dealer.
qIf the wrench indication/indicator
light is indicated
Type A
Perform maintenance in accordance with
the message.
7-30
If Trouble Arises
íSome models.
Warning/Indicator Lights and Warning Sounds
Mazda6_8EA2-EA-14K_Edition2 Page520
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K
