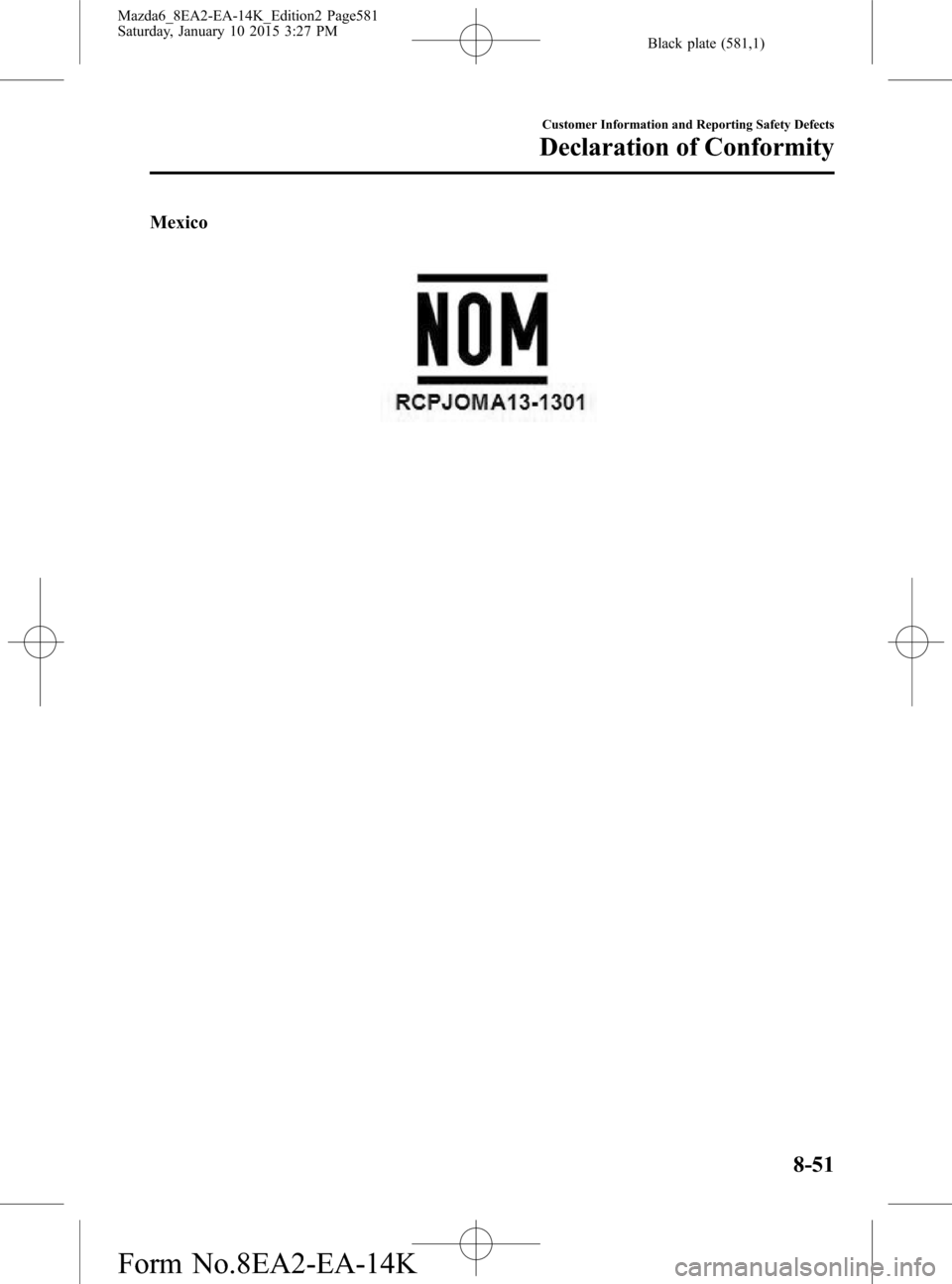

Mexico
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-51
Mazda6_8EA2-EA-14K_Edition2 Page581
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (582,1)
qSmart Brake Support (SBS)/Mazda Radar Cruise Control (MRCC)/
Distance Recognition Support System (DRSS)
8-52
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mazda6_8EA2-EA-14K_Edition2 Page582
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (583,1)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-53
Mazda6_8EA2-EA-14K_Edition2 Page583
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (584,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-063B-16 2016 WORKSHOP MANUAL (English)
9999-MX-063B-16 2016 WORKSHOP MANUAL (Spanish)
9999-95-039G-16 2016 WIRING DIAGRAM (English)
9999-MX-039G-16 2016 WIRING DIAGRAM (Spanish)
9999-95-078C-16 2016 OWNER'S MANUAL (English)
9999-EC-078C-16 2016 OWNER'S MANUAL (French)
9999-PR-078C-16 2016 OWNER'S MANUAL (Spanish)
9999-95-101F-16 2016 SERVICE HIGHLIGHTS
9999-95-050C-16NAV2016 NAVIGATION SYSTEM OWNER'S MANUAL
(English)
9999-EC-050C-16NAV2016 NAVIGATION SYSTEM OWNER'S MANUAL
(English and French)
9999-PR-050C-16NAV2016 NAVIGATION SYSTEM OWNER'S MANUAL
(Spanish)
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
8-54
Customer Information and Reporting Safety Defects
Service Publications
Mazda6_8EA2-EA-14K_Edition2 Page584
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (585,1)
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
Customer Information and Reporting Safety Defects
Service Publications
8-55
Mazda6_8EA2-EA-14K_Edition2 Page585
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (586,1)
8-56
Mazda6_8EA2-EA-14K_Edition2 Page586
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (587,1)
9Specifications
Technical information about your Mazda.
Identification Numbers ................................................................. 9-2
Vehicle Information Labels ....................................................... 9-2
Specifications ................................................................................. 9-4
Specifications ............................................................................ 9-4
Personalization Features .............................................................. 9-9
Personalization Features ............................................................ 9-9
9-1
Mazda6_8EA2-EA-14K_Edition2 Page587
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (588,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard
Label (U.S.A. and Canada)
qChassis Number
Open the cover shown in the figure to
check the chassis number.
qVehicle Emission Control
Information Label (U.S.A. and
Canada)
9-2
Identification Numbers
Mazda6_8EA2-EA-14K_Edition2 Page588
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (589,1)
qTire Pressure Label
qEngine Number
Forward
Identification Numbers
9-3
Mazda6_8EA2-EA-14K_Edition2 Page589
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (590,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.0
qElectrical System
Item Classification
BatteryQ-85*1
12V-60Ah/20HR*2or 12V-65Ah/20HR*2
Spark-plug numberMazda Genuine spark
plug*3PE5R-18-110 or PE5S-18-110
*1 Q-85 is designed for i-ELOOP system. Only Q-85 should be used to ensure correct operation of i-ELOOP
system. Consult an Authorized Mazda Dealer for details.
*2 Not for i-ELOOP system.
*3 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda
Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 6-27.
Coolant FL-22 type
Manual transaxle oilAPI Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF FZ
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
