Page 471 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–11
If Trouble Arises
Flat Tire
4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
 If you are unsure of how tight the nuts

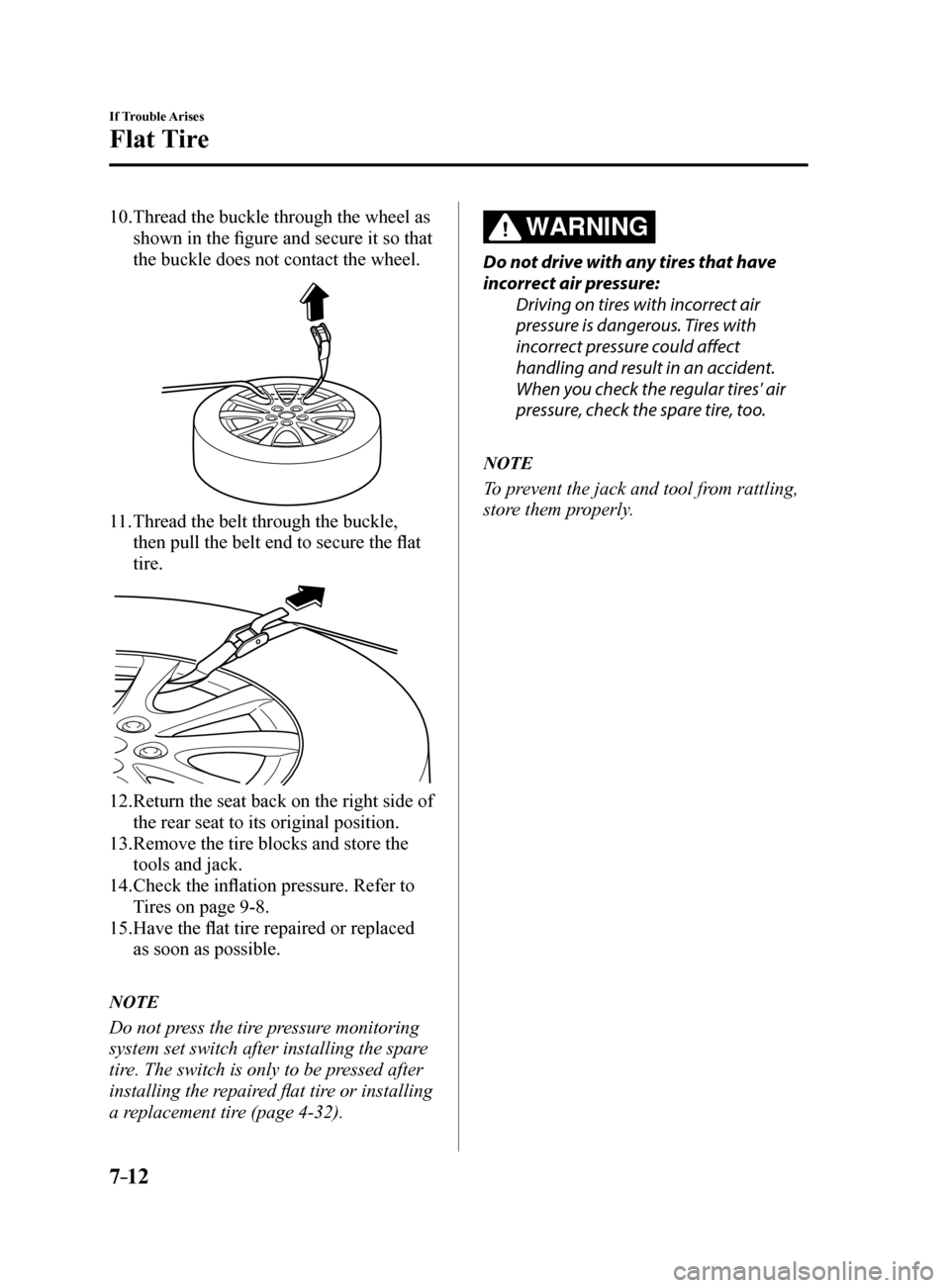

Page 472 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–12
If Trouble Arises
Flat Tire
10. Thread the buckle through the wheel as
shown in the figure and secure it so that
the buckle does not contact the wheel.
11. Thread the belt through the buckle,

Page 473 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–13
If Trouble Arises
Battery Runs Out
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommen

Page 474 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–14
If Trouble Arises
Battery Runs Out
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (tw

Page 475 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–15
If Trouble Arises
Battery Runs Out
1. Remove the battery cover.

2.  Make sure the booster battery is 12
V and that its negative terminal is
grounded.
3.  If the booster battery is in anothe

Page 476 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–16
If Trouble Arises
Emergency Starting
Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not

Page 477 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–17
If Trouble Arises
Overheating
Overheating
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is

Page 478 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–18
If Trouble Arises
Overheating
If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
Cooling system cap
Coolant reservoir
Coo

Page 479 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–19
If Trouble Arises
Emergency Towing
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are nece

Page 480 of 578

MAZDA MODEL 6 2017  Owners Manual (in English) 7–20
If Trouble Arises
Emergency Towing
*Some models.
Tiedown Hooks*
CAUTION
Do not use the front and rear tiedown
eyelets for towing the vehicle.
They have been designed only for
securing the veh
