▼Locking, Unlocking with
Transmitter
All doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
▼Locking, Unlocking with Door-Lock
Switch
All doors lock automatically when the
lock side is pressed. They unlock when the
unlock side is pressed.
Driver's door
Unlock
Lock
Front passenger's door
Unlock
Lock
To lock all the doors from an open front
door, press the lock side of the door lock
switch and then close the door.
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
▼
Auto Lock/Unlock Function
WA R N I N G
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front door
while the vehicle is moving is dangerous.
Passengers can fall out of the vehicle if the
door opens accidentally , which could
result in death or
serious injury.
When the vehicle speed exceeds 20
km/h (12 mph), all the doors lock
automatically.
When the ignition is switched off, all the
doors unlock automatically.
The auto lock/unlock function settings can
be changed.
Refer to Other Equipment/Functions on
page 9-14.
▼ Locking, Unlocking with Door-Lock
Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
Before Driving
Doors and Locks
3-14
Mazda6_8HK6-EA-19A_Edition1
2018-11-15 9:36:06

Trunk Lid
WA R N I N G
Never allow a person to ride in the trunk:
Allowing a person to ride in the trunk is
dangerous. The person in the trunk could
be seriously injured or killed during sudden
braking or a collision.
Do not drive with the trunk lid open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open trunk lid in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous, and it can
cause loss of consciousness and death.
Moreover, an open trunk lid could cause
occupants to fall out in an accident.
CAUTION
Before opening the trunk lid, remove any
snow and ice accumulation on it.
Otherwise, the trunk lid could close
under the weight of the snow and ice
resulting in injury.
 Be careful when opening/closing the
trunk lid during strong winds. If a strong
gust blows against the trunk lid, it could
close suddenly resulting in injury.
 Fully open the trunk lid and make sure
that it stays open. If the trunk lid is only
opened partially, it could slam shut by
vibration or wind gusts resulting in
injury.
When loading or unloading luggage in
the trunk, turn off the engine. Otherwise,
you could get burned by the heat of the
exhaust gas.
▼ Opening and Closing the Trunk Lid
Opening the trunk lid
Using the remote release button
Push the remote release button.

Using the electric trunk lid opener
(With the advanced keyless function)
A locked trunk lid c
an also be opened
while the key is being carried.
Press the electric trunk lid opener on the
trunk lid, then raise the trunk lid when the
latch releases.

Electric trunk lid
opener
Before Driving
Doors and Locks
3-16
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry in to the vehicle, which
could result in the veh icle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼ Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.
Forcing open a door, the hood or the
trunk lid.
Opening the hood by operating the hood
release handle.
Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activat e until the driver's
door or the trunk lid is unlocked with the
transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash when the battery is
charged or replaced.
▼ How to Arm the System
1. Close the windows and the moonroof*
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the trunk lid are closed.
4. Press the lock button on the transmitter or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
NOTE
The theft-deterrent system can also be
armed by activating the auto relock
function with all the doors, the trunk lid
and the hood closed.
Refer to Transmitter on page 3-4.
Before Driving
Security System
*Some models.3-37
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
Unlocking any door.
Opening any door.
Opening the hood.
Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by pressing
the lock button on the transmitter or
using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
▼ To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the
doors.
The hazard warning lights will flash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the sy stem is turned off.
▼To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
Pressing the unlock button or the trunk
button on the transmitter.
Starting the engine w
ith the push button
start.
(With the advanced keyless function)
Pressing a request switch on the
doors.
Pressing the electric trunk lid opener
while the key is being carried.
The hazard warning ligh ts will flash twice.
Before Driving
Security System
3-38
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Ignition Switch
▼Push Button Start Positions
The system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches
in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
Push button start
NOTE
The engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch
the ignition position, press the push
button start without depressing the
pedal.
Do not leave the ignition switched ON
while the engine is not running. Doing
so could result in the battery going
dead. If the ignition is left in ACC (For
automatic transaxle, the selector lever is
in the P position, and the ignition is in
ACC), the ignition switches off
automatically after about 25 minutes.
Off
The power supply to electrical devices
turns off and the push button start
indicator light (amber) also turns off.
WA R N I N G
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the selector lever is in
P (automatic transaxle) position or in 1st
gear or R (manual transaxle):
Leaving the driver's seat without switching
the ignition off, setting the parking brake,
and shifting the selector lever to P
(automatic transaxle) position or to 1st
gear or R (manual transaxle) is dangerous.
Unexpected vehicle movement could occur
which could result in an accident.
In addition, if your intention is to leave the
vehicle for even a short period, it is
important to switch the ignition off, as
leaving it in another position will disable
some of the vehicle's security systems and
run the battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber) illuminates.
NOTE
The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.
ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
When Driving
Start/Stop Engine
4-4
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

SignalWarning
(Amber)
KEY Warning Indi‐
cation
*
“Keyless System Malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the message is indicated, or the push button start indicato r light (amber) flashes, the en‐
gine may not start. If the engine cannot be started, try starting it using the emergency oper‐
ation for starting the engine, and have the vehicle inspected at an Authorized Mazda Deal‐
er as soon as possible.
Refer to Emergency Operation for St arting the Engine on page 4-10.
“Ignition is On” is displayed
This message is displayed when the driver's door is opened with out switching the ignition
off.
“Key Not Detected” is displayed
This message is displayed when any of the following operations is performed with the key
out of the operational range or placed in areas inside the cabi n where it is difficult for the
key to be detected.
The push button start is pressed with the ignition switched offThe ignition is switched onAll doors are closed without switching the ignition off
(Red)
(Turns on)
KEY Warning
Light
*
If any malfunction occurs in th e keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light (amber)
flashes, the engine may not start. If the engine cannot be started, try starting it using the
emergency operation for starting the engine, and have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
Refer to Emergency Operation for St arting the Engine on page 4-10.
(Amber)
High Beam Control System (HBC)
Warning Indication/
Wa r n i n g L i g h t
*
The light remains turned on if th ere is a problem with the system. Have your vehicle in‐
spected at an Authorized Mazda Dealer.
NOTE
If the Forward Sensing Camera (FSC) field of view is impaired during bad weather condi ‐
tions (such as rain, fog, and snow) and when the windshield is dirty, the warning indica‐
tion/warning light for the High Beam Contro l System (HBC) may display/turn on. Howev‐
er, this does not indicate a problem.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-30*Some models.
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

NOTE
To allow the front passenger occupant
classification sensor to function
properly, do not place and sit on an
additional seat cushion on the front
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
front passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.
To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference.
If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Rear seat
The warning beep only sounds if a seat
belt is unfastened after being fastened.
▼ Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will be
heard continuously in the cabin to notify
the driver that the
ignition has not been
switched OFF (STOP). Under this
condition, the keyles s entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
▼ Key Removed from Vehicle Warning
Beep
Vehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside the
vehicle will be
heard 6 times.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor si gnal reception area.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-43
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

▼Request Switch Inoperable Warning
Beep (With the advanced keyless
function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried, a
beep will be heard outside for about 2
seconds to notify the driver that the door
or trunk lid cannot be locked.
▼Key Left-in-trunk Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the trunk with all the
doors locked and the trunk lid closed, a
beep will be heard outside for about 10
seconds to notify the driver that the key is
in the trunk. In this case, take out the key
by pressing the electric trunk lid opener
and opening the trunk lid. The key taken
out of the trunk may not operate because
its functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure (page
3-7).
▼Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and trunk are locked using
another key while the key is left in the
cabin, the beep which sounds outside of
the vehicle will be heard for about 10
seconds to notify the driver that the key is
in the cabin. In this case, take out the key
by opening the door. A key taken out of
the vehicle using this method may not
operate because its functions have been
temporarily stopped. To restore the key's
functions, perform the applicable
procedure (page 3-7).
▼ Power Steering Warning Buzzer
If the power steer
ing system has a
malfunction, the power steering
malfunction indication/malfunction
indicator light turns on or flashes and the
buzzer operates at the same time.
Refer to Stop Vehicle in Safe Place
Immediately on page 7-23.
▼ Electric Parking Brake (EPB)
Warning Beep
The warning buzzer is activated under the
following conditions:
The vehicle is driven with the parking
brake applied.
The Electric Parking Brake (EPB)
switch is pulled while the vehicle is
driven.
▼Tire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds if the tire pressures
decrease.
Refer to Tire Pressure Monitoring System
on page 4-220.
▼AUTOHOLD Warning Beep
Warning light flashes/m
essage is displayed
and beep sound is activated
simultaneously for about 5 seconds when
using AUTOHOLD function or when
AUTOHOLD switch is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-44
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

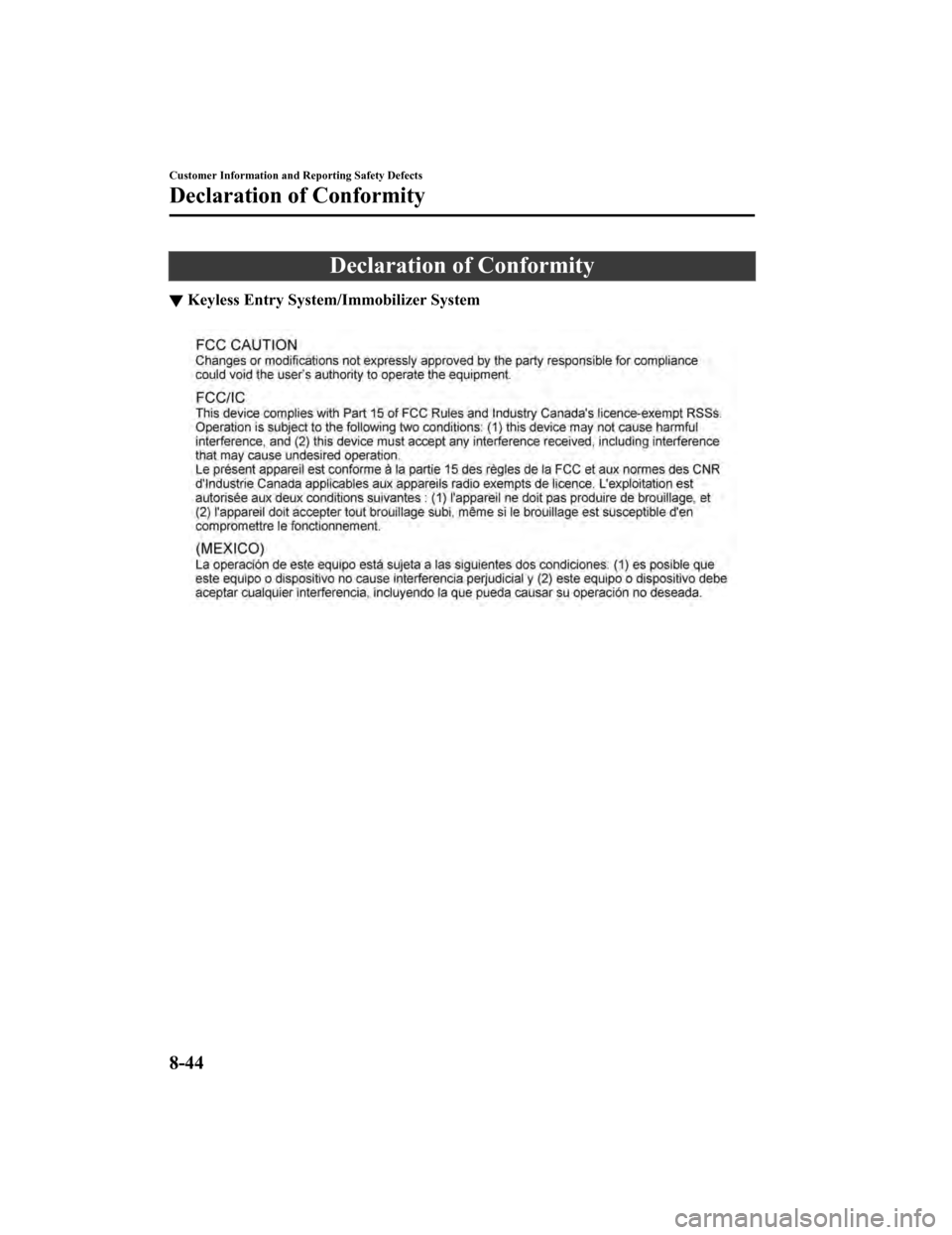

Declaration of Conformity
▼Keyless Entry System/Immobilizer System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-44
Mazda6_8HK6-EA-19A_Edition1
2018-11-15 9:36:06

Personalization Features
▼Changeable System Settings/Equipment List
Safety Equipment (page 9-11)
Advanced Smart City Brake Support (Advanced SCBS)
Smart City Brake Support (SCBS)
Smart Brake Support (SBS)
Lane-keep Assist System (LAS) & Lane Departure Warning System (
LDWS)
Blind Spot Monitoring (BSM)
Distance Recognition Support System (DRSS)
Traffic Sign Recognition System (TSR)
Vehicle Equipment (page 9-13)
Illuminated entry system
Auto-wiper control
Auto headlight off
Auto-light control
High Beam Control System (HBC)
Adaptive Front Ligh ting System (AFS)
Lights-on reminder
Coming home light
Leaving home light
Turn signal indicator
Three-flash turn signal
Ambient lights
Other Equipment/Functions (page 9-14)
Door locks
Keyless entry system
Advanced keyless entry system
Active Driving Display
Fuel Economy Monitor
Display
Sound quality
Clock
Each system
Daytime running lights
Rear window defogger
Specifications
Personalization Features
9-10
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06
