Page 680 of 702
![MAZDA MODEL 6 2020 Owners Manual (in English) Method for changing functions using the center display
1. Select
on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you want to change.
MAZDA MODEL 6 2020 Owners Manual (in English) Method for changing functions using the center display
1. Select
on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you want to change.](/img/28/13472/w960_13472-679.png)

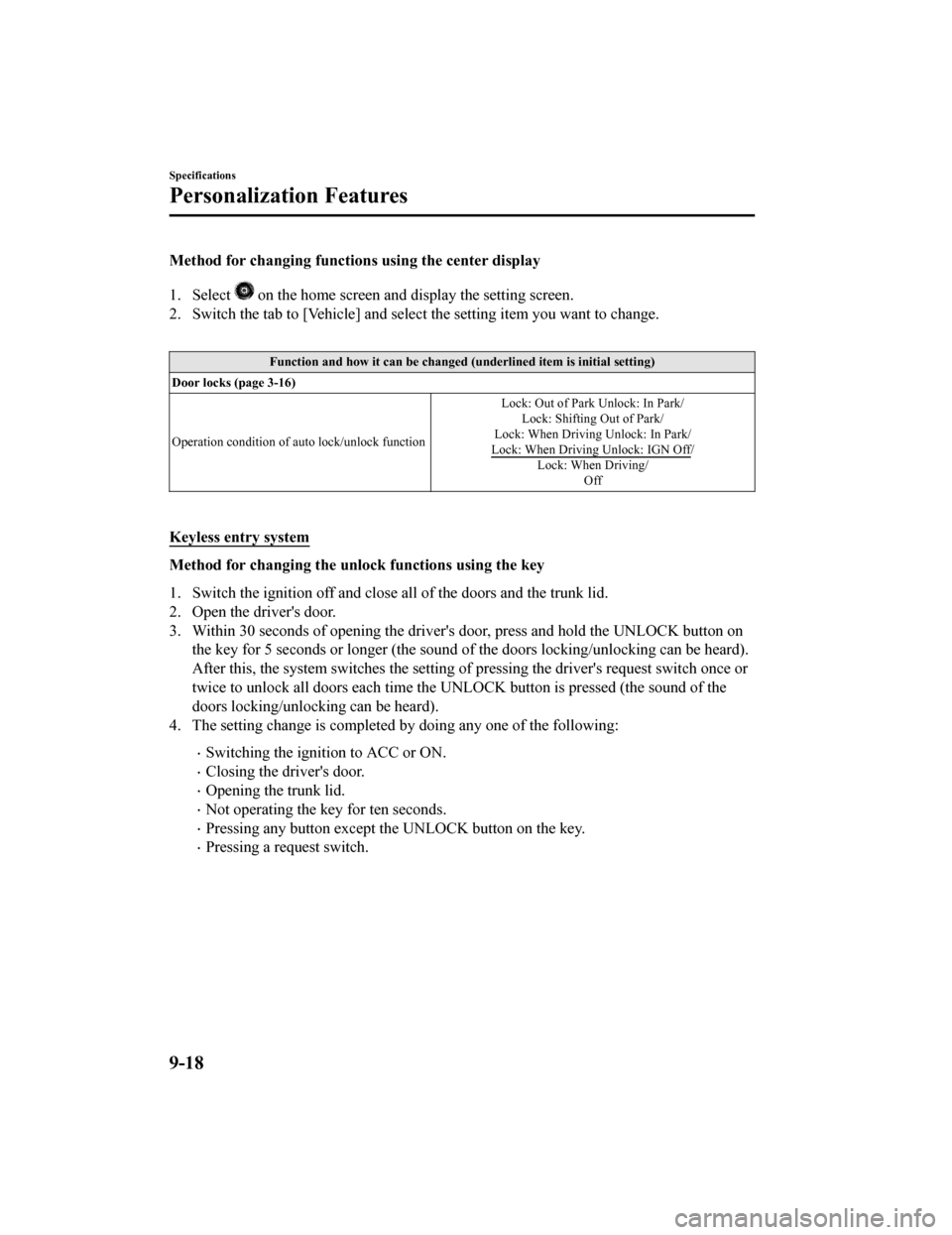

Method for changing functions using the center display
1. Select
on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you want to change.
Function and how it can be changed (underlined item is initial setting)
Door locks (page 3-16)
Operation condition of auto lock/unlock function Lock: Out of Park
Unlock: In Park/
Lock: Shifting Out of Park/
Lock: When Driving Unlock: In Park/
Lock: When Driving Unlock: IGN Off
/
Lock: When Driving/ Off
Keyless entry system
Method for changing the unlo ck functions using the key
1. Switch the ignition off and close all of the doors and the tr unk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's door, press and hol d the UNLOCK button on
the key for 5 seconds or longer (the sound of the doors locking /unlocking can be heard).
After this, the system switches the setting of pressing the driver's request switch once or
twice to unlock all doors each time the UNLOCK button is presse d (the sound of the
doors locking/unlocki ng can be heard).
4. The setting change is completed by doing any one of the follo wing:
Switching the ignition to ACC or ON.
Closing the driver's door.
Opening the trunk lid.
Not operating the key for ten seconds.
Pressing any button except the UNLOCK button on the key.
Pressing a request switch.
Specifications
Personalization Features
9-18
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
Page 681 of 702
![MAZDA MODEL 6 2020 Owners Manual (in English) Method for changing functions using the center display
1. Select
on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you w ant to change.
Fu MAZDA MODEL 6 2020 Owners Manual (in English) Method for changing functions using the center display
1. Select
on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you w ant to change.
Fu](/img/28/13472/w960_13472-680.png)
Method for changing functions using the center display
1. Select
on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you w ant to change.
Function and how it can be changed (underlined item is initial setting)
Keyless entry system (page 3-4)
Method for unlocking door using transmitter All Doors: Once/Driv er's: Once, All Doors: Twice
Time for locking door automatically 90 seconds/60 seconds/30 seconds
Advanced keyless entry system
Method for changing the unloc k functions using the key
1. Switch the ignition off and close all of the doors and the tr unk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's door, press and hol d the UNLOCK button on
the key for 5 seconds or longer (the sound of the doors locking /unlocking can be heard).
After this, the system switches the setting of pressing the dri ver's request switch once or
twice to unlock all doors each time the UNLOCK button is presse d (the sound of the
doors locking/unlocking can be heard).
4. The setting change is completed by doing any one of the follo wing:
Switching the ignition to ACC or ON.
Closing the driver's door.
Opening the trunk lid.
Not operating the key for ten seconds.
Pressing any button except the UNLOCK button on the key.
Pressing a request switch.
How to change the volume of the door lock/unl ock beep sound
1. Switch the ignition off and close all of the doors and the tr unk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's door, press and hol d the LOCK button on the
key for 5 seconds or longer. (All of the doors and the liftgate are locked and unlocked
when the LOCK button on the key is pressed and held for 5 secon ds.)
The beep sound activates at the currently set volume. The setti ng changes each time the
LOCK button on the key is pressed and the beep sound activates at the set volume. (If
the beep sound has been set to not activate, it will not activa te.)
4. The setting change is completed by doing any one of the follo wing:
Switching the ignition to ACC or ON.
Closing the driver's door.
Specifications
Personalization Features
9-19
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
Page 693 of 702

Index
Headlight flashing....................... 4-81
High-low beam............................ 4-81
Leaving home light..................... 4-82
Leveling....................................... 4-82
Head Restraint................................... 2-17
High Beam Control System
(HBC).............................................. 4-124 High Beam Control System (HBC)
indicator light (green)................ 4-125
Hill Launch Assist (HLA).............. 4-107
HomeLink Wireless Control System
(Type A)............................................ 4-90
HomeLink Wireless Control System
(Type B)............................................ 4-93
Hood Release.................................... 6-21
Horn...................................................4-89
I
If a Warning Light Turns On or
Flashes............................................... 7-25
If the Active Driving Display Does Not
Operate.............................................. 7-51
Ignition
Switch............................................ 4-4
Ignition Not Switched Off (STOP)
Warning Beep.................................... 7-46
Illuminated Entry System................. 5-87
Immobilizer System.......................... 3-40
Inside Trunk Release Lever.............. 3-20
Inspecting Brak e/Clutch Fluid
Level.................................................. 6-31
Inspecting Coolant Leve l.................. 6-29
Inspecting Engine Oil Level............. 6-28
Inspecting Washer Fluid Level......... 6-32
Instrument Cluster...... ....................... 4-13
Instrument Cluster (Type A)........4-14
Instrument Cluster (Type B)........4-32
Instrument Cluster (Type C)........4-50
Instrument Cluster (Type A)............. 4-14 Average Fuel Economy............... 4-22
Blind Spot Monitoring (BSM)
Display......................................... 4-23
Compass Display......................... 4-25
Cruise Control Set Vehicle Speed
Display......................................... 4-25
Current Fuel Econo my................ 4-22
Dashboard Illumina tion............... 4-20
Distance Recognition Support System
(DRSS) Display........................... 4-24
Distance-to-empty....................... 4-22
Engine Coolant Temperature
Gauge........................................... 4-19
Fuel Gauge.................................. 4-19
Indication/Indicator Lights.......... 4-28
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Display..........................4-24
Maintenance Monitor.................. 4-23
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) D isplay.......4-24
Message Display..........................4-25
Message Indicated in Multi-
information Display (Type A)..... 7-41
Multi-information Display (Type
A)................................................. 4-15
Odometer..................................... 4-18
Outside Temperature Display...... 4-21
Remaining Diesel Exhaust Fluid
(DEF) and Maximum Driving
Distance Display..........................4-23
Speedometer................................ 4-14
Speed Unit Selector..................... 4-21
Tachometer.................................. 4-14
Traffic Sign Recognition System
(TSR) Display..............................4-24
Trip Meter....................................4-18
Warning Indication/Warning
Lights........................................... 4-26
Instrument Cluster (Type B)............. 4-32
Average Fuel Economy............... 4-39
10-5
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
Page 698 of 702

Index
To w i n gRecreational towing.....................3-52
Trailer towing.............................. 3-52
Towing Description........................... 7-22
Traction Control System (TCS)...... 4-110
TCS/DSC indicator light........... 4-110
Traffic Sign Recognition System
(TSR)............................................... 4-133
Trouble Battery runs out........................... 7-15
Emergency starting...................... 7-18
Emergency towing....................... 7-22
Flat tire.......................................... 7-3
Overheating................................. 7-20
Parking in an emergency............... 7-2
Warning/indicator lights and warning
sounds.......................................... 7-25
When trunk lid cannot be
opened..........................................7-50
Trunk Lid.......................................... 3-18 Inside trunk release lever............ 3-20
When trunk lid cannot be
opened..........................................7-50
Turn and Lane-Change Signals......... 4-83
Turn Signals...................................... 4-83
U
USB Power Outlet............................ 5-89
V
Vanity Mirrors................................... 5-83
Vehicle Information Labels................. 9-2
W
Warning Sound is Activated............. 7-45 Air bag/seat belt pr etensioner system
warning beep............................... 7-45
AUTOHOLD Warning Beep....... 7-47
Blind Spot Monitoring (BSM)
warning beep............................... 7-48
Collision warning...... .................. 7-49
Electric Parking Brake (EPB)
Warning Beep.............................. 7-47
Excessive speed warning.............7-49
Ignition not switched off (STOP)
warning beep............................... 7-46
Key left-in-trunk warning beep (With
the advanced keyless function).... 7-47
Key left-in-vehicle warning beep
(With the advanced keyless
function).......................................7-47
Key removed from vehicle warning
beep..............................................7-46
Lane Departure Warning sound... 7-48
Lights-on reminder...................... 7-45
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) system
warnings.......................................7-49
Power steering warning buzzer....7-48
Request switch inoperable warning
beep (With the advanced keyless
function).......................................7-47
Seat belt warning beep................ 7-45
Selective Catalytic Reduction (SCR)
Warning Beep.............................. 7-48
Tire inflation pressure warning
beep..............................................7-48
Warning/Buzzer................................. 7-25
Warranty............................................ 8-17
Weights................................................ 9-6
Windows Power windows........................... 3-34
Windshield Washer........................... 4-87
Windshield Wipers............................ 4-84
Windshield Wiper De-icer................ 4-88
Winter Driving.................................. 3-46
Wiper
Replacing windshield wiper
blades........................................... 6-38
10-10
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
