Black plate (171,1)
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
A/C switch
Push the switch to turn the air conditioner
on. The indicator light on the switch will
illuminate when the fan control dial is set
at position 1, 2, 3, or 4.
Push the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Air intake selector
This switch controls the source of air
entering the vehicle.
Press the switch to alternate between the
andpositions. The indicator
light for the selected mode will illuminate.
It is recommended that under normal
conditions the switch be kept in the
outside air position.
Outside air position (
)
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
Recirculated air position (
)
Outside air is shut off. Air within the
vehicle is recirculated.
This position can be used when driving on
a dusty road or in similar conditions. It
also helps to provide quicker cooling of
the interior.
Interior Comfort
Climate Control System
6-7
Mazda6_8T12-EA-03K_Edition1 Page171
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (172,1)
WARNING
The Recirculated Air Position:
Using theposition in cold or
rainy weather will cause the windows
to fog up. Your vision will be
hampered, which could lead to a
serious accident. Do not use the
position in cold or rainy weather.
Rear window defroster switch
When using the rear window defroster
switch, refer Rear Window Defroster
(page 5-42).
qHeating
1. Set the mode selector dial to theposition.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
hot position.
4. Set the fan control dial to the desired
speed.
5. If dehumidified heating is desired, turn
on the air conditioner.
NOTE
lIf the windshield fogs up easily, set
the mode selector dial to the
position.
lIf cooler air is desired at face level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
lThe air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
qCooling (With Air Conditioner)
1. Set the mode selector dial to theposition.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner.
5. Adjust the fan control dial and
temperature control dial to maintain
maximum comfort.
CAUTION
When using the air conditioner while
driving up long hills or in heavy traffic,
closely monitor the temperature gauge
(page 5-25).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner off.
6-8
Interior Comfort
Climate Control System
Mazda6_8T12-EA-03K_Edition1 Page172
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (173,1)
NOTE
lWhen maximum cooling is desired,
set the temperature control dial to the
extreme cold position and set the air
intake selector to the
position,
then set the fan control dial to
position 4.
lIf warmer air is desired at floor level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
lThe air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
qVentilation
1. Set the mode selector dial to theposition.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
qWindshield Defrosting and
Defogging
1. Set the mode selector dial to theposition.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed.
WARNING
Foggy Windshield:
Using theposition with the
temperature control set to the cold
position will cause the outside of the
windshield to fog up. Your vision will
be hampered, which could lead to a
serious accident. Set the temperature
control to the hot or warm position
when using the
position.
NOTE
lFor maximum defrosting, set the
temperature control dial to the
extreme hot position and the fan
control dial to position 4.
lIf warm air is desired at the floor, set
the mode selector dial to the
position.
lIn theorposition, air
conditioning is automatically turned
on to defrost the windshield quickly
(however, the indicator light does not
illuminate) and the
position is
automatically selected. The air intake
selector switch cannot be changed to
the
position.
qDehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the
position.
Interior Comfort
Climate Control System
6-9
Mazda6_8T12-EA-03K_Edition1 Page173
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (174,1)
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. Turn on the air conditioner.
6-10
Interior Comfort
Climate Control System
Mazda6_8T12-EA-03K_Edition1 Page174
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (175,1)

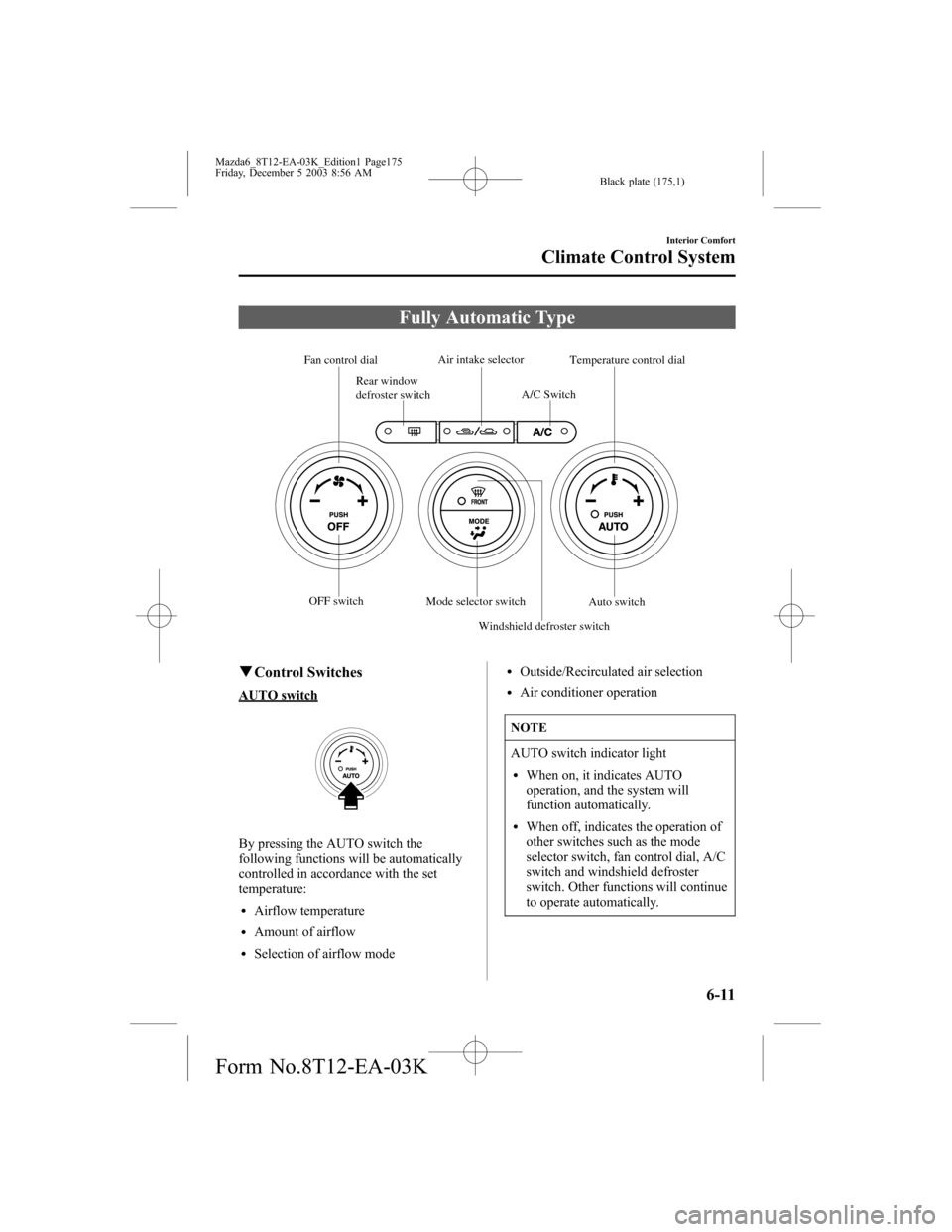

Fully Automatic Type
Rear window
defroster switch
Windshield defroster switchA/C Switch
Auto switch OFF switch
Mode selector switch Fan control dial Temperature control dialAir intake selector
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperature
lAmount of airflow
lSelection of airflow mode
lOutside/Recirculated air selection
lAir conditioner operation
NOTE
AUTO switch indicator light
lWhen on, it indicates AUTO
operation, and the system will
function automatically.
lWhen off, indicates the operation of
other switches such as the mode
selector switch, fan control dial, A/C
switch and windshield defroster
switch. Other functions will continue
to operate automatically.
Interior Comfort
Climate Control System
6-11
Mazda6_8T12-EA-03K_Edition1 Page175
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (176,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot Cold
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
High Low
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set toposition and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature
will flow through the central, left and
right vents.
lTo set the air vent to, press the
windshield defroster switch.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
6-12
Interior Comfort
Climate Control System
Mazda6_8T12-EA-03K_Edition1 Page176
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (177,1)
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F). (Indicator
remains on even when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position (
)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (
)
Use this position for normal conditions
and defogging.
WARNING
The Recirculated Air Position:
Using theposition in cold or
rainy weather will cause the windows
to fog up. Your vision will be
hampered, which could lead to a
serious accident. Do not use the
position in cold or rainy weather.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
Rear window defroster switch
When using the rear window defroster
switch, refer Rear Window Defroster
(page 5-42).
qStandard Use
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
Hot Cold
Interior Comfort
Climate Control System
6-13
Mazda6_8T12-EA-03K_Edition1 Page177
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (178,1)
To turn off the system, press the OFF
switch.
NOTE
lFor an optimal cabin temperature, set
the temperature close to 25.0°C
(77.0°F). Adjust to the desired
temperature if necessary.
lSetting the temperature to maximum
high or low will not provide the
desired temperature at a faster rate.
lTo prevent cool air blowing from the
vents when heating right after
starting the engine, the amount of
airflow is reduced until the air warms
up.
qWindshield Defrosting and
Defogging
Press the windshield defroster switch.
In this position, theposition is
automatically selected, and the air
conditioner automatically turned on
(however, the indicator light does not
illuminate). The air conditioner will direct
dehumidified air to the front windshield
and side windows (page 6-4). Airflow
amount will be increased.
WARNING
Foggy Windshield:
Using theposition with the
temperature control set to the cold
position will cause the outside of the
windshield to fog up. Your vision will
be hampered, which could lead to a
serious accident. Set the temperature
control to hot or warm position when
using the
position.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly. Don't obstruct
the sensor.
Sunlight sensor
6-14
Interior Comfort
Climate Control System
Mazda6_8T12-EA-03K_Edition1 Page178
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (179,1)
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda6_8T12-EA-03K_Edition1 Page179
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (180,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
Install Remove
CAUTION
To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.
Operating Tips for Audio
System
WARNING
Do Not Adjust Audio While Drivingthe Vehicle:
Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a
serious accident. Always adjust the
audio while the vehicle is stopped.
CAUTION
For the purposes of safe driving, adjust
the audio volume to a level that allows
you to hear sounds outside of the
vehicle.
NOTE
lDo not use the audio for long periods
of time while the engine is off.
Otherwise the battery could go dead.
lIf a digital cellular phone or CB
radio is used in or near the vehicle, it
could cause noise to occur from the
audio system, however, this does not
indicate that the system has been
damaged.
6-16
Interior Comfort
Audio System
Mazda6_8T12-EA-03K_Edition1 Page180
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K
