Page 91 of 250
5-11
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
Overdrive
Overdrive operation
In D, the transaxle automatically shifts to
overdrive, which improves fuel economy
and reduces noise.
To allow engine braking when going
down a steep grade, make sure the
overdrive button is in the off position.
And for a smoother ride with less shifting,
don ’t use it when:
• Going up a steep grade.
• Driving in stop-and-go traffic.
• Pulling heavy loads.
To turn off the overdrive, push the
button.
The transaxle will then shift through a
three-gear sequence in D.
Shift patterns without overdrive: To turn it on, push the button again.
Shift patterns with overdrive:
O/D OFF indicator light
This light comes on when the overdrive
has been turned off.
D
1st, 2nd, 3rd
2 Without Traction
Control System
2nd
With Traction
Control System 1st, 2nd
11st
Overdrive button
D 1st, 2nd, 3rd, 4th
2 Without Traction
Control System
2nd
With Traction
Control System 1st, 2nd
11st
If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.
CAUTION
J94S.book Page 11 Saturday, June 23, 2001 1:04 PM
Page 92 of 250
5-12
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
Driving Tips
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transaxle will
shift to a lower gear, depending on vehicle
speed.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or 1, depending on the load
weight and grade steepness.
3. Release all brakes while gradually accelerating.
Descending steep grades
When descending a steep grade, shift to 2
or 1, depending on load weight and grade
steepness. Descend slowly, using the
brakes only occasionally to prevent them
from overheating. Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.
Power Steering
Never hold the steering wheel to the
extreme left or right for more than five
seconds with the engine running.
This could damage the power steering
system.
CAUTION
J94S.book Page 12 Saturday, June 23, 2001 1:04 PM
Page 93 of 250
5-13
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
With cruise control, you can set and
automatically maintain any speed of more
than about 40 km/h (25 mph).
Cruise Set Indicator Light
This light comes on when a cruising speed
is set.
Activation/Deactivation
To activate the system, push the CRUISE
MAIN switch.
To deactivate the system, push the OFF
end.Cruise Control
Cruise Control Use:Using cruise control in the following
conditions could cause you to lose
control of the vehicle:
•
•• • Heavy or unsteady traffic
•
••
• Slippery or winding roads
•
••
• Similar restrictions that require
inconsistent speed
Don ’t use cruise control in these
situations.
WARNING
Cruise Main Switch:Leaving the CRUISE MAIN switch
on when not using the cruise control
is dangerous as it may be switched on
accidentally. This could result in loss
of vehicle control. Keep the CRUISE
MAIN switch off when cruise control
is not in use.
WARNING
J94S.book Page 13 Saturday, June 23, 2001 1:04 PM

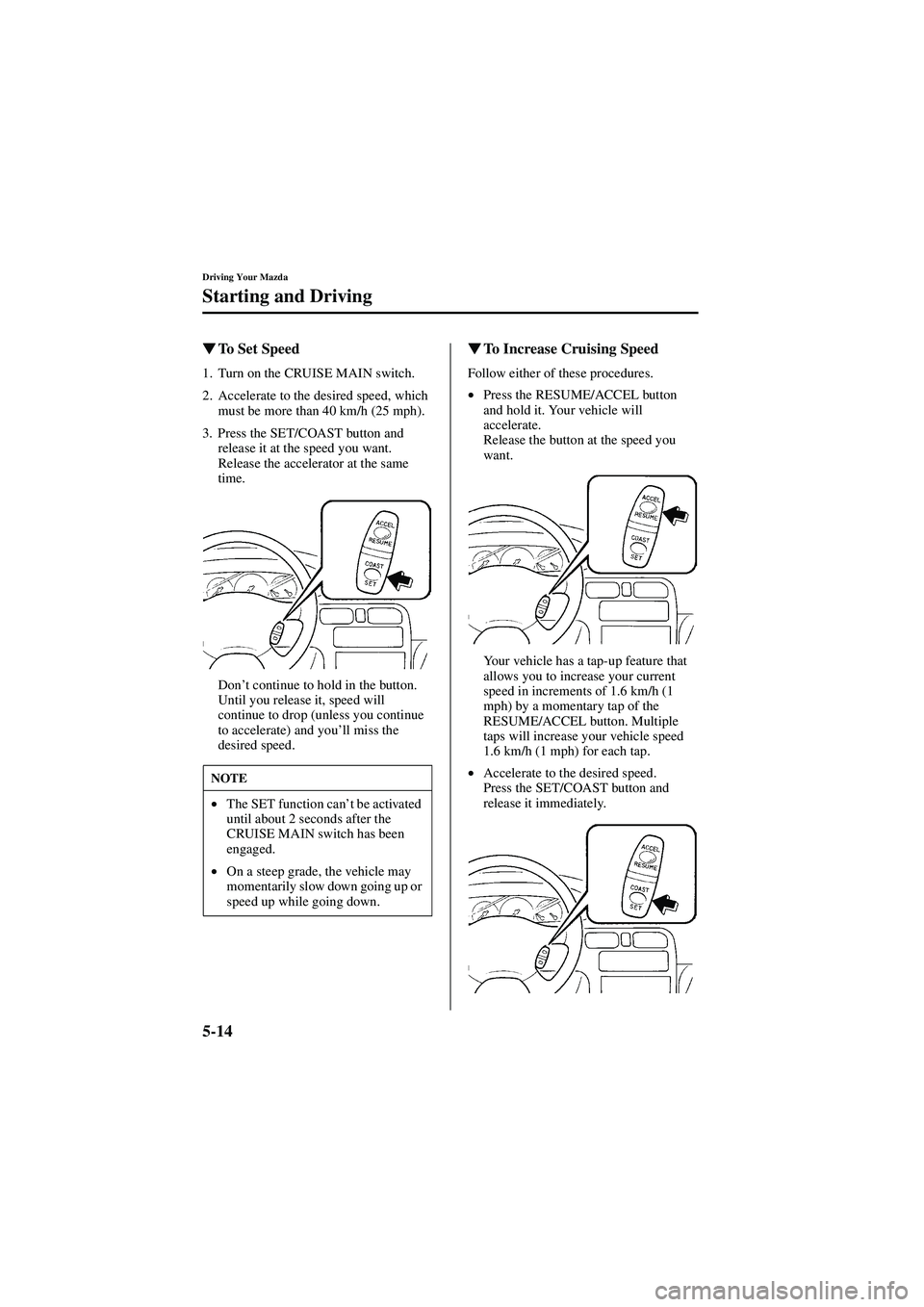

Page 94 of 250
5-14
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
To Set Speed
1. Turn on the CRUISE MAIN switch.
2. Accelerate to the desired speed, which
must be more than 40 km/h (25 mph).
3. Press the SET/COAST button and release it at the speed you want.
Release the accelerator at the same
time.
Don ’t continue to hold in the button.
Until you release it, speed will
continue to drop (unless you continue
to accelerate) and you ’ll miss the
desired speed.
To Increase Cruising Speed
Follow either of these procedures.
• Press the RESUME/ACCEL button
and hold it. Your vehicle will
accelerate.
Release the button at the speed you
want.
Your vehicle has a tap-up feature that
allows you to increase your current
speed in increments of 1.6 km/h (1
mph) by a momentary tap of the
RESUME/ACCEL button. Multiple
taps will increase your vehicle speed
1.6 km/h (1 mph) for each tap.
• Accelerate to the desired speed.
Press the SET/COAST button and
release it immediately.
NOTE
• The SET function can ’t be activated
until about 2 seconds after the
CRUISE MAIN switch has been
engaged.
• On a steep grade, the vehicle may
momentarily slow down going up or
speed up while going down.
J94S.book Page 14 Saturday, June 23, 2001 1:04 PM

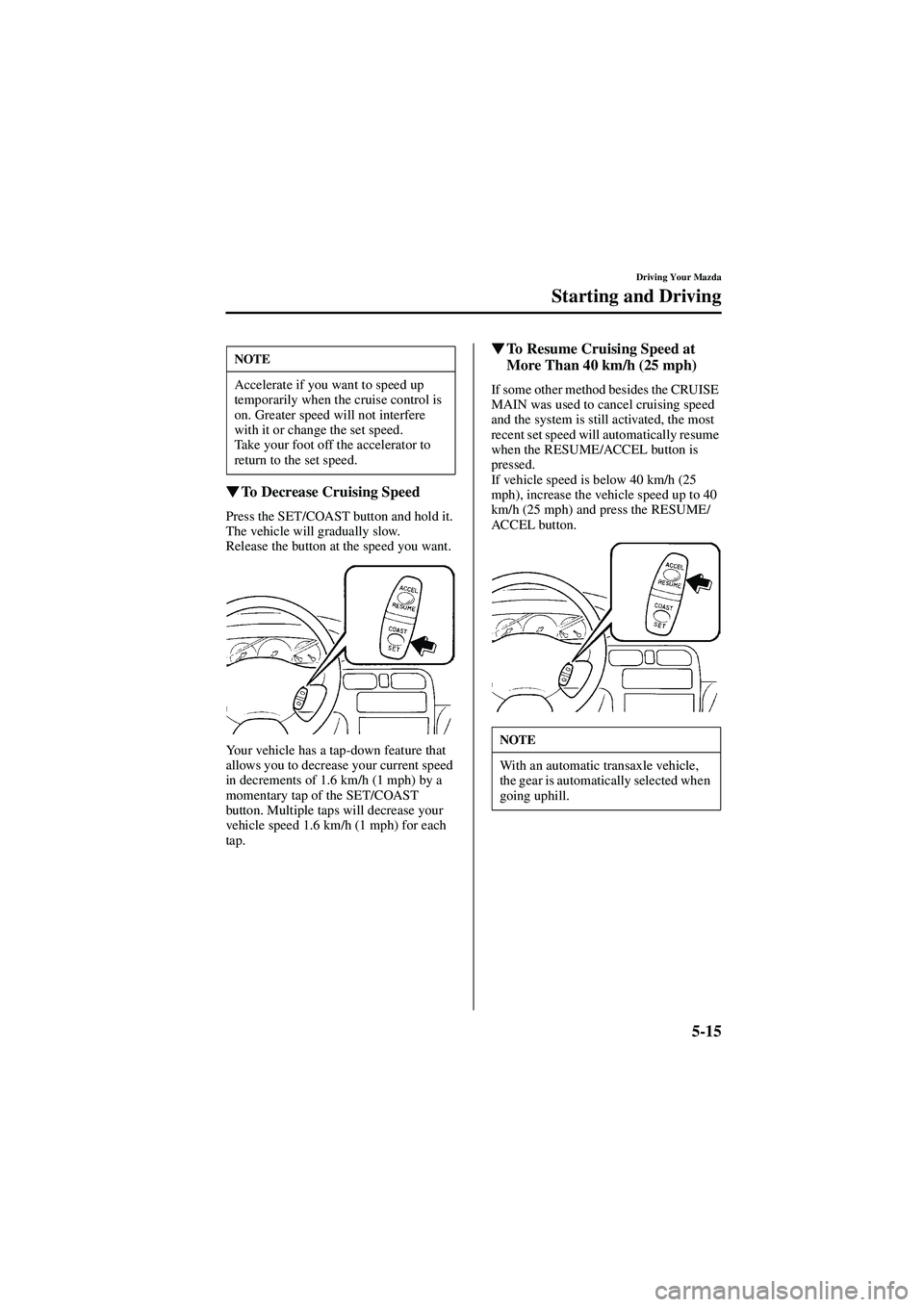

Page 95 of 250
5-15
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
To Decrease Cruising Speed
Press the SET/COAST button and hold it.
The vehicle will gradually slow.
Release the button at the speed you want.
Your vehicle has a tap-down feature that
allows you to decrease your current speed
in decrements of 1.6 km/h (1 mph) by a
momentary tap of the SET/COAST
button. Multiple taps will decrease your
vehicle speed 1.6 km/h (1 mph) for each
tap.
To Resume Cruising Speed at
More Than 40 km/h (25 mph)
If some other method besides the CRUISE
MAIN was used to cancel cruising speed
and the system is still activated, the most
recent set speed will automatically resume
when the RESUME/ACCEL button is
pressed.
If vehicle speed is below 40 km/h (25
mph), increase the vehicle speed up to 40
km/h (25 mph) and press the RESUME/
ACCEL button.
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is
on. Greater speed will not interfere
with it or change the set speed.
Take your foot off the accelerator to
return to the set speed.
NOTE
With an automatic transaxle vehicle,
the gear is automatically selected when
going uphill.
J94S.book Page 15 Saturday, June 23, 2001 1:04 PM
Page 96 of 250
5-16
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
To Cancel
To turn off the system, use one of these
methods:
• Push the OFF end of the CRUISE
MAIN switch.
• Slightly depress the brake pedal.
• (Manual transaxle)
Depress the clutch pedal.
The system is off when the ignition is off. The Traction Control System (TCS)
enhances traction and safety by regulating
engine torque. When the TCS detects
driving wheel slippage, it lowers engine
torque to prevent loss of traction.
This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels
without causing them to spin and lose
traction.
NOTE
Cruise control will cancel at about 15
km/h (9 mph) below the preset speed
or below 40 km/h (25 mph).
Traction Control System
(TCS)
TCS and Unsafe Driving:The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don
’t rely on the traction
control system as a substitute for safe
driving.
TCS and Snow and Ice:
Driving without proper traction
devices on snow and ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident. Use snow
tires or tires chains and drive at
reduced speeds when roads are
covered with ice and snow.
WARNING
J94S.book Page 16 Saturday, June 23, 2001 1:04 PM
Page 97 of 250
5-17
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
TCS Warning Light
This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position. It flashes when the
system regulates engine torque.
If the light stays on, take your vehicle to
an Authorized Mazda Dealer. The traction
control system may have a malfunction.
TCS OFF Indicator Light
This light comes on when the ignition
switch is turned to the ON position.
It goes off when the engine is started. It
also comes on when you switch off the
traction control system or when the
system has a malfunction.
TCS OFF Switch
Push this switch once to turn off the TCS.
Push it again to turn the TCS back on.
NOTE
• In addition to the TCS warning light
flashing, a slight lugging sound will
come from the engine. This
indicates that the traction control
system is operating properly.
• On slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the traction
control system is on.
NOTE
After starting the engine on very cold
days, the TCS OFF indicator will
remain on and TCS will not operate
until the engine is warm.
J94S.book Page 17 Saturday, June 23, 2001 1:04 PM

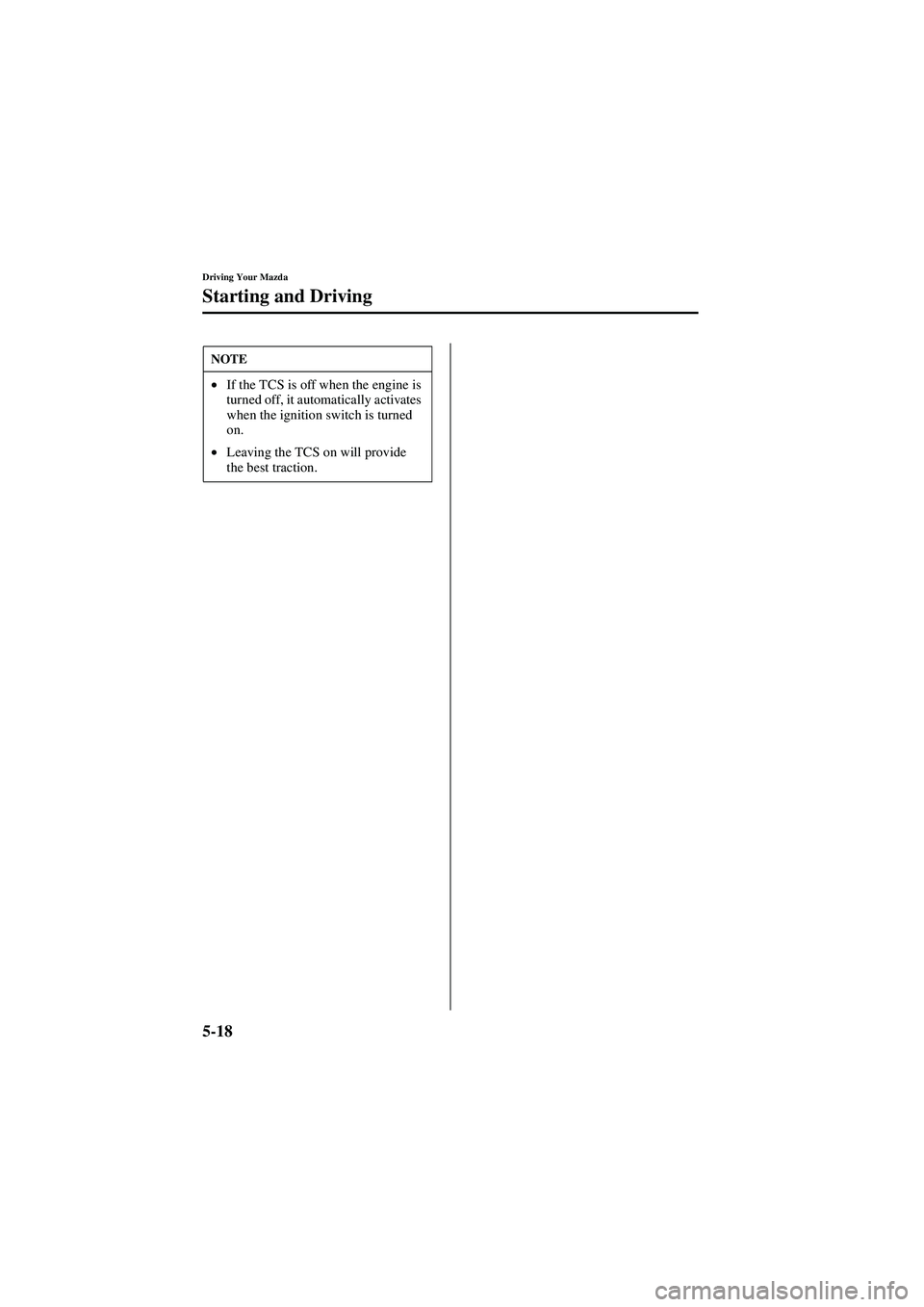

Page 98 of 250
5-18
Driving Your Mazda
Starting and Driving
Form No. 8Q50-EA-01G
NOTE
•If the TCS is off when the engine is
turned off, it automatically activates
when the ignition switch is turned
on.
• Leaving the TCS on will provide
the best traction.
J94S.book Page 18 Saturday, June 23, 2001 1:04 PM
Page 99 of 250
5-19
Driving Your Mazda
Form No. 8Q50-EA-01G
Instrument Cluster and Indicators
1 Speedometer .............................................................................................................5-20
2 Odometer and Trip Meter .........................................................................................5-20
3 Tachometer ...............................................................................................................5-21
4 Engine Coolant Temperature Gauge ........................................................................5-21
5 Fuel Gauge ................................................................................................................5-22
Meters and Gauges
J94S.book Page 19 Saturday, June 23, 2001 1:04 PM
Page 100 of 250
5-20
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q50-EA-01G
Speedometer
The speedometer indicates the speed of
the vehicle.
Odometer and Trip Meter
The ignition switch must be in the ON
position.
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector. The selected mode will be
displayed. Odometer
When this mode is selected, ODO will be
displayed.
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and in to compute fuel
consumption.
Selector
Odometer
Trip meter A Press the selector
Press the selector
Press the selector
Trip meter B
J94S.book Page 20 Saturday, June 23, 2001 1:04 PM
