MAZDA MODEL 626 2002 Owners Manual

7-1
Form No. 8Q50-EA-01G
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ........................................................... 7- 2
Parking in an Emergency ......................................................... 7- 2
Flat Tire ........................................................................................ 7- 3
Spare Tire and Tool Storage .................................................... 7- 3
Changing a Flat Tire ................................................................ 7- 5
Overheating ................................................................................. 7-10
Overheating ............................................................................. 7-10
Emergency Starting .................................................................... 7-12
Starting a Flooded Engine ....................................................... 7-12
Jump-Starting .......................................................................... 7-12
Push-Starting ........................................................................... 7-14
Emergency Towing ...................................................................... 7-15
Towing Description ................................................................. 7-15
Tiedown Hooks ........................................................................ 7-16
Recreational Towing ................................................................ 7-16
J94S.book Page 1 Saturday, June 23, 2001 1:04 PM

7-2
In Case of an Emergency
Form No. 8Q50-EA-01G
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning switch and all
four turn signals will flash at once.
Parking in an Emergency
NOTE
•The turn signals don ’t work when
the hazard warning lights are on.
• Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher switch
J94S.book Page 2 Saturday, June 23, 2001 1:04 PM

7-3
In Case of an Emergency
Form No. 8Q50-EA-01G
Flat Tire
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare Tire and Tool Storage
Spare tire
Tool bag Jack
J94S.book Page 3 Saturday, June 23, 2001 1:04 PM

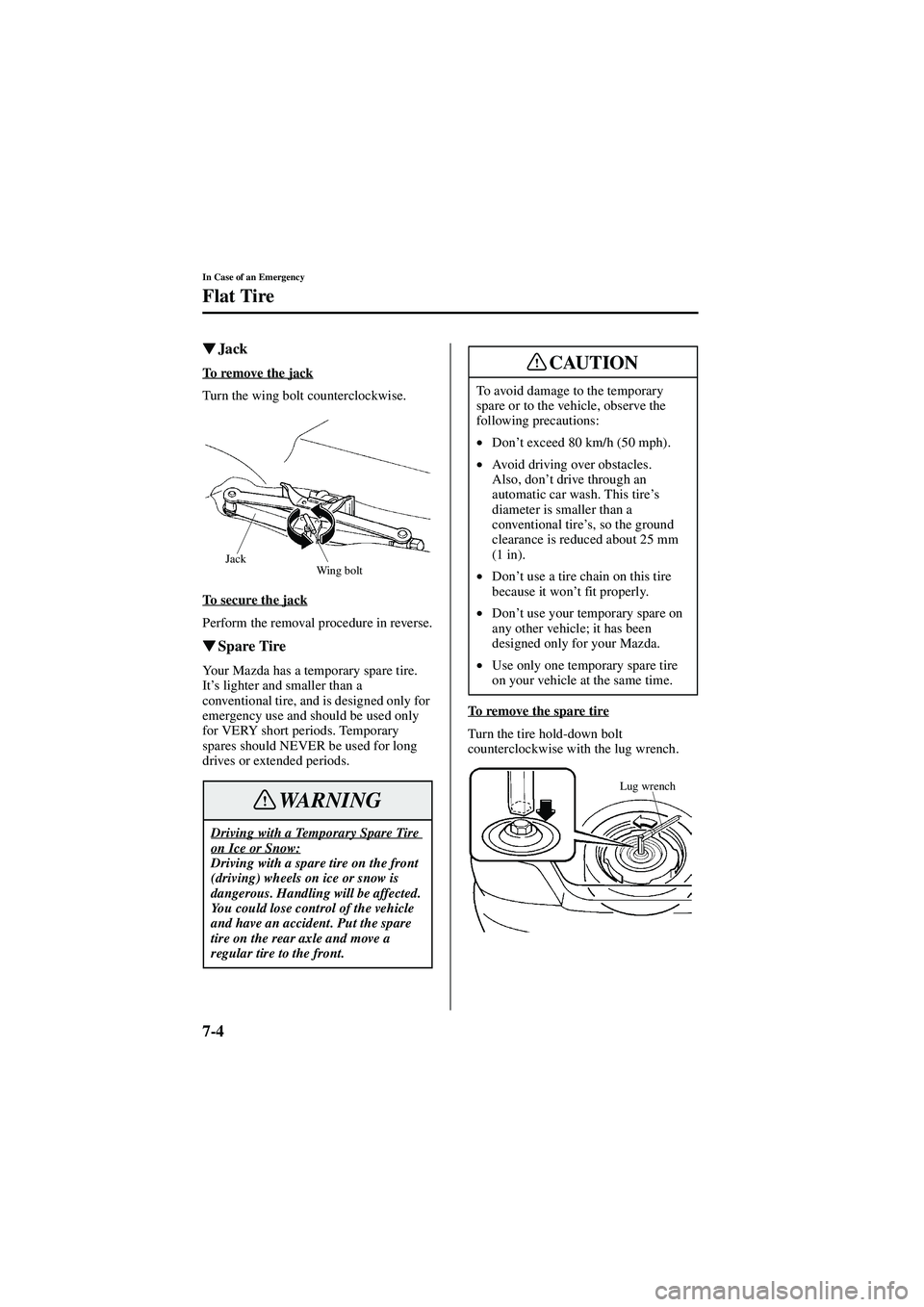

7-4
In Case of an Emergency
Flat Tire
Form No. 8Q50-EA-01G





Jack
To remove the jack
Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.





Spare Tire
Your Mazda has a temporary spare tire.
It’s lighter and smaller than a
conventional tire, and is designed only for
emergency use and should be used only
for VERY short periods. Temporary
spares should NEVER be used for long
drives or extended periods. To remove the spare tire
Turn the tire hold-down bolt
counterclockwise with the lug wrench.
Driving with a Temporary Spare Tire on Ice or Snow:Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
Jack
Wing bolt
WARNING
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•Don ’t exceed 80 km/h (50 mph).
• Avoid driving over obstacles.
Also, don ’t drive through an
automatic car wash. This tire ’s
diameter is smaller than a
conventional tire ’s, so the ground
clearance is reduced about 25 mm
(1 in).
• Don ’t use a tire chain on this tire
because it won ’t fit properly.
• Don ’t use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
• Use only one temporary spare tire
on your vehicle at the same time.
CAUTION
Lug wrench
J94S.book Page 4 Saturday, June 23, 2001 1:04 PM

7-5
In Case of an Emergency
Flat Tire
Form No. 8Q50-EA-01G
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic transaxle in park (P), a manual
transaxle in reverse (R), and turn off
the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When blocking a front
wheel, place the block in front of the
tire. When blocking a rear wheel, place
the block behind the tire.
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
•Steering becomes difficult.
• The vehicle begins to vibrate
excessively.
• The vehicle pulls in one direction.
Jacking a Vehicle:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Jack:Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by jack.
WARNING
NOTE
Make sure the jack is well lubricated
before using it.
J94S.book Page 5 Saturday, June 23, 2001 1:04 PM

7-6
In Case of an Emergency
Flat Tire
Form No. 8Q50-EA-01G





Removing a Flat Tire
1. Pry off the wheel cover with the
beveled end of the lug wrench. 2. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don ’t remove any until the tire has been
raised off the ground.
3. Place the jack under the jacking position closest to the tire being
changed.
NOTE
Force the end of the wrench firmly
between wheel and cover, or removal
will be difficult.
Align the notch on the wheel cover
with the valve stem when installing it.
Damage could occur during
installation if the wheel cover is not
properly aligned.
Lug wrench
Wheel cover
CAUTION
Tire valve
Jacking position
J94S.book Page 6 Saturday, June 23, 2001 1:04 PM

7-7
In Case of an Emergency
Flat Tire
Form No. 8Q50-EA-01G
4. Insert the lug wrench into the jack.5. Turn the lug wrench clockwise until
the tire just clears the ground, less than
25 mm (1 in). Before removing the lug
nuts, make sure your Mazda is firmly
in position and that it cannot slip or
move.
6. Remove the lug nuts by turning them counterclockwise; then remove the
wheel.





Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
Incorrect Jacking Position:Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn ’t designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
WARNING
J94S.book Page 7 Saturday, June 23, 2001 1:04 PM

7-8
In Case of an Emergency
Flat Tire
Form No. 8Q50-EA-01G
2. Mount the spare tire.
3. Install the lug nuts with the beveled edge inward; tighten them by hand. 4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you ’re unsure of how tight the nuts
should be, have them inspected at a
service station.
Nut tightening torque:
Removing Dirt and Grime from Wheels, Hubs and Hub Bolts:When changing or replacing a tire,
not removing dirt and grim from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
Applying Oil and Grease to Lug Nuts, Bolts:Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
N· m (kgf ·m, ft ·lbf) 90 —120 (9—12, 65—87)
WARNING
J94S.book Page 8 Saturday, June 23, 2001 1:04 PM

7-9
In Case of an Emergency
Flat Tire
Form No. 8Q50-EA-01G
5. Store the damaged tire in the trunk. Have the damaged tire repaired as soon
as possible.
Loose Lug Nuts:Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip
off and cause an accident. Be sure to
reinstall the same nuts you removed
or replace them with metric nuts of
the same configuration.
Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don ’t drive with any tires that have
incorrect air pressure. When you
check the regular tires ’ air pressure,
check the spare tire, too.
NOTE
To prevent the jack and tool from
rattling, store them properly.
WARNING
J94S.book Page 9 Saturday, June 23, 2001 1:04 PM

7-10
In Case of an Emergency
Form No. 8Q50-EA-01G
Overheating
If the temperature gauge indicates
overheating, you experience power loss,
or you hear a loud knocking or pinging
noise, the engine is probably too hot.
If this happens:
1. Drive safely to the side of the road and park off the right-of-way.
2. Put a vehicle with an automatic transaxle in park (P), a manual
transaxle in neutral.
Apply the parking brake.
3. Turn off the air conditioner. 4. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment: Don ’t go near the front
of the vehicle. Stop the engine. Then
turn the ignition switch to the ON
position without starting the engine.
The radiator cooling fans will start to
cool the engine.
If neither coolant nor steam is
escaping: Open the hood and idle the
engine until it cools. If this doesn ’t
lower the temperature, stop the engine
and let it cool.
5. Check the coolant level. If it’ s low, look for leaks in the radiator
hoses and connections, heater hoses
and connections, radiator, and water
pump.
If you find a leak or other damage, or if
coolant is still leaking, stop the engine
and call an Authorized Mazda Dealer.
Overheating
Steam from Overheated Engine:Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
Cooling system cap Engine coolant reservoir
2.0-liter engine
J94S.book Page 10 Saturday, June 23, 2001 1:04 PM
